House plan Jordan (3514)
Farmhouse Modern Cottage stye house plan offering lots of natura light, 3 to 4 bedrooms, pantry, fireplace
View the size of the rooms and height of the ceilings

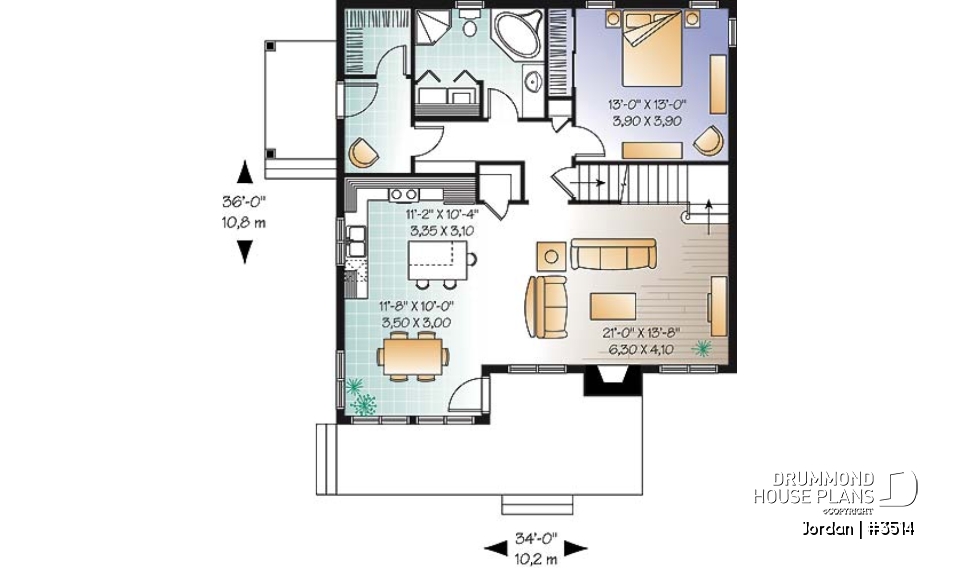

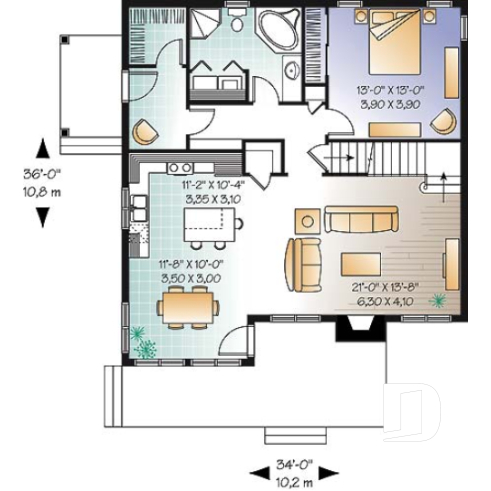

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'8" x 10'4" | ~ 8'6" |
| Dining room | 11'8" x 10'4" | ~ 8'6" |
| Living room | 21'0" x 13'8" | ~ 8'6" |
| Foyer | 5'8" x 8'8" | ~ 8'6" |
| Full bathroom | 11'0" x 9'2" | ~ 8'6" |
| Bedroom | 13'0" x 13'0" | ~ 8'6" |
| Linen | 2'0" x 1'6" | ~ 8'6" |
| Porch | 26'0" x 6'0" | N/A |
| Porch | 6'0" x 10'0" | N/A |

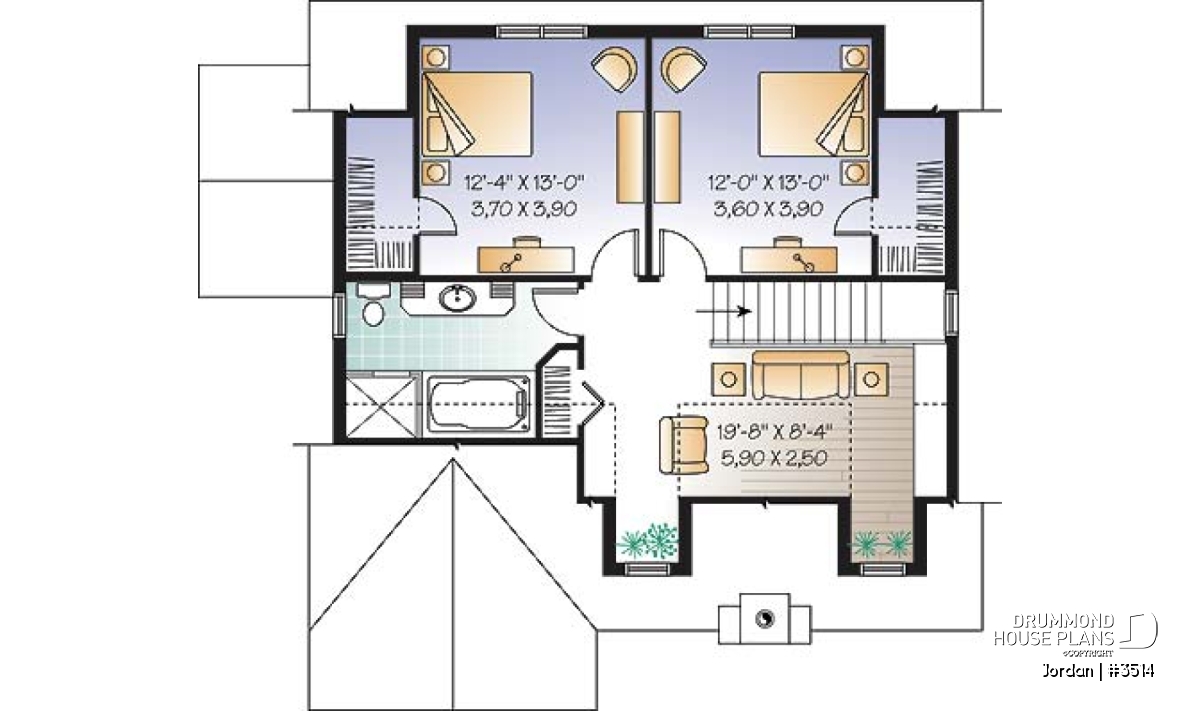

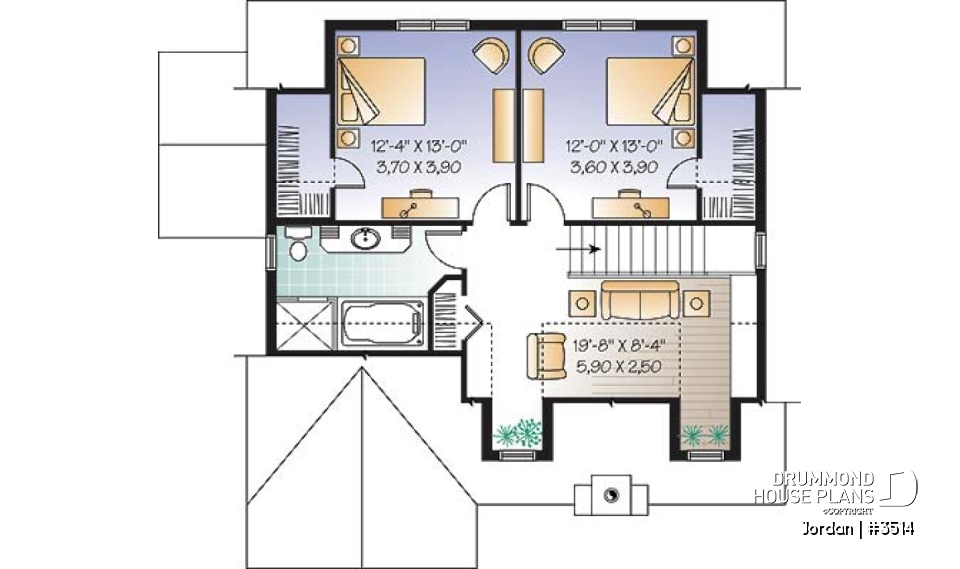

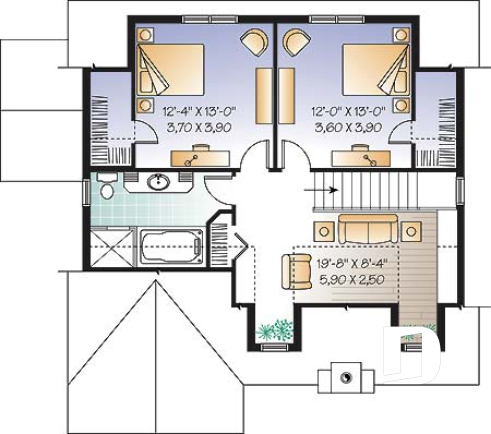

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'4" x 8'6" | ~ 8'0" |
| Bedroom | 12'4" x 13'0" | ~ 8'0" |
| Bedroom | 12'0" x 13'0" | ~ 8'0" |
| Playroom | 19'8" x 8'4" | ~ 8'0" |
General specifications
| Total living area | 1976 sq.ft. |
| 1st level | 1133 sq.ft. |
| 2nd level | 843 sq.ft. |
| Width | 34'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 25'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan

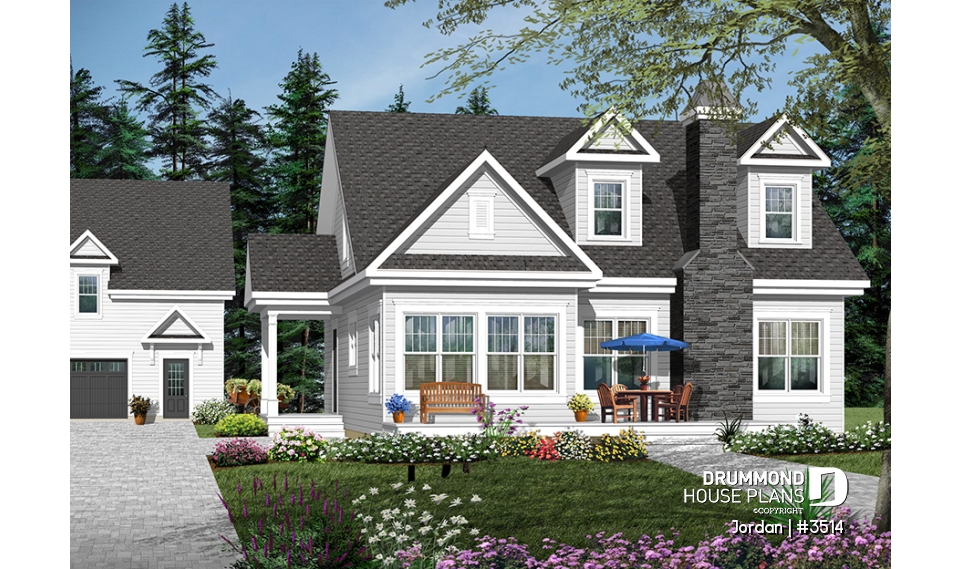

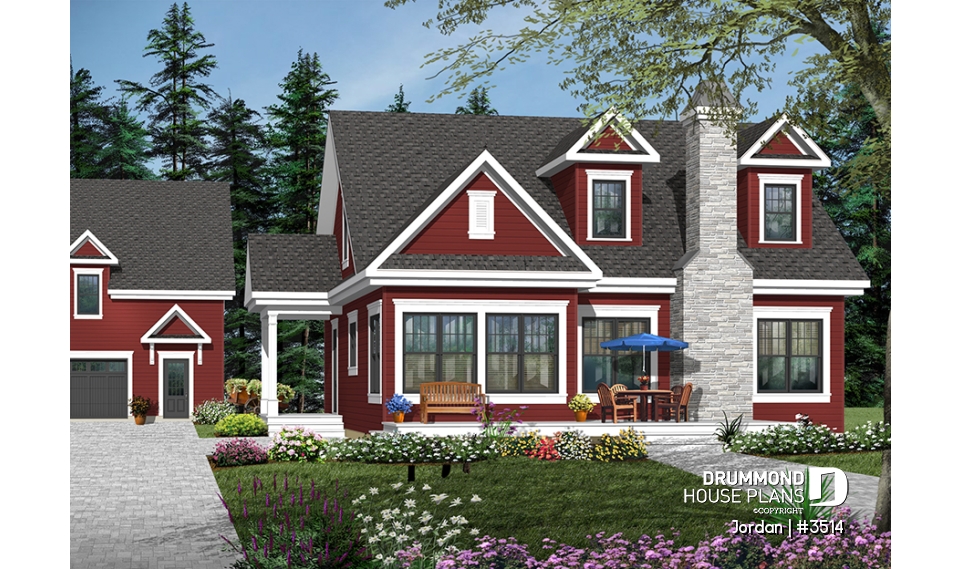

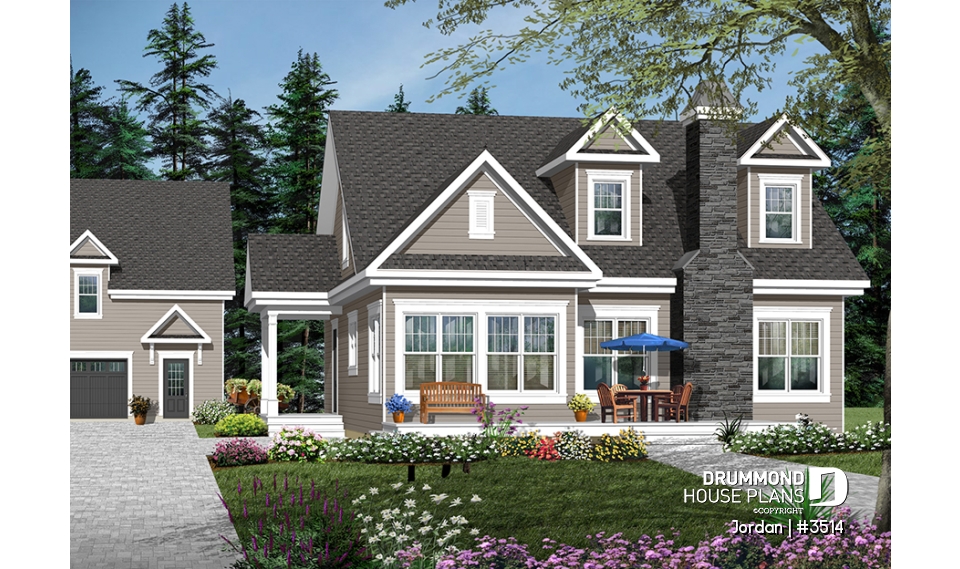

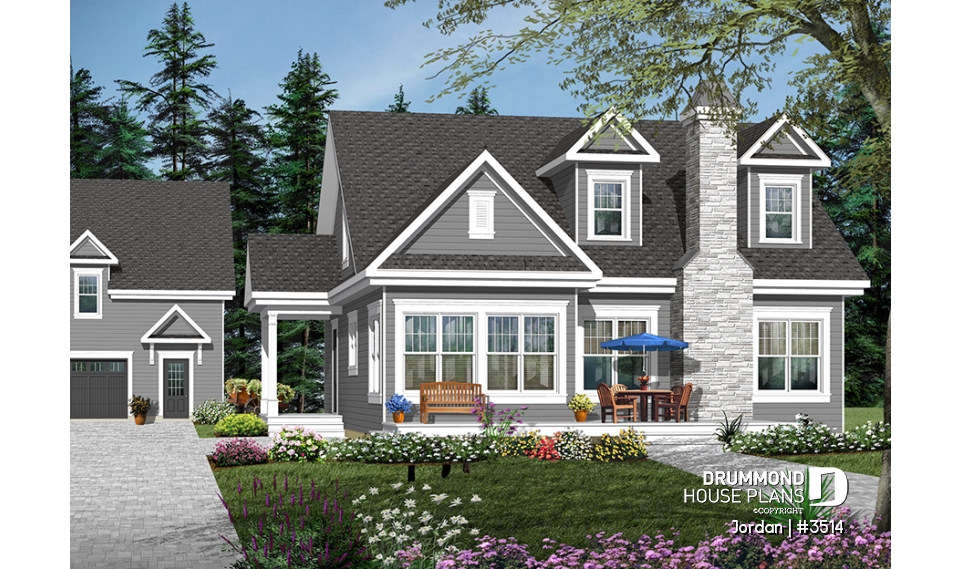

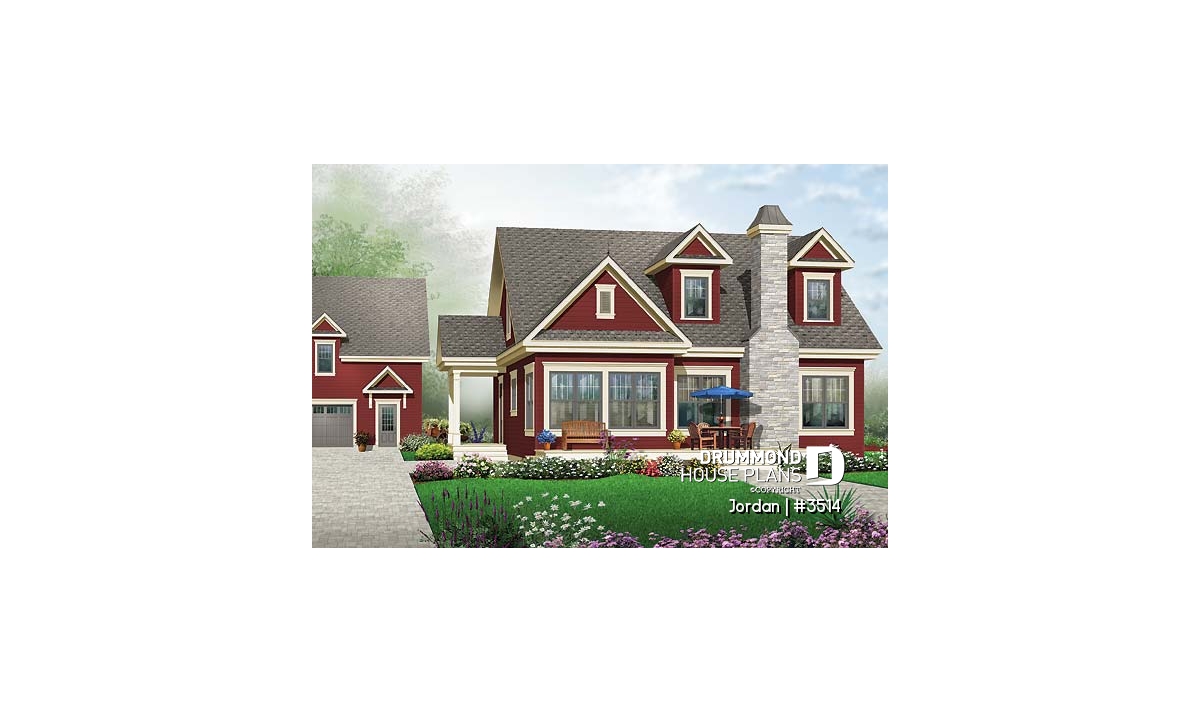

Beautiful Farmhouse Cottage-style house design with panoramic views
Inspired by a lot with a view from the front of the house, the orientation of this home permits a service entrance with walk-in closet that could be used as a mud room and an entirely open floor plan throughout the common area.
The perfect balance of windows is achieved on either side of the fireplace for a solarium feel in the dining room with outdoor access through patio doors to the terrace and the kitchen is compete with a convenient island.
8'6" ceilings throughout the main floor and a master suite with separate bath, corner shower and laundry area are perfect additions to the floor plan of this well thought out home.
The stair configuration leading up to the second floor permits natural light to flow through. Two other bedrooms with abundant closet space along with a second living room under the dormers and a bathroom with shower are extra features designed to enhance the livability of this home.
If you are interested in adding a detached garage, plan 3983 is a perfect fit!
Distinctive elements
Ceiling at 8' 6`` on the first level. Entrance with walk-in closet. Bedroom #1 on the first level has an adjacent full bathroom. Living room with central fireplace. Island lunch-counter in the kitchen and beautifully fenestrated dining room. Two generous secondary bedrooms on the second level and game room adorned with two dormers.
Suggested garage plan no. 3983.
Plan feature(s)
Fireplace, Pantry, Island, Mud room, Master suite on main, Gound floor laundry room, Open floor layout, Separate bath and shower, Ceiling over 8', Sitting area, Sloped ceiling
Plan architectural style(s)
. Country, . Traditional, . Farmhouse, . Rustic, . Cape Cod
