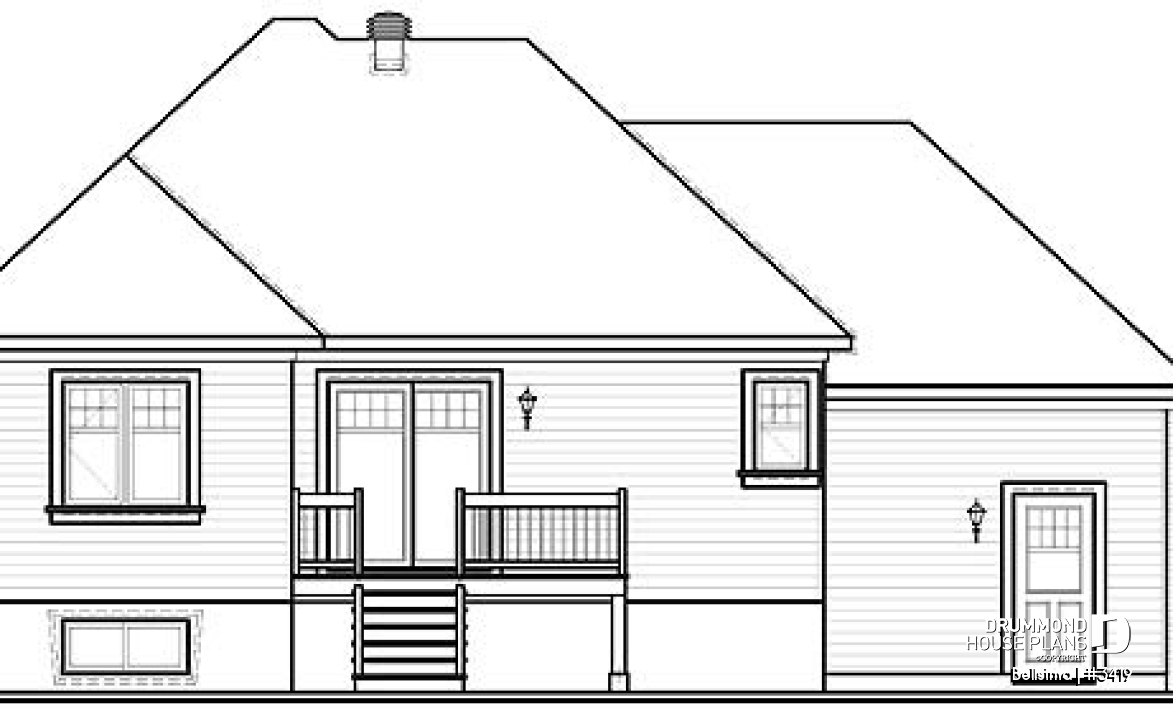

House plan Bellsima (3419)
Split-entry house plan with 2 bedrooms, unfinished daylight basement
View the size of the rooms and height of the ceilings

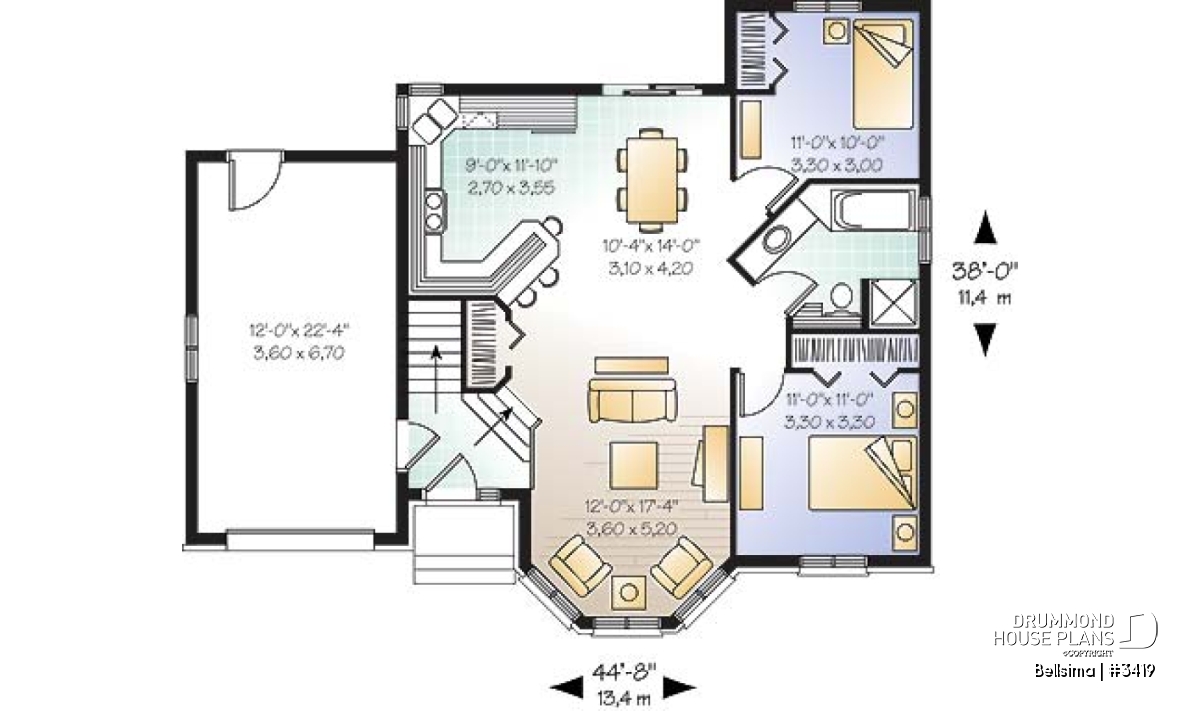

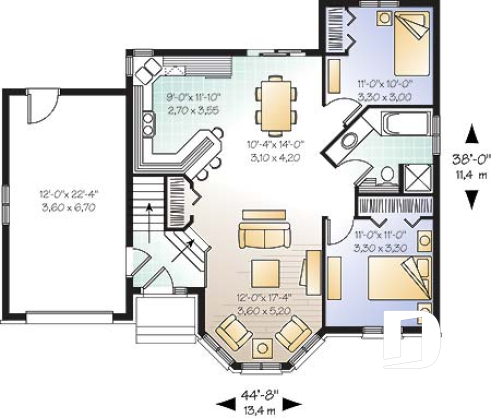

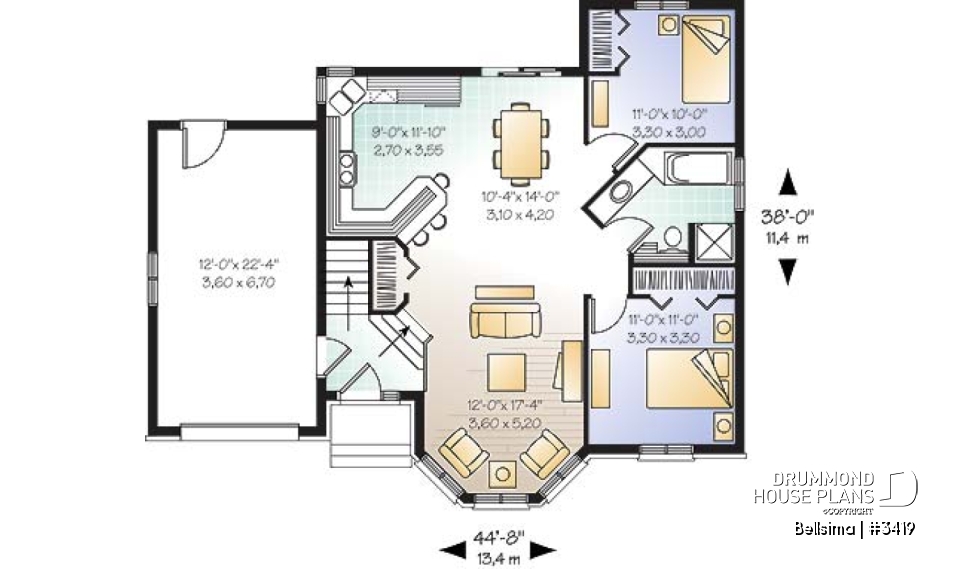

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 11'2" x 8'8" | ~ 8'0" |
| Kitchen | 9'0" x 11'10" | ~ 8'0" |
| Dining room | 10'4" x 14'0" | ~ 8'0" |
| Living room | 12'0" x 17'4" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Foyer | 7'4" x 5'10" | ~ 8'11" |
| Garage | 12'0" x 22'4" | ~ 10'6" |
| Porch | 6'0" x 3'0" | N/A |
General specifications
| Total living area | 1007 sq.ft. |
| 1st level | 1007 sq.ft. |
| Width | 44'8" |
| Depth | 38'0" |
| Ridge height from top of foundation | 24'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Small one-story home with 2 beds and a garage!
.
.
Distinctive elements
Abundant fenestration.
Plan feature(s)
Separate bath and shower, Lunch counter, Open floor layout
