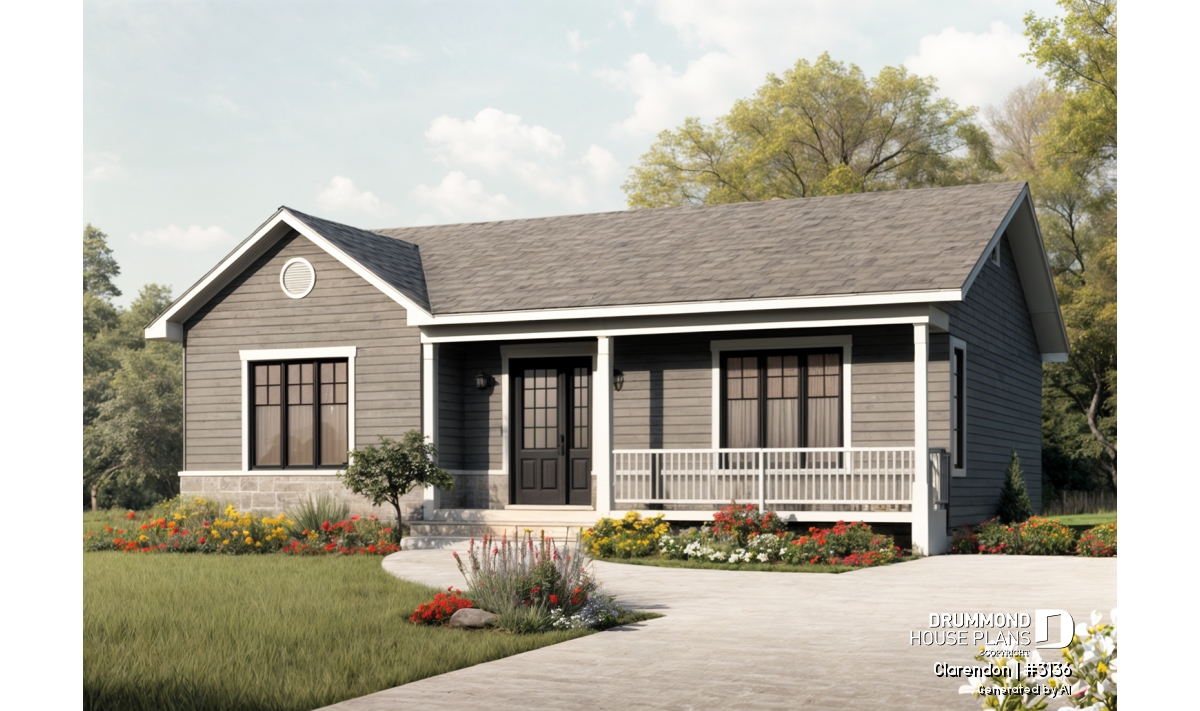

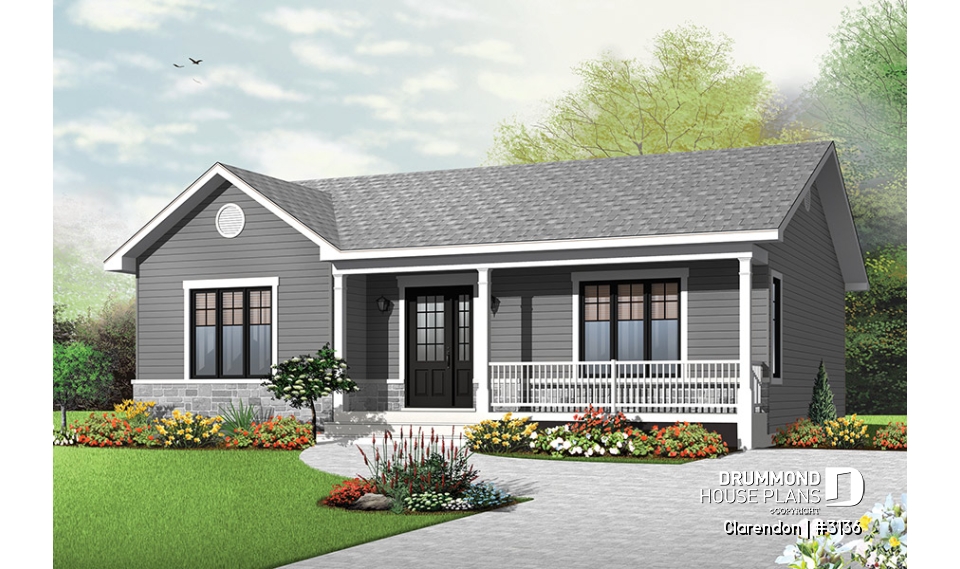

House plan Clarendon (3136)

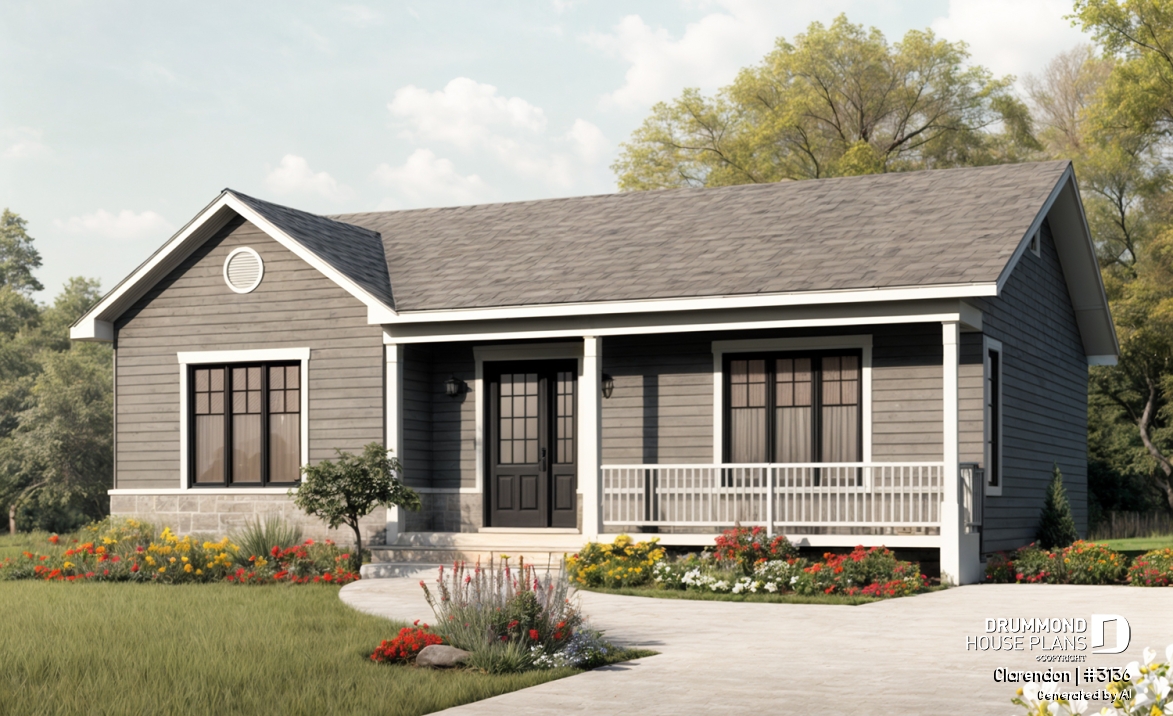

Traditional ranch style bungalow plan, ideal starter home, open living concept with patio door, large shower
View the size of the rooms and height of the ceilings

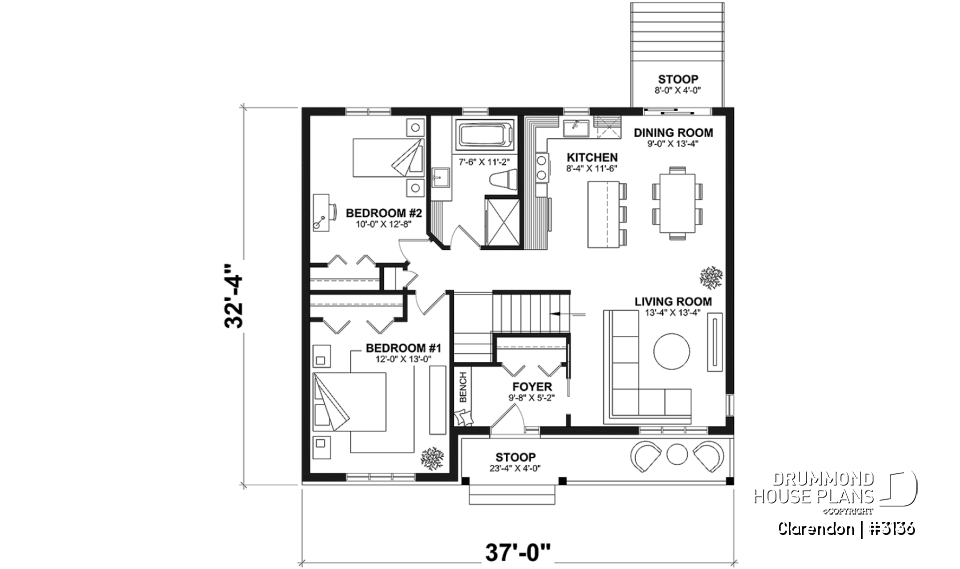

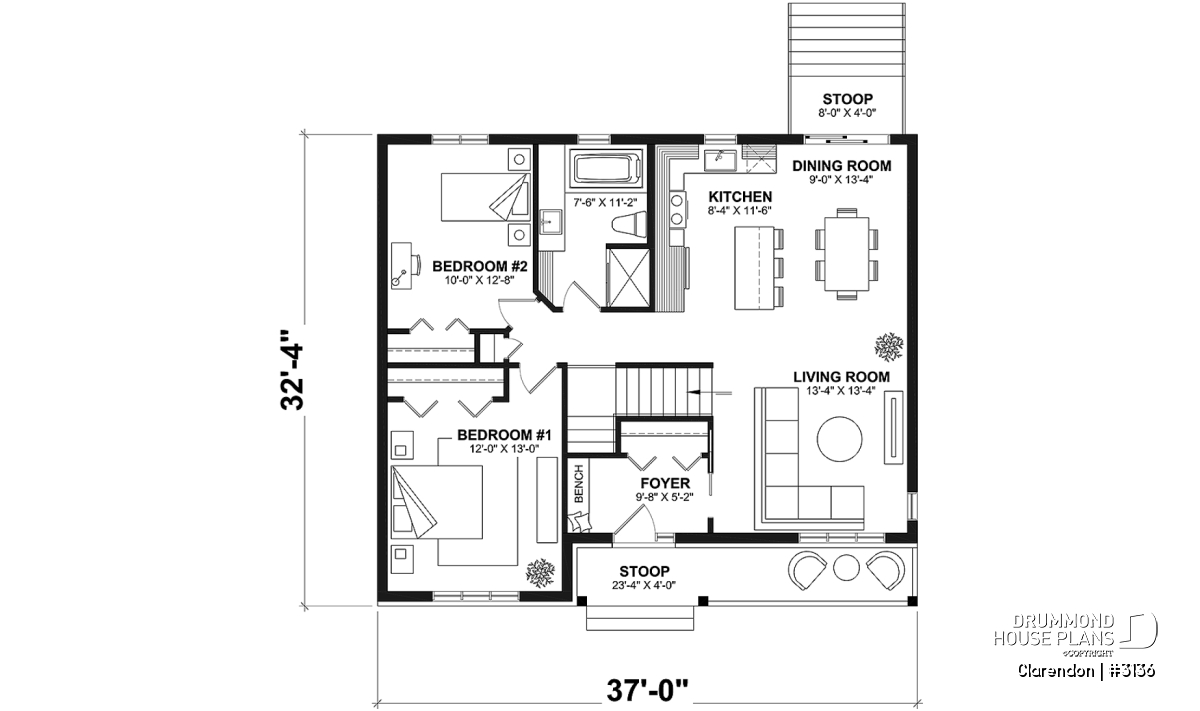

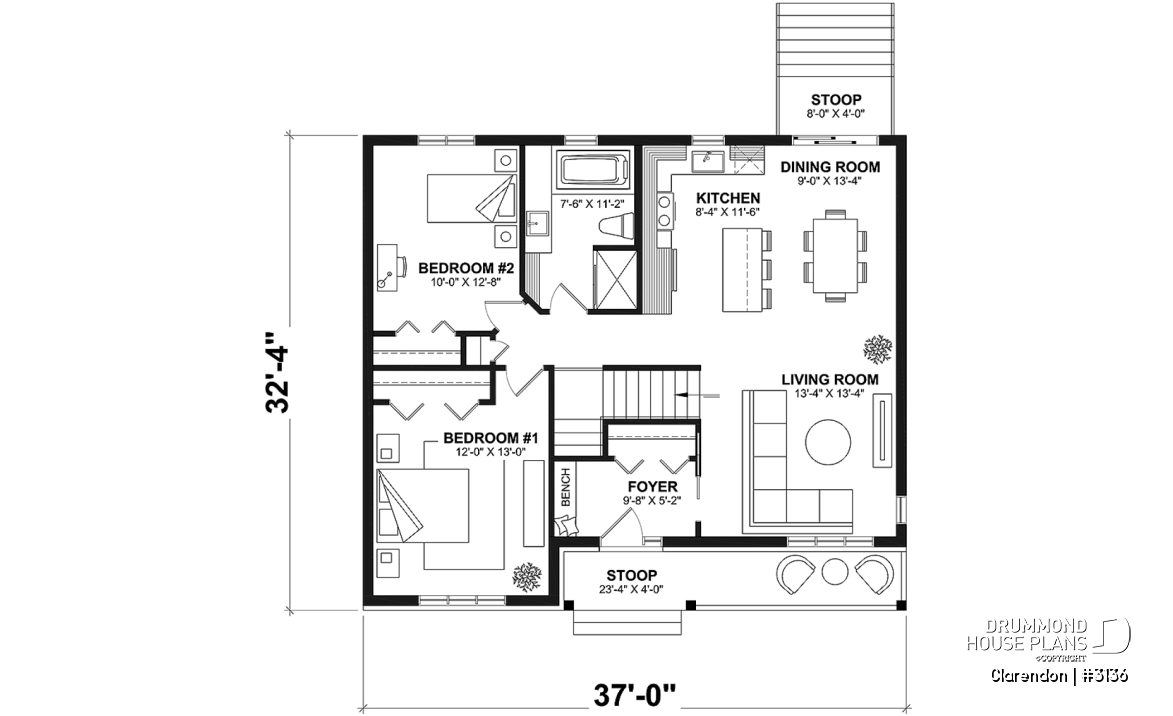

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 9'8" x 5'2" | ~ 8'0" |
| Closet | 2'2" x 5'2" | ~ 8'0" |
| Living room | 13'4" x 13'4" | ~ 8'0" |
| Dining room | 9'0" x 13'4" | ~ 8'0" |
| Kitchen/dinette | 8'4" x 11'6" | ~ 8'0" |
| Pantry | 1'4" x 2'0" | N/A |
| Bedroom | 12'0" x 13'0" | ~ 8'0" |
| Closet | 8'0" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 12'8" | ~ 8'0" |
| Closet | 6'0" x 2'0" | ~ 8'0" |
| Bathroom | 7'6" x 11'2" | ~ 8'0" |
| Shower | 4'3" x 2'10" | N/A |
| Linen | 1'0" x 2'6" | N/A |
| Linen | 1'8" x 2'0" | ~ 8'0" |
| Porch | 23'4" x 4'0" | N/A |
| Terrace | 8'0" x 4'0" | N/A |

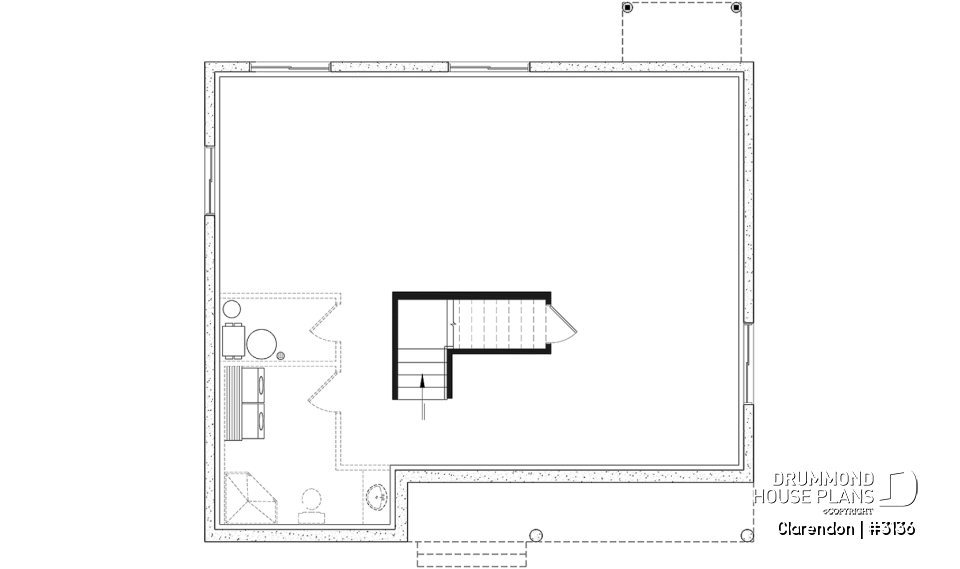

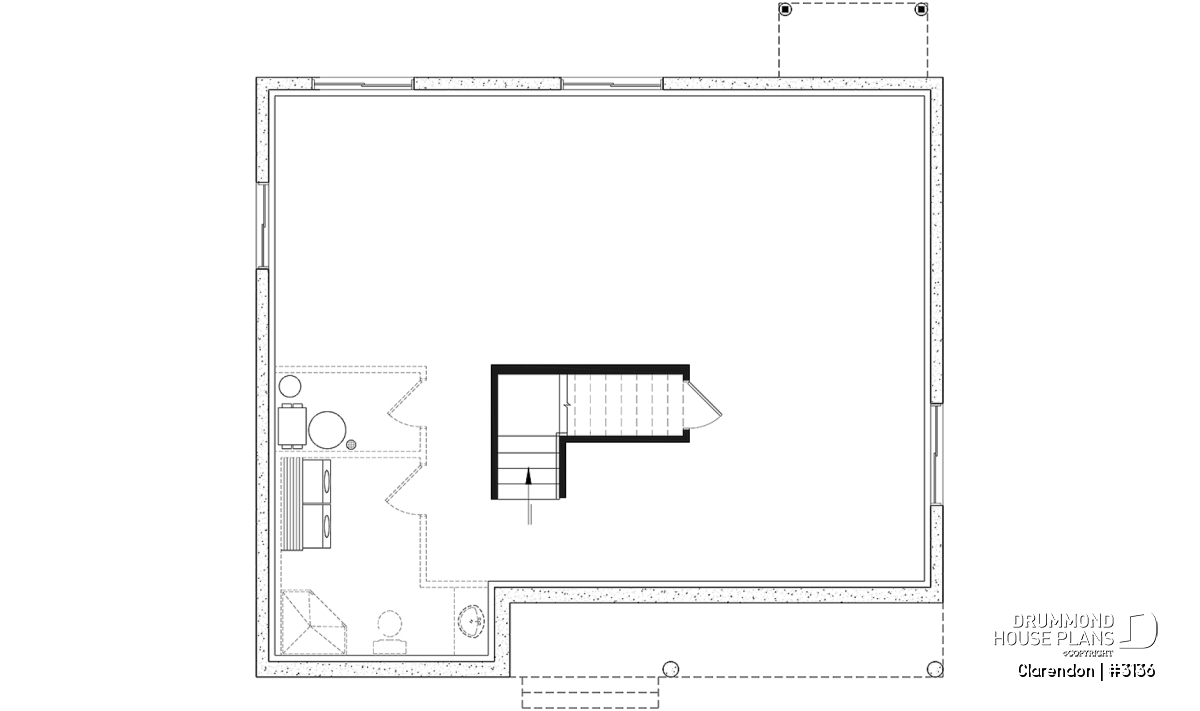

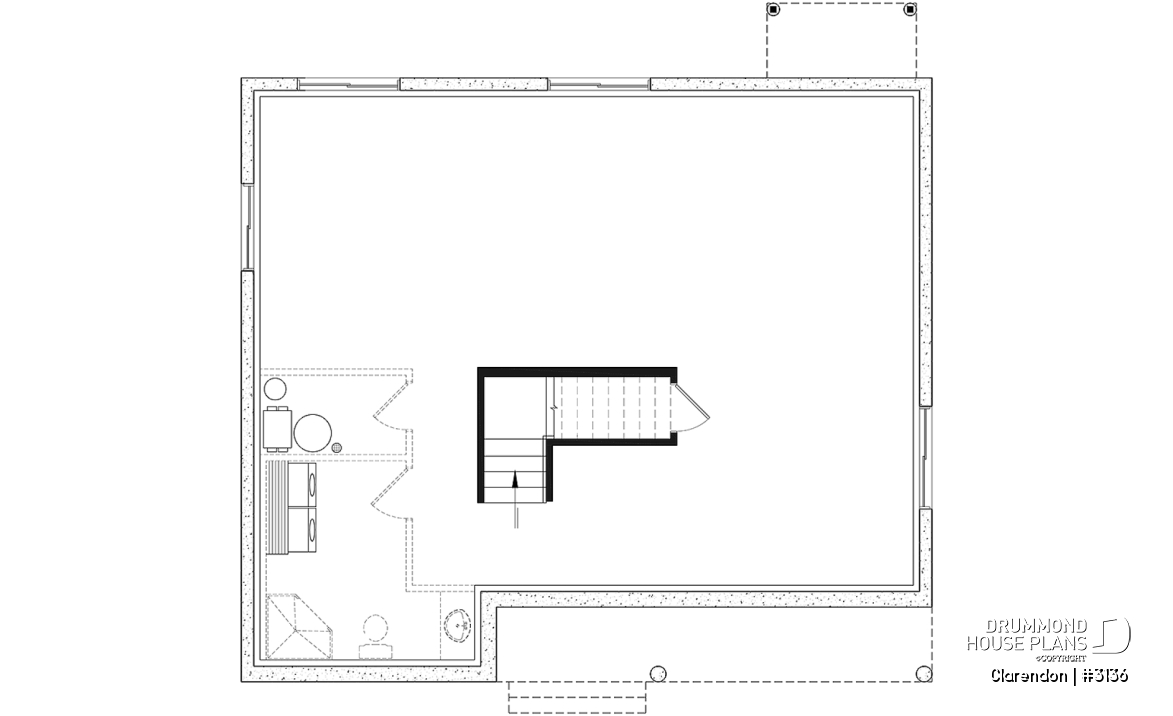

| Basement |
|---|
General specifications
| Total living area | 1103 sq.ft. |
| 1st level | 1103 sq.ft. |
| Basement | 1103 sq.ft. |
| Width | 37'0" |
| Depth | 32'4" |
| Ridge height from top of foundation | 17'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Traditional and affordable 2 bedroom, small ranch style house plan
This delightful model features a full width, covered veranda in front the is sure to be a favorite gathering place during the warmer months.
The large entrance foyer has abundant closet space and room for a bench in which to store seasonal items and provide a perfect place to sit while removing boots!
The completely open floor plan offers an abundance of natural light from the living room through the dining area with access to the back yard through patio doors and to the "L" shaped kitchen with its a large island that's perfect for informal meals.
The two nicely sized bedrooms have abundant closet space and share a full bathroom with separate tub and 3' x 4' shower enclosure.
The full basement foundation can be finished to meet your specific needs, either to add bedrooms or a home theater/media room and we would be happy to return a free estimate for customization within two business days after receipt of this on line form..
Distinctive elements
Craftsman style starter home, open living concept with patio door, large shower. Foyer in front, open floor plan throughout common area. Full bathroom with separate 3' x 4' shower enclosure. Two nicely sized bedrooms.
Plan feature(s)
Mud room, Island, Open floor layout, Separate bath and shower
Plan architectural style(s)
. Country, . Traditional, . American, . Ranch, . Transitional
