House plan Avon (3322)
Economical 2 bedroom split level house plan, American style with large kitchen

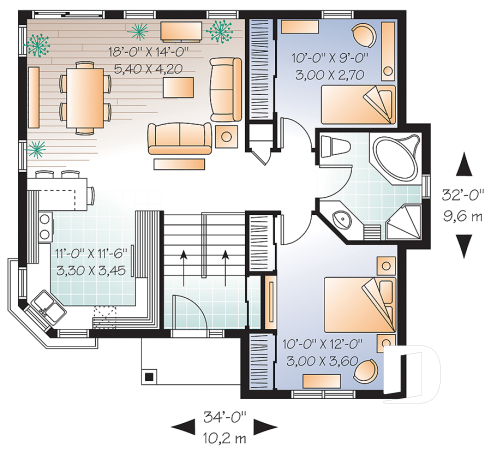

View the size of the rooms and height of the ceilings

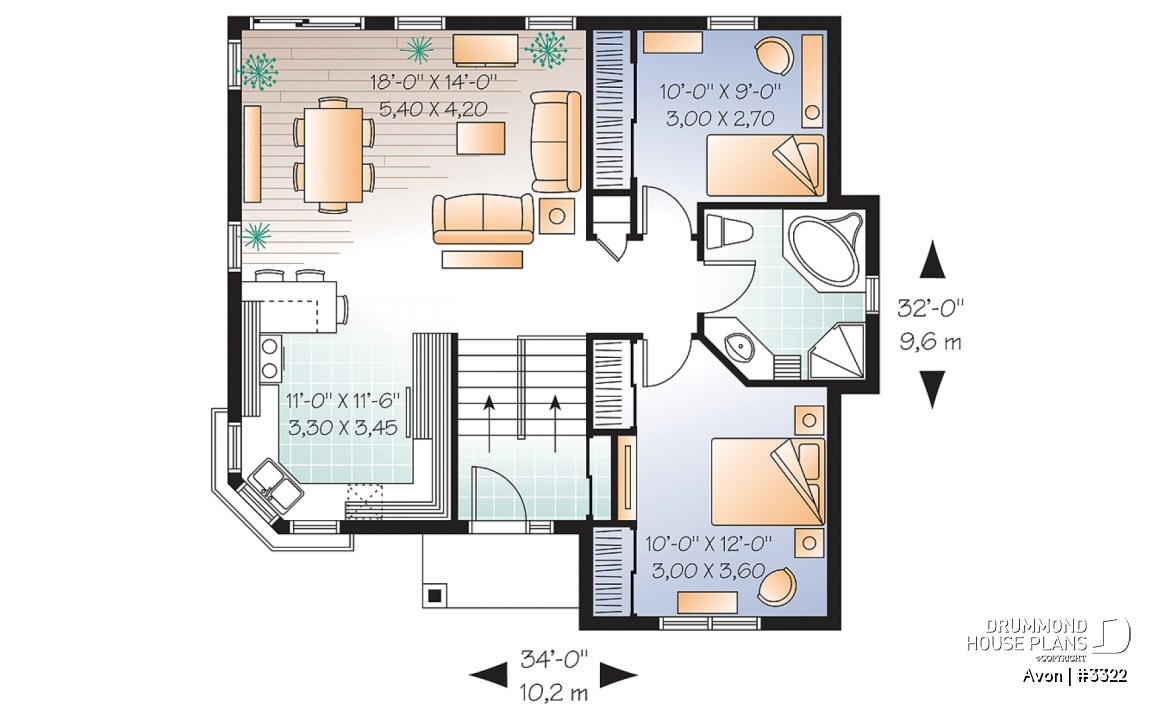

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Porch | 8'2" x 3'10" | N/A |
| Porch | 8'0" x 4'0" | N/A |
| Kitchen | 9'10" x 11'0" | ~ 8'0" |
| Living room | 18'0" x 14'0" | ~ 8'0" |
| Foyer | 6'8" x 4'2" | ~ 12'5" |
| Full bathroom | 8'6" x 9'0" | ~ 8'0" |
| Bedroom | 10'0" x 12'0" | ~ 8'0" |
| Bedroom | 10'0" x 9'0" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 949 sq.ft. |
| 1st level | 949 sq.ft. |
| Width | 34'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 25'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | A |
Rooms specifications
Other useful information on this plan
Affordable split-level house, 2 bedrooms and open concept to the dining room and living room!
.
Distinctive elements
Original kitchen enlightened by corner windows. Dining room and living room facing the back. Two bedrooms with adequate storage and built-in furniture in bedroom #1. Bathroom with bath, bathroom vanity and corner shower. Also available with bachelor in the basement (see plan 3322B)
Plan feature(s)
Separate bath and shower, Lunch counter, Open floor layout
Plan architectural style(s)
. Country, . American, . Traditional
