House plan Jasper (3324)
Split level house plan, 4 bedroom bungalow with workshop and mezzanine
View the size of the rooms and height of the ceilings

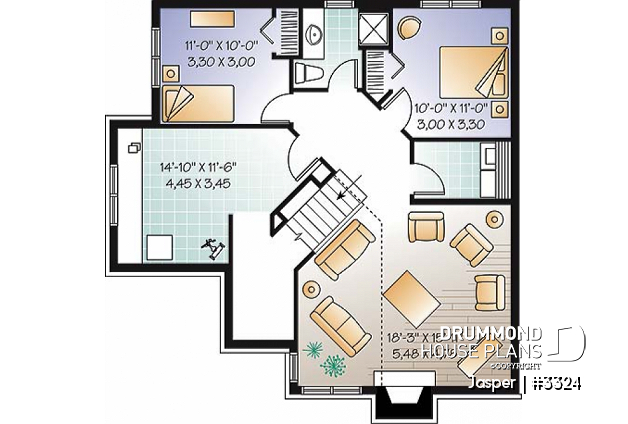

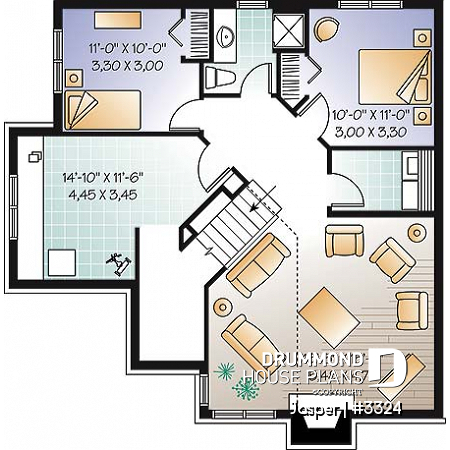

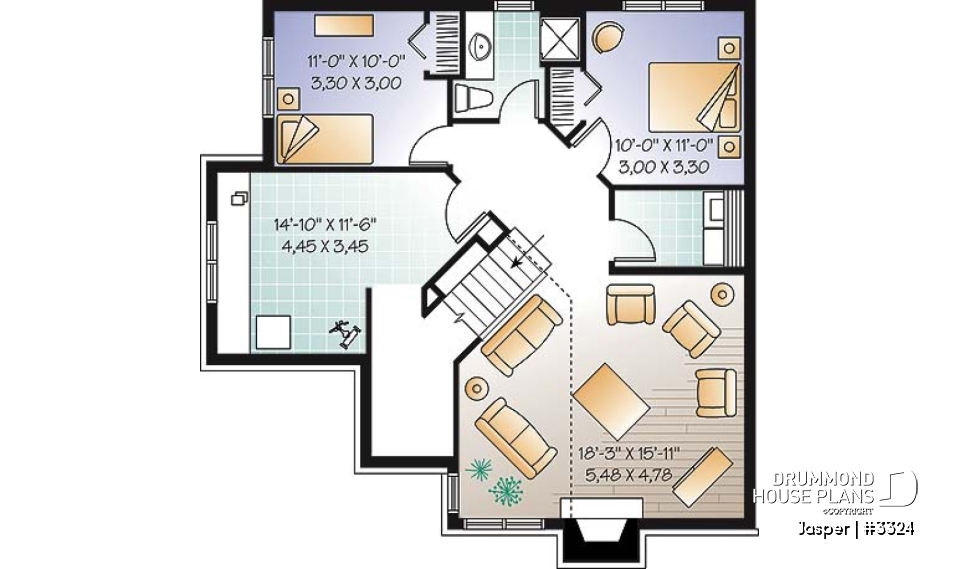

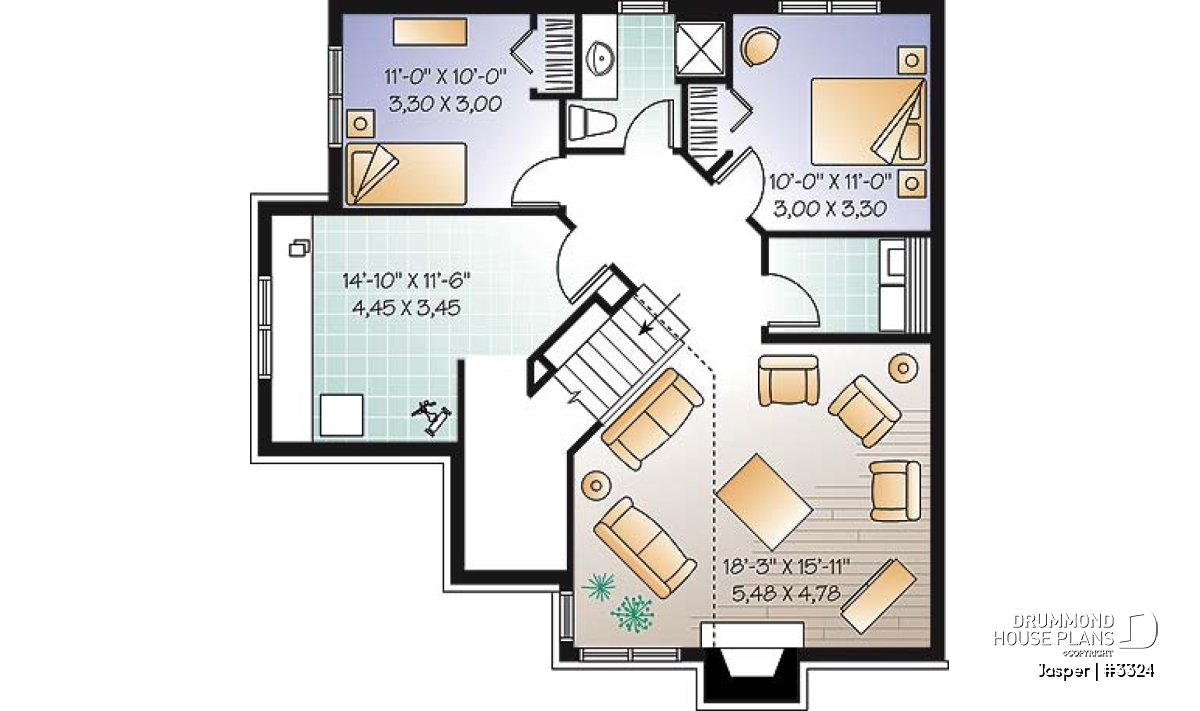

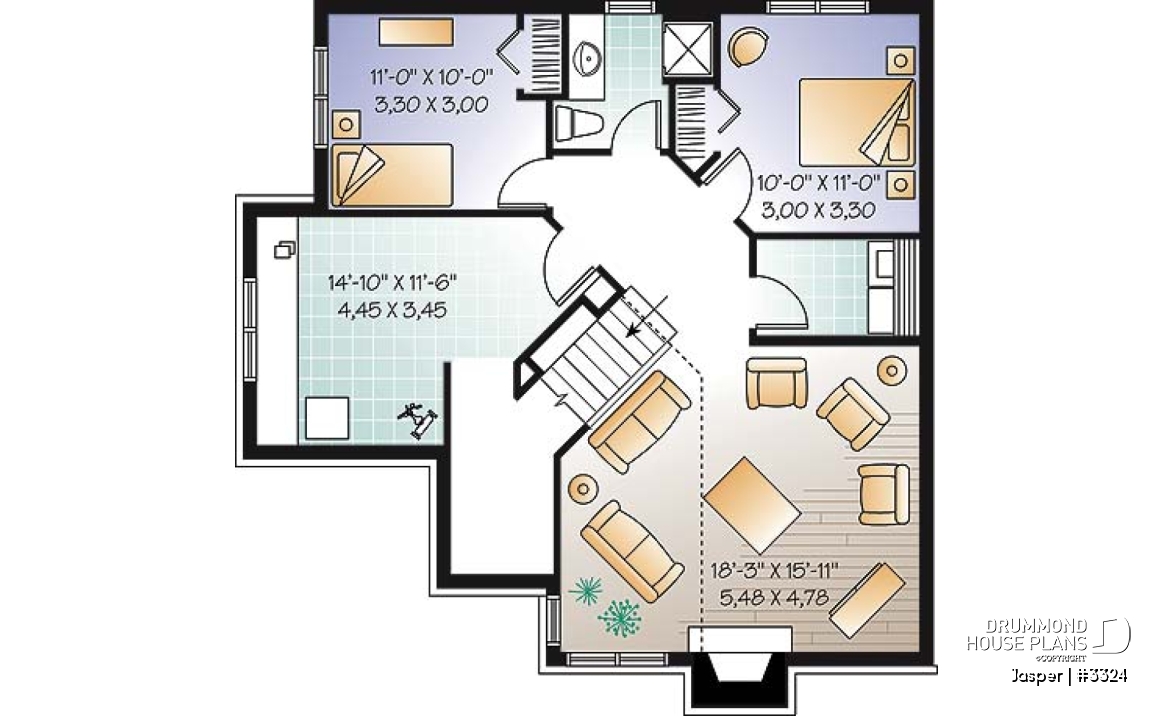

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 5'4" x 10'10" | ~ 8'0" |
| Workshop | 14'10" x 11'6" | ~ 8'0" |
| Laundry room | 8'2" x 5'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Bedroom | 10'0" x 11'0" | ~ 8'0" |
| Shower room or three quarter bath | 6'0" x 6'8" | ~ 8'0" |
| Great room or Family room | 18'2" x 15'8" | ~ 8'0" |

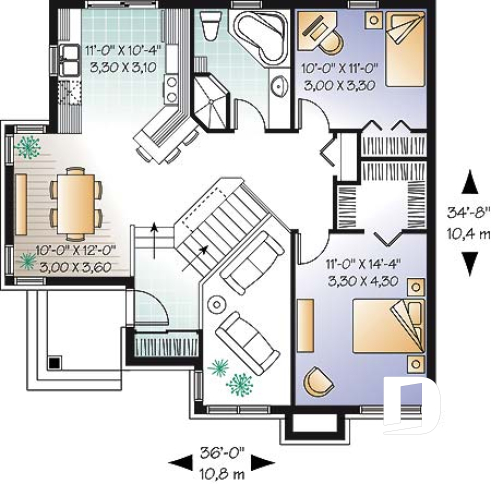

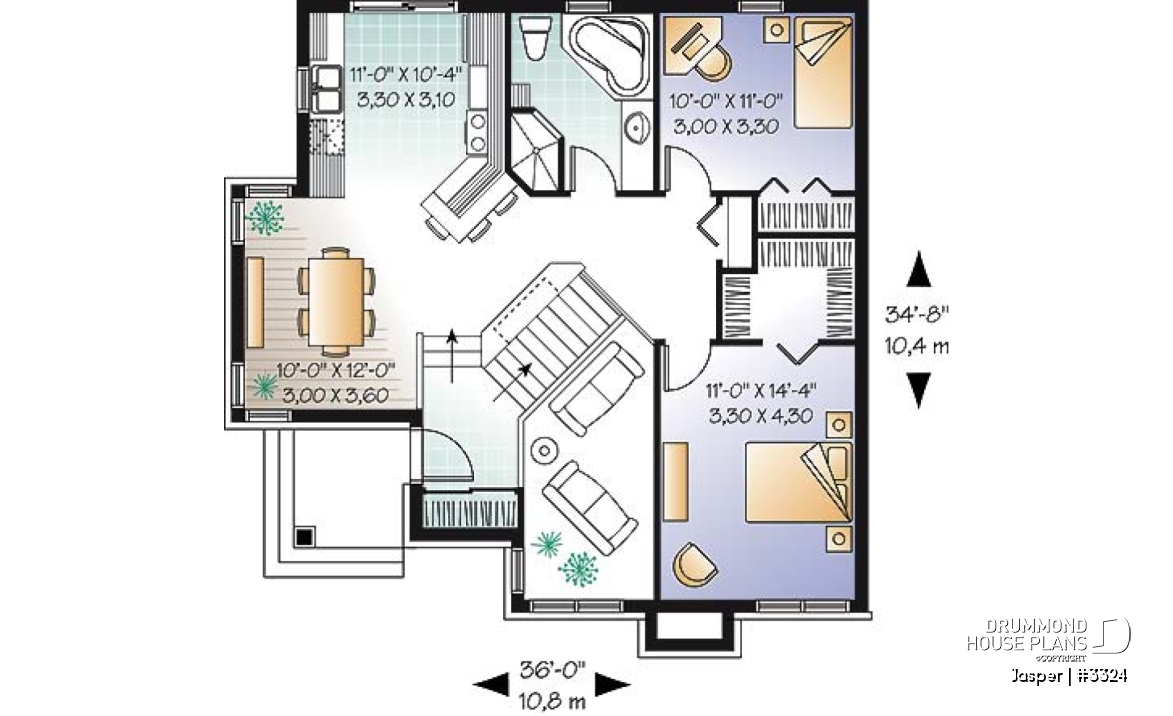

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'0" x 10'4" | ~ 8'0" |
| Dining room | 10'0" x 12'0" | ~ 8'0" |
| Foyer | 5'6" x 6'10" | ~ 8'0" |
| Full bathroom | 8'0" x 10'0" | ~ 8'0" |
| Bedroom | 11'0" x 14'4" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Porch | 6'2" x 6'8" | N/A |
| Porch | 10'0" x 5'0" | N/A |
General specifications
| Total living area | 1983 sq.ft. |
| Basement | 999 sq.ft. |
| 1st level | 984 sq.ft. |
| Width | 36'0" |
| Depth | 34'8" |
| Ridge height from top of foundation | 25'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Transitional 2 to 4 bedroom house plan

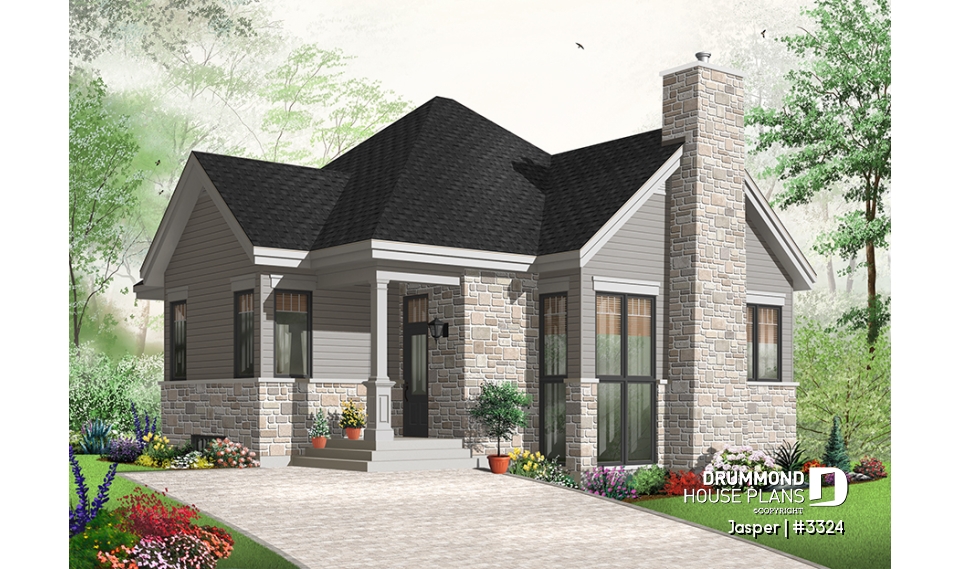

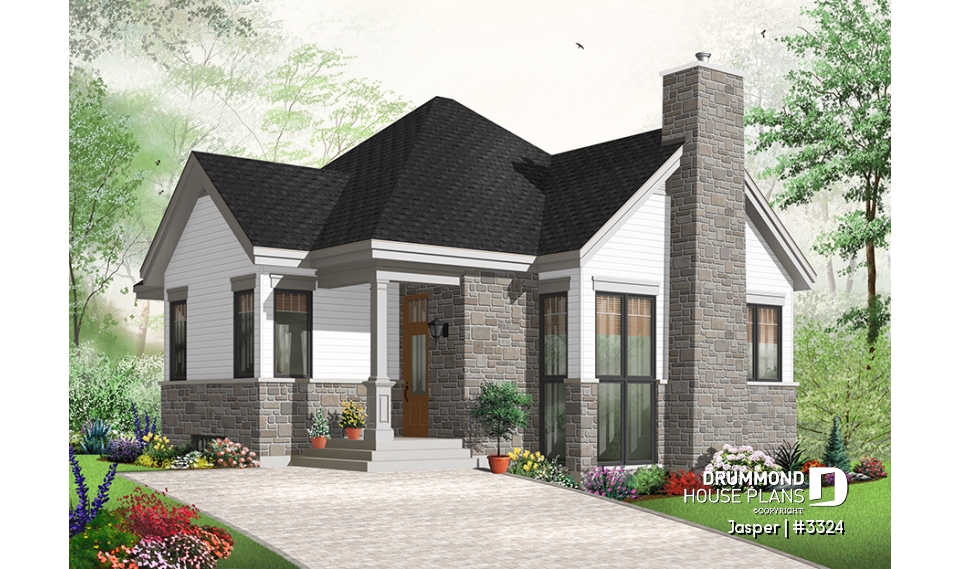

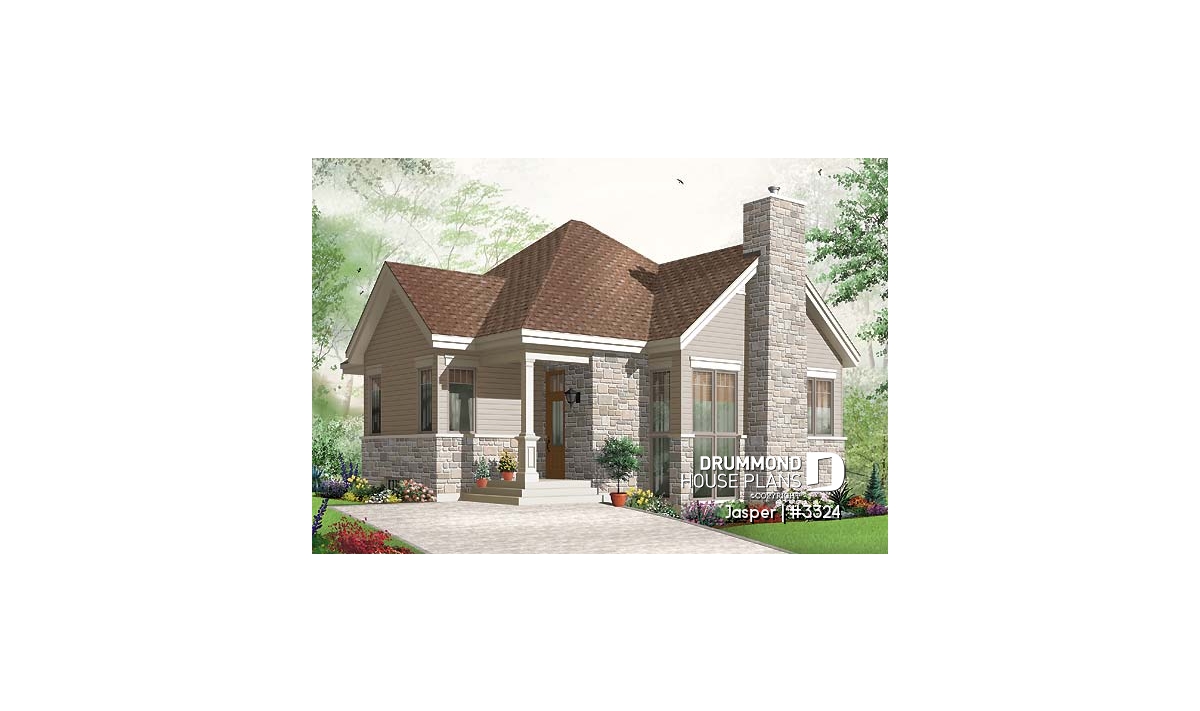

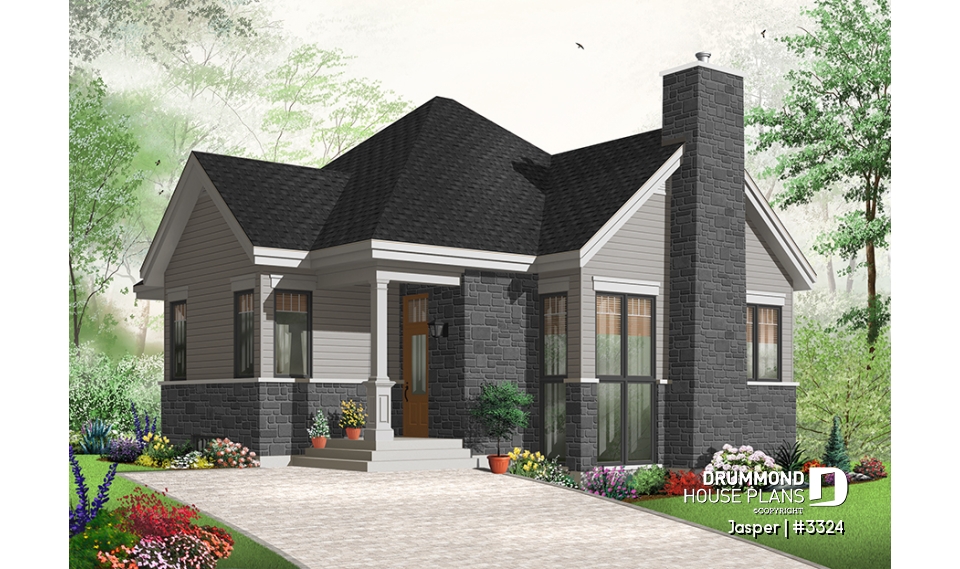

This is an original concept with four (4) bedrooms. You are looking for an original house plan, well lighted and containing four (4) bedrooms? Check out this model. First of all, notice that for its very uncommon voluminous exterior and its large corner-wise fenestration. As you enter this one we notice the openness of its spaces, horizontally as well as vertically. Moreover, we are captured by this huge family room, even though it has been designed in the basement. Its luminous environment is due to the abundant corner fenestration and is very cozy with the presence of a fireplace that is well centered and very comfortable with the numerous seats it offers. Always in the basement, we appreciate the two (2) bedrooms measuring 11’ x 10’ each, a shower room, laundry room and a duo workshop-storage area that is well lighted as well as a full bathroom with an independent shower that is the enlarged format. There is also two (2) good-sized bedrooms of which includes the master bedroom with its walk-in closet and corner fireplace which can be conceivable due to the location of the chimney. Is this not an original concept that’s rather enticing?
Distinctive elements
Split entry on a mezzanine overlooking the family room located in half-basement, which includes a fireplace and abundant fenestration. Two bedrooms on 1st level and two other with more than adequate fenestration. Built-il storage in the staircase towards the lower level. Convenient work shop space under the dining room.
Plan architectural style(s)
. European, . Country, . Craftsman / Northwest, . American, . Transitional, . Modern rustic, . Mountain, Modern Craftsman
