House plan Aspendale 2 (3323-V1)
Low building cost 2 bedroom split level house plan, 12' high ceiling in foyer, open concept, kitchen island
View the size of the rooms and height of the ceilings

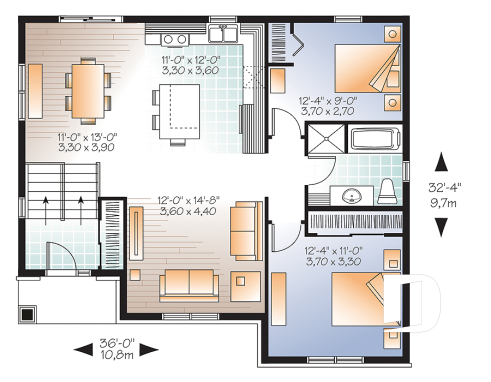

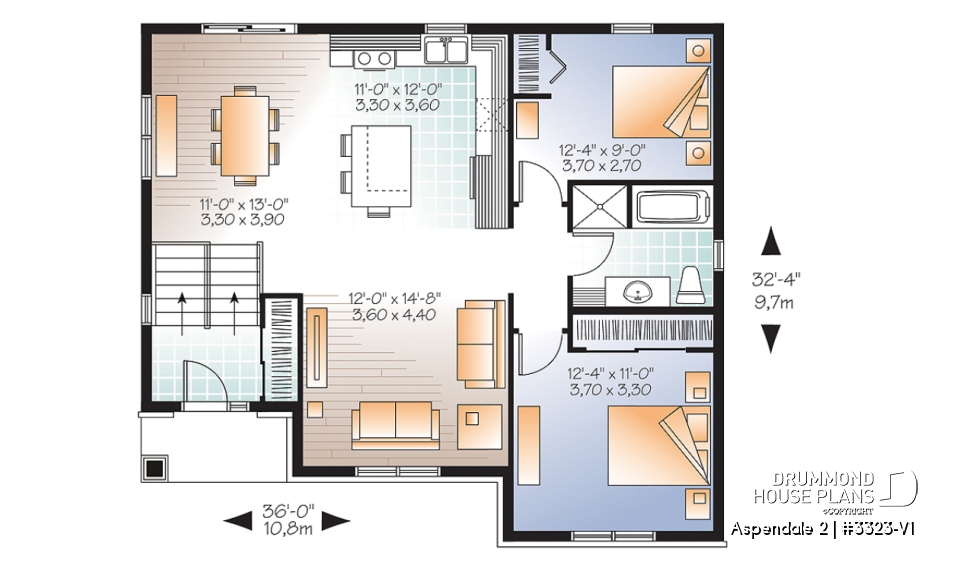

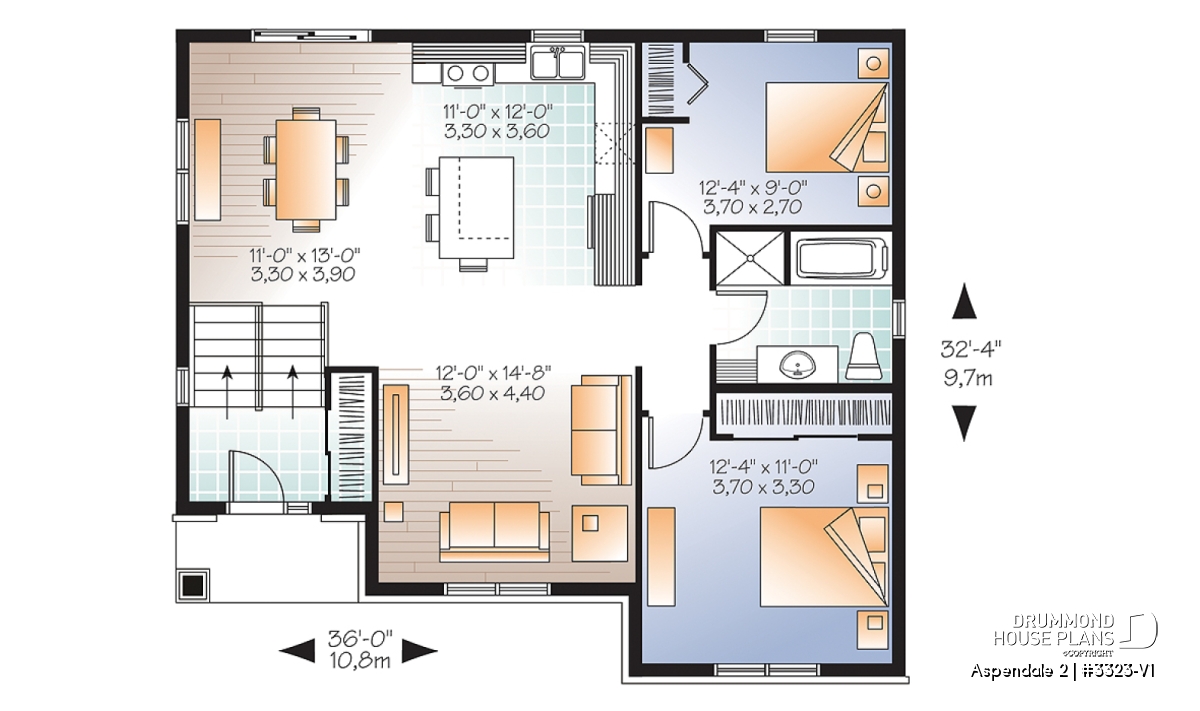

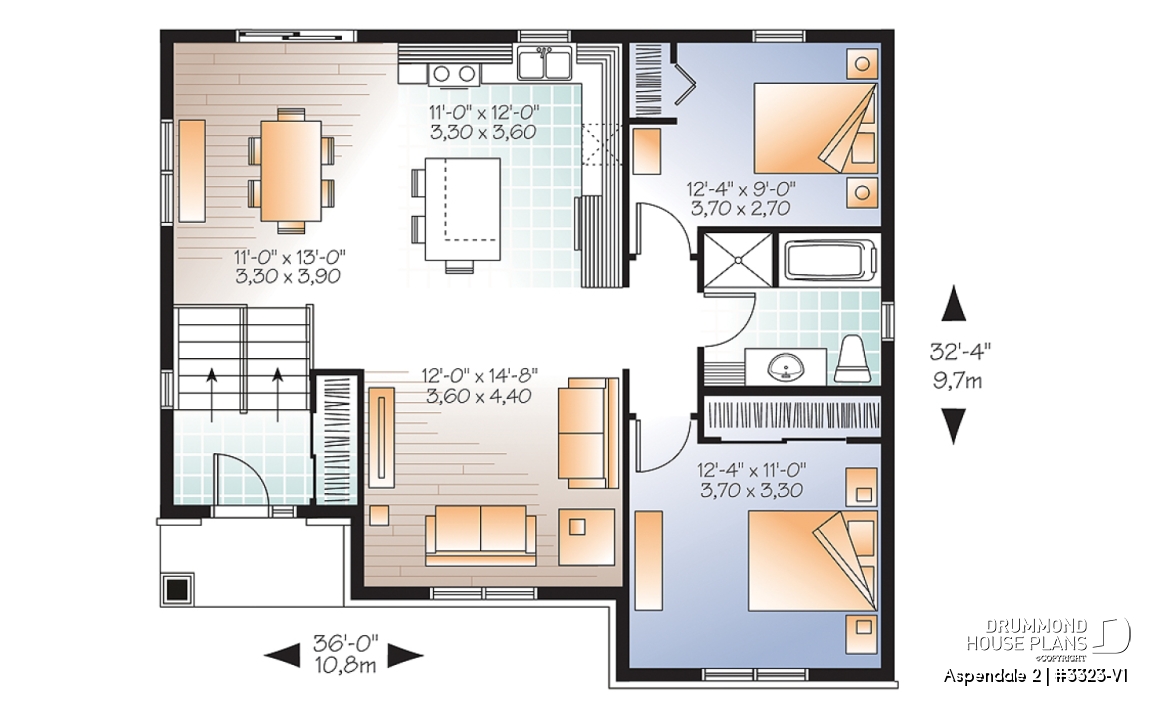

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 6'8" x 4'8" | ~ 12'0" |
| Closet | 2'0" x 6'4" | ~ 8'0" |
| Dining room | 11'0" x 13'0" | ~ 8'0" |
| Kitchen/dinette | 11'0" x 12'0" | ~ 8'0" |
| Pantry | 2'0" x 1'8" | N/A |
| Living room | 12'0" x 14'8" | ~ 8'0" |
| Bedroom | 12'4" x 11'0" | ~ 8'0" |
| Closet | 8'8" x 2'0" | ~ 8'0" |
| Bedroom | 12'4" x 9'0" | ~ 8'0" |
| Closet | 2'0" x 3'8" | ~ 8'0" |
| Full bathroom | 8'8" x 7'6" | ~ 8'0" |
| Linen | 2'0" x 1'2" | N/A |
| Shower | 3'4" x 2'8" | N/A |
General specifications
| Total living area | 1040 sq.ft. |
| 1st level | 1040 sq.ft. |
| Width | 36'0" |
| Depth | 32'4" |
| Ridge height from top of foundation | 23'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Small split-level house plan with low building costs
Barely over 1000 sq. ft., this raised bungalow boasts a level entry with 12 ft. ceilings and generous coat closet. An open concept floorplan includes living room, dining room and kitchen with island.
Two bedrooms are divided by a bathroom complete with soaker tub and independent shower.
Additional living or recreation space can be added to the undeveloped basement.
Distinctive elements
Ground level entrance foyer, approximately
5 ft. x 6 ft. with 12 ft. ceiling and closet. Kitchen with central lunch island. Bathroom with tub and independent 40" x 32" shower.
Plan feature(s)
Island, Open floor layout, Separate bath and shower
Plan architectural style(s)
. Traditional, . Transitional, . Country
