House plan Aspendale 5 (3323B)
3 to 4 bedroom split level house plan with basement appartment, 2 family rooms for main apartement, open floor
View the size of the rooms and height of the ceilings
| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'1" x 10'3" | ~ 8'0" |
| Playroom | 12'1" x 12'9" | ~ 8'0" |
| Closet | 2'10" x 4'9" | ~ 8'0" |
| Bedroom | 16'6" x 10'11" | ~ 8'0" |
| Laundry room | 4'8" x 5'4" | ~ 8'0" |
| Activity room | 17'3" x 13'1" | ~ 8'0" |
| Shower room or three quarter bath | 6'1" x 5'11" | ~ 8'0" |
| Foyer | 3'2" x 3'4" | ~ 8'0" |

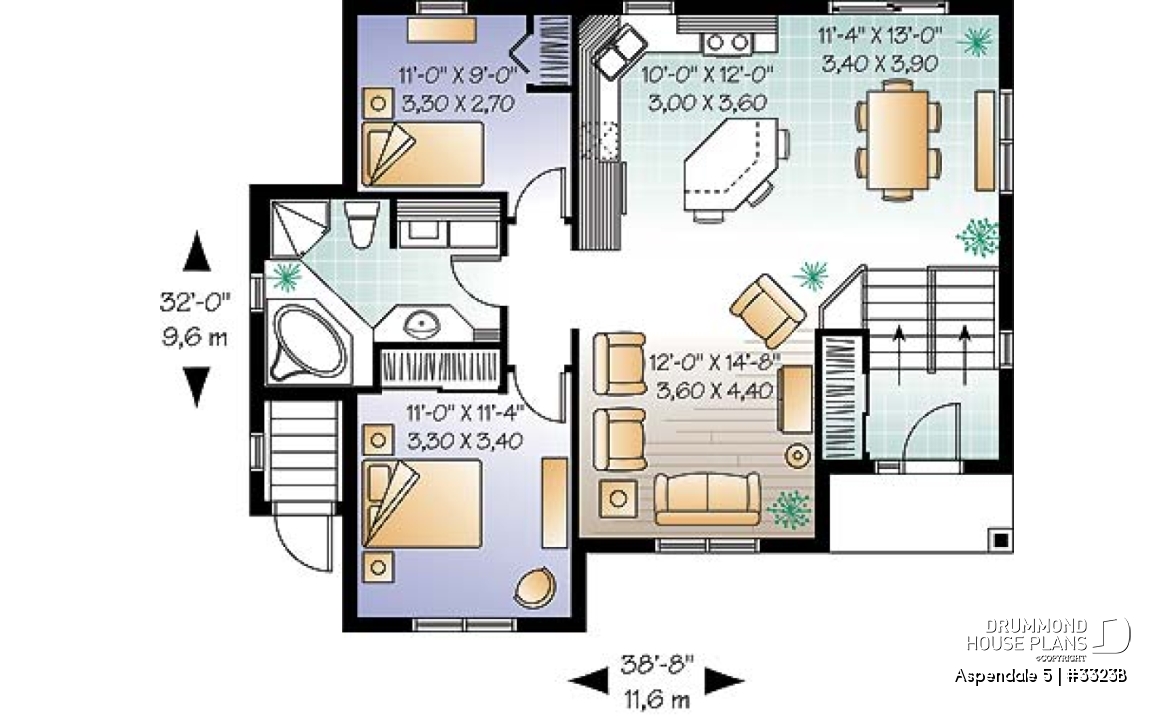

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 10'0" x 12'0" | ~ 8'0" |
| Dining room | 11'4" x 13'0" | ~ 8'0" |
| Living room | 12'0" x 14'8" | ~ 8'0" |
| Foyer | 6'4" x 4'4" | ~ 8'0" |
| Bathroom/laundry room | 12'0" x 9'8" | ~ 8'0" |
| Bedroom | 11'0" x 11'8" | ~ 8'0" |
| Bedroom | 11'0" x 9'0" | ~ 8'0" |
| Covered porch | 9'4" x 4'0" | N/A |
| Deck | 10'0" x 5'0" | N/A |
General specifications
| Total living area | 2056 sq.ft. |
| Basement | 1041 sq.ft. |
| 1st level | 1015 sq.ft. |
| Width | 38'8" |
| Depth | 32'0" |
| Ridge height from top of foundation | 24'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MB |
Rooms specifications
| Bedroom(s) | 2, 3, 4 |
| Full baths | 2 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 37 sq.ft. |
Units specifications
Other useful information on this plan
Split level level house plan with basement apartment
.
Distinctive elements
Economic construction maximizing interior square footage. Kitchen with central lunch counter. Finished basement including a bachelor with independant entry, appreciated from baby-boomers as well as from first buyers.
Main apartment with 3 to 4 bedrooms (or 2 family rooms). Lots of storage on basement.
Plan feature(s)
Access to basement from exterior, Open floor layout, Open floor layout, Separate bath and shower, Island, Gound floor laundry room
Plan architectural style(s)
. Traditional, . Country, . American
