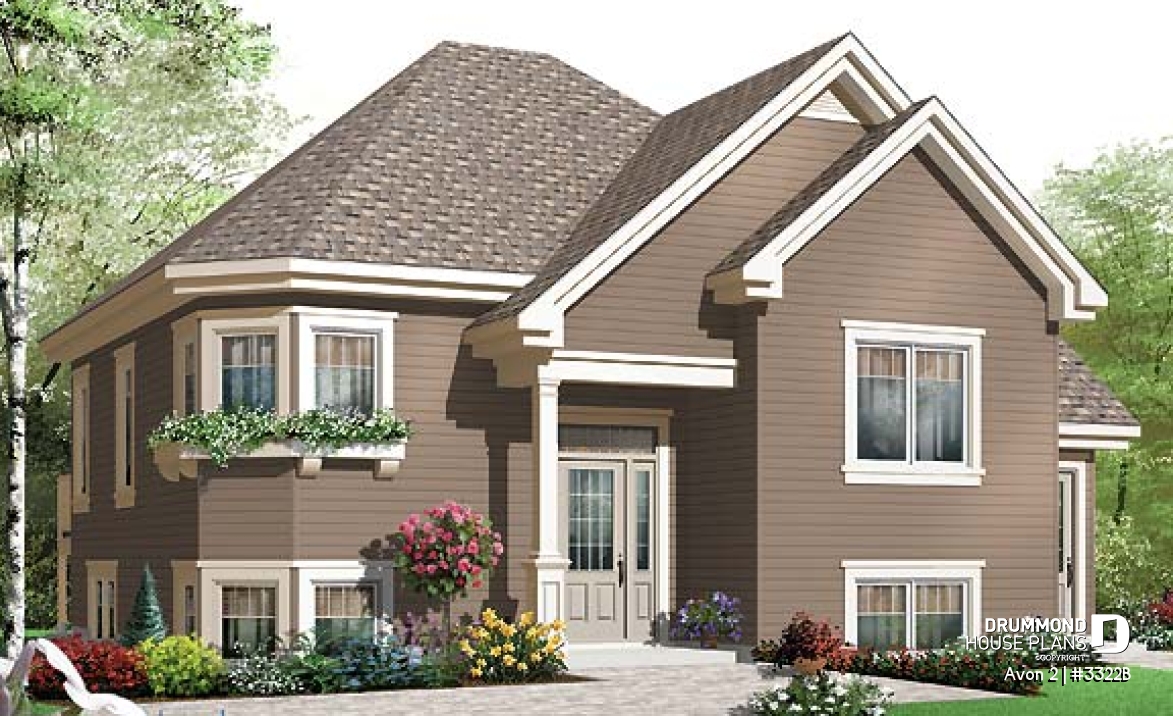

House plan Avon 2 (3322B)
Affordable 3 to 4 split level house plan with a one-bedroom basement appartment
View the size of the rooms and height of the ceilings

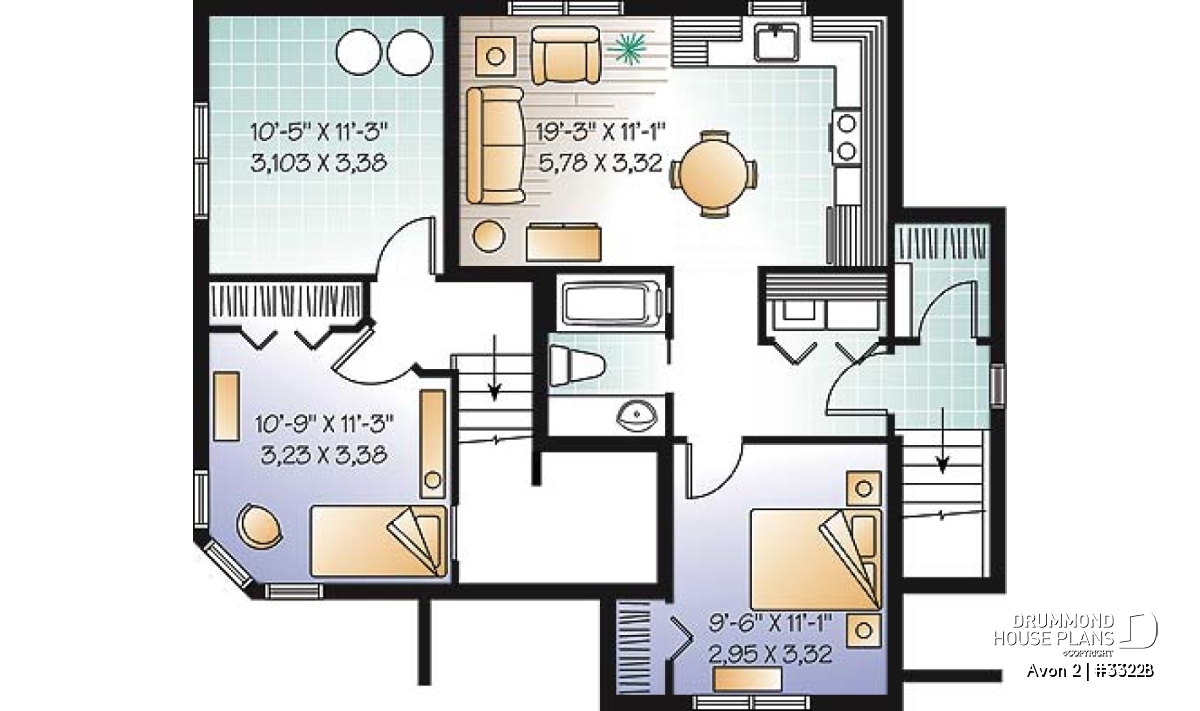

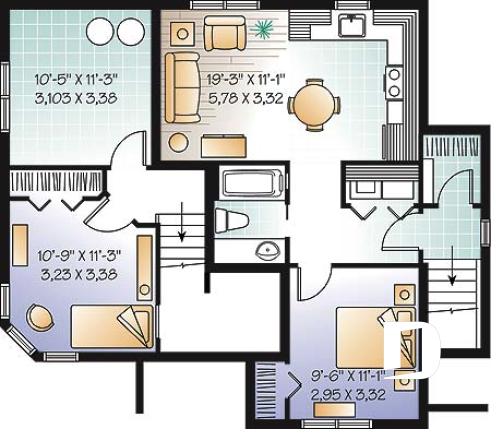

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 10'8" x 11'0" | ~ 8'0" |
| Workshop | 10'4" x 11'4" | ~ 8'0" |
| Bedroom | 9'4" x 11'0" | ~ 8'0" |
| Laundry room | 5'2" x 3'0" | ~ 8'0" |
| Activity room | 19'0" x 11'0" | ~ 8'0" |
| Full bathroom | 5'4" x 7'4" | ~ 8'0" |

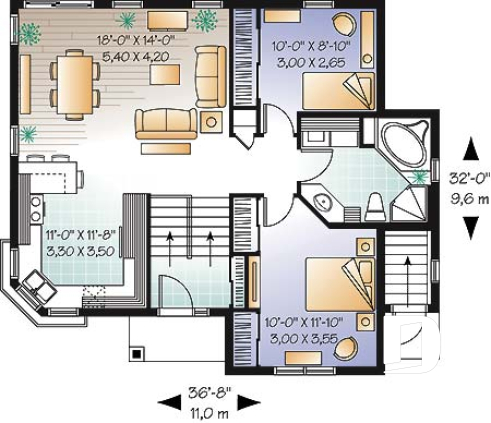

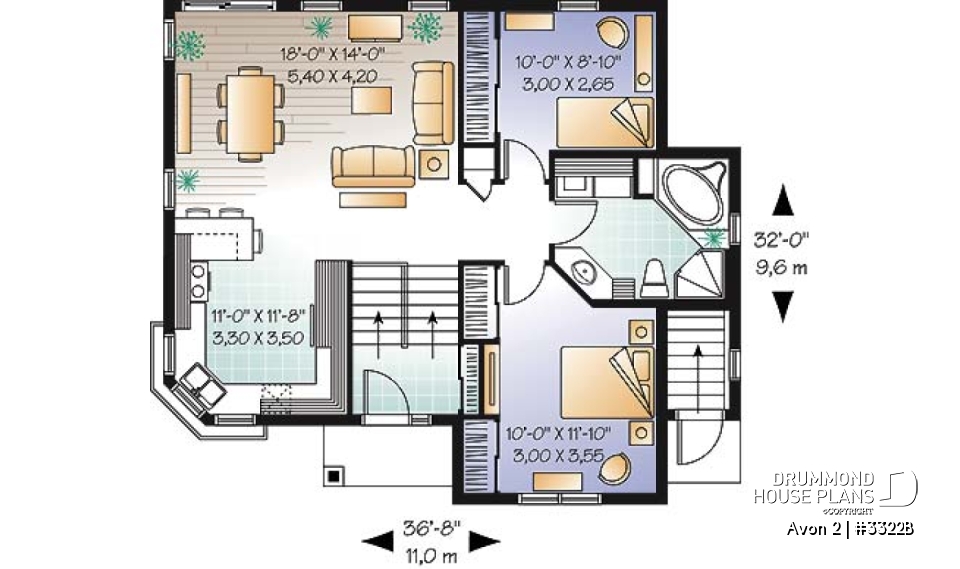

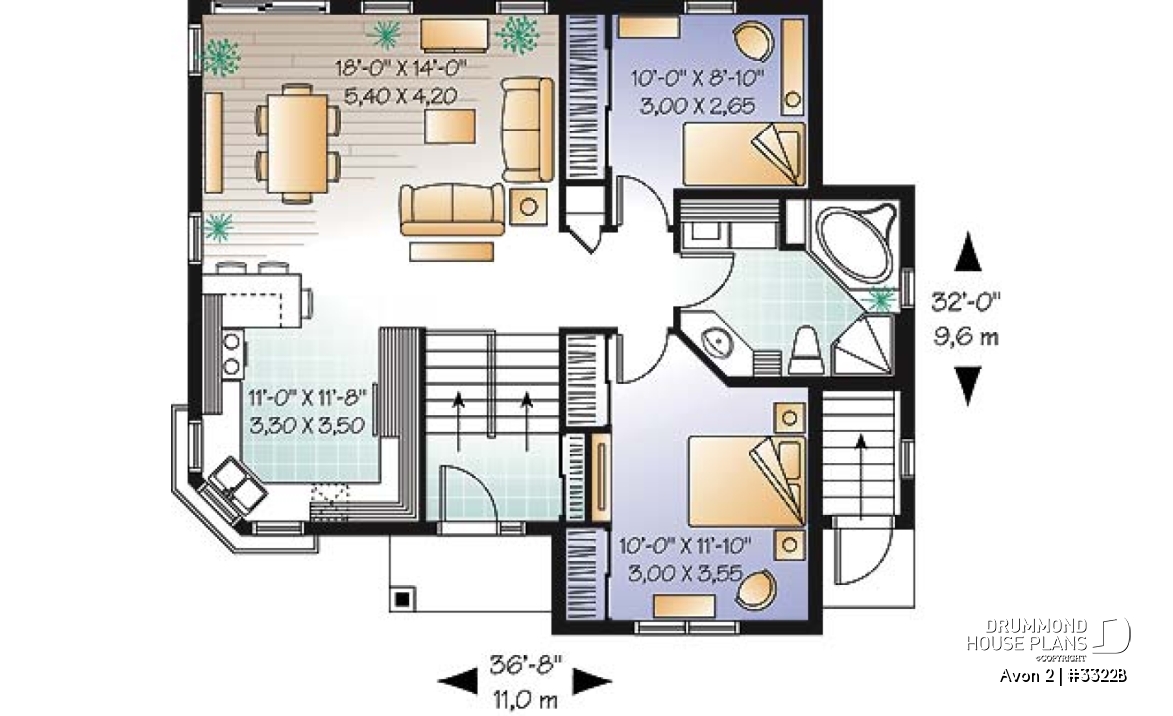

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Porch | 8'2" x 3'10" | N/A |
| Porch | 8'0" x 4'0" | N/A |
| Porch | 4'8" x 5'4" | N/A |
| Kitchen | 11'0" x 11'0" | ~ 8'0" |
| Living room | 18'0" x 14'0" | ~ 8'0" |
| Full bathroom | 11'2" x 9'0" | ~ 8'0" |
| Foyer | 6'8" x 4'2" | ~ 12'5" |
| Bedroom | 10'0" x 12'0" | ~ 8'0" |
| Bedroom | 10'0" x 9'0" | ~ 8'0" |
General specifications
| Total living area | 1987 sq.ft. |
| Basement | 1010 sq.ft. |
| 1st level | 977 sq.ft. |
| Width | 36'8" |
| Depth | 32'0" |
| Ridge height from top of foundation | 25'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MA |
Rooms specifications
| Bedroom(s) | 3, 4 |
| Full baths | 2 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 81 sq.ft. |
Units specifications
Other useful information on this plan
Brightness and facilitated access to ownership - split house plan with one-bedroom apartment
Within these selected home plans for easier access to ownership, Drummond House Plans suggests this 3-bedroom model with a bachelor and entry with a landing allowing large windows for the rooms in the basement.
On owner's side, we notice a closet on landing in the entry and a lot of lighting from the activity area, open and with a lot of windows on the side and in the back. The kitchen, with its 3 corner windows, is as luminous as functionnal. Two bedrooms with excellent storage, and a bathroom with corner bath, corner shower and integrated laundry area, complete this floor, as for the basement, on owner's side, there is a third bedroom and a nice workshop-storage area, again with abundant windows.
As for the appartment, for which we partially see the private entrance on the right side of the house, we notice a closet at the bottom of the staircase ( only 6 steps), an independant laundry area, one bedroom, a bathroom and a living room, lunch area and kitchen with adequate lighting, facing the back.
For other plans with bachelors: www.drummondhouseplans.com
Distinctive elements
Original kitchen enlightened by corner windows. Dining room and living room facing the back. Two bedrooms with adequate storage and built-in furniture in bedroom #1. Bathroom with bath, bathroom vanity and corner shower. Bachelor - 3 1/2 room with separate entry and abundant windows.
Plan feature(s)
Access to basement from exterior, Separate bath and shower, Gound floor laundry room, Open floor layout
Plan architectural style(s)
. Country, . Traditional
Similar plans
Previously Viewed Plans
Questions and comments
February 14
Tom Good
Can the lower level be altered with NO access from the main floor so that the basement apartment includes all available space. Do your home plans pass in Ontario ?
February 14
Customer service
Hello Mr. Good and thank you for taking the time to write.
Our plans conform to Ontario building standards and we can provide the BCIN, schedule 1 and the energy efficiency design summary that are required to obtain a building permit in Ontario (Canada)
We would be happy to return a free estimate for the changes that you require to this design within two business days after receipt of this on line request.
Please let me know if I can further assist you
Regards
Deb
