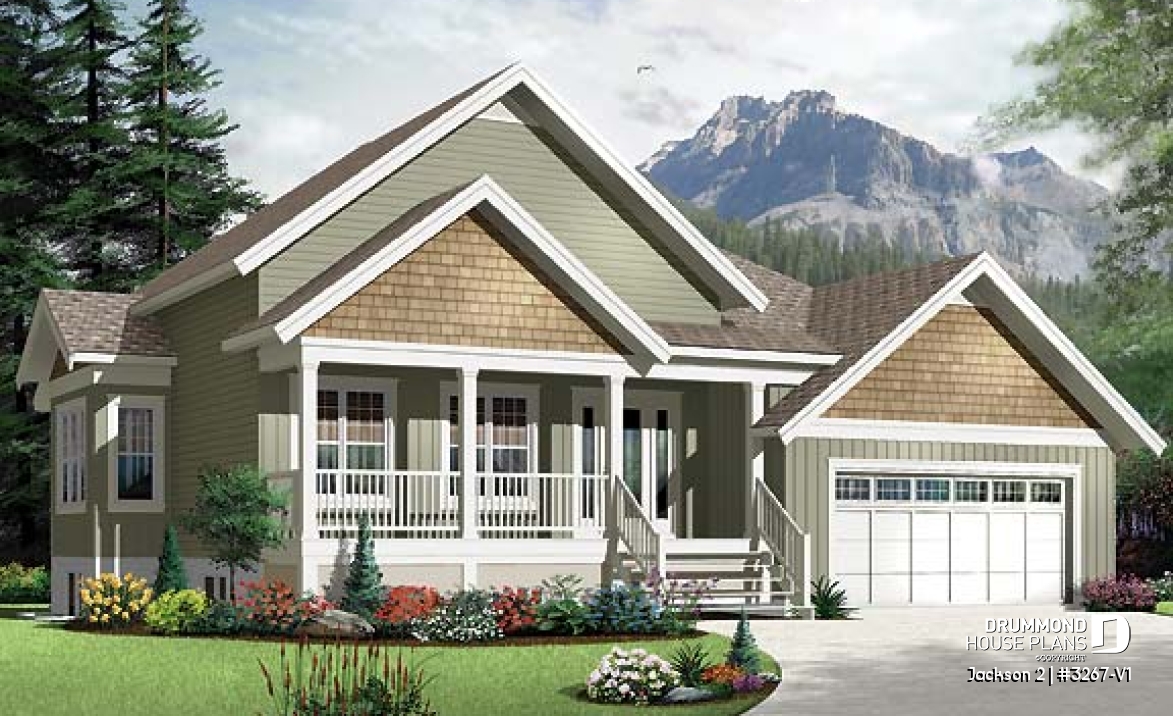

House plan Jackson 2 (3267-V1)
Craftsman 1 to 4 bedroom bungalow house plan with game room and 2 living rooms, master bed on main floor
View the size of the rooms and height of the ceilings

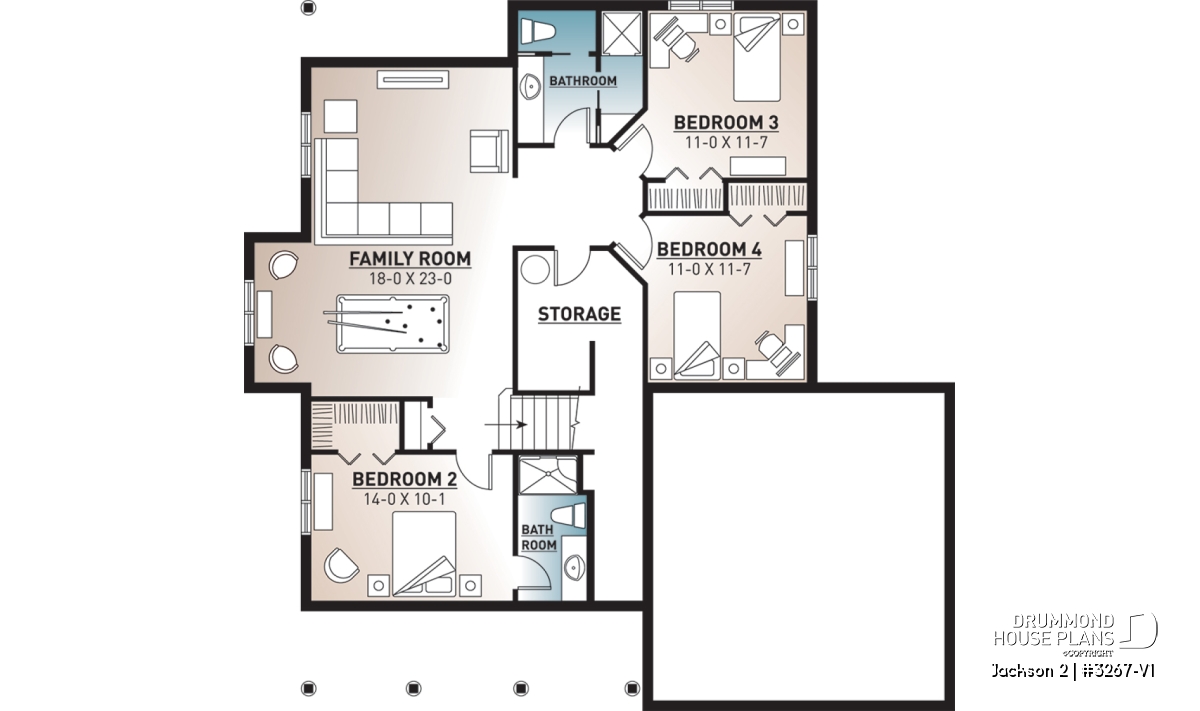

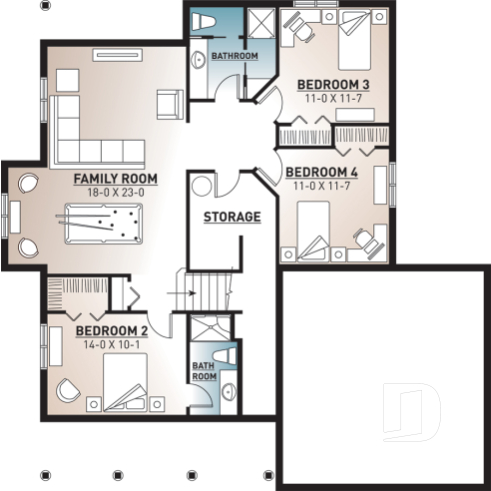

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Great room or Family room | 14'0" x 23'0" | ~ 8'0" |
| Shower room or three quarter bath | 8'10" x 9'0" | ~ 8'0" |
| Shower room or three quarter bath | 4'11" x 10'1" | ~ 8'0" |
| Bedroom | 14'0" x 10'1" | ~ 8'0" |
| Bedroom | 11'0" x 11'7" | ~ 8'0" |
| Bedroom | 11'0" x 11'7" | ~ 8'0" |
| Mechanical room | 8'10" x 9'10" | ~ 8'0" |
| Linen | 1'8" x 3'5" | ~ 8'0" |

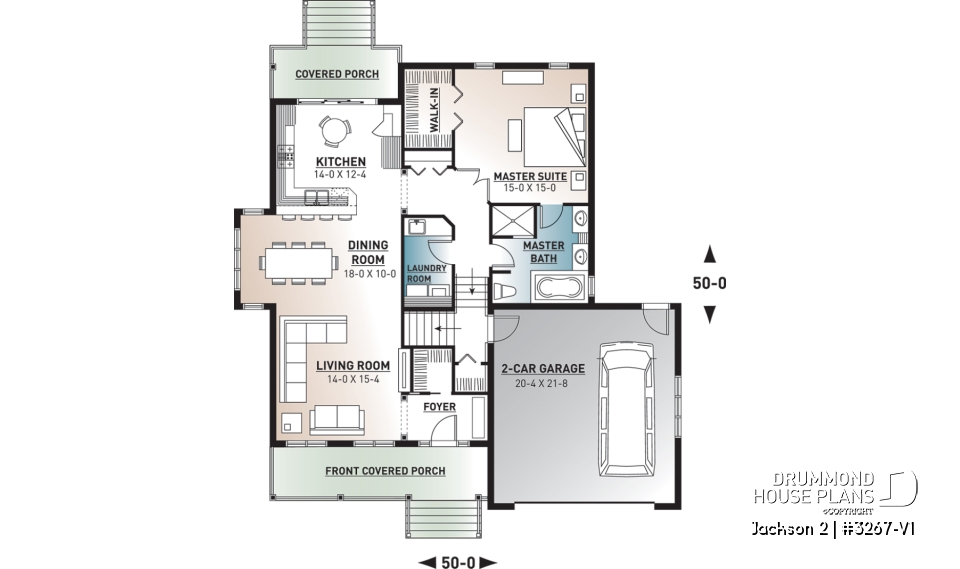

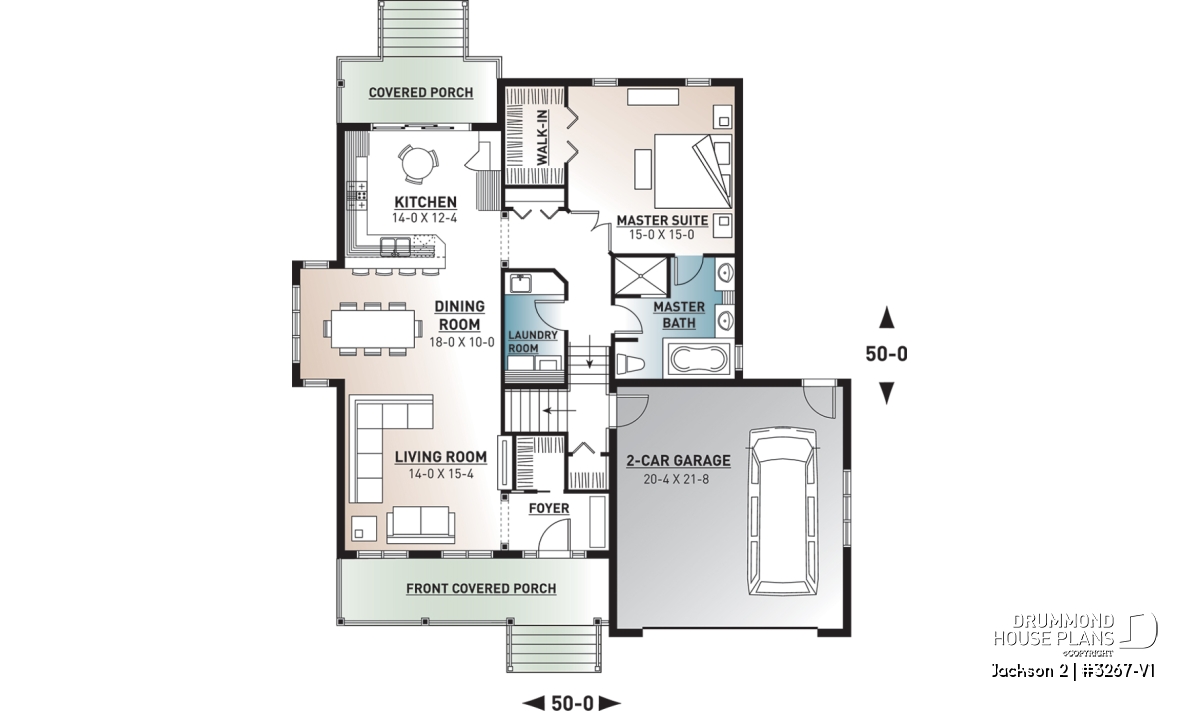

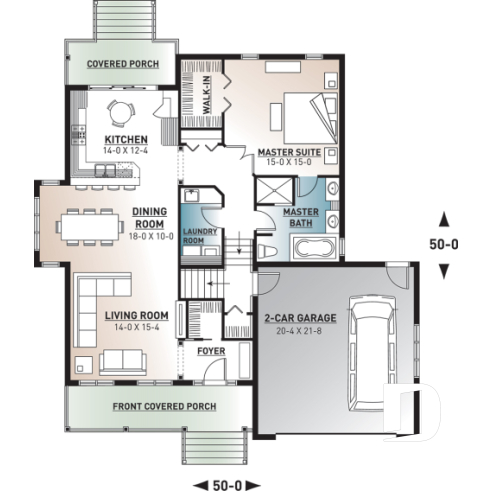

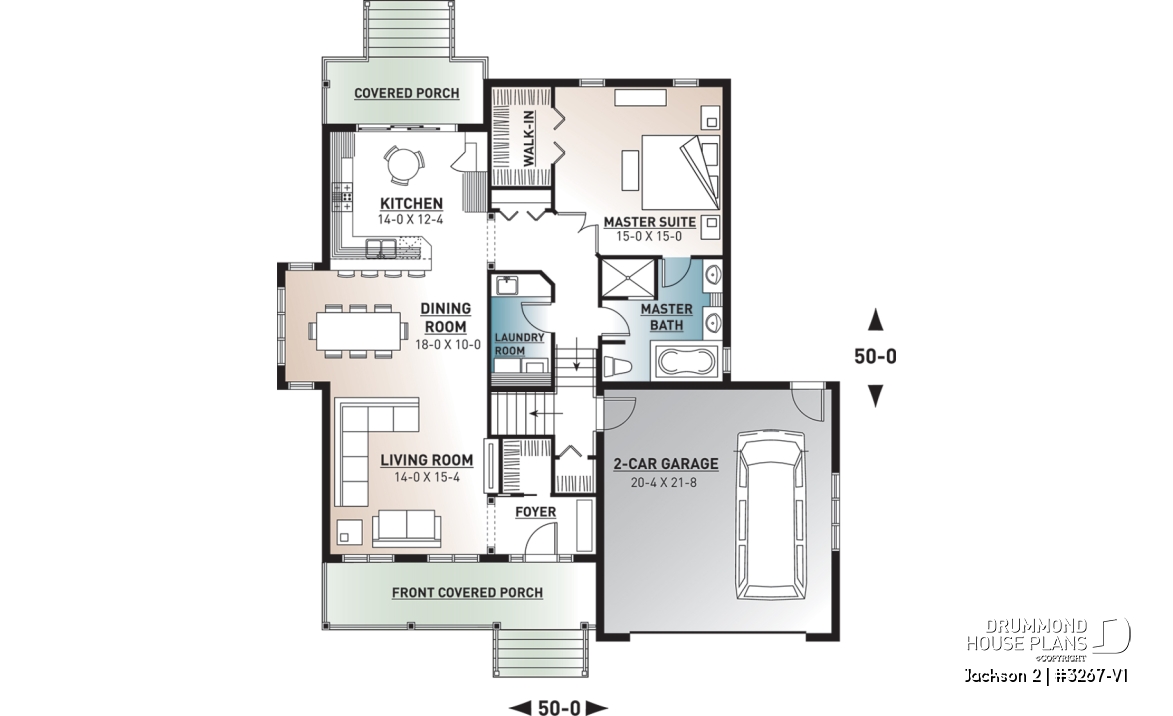

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Covered porch | 24'4" x 6'0" | N/A |
| Covered deck | 14'8" x 6'0" | N/A |
| Foyer | 3'5" x 6'2" | ~ 12'0" |
| Garage | 20'4" x 21'8" | ~ 8'8" |
| Linen | 5'4" x 1'8" | ~ 9'0" |
| Laundry room | 5'4" x 10'0" | ~ 9'0" |
| Kitchen | 14'0" x 12'4" | ~ 9'0" |
| Dining room | 18'0" x 10'0" | ~ 9'0" |
| Living room | 14'0" x 15'4" | ~ 9'0" |
| Foyer | 9'0" x 5'2" | ~ 9'0" |
| Full bathroom | 11'0" x 10'10" | ~ 9'0" |
| Bedroom | 15'0" x 15'0" | ~ 9'0" |
General specifications
| Total living area | 2754 sq.ft. |
| Basement | 1377 sq.ft. |
| 1st level | 1377 sq.ft. |
| Width | 50'0" |
| Depth | 50'0" |
| Ridge height from top of foundation | 26'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
Ranch house plan with finished daylight basement
.
Distinctive elements
9' ceiling on main level with coffer for the living room and dining room. Remarquable master suite on 1st level with walk-out closet and access to the bathroom. Nice layout for the lower level including a large family room and three bedrooms, one of which has its private shower room.
Plan feature(s)
Breakfast nook, Lunch counter, Walk-in master bed., Separate bath and shower, Double sinks, Game room, Guest suite, Gound floor laundry room, Ceiling over 8'
Plan architectural style(s)
. Mountain, . Country, . Rustic, . Farmhouse, . A-Frame, . Modern rustic, . Transitional, . Ranch, . American, . Craftsman / Northwest
Similar plans
Previously Viewed Plans
Questions and comments
January 08
Chloe St-Denis
Hi,
Can you please let me know what is the cost to build for this plan, with only the first floor being finished.
(W3267-V1)
Thank you,
Chloe
January 08
Customer service
Good day and thank you for your interest in this plan.
Since we do no actual building, I am unable to provide the information that you are requesting but you might be able to get an idea by consulting with local contractors and materials suppliers.
Please let me know if you have any other questions or comments.
Regards
Deborah
