House plan Westbrook (3241-V1)

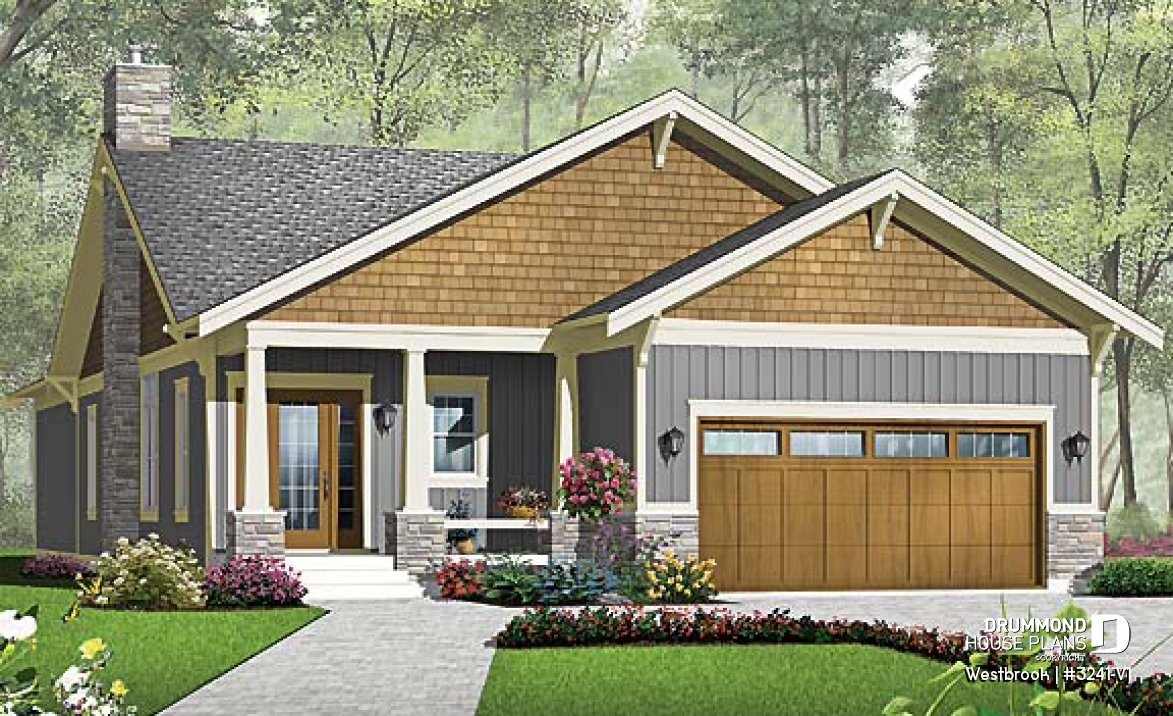

Craftsman inspired house plan with double garage, covered terrace, 3 bedrooms, laundry room, great kitchen
View the size of the rooms and height of the ceilings

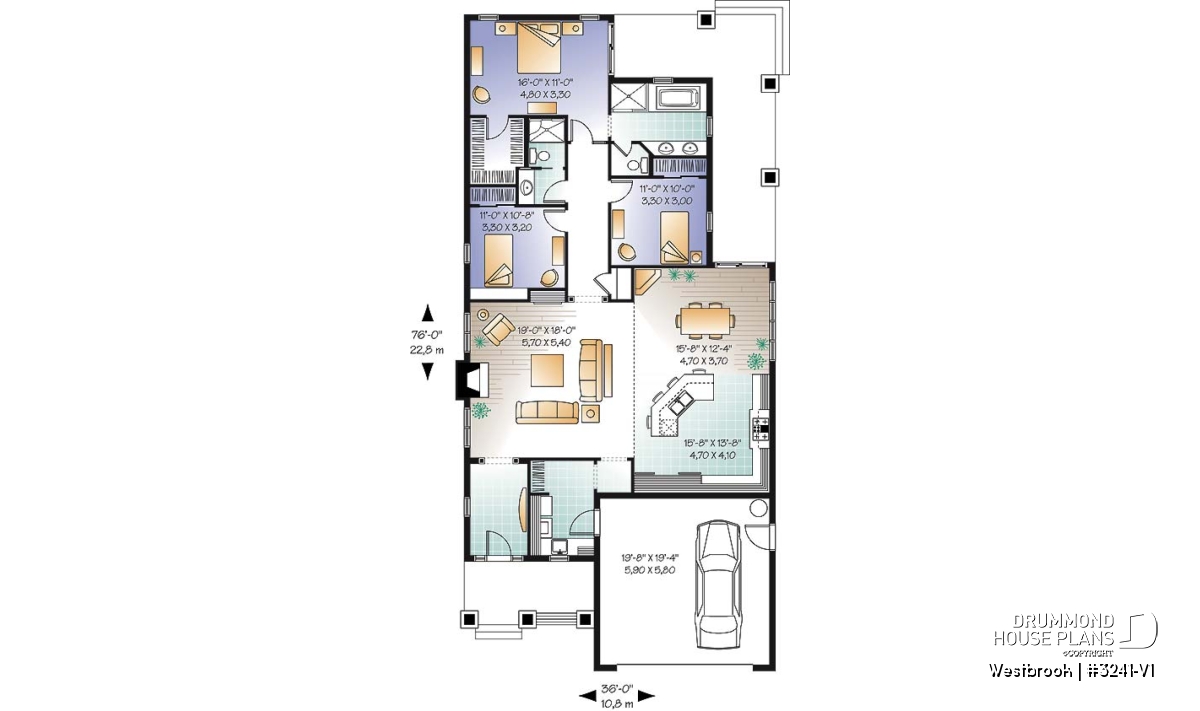

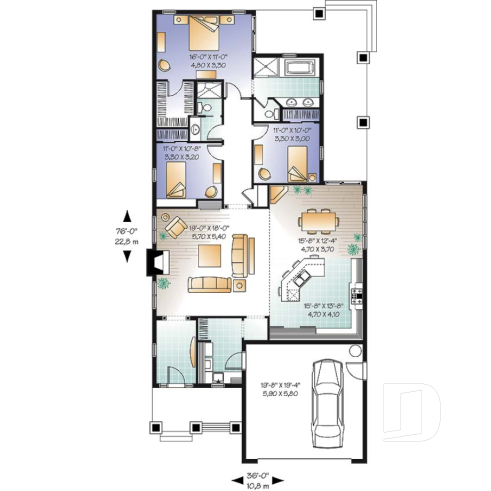

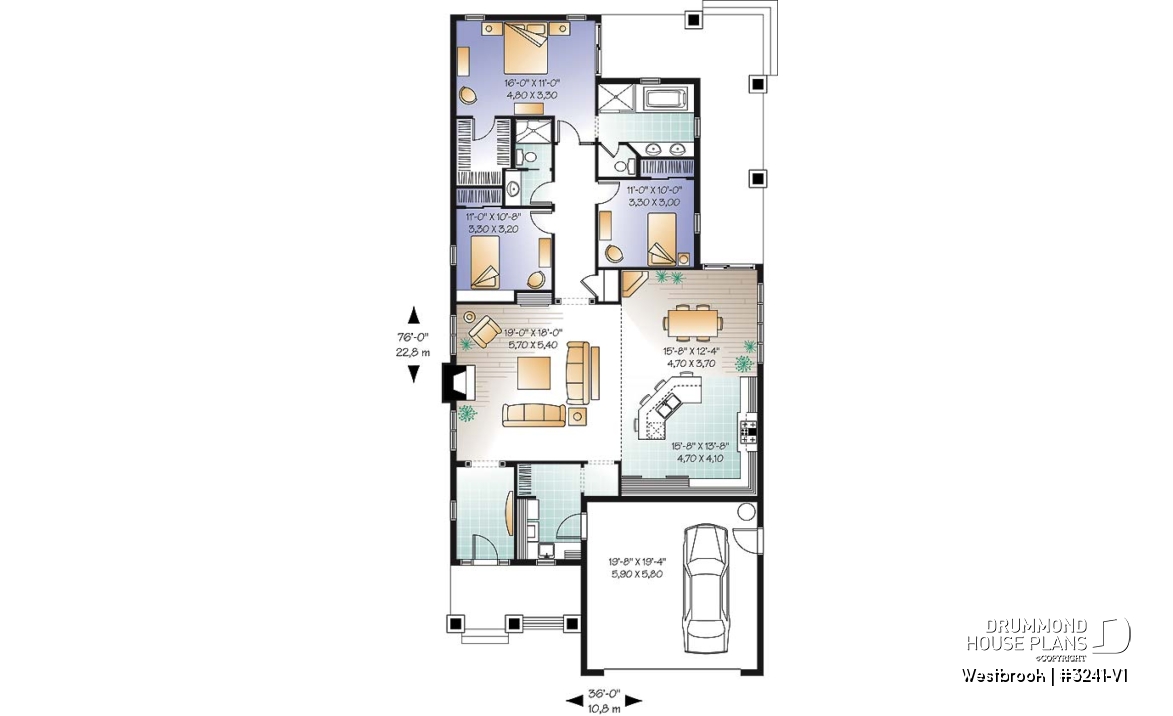

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 15'8" x 13'8" | ~ 9'0" |
| Dining room | 15'8" x 12'4" | ~ 9'0" |
| Living room | 19'0" x 18'0" | ~ 9'0" |
| Foyer | 6'8" x 10'8" | ~ 9'0" |
| Porch | 15'0" x 7'4" | N/A |
| Porch | 18'8" x 28'8" | N/A |
| Garage | 19'8" x 19'4" | ~ 10'0" |
| Utility room | 7'4" x 11'0" | ~ 9'0" |
| Linen | 2'4" x 3'8" | ~ 9'0" |
| Full bathroom | 11'0" x 10'8" | ~ 9'0" |
| Full bathroom | 5'5" x 10'0" | ~ 9'0" |
| Master suite | 16'0" x 11'0" | ~ 9'0" |
| Bedroom | 11'0" x 10'8" | ~ 9'0" |
| Bedroom | 11'0" x 10'0" | ~ 9'0" |
General specifications
| Total living area | 1838 sq.ft. |
| 1st level | 1838 sq.ft. |
| Width | 36'0" |
| Depth | 76'0" |
| Ridge height from top of foundation | 22'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Crawl space i |
| Other available foundations (a fee may apply) | Floating Slab, Monolithic Slab |
| Builder price code | E |
Rooms specifications

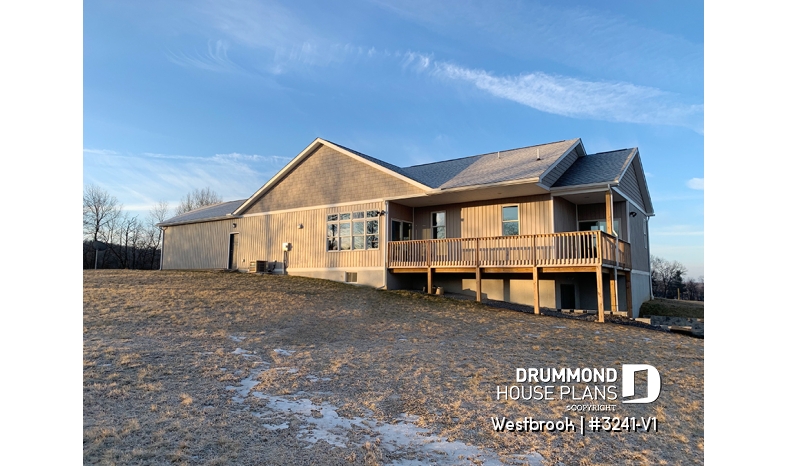

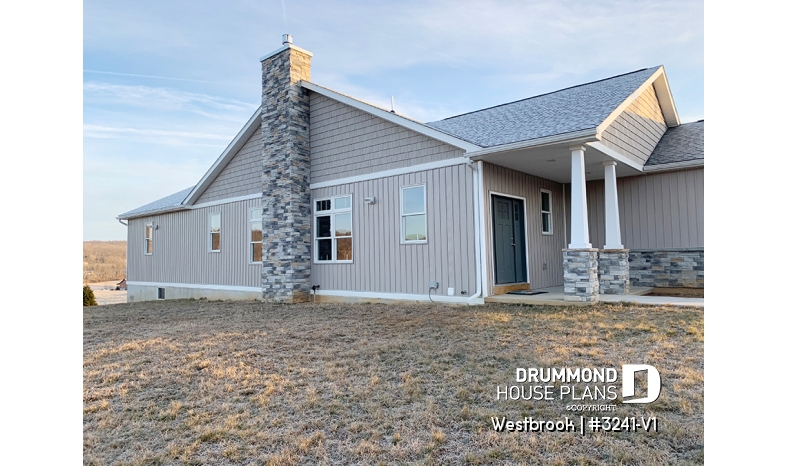

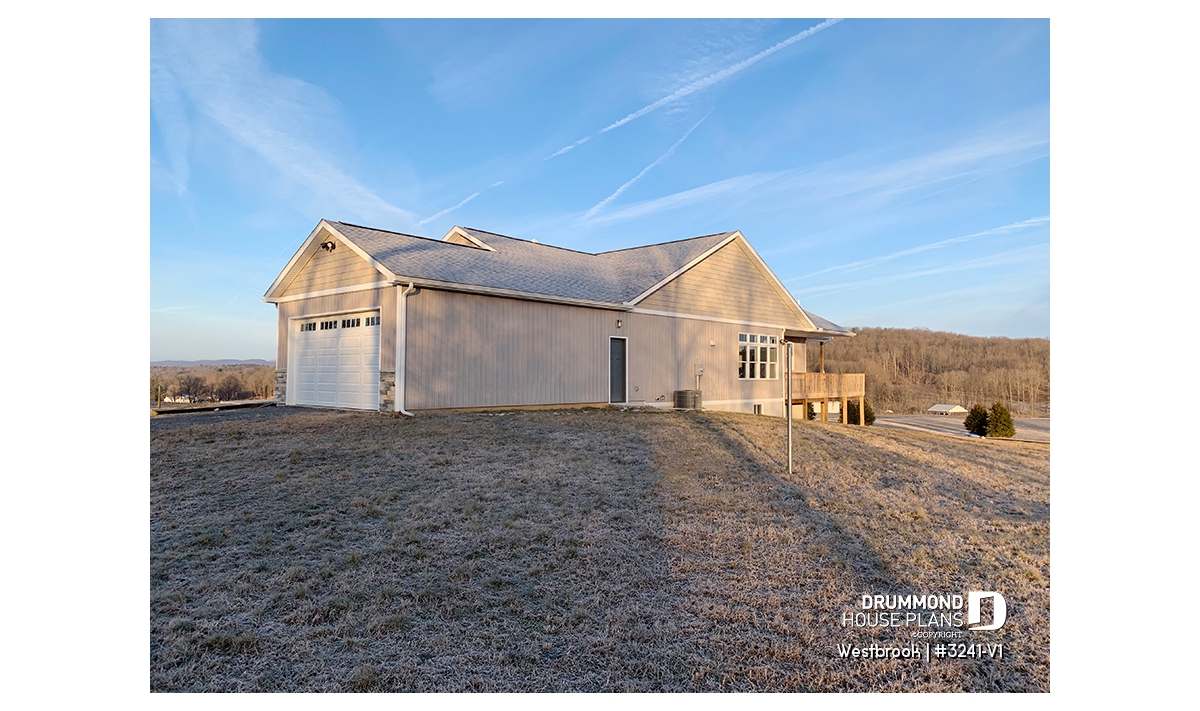

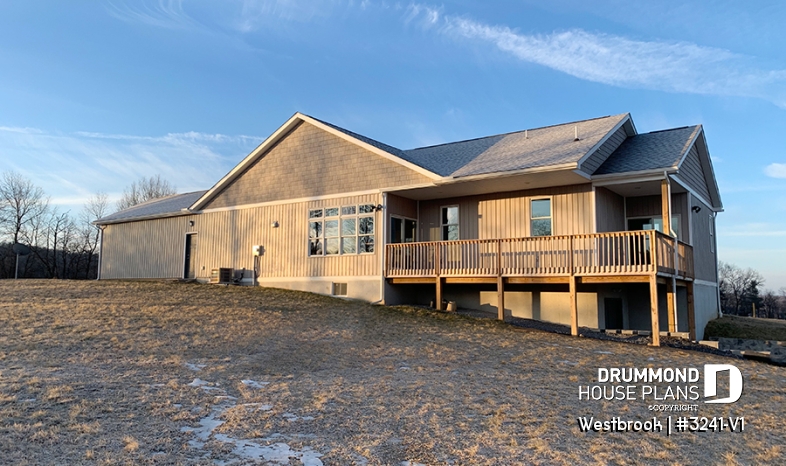

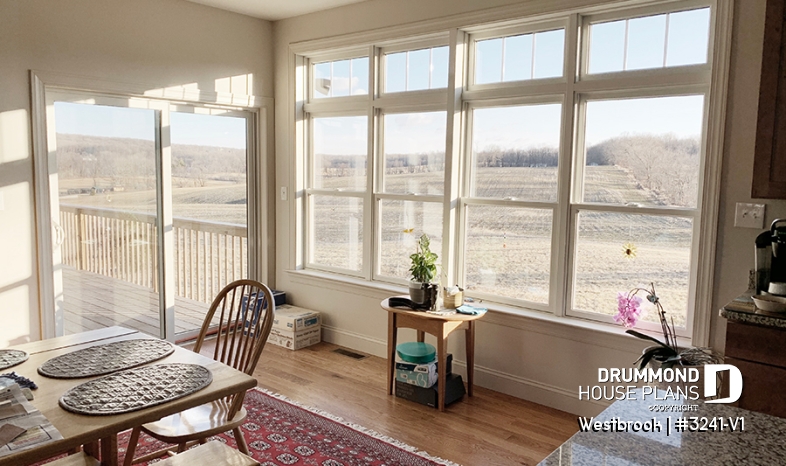

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

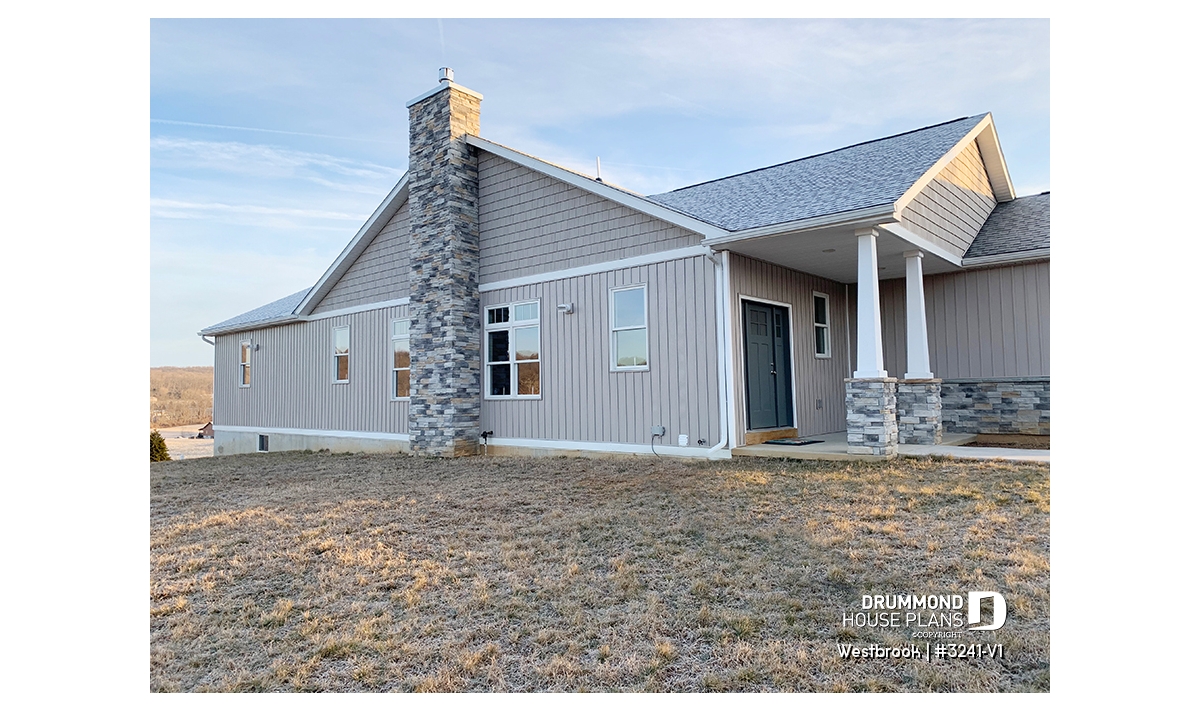

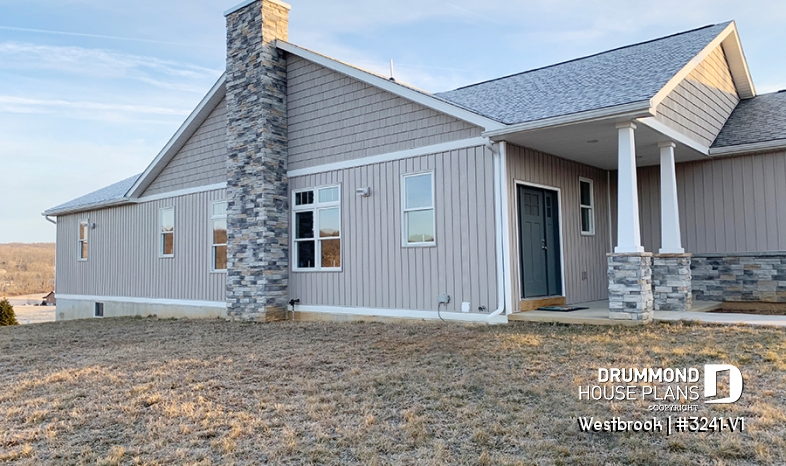

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

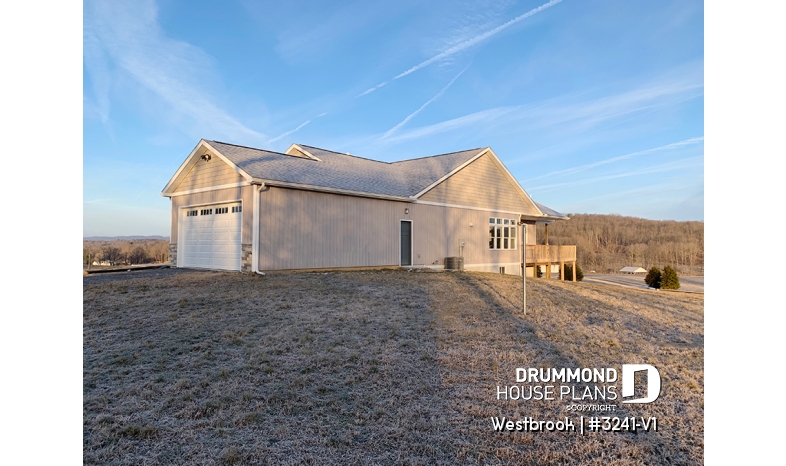

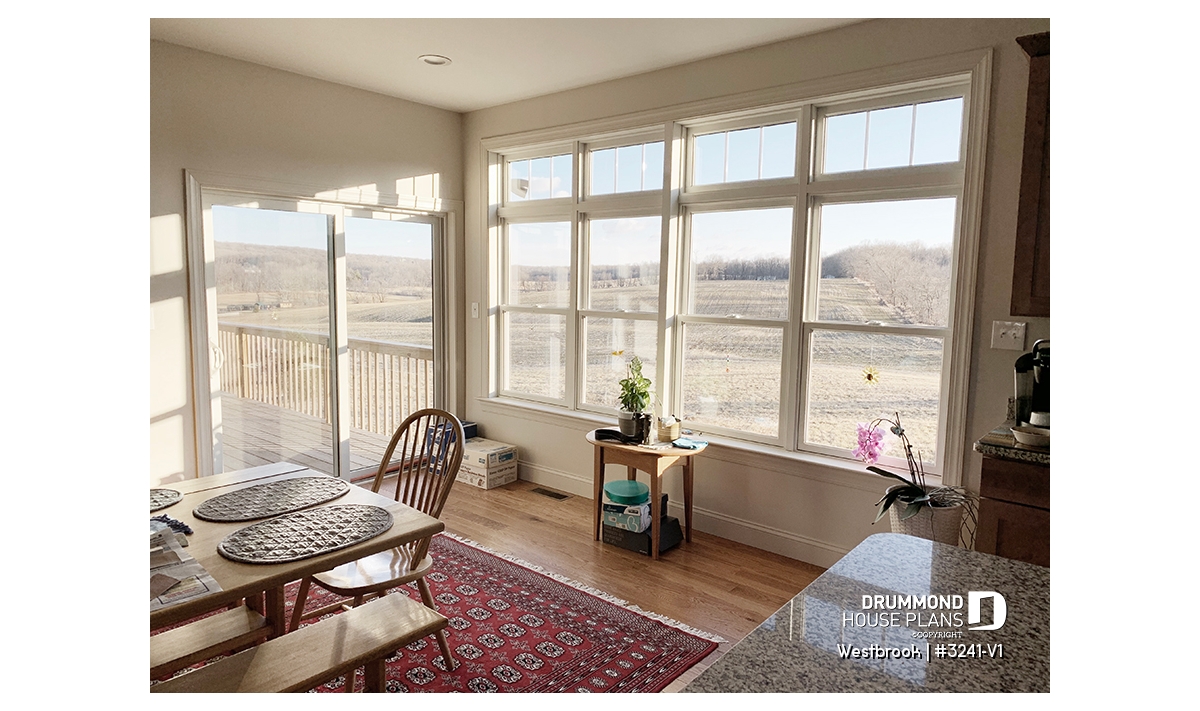

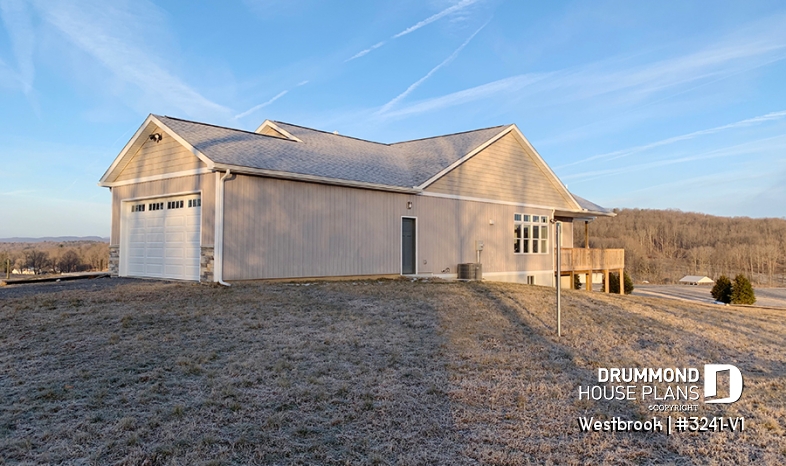

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

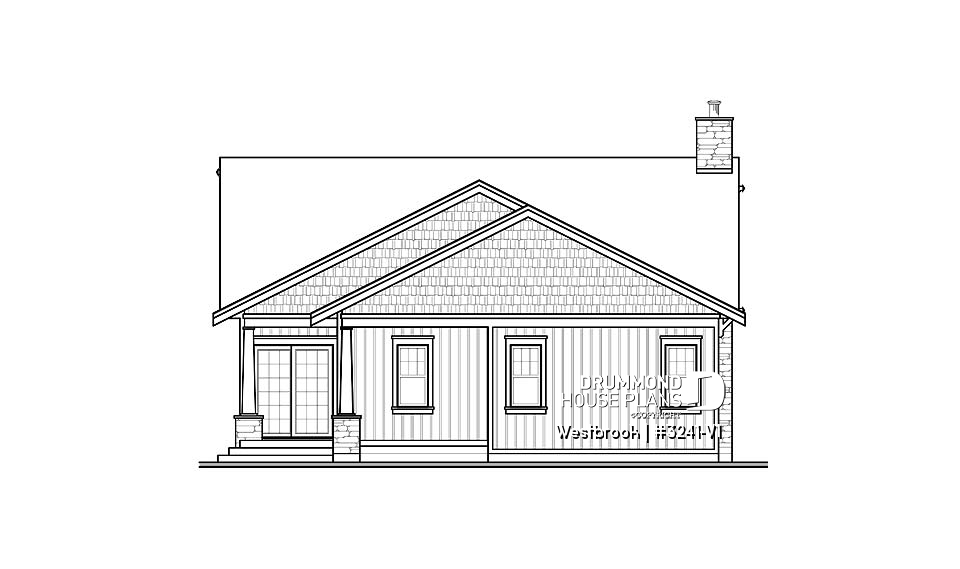

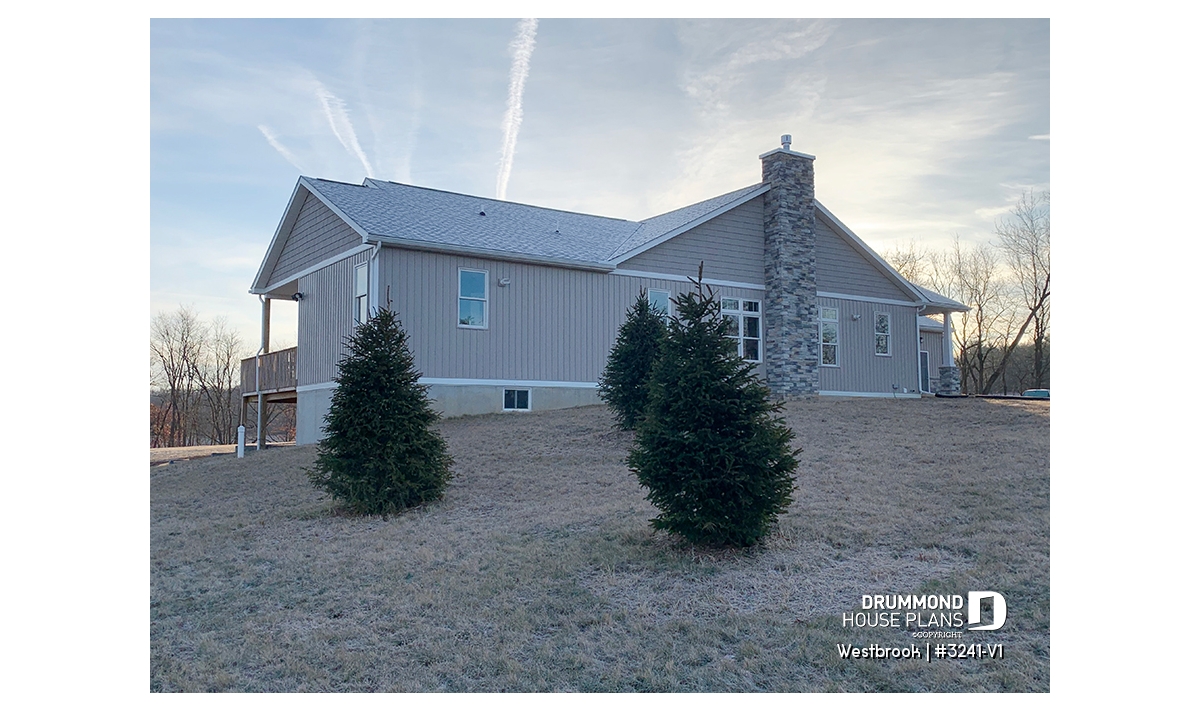

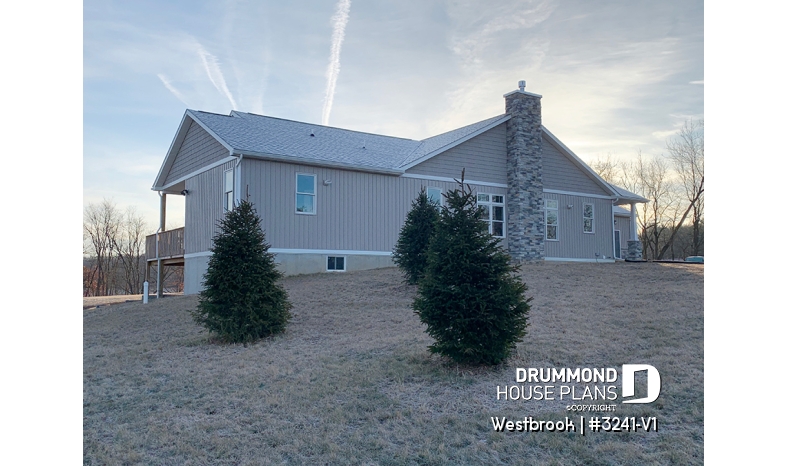

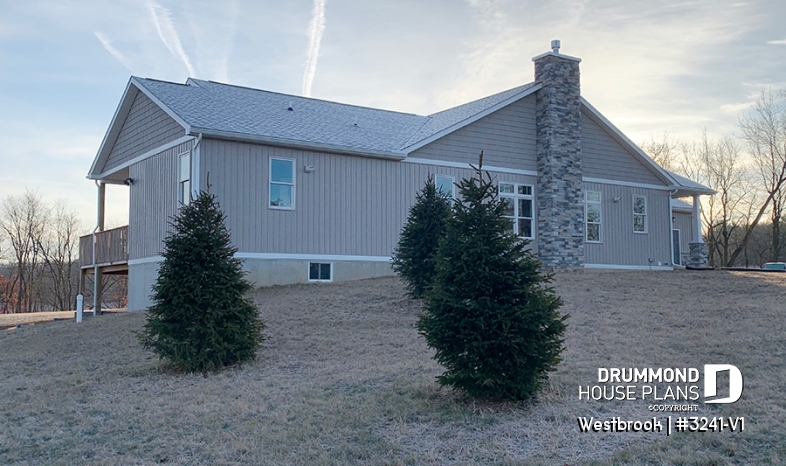

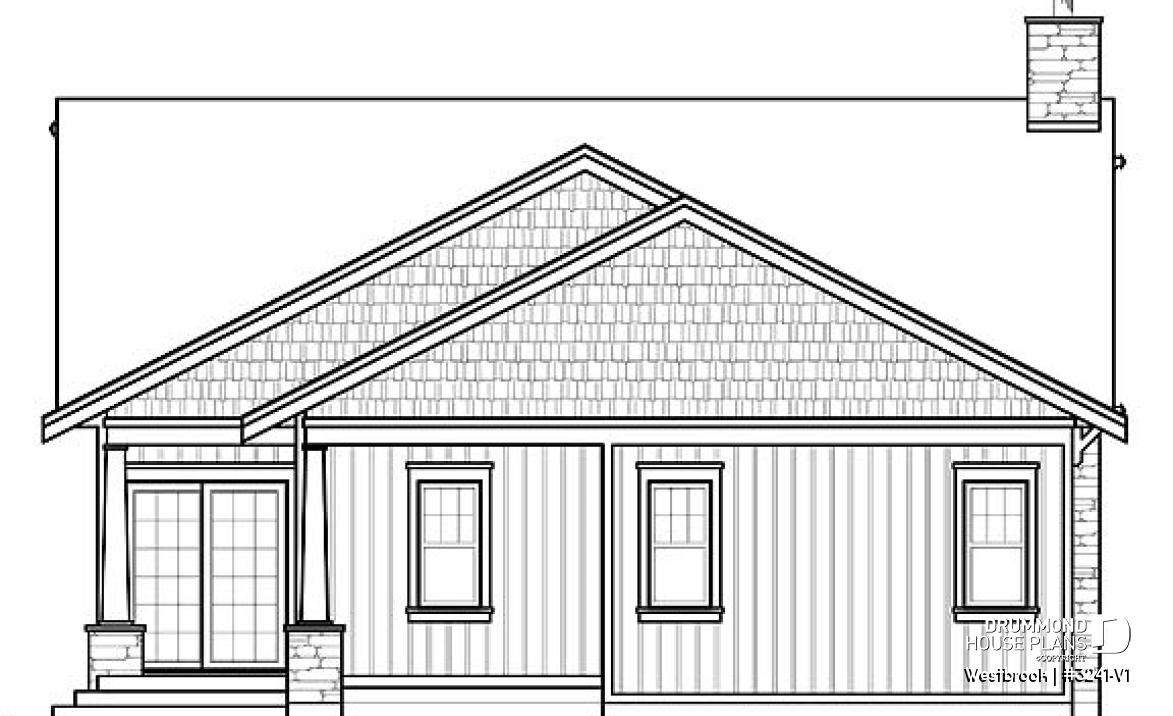

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

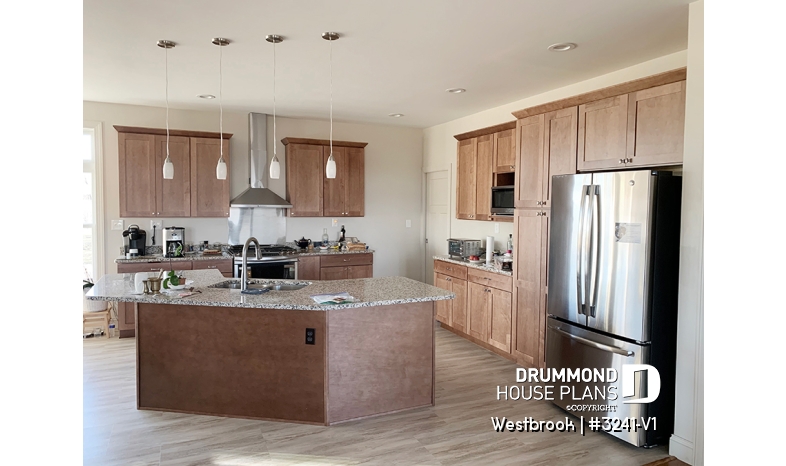

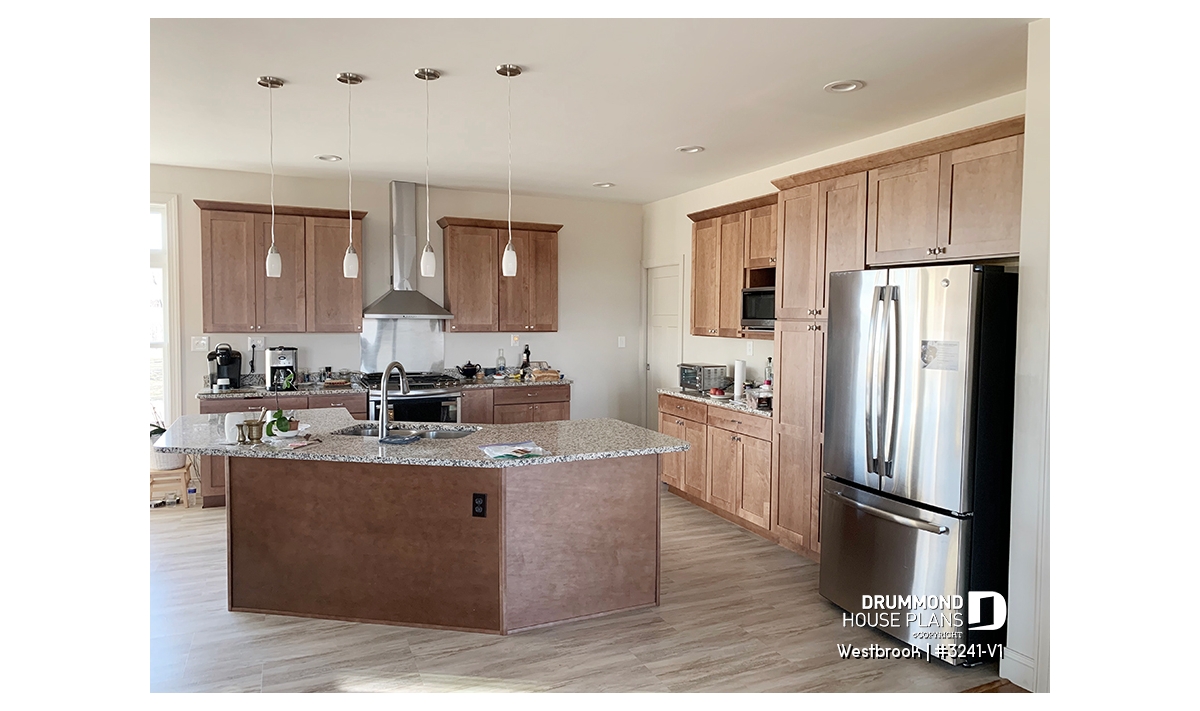

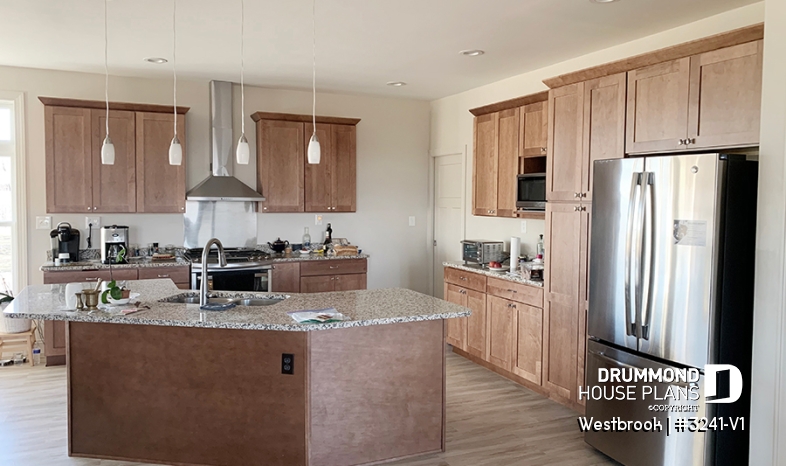

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

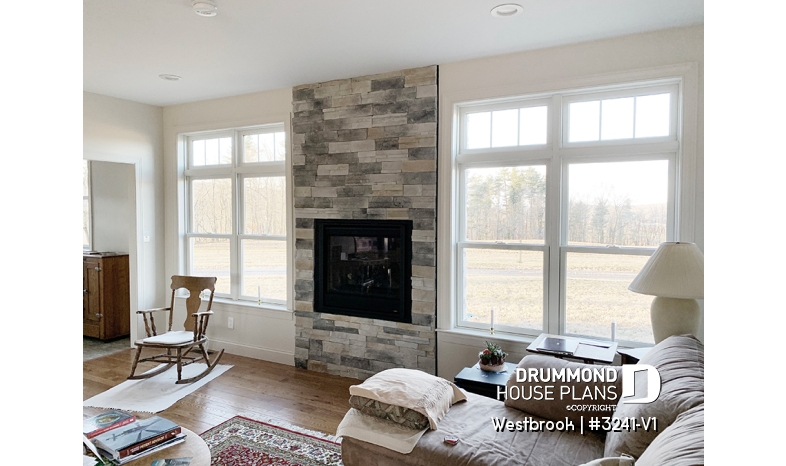

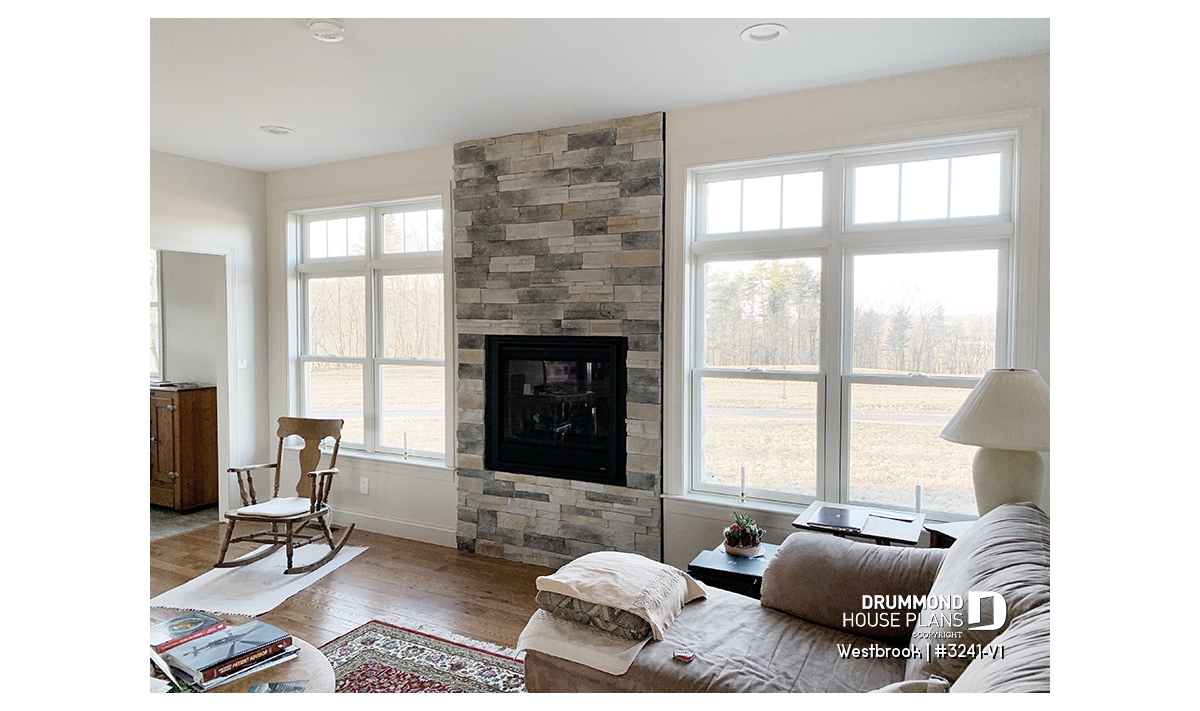

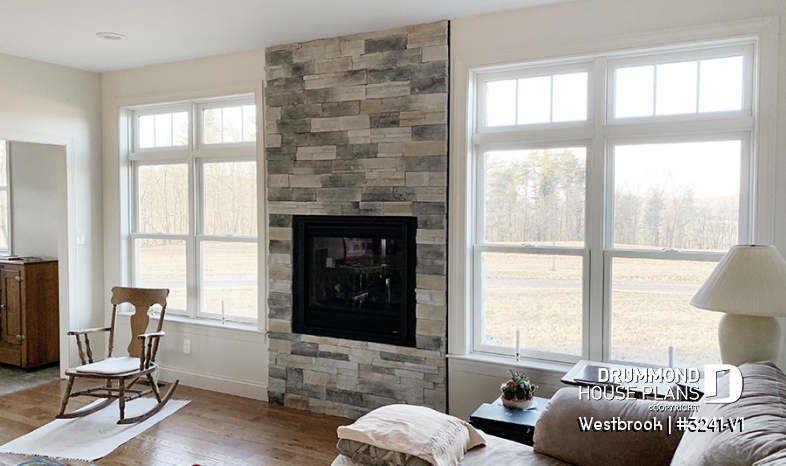

Great / Family room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Perfect narrow lot 3 bedroom, 2 bathroom house plan with a 2-car garage!
Nested gables, covered front porch, mixed material finishes and a smart-looking double garage paint a welcoming picture.
A fabulous great room style of floor plan keeps the family activities well-integrated. The kitchen is well-oriented and open to the dining room and family area. The great room is enhanced by a beautiful fireplace and ceiling which vaults to 11 feet.
A lovely master suite enjoys direct wraparound covered patio access, a walk-in closet and private 5-fixture bathroom. Two additional bedrooms share a bathroom.
The final amenity is a mud and laundry room off the double garage.
Distinctive elements
Perfect narrow lot 3 bedroom house plan with a 2-car garage.
Covered front porch.
Sheltered side / rear terrace.
9' ceiling on the main level and raised to 11' in the living room.
Well oriented kitchen with island/lunch counter.
Dining room with abundant windows of which a patio door overlooks the rear lateral porch.
Living room with fireplace and beautiful windows on each side.
Lovely master suite with a patio door open onto the rear porch.
Other foundation types available.
Plan feature(s)
Fireplace, Island, Deck, Walk-in master bed., Gound floor laundry room, Ceiling over 8', Double sinks, Separate bath and shower, Master suite on main
Plan architectural style(s)
. Craftsman / Northwest, . Rustic, . Country, . American, . Mountain
Similar plans
Previously Viewed Plans
Questions and comments
January 16
Joanne Soares
I really like this plan and also Plan W3441 which is 44 ft. wide.Most of the lots where we want to eventually build are only 50 ft wide so cannot build over 40 ft. wide.Can this plan be increased to 40 ft. to include a full basement? The garage on this plan is a bit small for a double.If so,where would the stairs be situated?
January 17
Customer service
Dear Mrs Soares,
Thank you for your interest in Drummond House Plans.
All of our plans can easily be modified. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact our Modification Department at 1-800-567-5267. You will be able to discuss all the modification details with our Customization team.
Do not hesitate to contact me again if you need further information.
Best Regards,
Doreen, Customer Service Department
