Narrow lot house plan, 3 bedroom with ensuite, formal dining room, double garage and lanai

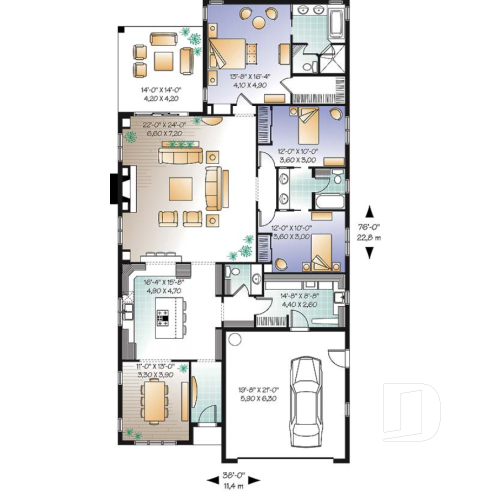

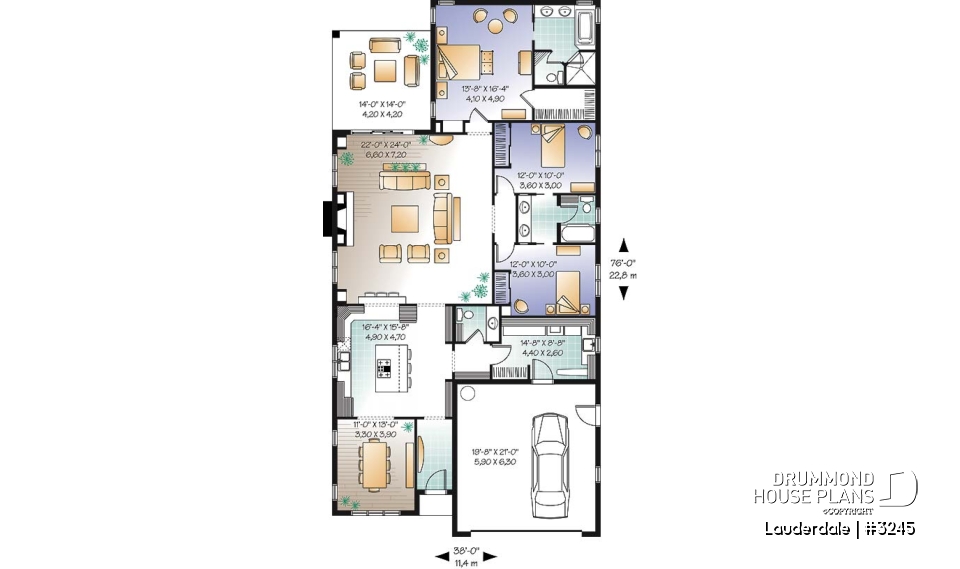

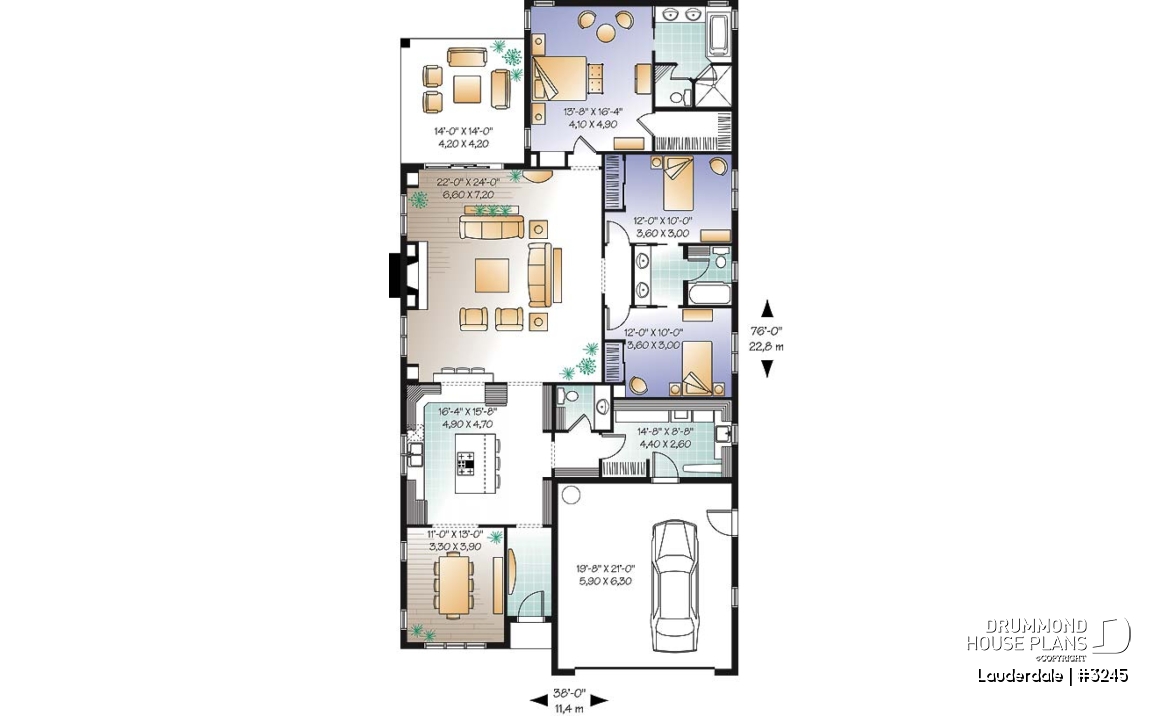

View the size of the rooms and height of the ceilings
|Kitchen||16'4" x 15'8"||~ 9'0"|
|Dining room||11'0" x 13'0"||~ 9'0"|
|Living room||22'0" x 24'0"||~ 14'8"|
|Foyer||5'0" x 10'0"||~ 9'0"|
|Full bathroom||11'0" x 6'8"||~ 9'0"|
|Half bath or powder room||6'2" x 5'0"||~ 9'0"|
|Master suite||13'8" x 16'4"||~ 9'0"|
|Bedroom||12'0" x 10'0"||~ 9'0"|
|Bedroom||12'0" x 10'0"||~ 9'0"|
|Utility room||13'4" x 8'8"||~ 9'0"|
|Garage||19'8" x 21'0"||~ 9'0"|
|Porch||4'8" x 3'0"||N/A|
|Lanai||14'0" x 14'0"||N/A|
|Total living area||2122 sq.ft.|
|1st level||2122 sq.ft.|
|Ridge height from top of foundation||19'10"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Monolithic Slab|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space|
|Builder price code||E|
|Garage type||Two-car garage (445 sq.ft.)|
|Living bonus space||-|
