Eastbrook (3241)

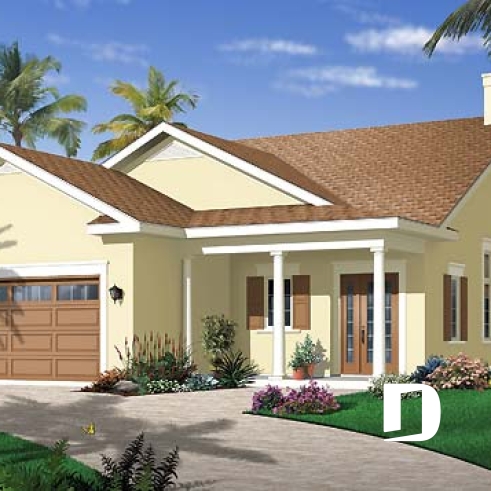

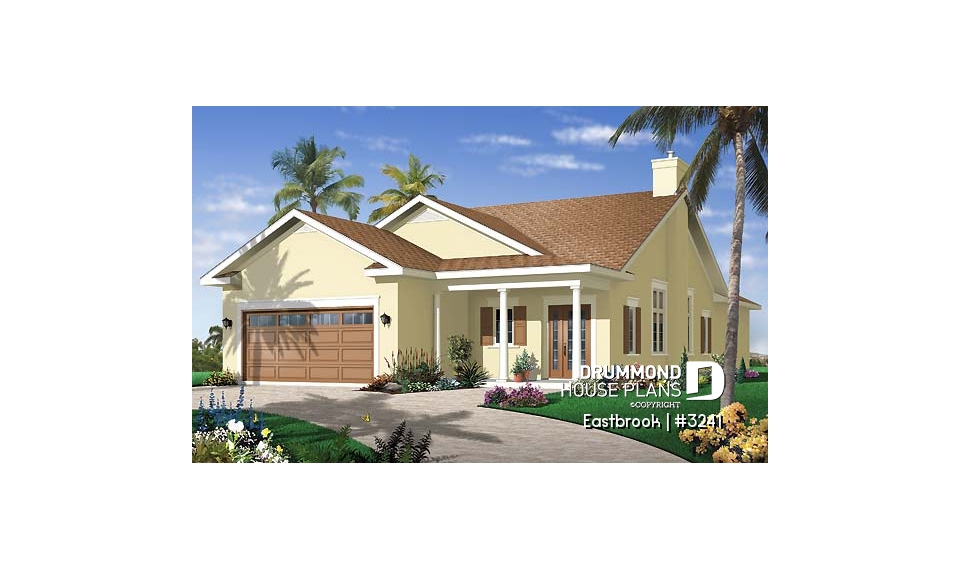

Perfect 3 bedrooms, 2 bathrooms bungalow house plan with a 2-car garage, for a narrow lot
View the size of the rooms and height of the ceilings

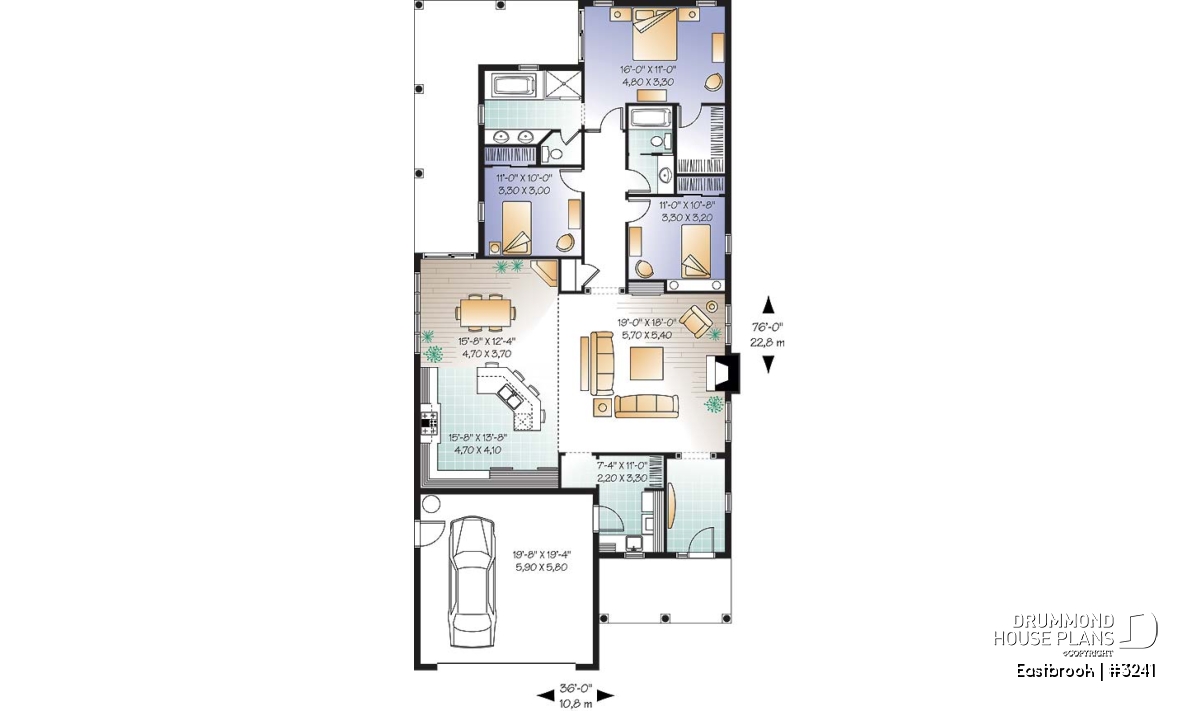

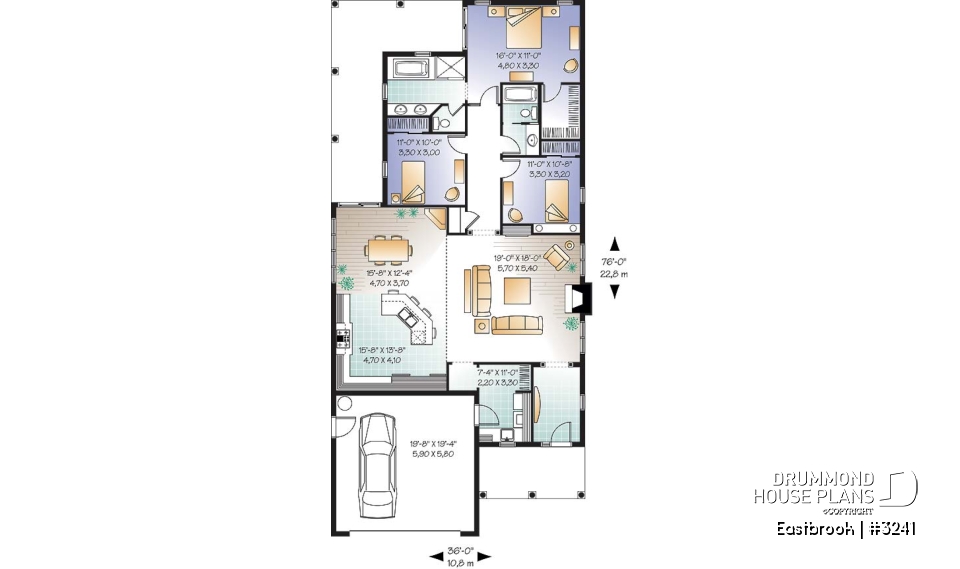

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 15'8" x 13'8" | ~ 9'0" |
| Dining room | 15'8" x 12'4" | ~ 9'0" |
| Living room | 19'0" x 18'0" | ~ 11'0" |
| Foyer | 6'8" x 10'8" | ~ 9'0" |
| Full bathroom | 5'0" x 10'0" | ~ 9'0" |
| Master suite | 16'0" x 11'0" | ~ 9'0" |
| Bedroom | 11'0" x 10'8" | ~ 9'0" |
| Bedroom | 11'0" x 10'0" | ~ 9'0" |
| Utility room | 7'4" x 11'0" | ~ 9'0" |
| Linen | 2'4" x 3'8" | ~ 9'0" |
| Garage | 19'8" x 19'4" | ~ 9'6" |
| Porch | 15'0" x 7'4" | N/A |
| Porch | 7'4" x 28'8" | N/A |
General specifications
| Total living area | 1838 sq.ft. |
| 1st level | 1838 sq.ft. |
| Width | 36'0" |
| Depth | 76'0" |
| Ridge height from top of foundation | 21'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Monolithic Slab i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
3 bedroom bungalow narrow lot house plan with a two-car garage and great master suite
.
Distinctive elements
Front porch and lateral rear porch.
9' ceiling on the main level and raised to 11' in the living room.
Well oriented kitchen with island/lunch counter.
Dining room with abundant fenestration of which a patio door overlooks the rear lateral porch.
Living room with fireplace and beautiful windows on each side.
Lovely master suite with a patio door open onto the rear porch.
2-car garage.
Many foundation options available.
Plan feature(s)
Fireplace, Ceiling over 8', Walk-in master bed., Gound floor laundry room, Deck, Narrow lot, Double sink vanity, Separate bath and shower, Island, Master suite on main
Plan architectural style(s)
. Florida, . Mediterranean
