House plan Sundance (3227)

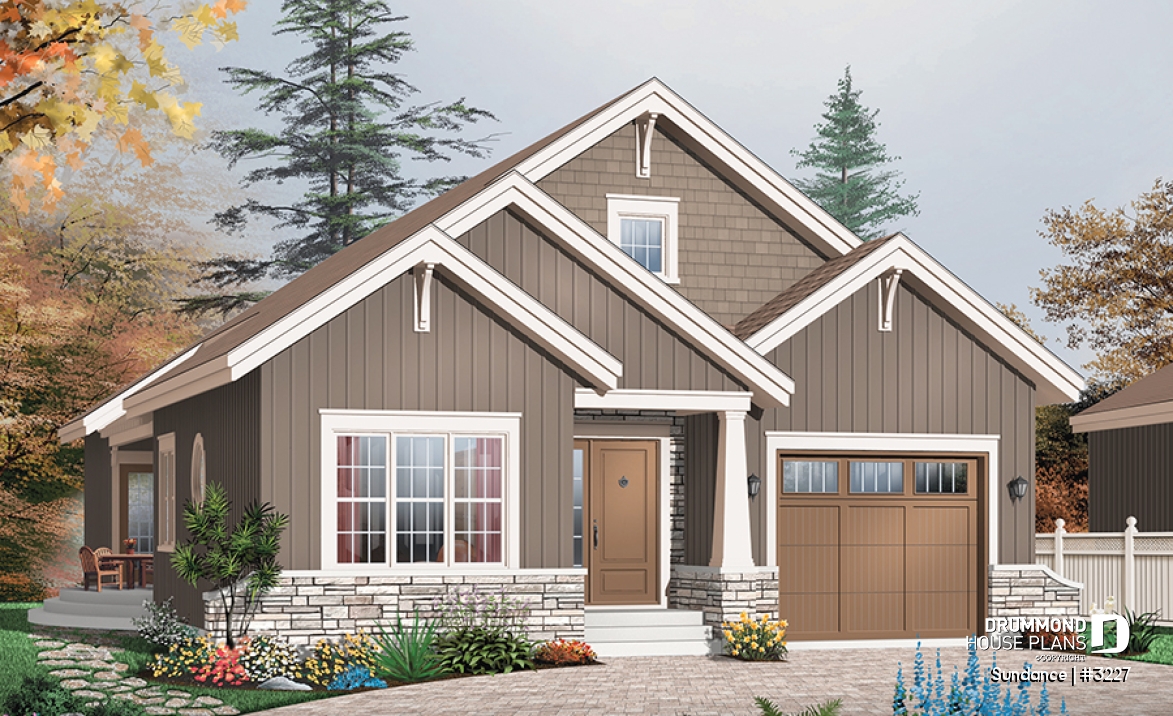

3 bedroom Craftsman house plan with ensuite, fireplace, mud room, side lanai and lots of light

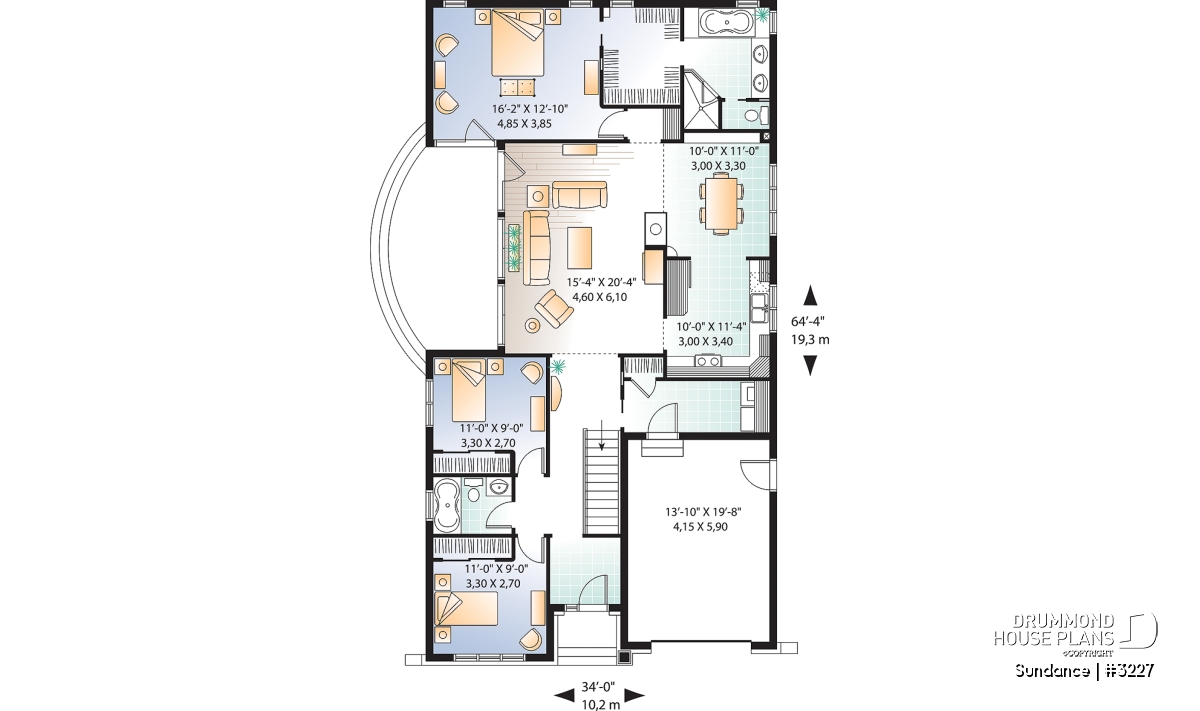

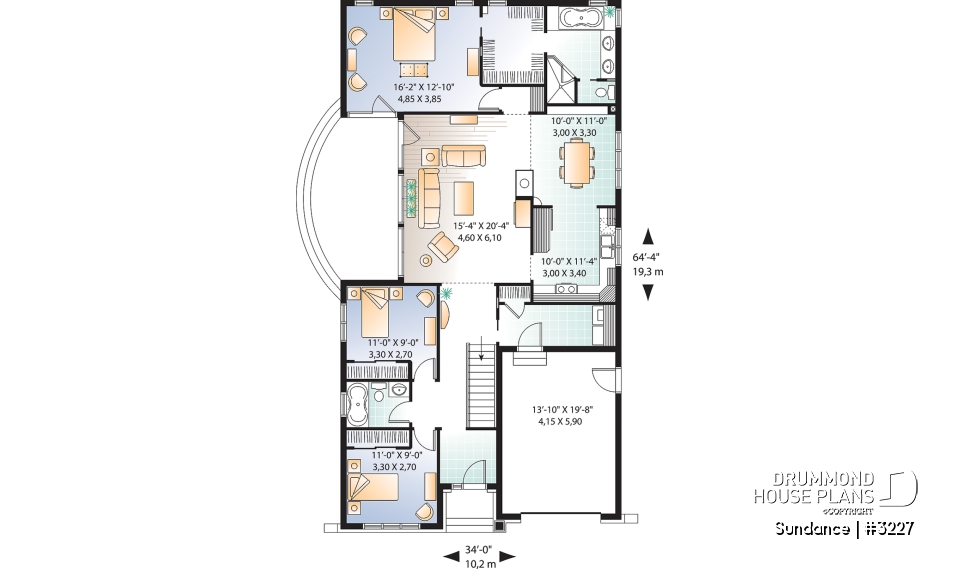

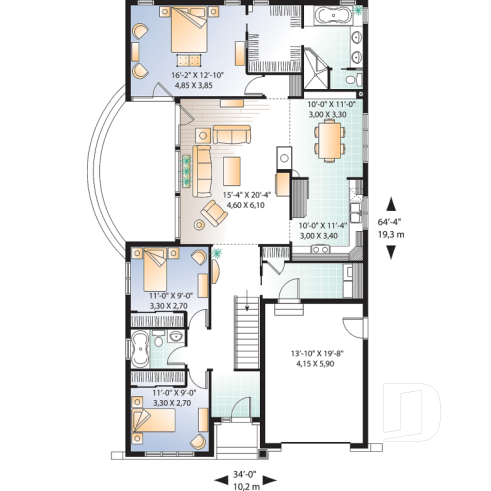

View the size of the rooms and height of the ceilings

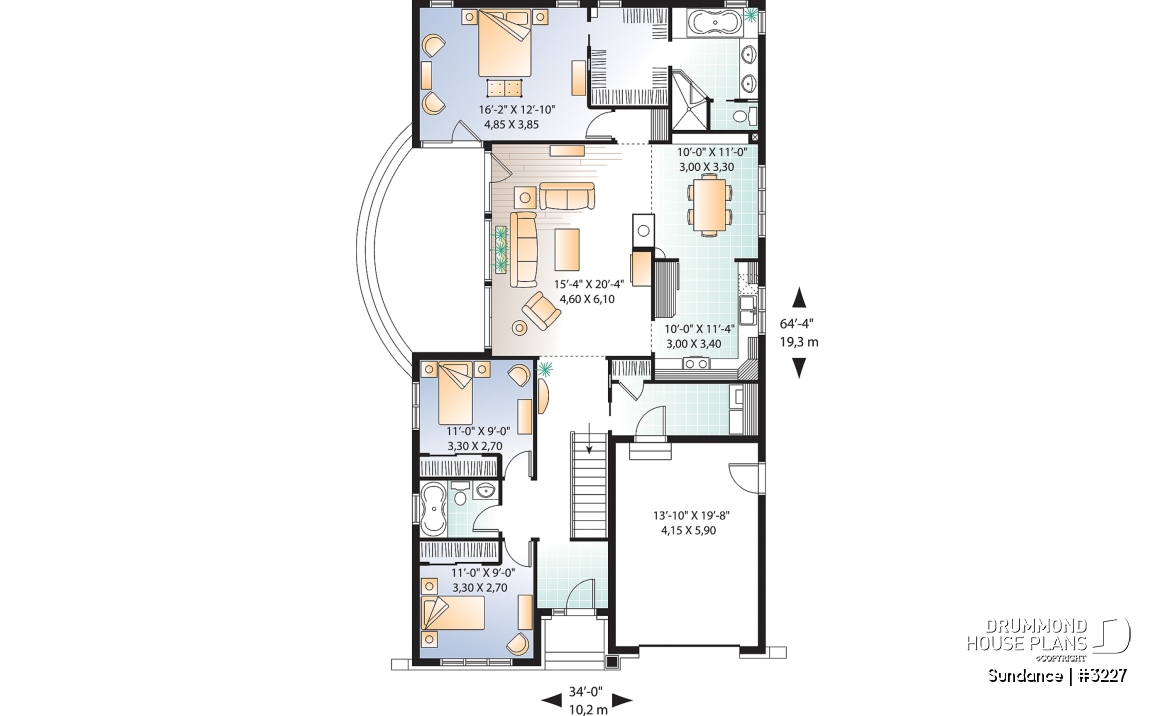

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'0" x 11'4" | ~ 9'0" |
| Living room | 15'4" x 20'4" | ~ 12'0" |
| Dining room | 10'0" x 11'0" | ~ 9'0" |
| Full bathroom | 7'8" x 5'6" | ~ 9'0" |
| Master suite | 16'2" x 12'10" | ~ 9'0" |
| Bedroom | 11'0" x 9'0" | ~ 9'0" |
| Bedroom | 11'0" x 9'0" | ~ 9'0" |
| Linen | 1'8" x 3'0" | ~ 9'0" |
| Garage | 13'10" x 19'8" | ~ 10'8" |
| Porch | 5'10" x 3'2" | N/A |
| Pergola | 10'8" x 19'8" | N/A |
| Utility room | 13'10" x 5'0" | ~ 9'0" |
General specifications
| Total living area | 1700 sq.ft. |
| 1st level | 1700 sq.ft. |
| Width | 34'0" |
| Depth | 64'4" |
| Ridge height from top of foundation | 23'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Savvy narrow lot single-storey floor plan with 3 bedrooms and a 2-car garage
One floor plus 1700 sq. ft. equals savvy living space. A beautifully bright and open family room with fireplace and 12 foot lofted ceiling eases to the kitchen and integrated dining area. The living room also provides easy access to an alcoved patio.
The master suite delivers a huge walk-in, plus pampering space in a private bathroom. The other end of the house showcases two secondary bedrooms, and centrally located full bathroom.
The one-car garage provides convenient access to bring in groceries. All these features and a mere 34 feet wide!
Distinctive elements
9' ceiling throughout main level, 12' in family room. Abundant windows in family room. Super master suite with access to lateral porch.
Plan feature(s)
Ceiling over 8', Gound floor laundry room, Walk-in master bed., Fireplace, Panoramic view, Master suite on main, Narrow lot, Split bedrooms, Separate bath and shower, Coffee bar, Double sinks
Plan architectural style(s)
. Craftsman / Northwest, . Rustic, . American, . Modern rustic, . Vacation and waterfront, . Country, . Mountain, Tudor
