Westhaven (3240-V1)
3 bedroom Northwest style house plan, 2-car garage, large covered rear balcony, fireplace, open concept
View the size of the rooms and height of the ceilings

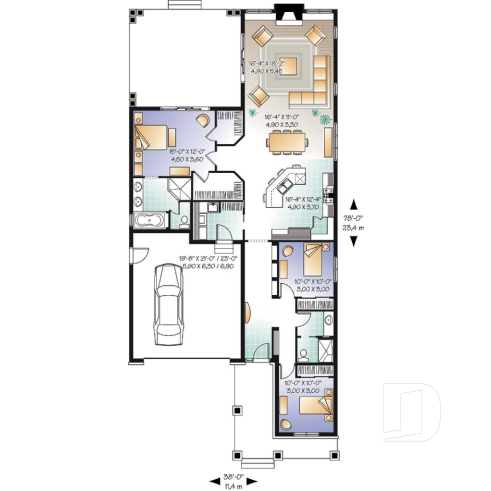

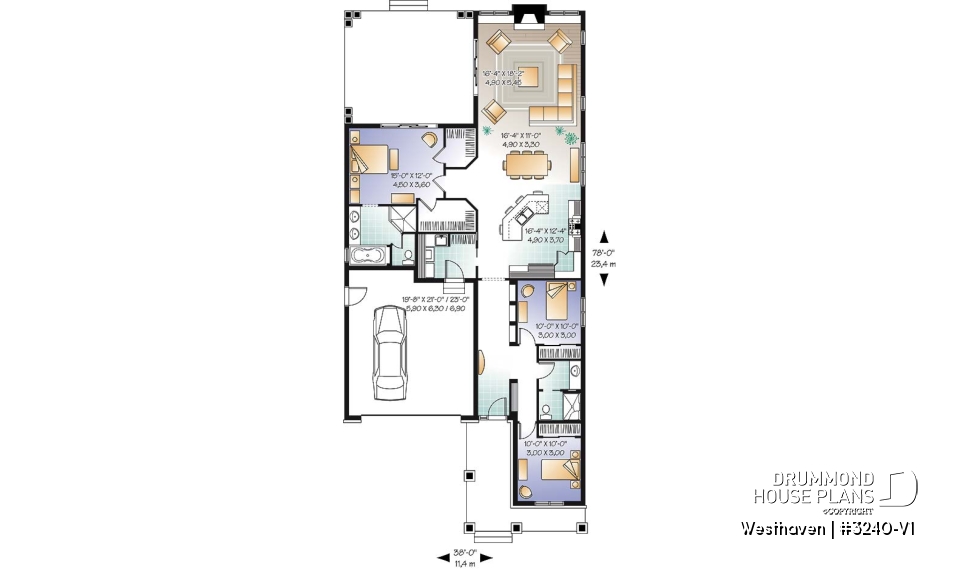

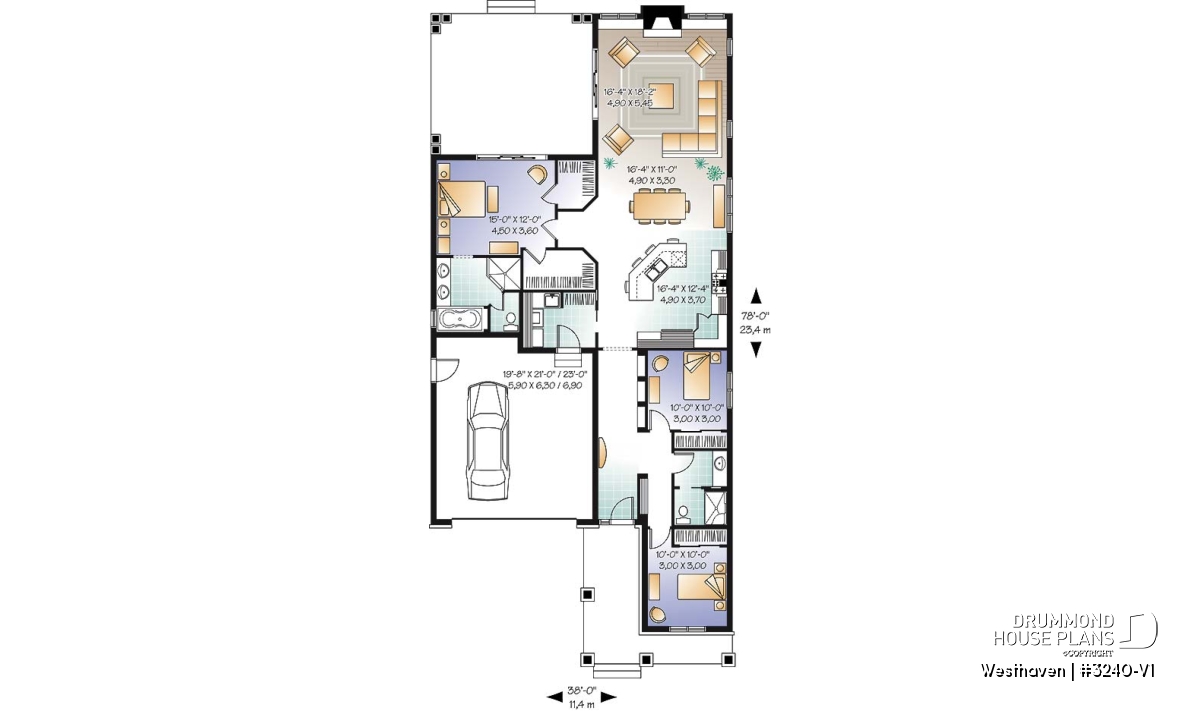

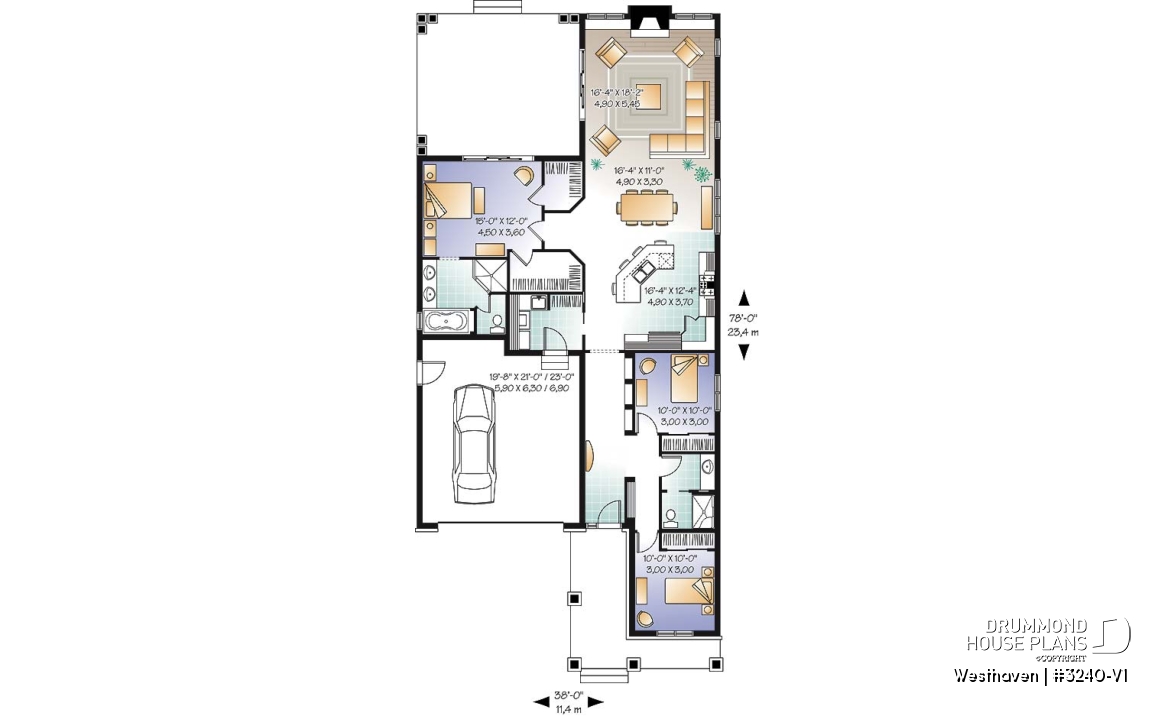

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 16'4" x 12'4" | ~ 9'0" |
| Dining room | 16'4" x 11'0" | ~ 9'0" |
| Living room | 16'4" x 18'2" | ~ 9'0" |
| Foyer | 5'0" x 21'4" | ~ 9'0" |
| Full bathroom | 9'4" x 6'8" | ~ 9'0" |
| Bedroom | 10'0" x 10'0" | ~ 9'0" |
| Bedroom | 10'0" x 10'0" | ~ 9'0" |
| Utility room | 9'0" x 7'0" | ~ 9'0" |
| Garage | 19'8" x 23'0" | ~ 10'0" |
| Porch | 18'8" x 17'4" | N/A |
| Porch | 20'4" x 17'10" | N/A |
| Master suite | 15'0" x 12'0" | ~ 9'0" |
General specifications
| Total living area | 1779 sq.ft. |
| 1st level | 1779 sq.ft. |
| Width | 38'0" |
| Depth | 78'0" |
| Ridge height from top of foundation | 21'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Crawl space i |
| Other available foundations (a fee may apply) | Floating Slab, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Craftsman gem for narrow lots with a great sheltered terrace!
Looking to live large on a narrow lot? The 38' wide footprint makes this model ideal. The charming craftsman detailing of this home will enchant passersby and the interior is equally pleasing!
Family and guests will appreciate the sheltered entry. Within, we find 2 discreet bedrooms and a bathroom off the foyer, built-in shelves and then the space opens to a casual living area. The kitchen with island and walk-in pantry is open to the dining room. The living room is oriented for backyard enjoyment and features a fireplace flanked by piano windows and built-ins and access to a generous covered deck – ideal as an outdoor kitchen and living room!
The master retreat includes fabulous amenities – his and hers walk-in closets, 5-piece bathroom with soaker tub and oversize shower, private toilet, and access to the covered outdoor living room.
A two-car garage can be accessed from within, through a laundry/mudroom or by a service entrance. Comfort and convenience for all!
Distinctive elements
Ideal narrow lot house plan with a 2-car garage.
9' ceiling throughout the main level.
Built-ins in the hallway of the main entry.
Kitchen with island/lunch counter open to the dining room and the living room with a fireplace.
Lovely master suite with double walk-in closet. Attractive covered rear porch accessible from the living room and the master suite.
Plan feature(s)
Fireplace, Narrow lot, Ceiling over 8', Deck, Master suite upstairs, Open floor layout, Built-ins, His/Hers walk-in, Separate bath and shower, Double sink vanity, Gound floor laundry room
Plan architectural style(s)
. Craftsman / Northwest, . Country, . Rustic, . American, . Mountain
