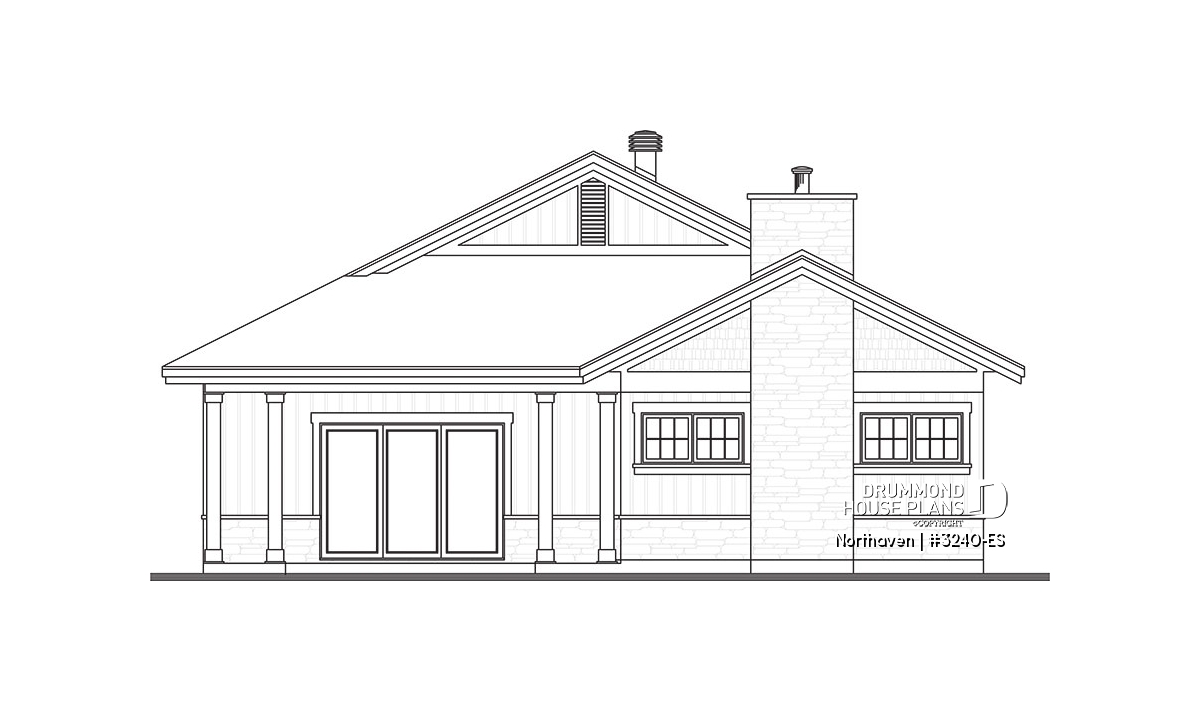

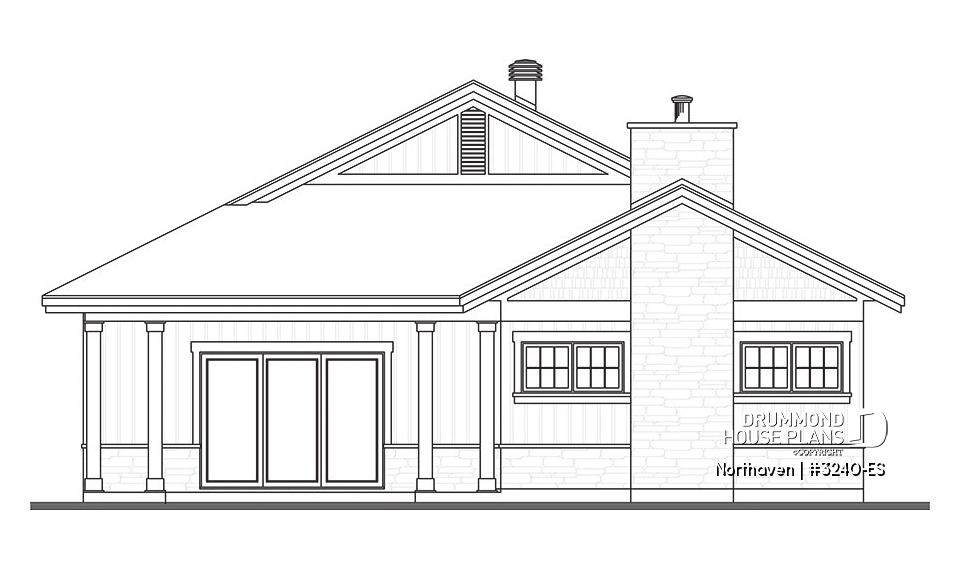

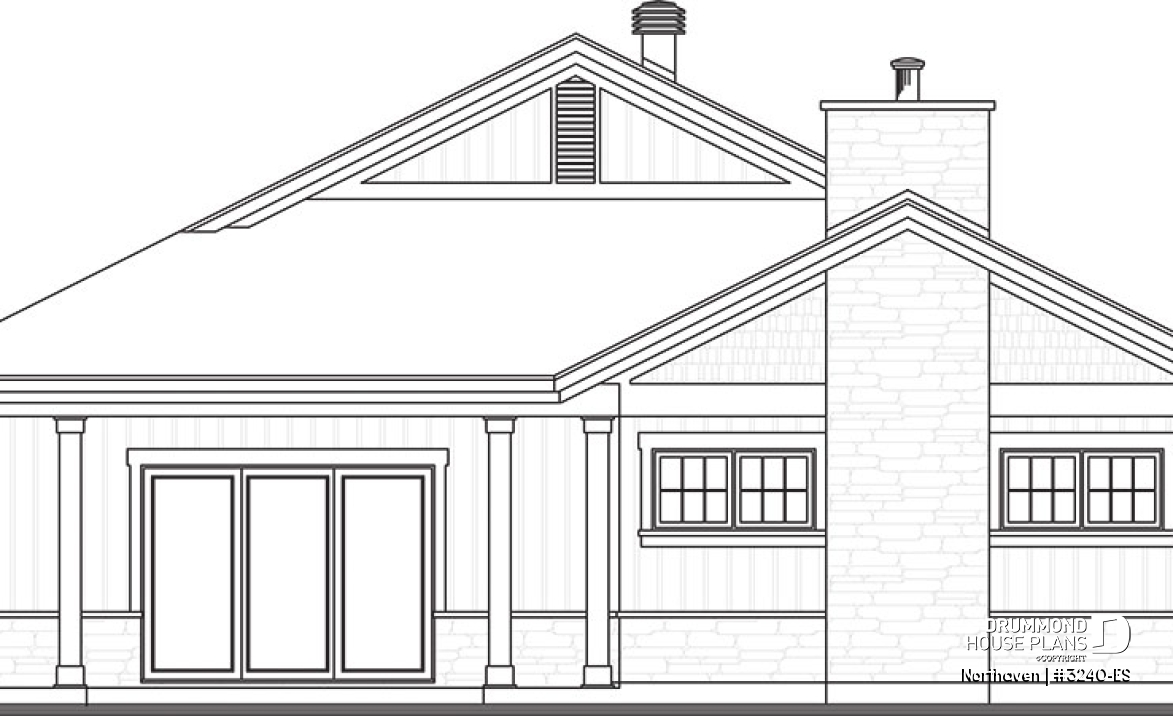

House plan Northaven (3240-ES)
Craftsman bungalow house plan, master suite, 3 bedrooms, 9' ceiling, open floor plan, large covered terrace
View the size of the rooms and height of the ceilings

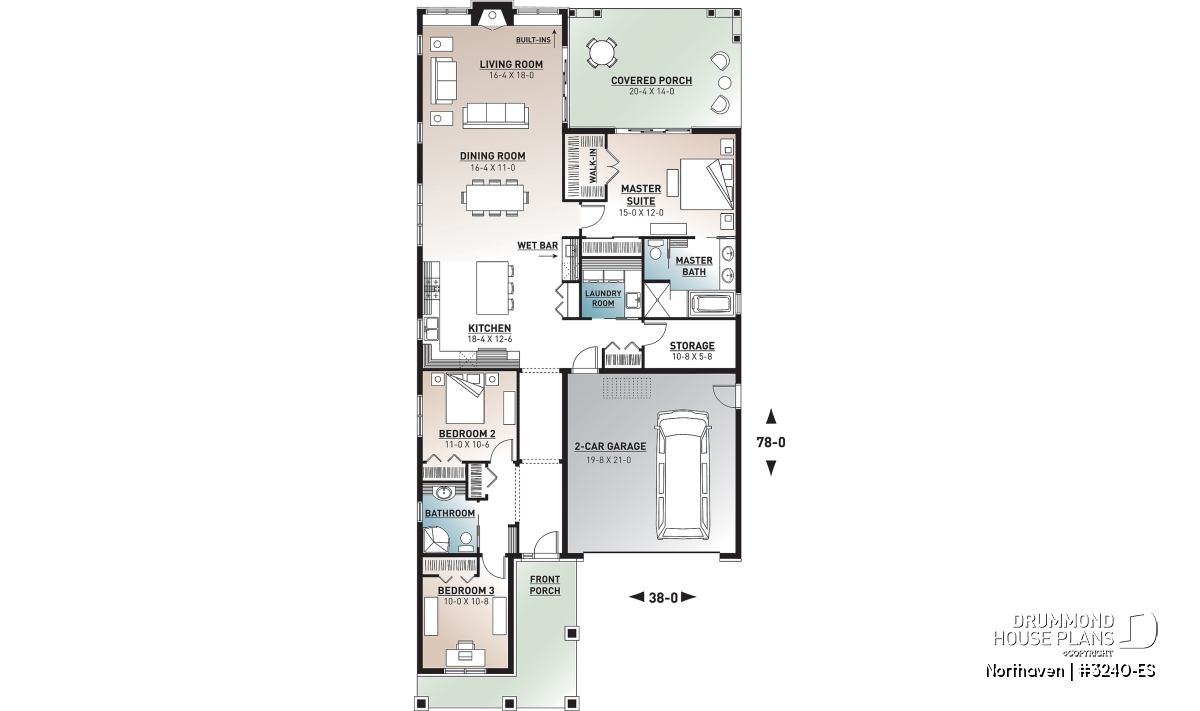

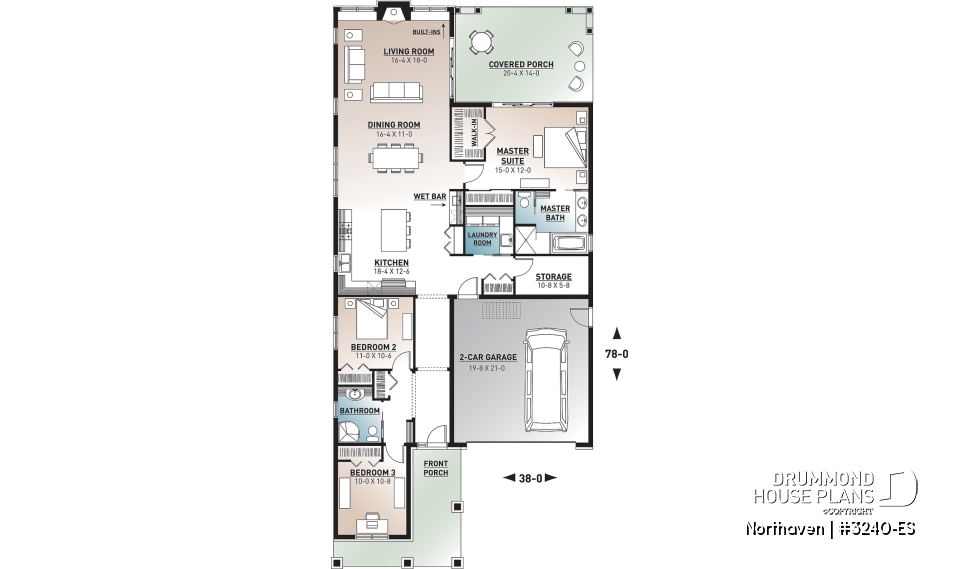

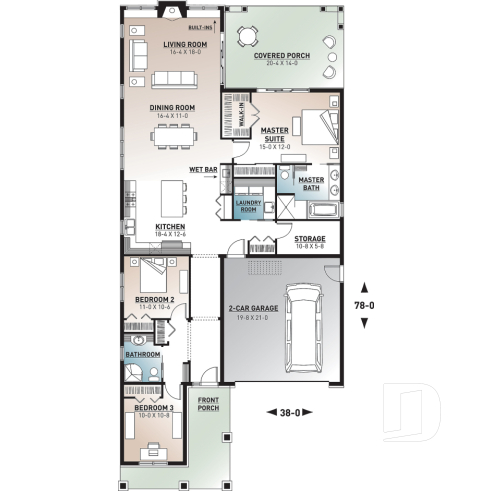

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 5'0" x 10'6" | ~ 9'0" |
| Closet | 2'0" x 4'0" | ~ 9'0" |
| Closet | 4'4" x 2'0" | ~ 9'0" |
| Bedroom | 10'0" x 10'8" | ~ 9'0" |
| Closet | 6'4" x 2'0" | ~ 9'0" |
| Bedroom | 11'0" x 10'6" | ~ 9'0" |
| Closet | 5'0" x 2'0" | ~ 9'0" |
| Shower room or three quarter bath | 6'4" x 8'2" | ~ 9'0" |
| Linen | 3'0" x 1'0" | N/A |
| Kitchen/dinette | 18'4" x 12'6" | ~ 9'0" |
| Pantry | 1'8" x 4'0" | ~ 9'0" |
| Dining room | 16'4" x 11'0" | ~ 9'0" |
| Living room | 16'4" x 18'0" | ~ 9'0" |
| Bedroom | 15'0" x 12'0" | ~ 9'0" |
| Closet | 7'0" x 2'0" | ~ 9'0" |
| Walk-in closet | 4'8" x 7'8" | ~ 9'0" |
| Full bathroom | 10'8" x 9'2" | ~ 9'0" |
| Linen | 2'0" x 1'0" | N/A |
| Shower | 3'0" x 4'0" | N/A |
| Laundry room | 7'0" x 6'10" | ~ 9'0" |
| Linen | 7'0" x 1'4" | N/A |
| Mechanical room | 10'8" x 5'8" | ~ 9'0" |
General specifications
| Total living area | 1883 sq.ft. |
| 1st level | 1883 sq.ft. |
| Width | 38'0" |
| Depth | 78'0" |
| Ridge height from top of foundation | 19'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Environmentally Superior single storey house plan with 3 bedrooms and a 2-car garage
Designed with the same “ES” inspiration as plan 2939-ES, Drummond House Plans new approach includes Northaven another application of the strategy that encompasses quality of construction, air, energy efficiency, ecological and ergonomic concerns with design to create a truly Environmentally Superior single storey home.
The Environmentally Superior concept includes optimal implantation, construction and landscaping details that will enhance the livability of your home. Save on energy costs with advice on choosing the best plumbing and electrical appliances and help you age in place with your home because of a design that considers the possible evolution required if mobility issues arise.
Plan 3240-ES features a 3 bedroom plan on one level with 9’ ceilings throughout, a two-car garage, an open kitchen/living/dining area with a fireplace, built ins and access to a covered 20’ x 14’ terrace that is also accessible from the master bedroom. The 450 sq. ft. attic/storage space can be attained via a fold-up star case in the garage.
Distinctive elements
Ideal narrow lot one-storey house plan.
3 bedrooms, including a master suite.
9 ft. ceiling throughout the house.
2-car garage.
Open kitchen, dining and living room concept.
Fireplace.
Plan feature(s)
Deck, Fireplace, Island, Gound floor laundry room, Master suite upstairs, Split bedrooms, Built-ins, Ceiling over 8', Walk-in master bed., Open floor layout, Narrow lot, Separate bath and shower, Double sinks
Plan architectural style(s)
. Craftsman / Northwest, . Rustic, . Modern rustic, . Country, . American, . Mountain
