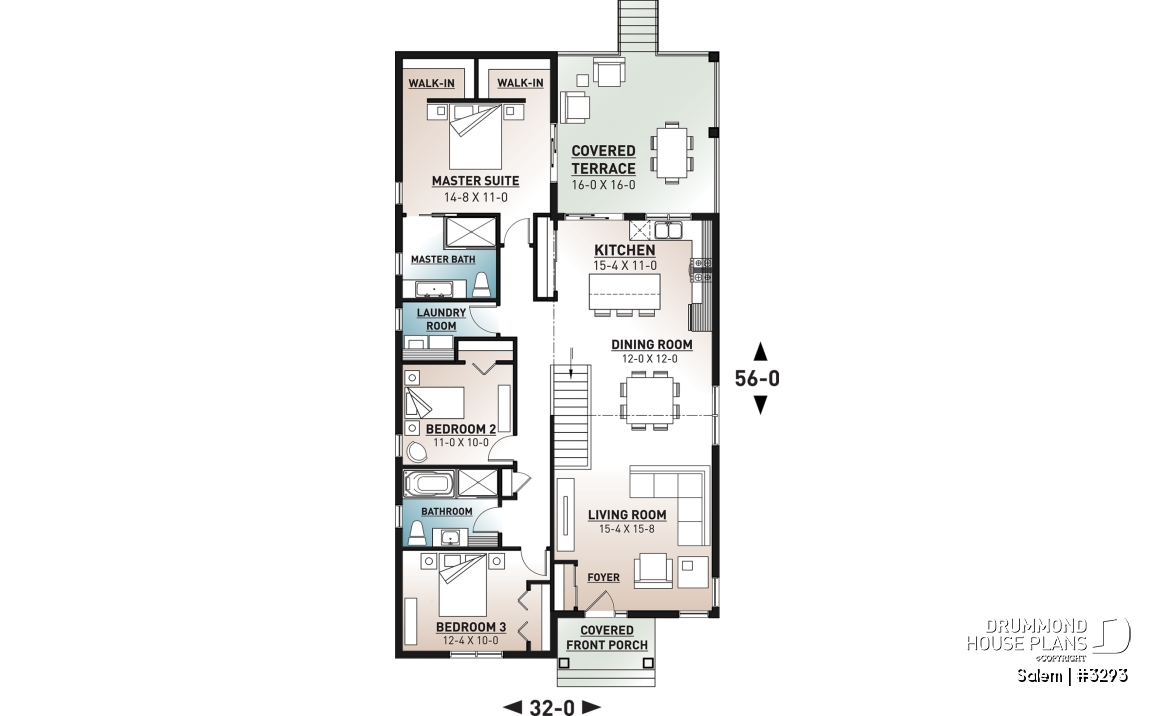

House plan for narrow lot, covered rear balcony, master suite + 2 secondary bedrooms with full bath, cathedral
View the size of the rooms and height of the ceilings

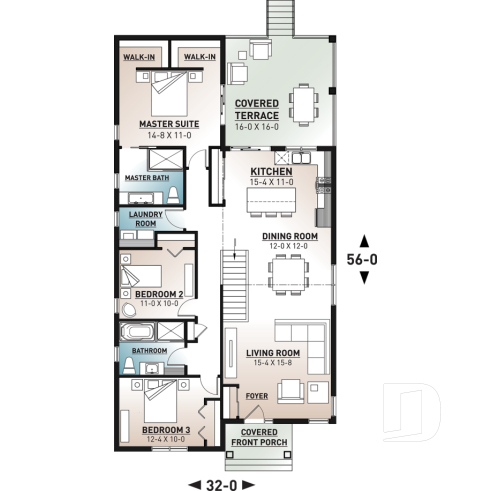

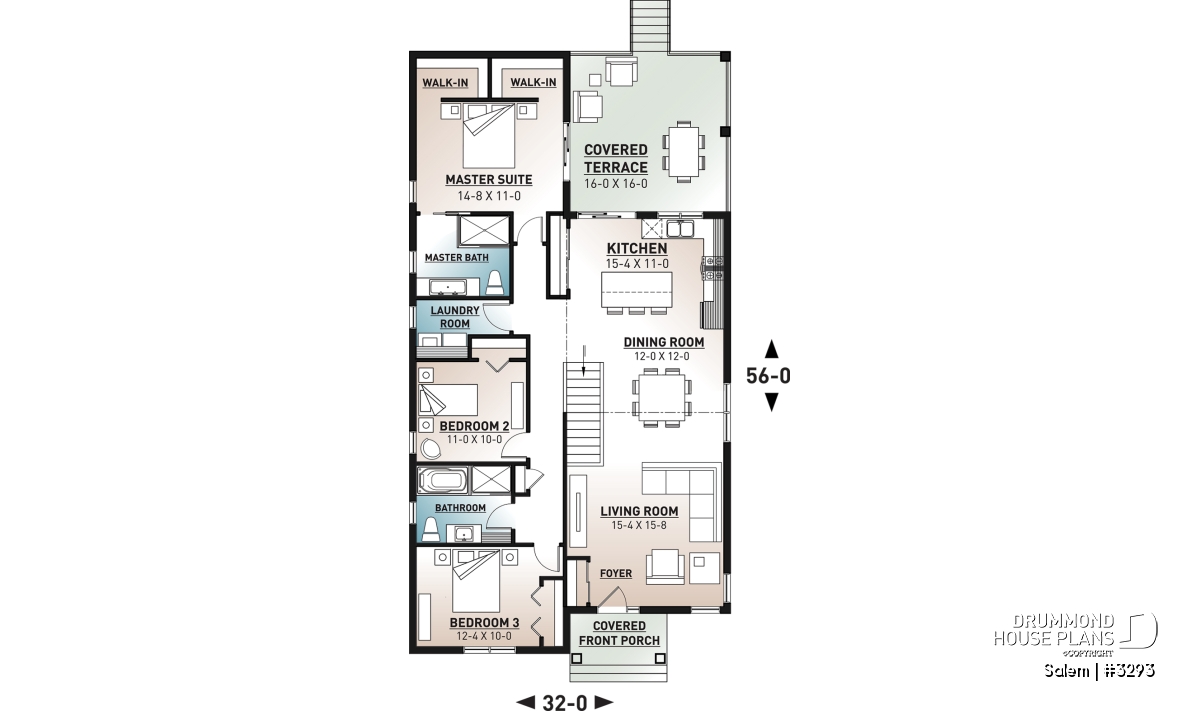

|Bedroom||14'8" x 11'0"||~ 8'0"|
|Walk-in closet||7'2" x 4'0"||~ 8'0"|
|Walk-in closet||7'2" x 4'0"||~ 8'0"|
|Shower room or three quarter bath||9'4" x 8'1"||~ 8'0"|
|Bedroom||12'4" x 10'0"||~ 8'0"|
|Closet||2'0" x 6'8"||~ 8'0"|
|Bedroom||11'0" x 10'0"||~ 8'0"|
|Closet||5'6" x 2'0"||~ 8'0"|
|Laundry room||9'4" x 5'10"||~ 8'0"|
|Full bathroom||9'6" x 7'9"||~ 8'0"|
|Linen||1'2" x 2'9"||~ 8'0"|
|Living room||15'4" x 15'8"||~ 8'0"|
|Closet||2'0" x 4'8"||~ 8'0"|
|Dining room||12'0" x 12'0"||~ 14'7"|
|Kitchen||15'4" x 11'0"||~ 8'0"|
|Pantry||1'8" x 8'0"||~ 8'0"|
|Covered deck||16'0" x 16'0"||~ 8'0"|
|Covered porch||9'8" x 5'2"||~ 8'0"|
|Total living area||1600 sq.ft.|
|1st level||1600 sq.ft.|
|Ridge height from top of foundation||21'8"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Full Basement|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space, Monolithic Slab|
|Builder price code||D|
|Living bonus space||-|
