House plan Killarney (3117)
Bright, 2 bedroom, single storey Small Craftsman house plan with cathedral ceiling

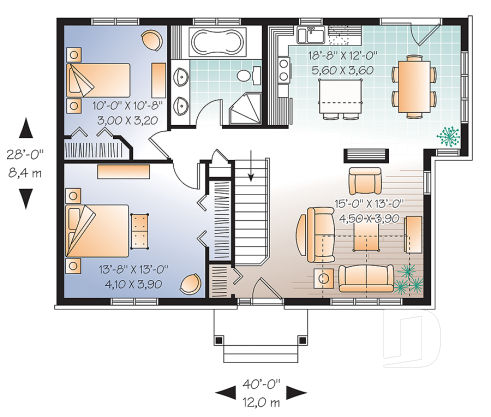

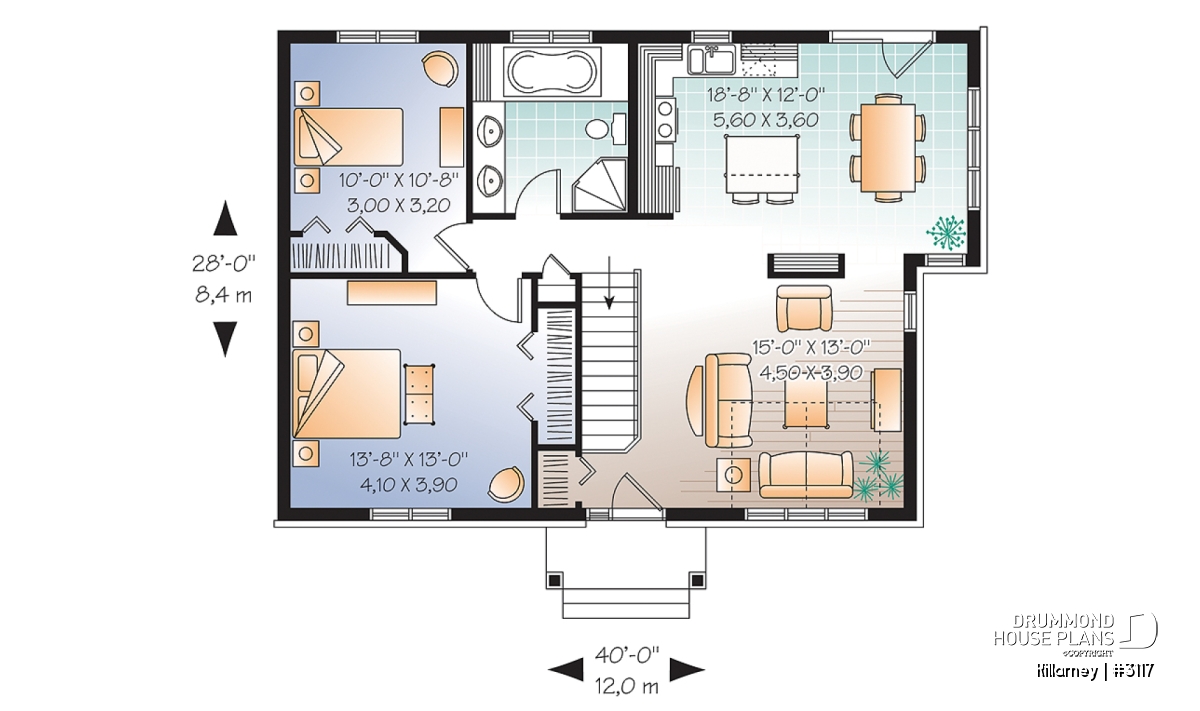

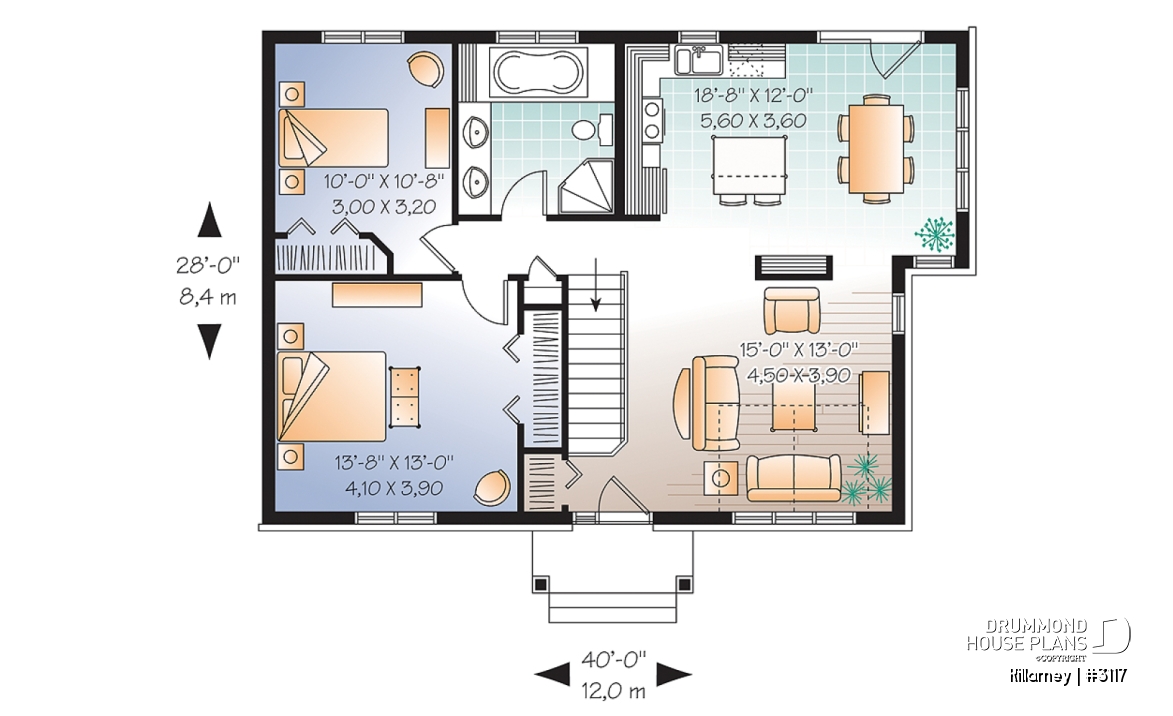

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 9'0" x 12'0" | ~ 8'0" |
| Dining room | 9'8" x 12'0" | ~ 8'0" |
| Living room | 15'0" x 13'0" | ~ 11'11" |
| Closet | 2'2" x 3'3" | ~ 8'0" |
| Bedroom | 13'8" x 13'0" | ~ 8'0" |
| Closet | 2'0" x 7'9" | ~ 8'0" |
| Bedroom | 10'0" x 10'8" | ~ 8'0" |
| Closet | 5'5" x 2'0" | ~ 8'0" |
| Storage | 2'2" x 1'4" | ~ 8'0" |
| Porch | 9'0" x 3'6" | N/A |
| Deck | 8'0" x 5'0" | N/A |
| Full bathroom | 8'10" x 9'8" | ~ 8'0" |
General specifications
| Total living area | 1068 sq.ft. |
| 1st level | 1068 sq.ft. |
| Width | 40'0" |
| Depth | 28'0" |
| Ridge height from top of foundation | 21'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications

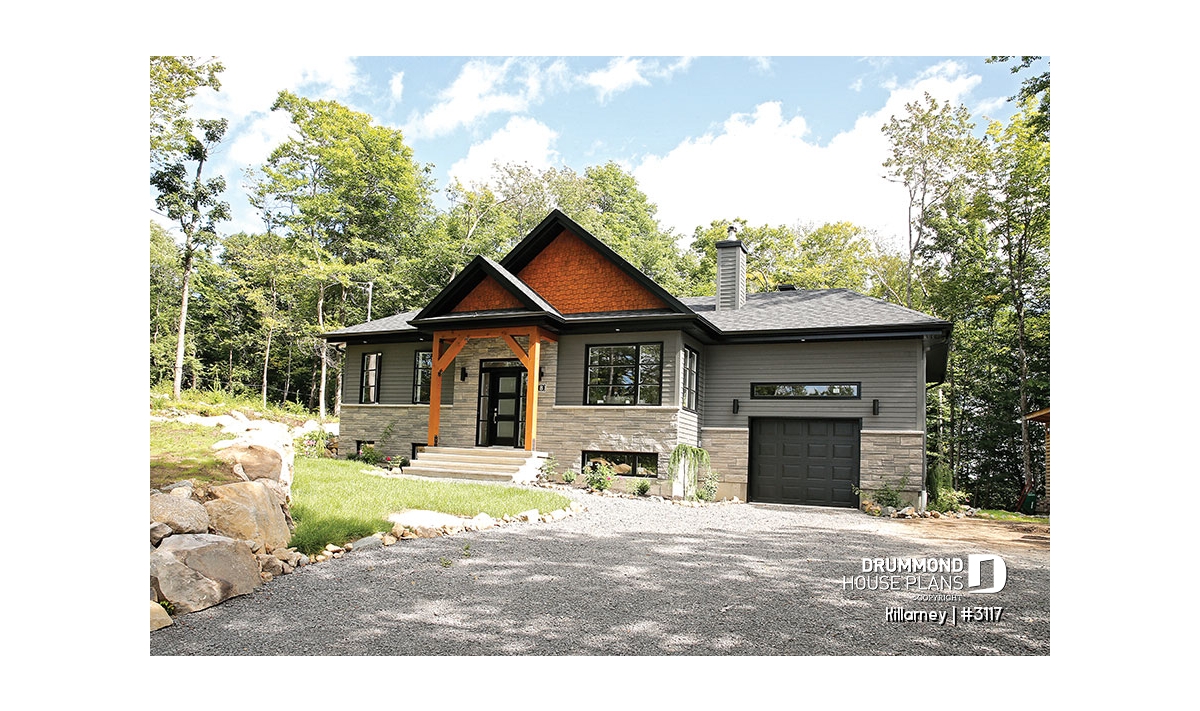

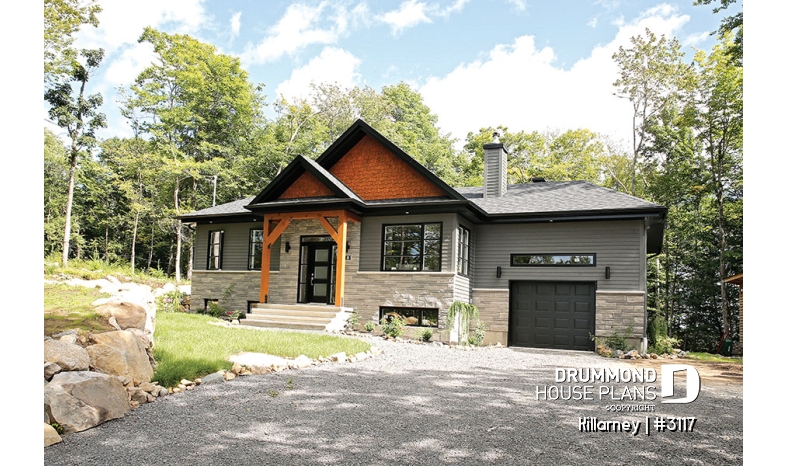

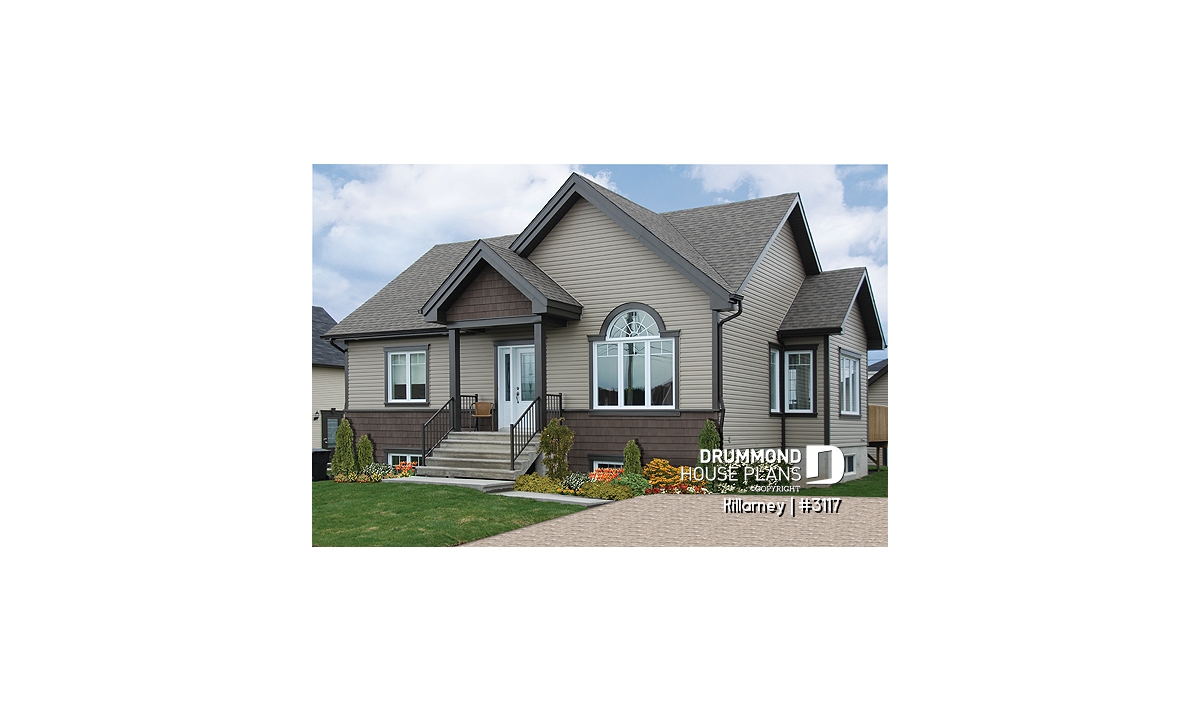

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

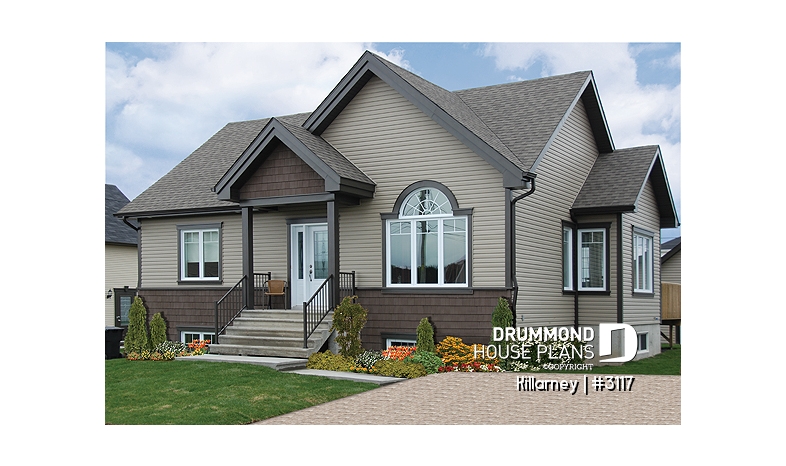

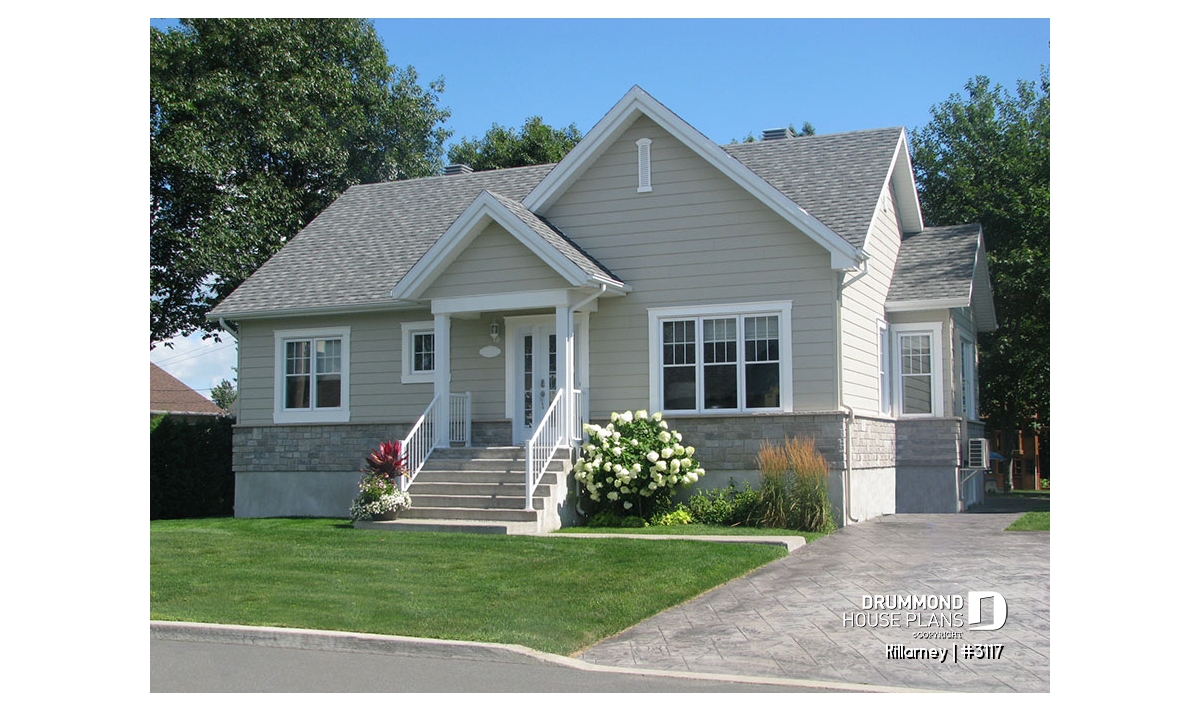

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Construction MF Guillemette

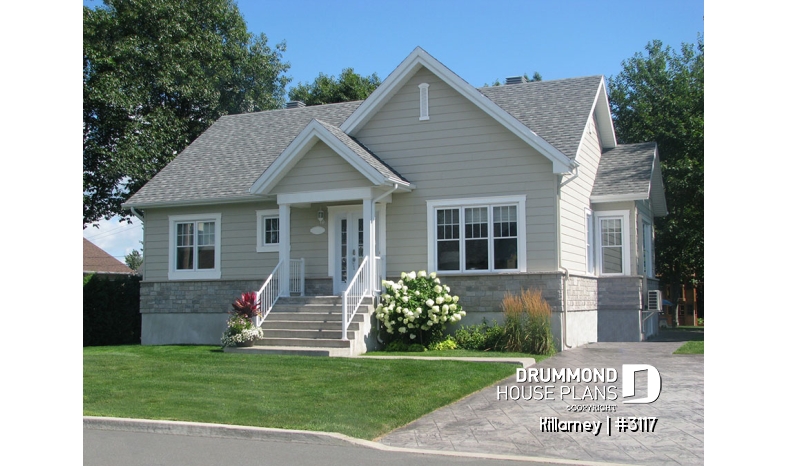

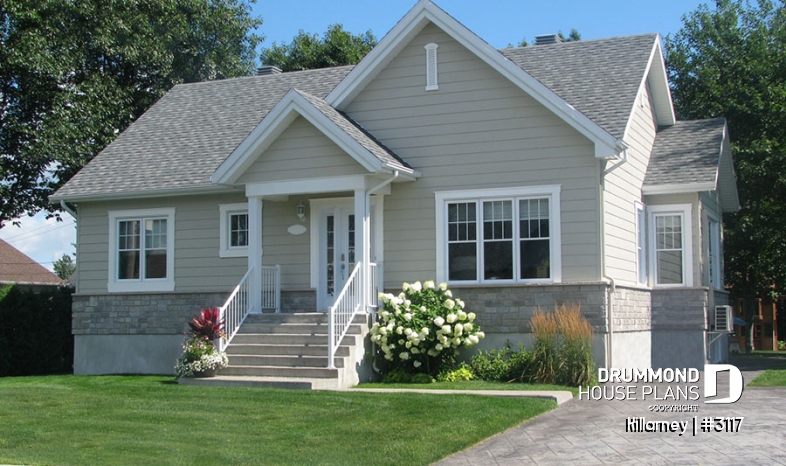

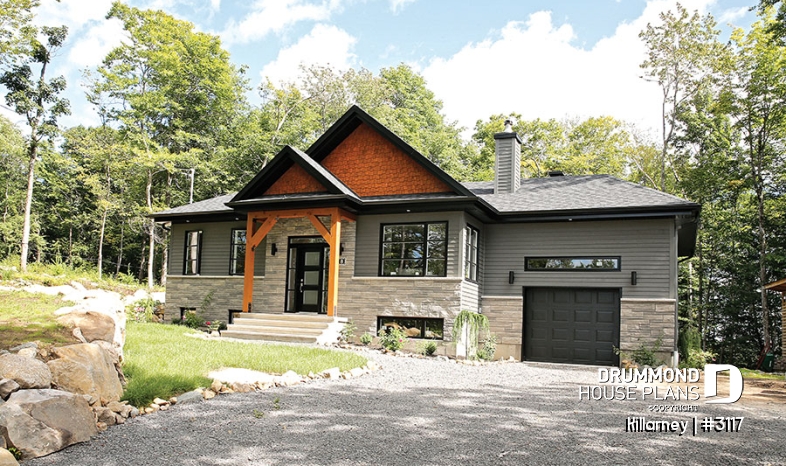

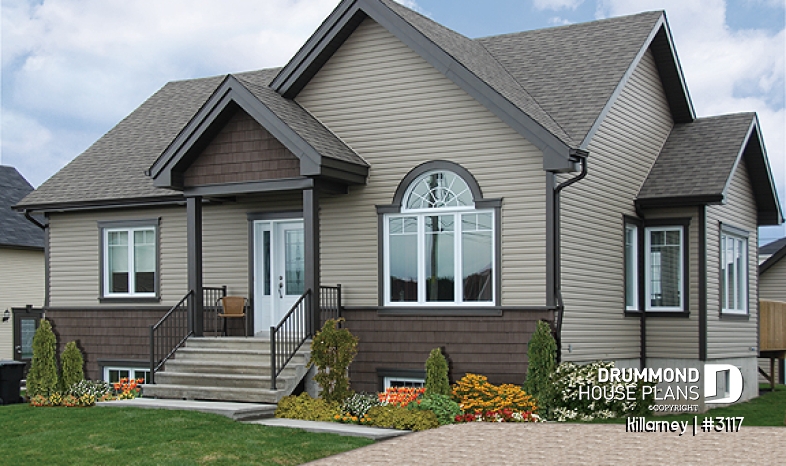

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Craftsman approach to traditional 2 bedrooms small bungalow house plan
Similar to the popular Drummond model 2192, this plan takes a more traditional or "craftsman" approach to design. This is achieved with a simplified exterior and plenty of windows in the dining room, as well as natural materials such as a combination of stone-veneer clad walls and the shingle siding which softly contrasts to the stone.
Inside, we find a flowing semi-open activity area, with the living room highlighted by a partially vaulted ceiling to capture light from the arched feature window. The kitchen with island is within easy reach of a charming dining area which is surrounded by windows on three sides. The bedroom area is separate from the main living area and boasts two comfortable bedrooms including a forward-oriented master bedroom with large closet. The bathroom features a corner shower and independent bath.
Effectively double the efficient 1068 square feet of living space by developing the unfinished basement.
Distinctive elements
Partial cathedral ceiling in the living room to feature the arched window. Abundant windows in the dining room similar to a solarium. Island/lunch counter in the kitchen. Well organized bathroom with separate bath and shower.
Plan feature(s)
Island, Separate bath and shower, Double sinks, Cathedral ceiling
Plan architectural style(s)
. Transitional, . Cape Cod, . Country, . American, . Farmhouse, . Craftsman / Northwest, . Traditional, . Modern rustic
Similar plans
Previously Viewed Plans
Questions and comments
November 17
mumba cyprian
is there another roof design for W3117
November 17
Customer service
Good day and thank you for your interest in this plan.
Although there is no alternate roof plan for this model, we would be happy to provide a free estimate for the changes that you need done within two business days after receipt of this on line request.
Please let me know if I can further assist you
Regards
Deb
