House plan St-Laurent (2190)
2 to 4 bedrooms, small & simple transitional style house plan, optional finished basement ($)
View the size of the rooms and height of the ceilings

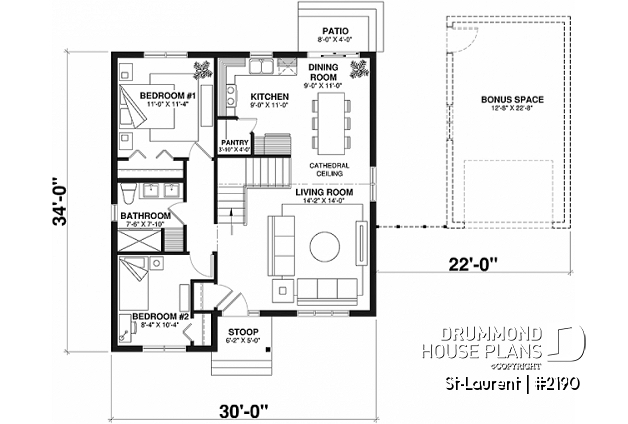

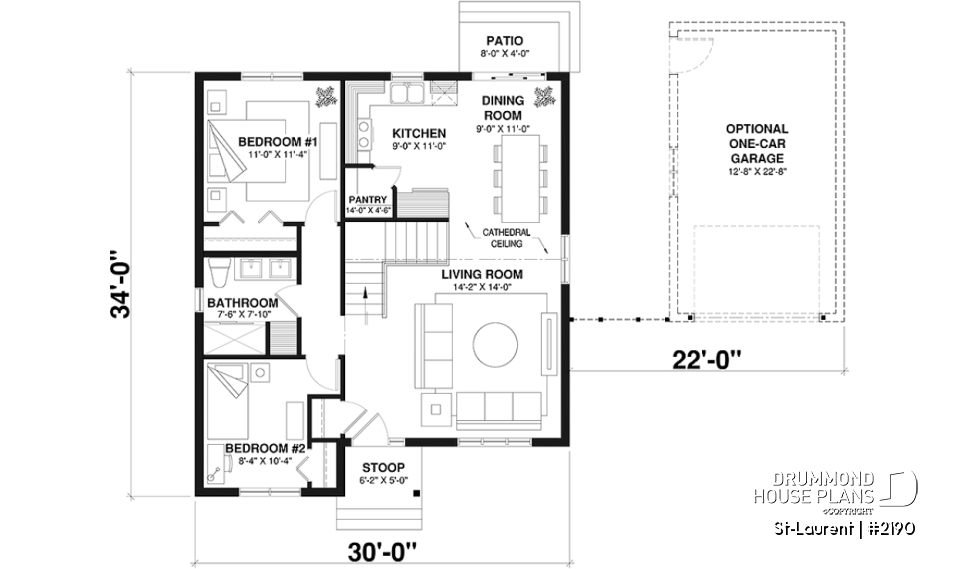

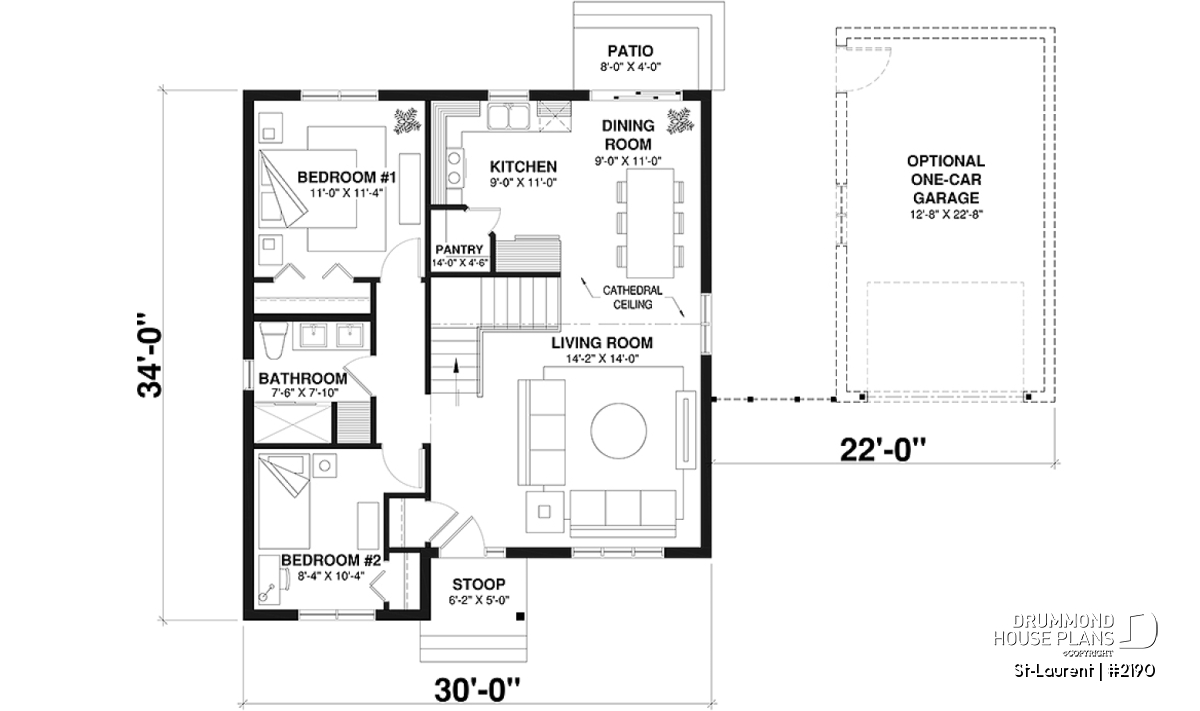

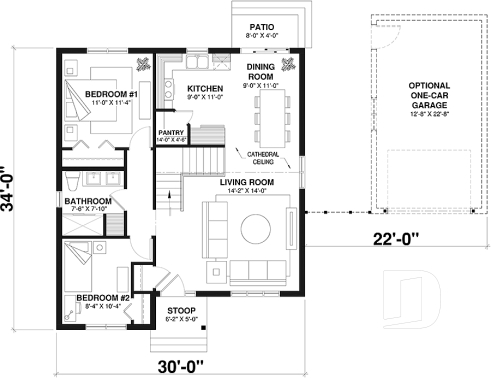

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'6" x 7'10" | ~ 8'0" |
| Kitchen | 9'0" x 11'0" | ~ 11'9" |
| Dining room | 9'0" x 11'0" | ~ 11'9" |
| Living room | 14'2" x 14'0" | ~ 11'9" |
| Bedroom | 11'0" x 11'4" | ~ 8'0" |
| Bedroom | 8'4" x 10'4" | ~ 8'0" |
| Garage | 12'8" x 22'8" | ~ 8'0" |
| Closet | 2'4" x 3'2" | ~ 11'9" |
| Porch | 6'2" x 5'0" | N/A |
| Terrace | 8'0" x 5'0" | N/A |
| Finished basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Laundry room | 8'3" x 6'10" | ~ 8'0" |
| Mechanical room | 6'1" x 6'10" | ~ 8'0" |
| Bedroom | 10'8" x 11'8" | ~ 8'0" |
| Closet | 2'0" x 6'10" | ~ 8'0" |
| Bathroom | 7'6" x 7'10" | ~ 8'0" |
| Great room or Family room | 15'4" x 13'4" | ~ 8'0" |
| Storage room | 2'0" x 5'8" | ~ 8'0" |
| Bedroom | 10'0" x 9'8" | ~ 8'0" |
| Walk-in closet | 6'4" x 3'2" | ~ 8'0" |

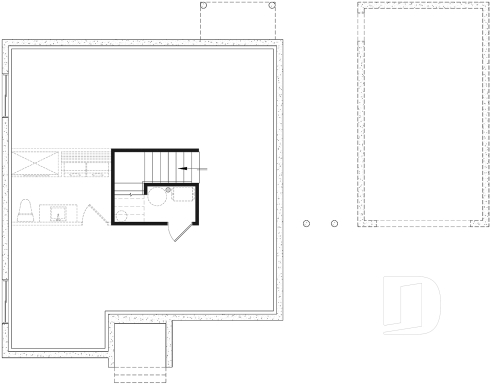

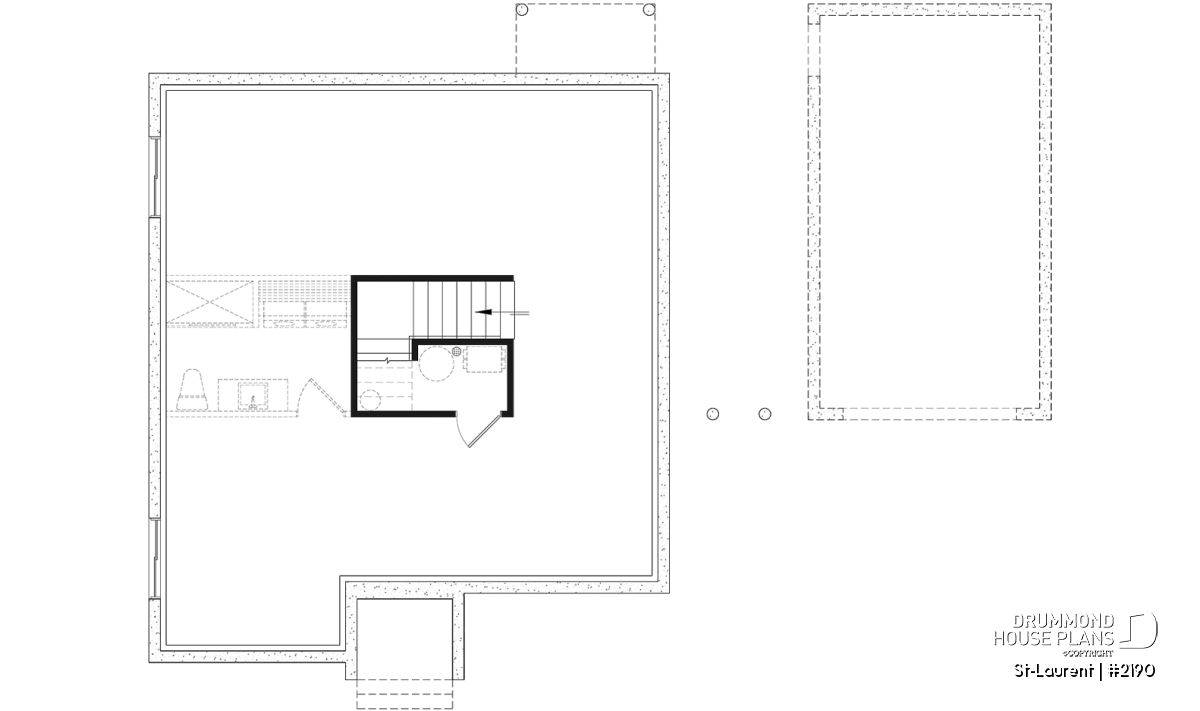

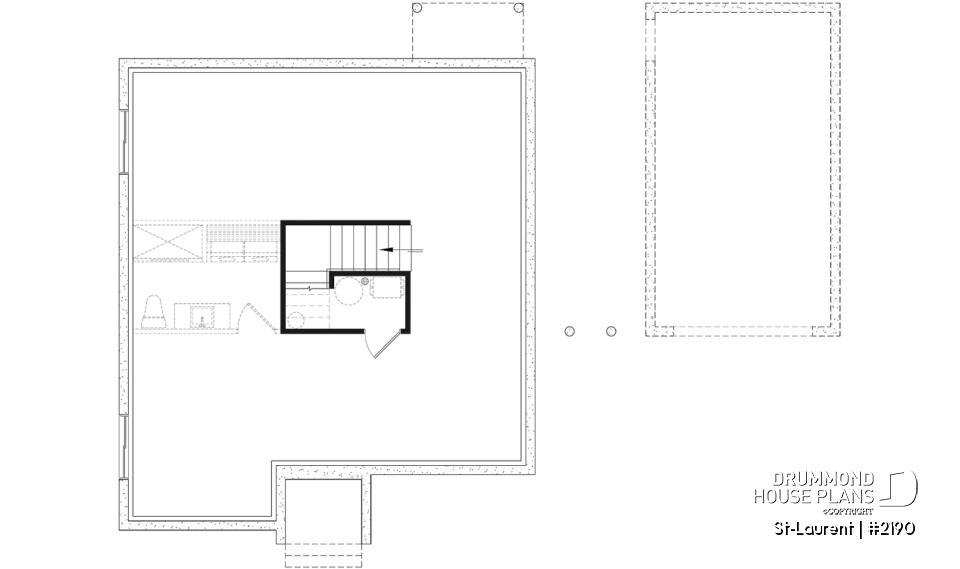

| Unfinished basement |
|---|
General specifications
| Total living area | 948 sq.ft. |
| 1st level | 948 sq.ft. |
| Finished basement | 948 sq.ft. |
| Unfinished basement | 948 sq.ft. |
| Width | 30'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 18'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Finished basement, Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | A |
Rooms specifications
Other useful information on this plan

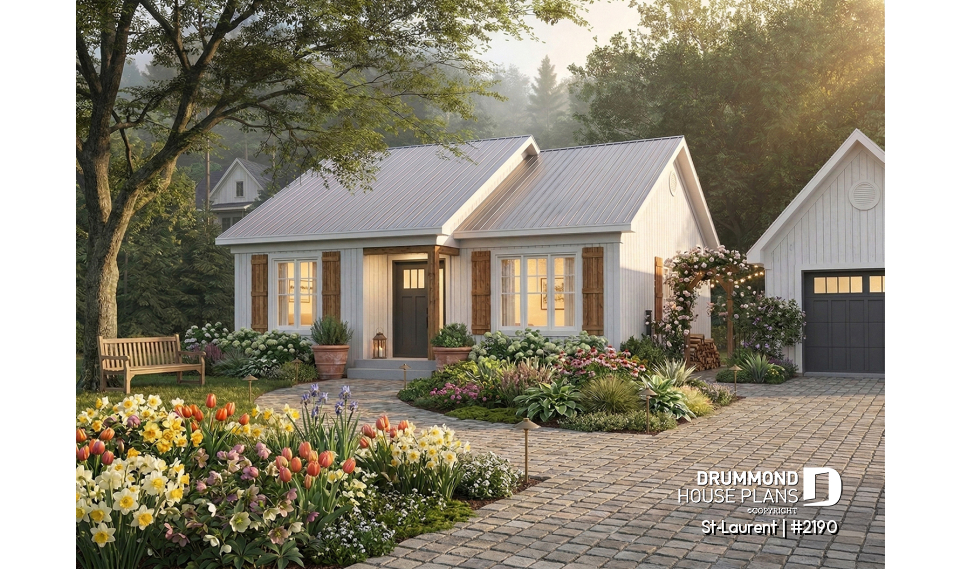

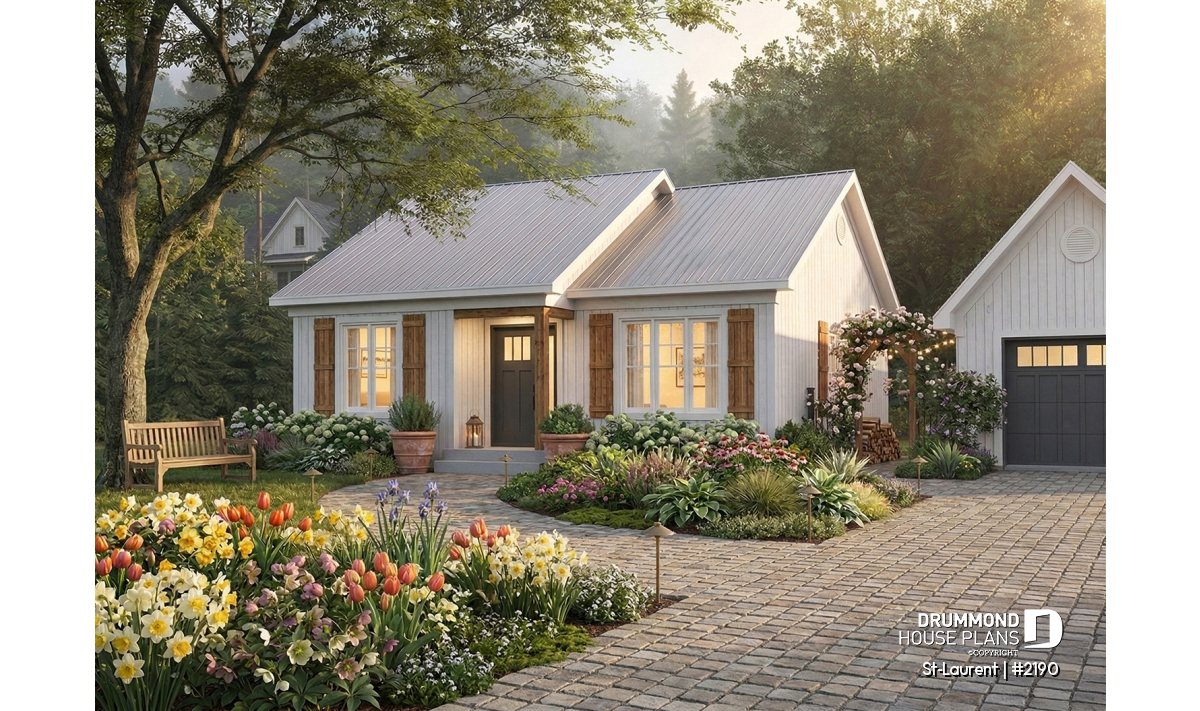

Simple ranch style home, ideal home plan for young families!
You will also notice a detached garage (plan #2973) in dotted lines allowing for the immediate or future construction depending on your needs.
Note that the plan comes with the detached garage detailed information and you are free to build it during the construction process, after or not at all!

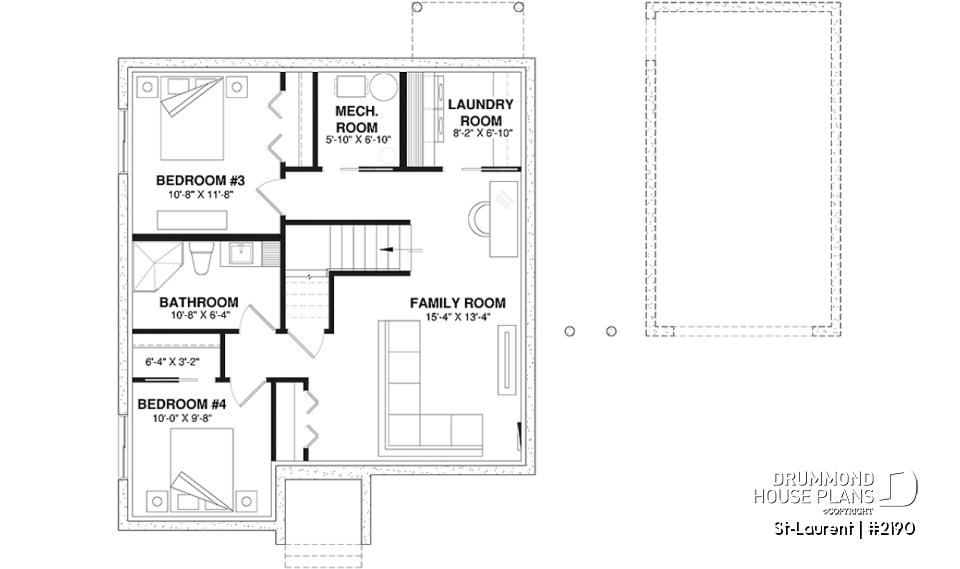

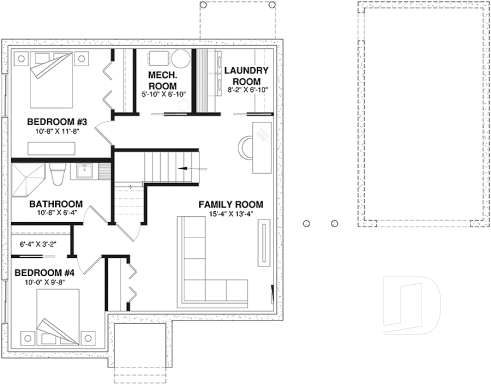

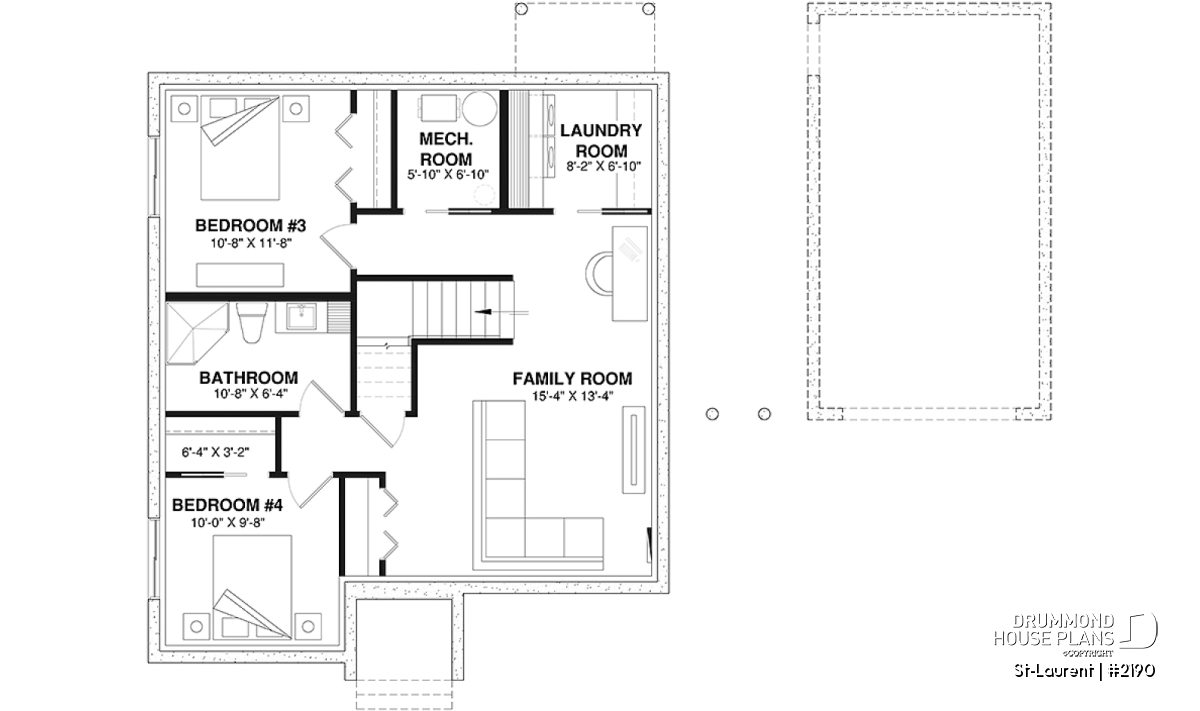

*Finished basement (optional $):
2 additional bedrooms, family room, laundry room, shower room and mechanical room.
*If you wish to purchase the finished basement plan, please select this option in the shopping cart, in the "Selection of foundation type" section. If you do not select this option, you will receive the unfinished full basement option, at no extra charge.
Distinctive elements
Transitional style home, ideal for small families.
Separate garage plan #2973, included at no additional cost!
Affordable construction allowing for the eventual addition of a garage.
2 to 4 bedrooms, depending on the finish of the basement.

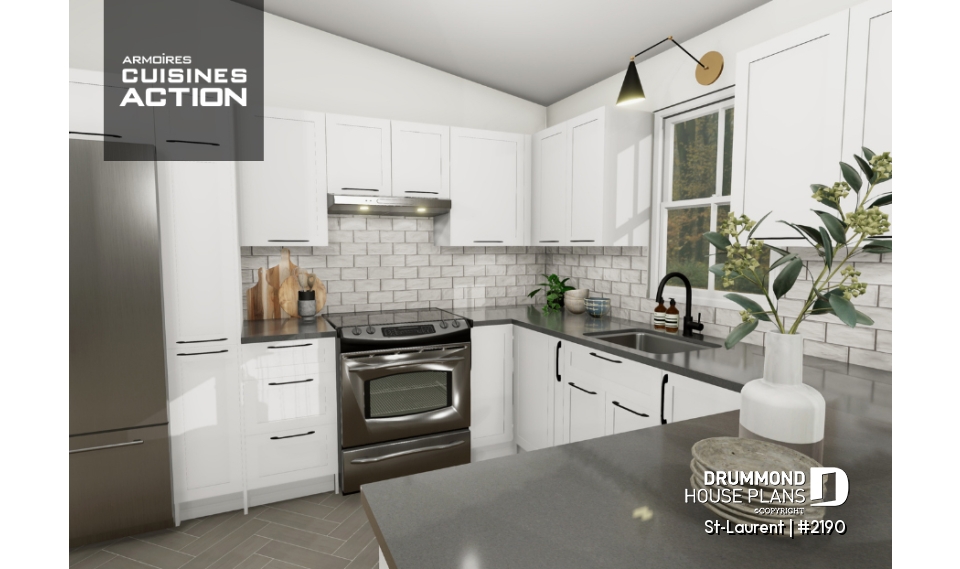

Kitchen with pantry.
Cathedral ceiling in the dining room and living room.
Family room planned in the finished basement, for a total of 2 living rooms.
Laundry room located in the basement.
Abundant windows.
*Finished basement (optional $):
2 additional bedrooms, family room, laundry room, shower room and mechanical room.
*If you wish to purchase the finished basement plan, please select this option in the shopping cart, in the "Selection of foundation type" section. If you do not select this option, you will receive the unfinished full basement option, at no extra charge.
**garage plan #2973 included.
Plan feature(s)
Cathedral ceiling, Pantry, Double sinks
Plan architectural style(s)
. Transitional, . Ranch, . Contemporary, . Modern / Design
