House plan Locanda (3252)
One-story 3 to 4 bedroom house plan, 2-car garage, fireplace, laundry room on main floor

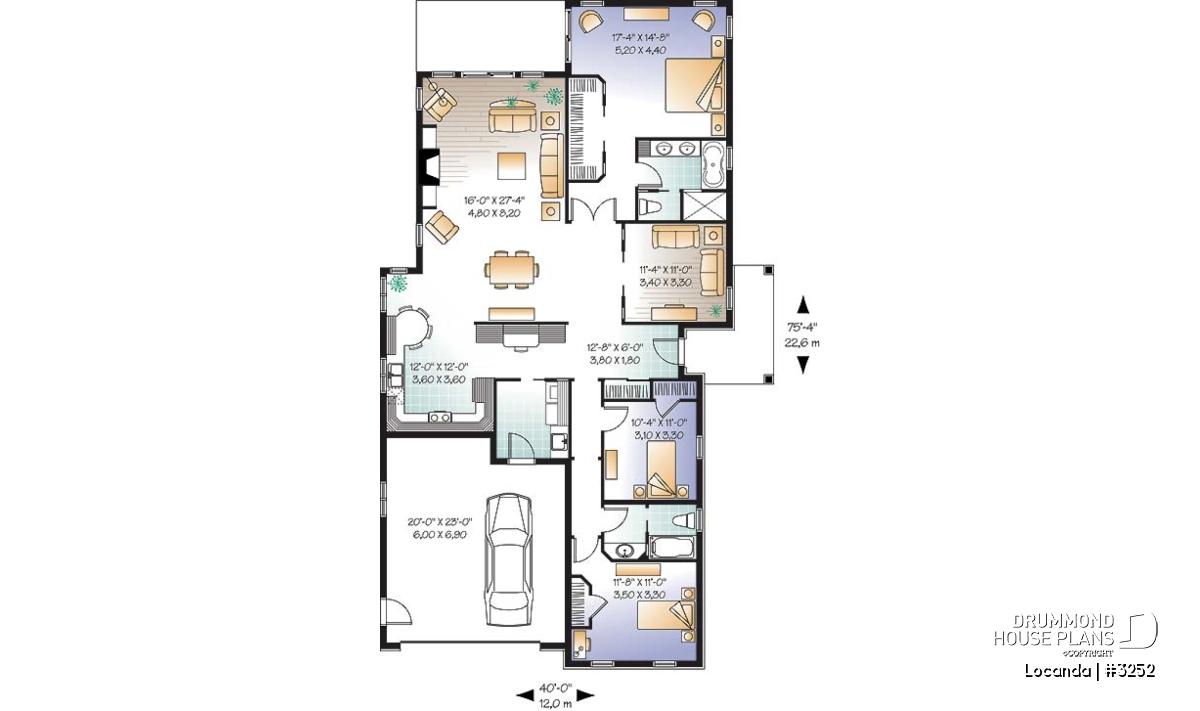

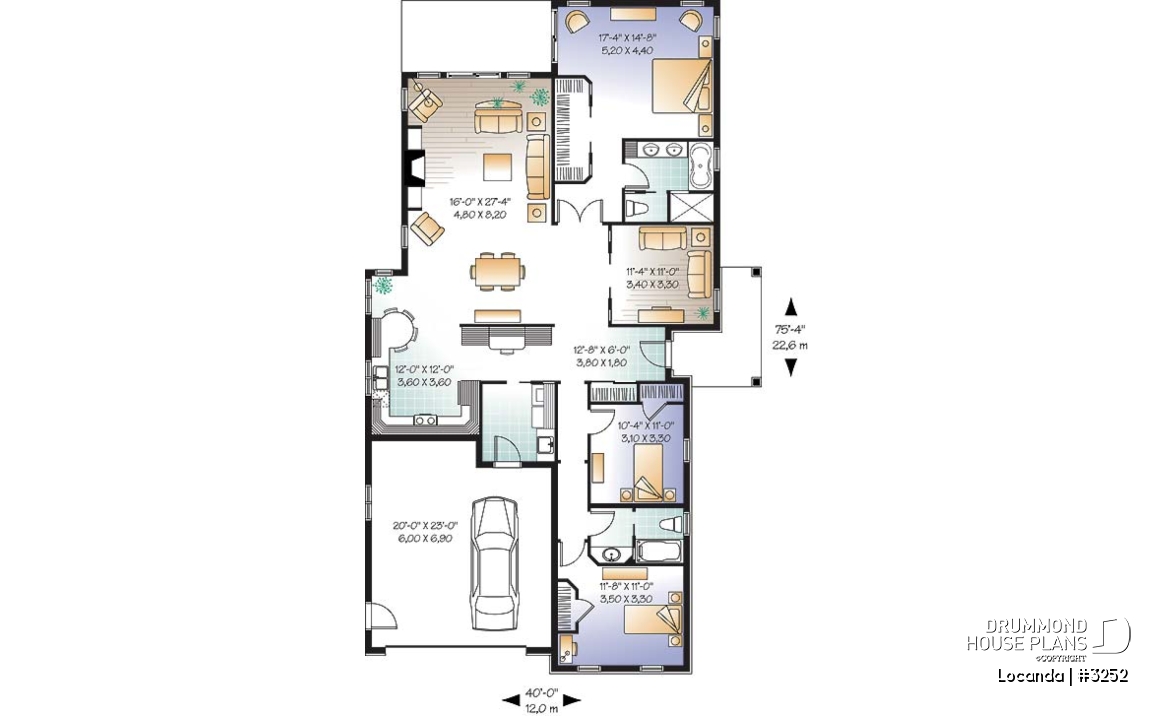

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'0" x 12'0" | ~ 9'6" |
| Dining room | 16'0" x 27'4" | ~ 9'6" |
| Foyer | 12'8" x 6'0" | ~ 9'6" |
| Full bathroom | 10'0" x 6'2" | ~ 9'6" |
| Master suite | 17'4" x 14'8" | ~ 9'6" |
| Bedroom | 10'4" x 11'0" | ~ 9'6" |
| Bedroom | 11'8" x 11'0" | ~ 9'6" |
| Laundry room | 8'0" x 8'8" | ~ 9'6" |
| Garage | 20'0" x 23'0" | ~ 8'2" |
| Porch | 9'6" x 13'4" | N/A |
| Porch | 16'8" x 8'0" | N/A |
| Den | 11'4" x 11'0" | ~ 9'6" |
General specifications
| Total living area | 2104 sq.ft. |
| 1st level | 2104 sq.ft. |
| Width | 40'0" |
| Depth | 75'4" |
| Ridge height from top of foundation | 21'0" |
| Exterior wall | Block , 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
3 to 4 bedroom ranch style house plan with a 2-car garage
.
Distinctive elements
9'-4`` ceiling throughout the main level. Small den that can be converted into a fourth bedroom or home office. Dining room open to the living room with a fireplace and built-ins. Kitchen with original lunch counter and plenty of storage space.
Plan feature(s)
Fireplace, Master suite on main, Walk-in master bed., Separate bath and shower, Double sinks, Gound floor laundry room, Office / Study / Den, Lunch counter, Planning desk, Ceiling over 8', Split bedrooms
Plan architectural style(s)
. Ranch, . American, . Traditional, . Country, . Craftsman / Northwest
