Starting from $1680
front - BASE MODEL
1st level

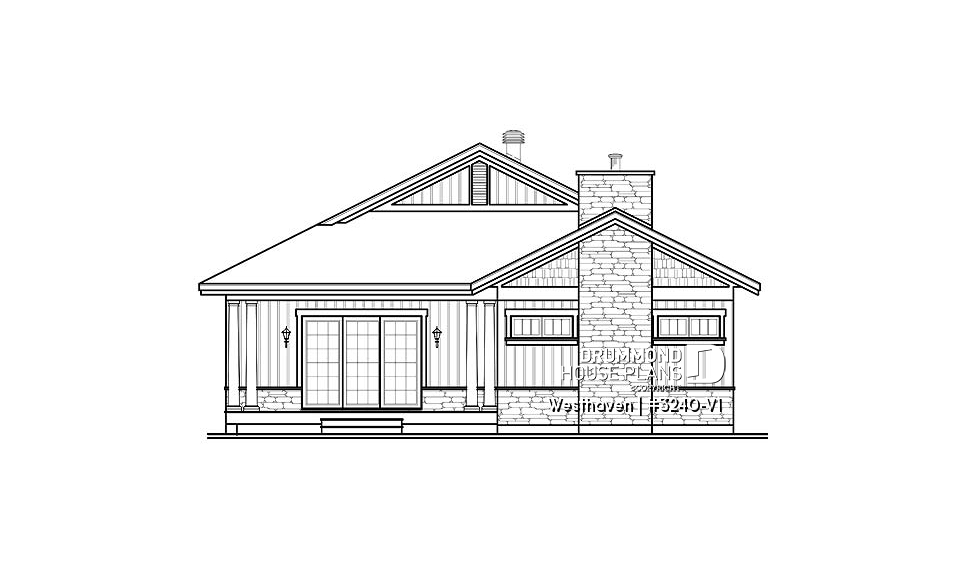

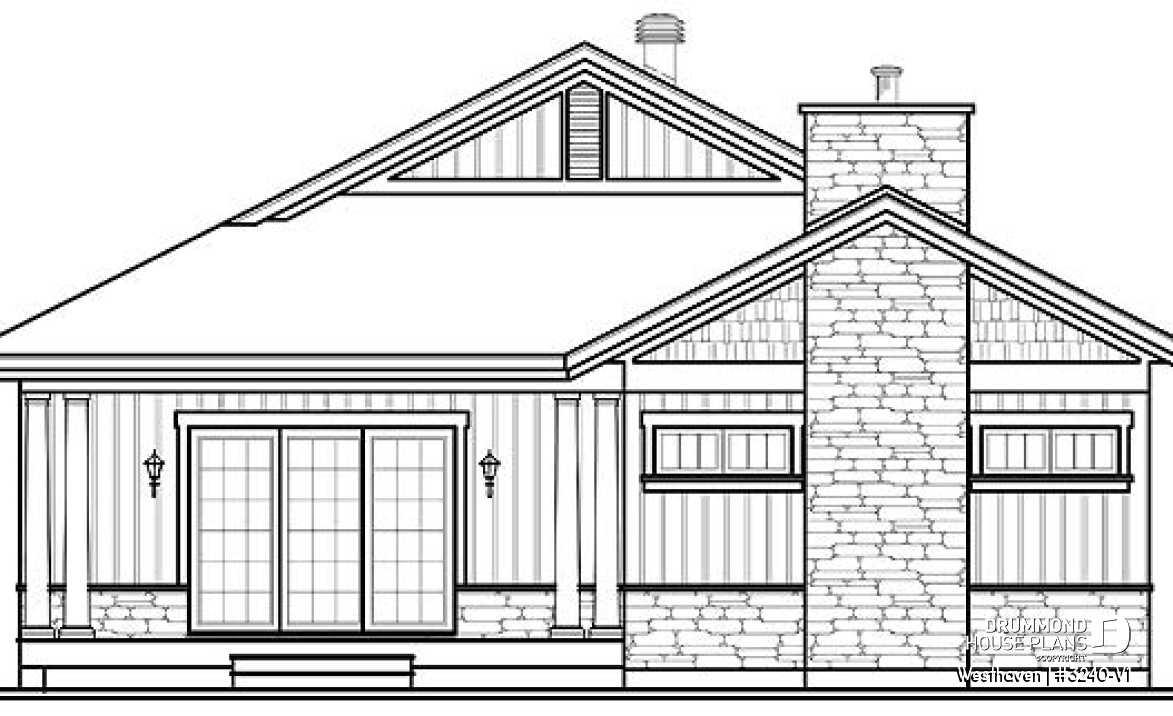

rear elevation
Westhaven House plan 3240-V1
3 bedroom Northwest style house plan, 2-car garage, large covered rear balcony, fireplace, open concept
Starting from
1680$
| Technical details summary | Plan #3240-V1 | ||
|---|---|---|---|
| Total living area | 1779 sq.ft. | Bedroom | 3 |
| Full baths | 2 | Half baths | - |
| Foundation included | Crawl space | Garage | Two-car garage |
| Width | 38'0" | Depth | 78'0" |
Additional details
General specifications
Total living area
1779 sq.ft.
1st level
1779 sq.ft.
Width
38'0"
Depth
78'0"
Ridge height from top of foundation
21'1"
Exterior wall
2 X 6
Crawl space
Other available foundations (a fee may apply)
Floating Slab, Monolithic Slab
Builder price code
D
Rooms specifications
Bedroom(s)
3
Full baths
2
Half baths
-
Garage type
Two-car garage (463 sq.ft.)
Covered porch area
664 sq.ft.
1st level
Rooms
Sizes
Ceiling
Kitchen
16'4" x 12'4"
~ 9'0"
Dining room
16'4" x 11'0"
~ 9'0"
Living room
16'4" x 18'2"
~ 9'0"
Foyer
5'0" x 21'4"
~ 9'0"
Full bathroom
9'4" x 6'8"
~ 9'0"
Bedroom
10'0" x 10'0"
~ 9'0"
Bedroom
10'0" x 10'0"
~ 9'0"
Utility room
9'0" x 7'0"
~ 9'0"
Garage
19'8" x 23'0"
~ 10'0"
Porch
18'8" x 17'4"
N/D
Porch
20'4" x 17'10"
N/D
Master suite
15'0" x 12'0"
~ 9'0"
Craftsman gem for narrow lots with a great sheltered terrace!
Looking to live large on a narrow lot? The 38' wide footprint makes this model ideal. The charming craftsman detailing of this home will enchant passersby and the interior is equally pleasing!
Family and guests will appreciate the sheltered entry. Within, we find 2 discreet bedrooms and a bathroom off the foyer, built-in shelves and then the space opens to a casual living area. The kitchen with island and walk-in pantry is open to the dining room. The living room is oriented for backyard enjoyment and features a fireplace flanked by piano windows and built-ins and access to a generous covered deck – ideal as an outdoor kitchen and living room!
The master retreat includes fabulous amenities – his and hers walk-in closets, 5-piece bathroom with soaker tub and oversize shower, private toilet, and access to the covered outdoor living room.
A two-car garage can be accessed from within, through a laundry/mudroom or by a service entrance. Comfort and convenience for all!
Distinctive elements
Ideal narrow lot house plan with a 2-car garage.
9' ceiling throughout the main level.
Built-ins in the hallway of the main entry.
Kitchen with island/lunch counter open to the dining room and the living room with a fireplace.
Lovely master suite with double walk-in closet. Attractive covered rear porch accessible from the living room and the master suite.
Plan feature(s)
Fireplace, Narrow lot, Ceiling over 8', Covered patios, Master suite upstairs, Open floor layout, Built-ins, His/Hers walk-in, Separate bath and shower, Double sinks, Gound floor laundry room
Plan architectural style(s)
The plan Westhaven is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
