House plan Golden Moon (3473)
Contemporary narrow lot house plan, under building parking, family and living room, laundry on 2nd floor
View the size of the rooms and height of the ceilings

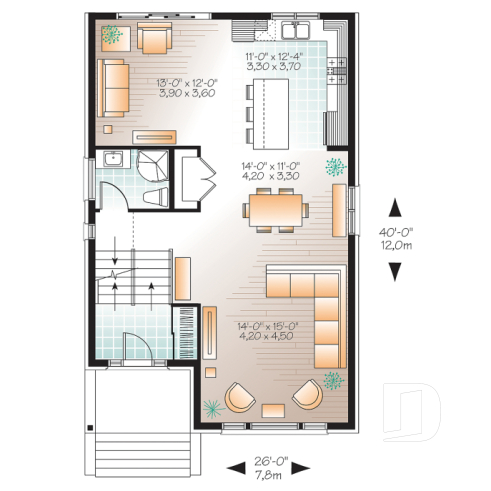

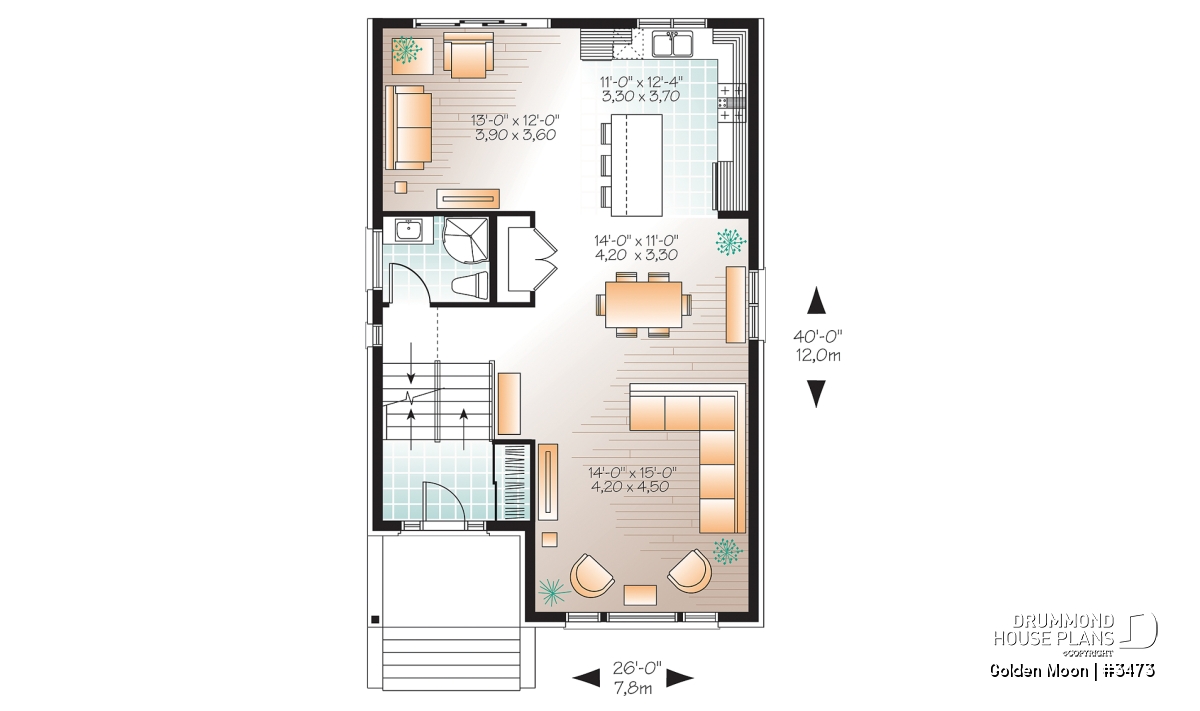

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 7'2" x 5'4" | ~ 8'4" |
| Closet | 2'2" x 5'0" | ~ 8'4" |
| Living room | 14'0" x 15'0" | ~ 8'8" |
| Dining room | 14'0" x 11'0" | ~ 8'8" |
| Kitchen/dinette | 11'0" x 12'4" | ~ 8'8" |
| Pantry | 2'2" x 5'8" | ~ 8'8" |
| Playroom | 13'0" x 12'0" | ~ 8'8" |

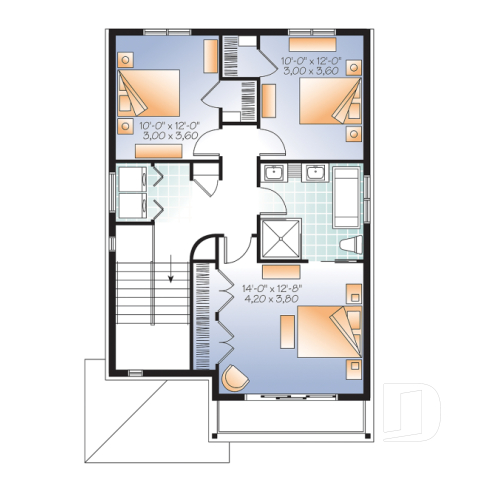

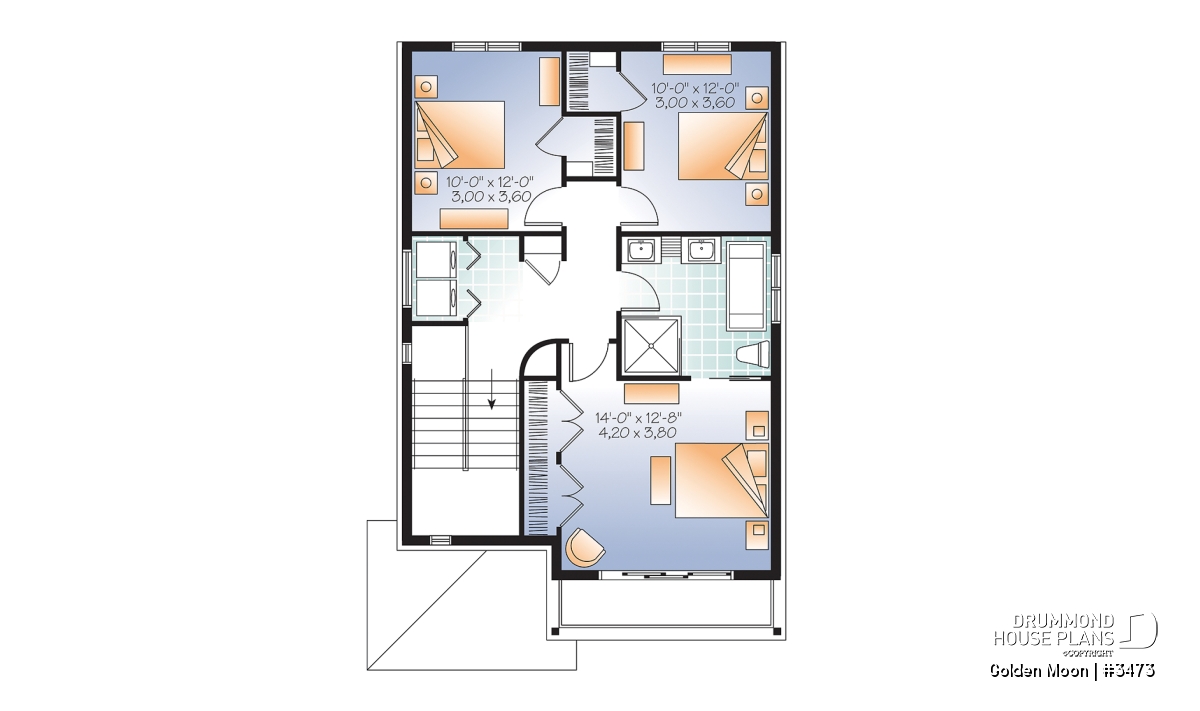

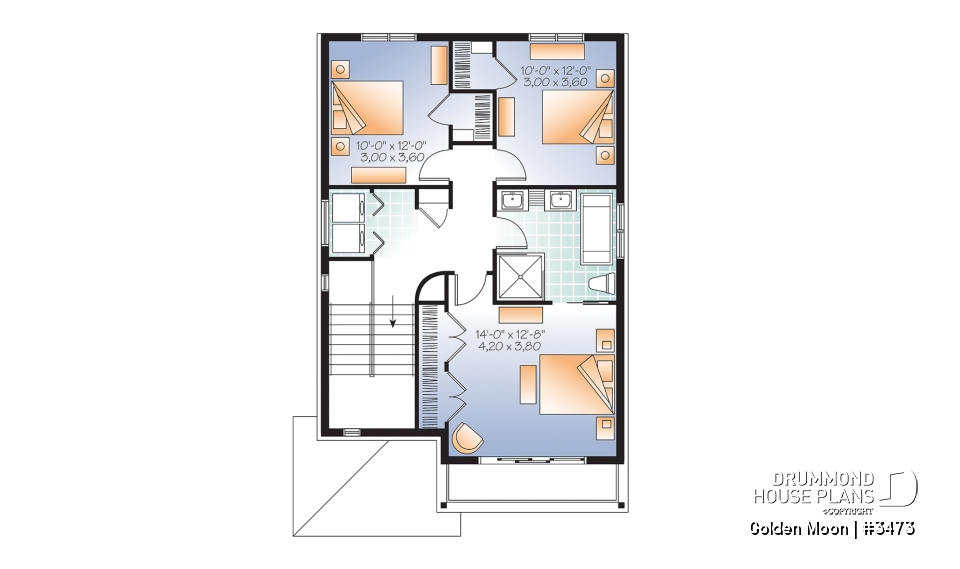

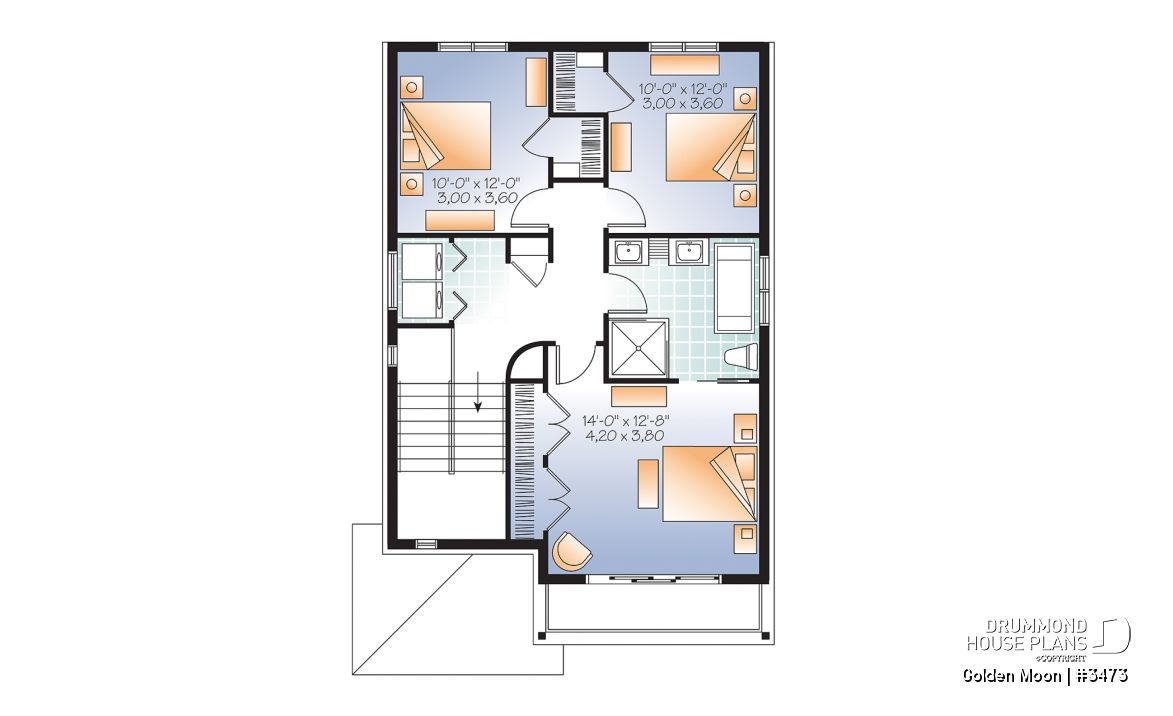

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 14'0" x 12'8" | ~ 8'0" |
| Closet | 2'2" x 10'4" | ~ 8'0" |
| Bedroom | 10'0" x 12'0" | ~ 8'0" |
| Closet | 3'4" x 4'0" | ~ 8'0" |
| Bedroom | 10'0" x 12'0" | ~ 8'0" |
| Closet | 3'4" x 4'0" | ~ 8'0" |
| Laundry space | 3'5" x 5'8" | ~ 8'0" |
| Full bathroom | 10'0" x 9'4" | ~ 8'0" |
| Linen | 1'4" x 1'4" | N/A |
| Linen | 2'6" x 1'4" | ~ 8'0" |

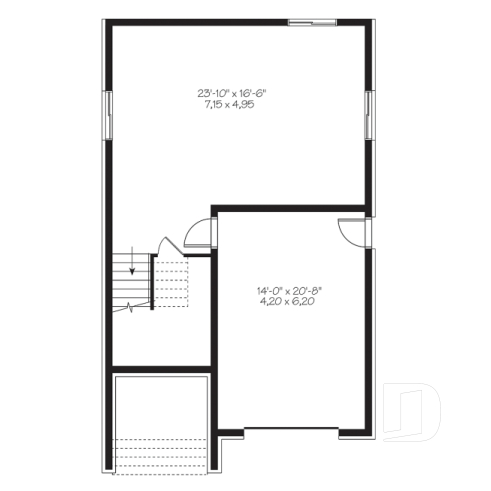

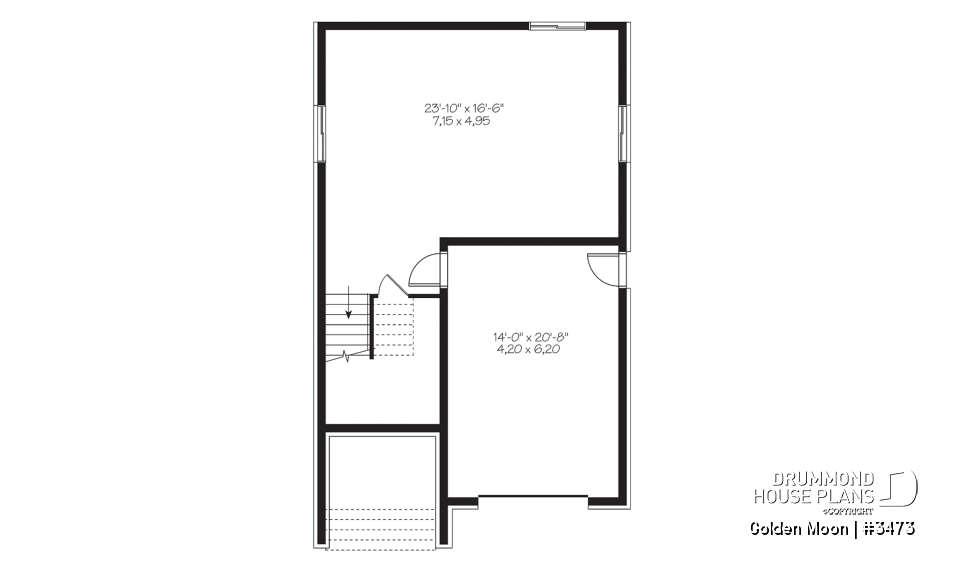

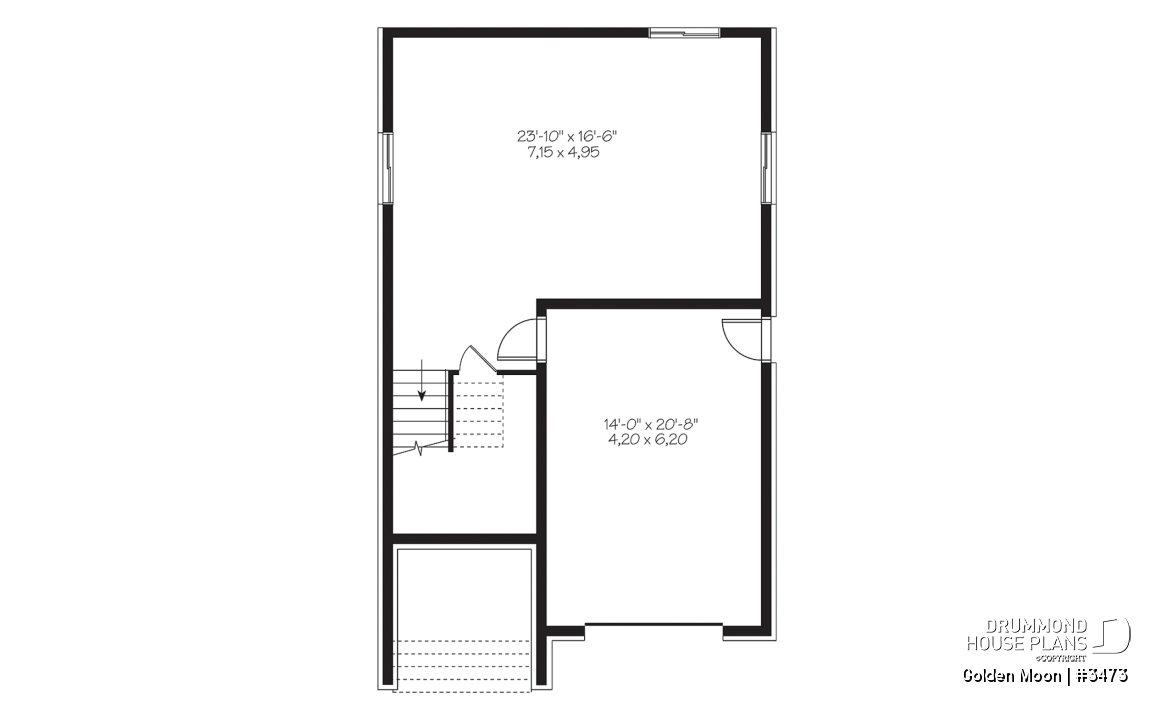

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 14'0" x 20'8" | ~ 8'0" |
| Unfinished space | 23'10" x 16'6" | ~ 8'0" |
| Storage | 8'10" x 10'1" | ~ 3'8" |
General specifications
| Total living area | 1883 sq.ft. |
| 1st level | 980 sq.ft. |
| 2nd level | 903 sq.ft. |
| Basement | 0 sq.ft. |
| Width | 26'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 33'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Modern 3 bedroom house plan with under building parking, narrow lot home plan
Derived from original plan 2453, this home is an extremely attractive model for narrow, sloping lots. A basement entry garage and generous storage area are sure to be appreciated.
The main level boasts ceilings of nearly 9’, open floor plan, and ample windows. The adjoining kitchen features a 40 x 70” island, walk-in pantry and triple patio doors. A flex space off the kitchen can evolve with the family as a playroom, study, office or reading room.
The upstairs is a dedicated sleeping area with three bedrooms. The master includes a full-wall bank of closets and private access to the 5-piece bathroom complete with 4’ x 4’ shower, soaker tub, and dual vanity. Two secondary bedrooms share hall access to the bathroom and all bedrooms will appreciate a laundry on this level.
Distinctive elements
Design ideal for narrow lots. 8' 8" ceilings on the ground floor. Open activities area. Lunch and walk-in pantry in the kitchen. Three large bedrooms upstairs with adjoining laundry area.
Plan feature(s)
Second floor laundry room, Sitting area, Pantry, Island, Open floor layout, Ceiling over 8', Separate bath and shower, Double sinks, Balcony 2nd floor
Plan architectural style(s)
. Contemporary, . Modern / Design, . Rustic
