Large 4 bedroom Mediterranean style house plan with 3.5 baths, 2-car garage, home office

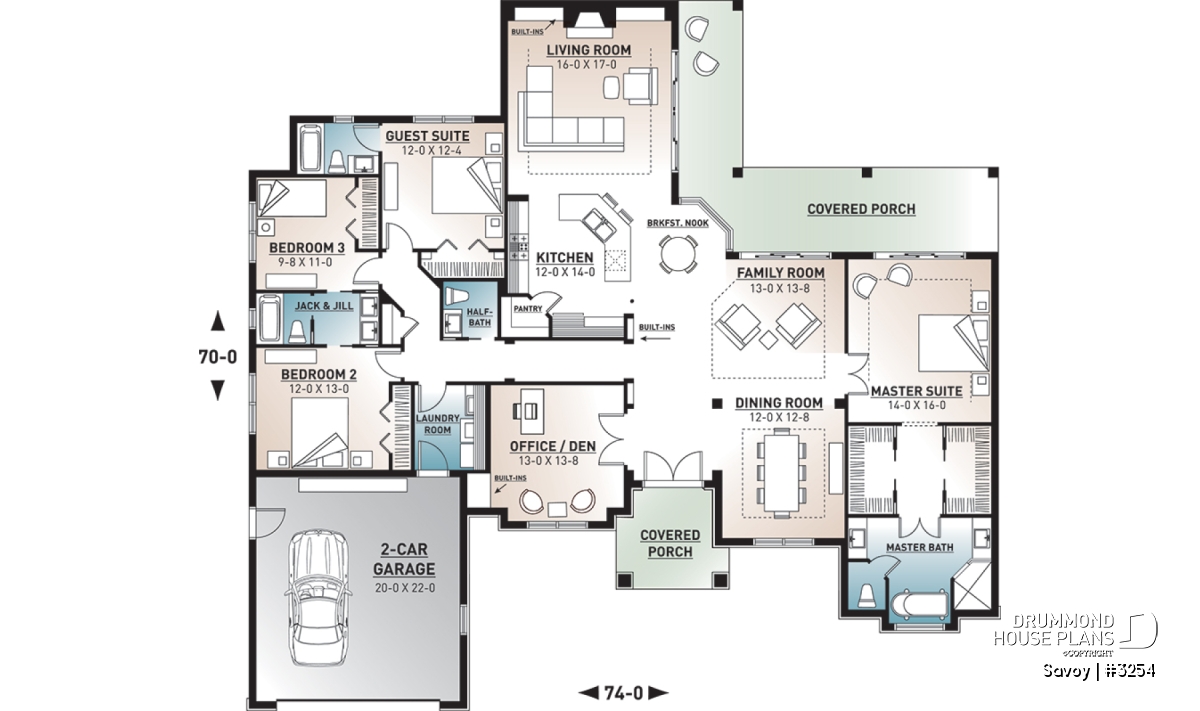

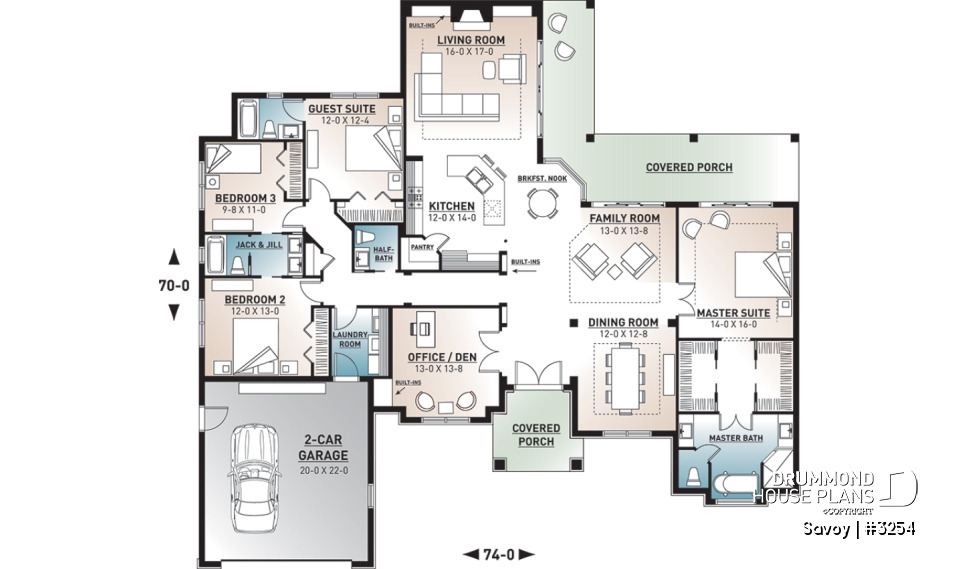

View the size of the rooms and height of the ceilings
|Kitchen||12'0" x 14'0"||~ 12'0"|
|Dining room||12'0" x 12'8"||~ 11'4"|
|Living room||13'0" x 13'8"||~ 12'6"|
|Full bathroom||12'0" x 5'0"||~ 9'4"|
|Half bath or powder room||5'4" x 5'6"||~ 9'4"|
|Master suite||14'0" x 16'0"||~ 11'4"|
|Bedroom||12'0" x 13'0"||~ 9'4"|
|Bedroom||9'8" x 11'0"||~ 9'4"|
|Lanai||1'10" x 4'0"||~ 9'4"|
|Laundry room||7'0" x 8'4"||~ 9'4"|
|Linen||4'8" x 4'0"||~ 12'0"|
|Garage||20'0" x 22'0"||~ 9'4"|
|Porch||11'0" x 9'8"||N/A|
|Porch||31'4" x 8'0"||N/A|
|Porch||6'0" x 15'8"||N/A|
|Dinette||9'4" x 9'4"||~ 12'6"|
|Great room or Family room||16'0" x 17'0"||~ 12'8"|
|Playroom||13'0" x 13'8"||~ 11'4"|
|Guest suite||12'0" x 12'4"||~ 9'4"|
|Total living area||2842 sq.ft.|
|1st level||2842 sq.ft.|
|Ridge height from top of foundation||25'2"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Floating Slab|
|Other available foundations (a fee may apply)||Crawl space, Monolithic Slab|
|Builder price code||H|
|Garage type||Two-car garage (510 sq.ft.)|
|Living bonus space||-|
