House plan Belarte (3253)
Mediterranean 3 bedroom house plan, with 13' ceilings, double garage and lanai
View the size of the rooms and height of the ceilings

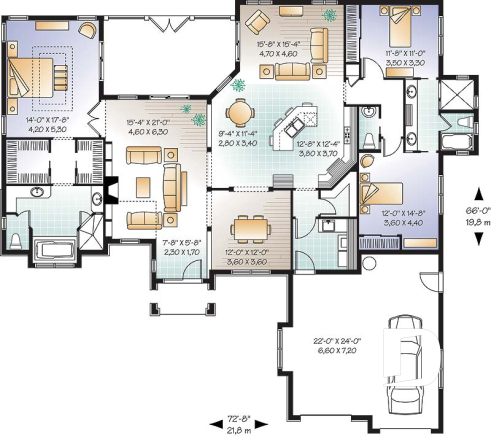

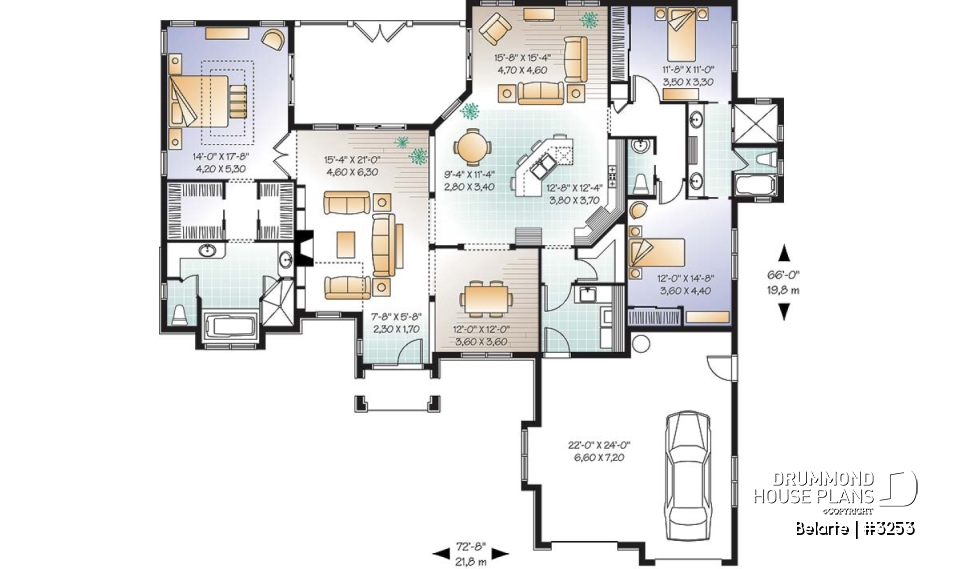

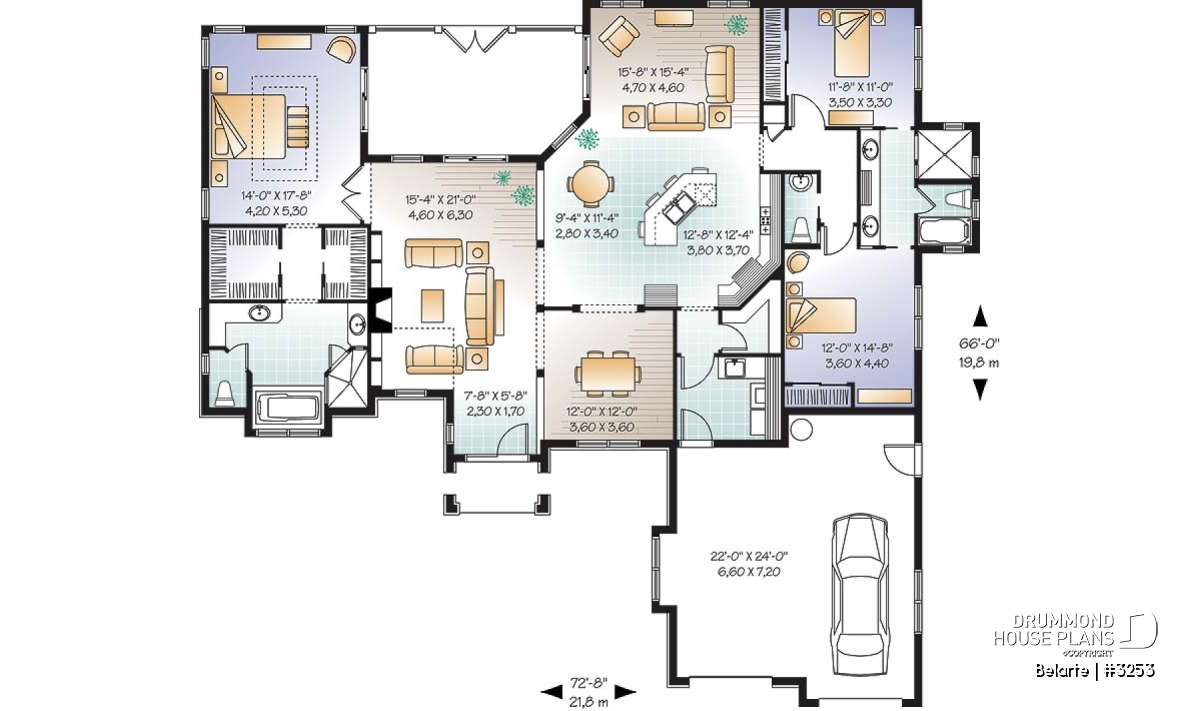

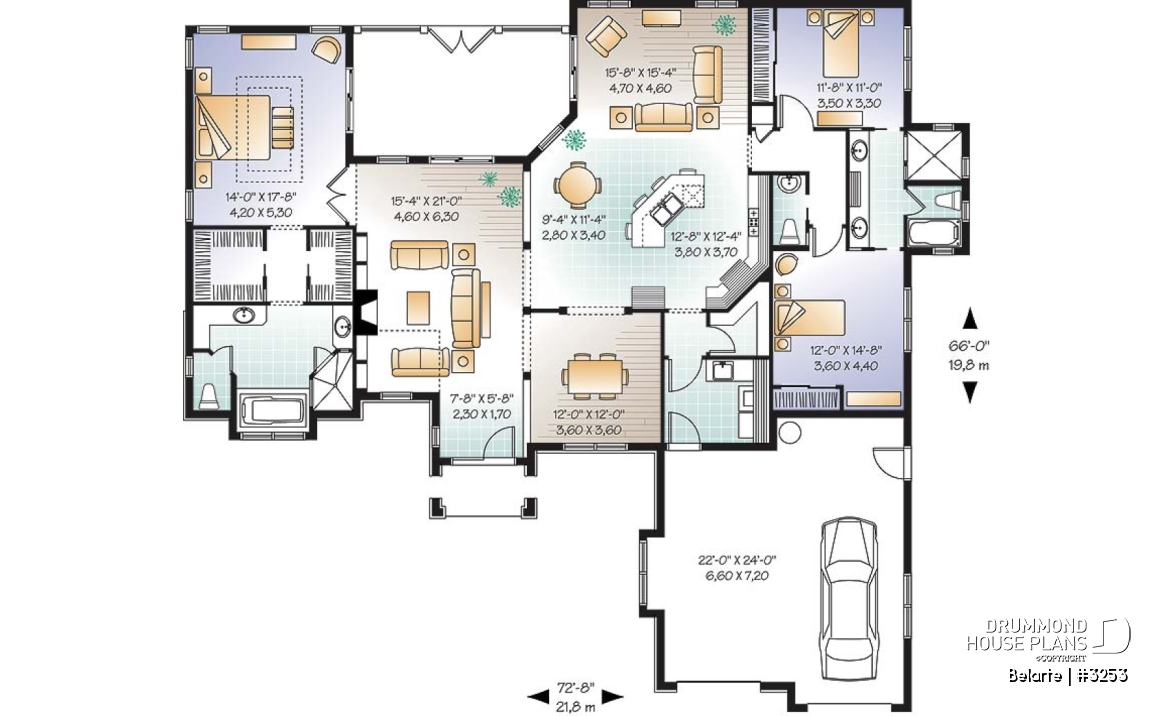

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'8" x 12'4" | ~ 10'0" |
| Pantry | 5'6" x 6'7" | ~ 10'0" |
| Dining room | 12'0" x 12'0" | ~ 13'4" |
| Living room | 15'4" x 21'0" | ~ 13'4" |
| Foyer | 7'8" x 5'8" | ~ 10'0" |
| Full bathroom | 10'4" x 10'8" | ~ 10'0" |
| Half bath or powder room | 3'0" x 6'6" | ~ 10'0" |
| Master suite | 14'0" x 17'8" | ~ 12'0" |
| Bedroom | 12'0" x 14'8" | ~ 10'0" |
| Bedroom | 11'8" x 11'0" | ~ 10'0" |
| Garage | 22'0" x 24'0" | ~ 10'0" |
| Porch | 8'0" x 4'8" | N/A |
| Dinette | 9'4" x 11'4" | ~ 10'0" |
| Great room or Family room | 15'8" x 15'4" | ~ 10'0" |
| Laundry room | 9'4" x 8'0" | ~ 10'0" |
General specifications
| Total living area | 2495 sq.ft. |
| 1st level | 2495 sq.ft. |
| Width | 72'8" |
| Depth | 66'0" |
| Ridge height from top of foundation | 23'3" |
| Exterior wall | Block , 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
Large 3 bedroom ranch house plan (split bedroom floor plan) with 2-car garage
.
Distinctive elements
Large family room with fireplace and built-ins located in the center of the home with access to a nice closed screened space and access to the master suite and the living room. Lovely master suite with a double walk-in closet and well organized bathroom. Ceiling at 10', 12' and 13'-4`` according to the rooms. Well organized secondary bedrooms and their bathroom. Large double garage.
Plan feature(s)
Screened porch, Fireplace, Split bedrooms, Jack & Jill bath, Ceiling over 8', Master suite upstairs, Pantry, Built-ins, Gound floor laundry room, Deck, Island, His/Hers walk-in, Breakfast nook, Oversized garage, Separate bath and shower, Double sinks
Plan architectural style(s)
. Mediterranean, . Florida, . American, . Ranch, . Country
