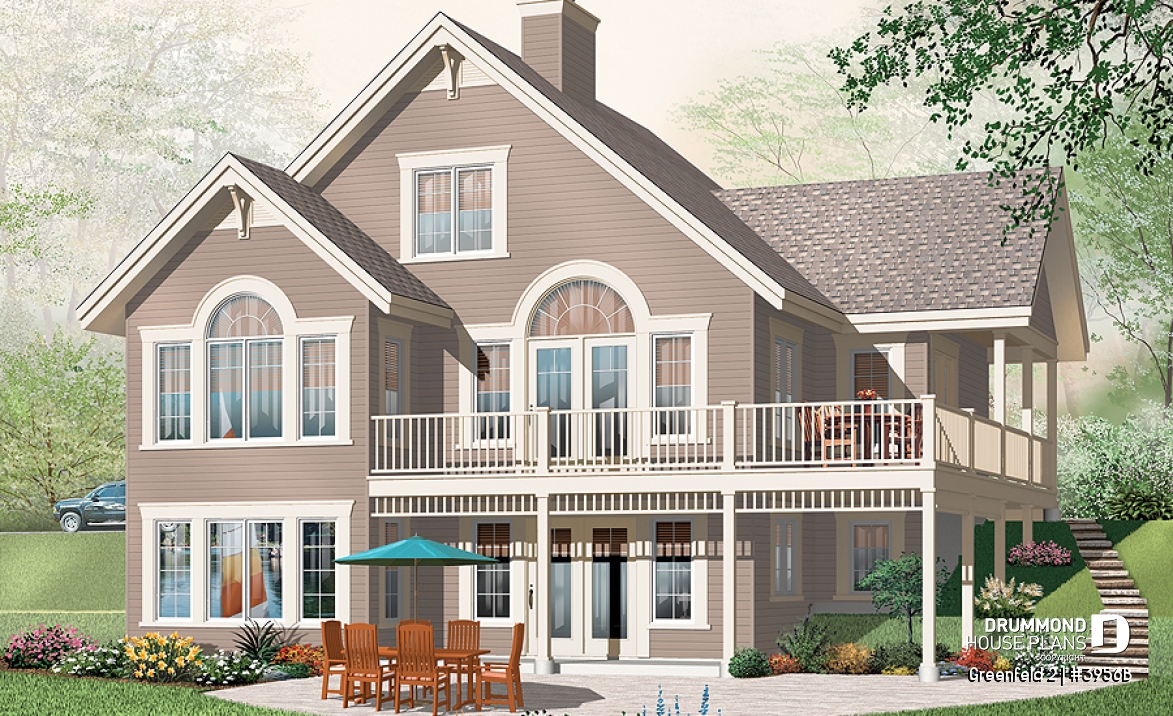

House plan Greenfeld 2 (3956B)
5 bedroom chalet with basement appartment and mezzanine
View the size of the rooms and height of the ceilings

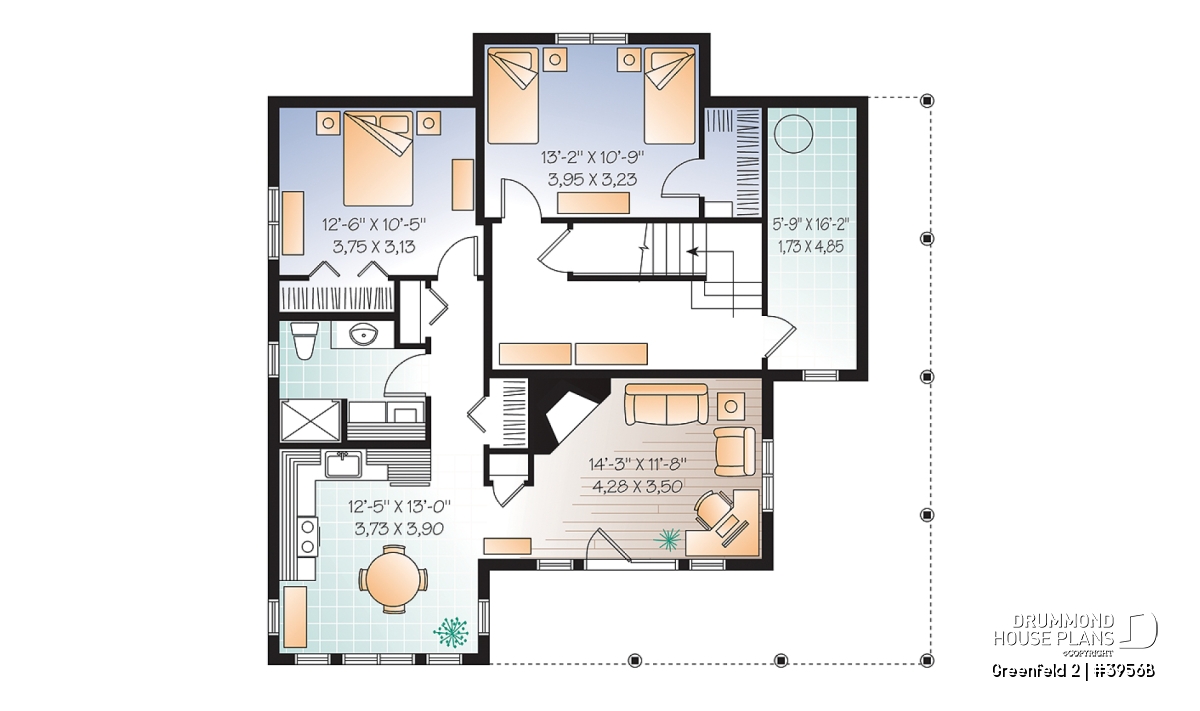

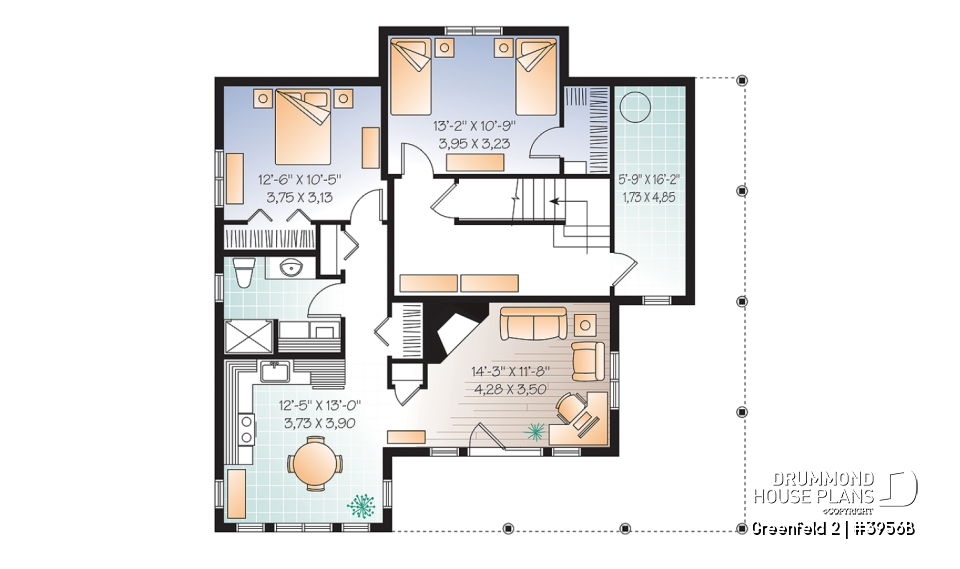

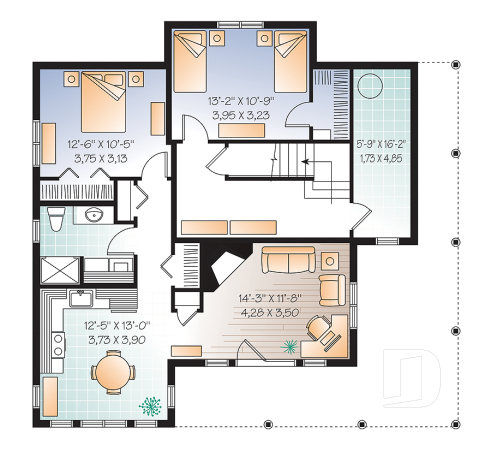

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 12'5" x 13'0" | ~ 8'0" |
| Living room | 14'3" x 11'8" | ~ 8'0" |
| Shower/laundry room | 9'1" x 7'10" | ~ 8'0" |
| Bedroom | 12'6" x 10'5" | ~ 8'0" |
| Closet | 7'1" x 2'0" | ~ 8'0" |
| Closet | 2'6" x 4'9" | ~ 8'0" |
| Bedroom | 13'2" x 10'9" | ~ 8'0" |
| Walk-in closet | 3'7" x 6'9" | ~ 8'0" |
| Storage | 5'9" x 16'2" | ~ 8'0" |

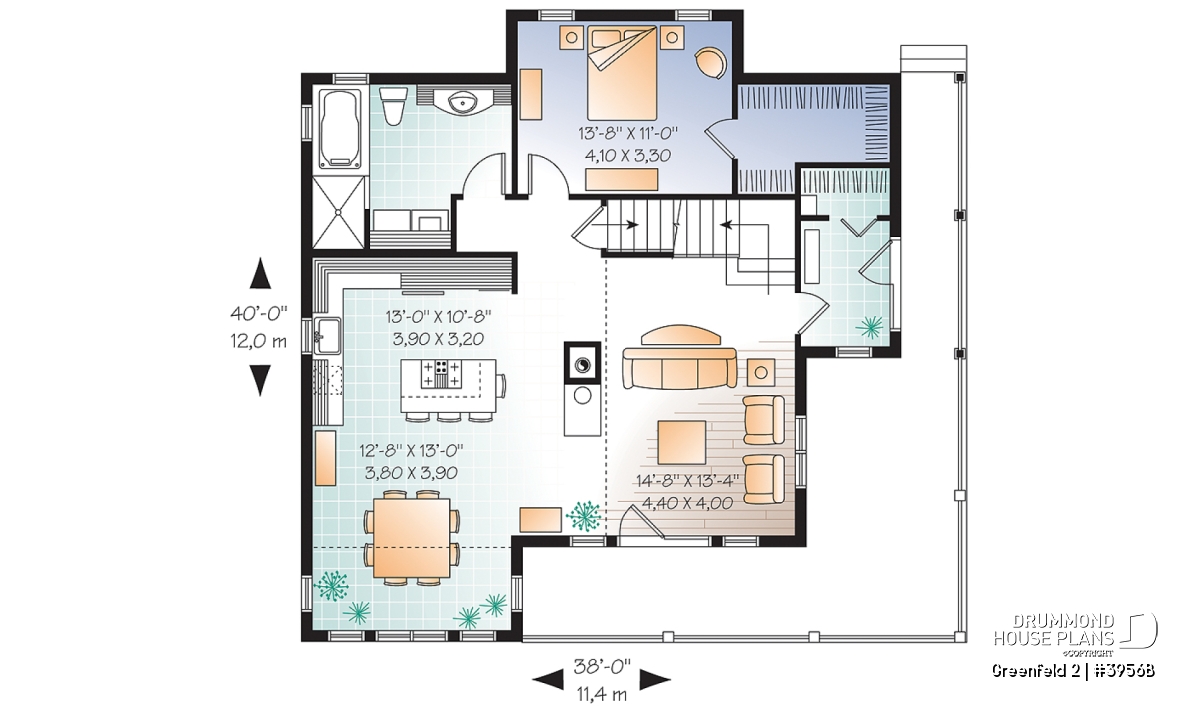

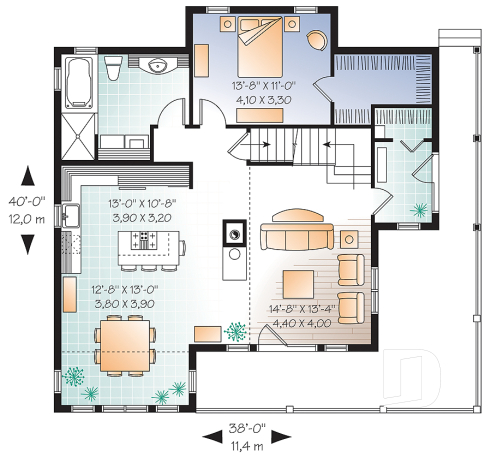

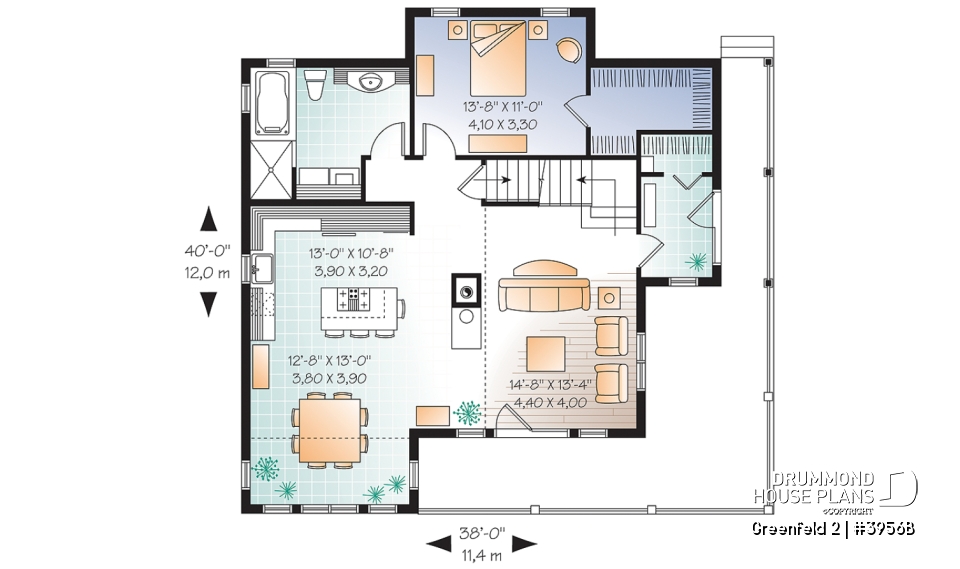

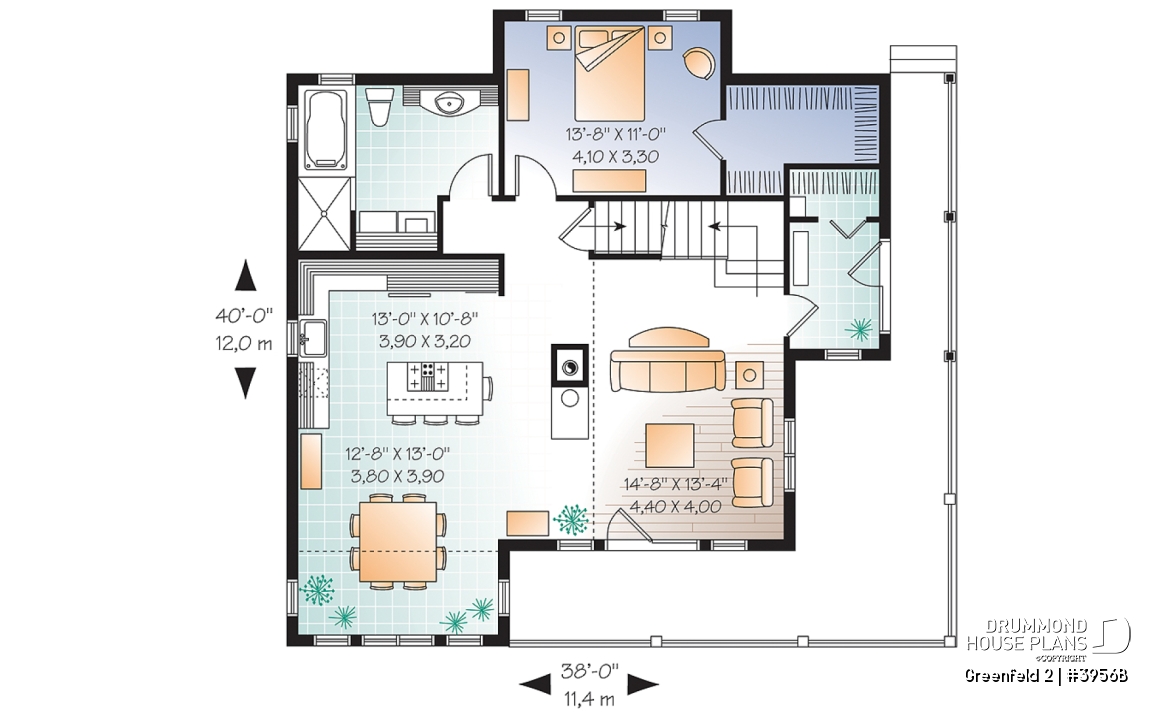

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'8" x 11'0" | ~ 8'0" |
| Walk-in closet | 9'8" x 5'0" | ~ 8'0" |
| Kitchen | 13'0" x 10'8" | ~ 8'0" |
| Foyer | 5'8" x 8'0" | ~ 8'0" |
| Walk-in closet | 5'8" x 3'0" | ~ 8'0" |
| Dining room | 12'8" x 13'0" | ~ 10'0" |
| Bathroom/laundry room | 12'8" x 10'6" | ~ 8'0" |
| Living room | 14'8" x 13'4" | N/A |

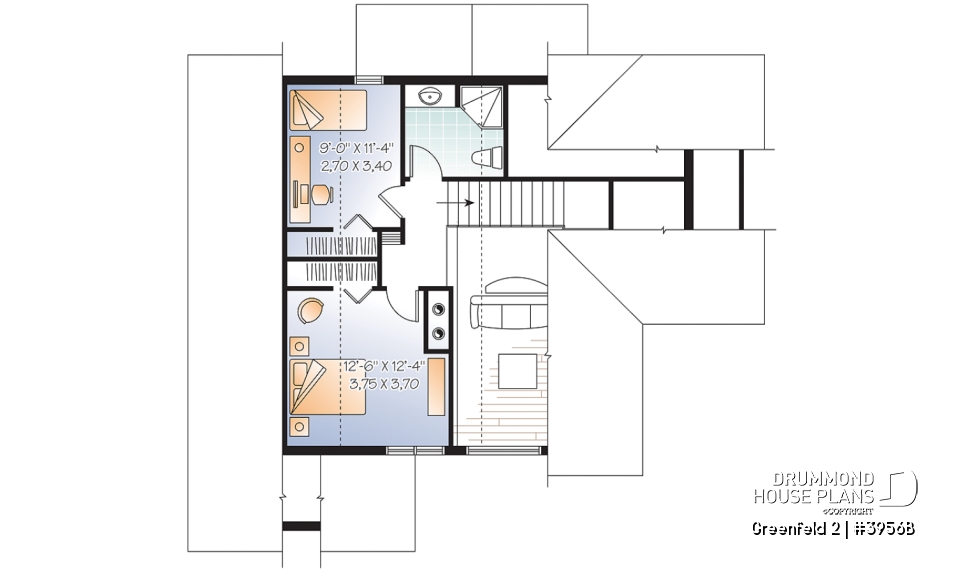

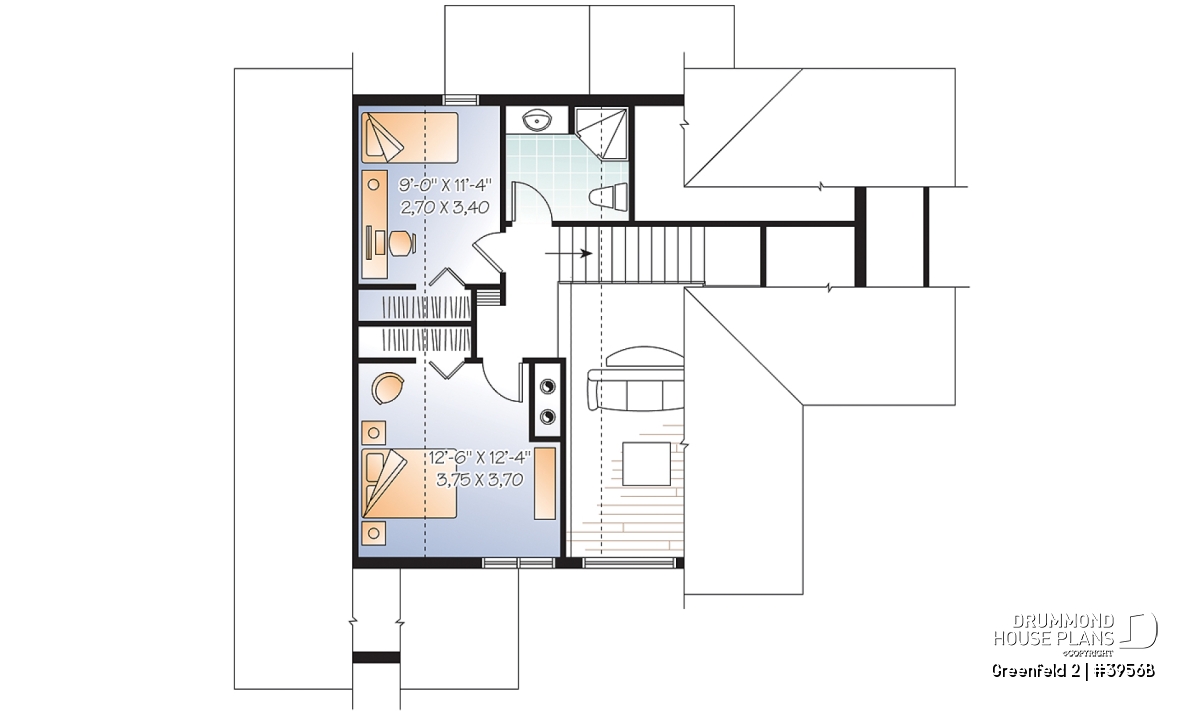

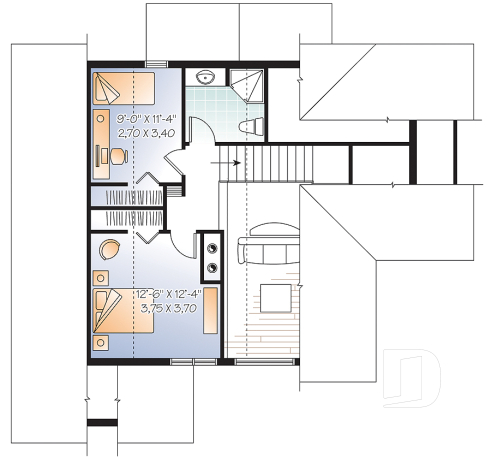

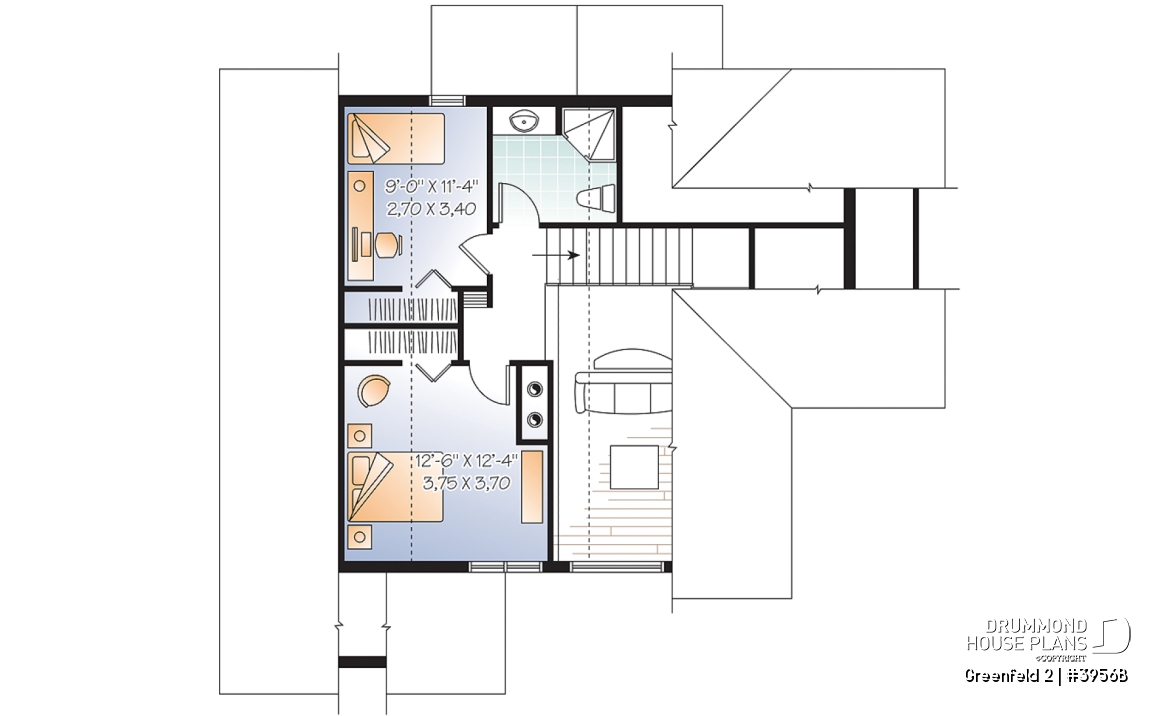

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 9'0" x 11'4" | ~ 8'0" |
| Closet | 7'2" x 2'0" | ~ 8'0" |
| Bedroom | 12'6" x 12'4" | ~ 8'0" |
| Closet | 7'2" x 2'0" | ~ 8'0" |
| Shower room or three quarter bath | 7'10" x 7'0" | ~ 8'0" |
General specifications
| Total living area | 2920 sq.ft. |
| Basement | 1212 sq.ft. |
| 1st level | 1212 sq.ft. |
| 2nd level | 496 sq.ft. |
| Width | 38'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 32'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | MC |
Rooms specifications
| Bedroom(s) | 4, 5 |
| Full baths | 3 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | - |
Units specifications
Other useful information on this plan
5 bedroom home with bonus bachelor suite
Inspired by the popular plan 3945 and requests for developed basement space, this plan incorporates a walkout basement with ample doors and windows.
A large wraparound deck provides access to a generous vestibule or french doors to the living room. Arranged over three floors, the main level boasts a vaulted living room open to the upper level, and open concept floor plan. The main floor master bedroom enjoys an adjoining bathroom with integrated laundry and generous walk-in closet.
Upstairs, two bedrooms share a shower room and the basement includes another generous bedroom with walk-in closet (or optional recreation room). A large mechanical/storage room tops off the owner’s amenities.

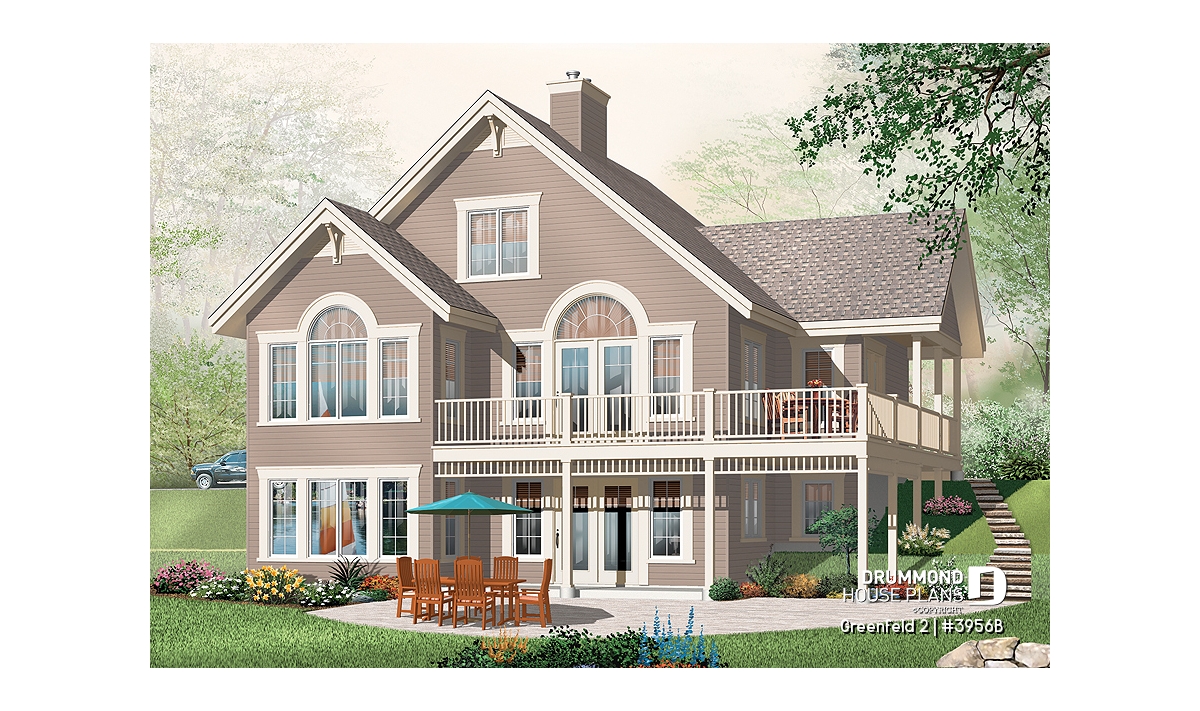

The daylight basement bachelor suite boasts large windows, garden doors, a fireplace, kitchen with dinette and bathroom with integrated laundry. This model is ideal for sloping lots and the basement bachelor suite is attractive as a mortgage helper or inlaw suite.
An alternate version without the bachelor suite and 5 bedrooms is available in model 3956.
Distinctive elements
10' vaulted ceiling in the living room and part of dining room on the ground floor. Four attractive bedrooms including the master on the ground floor with walk-in closet. Three bathrooms or shower rooms in all, each offering a good size shower in particular 40" x 56" on the ground floor. Fireplace and many windows in the activities areas on the ground floor. Large wraparound deck. Well windowed bachelor suite.
Plan feature(s)
Fireplace, Walk-in master bed., Deck, Entrance hall, Warparound
Plan architectural style(s)
. Country, . Vacation and waterfront, . A-Frame, . American, . Ski chalets, . Mountain, . Cottage, chalet, cabin
Previously Viewed Plans
Questions and comments
November 05
Travis
Is there anyway to see a 3D walk through of this plan?
Would I need to come to your office to see that or could I get it at home?
November 05
Customer service
Good day and thank you for taking the time to write.
Since we do no actual building, we do not provide a 3D walk through for most our plans so I am unfortunately unable to forward one for this model at the present time.
Please let me me know if you have any other questions or comments.
Regards
Deb
April 17
Marilyn Brown
Can you add an elevator?
April 17
Customer service
Good day Ms. Brown and thank you for your interest in this plan.
An elevator could definitely be added to this plan and we would be happy to return a free estimate for this or any other changes that you require within two business days after receipt of this on line form.
Please feel free to contact me if I can further assist you
Regards
Deb
December 11
Denise
I am interested in the Greenfield 2 plan # W3956B
How do I go about getting more information on this model.
Thanks
December 11
Customer service
Good day and thank you for taking the time to write.
I would be pleased to answer any questions that you might have regarding our plans.
You can either use this forum or email me directly at [email protected] with your questions and/or comments and I will respond quickly to your request.
Regards
Deborah
November 19
Jim
Check the Basement Plan again. How do you get from the stairs to the kitchen and living room?
November 19
Customer service
Good day and thank you for taking the time to write.
The one bedroom bachelor appartement in the basement does not have access to the stairs going up to the main floor.
The bedroom is on the left along the same wall as the bathroom and the kitchen, the living room to the right has the only access door which is a walk out.
Access to the main floor in from the outside.
The bedroom with the twin beds on the basement level is part of the main unit, to which the stairs give access.
Please let me know if you have any other questions or comments.
Regards
Deborah
