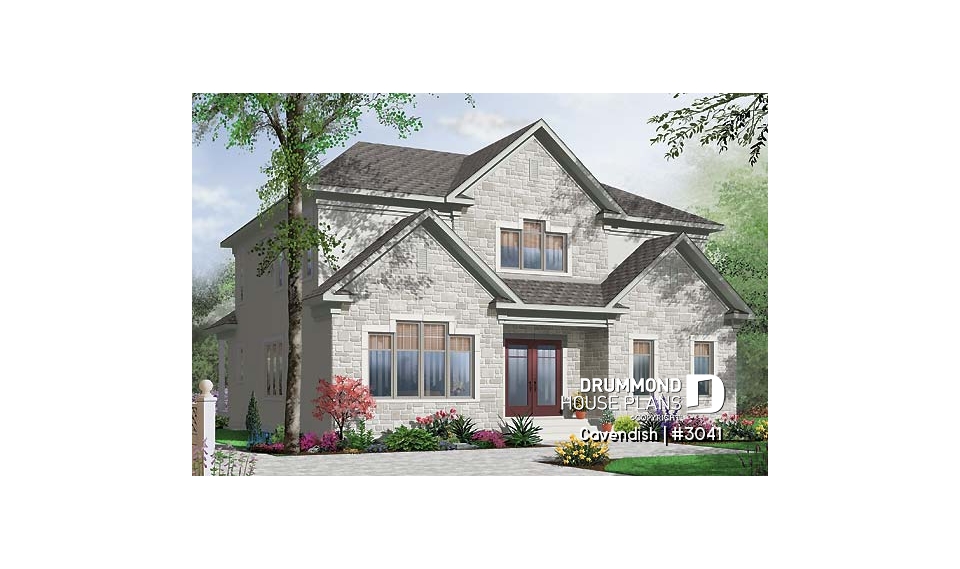

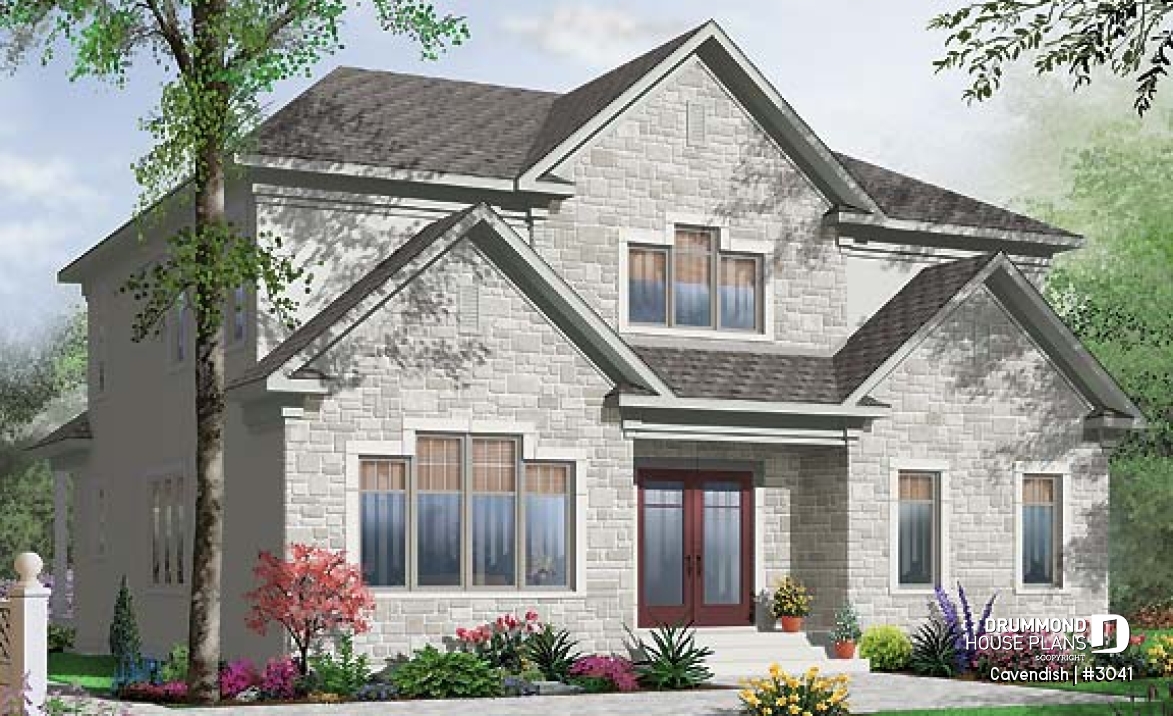

House plan Cavendish (3041)
2-Storey intergenerational home plan, 4 to 5 bedrooms & 2 family rooms in main unit, shared laundry room
View the size of the rooms and height of the ceilings

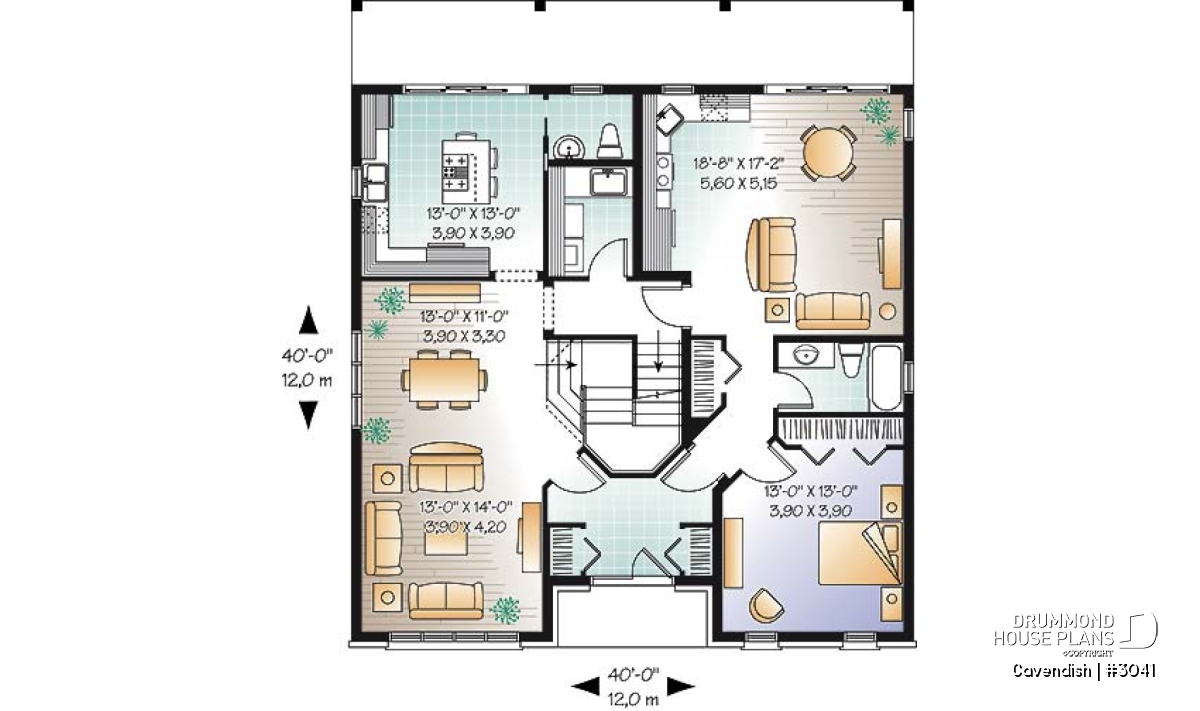

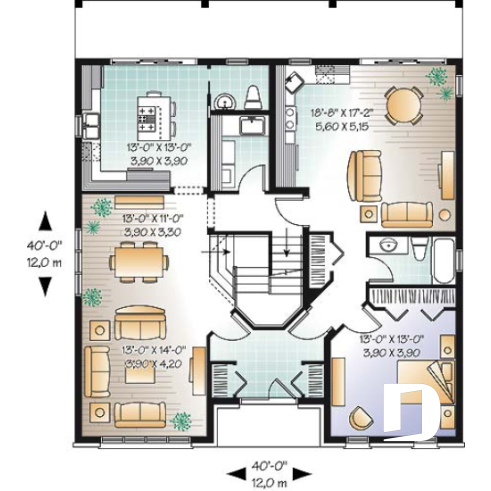

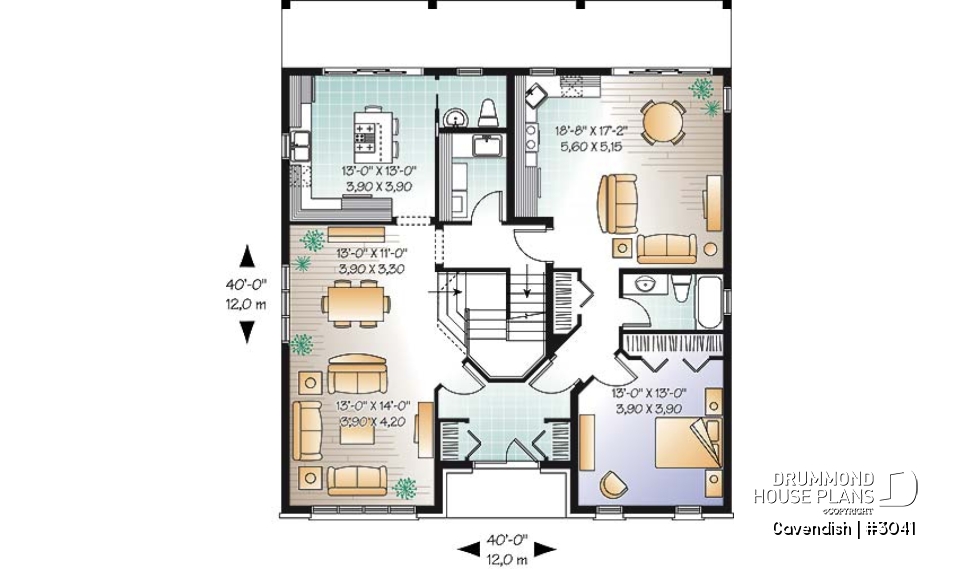

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 13'0" x 13'0" | ~ 9'0" |
| Pantry | 1'8" x 2'0" | N/A |
| Dining room | 13'0" x 11'0" | ~ 9'0" |
| Living room | 13'0" x 14'0" | ~ 9'0" |
| Foyer | 11'8" x 7'0" | ~ 9'0" |
| Full bathroom | 9'0" x 5'0" | ~ 9'0" |
| Half bath or powder room | 6'0" x 4'8" | ~ 9'0" |
| Bedroom | 13'0" x 13'0" | ~ 9'0" |
| Laundry room | 6'0" x 7'10" | ~ 9'0" |
| Linen | 2'2" x 5'6" | ~ 9'0" |
| Activity room | 18'8" x 17'2" | ~ 9'0" |
| Covered porch | 10'8" x 4'0" | N/A |
| Deck | 40'0" x 6'0" | N/A |

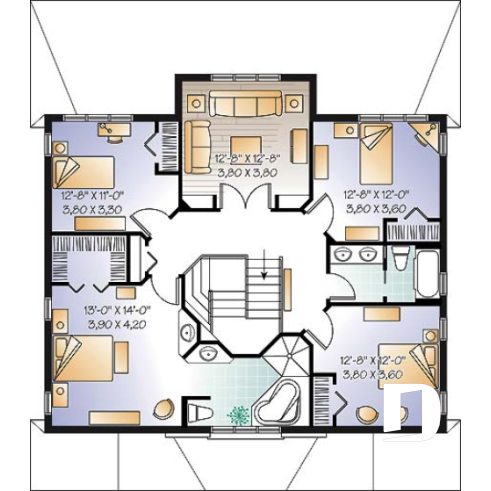

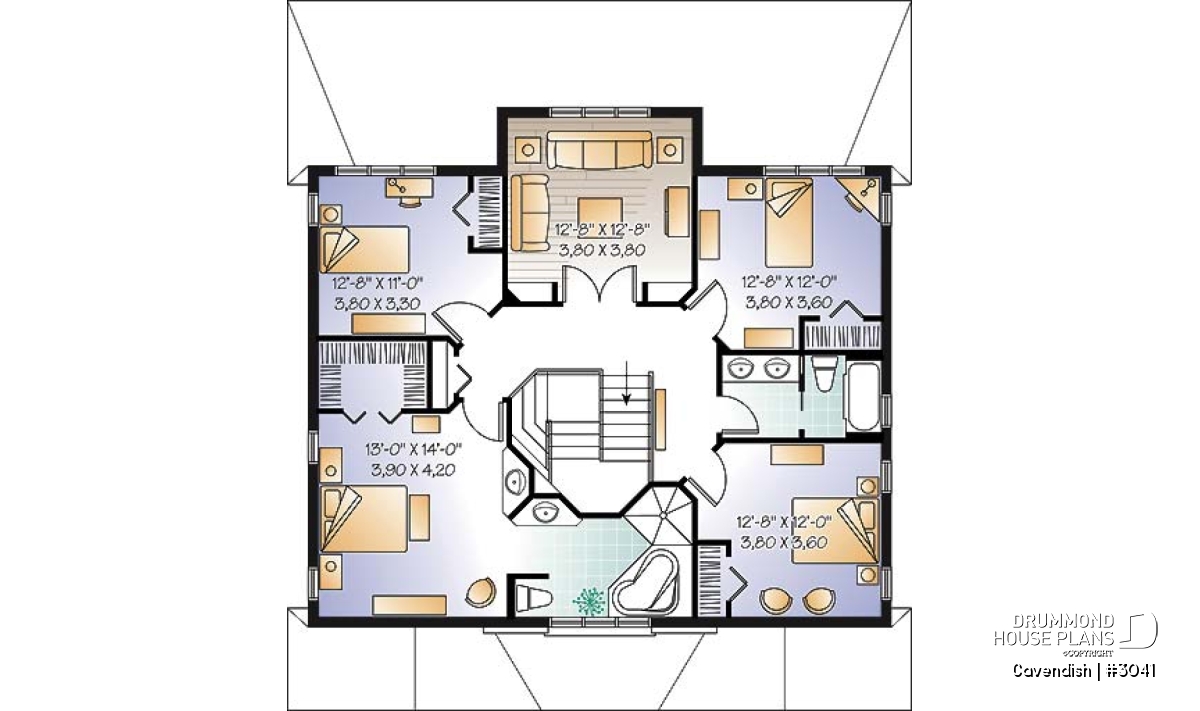

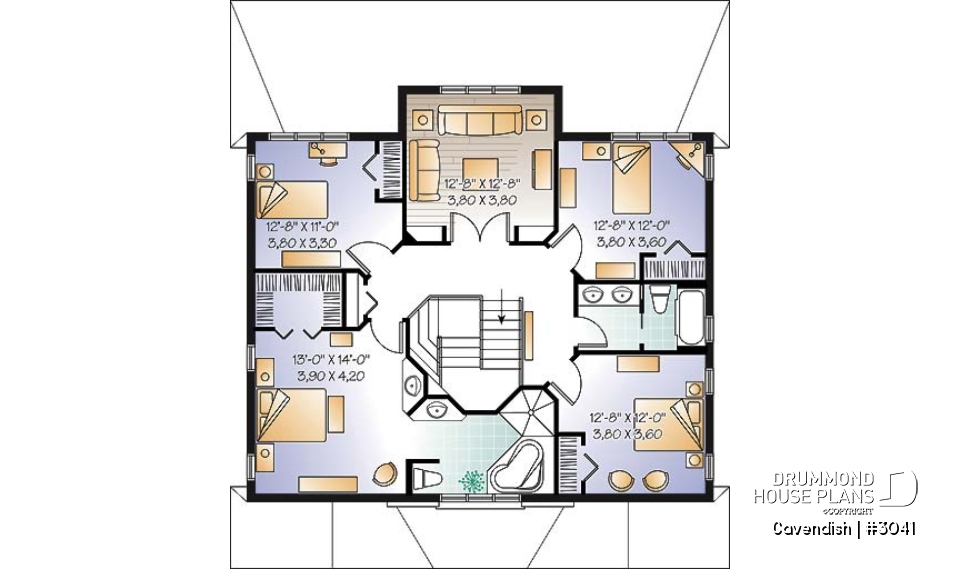

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 11'0" x 5'8" | ~ 8'0" |
| Master suite | 13'0" x 14'0" | ~ 8'0" |
| Full bathroom | 12'2" x 6'8" | ~ 8'0" |
| Bedroom | 12'8" x 12'0" | ~ 8'0" |
| Bedroom | 12'8" x 12'0" | ~ 8'0" |
| Bedroom | 12'8" x 11'0" | ~ 8'0" |
| Linen | 1'6" x 4'8" | ~ 8'0" |
| Playroom | 12'8" x 12'8" | ~ 8'0" |
General specifications
| Total living area | 2885 sq.ft. |
| 1st level | 1557 sq.ft. |
| 2nd level | 1328 sq.ft. |
| Width | 40'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 28'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MC |
Rooms specifications
| Bedroom(s) | 5, 6 |
| Full baths | 3 |
| Half baths | 1 |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 43 sq.ft. |
Units specifications
Other useful information on this plan
4 to 5 bedrooms, 2 storey intergenerational house plan
.
Distinctive elements
1st level: 9' ceiling. Centered staircase allowing a maximum interior planning without many hallways, obtaining nices spaces. Kitchen with central island/lunch area, in family appartment. Foyer and laundry room shared between family and grand-parents. Four nice bedrooms upstairs, including an original master suite. Play room that can be transformed into a 5th bedroom if required.
Plan feature(s)
Ceiling over 8', Island, Gound floor laundry room, Panoramic view, Master suite upstairs, Walk-in master bed., Entrance hall
Plan architectural style(s)
. European, . Manors and small castles, . Traditional, . American, . Country
