House plan Silkwood (3046)
Multi generational Modern Home plan, 2 units with separate entrances & open floor plans
View the size of the rooms and height of the ceilings

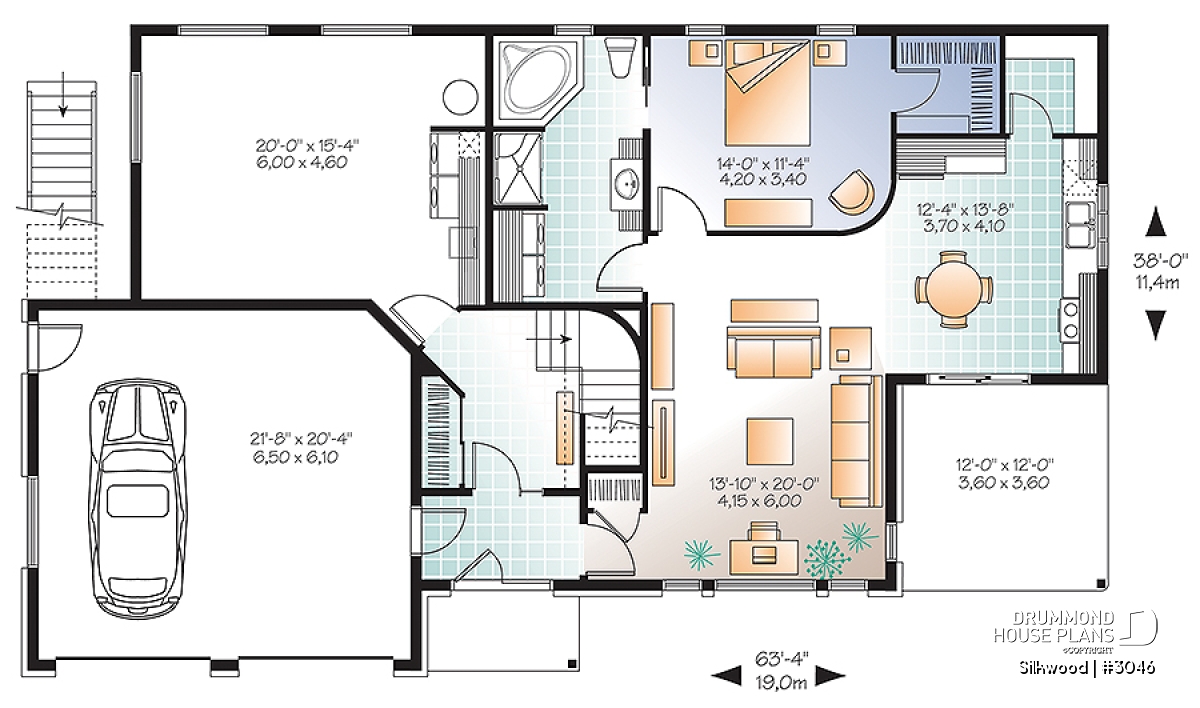

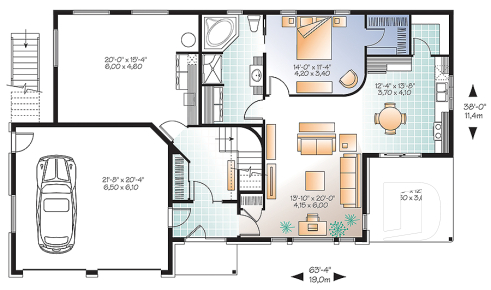

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 9'2" x 4'10" | ~ 8'0" |
| Living room | 13'10" x 20'0" | ~ 8'0" |
| Bedroom | 14'0" x 11'4" | ~ 8'0" |
| Closet | 6'0" x 5'8" | ~ 8'0" |
| Bathroom/laundry room | 8'8" x 15'6" | ~ 8'0" |
| Kitchen/dinette | 12'4" x 13'8" | ~ 8'0" |
| Pantry | 5'4" x 5'8" | ~ 8'0" |
| Workshop | 20'0" x 15'4" | ~ 8'0" |
| Foyer | 12'8" x 10'4" | ~ 8'0" |
| Closet | 2'2" x 6'6" | ~ 8'0" |
| Garage | 21'8" x 20'4" | ~ 8'6" |

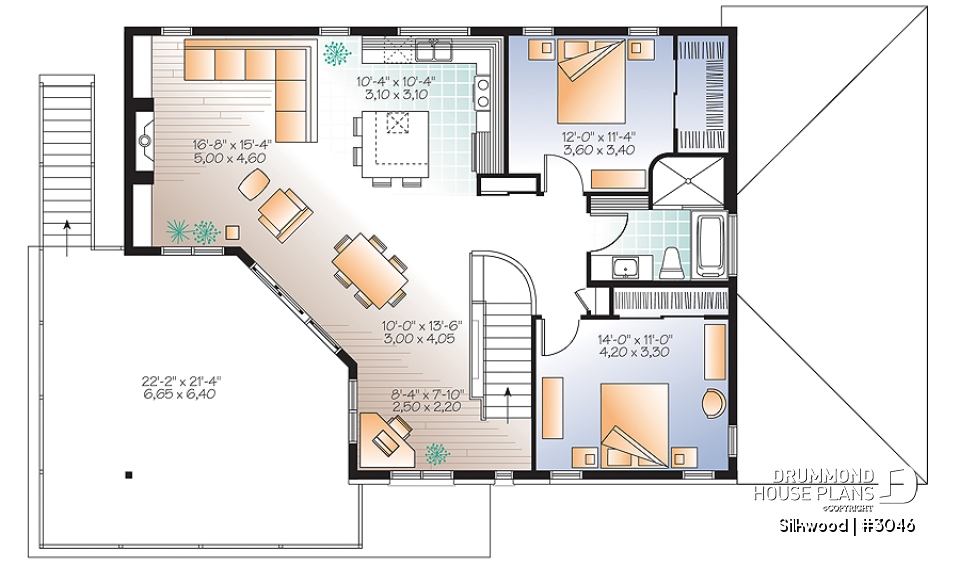

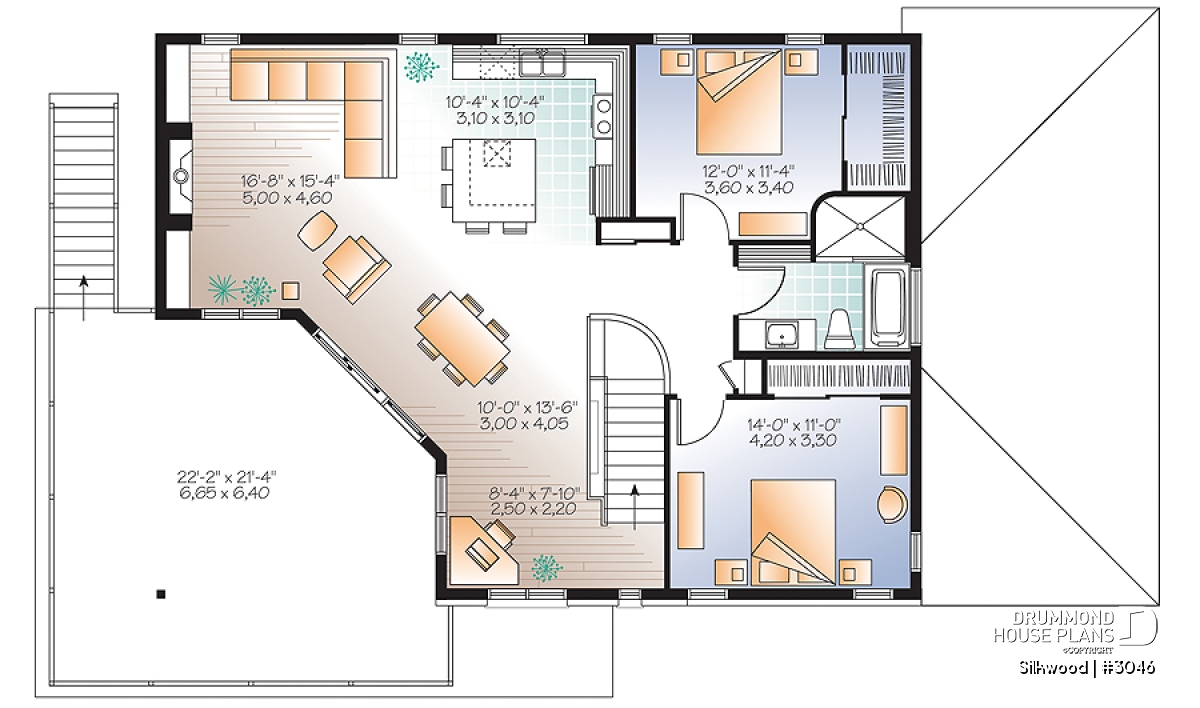

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Home office | 8'4" x 7'10" | ~ 8'0" |
| Dining room | 10'0" x 13'6" | ~ 8'0" |
| Living room | 16'8" x 15'4" | ~ 8'0" |
| Kitchen/dinette | 10'4" x 10'4" | ~ 8'0" |
| Pantry | 4'0" x 1'0" | ~ 8'0" |
| Bedroom | 12'0" x 11'4" | ~ 8'0" |
| Closet | 3'8" x 8'6" | ~ 8'0" |
| Bedroom | 14'0" x 11'0" | ~ 8'0" |
| Closet | 8'4" x 2'0" | ~ 8'0" |
| Full bathroom | 10'0" x 9'0" | ~ 8'0" |
| Linen | 4'2" x 1'0" | ~ 8'0" |
General specifications
| Total living area | 2729 sq.ft. |
| 1st level | 1483 sq.ft. |
| 2nd level | 1246 sq.ft. |
| Width | 63'4" |
| Depth | 38'0" |
| Ridge height from top of foundation | 25'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | MC |
Rooms specifications
| Bedroom(s) | 1, 2, 3 |
| Full baths | 1 |
| Half baths | - |
| Garage type | Two-car garage (483 sq.ft.) |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | - |
Units specifications

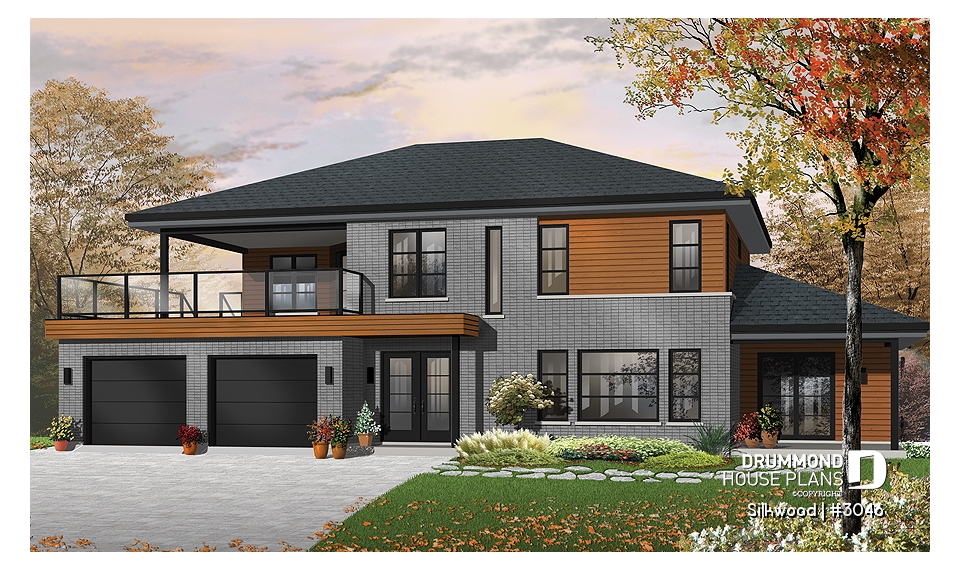

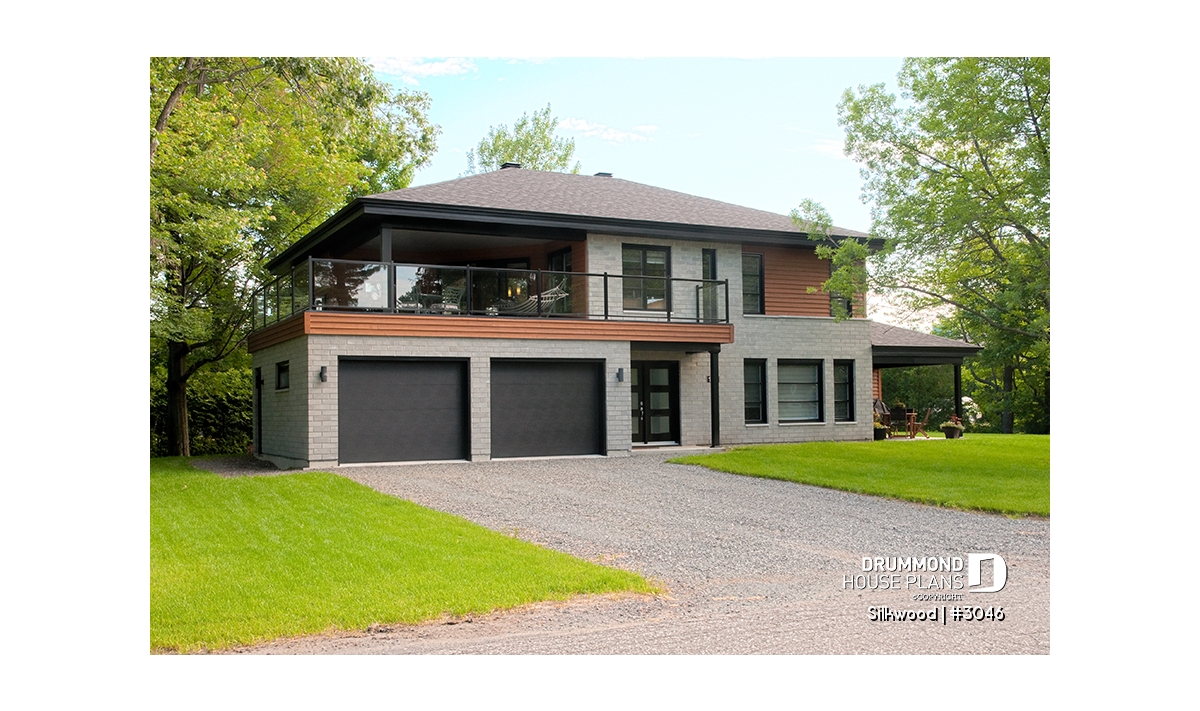

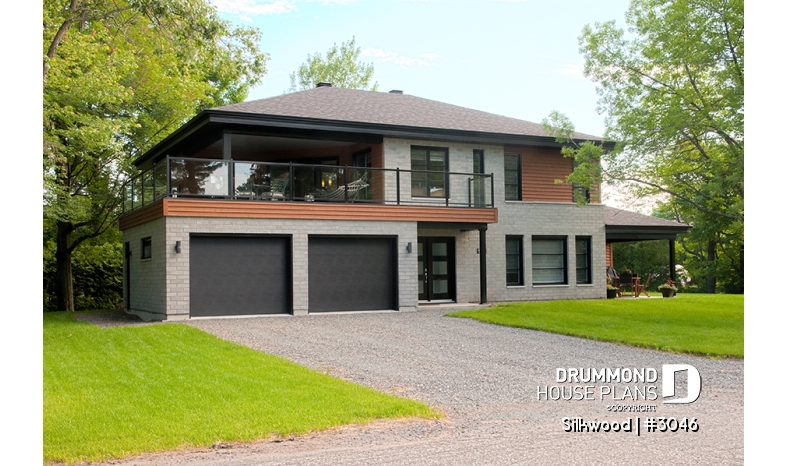

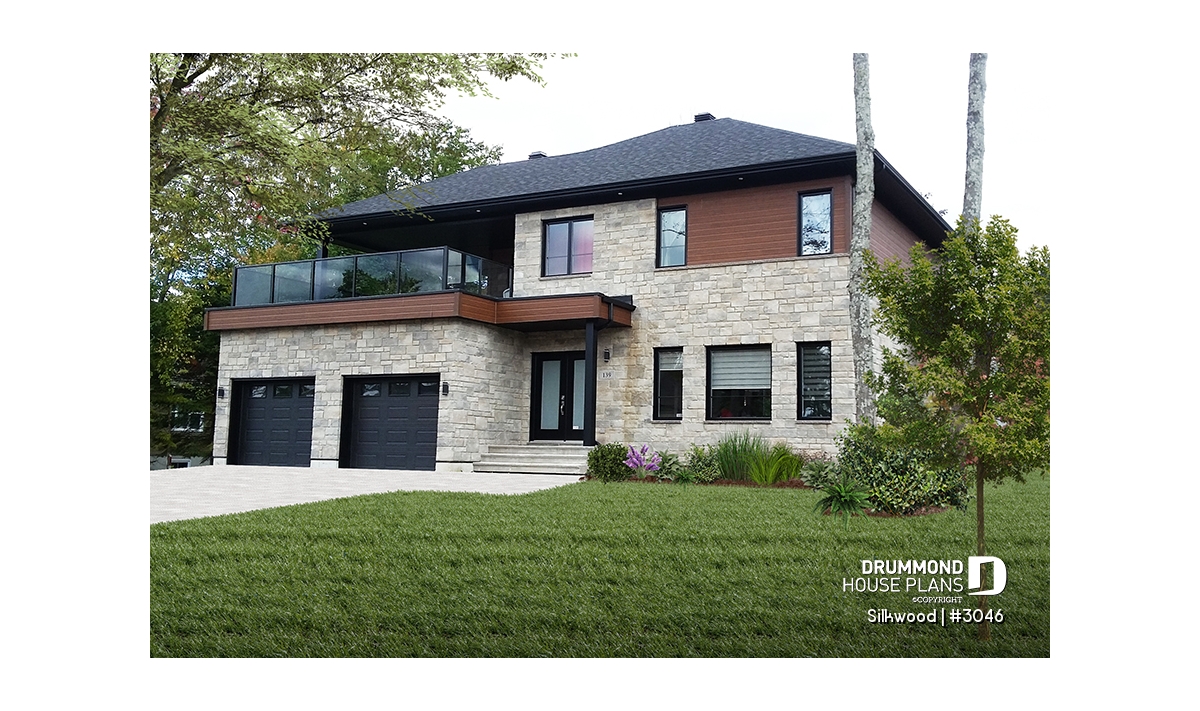

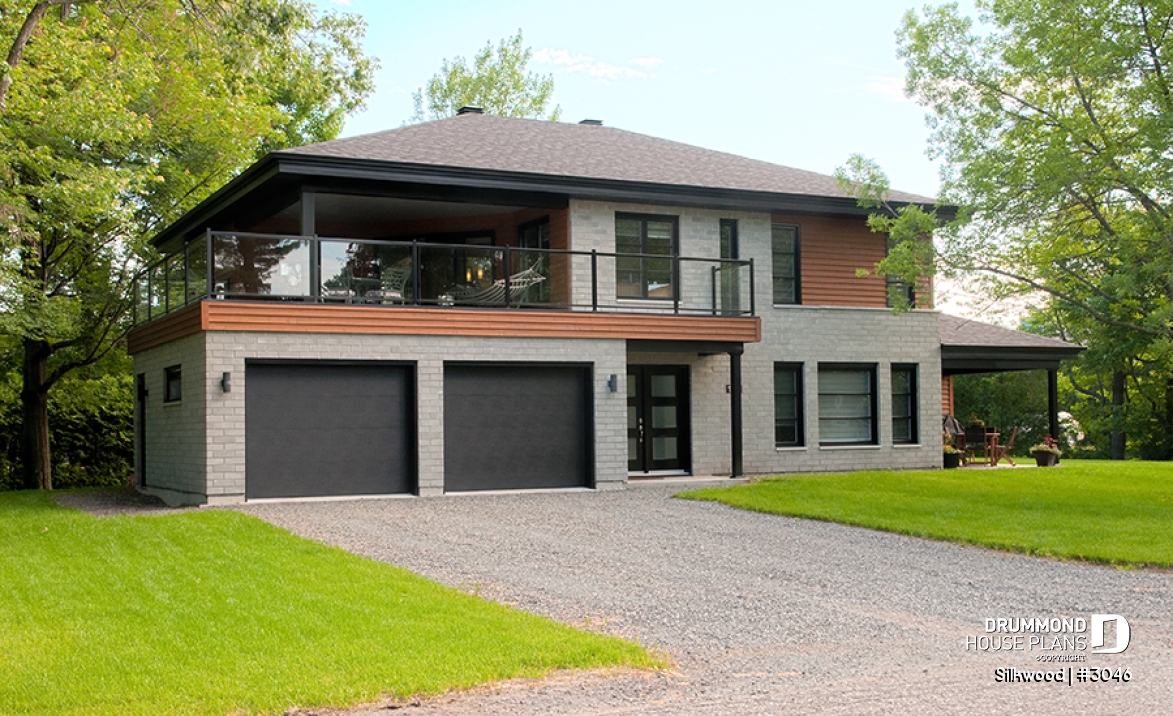

front
This color version might have decorative elements that are not available on base plan.

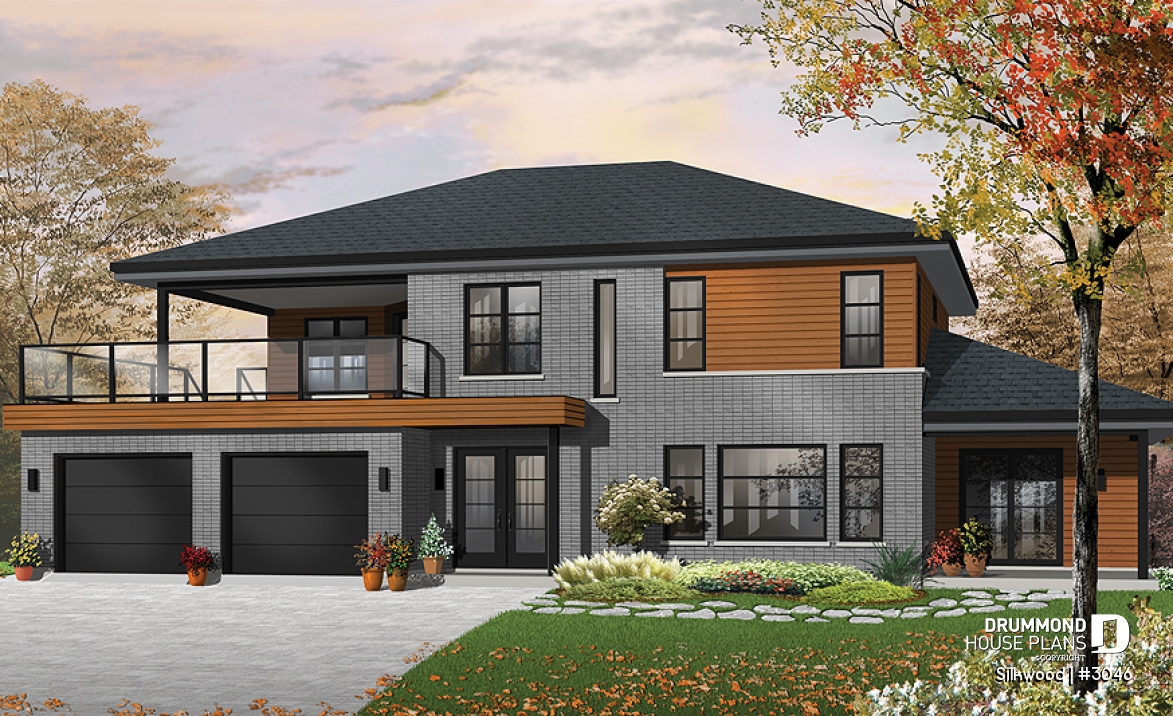

front
This color version might have decorative elements that are not available on base plan.
Other useful information on this plan
Modern intergenerational home plan with a 2-car garage and 2 large terraces
This multi-generational home plan is a beautiful and elegant solution to multiple generations living while maintaining privacy for each unit.
The main level in-law suite provides graceful living in a large living room, a beautiful kitchen/dinette with walk-in pantry, a master bedroom with large closet and a bathroom with integrated laundry area, and an extra large bonus area that can be converted into a second bedroom. A good sized private covered patio completes this graceful suite.
The principle residence includes an open floor plan, ample windows and a corner office. This open living area, with great fireplace, spills onto an expansive deck which is partially covered to ensure maximum seasonal use. Two bedrooms share a generous a bathroom with independent shower 42x62” shower. A large workshop/storage and laundry room are located on the ground floor to the rear of the garage.
A central entry provides access to both dwellings as well as the garage.
While ideally suited as a bi-generational OR multi generational home, this Contemporary home would also be attractive by providing a desirable income suite.
Distinctive elements
Stunning Contemporary (Modern) style in a well organized, multi-generational home with 60% allocated to principle residence. Fireplace upstairs. Private outdoor space for each unit. Double garage and large workshop space/storage/utility room.
Plan feature(s)
Open floor layout, Pantry, Fireplace, Gound floor laundry room, Gound floor laundry room, Island, Built-ins, Panoramic view, Deck, Deck, Separate bath and shower, Planning desk
Plan architectural style(s)
. Contemporary, . Modern / Design, . Mid-century
Similar plans
Previously Viewed Plans
Questions and comments
July 15
Nick
How can the pantry be the same size as the kitchen? Would it not be closer to the size of the closet?
July 15
Customer service
I appologize Nick, my mistake! The pantry is 5'-4" x 5'-8"
July 15
Nick
What are the dimensions of entry, step in pantry and walk in closet of the mother in law unit and both bathrooms? Thank you.
July 15
Customer service
Good morning Nick,
The dimensions for the entry is 9'-2" x 4'-10", the walk in closet is 6'-0" x 5'-8". The pantry is 12'-4" x 13'-8". For the bathrooms, the first level one is 8'-8" x 15'-6" and the second story one is 10'-10" x 9'-0".
I hope this helps! Have a great day!
December 04
Jess
Would ir be possible to add a basement to this plan? Does the upstairs have a separate entrance?
December 04
Customer service
Good day and thank you for taking the time to write.
This plan could be modified to add a basement foundation instead of the slab and to add a separate entrance to the upstairs. I invite you to fill in this on line request with all of the details to which our modifications team will respond within two business days with a free estimate.
Please let me know if I can further assist you
Regards
Deb
August 15
yuda edmund soka
Hello
i have 1308sqm plot on the slope, i'm planning to have 3-4 mulch-family apartment.I want to utilize the bottom section as car back on the lower portion but on the top portion i want to utilize the above design which i find is suitable and perfect.
i need to get in touch see how we can come up with few designs and i might send you the topo (dxf) just to get the feeling of the profile i'm talking about
Regards
cheers
PS
we can arrange the payment as well
August 15
Customer service
Good day and thank you for your interest in this plan
We would be happy to provide a free estimate for the changes that you need to this plan within two business days after receipt of this on line request.
Please let me know if I can further assist you
Regards
Deb
March 27
Benni
We are empty nesters and wanting to downsize from a 5,100 sq ft home to a smaller floor plan. We have a 2 acre wooded lot on a slope. We would like to have a one level main living area with a drive under 2 car garage. We like the look of stone and glass. A 2 bedroom, 2 bath with a study would suite us fine. Do you have any suggestions on floor plans. We like the modern look with clean lines. We have a great view so that would need to be considered also. Thanks for your help. Love your site!
March 27
Customer service
Good day and thank you for the wonderful comment!
I have attached the links for several plans which you might find interesting.
3280
6919 whose full basement with walk out complements a panoramic view on a sloping lot. The single garage could be modified to a double, thus adding room for a small study as well and we would be happy to return a free estimate for this or any other changes, such as adding a walk-out to the full basement foundation of any of our plans, within two business days after receipt of this on line request
3949-V1
The following models offer floor plans that might meet your needs and whose exteriors could be modified to add a more contemporary feel if required.
3248
2276
3245
Please let me know if you have any questions or comments.
Regards
Deb
