3046 (Silkwood)

Multi generational Modern Home plan, 2 units with separate entrances & open floor plans

Bedrooms

1, 2, 3

Bath(s)

1

Half B.

-

Living area

2729 sq.ft.

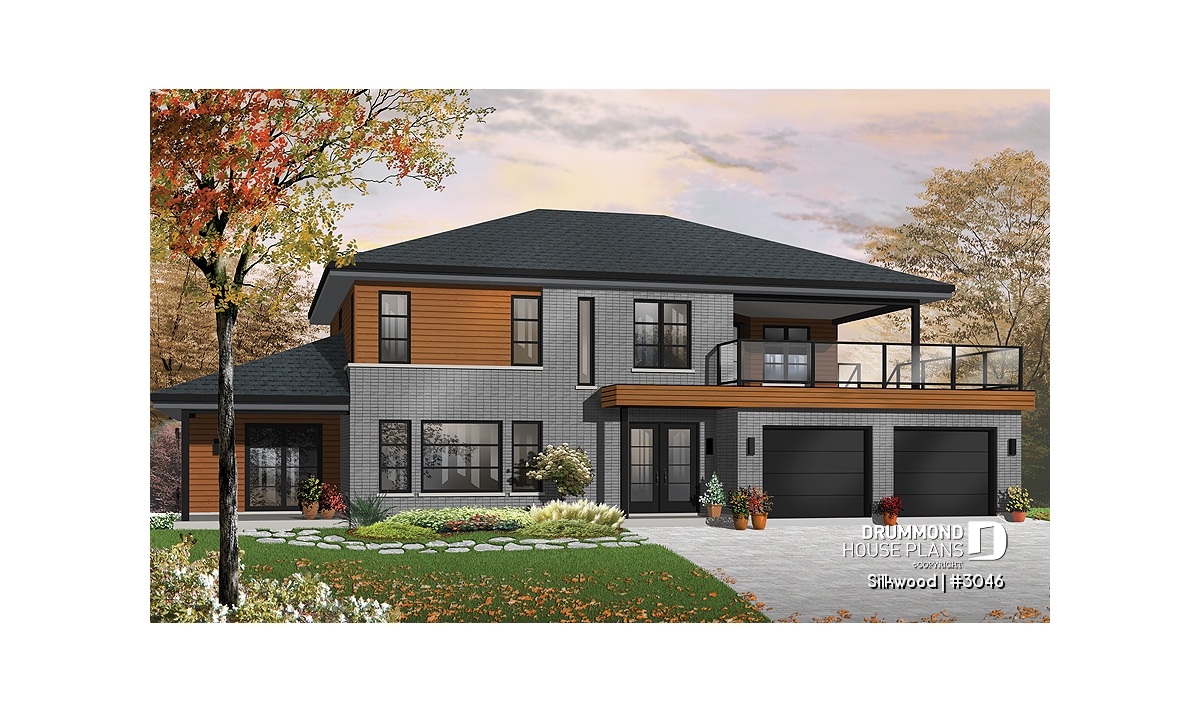

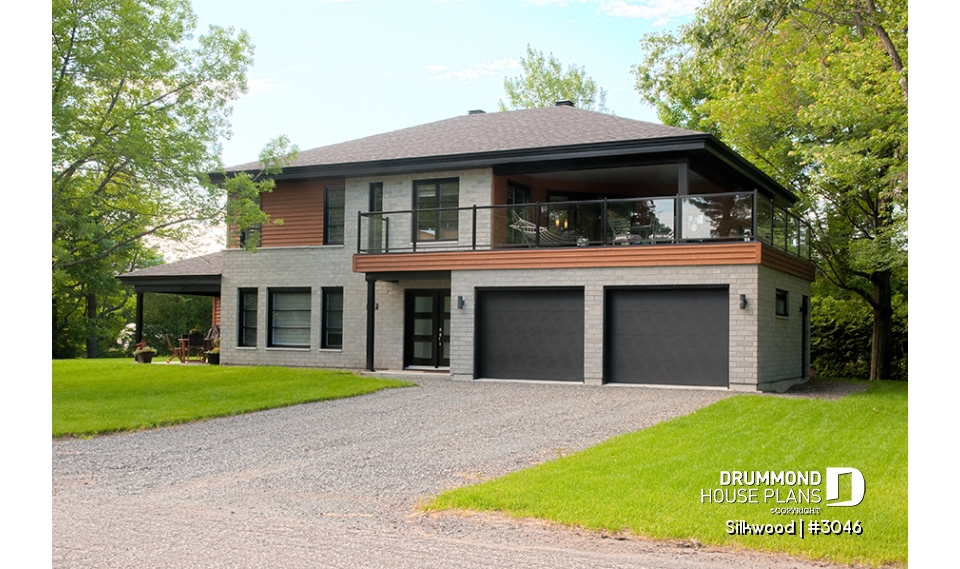

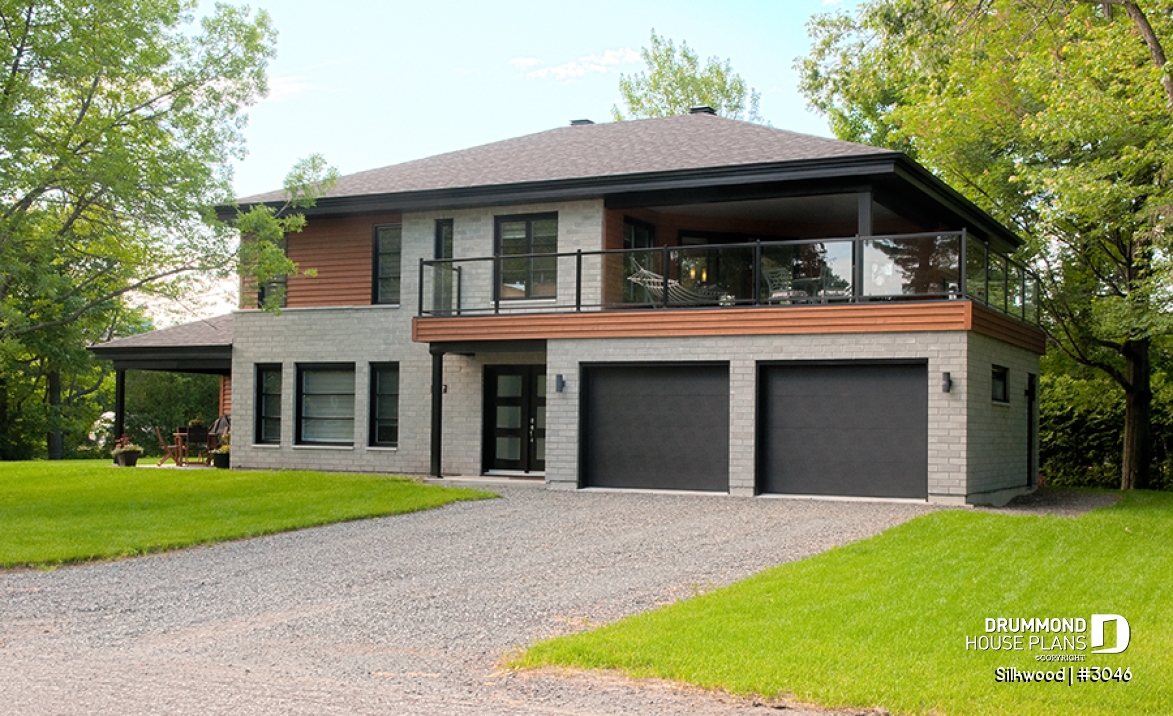

  • front - BASE MODEL - Multi generational Modern Home plan, 2 units with separate entrances & open floor plans - Silkwood

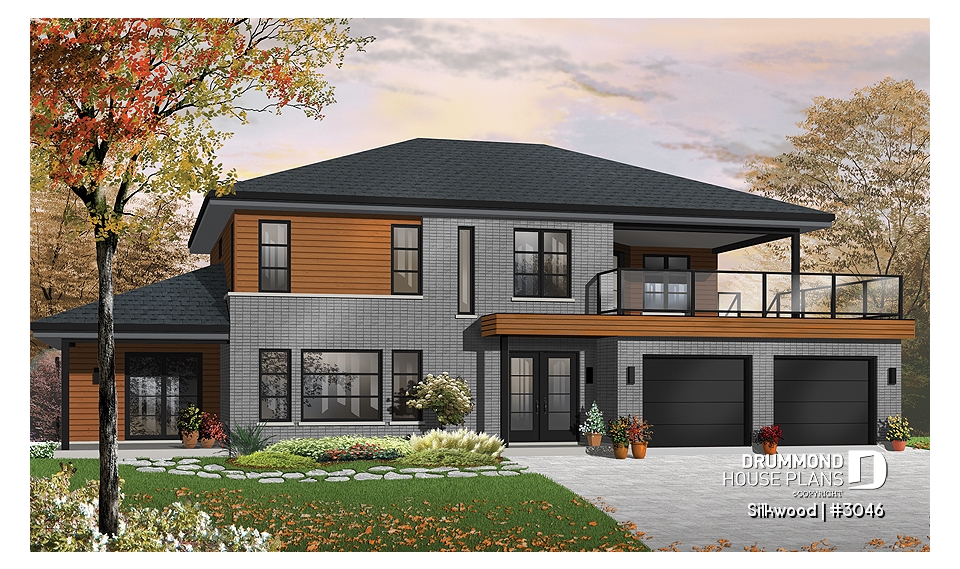

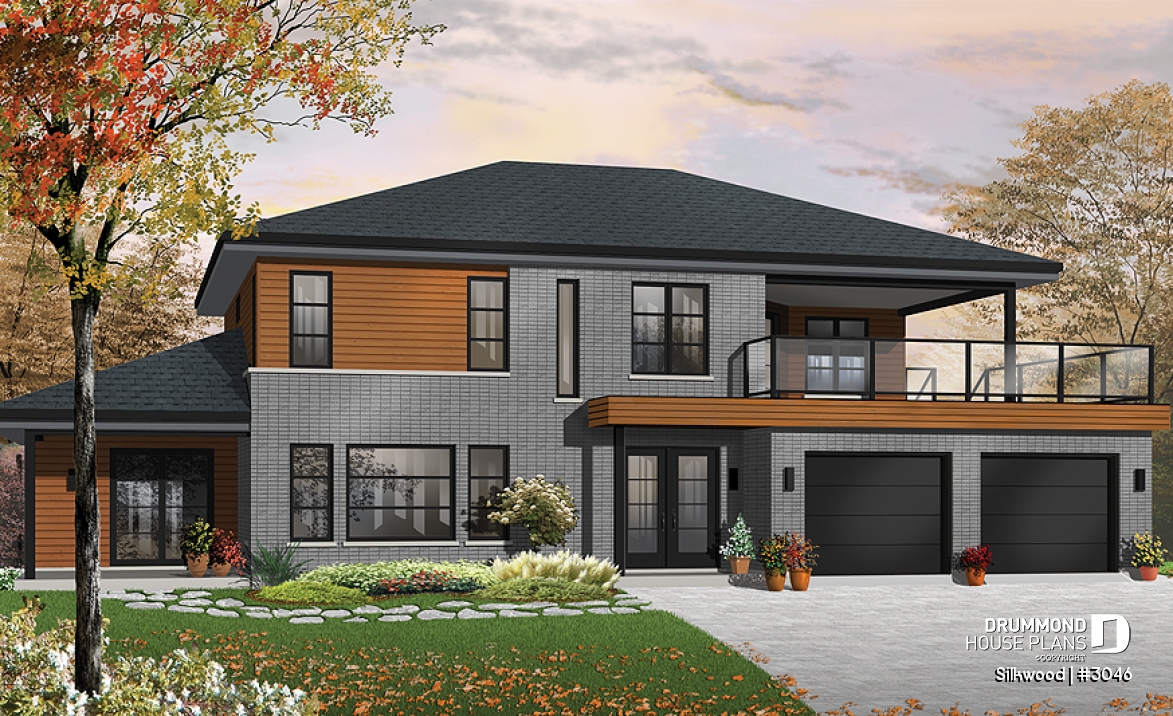

  • front - BASE MODEL - Silkwood

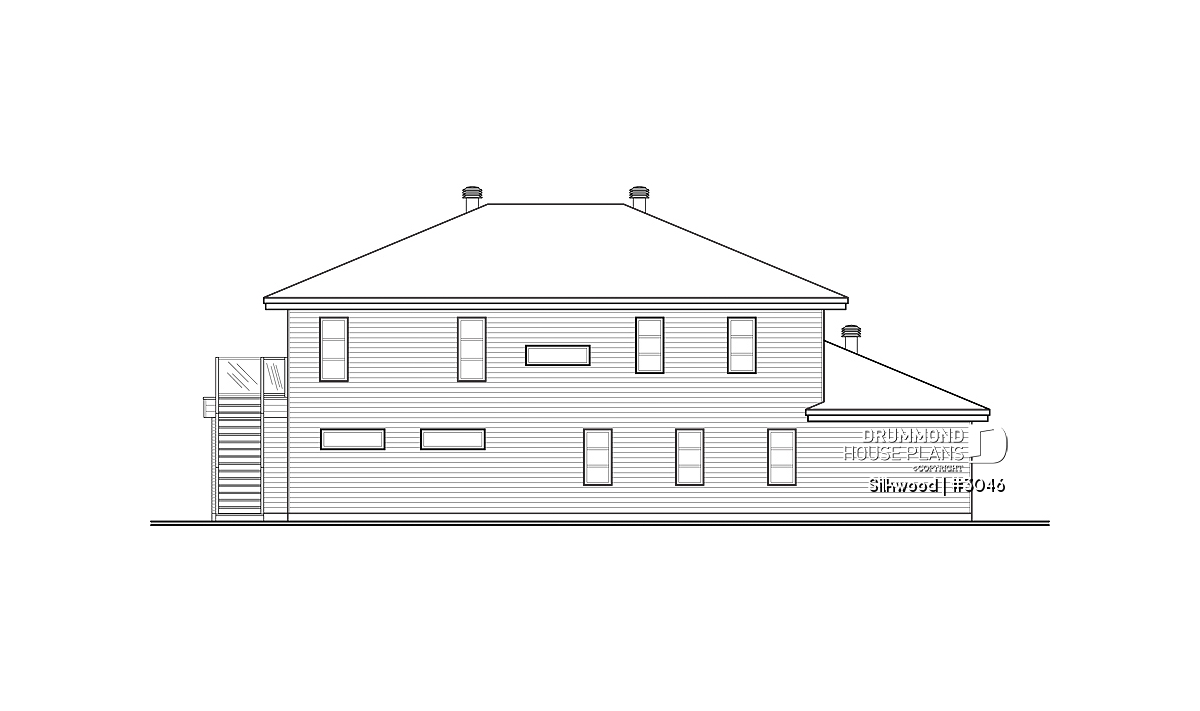

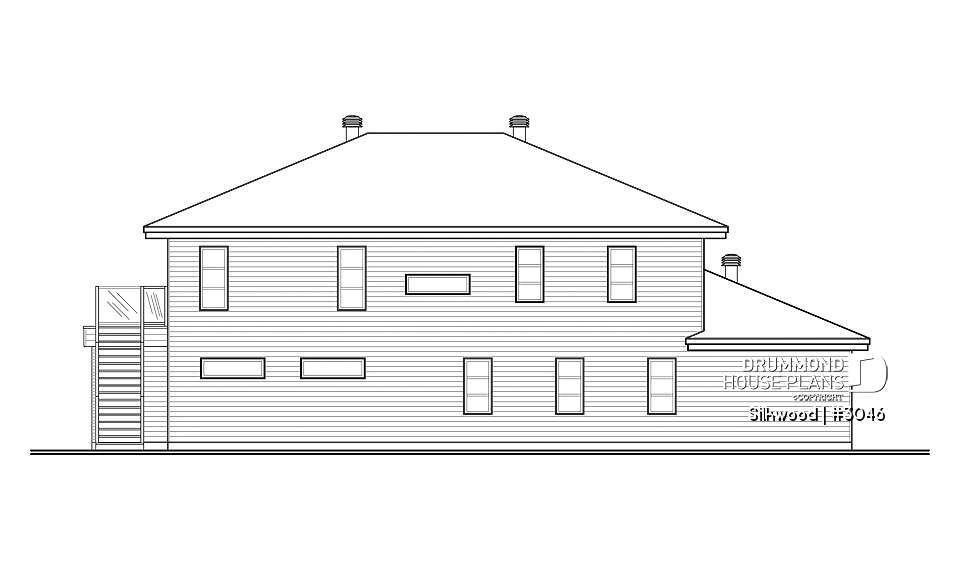

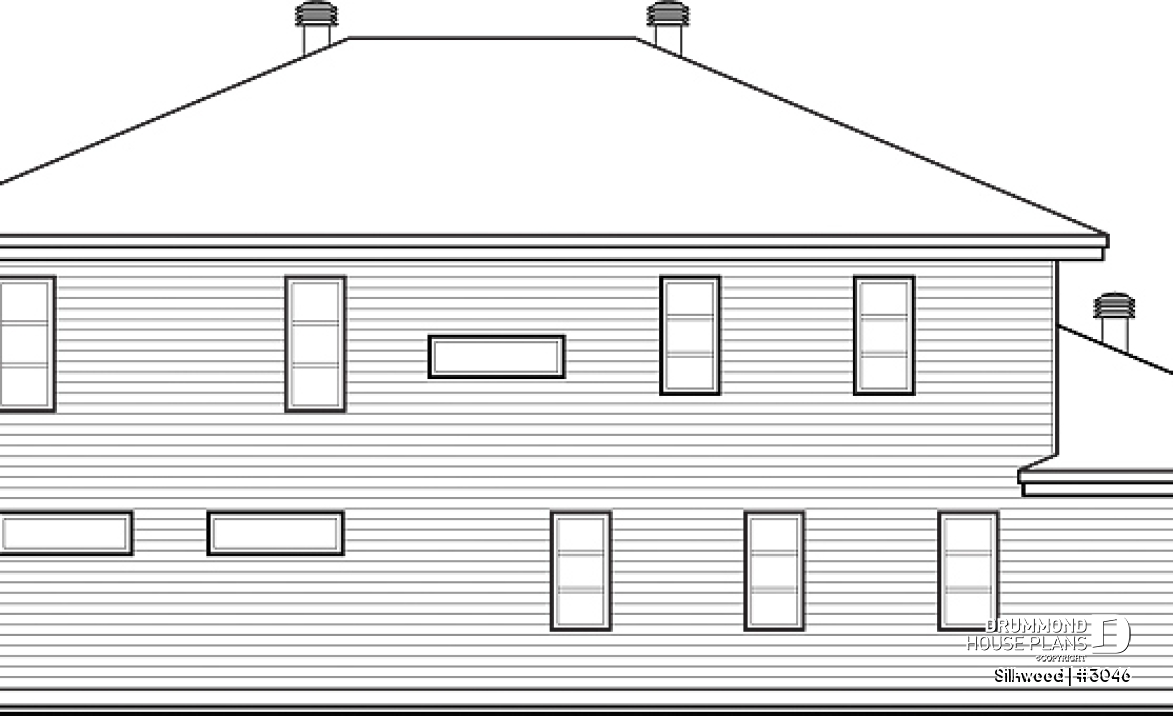

  • rear elevation - Silkwood

front - BASE MODEL

front - BASE MODEL

rear elevation

Vignette front - BASE MODEL - 3046
Vignette front - BASE MODEL - 3046
Vignette rear elevation - 3046

View by floor

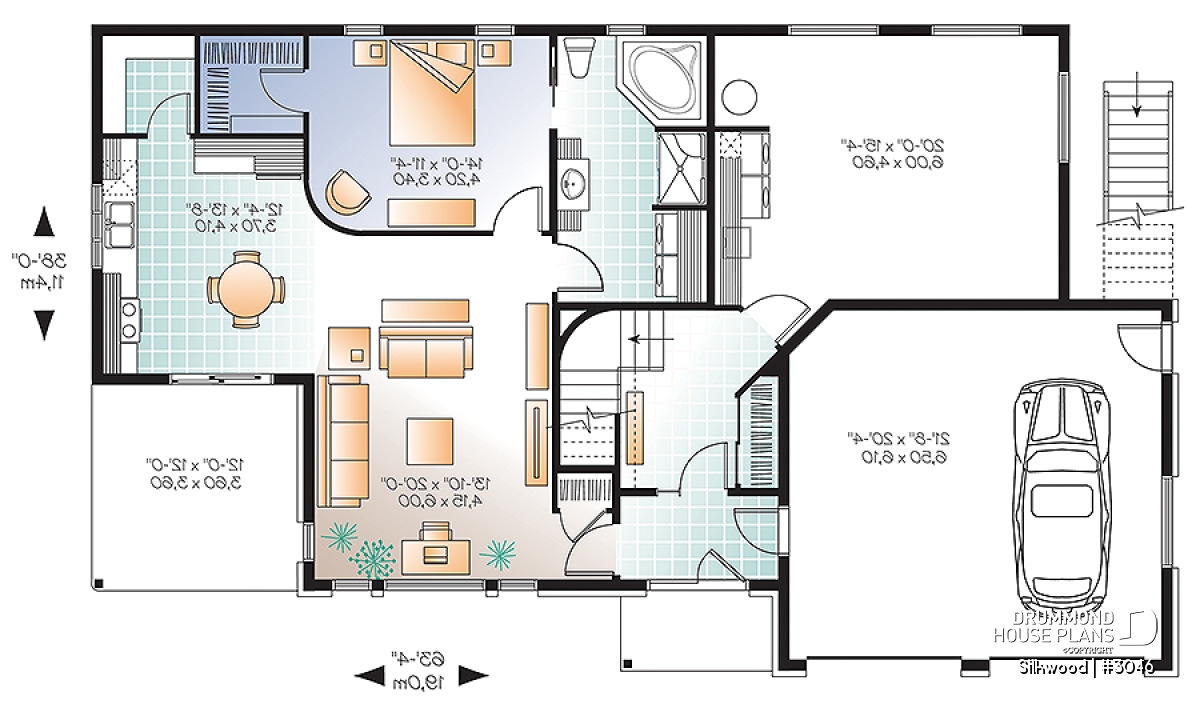

  • 1st level

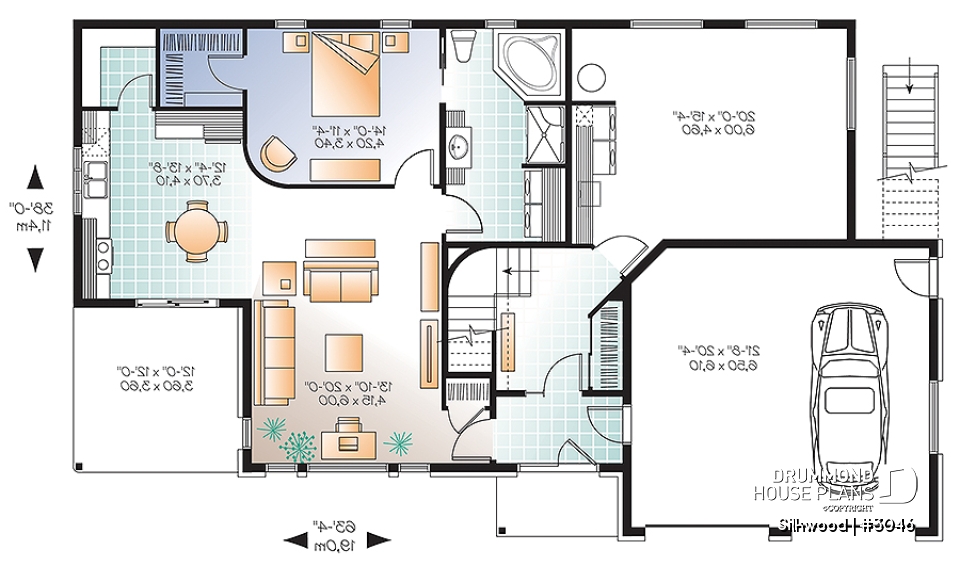

    1st level - Multi generational Modern Home plan, 2 units with separate entrances & open floor plans - Silkwood

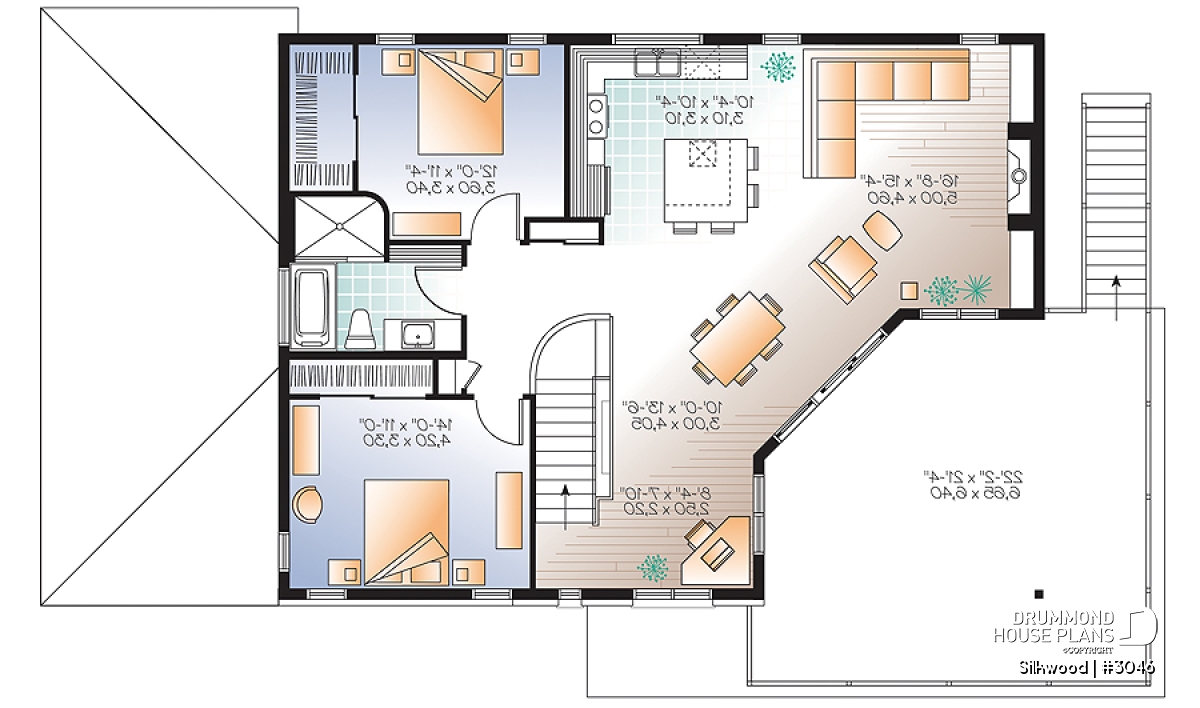

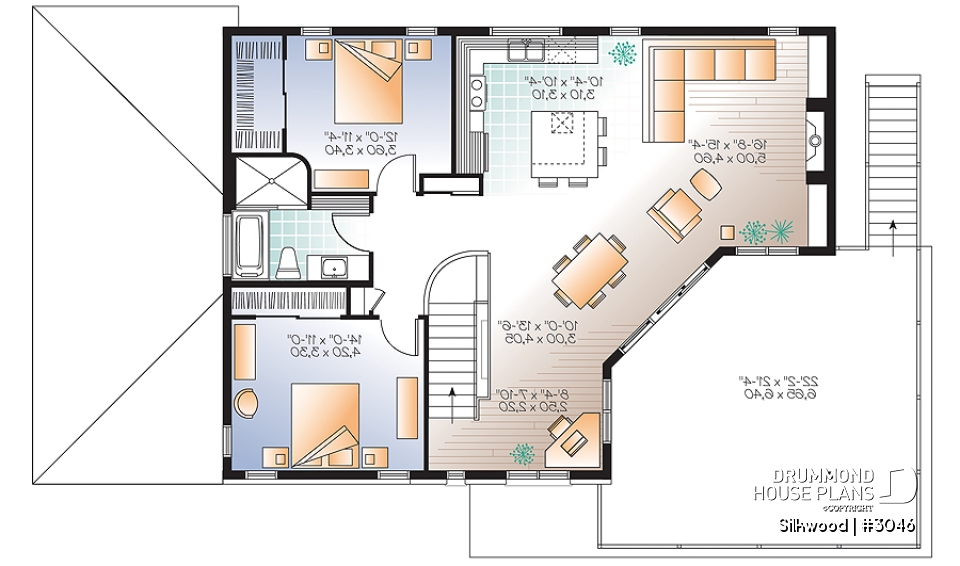

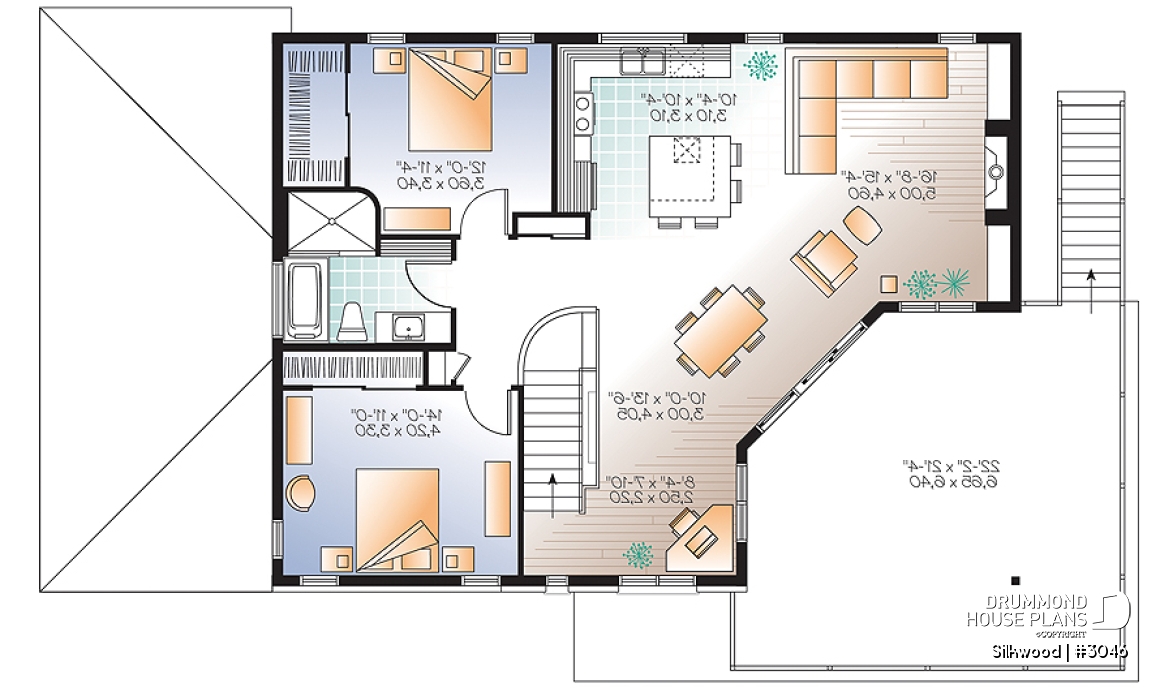

  • 2nd level

    2nd level - Multi generational Modern Home plan, 2 units with separate entrances & open floor plans - Silkwood
Vignette 1st level - 3046
Vignette 2nd level - 3046

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Foyer 9'2" x 4'10" ~ 8'0"
Living room 13'10" x 20'0" ~ 8'0"
Bedroom 14'0" x 11'4" ~ 8'0"
Closet 6'0" x 5'8" ~ 8'0"
Bathroom/laundry room 8'8" x 15'6" ~ 8'0"
Kitchen/dinette 12'4" x 13'8" ~ 8'0"
Pantry 5'4" x 5'8" ~ 8'0"
Workshop 20'0" x 15'4" ~ 8'0"
Foyer 12'8" x 10'4" ~ 8'0"
Closet 2'2" x 6'6" ~ 8'0"
Garage 21'8" x 20'4" ~ 8'6"
2nd level
Rooms Sizes Ceiling
Home office 8'4" x 7'10" ~ 8'0"
Dining room 10'0" x 13'6" ~ 8'0"
Living room 16'8" x 15'4" ~ 8'0"
Kitchen/dinette 10'4" x 10'4" ~ 8'0"
Pantry 4'0" x 1'0" ~ 8'0"
Bedroom 12'0" x 11'4" ~ 8'0"
Closet 3'8" x 8'6" ~ 8'0"
Bedroom 14'0" x 11'0" ~ 8'0"
Closet 8'4" x 2'0" ~ 8'0"
Full bathroom 10'0" x 9'0" ~ 8'0"
Linen 4'2" x 1'0" ~ 8'0"

General specifications

Total living area 2729 sq.ft.
1st level 1483 sq.ft.
2nd level 1246 sq.ft.
Width 63'4"
Depth 38'0"
Ridge height from top of foundation 25'9"
Exterior wall 2 X 6
Foundation type included in the plan Floating Slab
Other available foundations (a fee may apply) Crawl space, Monolithic Slab
Builder price code MC

Rooms specifications

Bedroom(s) 1, 2, 3
Full baths 1
Half baths -
Garage type Two-car garage (483 sq.ft.)
Living bonus space -
Bonus storage -

Units specifications

Unit 1 ( main unit ) Unit 2 ( in-law suite )
Total living area 2729 sq.ft. 1483 sq.ft.
1st level 481 sq.ft. 943 sq.ft.
2nd level 1246 sq.ft. -
Width 44' 8" 36' 0"
Depth 33' 4" 33' 4"
Ridge height from top of foundation 25' 9" 25' 9"
Exterior wall 2 X 6 2 X 6
Foundation type Floating Slab Floating Slab
Bedroom(s) 2 1
Full baths 1 1
Half baths - -
Garage type Two-car garage (483 sq.ft.) -
Living bonus space - -
Bonus storage - -
Find a builder

General specifications

Total living area 2729 sq.ft.
1st level 1483 sq.ft.
2nd level 1246 sq.ft.
Width 63'4"
Depth 38'0"
Ridge height from top of foundation 25'9"
Exterior wall 2 X 6
Foundation type included in the plan Floating Slab i
Other available foundations (a fee may apply) Crawl space, Monolithic Slab
Builder price code MC

Rooms specifications

Bedroom(s) 1, 2, 3
Full baths 1
Half baths -
Garage type Two-car garage (483 sq.ft.)
Living bonus space - i
Bonus storage - i

Units specifications

Unit 1 ( main unit ) Unit 2 ( in-law suite )
Total living area 2729 sq.ft. 1483 sq.ft.
1st level 481 sq.ft. 943 sq.ft.
2nd level 1246 sq.ft. -
Width 44' 8" 36' 0"
Depth 33' 4" 33' 4"
Ridge height from top of foundation 25' 9" 25' 9"
Exterior wall 2 X 6 2 X 6
Foundation type Floating Slab Floating Slab
Bedroom(s) 2 1
Full baths 1 1
Half baths - -
Garage type Two-car garage (483 sq.ft.) -
Living bonus space - -
Bonus storage - -

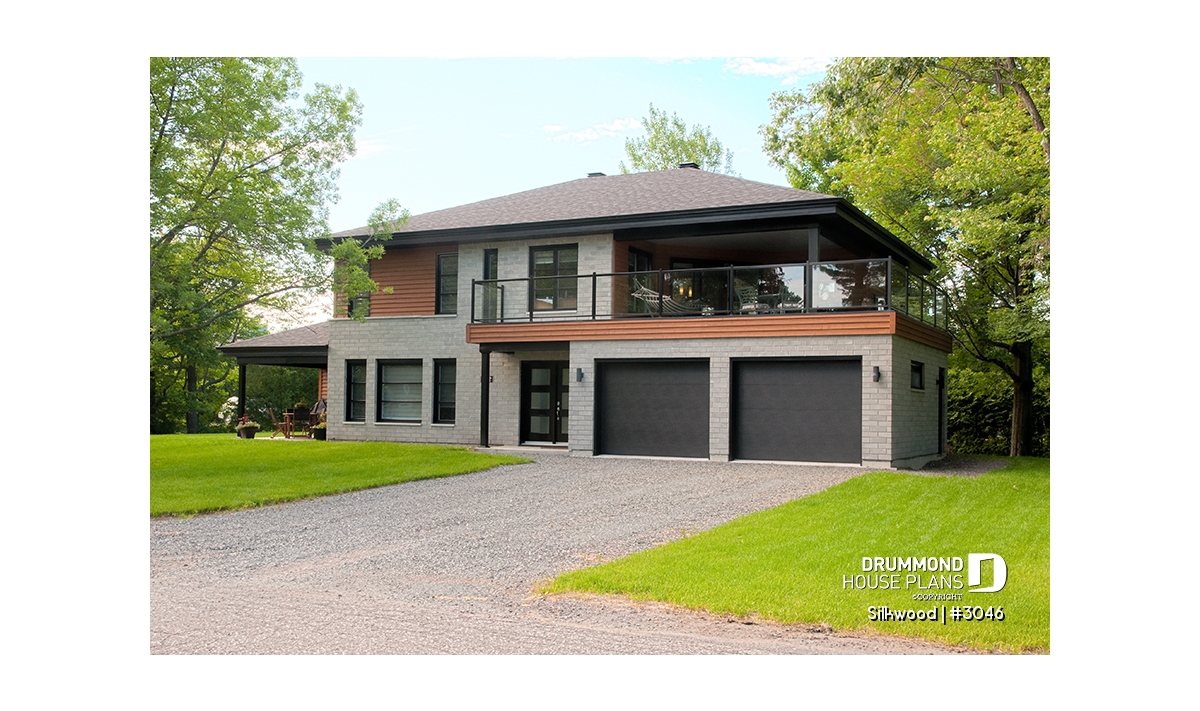

  • Photo front - Silkwood
  • Photo front - Silkwood

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

Photo thumbnail front - Plan 3046
Photo thumbnail front - Plan 3046

Buy this plan

From : 1299$

Modify this plan

Get a quote

Description

1st Level: Unit 2 - Entry, living room, kitchen/dinette, bedroom, bathroom and bathroom/laundry. Principle suite laundry and storage 2nd Level: Principle Suite with corner office, dining room, kitchen/dinette, 2 bedrooms and bathroom.

Other useful information on this plan

Modern intergenerational home plan with a 2-car garage and 2 large terraces

This multi-generational home plan is a beautiful and elegant solution to multiple generations living while maintaining privacy for each unit.

The main level in-law suite provides graceful living in a large living room, a beautiful kitchen/dinette with walk-in pantry, a master bedroom with large closet and a bathroom with integrated laundry area, and an extra large bonus area that can be converted into a second bedroom. A good sized private covered patio completes this graceful suite.

The principle residence includes an open floor plan, ample windows and a corner office. This open living area, with great fireplace, spills onto an expansive deck which is partially covered to ensure maximum seasonal use. Two bedrooms share a generous a bathroom with independent shower 42x62” shower. A large workshop/storage and laundry room are located on the ground floor to the rear of the garage.

A central entry provides access to both dwellings as well as the garage.

While ideally suited as a bi-generational OR multi generational home, this Contemporary home would also be attractive by providing a desirable income suite.

Distinctive elements

Stunning Contemporary (Modern) style in a well organized, multi-generational home with 60% allocated to principle residence. Fireplace upstairs. Private outdoor space for each unit. Double garage and large workshop space/storage/utility room.

Plan feature(s)

Open floor layout, Walk-in pantry, Fireplace, Gound floor laundry room, Gound floor laundry room, Island, Walk-in bedrooms, Built-ins, Office / Study / Den, Abundant fenestration, front porch, Deck, Deck

Plan architectural style(s)

Contemporary, Modern / Design, Mid-century

Other useful information on this plan

Full description

Modern intergenerational home plan with a 2-car garage and 2 large terraces

This multi-generational home plan is a beautiful and elegant solution to multiple generations living while maintaining privacy for each unit.

The main level in-law suite provides graceful living in a large living room, a beautiful kitchen/dinette with walk-in pantry, a master bedroom with large closet and a bathroom with integrated laundry area, and an extra large bonus area that can be converted into a second bedroom. A good sized private covered patio completes this graceful suite.

The principle residence includes an open floor plan, ample windows and a corner office. This open living area, with great fireplace, spills onto an expansive deck which is partially covered to ensure maximum seasonal use. Two bedrooms share a generous a bathroom with independent shower 42x62” shower. A large workshop/storage and laundry room are located on the ground floor to the rear of the garage.

A central entry provides access to both dwellings as well as the garage.

While ideally suited as a bi-generational OR multi generational home, this Contemporary home would also be attractive by providing a desirable income suite.

Distinctive elements

Stunning Contemporary (Modern) style in a well organized, multi-generational home with 60% allocated to principle residence. Fireplace upstairs. Private outdoor space for each unit. Double garage and large workshop space/storage/utility room.

Plan feature(s)

Open floor layout, Walk-in pantry, Fireplace, Gound floor laundry room, Gound floor laundry room, Island, Walk-in bedrooms, Built-ins, Office / Study / Den, Abundant fenestration, front porch, Deck, Deck

Plan architectural style(s)

Questions and comments on this plan

July 15 2015

Nick

How can the pantry be the same size as the kitchen? Would it not be closer to the size of the closet?

July 15 2015

Customer service

I appologize Nick, my mistake! The pantry is 5'-4" x 5'-8"

July 15 2015

Nick

What are the dimensions of entry, step in pantry and walk in closet of the mother in law unit and both bathrooms? Thank you.

July 15 2015

Customer service

Good morning Nick,
The dimensions for the entry is 9'-2" x 4'-10", the walk in closet is 6'-0" x 5'-8". The pantry is 12'-4" x 13'-8". For the bathrooms, the first level one is 8'-8" x 15'-6" and the second story one is 10'-10" x 9'-0".
I hope this helps! Have a great day!

December 04 2014

Jess

Would ir be possible to add a basement to this plan? Does the upstairs have a separate entrance?

December 04 2014

Customer service

Good day and thank you for taking the time to write.

This plan could be modified to add a basement foundation instead of the slab and to add a separate entrance to the upstairs. I invite you to fill in this on line request with all of the details to which our modifications team will respond within two business days with a free estimate.

Please let me know if I can further assist you
Regards
Deb

August 15 2014

yuda edmund soka

Hello
i have 1308sqm plot on the slope, i'm planning to have 3-4 mulch-family apartment.I want to utilize the bottom section as car back on the lower portion but on the top portion i want to utilize the above design which i find is suitable and perfect.
i need to get in touch see how we can come up with few designs and i might send you the topo (dxf) just to get the feeling of the profile i'm talking about
Regards
cheers
PS
we can arrange the payment as well

August 15 2014

Customer service

Good day and thank you for your interest in this plan

We would be happy to provide a free estimate for the changes that you need to this plan within two business days after receipt of this on line request.

Please let me know if I can further assist you
Regards
Deb

March 27 2014

Benni

We are empty nesters and wanting to downsize from a 5,100 sq ft home to a smaller floor plan. We have a 2 acre wooded lot on a slope. We would like to have a one level main living area with a drive under 2 car garage. We like the look of stone and glass. A 2 bedroom, 2 bath with a study would suite us fine. Do you have any suggestions on floor plans. We like the modern look with clean lines. We have a great view so that would need to be considered also. Thanks for your help. Love your site!

March 27 2014

Customer service

Good day and thank you for the wonderful comment!
I have attached the links for several plans which you might find interesting.

3280

6919 whose full basement with walk out complements a panoramic view on a sloping lot. The single garage could be modified to a double, thus adding room for a small study as well and we would be happy to return a free estimate for this or any other changes, such as adding a walk-out to the full basement foundation of any of our plans, within two business days after receipt of this on line request

3949-V1

The following models offer floor plans that might meet your needs and whose exteriors could be modified to add a more contemporary feel if required.

3248

2276

3245

Please let me know if you have any questions or comments.
Regards
Deb

Questions and comments

July 15 2015

Nick

How can the pantry be the same size as the kitchen? Would it not be closer to the size of the closet?

July 15 2015

Customer service

I appologize Nick, my mistake! The pantry is 5'-4" x 5'-8"

July 15 2015

Nick

What are the dimensions of entry, step in pantry and walk in closet of the mother in law unit and both bathrooms? Thank you.

July 15 2015

Customer service

Good morning Nick,
The dimensions for the entry is 9'-2" x 4'-10", the walk in closet is 6'-0" x 5'-8". The pantry is 12'-4" x 13'-8". For the bathrooms, the first level one is 8'-8" x 15'-6" and the second story one is 10'-10" x 9'-0".
I hope this helps! Have a great day!

December 04 2014

Jess

Would ir be possible to add a basement to this plan? Does the upstairs have a separate entrance?

December 04 2014

Customer service

Good day and thank you for taking the time to write.

This plan could be modified to add a basement foundation instead of the slab and to add a separate entrance to the upstairs. I invite you to fill in this on line request with all of the details to which our modifications team will respond within two business days with a free estimate.

Please let me know if I can further assist you
Regards
Deb

August 15 2014

yuda edmund soka

Hello
i have 1308sqm plot on the slope, i'm planning to have 3-4 mulch-family apartment.I want to utilize the bottom section as car back on the lower portion but on the top portion i want to utilize the above design which i find is suitable and perfect.
i need to get in touch see how we can come up with few designs and i might send you the topo (dxf) just to get the feeling of the profile i'm talking about
Regards
cheers
PS
we can arrange the payment as well

August 15 2014

Customer service

Good day and thank you for your interest in this plan

We would be happy to provide a free estimate for the changes that you need to this plan within two business days after receipt of this on line request.

Please let me know if I can further assist you
Regards
Deb

March 27 2014

Benni

We are empty nesters and wanting to downsize from a 5,100 sq ft home to a smaller floor plan. We have a 2 acre wooded lot on a slope. We would like to have a one level main living area with a drive under 2 car garage. We like the look of stone and glass. A 2 bedroom, 2 bath with a study would suite us fine. Do you have any suggestions on floor plans. We like the modern look with clean lines. We have a great view so that would need to be considered also. Thanks for your help. Love your site!

March 27 2014

Customer service

Good day and thank you for the wonderful comment!
I have attached the links for several plans which you might find interesting.

3280

6919 whose full basement with walk out complements a panoramic view on a sloping lot. The single garage could be modified to a double, thus adding room for a small study as well and we would be happy to return a free estimate for this or any other changes, such as adding a walk-out to the full basement foundation of any of our plans, within two business days after receipt of this on line request

3949-V1

The following models offer floor plans that might meet your needs and whose exteriors could be modified to add a more contemporary feel if required.

3248

2276

3245

Please let me know if you have any questions or comments.
Regards
Deb
