House plan Jackson (3267)
2 bedroom craftsman style house plan with double garage, spacious floor plan

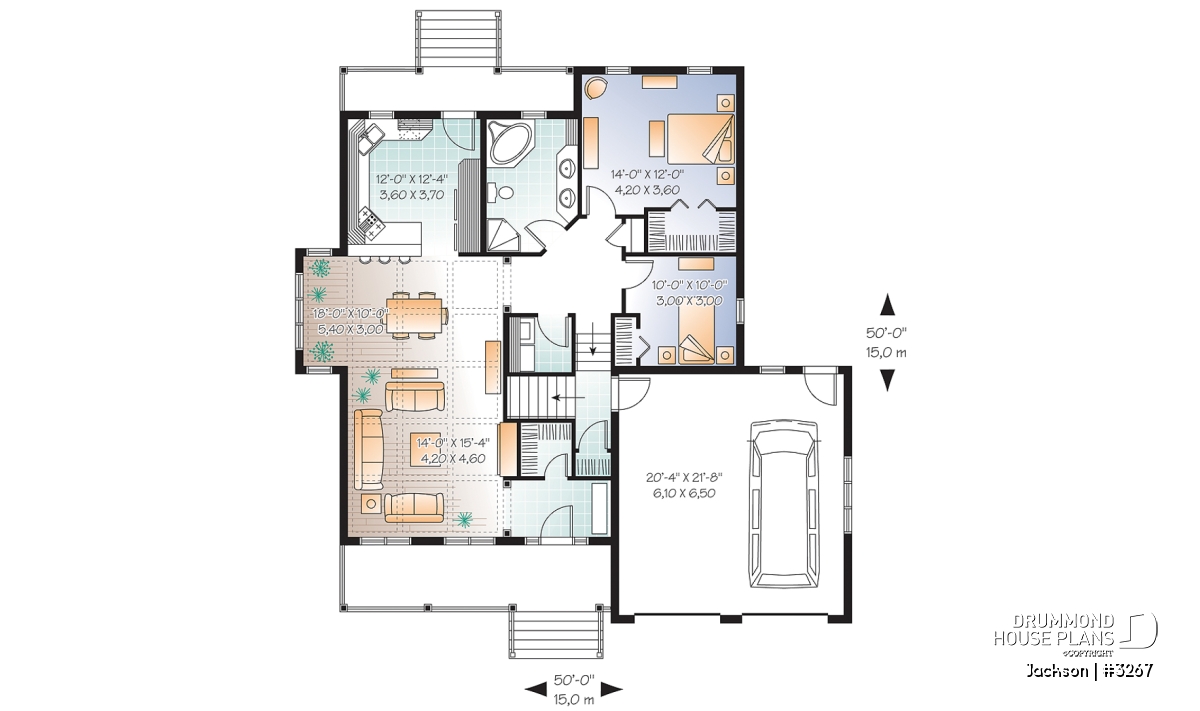

View the size of the rooms and height of the ceilings

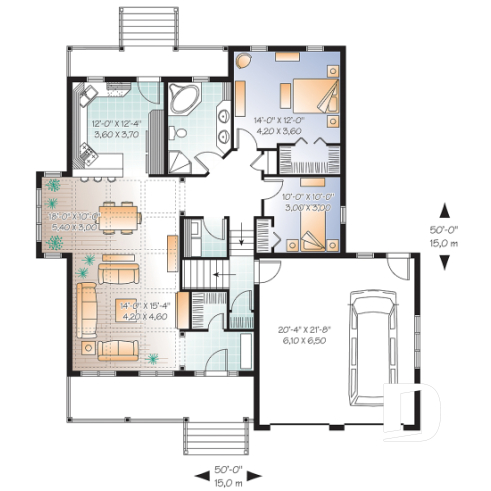

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'0" x 12'4" | ~ 9'0" |
| Dining room | 18'0" x 10'0" | ~ 9'0" |
| Living room | 14'0" x 15'4" | ~ 9'0" |
| Full bathroom | 12'0" x 8'2" | ~ 9'0" |
| Bedroom | 14'0" x 12'0" | ~ 9'0" |
| Bedroom | 10'0" x 10'0" | ~ 9'0" |
| Laundry room | 5'8" x 5'4" | ~ 9'0" |
| Garage | 20'4" x 21'8" | ~ 8'8" |
| Linen | 1'8" x 3'0" | ~ 9'0" |
| Porch | 21'0" x 4'0" | N/A |
| Porch | 24'4" x 6'0" | N/A |
General specifications
| Total living area | 1350 sq.ft. |
| 1st level | 1350 sq.ft. |
| Width | 50'0" |
| Depth | 50'0" |
| Ridge height from top of foundation | 26'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | C |
Rooms specifications

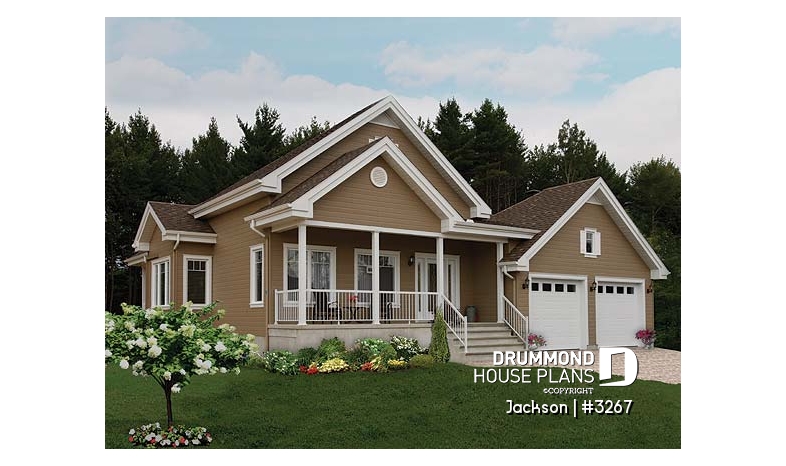

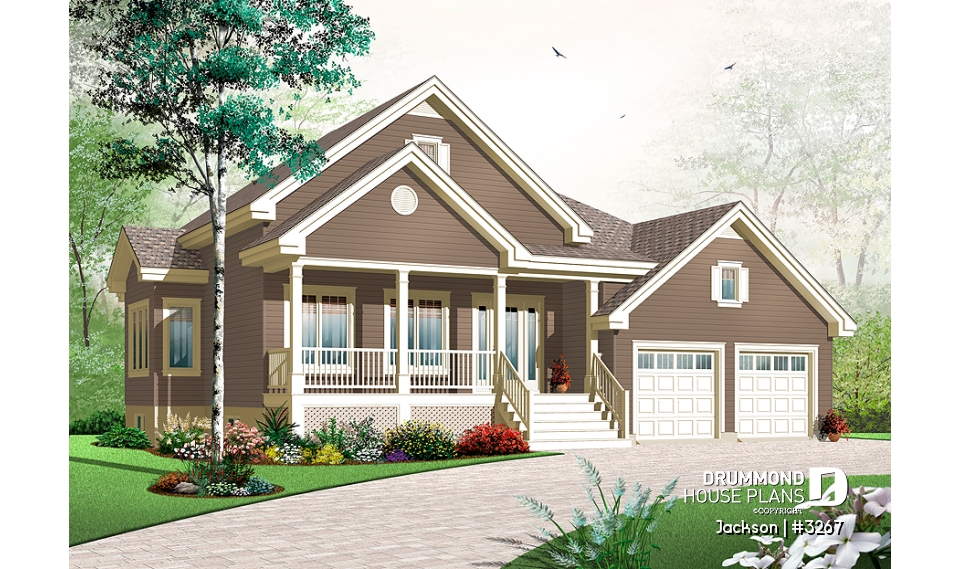

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sylvain Bourdeau Construction

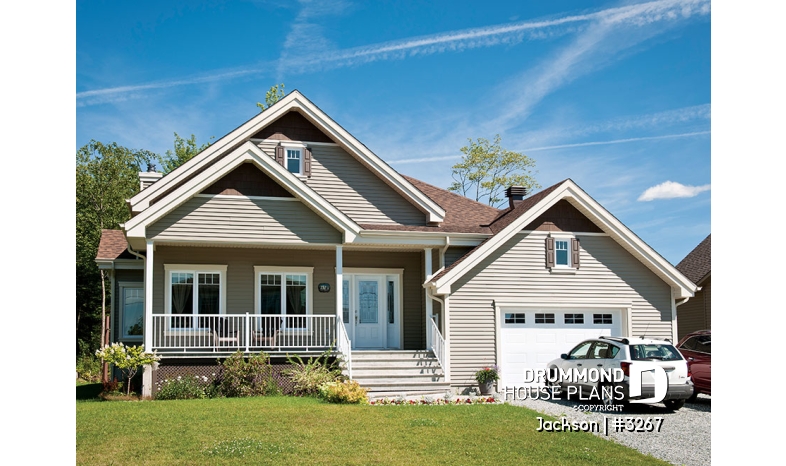

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

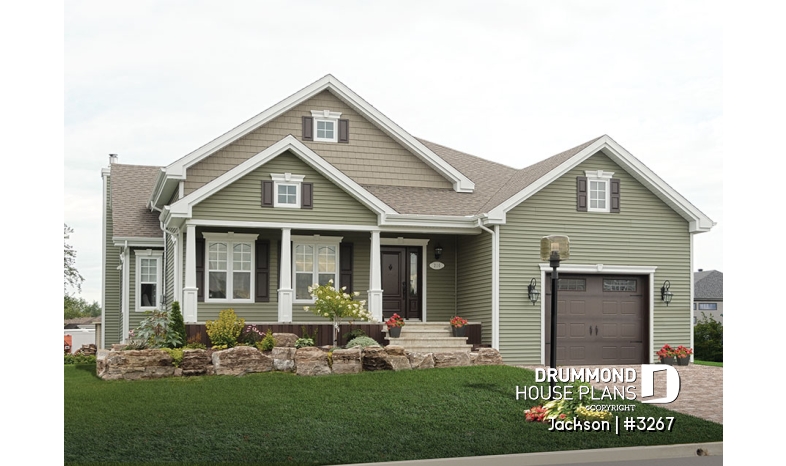

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Beautiful 2 bedroom 2-car garage Craftsman style house plan!
.
Distinctive elements
Spacious Craftsman style house plan.
9ft ceiling on main floor.
Comfortable rooms.
Walk-in closet at the main entrance and master bedroom.
In the dining room/living room the ceiling is vaulted.
Lots of counters and arrangements in the kitchen also a lunch counter.
Bathroom with bath and corner shower. Laundry space on main floor.
Plan feature(s)
Ceiling over 8', Plafond avec fausses poutres, Walk-in master bed., Separate bath and shower, Double sinks, Open floor layout, Gound floor laundry room, Deck
Plan architectural style(s)
. Craftsman / Northwest, . Country, . Rustic, . Modern rustic, . A-Frame, . Traditional, . American
Previously Viewed Plans
Questions and comments
February 26
Sandra Jesso
I really love this house plan. I would like to have the garage on the opposite side . Could you send a picture of the house showing how it would look with the garage on the opposite side.
February 26
Customer service
Good day Ms. Jesso and thank you for your interest in this plan.
Attached, you will find the link to our web page for the reverse version of this plan. It is a computer generated mirror image but if you choose to order the right reading reverse option at $150., the plan will read from left to right.
http://www.drummondhouseplans.com/house-plan-detail/info/reverse/1002829.html
Please let me know if you have any other questions or comments.
Regards
Deborah
