Garage plan The Bluestone (2974)

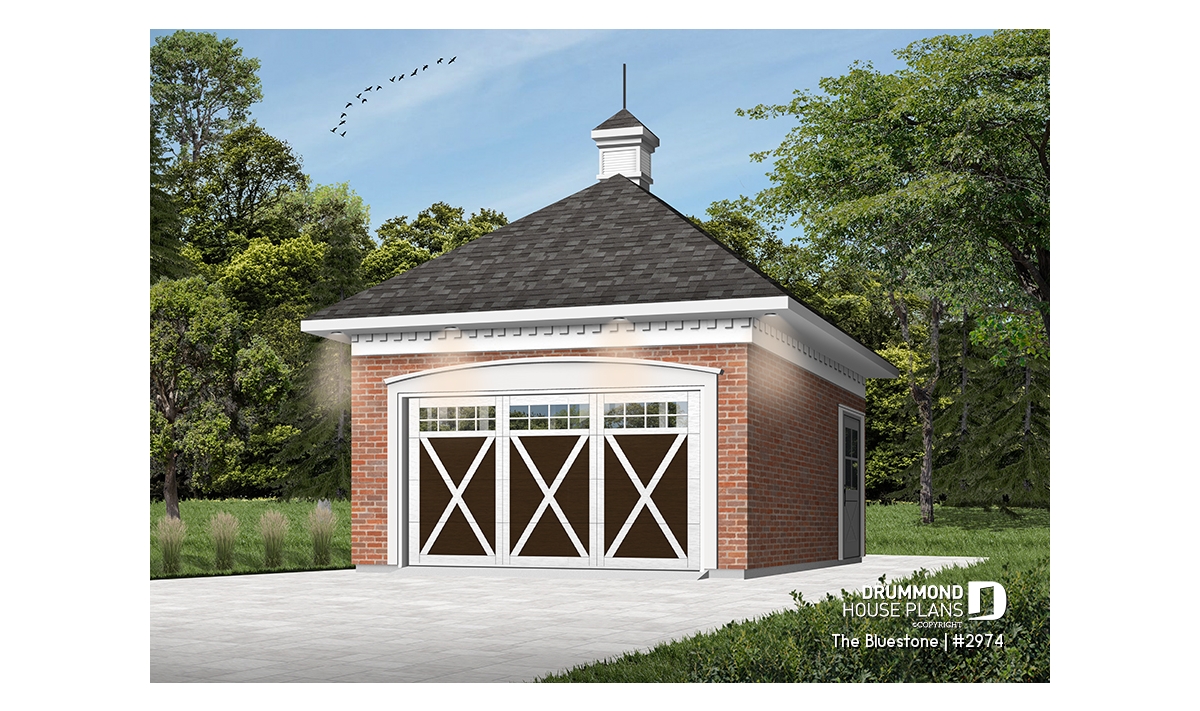

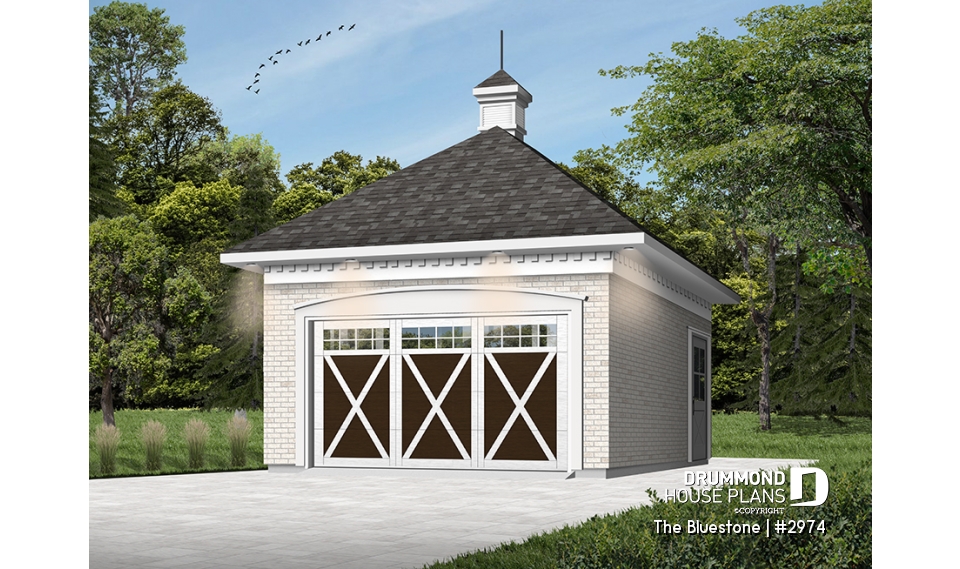

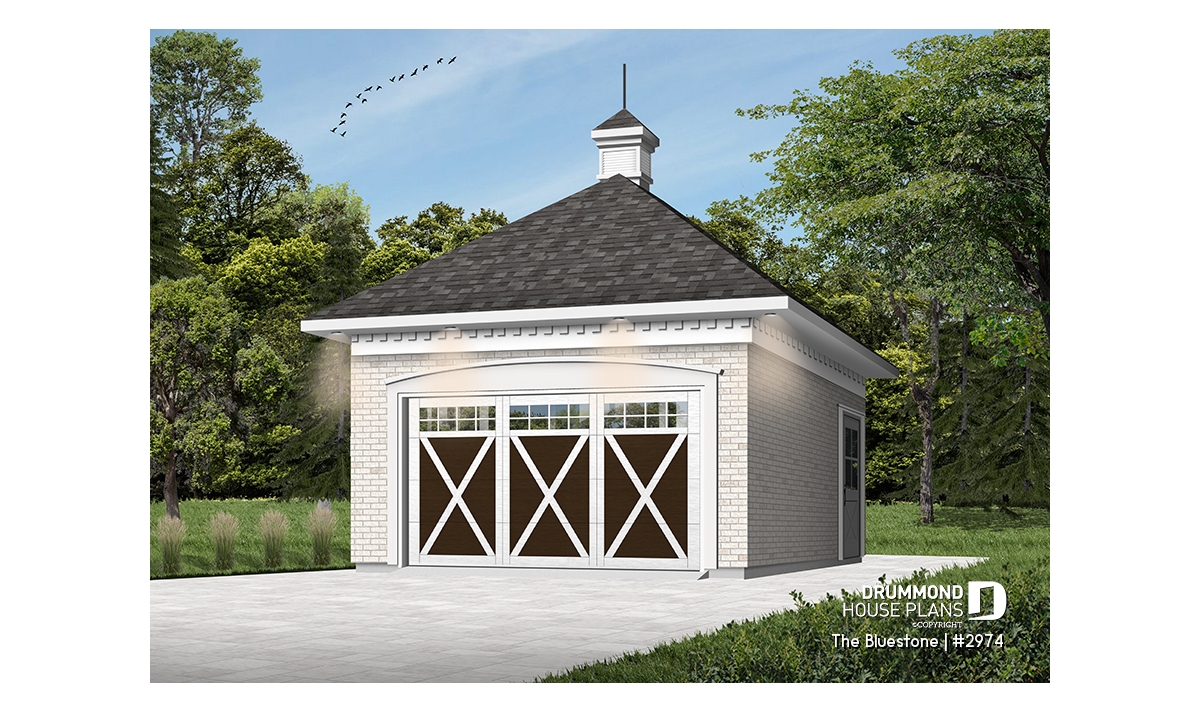

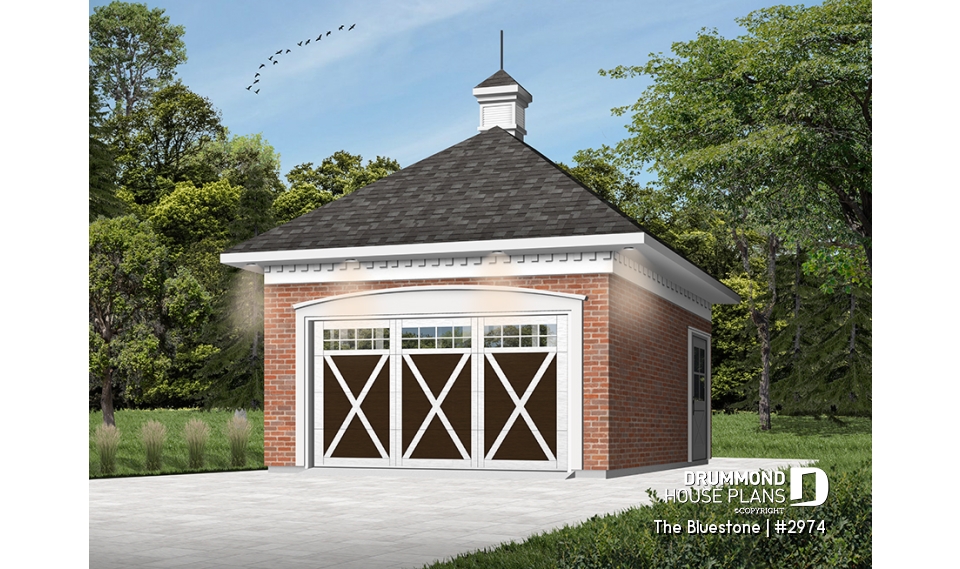

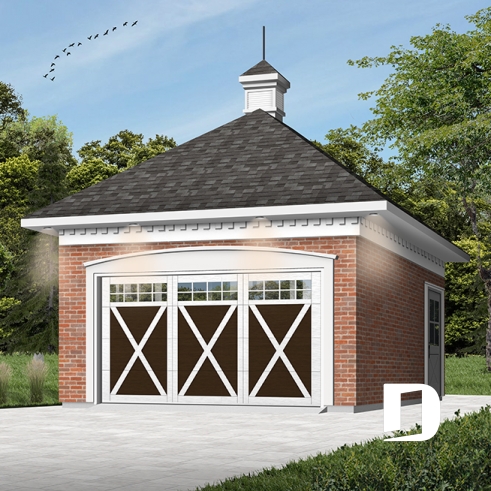

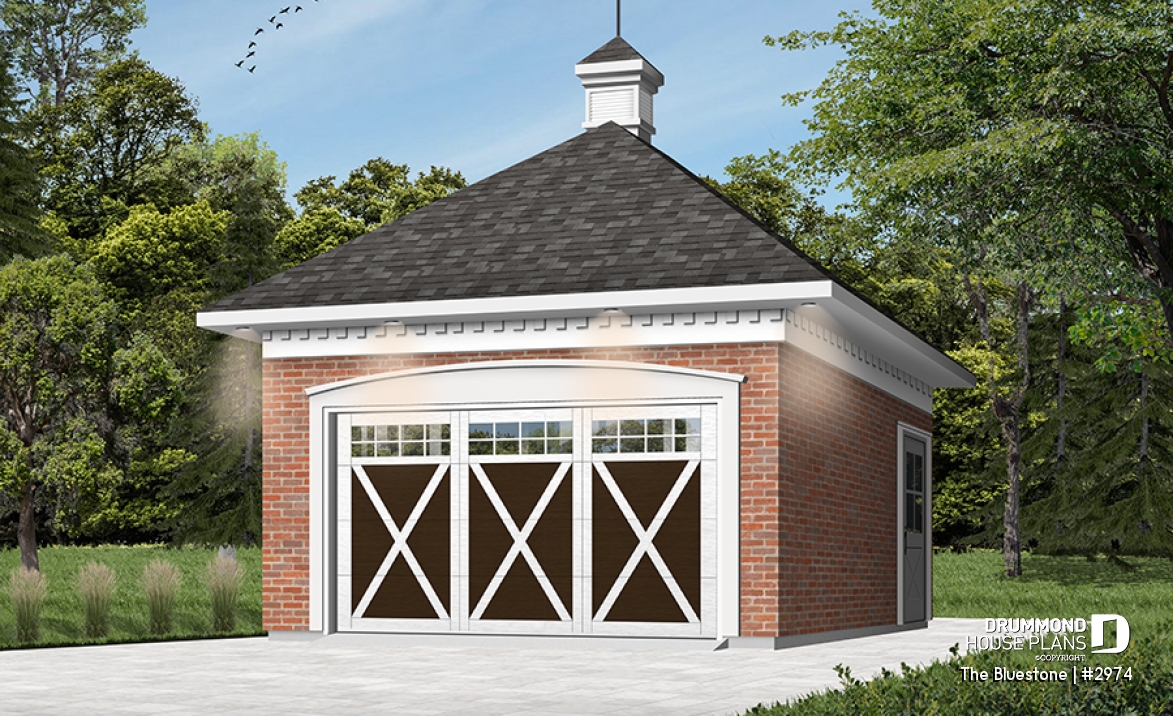

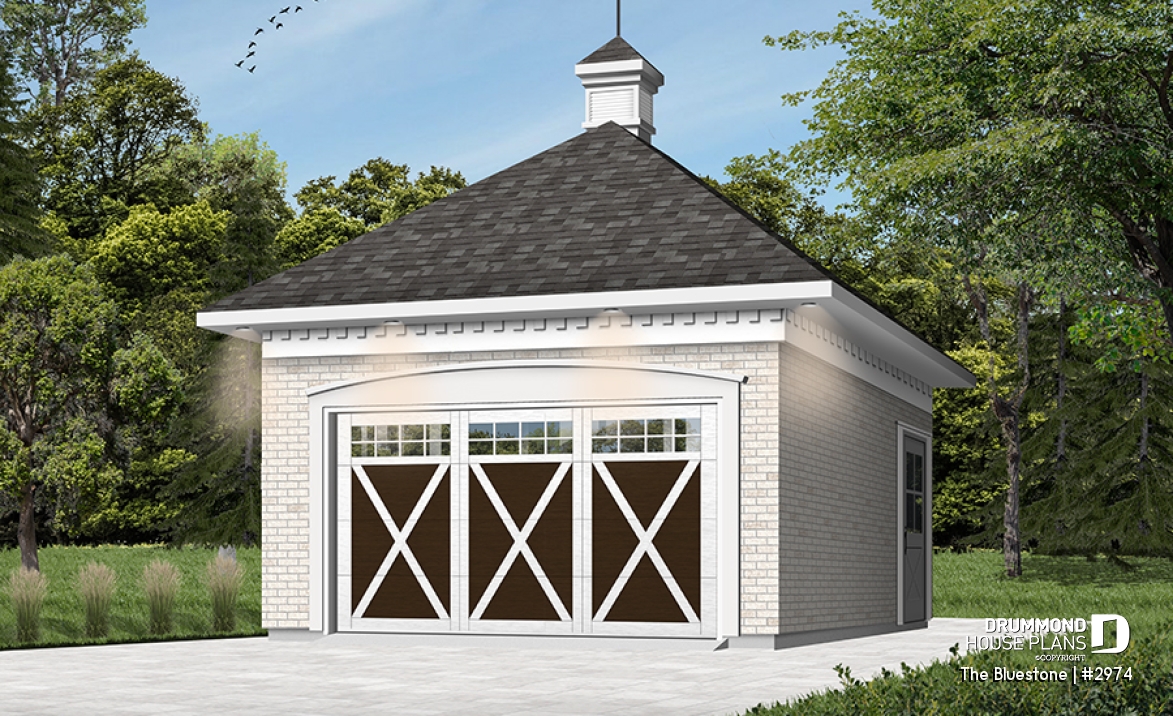

Charming Victorien inspired one-car garage plan
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 14'0" x 22'0" | ~ 9'4" |
General specifications
| Total living area | 384 sq.ft. |
| 1st level | 384 sq.ft. |
| Width | 16'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 17'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1A |
Rooms specifications
Other useful information on this plan
Victorian inspired one-car garage house plan!
.
Similar plans
Previously Viewed Plans
Questions and comments
May 20
Jim Berlin
I like this plan but am constrained to fit a garage that is 20' deep. Can these plans be modified to allow this? How much will the plans cost?
May 20
Customer service
Good day Mr. Berlin and thank you for taking the time to write.
This plan can be modified to conform to your requirements and we would be happy to return a free estimate within 2 business days after receipt of this on line form.
Please let me know if I can further assist you.
Regards
Deb
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
