House plan Parker (3273)
3 bedroom bungalow house plan, 2-car garage w / bonus room, 3 bedrooms, fireplace, kitchen island
View the size of the rooms and height of the ceilings

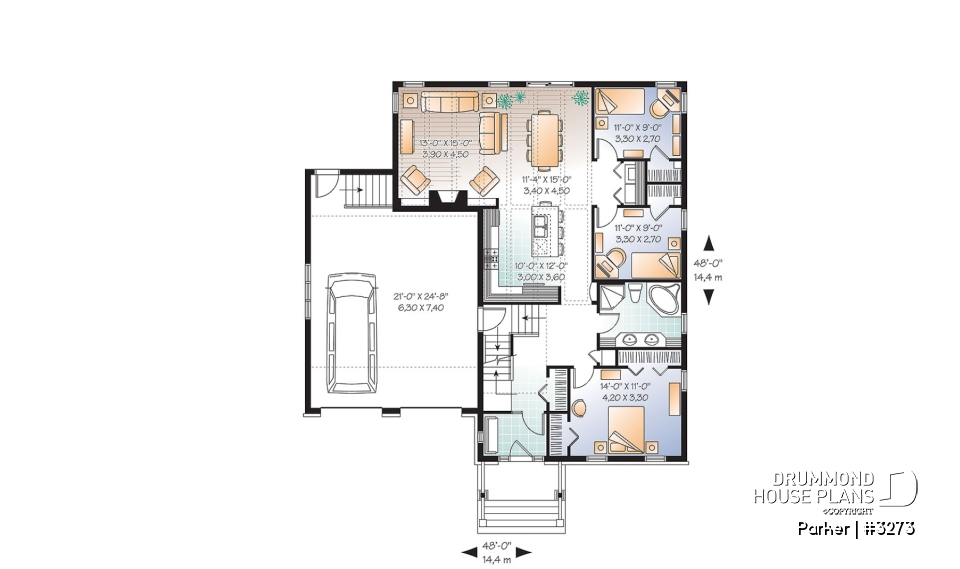

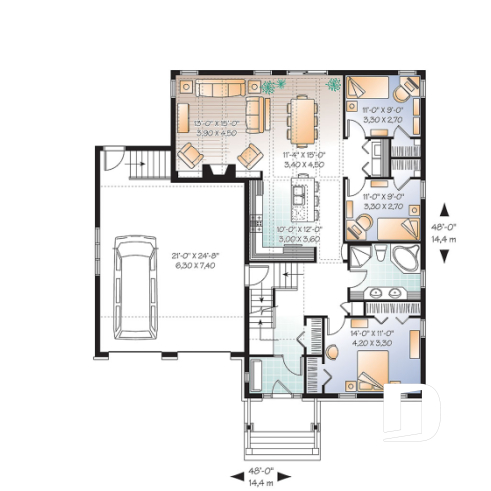

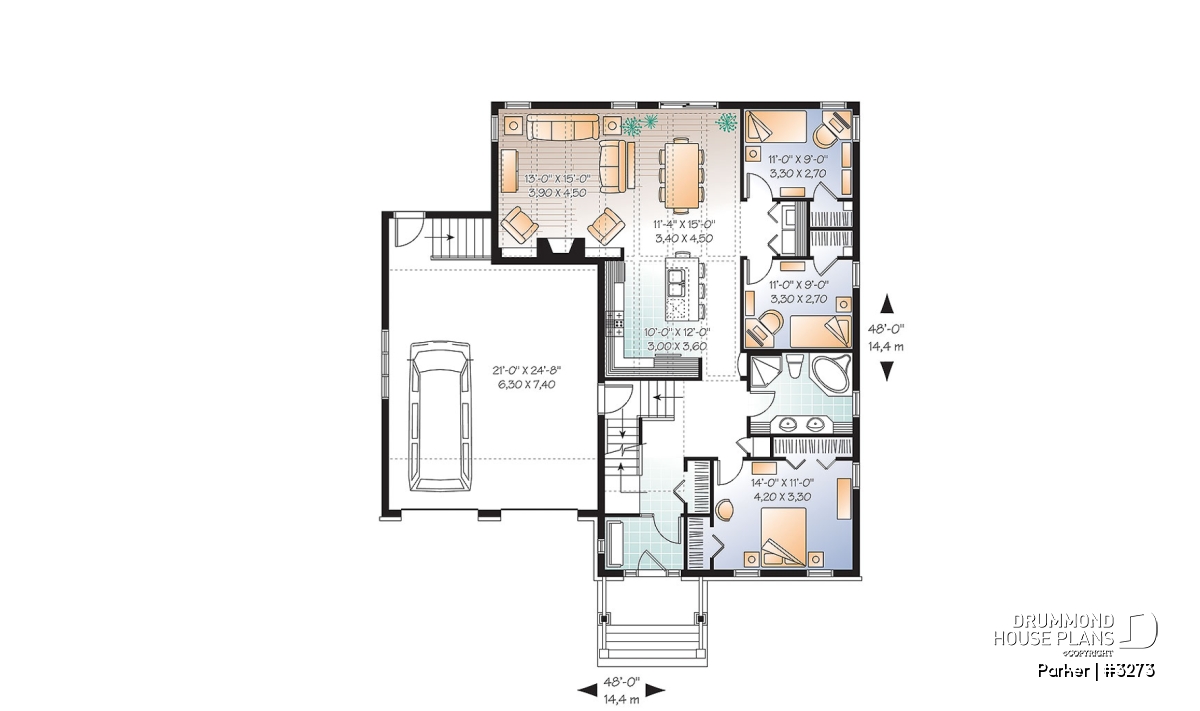

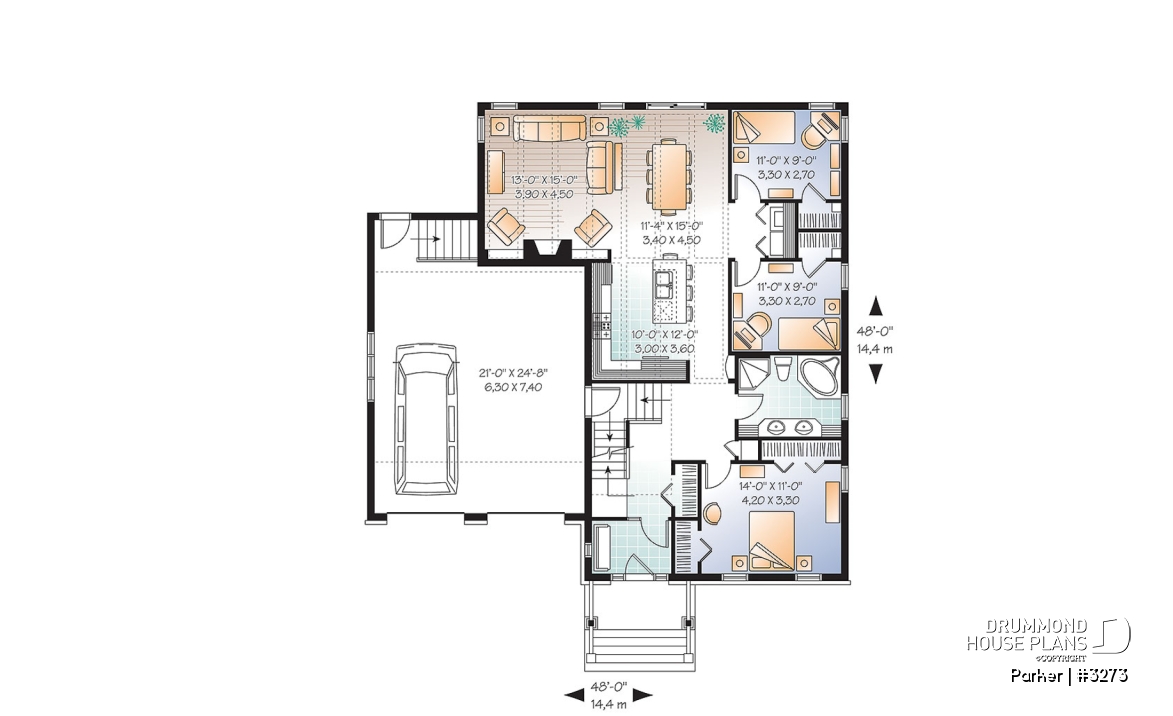

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Covered porch | 11'0" x 4'6" | N/A |
| Deck | 16'0" x 5'0" | N/A |
| Kitchen | 9'6" x 11'8" | ~ 9'0" |
| Pantry | 1'9" x 2'0" | ~ 9'0" |
| Dining room | 11'8" x 15'4" | ~ 9'0" |
| Living room | 12'8" x 15'0" | ~ 9'0" |
| Foyer | 8'0" x 5'4" | ~ 9'0" |
| Closet | 2'4" x 5'11" | ~ 9'0" |
| Full bathroom | 10'4" x 8'2" | ~ 9'0" |
| Bedroom | 14'0" x 11'0" | ~ 9'0" |
| Closet | 2'4" x 5'4" | ~ 9'0" |
| Closet | 8'0" x 2'0" | ~ 9'0" |
| Bedroom | 11'0" x 9'0" | ~ 9'0" |
| Closet | 4'4" x 2'7" | ~ 9'0" |
| Bedroom | 11'0" x 9'0" | ~ 9'0" |
| Closet | 4'4" x 2'7" | ~ 9'0" |
| Garage | 21'0" x 24'8" | ~ 8'0" |

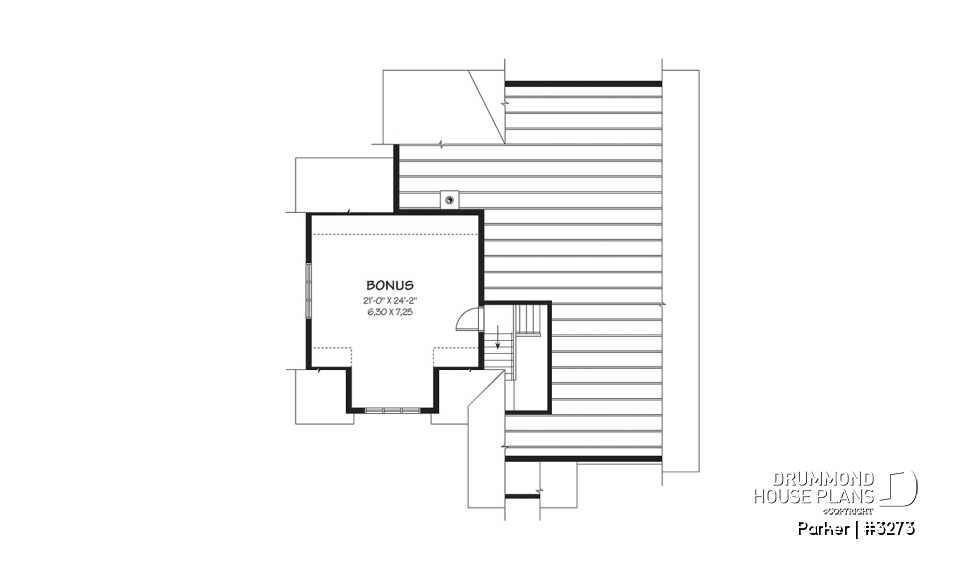

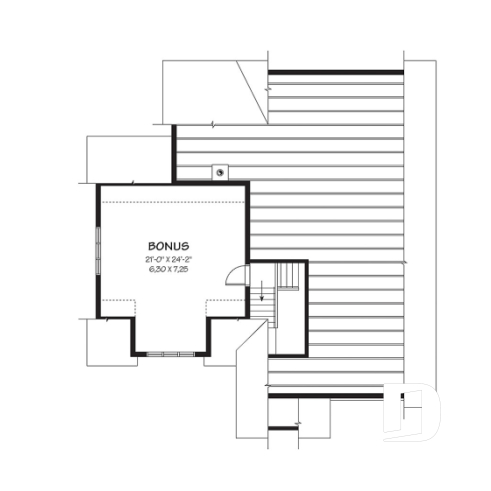

| Bonus space | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living bonus room | 21'0" x 24'2" | ~ 8'0" |
General specifications
| Total living area | 1438 sq.ft. |
| 1st level | 1438 sq.ft. |
| Bonus space | 0 sq.ft. |
| Width | 48'0" |
| Depth | 48'0" |
| Ridge height from top of foundation | 24'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Exceptional 3 bedroom Ranch bungalow and double garage with bonus room
The understated elegance of the combination of grey shingles and stonework give this exceptional 3 bedroom bungalow striking curb appeal. With 9' ceilings throughout and the convenience of a closed entrance foyer with room for a handy bench seat that can also be used for storage, the practical features of this well thought out design are numerous.
The unique hallway configuration has a split level access to the double garage from inside the home and there is an access door to the back yard and a staircase to the basement from the garage as well.
Three nicely sized bedroom share an impressive full bathroom complete with double vanity, corner bath and separate corner shower. A laundry area is conveniently located behind closet doors on the main level, tucked into an alcove adjacent the dining area.
The "L" shaped kitchen has a large island that seats 4 within full view of the dining area and room for a table that seats 8. The rear orientation of the family area shares a view of the back yard from both the living and dining rooms.

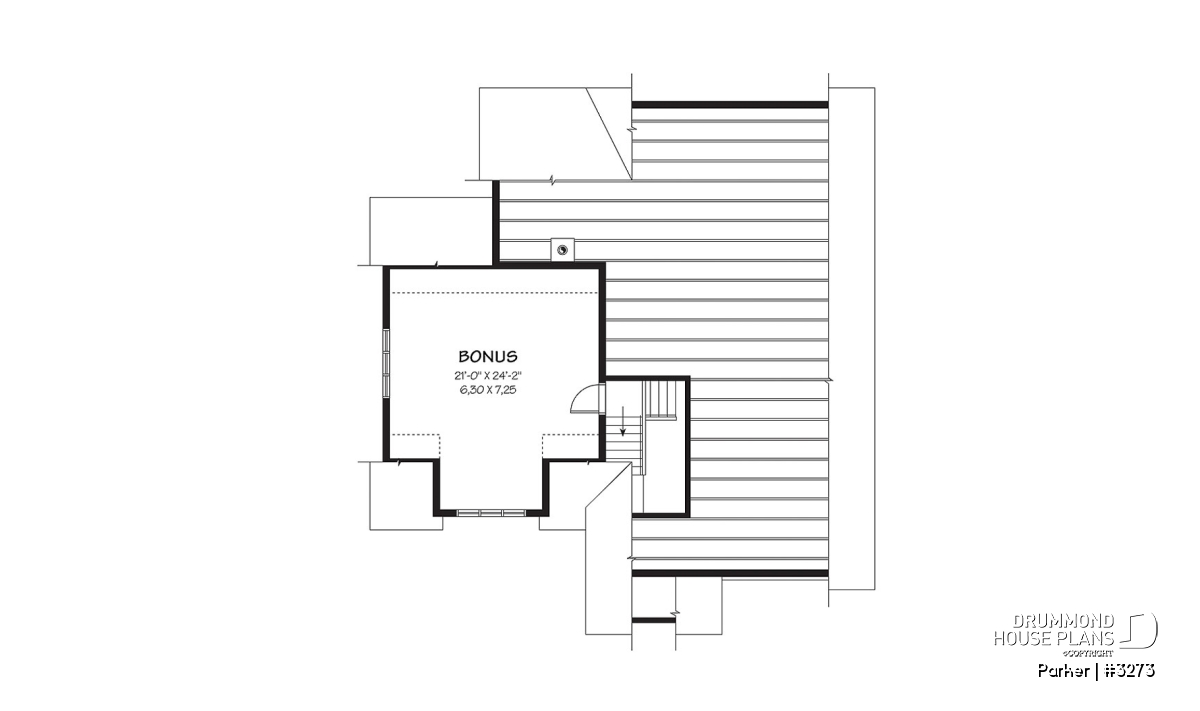

The generous bonus living space above the garage measures 21' x more than 24' and can be finished to create a master suite or even a second family room.
Distinctive elements
9' ceiling on 1st level, allowing the installation of false beams to the ceiling of all activity area. Three bedrooms on 1st level. Kitchen with central lunch counter. Fireplace in living room. Two-car garage with access to the basement and with a bonus space above accessible from the house.
Plan feature(s)
Basement access from garage, Fireplace, Living bonus space, Ceiling over 8', Island, Gound floor laundry room, Panoramic view, Open floor layout
Plan architectural style(s)
. Cape Cod, . Craftsman / Northwest, . American, . Modern rustic, . Rustic, . Traditional, . Transitional, . Mountain, . Country
Similar plans
Previously Viewed Plans
Questions and comments
May 25
Customer service
Good afternoon Mr. Murphy,
the front porch is: 11' x 4'6" and the the steps are 11' wide.
Let me know if you have other questions!
Marie
May 25
Richard murphy
What are the measurements of,the front entrance
Distance between the supporting roof posts on the gallery /
Porch , how wide are the steps
