House plan Aspendale 3 (3323-V2)
Affordable Split-entry Modern Bungalow house plan with open floor plan and 2 bedrooms

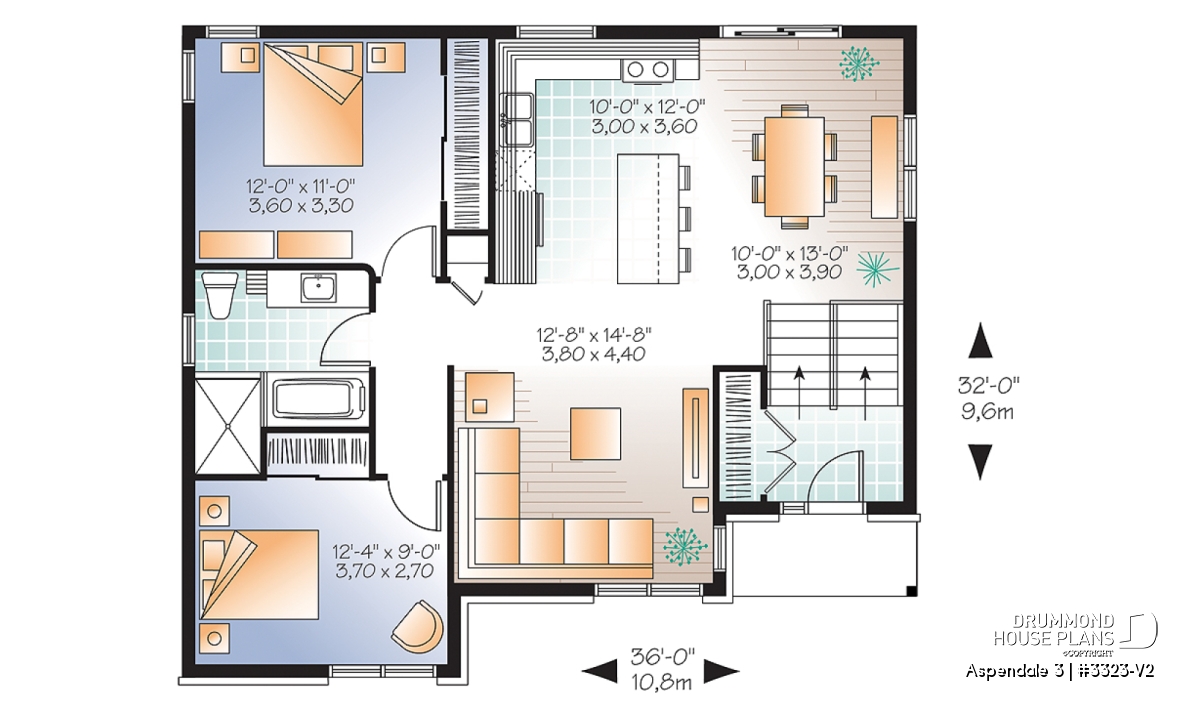

View the size of the rooms and height of the ceilings

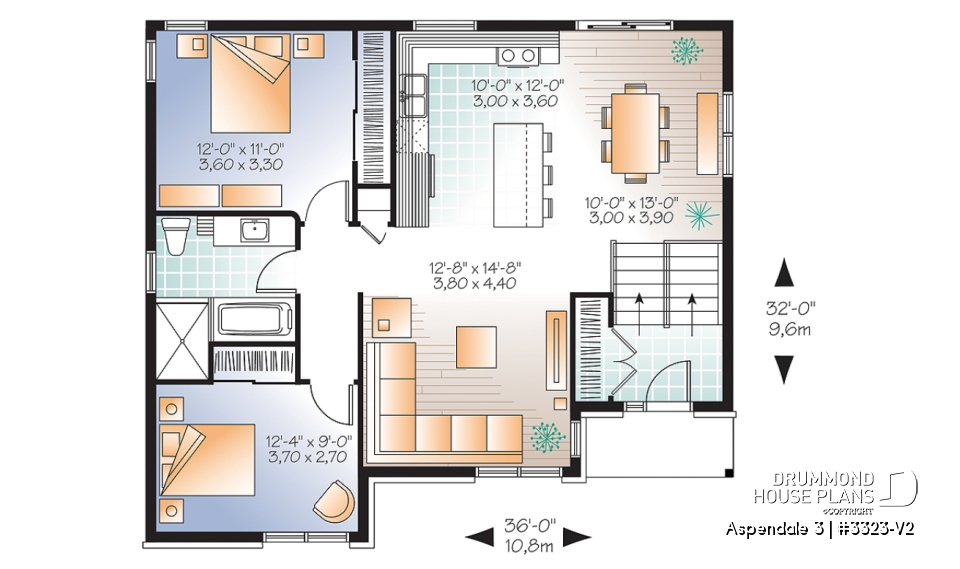

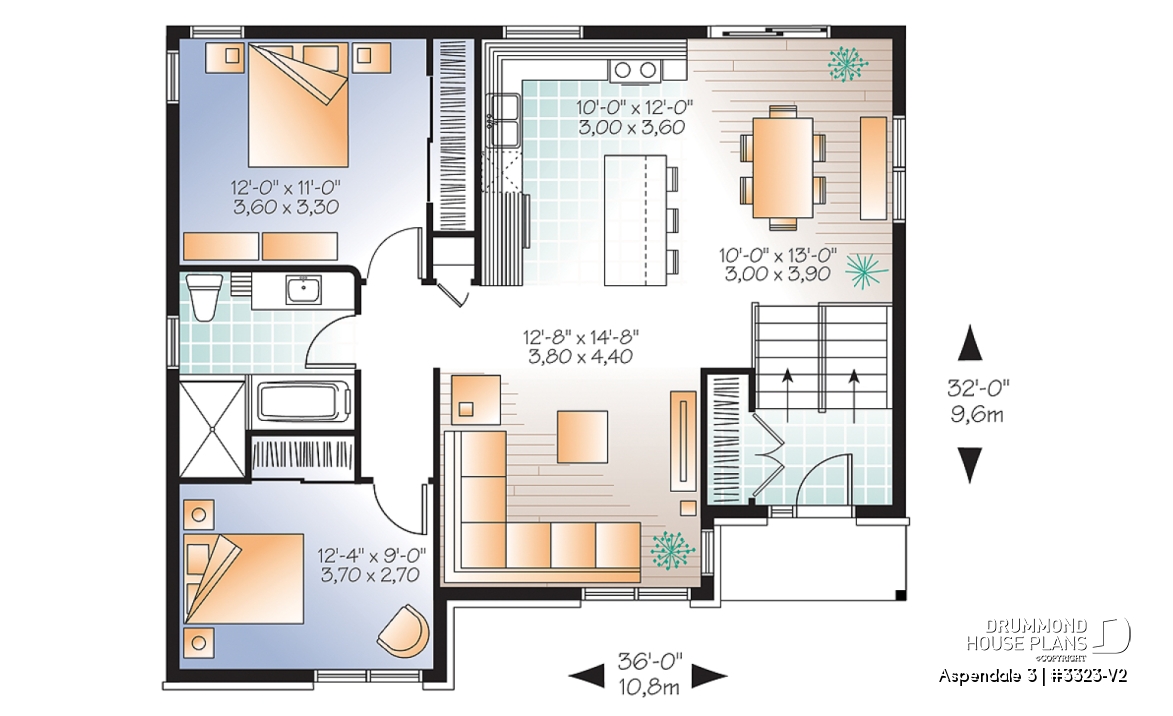

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 6'8" x 4'8" | ~ 12'0" |
| Closet | 2'0" x 6'4" | ~ 8'0" |
| Dining room | 10'0" x 13'0" | ~ 8'0" |
| Kitchen/dinette | 10'0" x 12'0" | ~ 8'0" |
| Pantry | 2'0" x 1'8" | N/A |
| Living room | 12'0" x 14'8" | ~ 8'0" |
| Bedroom | 12'0" x 11'0" | ~ 8'0" |
| Closet | 2'0" x 9'4" | ~ 8'0" |
| Bedroom | 12'4" x 9'0" | ~ 8'0" |
| Closet | 5'0" x 2'0" | ~ 8'0" |
| Full bathroom | 8'6" x 7'8" | ~ 8'0" |
| Linen | 1'0" x 1'2" | N/A |
| Shower | 3'2" x 4'8" | N/A |
| Linen | 2'0" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 1040 sq.ft. |
| 1st level | 1040 sq.ft. |
| Width | 36'0" |
| Depth | 32'4" |
| Ridge height from top of foundation | 20'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | B |
Rooms specifications

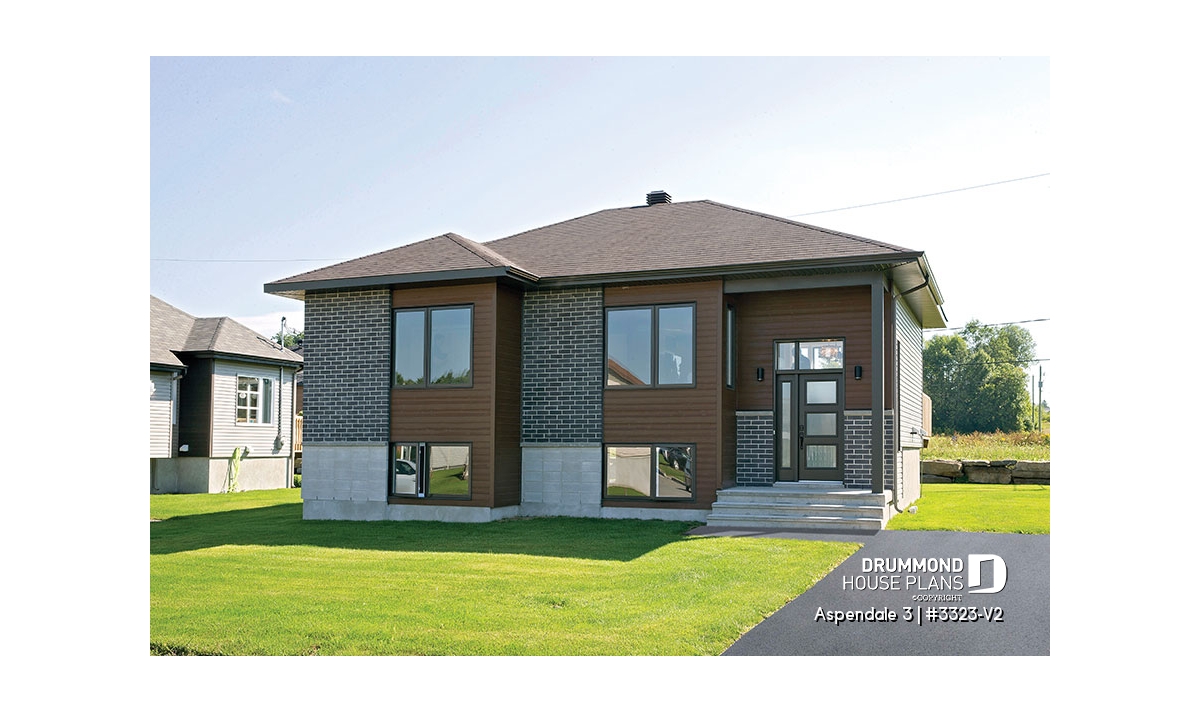

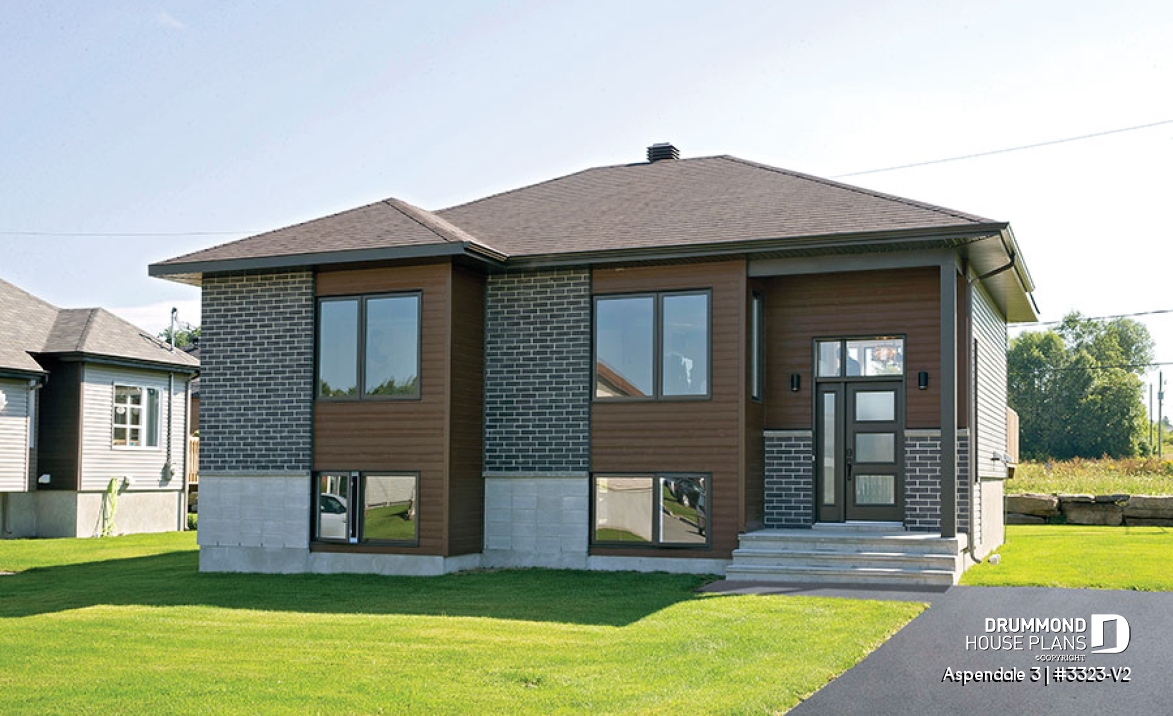

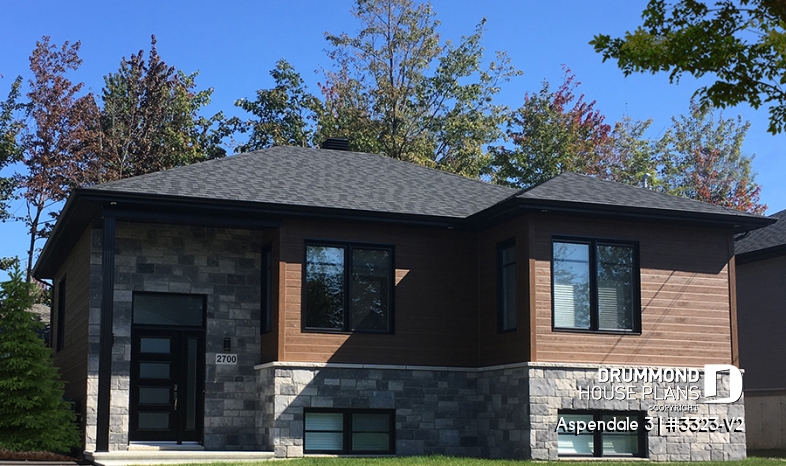

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

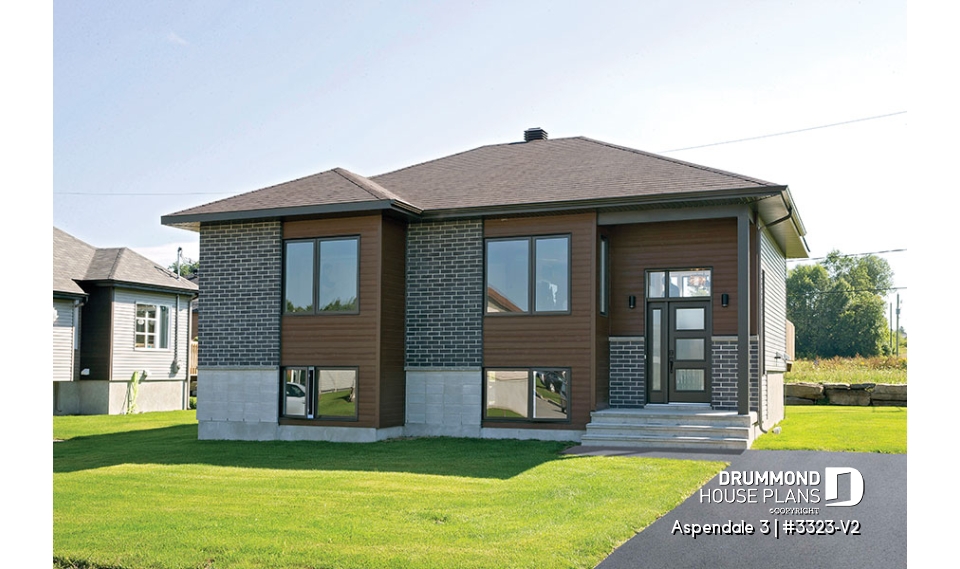

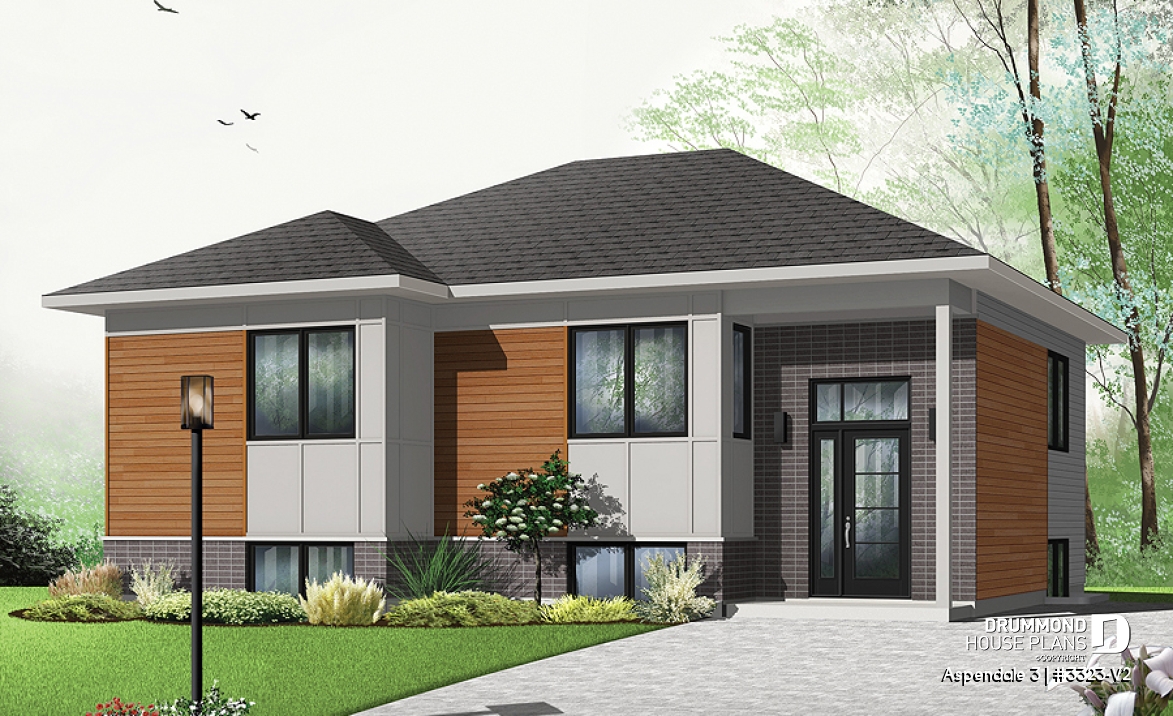

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

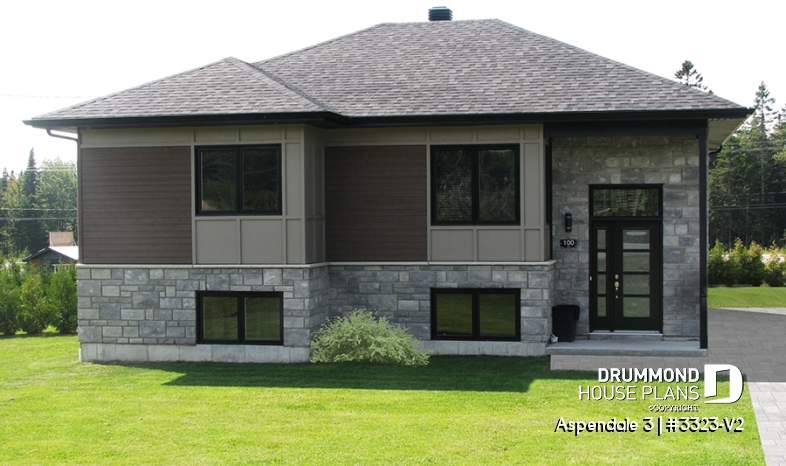

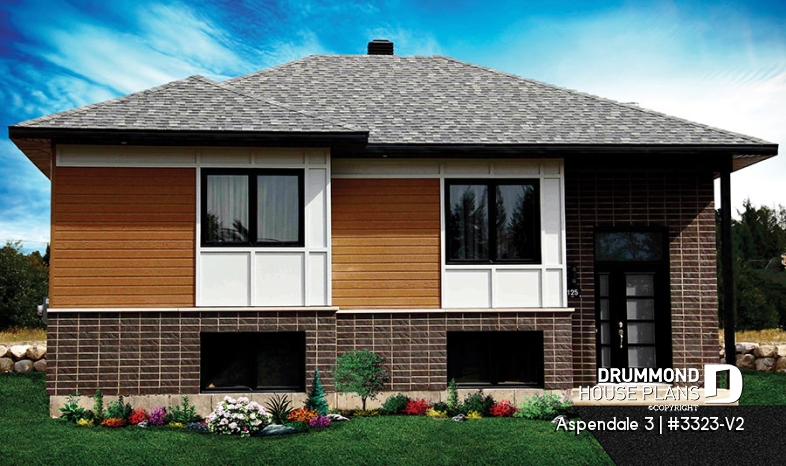

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Affordable Contemporary Split Level House Plan
Increasingly popular contemporary designs are too often associated with high cost. Whether you are a first time homeowner or an empty nester, this plan version is an unexpected surprise with luxurious contemporary style on a budget.
The exterior is characterized by the use of timeless materials such as brick, wood and fibre cement while inside, the same approach is reflected first by open floor plan offering a minimum partitions.
The kitchen layout proposes a central 36” x 76” island and windows between the cabinets and the countertop. The bathroom offers functional storage with a 5 ft vanity, discreet placement of toilet, soaker tub and separate 38” x 56” shower.
An unfinished basement awaits your personal touches.
Distinctive elements
Affordable Split-entry Modern Bungalow house plan with open floor plan Large entrance approximately 5 ft x 6 ft with 12 ft high ceiling and a generous closet. Kitchen with 36" x 76" central lunch island. Bathroom with independent 38" x 56" shower.
Plan feature(s)
Island, Open floor layout, Separate bath and shower
Plan architectural style(s)
