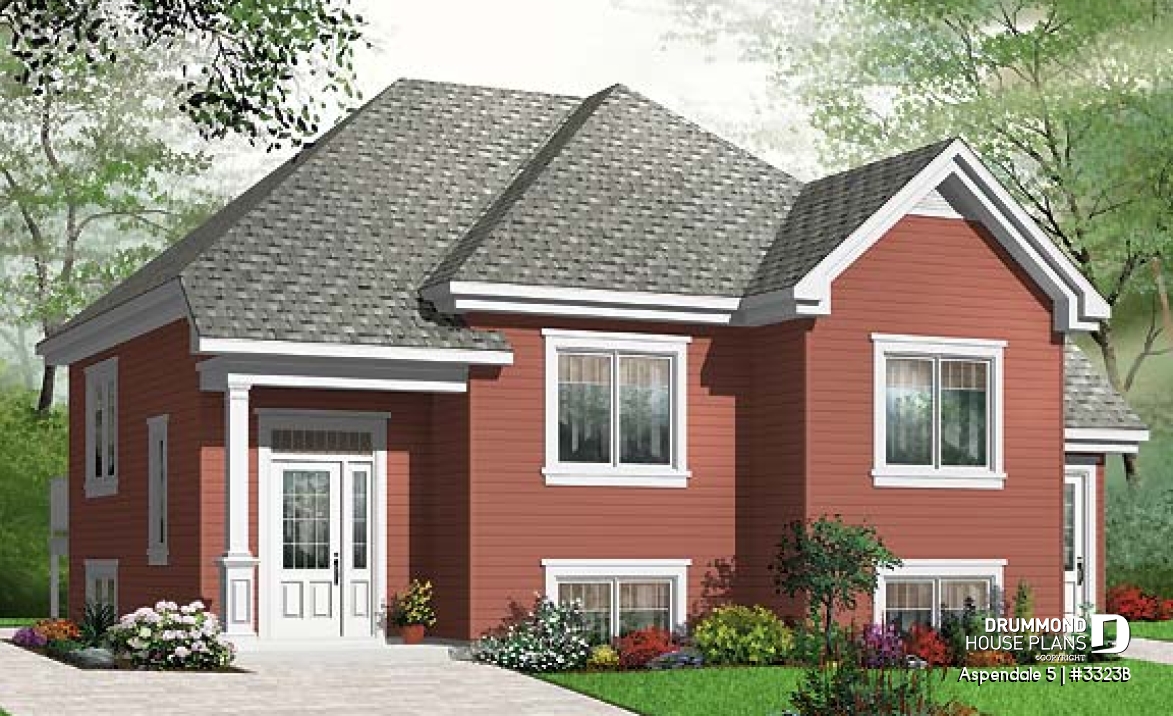

front - BASE MODEL
1st level
Basement

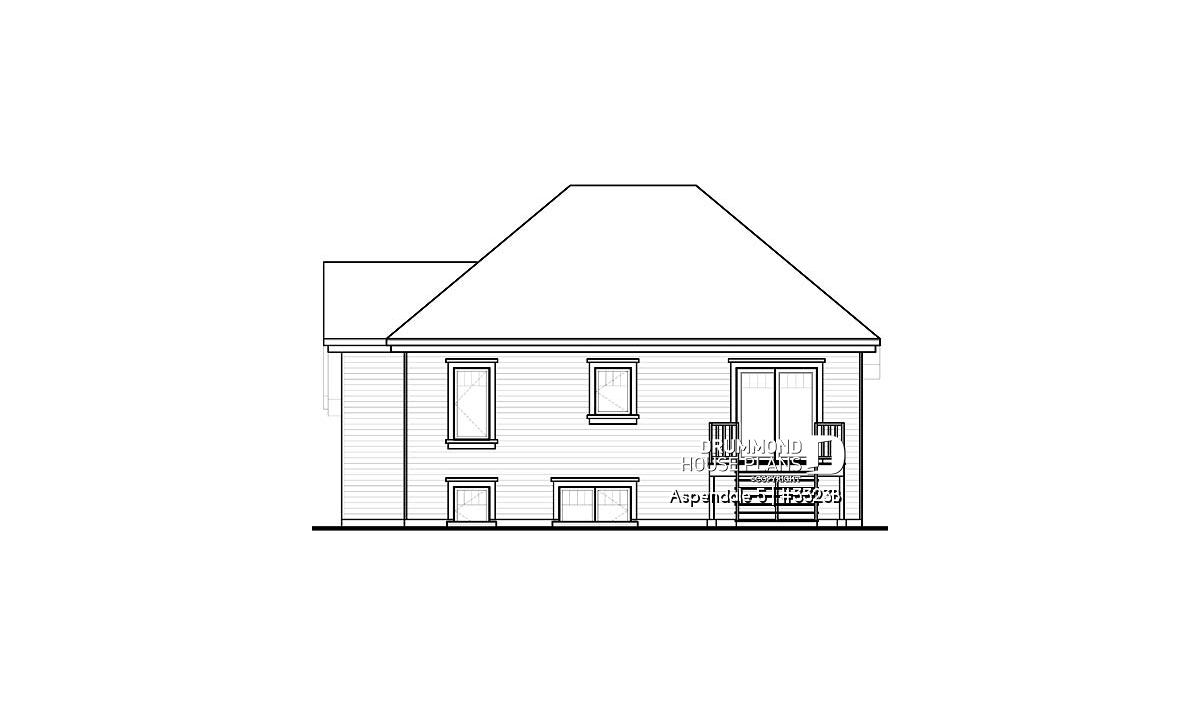

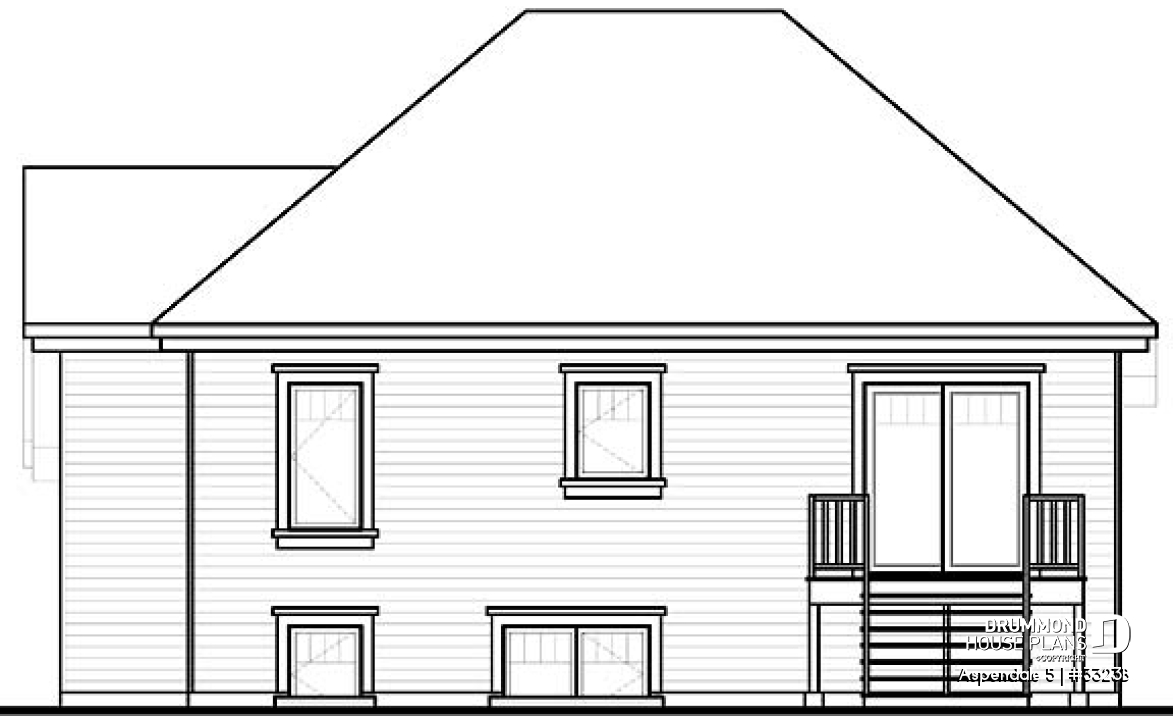

rear elevation
Aspendale 5 House plan 3323B
3 to 4 bedroom split level house plan with basement appartment, 2 family rooms for main apartement, open floor
Starting from
2130$
| Technical details summary | Plan #3323B | ||
|---|---|---|---|
| Total living area | 2056 sq.ft. | Bedroom | 2, 3, 4 |
| Full baths | 2 | Half baths | - |
| Foundation included | Finished basement | Garage | - |
| Width | 38'8" | Depth | 32'0" |
Additional details
General specifications
Total living area
2056 sq.ft.
1st level
1015 sq.ft.
Basement
1041 sq.ft.
Width
38'8"
Depth
32'0"
Ridge height from top of foundation
24'10"
Exterior wall
2 X 6
Finished basement
Builder price code
MB
Rooms specifications
Bedroom(s)
2, 3, 4
Full baths
2
Half baths
-
Garage type
-
Covered porch area
37 sq.ft.
Units specifications
UNIT 1 (MAIN)
UNIT 2 (BACHELOR)
Total living area
1507 sq.ft.
549 sq.ft.
Basement
492 sq.ft.
549 sq.ft.
1st level
1015 sq.ft.
Width
38' 8"
23' 0"
Depth
32' 0"
32' 0"
Ridge height from top of foundation
24' 10"
24' 10"
Exterior wall
2 X 6
2 X 6
Foundation type
Finished basement
Finished basement
Bedroom(s)
3
1
Full baths
1
1
Half baths
-
-
Garage type
-
-
Living bonus space
-
-
Bonus storage
-
-
Basement
Rooms
Sizes
Ceiling
Bedroom
12'1" x 10'3"
~ 8'0"
Playroom
12'1" x 12'9"
~ 8'0"
Closet
2'10" x 4'9"
~ 8'0"
Bedroom
16'6" x 10'11"
~ 8'0"
Laundry room
4'8" x 5'4"
~ 8'0"
Activity room
17'3" x 13'1"
~ 8'0"
Shower room or three quarter bath
6'1" x 5'11"
~ 8'0"
Foyer
3'2" x 3'4"
~ 8'0"
1st level
Rooms
Sizes
Ceiling
Kitchen/dinette
10'0" x 12'0"
~ 8'0"
Dining room
11'4" x 13'0"
~ 8'0"
Living room
12'0" x 14'8"
~ 8'0"
Foyer
6'4" x 4'4"
~ 8'0"
Bathroom/laundry room
12'0" x 9'8"
~ 8'0"
Bedroom
11'0" x 11'8"
~ 8'0"
Bedroom
11'0" x 9'0"
~ 8'0"
Covered porch
9'4" x 4'0"
N/D
Deck
10'0" x 5'0"
N/D
Split level level house plan with basement apartment
.
Distinctive elements
Economic construction maximizing interior square footage. Kitchen with central lunch counter. Finished basement including a bachelor with independant entry, appreciated from baby-boomers as well as from first buyers.
Main apartment with 3 to 4 bedrooms (or 2 family rooms). Lots of storage on basement.
Plan feature(s)
Access to basement from exterior, Open floor layout, Open floor layout, Separate bath and shower, Island, Gound floor laundry room
Plan architectural style(s)
The plan Aspendale 5 is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
