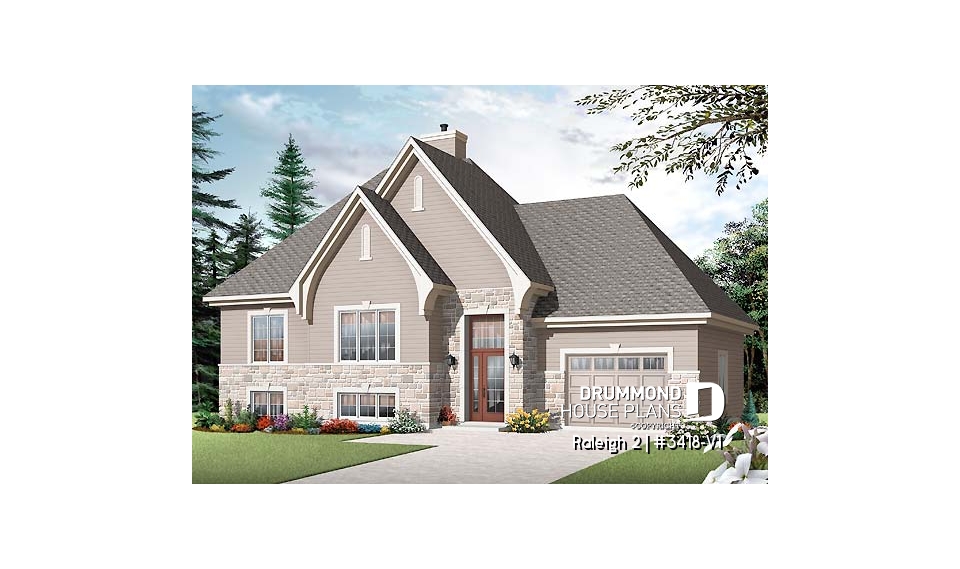

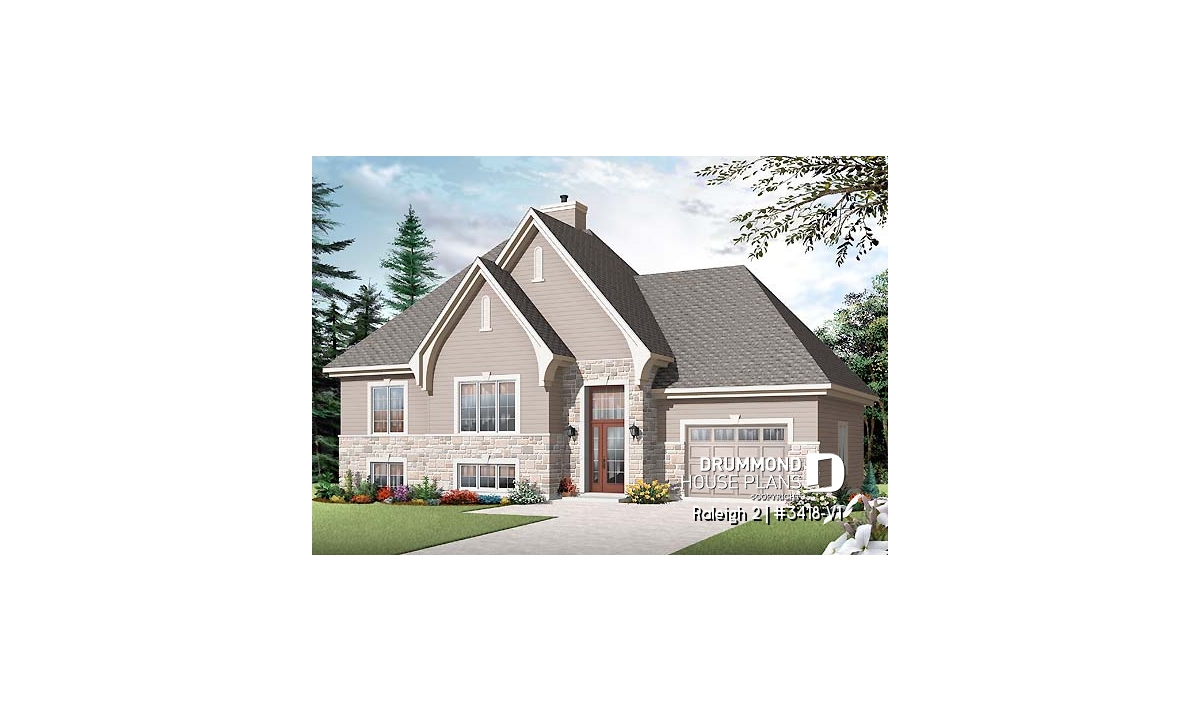

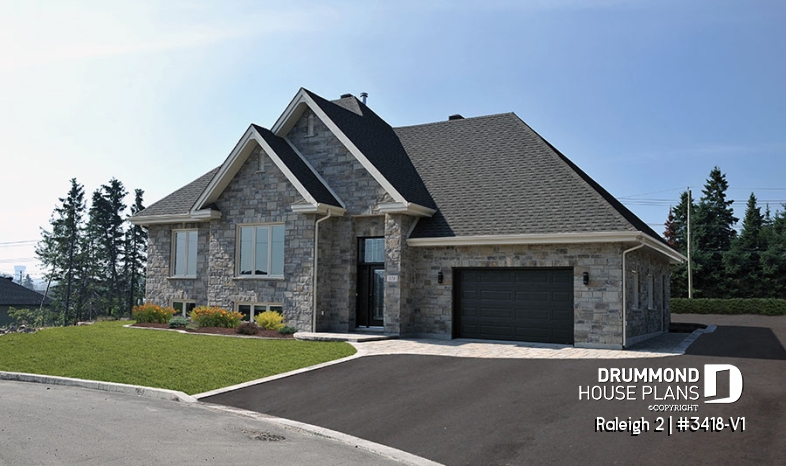

House plan Raleigh 2 (3418-V1)
Split level country home, 2 to 4 bedrooms, 2 family rooms, central fireplace, ample storage, garage
View the size of the rooms and height of the ceilings

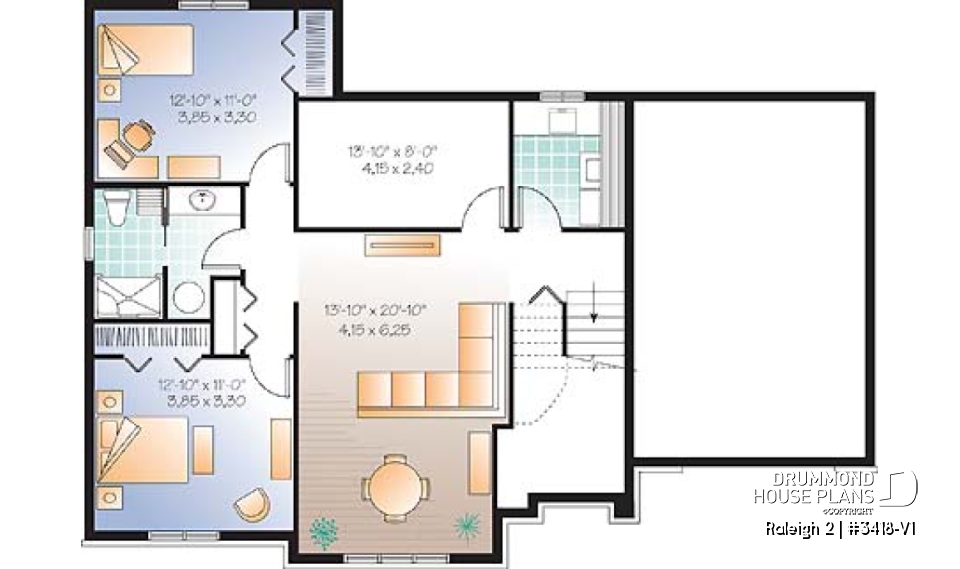

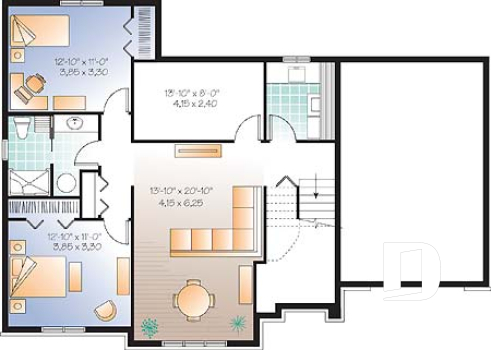

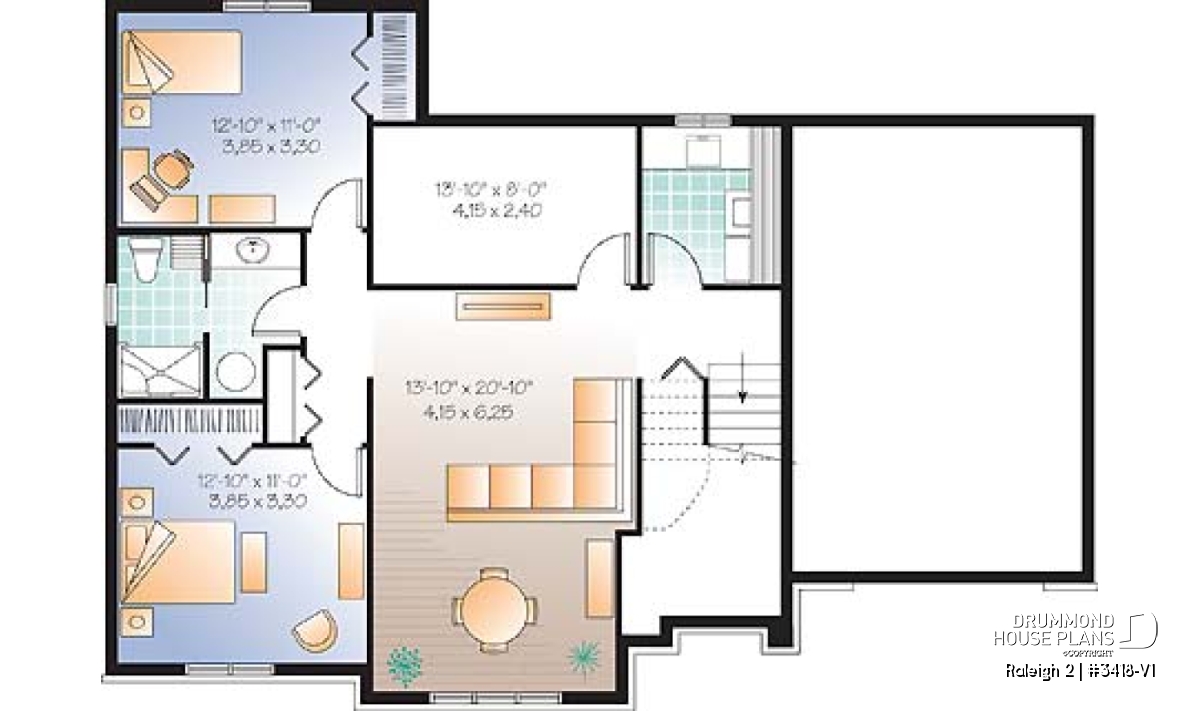

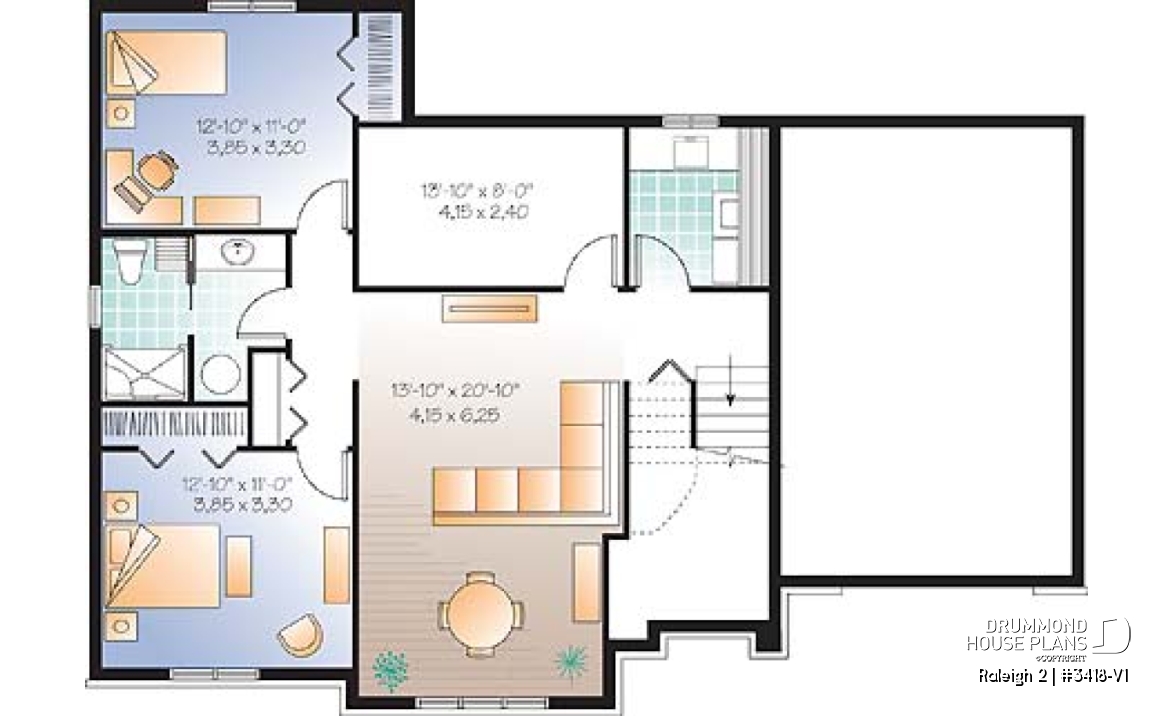

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 9'4" x 8'8" | ~ 8'0" |
| Bedroom | 12'10" x 11'0" | ~ 8'0" |
| Bedroom | 12'10" x 11'0" | ~ 8'0" |
| Laundry room | 7'3" x 8'0" | ~ 8'0" |
| Linen | 1'8" x 4'10" | ~ 8'0" |
| Storage | 7'0" x 11'11" | N/A |
| Storage | 13'10" x 8'0" | ~ 8'0" |
| Great room or Family room | 13'10" x 20'10" | ~ 8'0" |

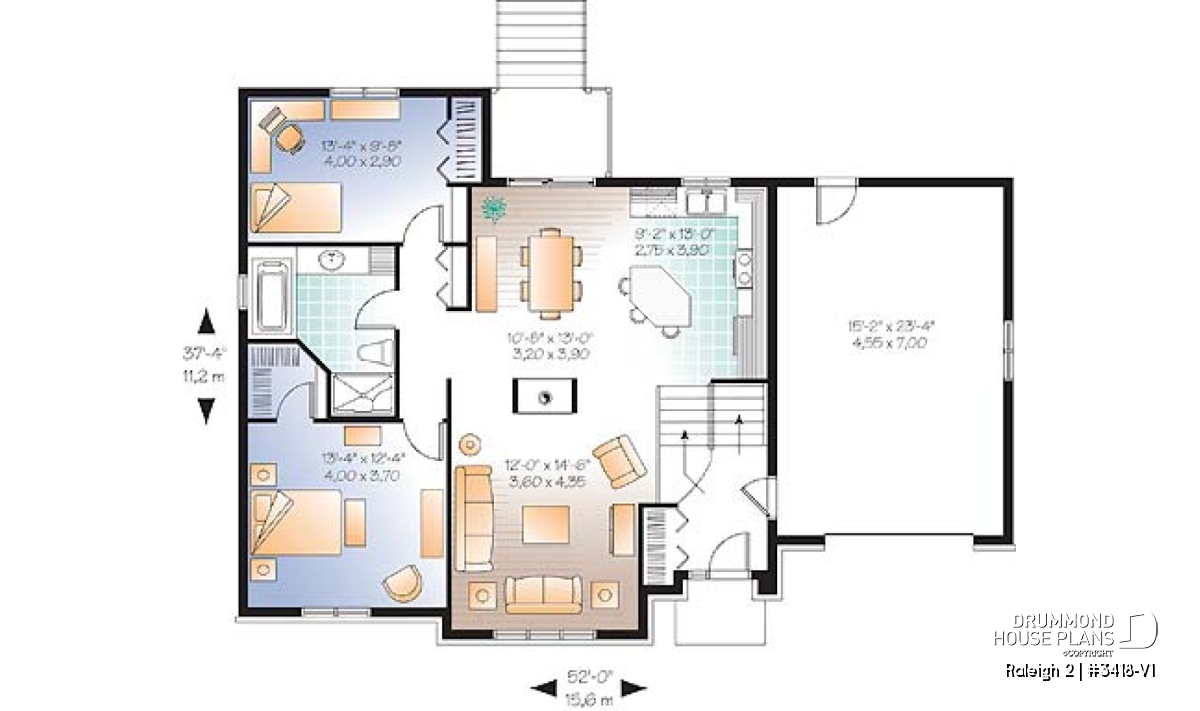

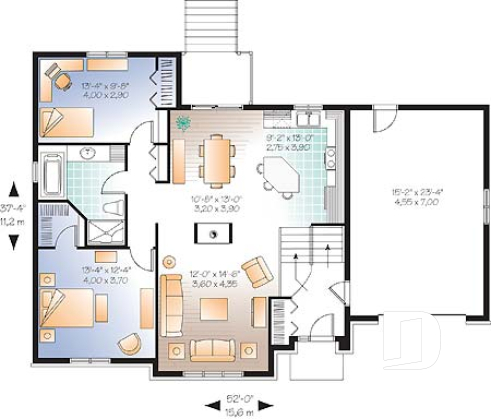

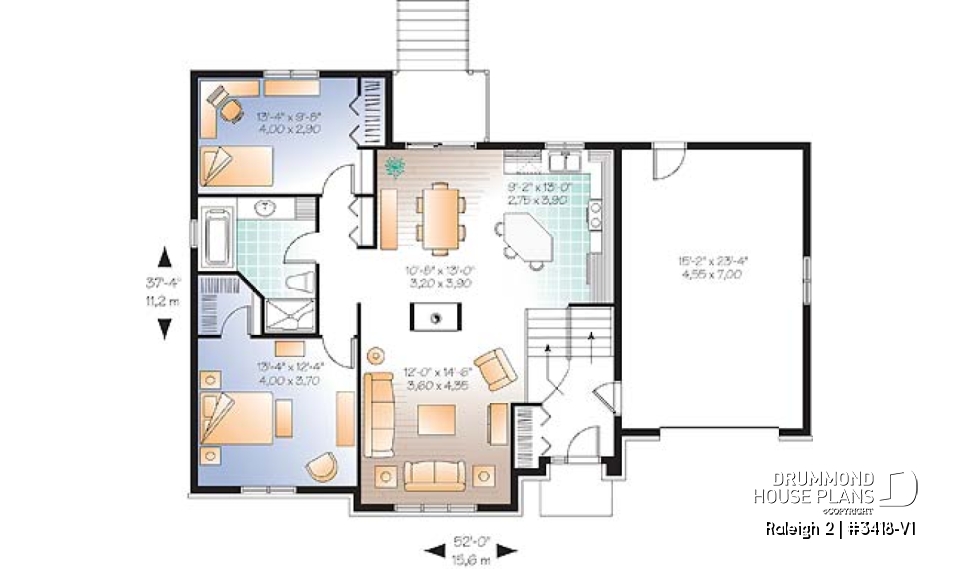

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 15'2" x 23'4" | ~ 10'0" |
| Porch | 6'0" x 3'0" | N/A |
| Deck | 8'0" x 6'0" | N/A |
| Linen | 1'0" x 4'0" | ~ 8'0" |
| Kitchen | 9'2" x 13'0" | ~ 8'0" |
| Dining room | 10'8" x 13'0" | ~ 8'0" |
| Living room | 12'0" x 14'6" | ~ 8'0" |
| Foyer | 6'0" x 8'4" | ~ 12'4" |
| Full bathroom | 9'10" x 11'4" | ~ 8'0" |
| Bedroom | 13'4" x 12'4" | ~ 8'0" |
| Bedroom | 13'4" x 9'8" | ~ 8'0" |
General specifications
| Total living area | 2366 sq.ft. |
| Basement | 1183 sq.ft. |
| 1st level | 1183 sq.ft. |
| Width | 52'0" |
| Depth | 37'4" |
| Ridge height from top of foundation | 29'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
2 to 4 bedrooms split level, lots of amenities
With a growing demand for models of home offering 4 bedrooms, Drummond House Plans is happy to oblige by offering plans like this 3418-V1, derived from the popular 3418 model, suggesting an interior of 4 bedrooms and full amenities.
On the ground floor, one appreciates a closet on the landing of the entrance (with 12' ceiling), a central lunch island in the kitchen, two bedrooms with good size closets and comfortable bathroom with separate 52” x 34” shower. In the basement, there is a dual purpose family room (gaming and home theater), an enviable laundry area, two bedrooms of good size, shower room as large as that of the ground floor and a much appreciated storage area. An oversized single garage allows for spacious parking and storage.
Explore other plans with 4 bedrooms and single or double garage on www.drummondhouseplans.com
Distinctive elements
Main entry ceiling vaults to over 12 ' enhanced by abundant windows. Two-sided fireplace adjoining living room and dining room. Kitchen eating island/prep area. Four bedrooms on two floors and laundry room at base of basement stairs. Two bathrooms each containing a 52"x34" shower. Basement includes 13' x 8' storage room.
Plan feature(s)
Walk-in master bed., Fireplace, Island, Game room
Plan architectural style(s)
. Country, . Craftsman / Northwest, Modern Craftsman, . European
