House plan Caldwell (3457)
Cube-shaped house plan, 4bedrooms 3 bathrooms, open floor plan, kitchen island, home office, media room

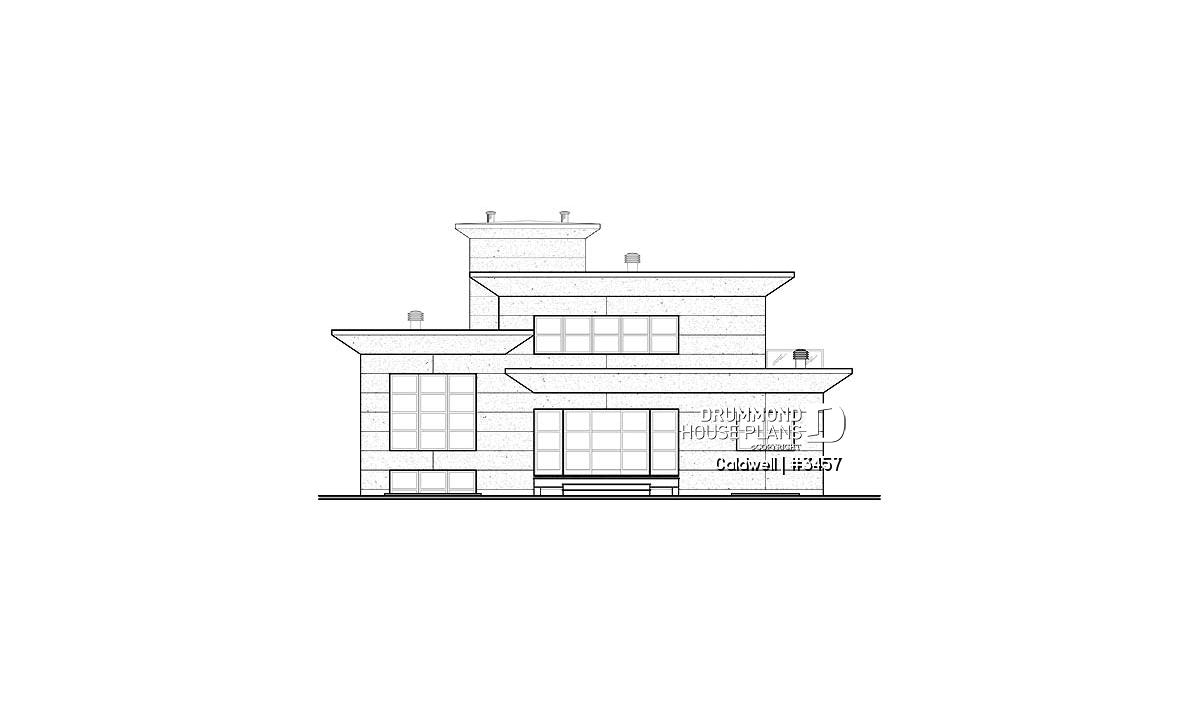

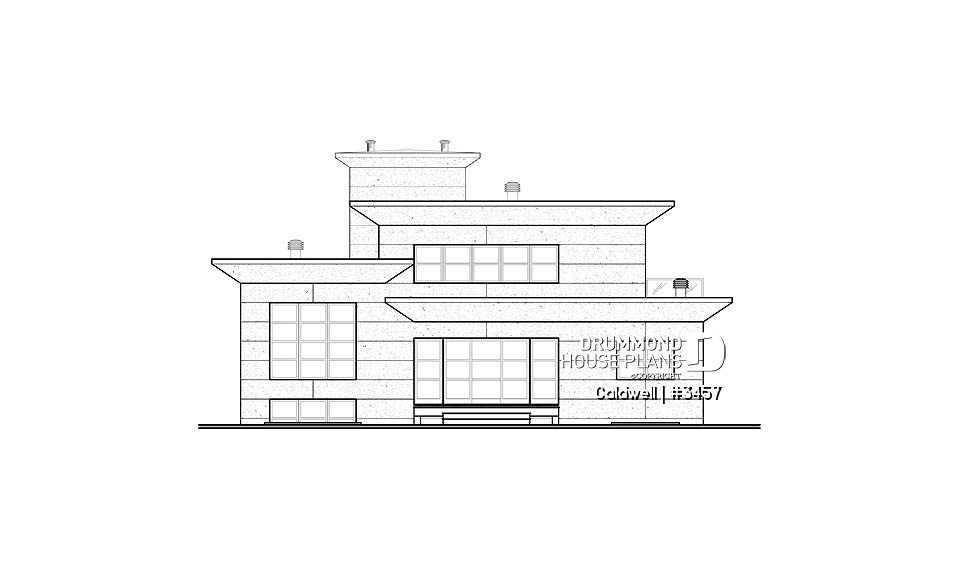

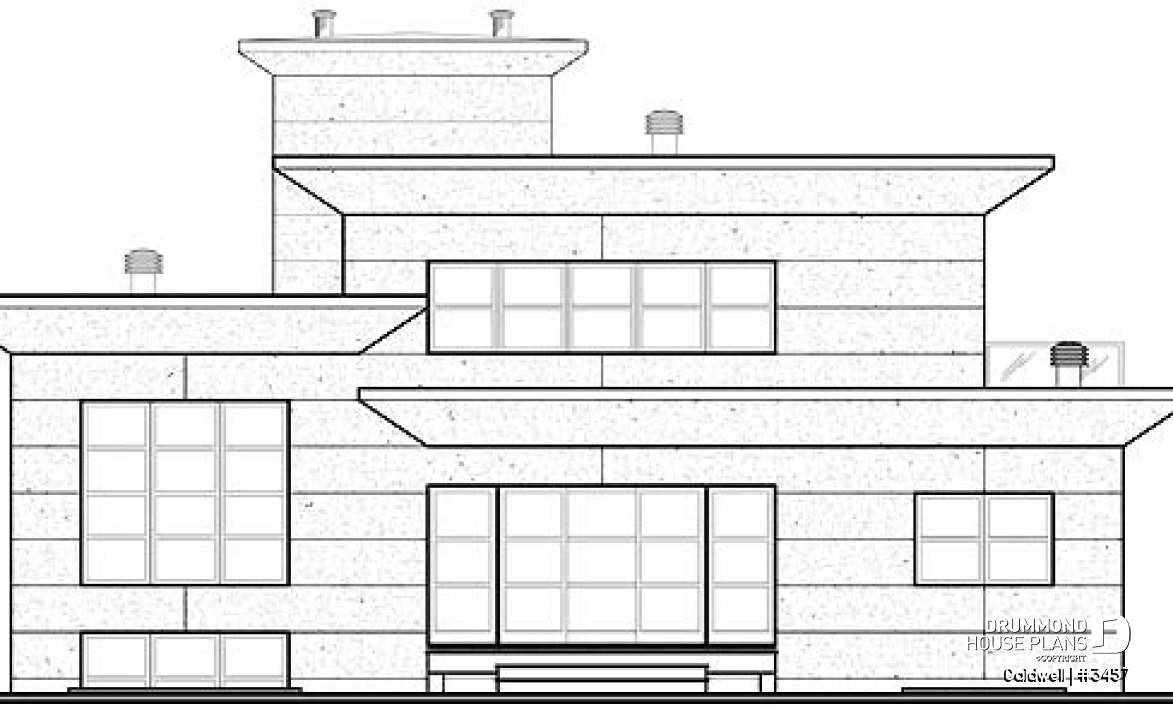

View the size of the rooms and height of the ceilings

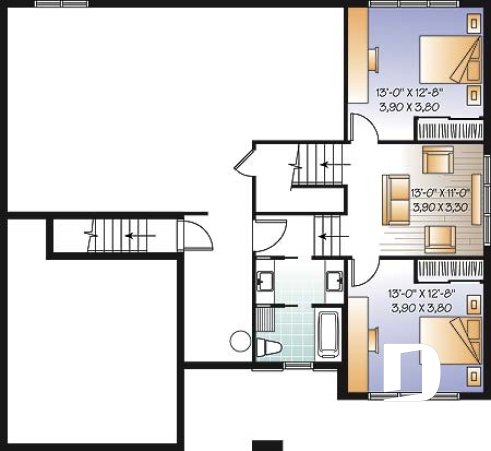

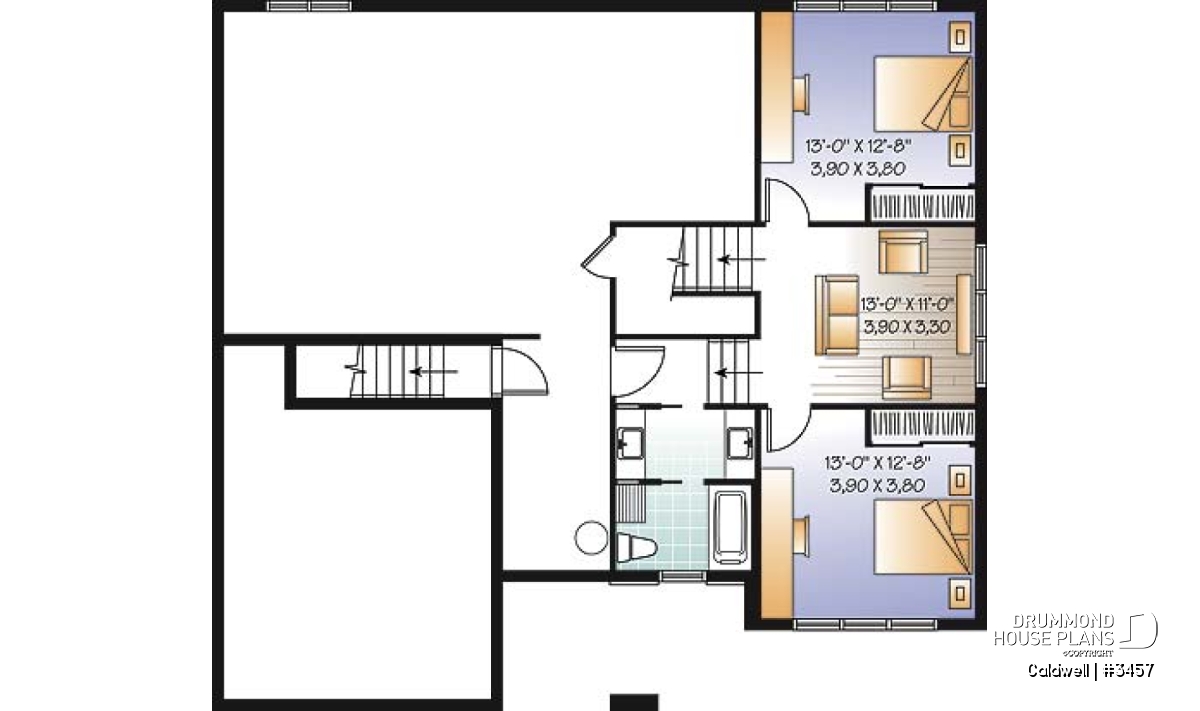

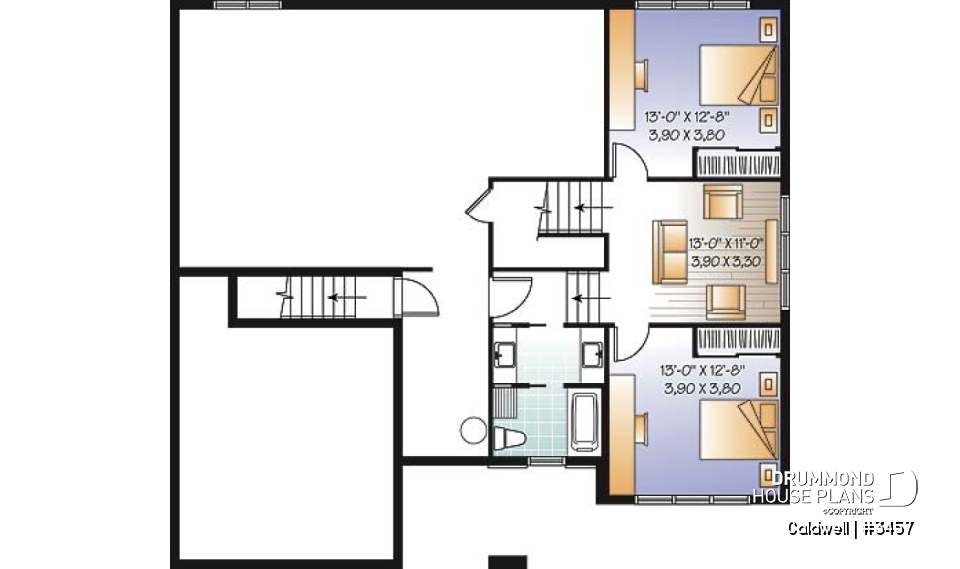

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'8" x 9'8" | ~ 8'0" |
| Bedroom | 13'0" x 12'8" | ~ 8'0" |
| Bedroom | 13'0" x 12'8" | ~ 8'0" |
| Playroom | 13'0" x 11'0" | ~ 8'0" |

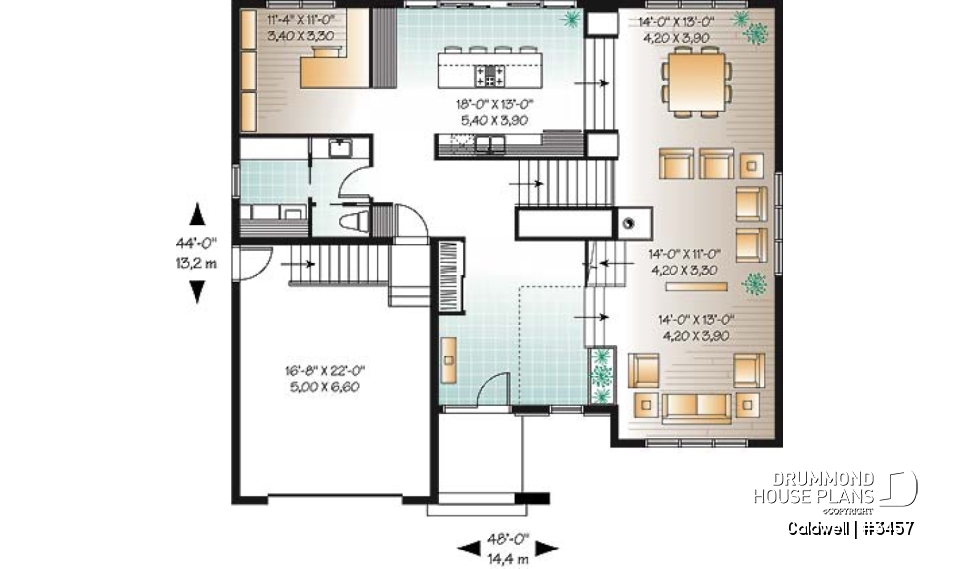

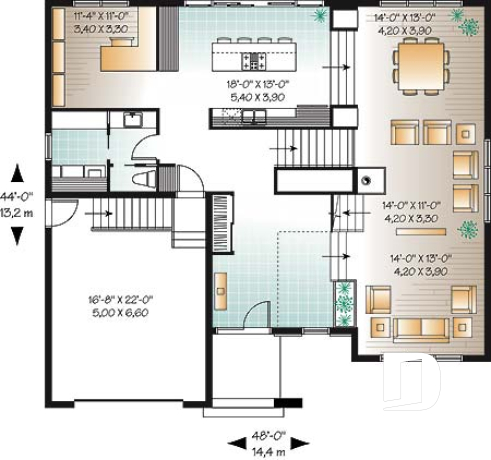

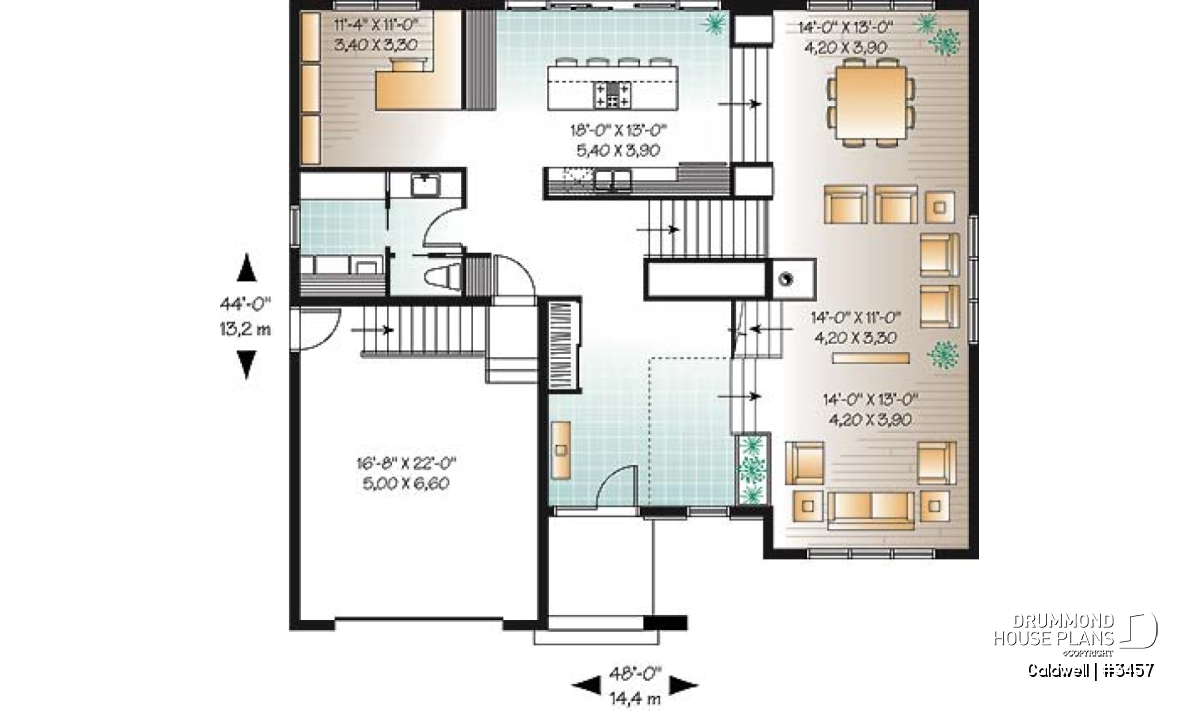

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 18'0" x 13'0" | ~ 8'10" |
| Dining room | 14'0" x 13'0" | ~ 10'0" |
| Living room | 14'0" x 11'0" | ~ 10'0" |
| Foyer | 12'9" x 7'10" | ~ 8'10" |
| Half bath or powder room | 5'0" x 8'8" | ~ 8'10" |
| Laundry room | 6'0" x 8'8" | ~ 8'10" |
| Garage | 16'8" x 22'0" | ~ 10'0" |
| Porch | 7'4" x 6'10" | N/A |
| Porch | 15'0" x 10'0" | N/A |
| Home theater | 14'0" x 13'0" | ~ 10'0" |
| Office | 11'4" x 11'0" | ~ 8'10" |

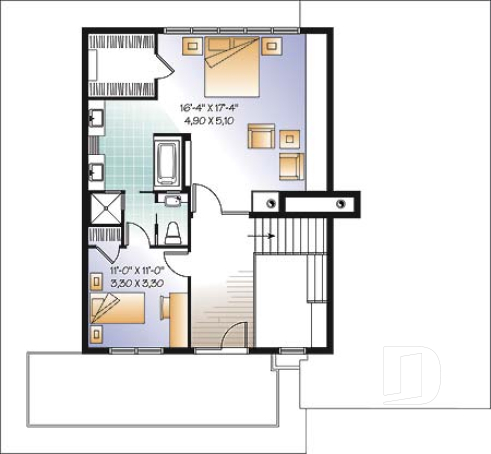

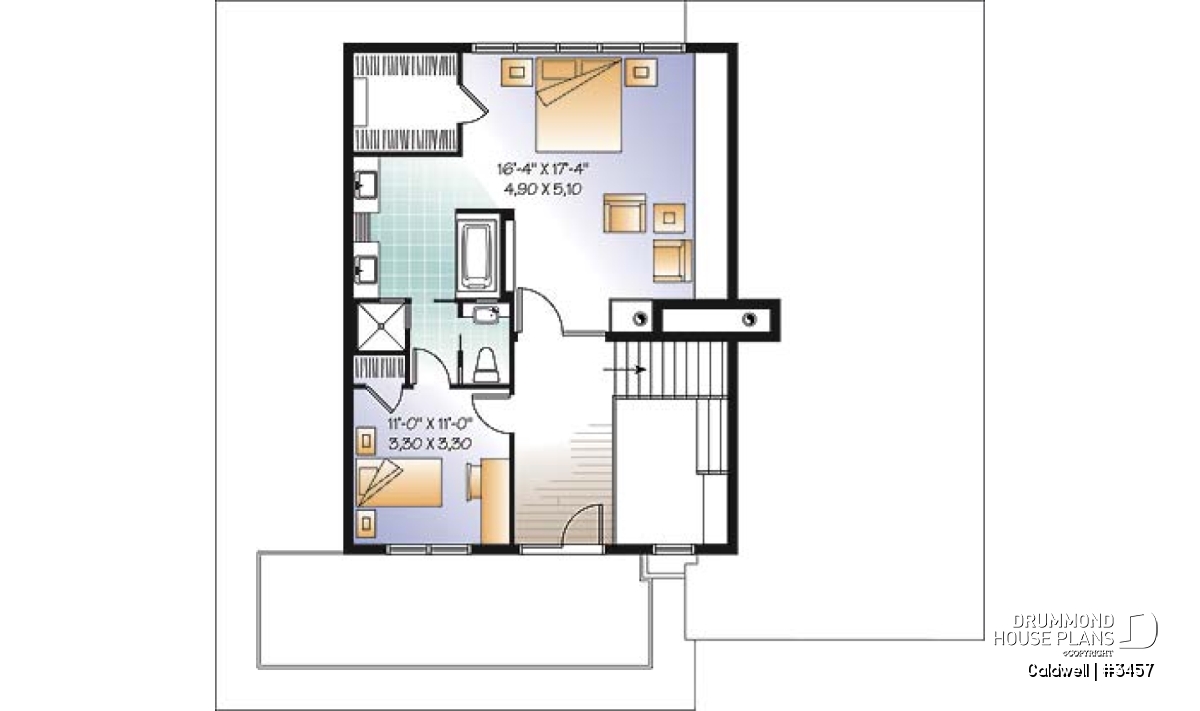

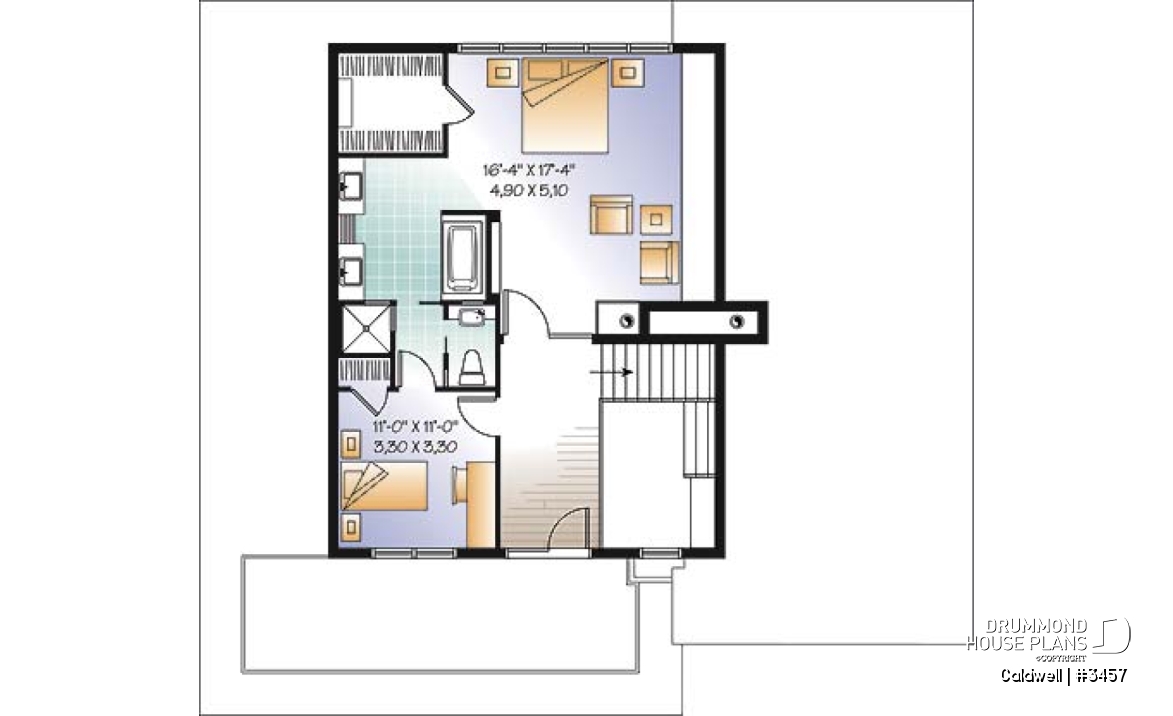

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 16'4" x 17'4" | ~ 8'6" |
| Bedroom | 11'0" x 11'0" | ~ 8'6" |
General specifications
| Total living area | 3198 sq.ft. |
| Basement | 763 sq.ft. |
| 1st level | 1520 sq.ft. |
| 2nd level | 915 sq.ft. |
| Width | 48'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 22'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | H |
Rooms specifications

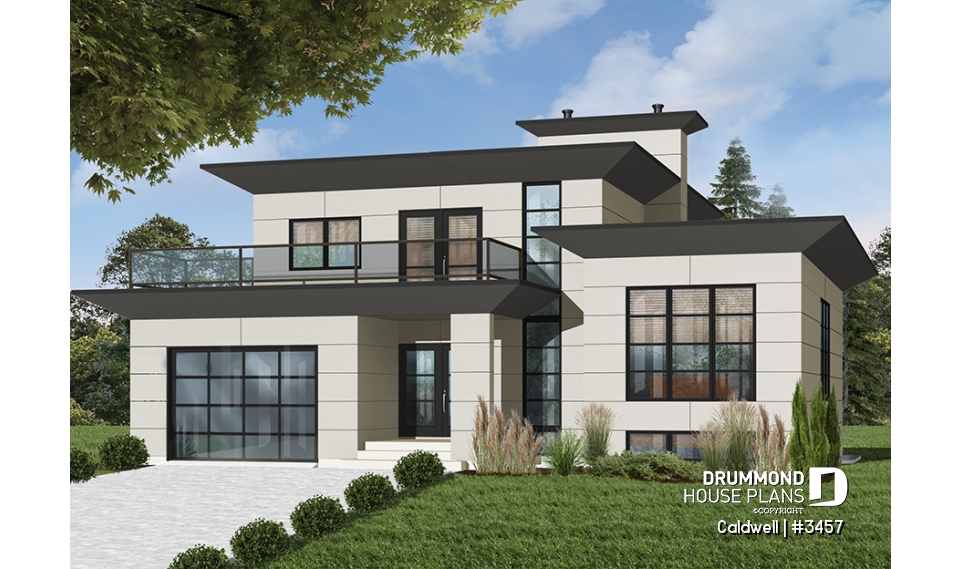

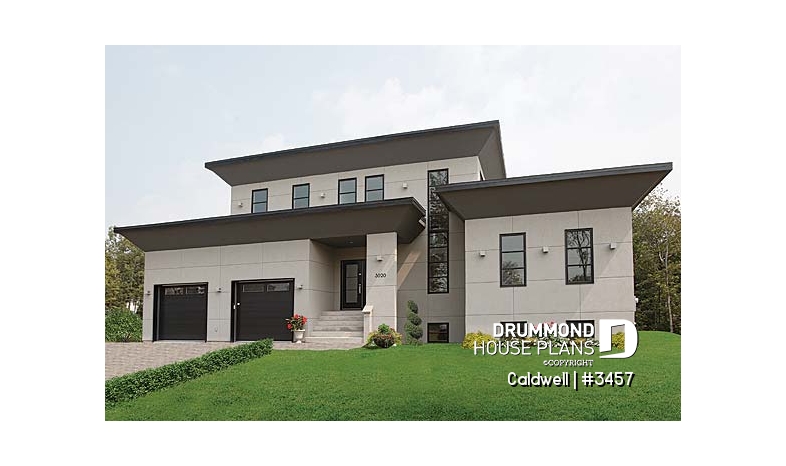

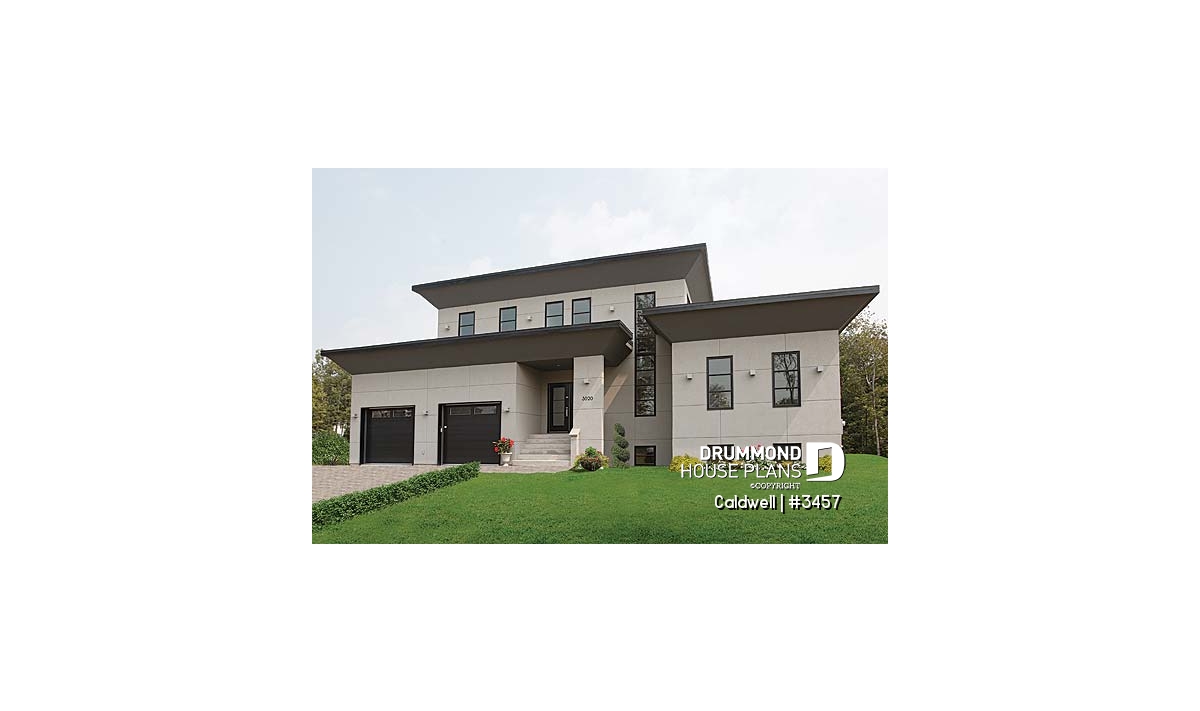

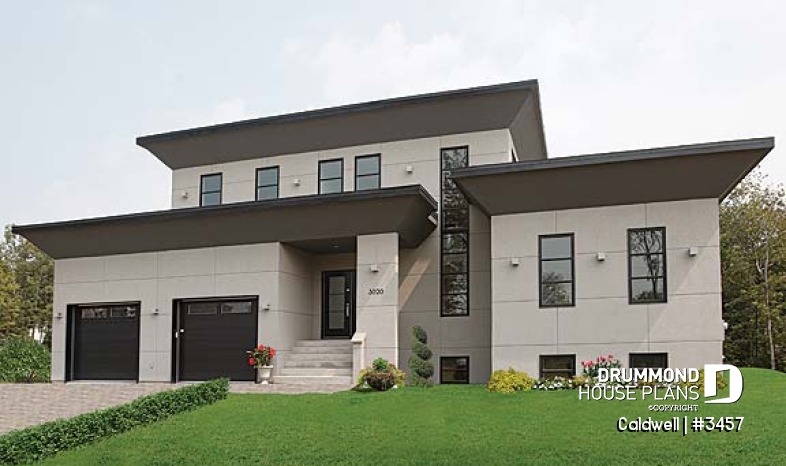

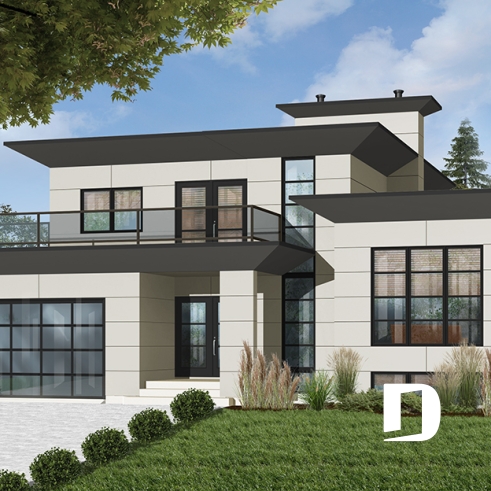

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

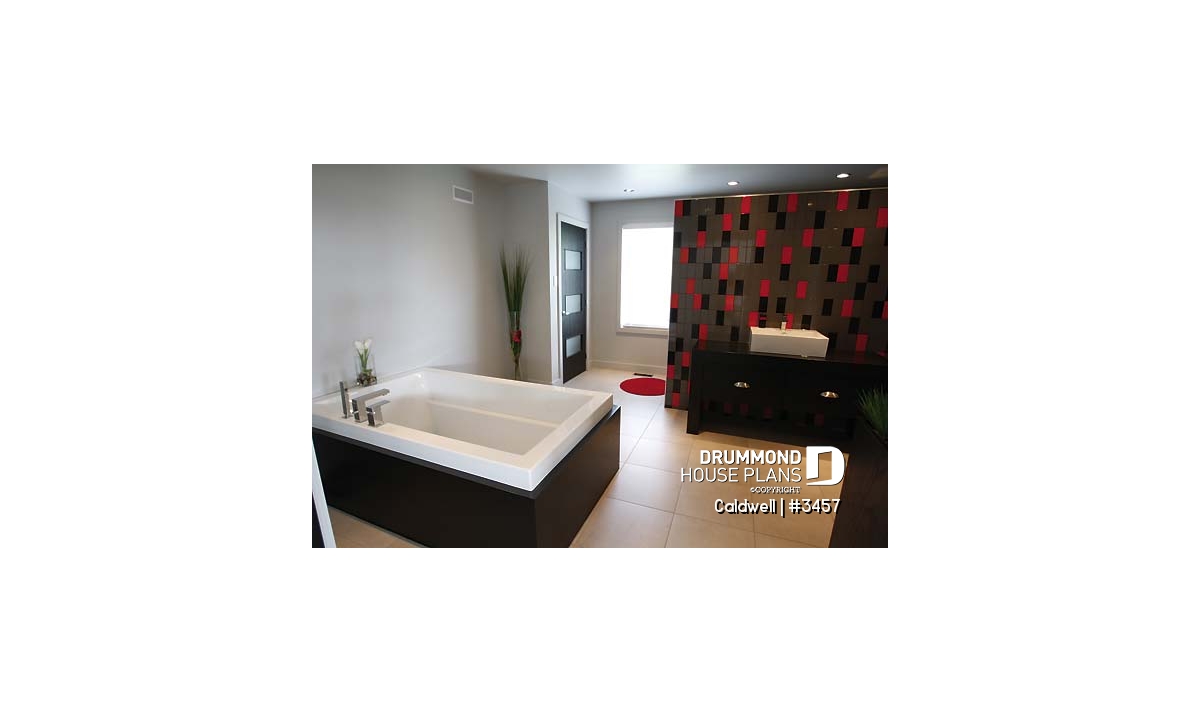

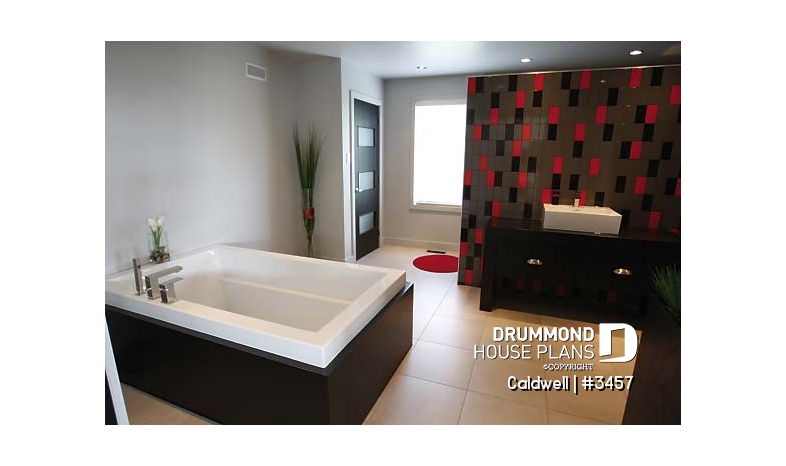

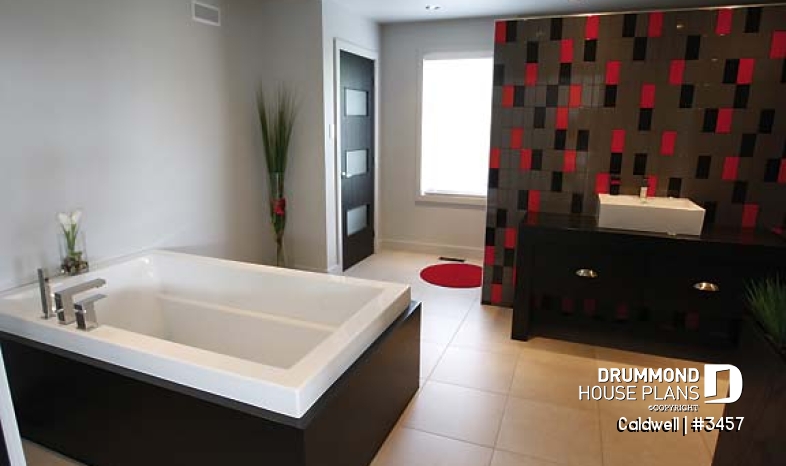

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

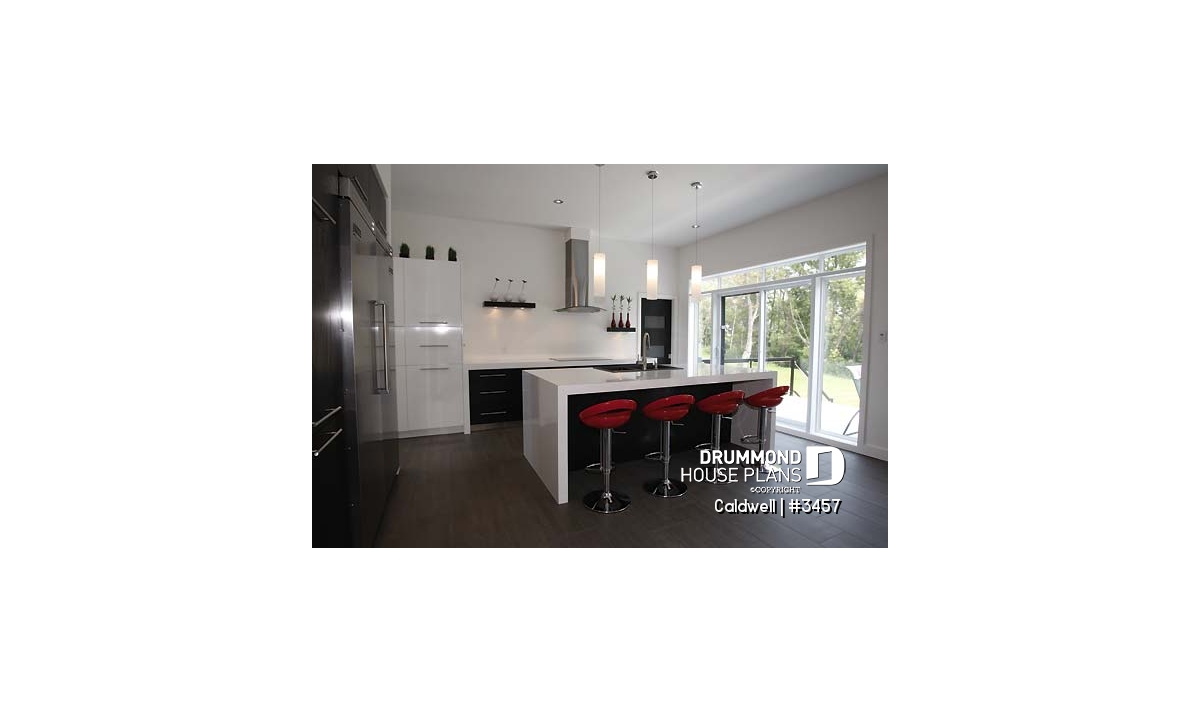

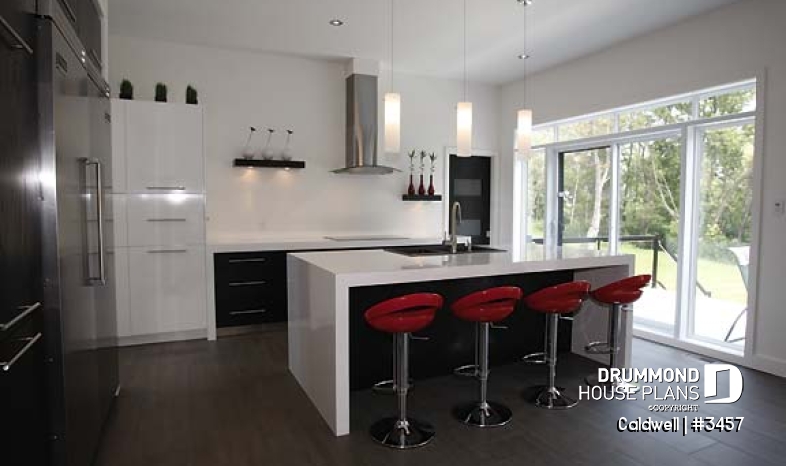

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

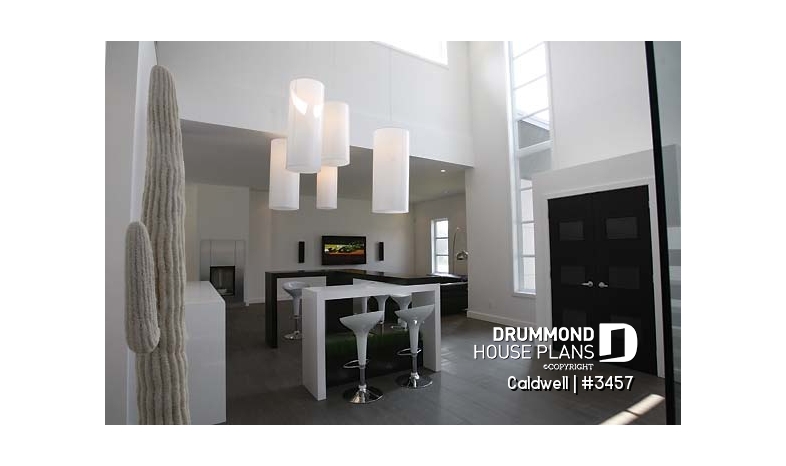

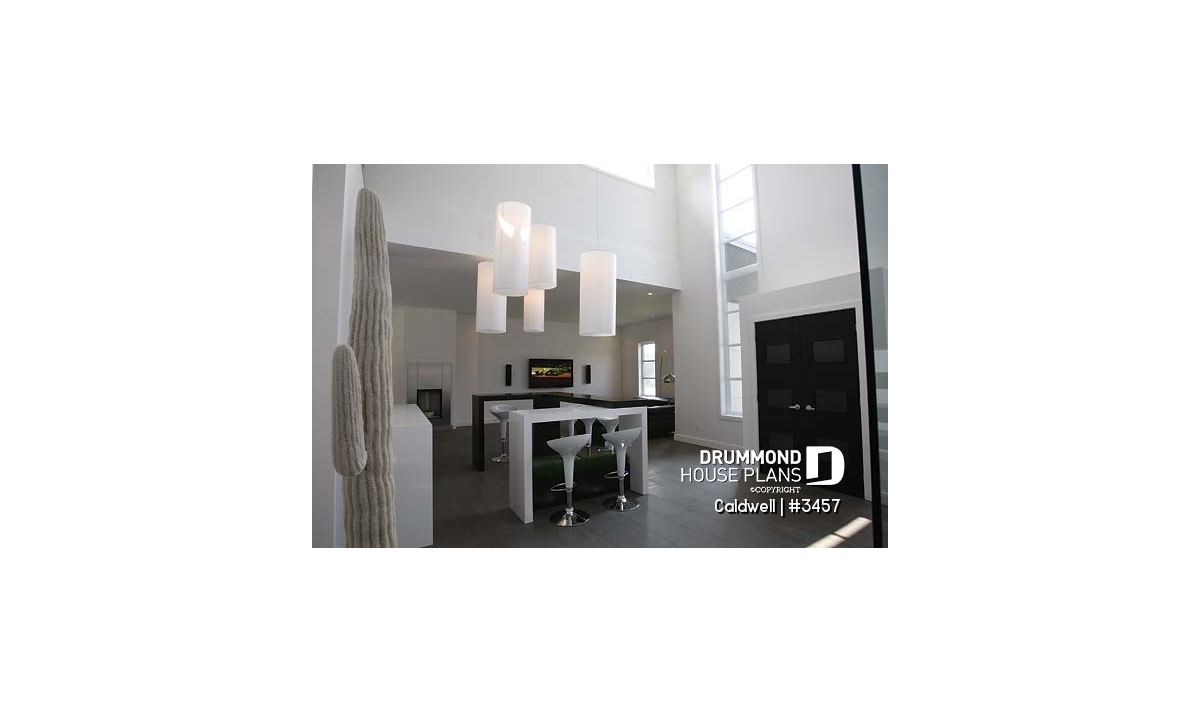

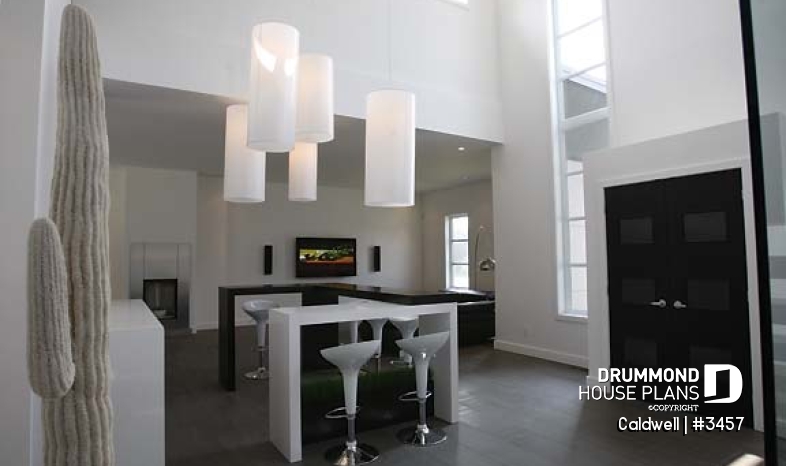

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

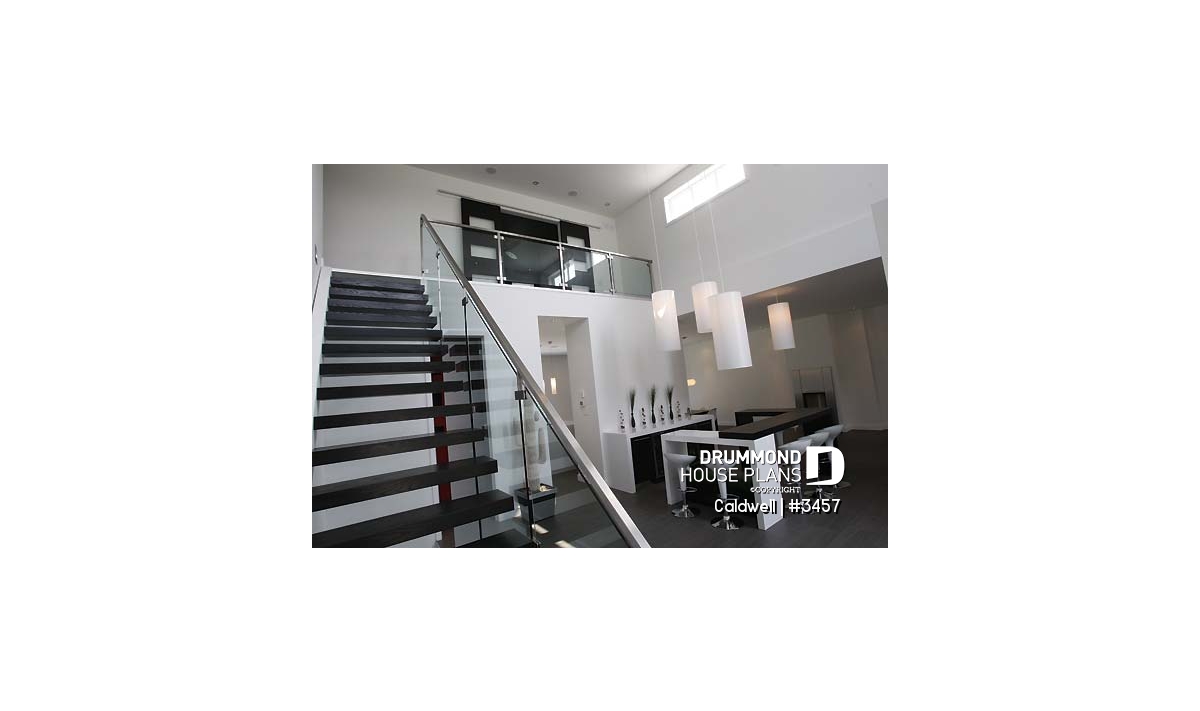

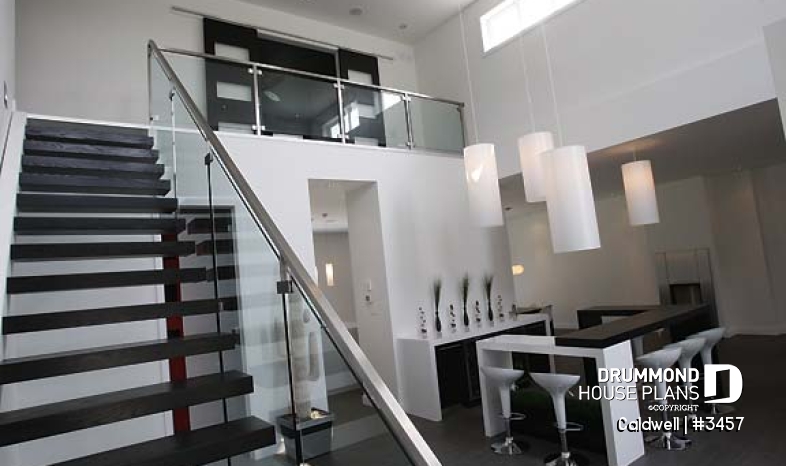

Stairs
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Caldwell (#3457) – Contemporary Multi-Level Home with Open Living Spaces and Flexible Family Layout
The Caldwell (#3457) is a striking multi-level home that reflects a modern and sophisticated approach to residential design. Created to balance style, comfort, and adaptability, this contemporary home offers generous living spaces and a thoughtful layout that meets the evolving needs of today’s families.
From the moment you step inside, the home impresses with its sense of openness. Tall ceilings enhance the main living areas, including the living room, dining area, and media space, creating an airy and inviting atmosphere. The kitchen stands at the heart of the Caldwell (#3457), featuring a functional layout, a welcoming lunch-style island, and expansive windows that connect the interior to the outdoors. A discreet home office nearby provides a quiet and practical workspace without disrupting the flow of daily life.
The dining area is elevated by custom built-in cabinetry with dedicated space for a wine display, and it shares a stunning three-sided fireplace with the living room, adding warmth and visual appeal. Service areas such as the powder room and laundry room are smartly tucked away, contributing to a clean and organized main level.
Upstairs, the primary suite serves as a private retreat, complete with a walk-in closet, a two-sided fireplace, and a built-in media unit. This level also includes a small additional bedroom, ideal as a nursery or young child’s room. A mezzanine leads to an outdoor terrace, offering a pleasant extension of the living space.
The lower level features two additional bedrooms, a shared bathroom, and a playroom or small lounge area, perfect for teenagers or guests. A partially unfinished basement provides valuable flexibility for future customization. With its integrated garage and direct access to the home, the Caldwell (#3457) delivers a modern, well-balanced living environment designed for comfort and long-term adaptability.
Distinctive elements
Modern three-level home with an integrated garage.
Impressive 10-foot ceilings in the media room, living room, and dining area, with approximately 9-foot ceilings throughout the remaining main living spaces.
8½-foot ceilings on the upper level, providing balanced proportions and everyday comfort.
Striking kitchen featuring a dramatic five-panel patio door, expanded refrigerator space, and a central lunch-style island.
Discrete home office nook set apart from the kitchen area.
Laundry room and powder room thoughtfully located near the kitchen, yet tucked away from main living areas.
Dining room enhanced with custom built-in cabinetry, including dedicated space for a wine cellar, and sharing a three-sided open fireplace with the living room.
Elegant primary suite on the upper level, offering a walk-in closet, a two-sided fireplace, and a built-in media unit.
Access to an outdoor terrace from the upper-level mezzanine.
Small additional bedroom on the upper level, perfectly suited as a nursery or a young child’s bedroom.
Two comfortable bedrooms on the lower level, each connected to a playroom or small lounge area and a shared bathroom.
Partially unfinished basement providing excellent potential for future customization.
Garage with direct access to the home near the kitchen, along with a staircase leading down to the basement.
Plan feature(s)
Fireplace, Balcony 2nd floor, Office / Study / Den, Separate bath and shower, Double sinks, Island, Gound floor laundry room, Ceiling over 8', Master suite upstairs, Walk-in master bed., 2-Story foyer, Game room
