House plan Chester (2647)
Traditional home plan with 3 to 5 bedrooms, a large kitchen with breakfast table, 9' ceiling, home office
View the size of the rooms and height of the ceilings

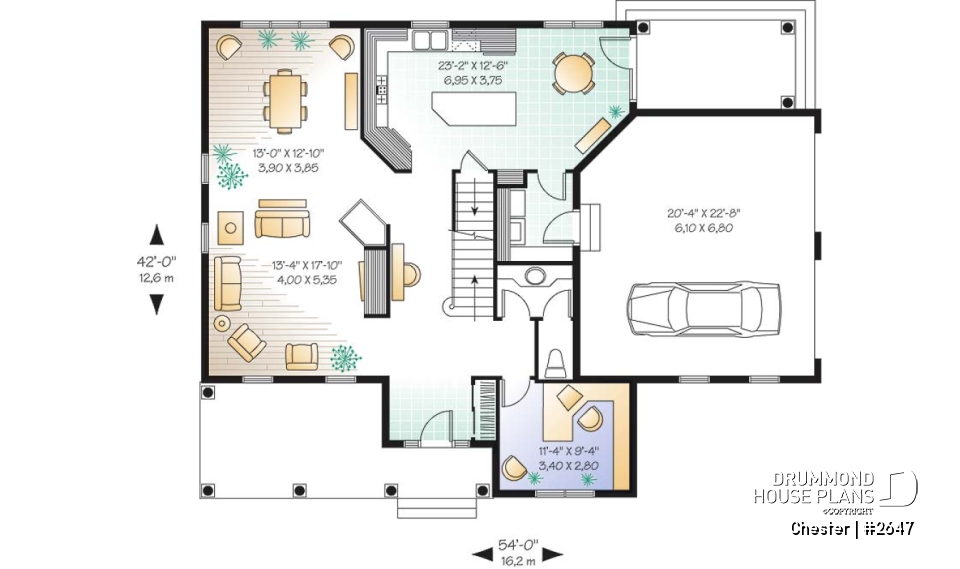

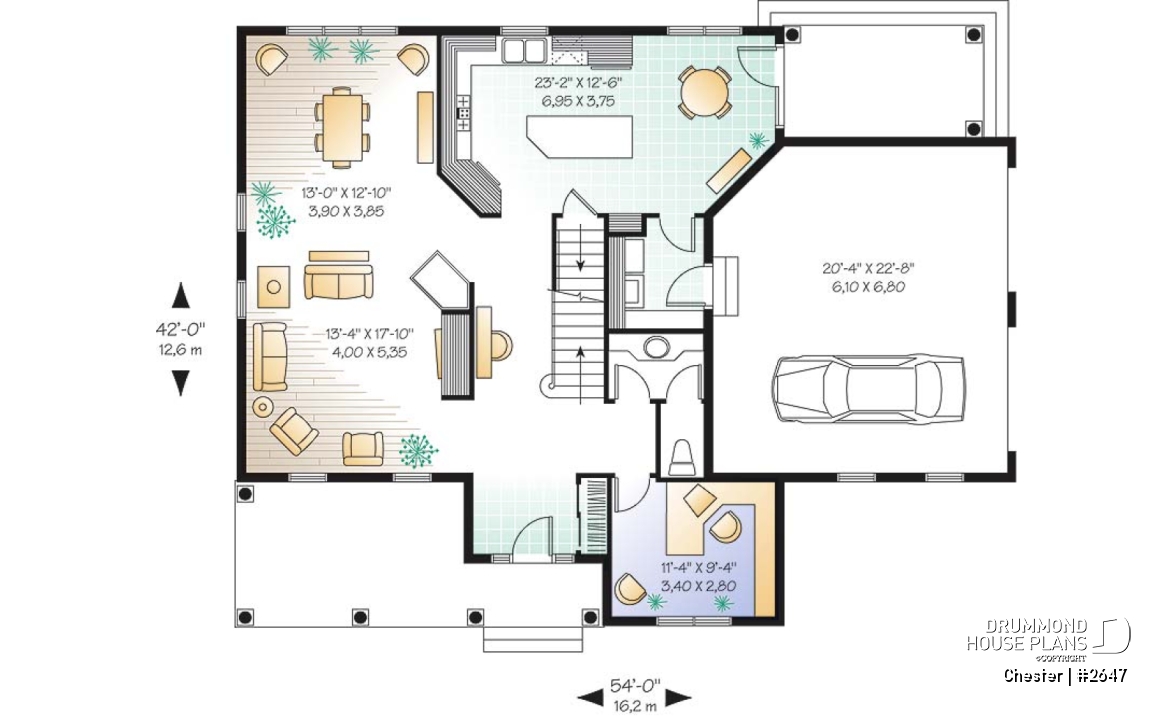

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 11'8" x 8'2" | ~ 8'0" |
| Dinette | 23'2" x 12'6" | ~ 9'0" |
| Dining room | 13'0" x 12'10" | ~ 9'0" |
| Living room | 13'4" x 17'10" | ~ 9'0" |
| Home office | 11'4" x 9'4" | ~ 9'0" |
| Utility room | 6'8" x 7'9" | ~ 9'0" |
| Garage | 20'4" x 22'8" | ~ 10'8" |
| Porch | 25'5" x 10'1" | N/A |
| Porch | 13'6" x 8'0" | N/A |
| Half bath or powder room | 6'8" x 10'1" | ~ 9'0" |
| Foyer | 7'2" x 5'4" | ~ 9'0" |

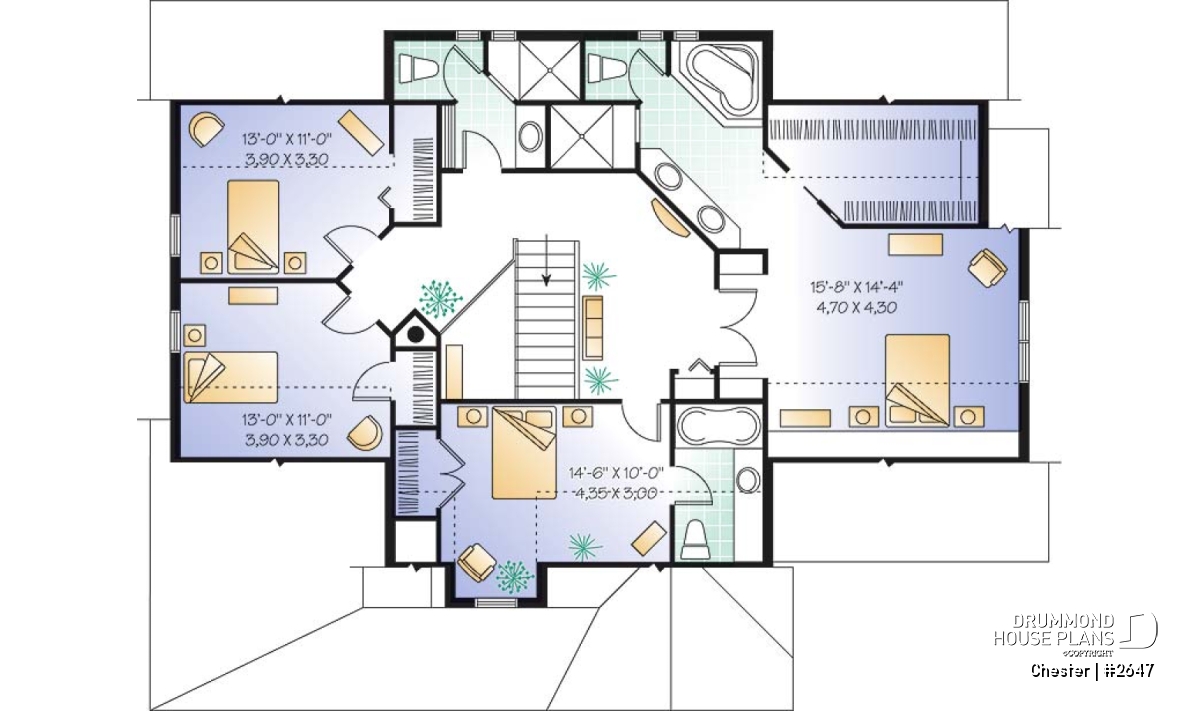

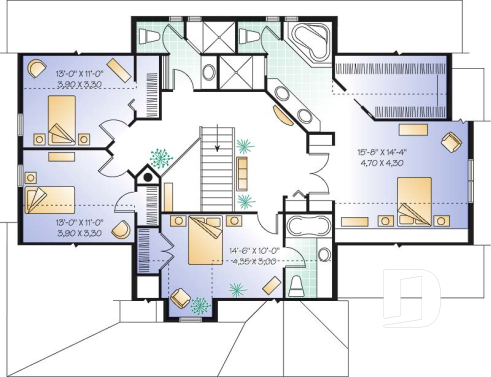

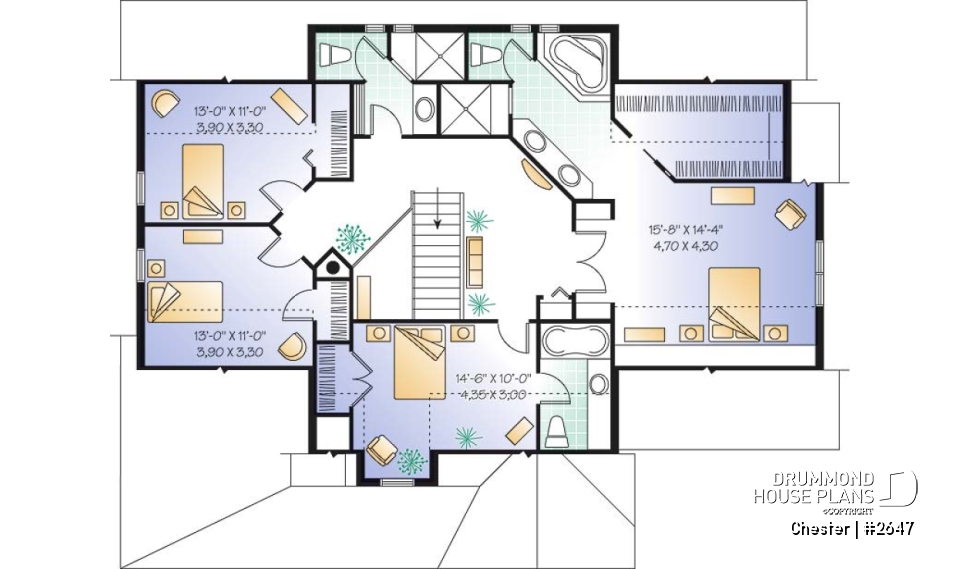

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 14'6" x 10'0" | ~ 8'0" |
| Bedroom | 13'0" x 11'0" | ~ 8'0" |
| Bedroom | 13'0" x 11'0" | ~ 8'0" |
| Master suite | 15'8" x 14'4" | ~ 8'0" |
| Linen | 2'6" x 1'8" | ~ 8'0" |
General specifications
| Total living area | 2768 sq.ft. |
| 1st level | 1296 sq.ft. |
| 2nd level | 1472 sq.ft. |
| Width | 54'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 31'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
Beautiful country style house plan with 2 master suites and den!
.
Distinctive elements
9' ceiling. Comfortable covered balcony at front, home office, workeable kitchen, breakfast area and 4 well organized bedrooms.
Plan feature(s)
Fireplace, Ceiling over 8', Gound floor laundry room, Office / Study / Den, Side entry garage, Master suite upstairs, Guest suite, Deck, Breakfast nook, Island, Walk-in master bed., Separate bath and shower, Sloped ceiling, Formal dining room
Plan architectural style(s)
. Country, . American, . Rustic, . Farmhouse, . Transitional, . Modern rustic, . Traditional, . Canadian
