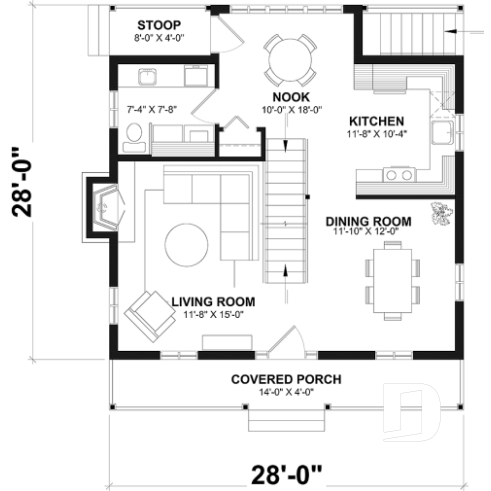

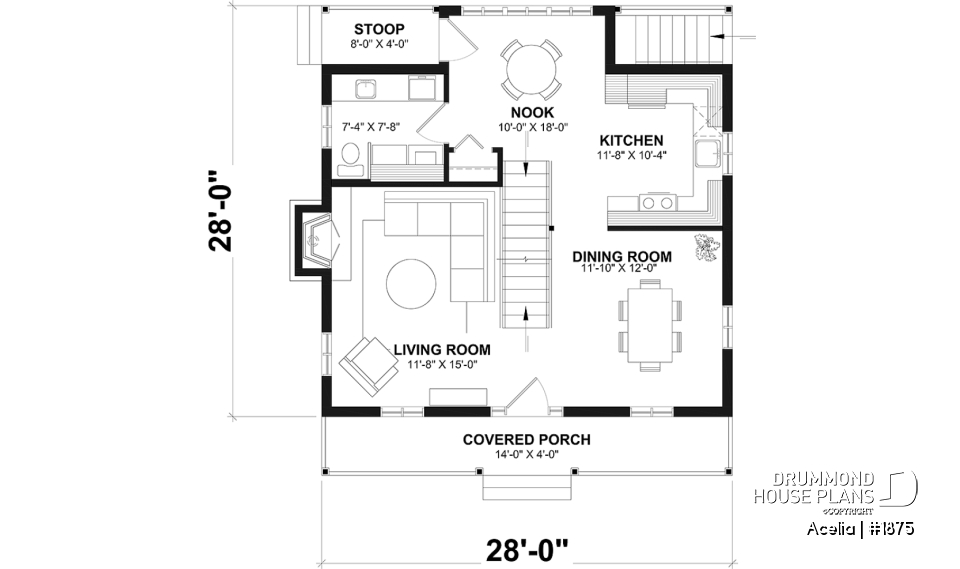

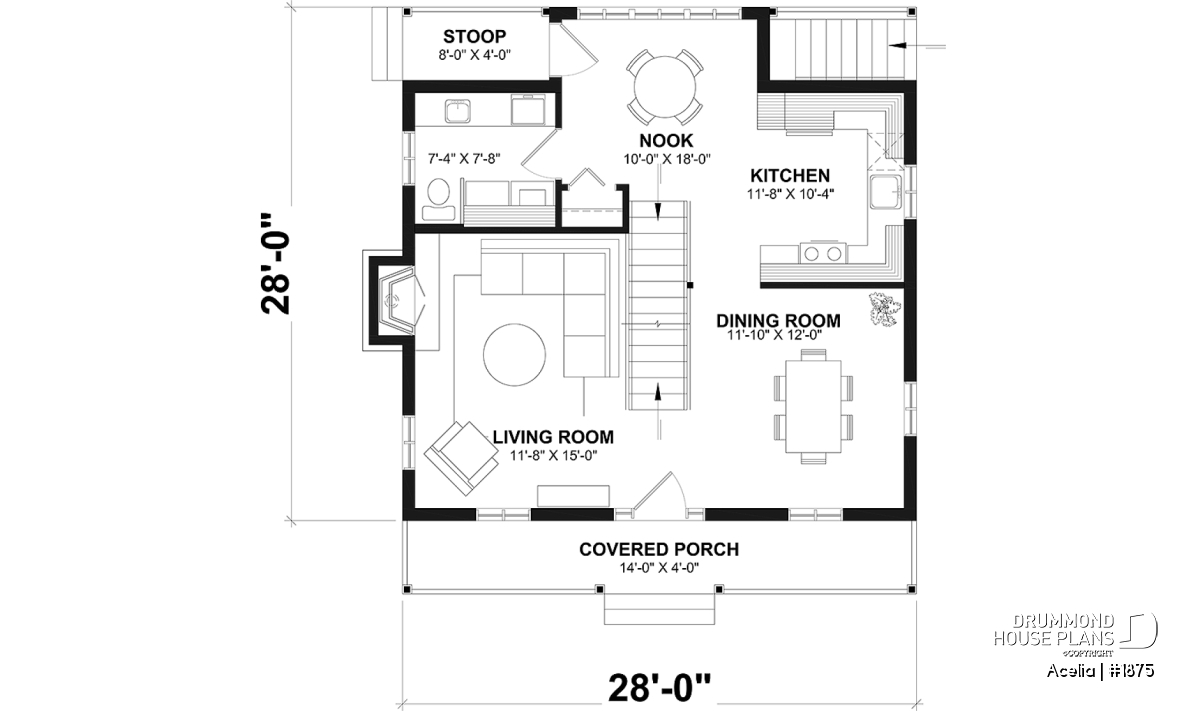

1st level

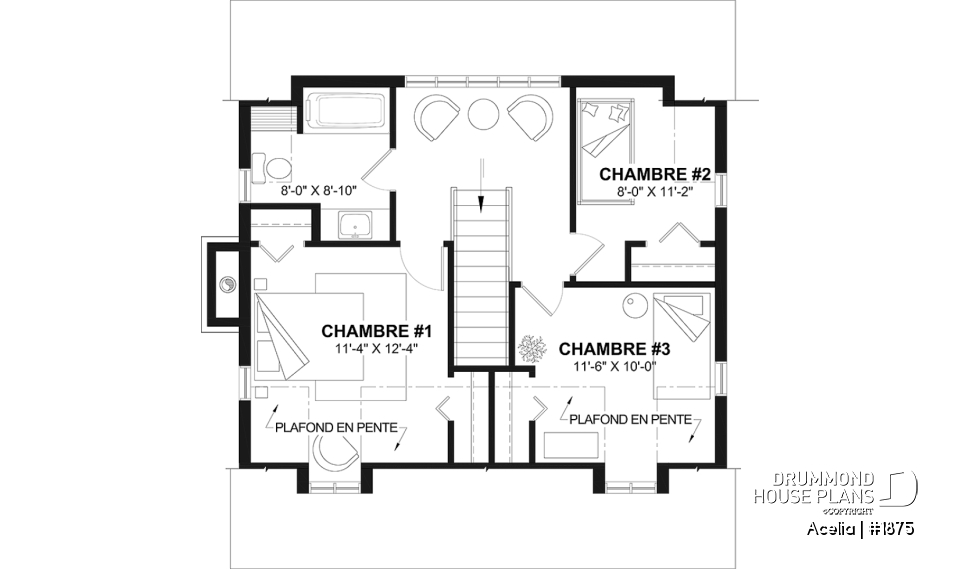

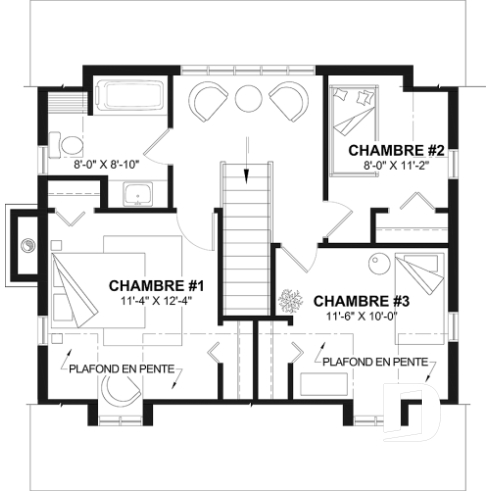

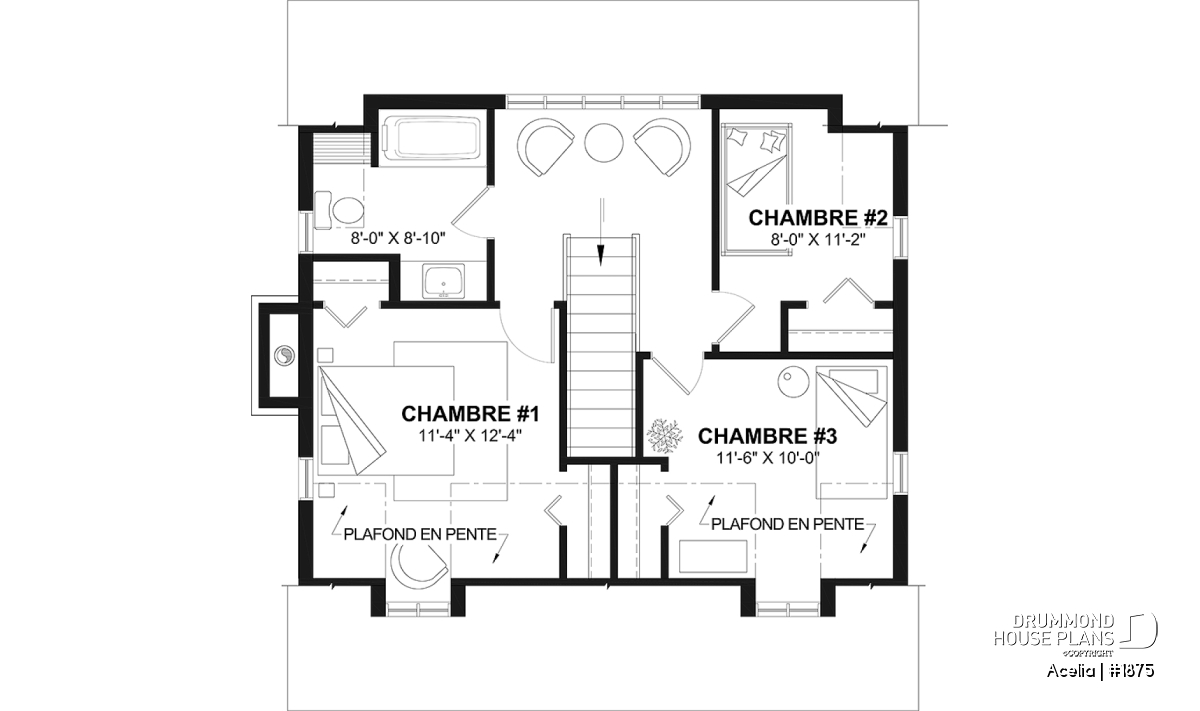

2nd level

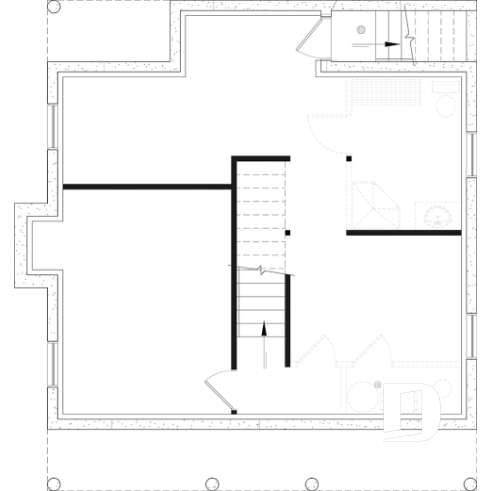

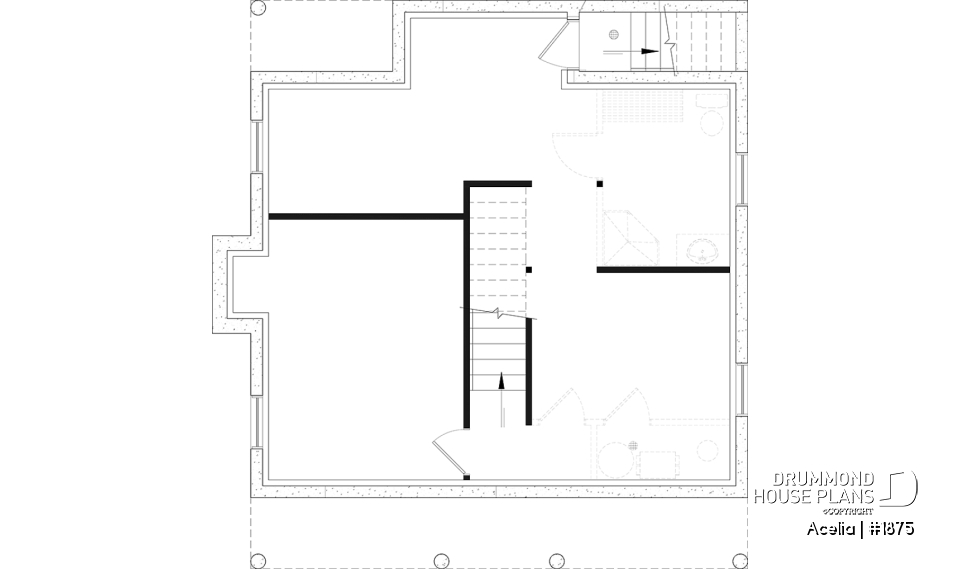

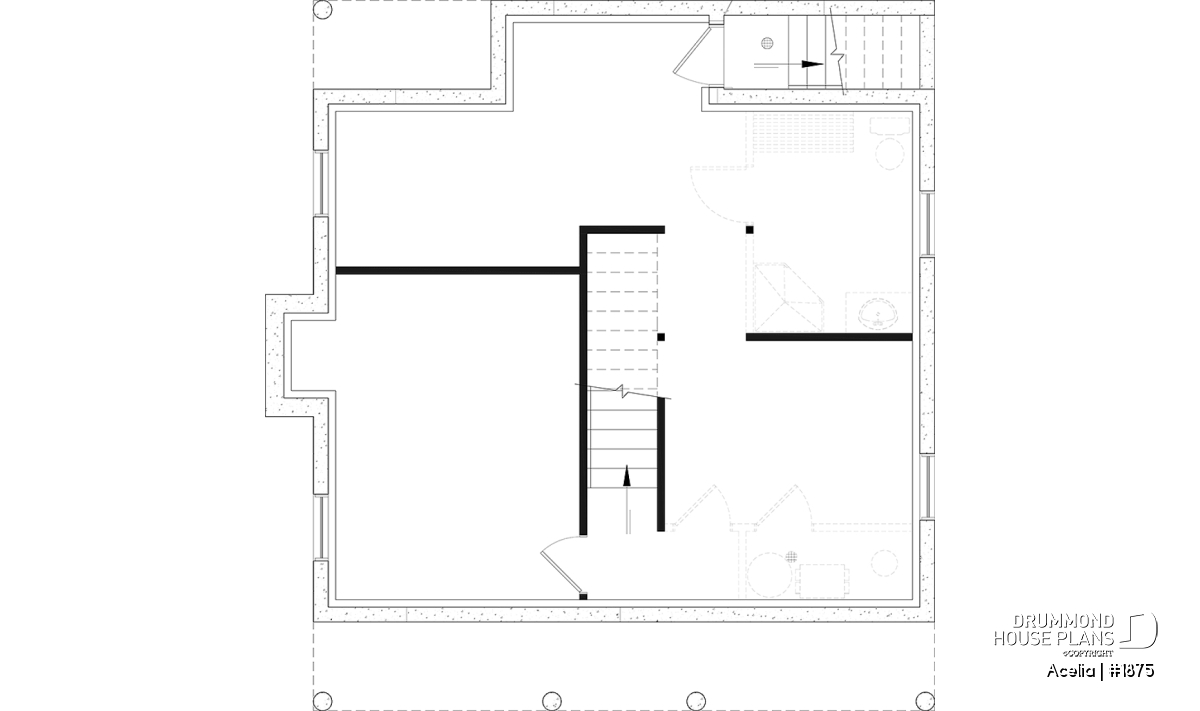

Basement

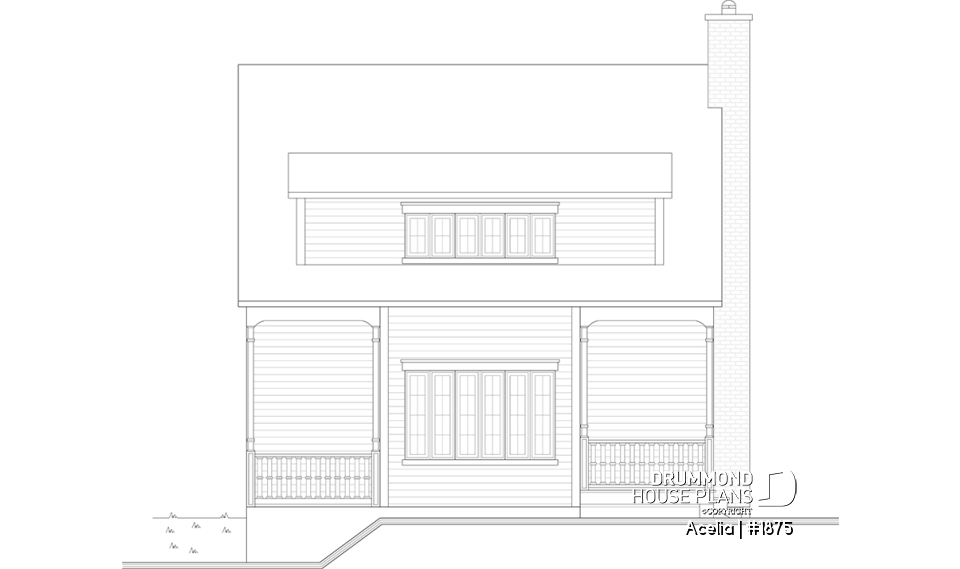

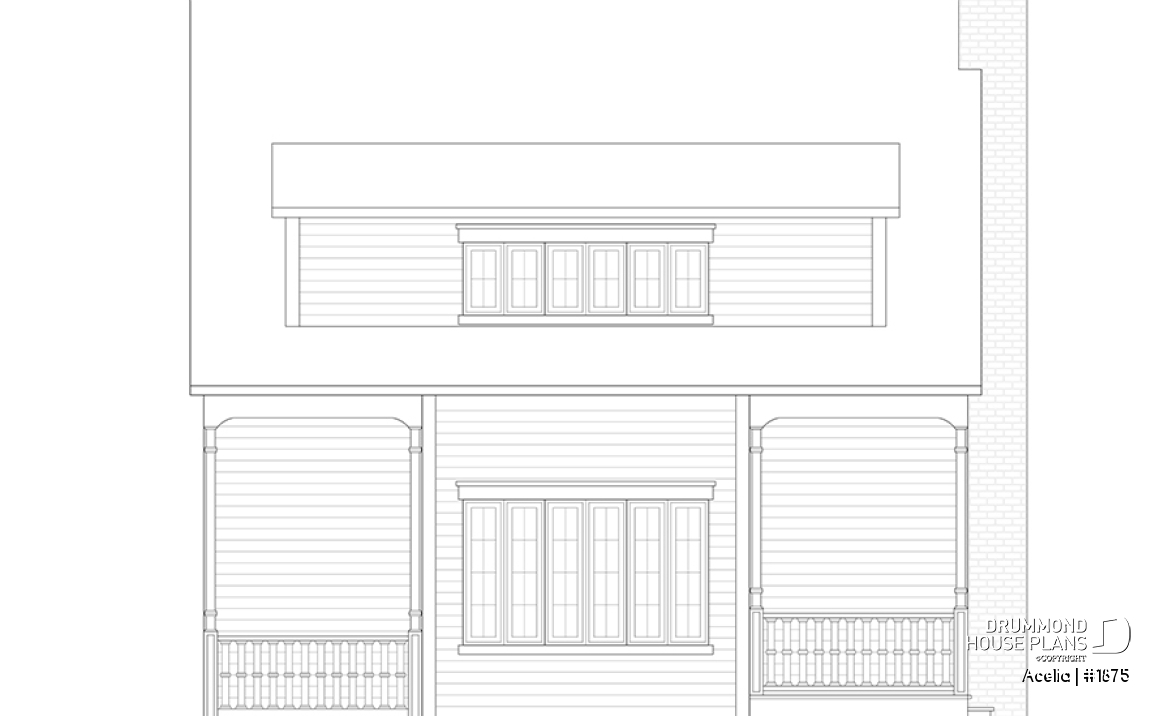

rear elevation
Acelia House plan 1875
Small, historic Canadian style house plan, 3 bedrooms, fireplace, laundry on main, sitting room on 2nd floor
Starting from
1515$
| Technical details summary | Plan #1875 | ||
|---|---|---|---|
| Total living area | 1392 sq.ft. | Bedroom | 3 |
| Full baths | 1 | Half baths | 1 |
| Foundation included | Unfinished Basement | Garage | - |
| Width | 28'0" | Depth | 28'0" |
Additional details
General specifications
Total living area
1392 sq.ft.
1st level
720 sq.ft.
2nd level
672 sq.ft.
Basement
720 sq.ft.
Width
28'0"
Depth
28'0"
Ridge height from top of foundation
26'4"
Exterior wall
2 X 6
Unfinished Basement
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
C
Rooms specifications
Bedroom(s)
3
Full baths
1
Half baths
1
Garage type
-
Covered porch area
144 sq.ft.
1st level
Rooms
Sizes
Ceiling
Kitchen
8'0" x 10'4"
~ 8'0"
Breakfast nook
10'8" x 9'0"
~ 8'0"
Dining room
11'10" x 12'0"
~ 8'0"
Living room
11'8" x 15'0"
~ 8'0"
Closet
4'10" x 2'0"
~ 8'0"
Porch
28'0" x 4'0"
N/D
Porch
8'0" x 4'0"
N/D
Half bath or powder room
7'8" x 7'2"
~ 8'0"
2nd level
Rooms
Sizes
Ceiling
Full bathroom
8'0" x 8'6"
~ 8'0"
Bedroom
11'4" x 13'10"
~ 8'0"
Bedroom
11'6" x 11'2"
~ 8'0"
Bedroom
8'0" x 8'10"
~ 8'0"
Basement
Canadian style small house plan with 3 bedrooms and 2 baths
Still as charming as when it first came out on the market, this Canadian style home, inspired by traditional Kamouraska homes, suggests curved roofs and arched walls to better protect against the strong winds specific to this lower St. Lawrence region.
Perimeter windows and a fireplace provide light and comfort to the home, while at the back, a solarium dinette divides what could have been another large gallery into a well-integrated basement descent on the one hand and a covered gallery on the other.
On the ground floor, the central location of the staircase makes it possible to obtain, for a reasonable square of house, very beautiful spaces all characterized by the presence of windows on two adjoining walls. We particularly note here, a pleasant solarium dinette overlooking the back, while upstairs, three interesting bedrooms, a decent bathroom and a boudoir space are organized around the staircase. The latter is also very well lit thanks to the abundant windows in the boudoir area upstairs.
Distinctive elements
Charming Canadian style house plan.
Large covered front porch.
Small rear covered balcony.
Beautiful natural light in the breakfast area.
Fireplace in the living room.
Formal dining room.
Half-bath with laundry area, on main floor.
Small boudoir upstairs.
Sloped ceiling in the master bedroom and bedroom #3.
Access to the basement from the outside.
Plan feature(s)
Fireplace, Breakfast nook, Sitting area, Gound floor laundry room, Access to basement from exterior, Sloped ceiling, Formal dining room, Covered patios
Plan architectural style(s)
The plan Acelia is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
