House plan Joshua 2 (1703-V1)

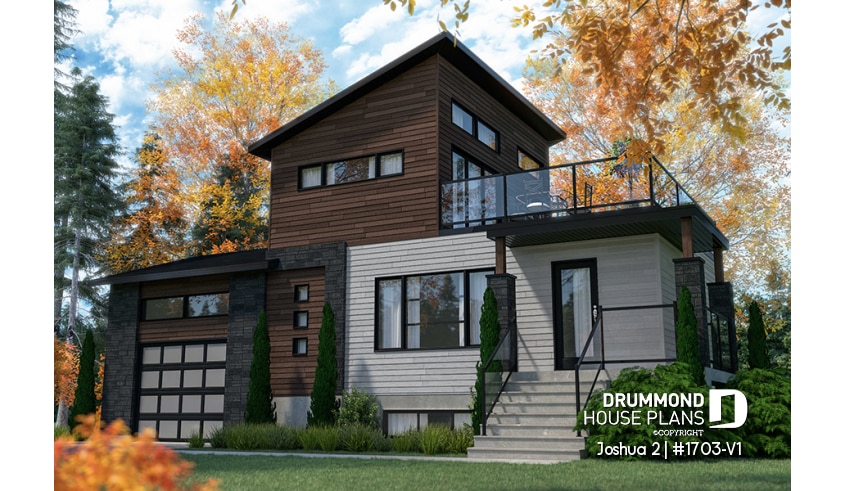

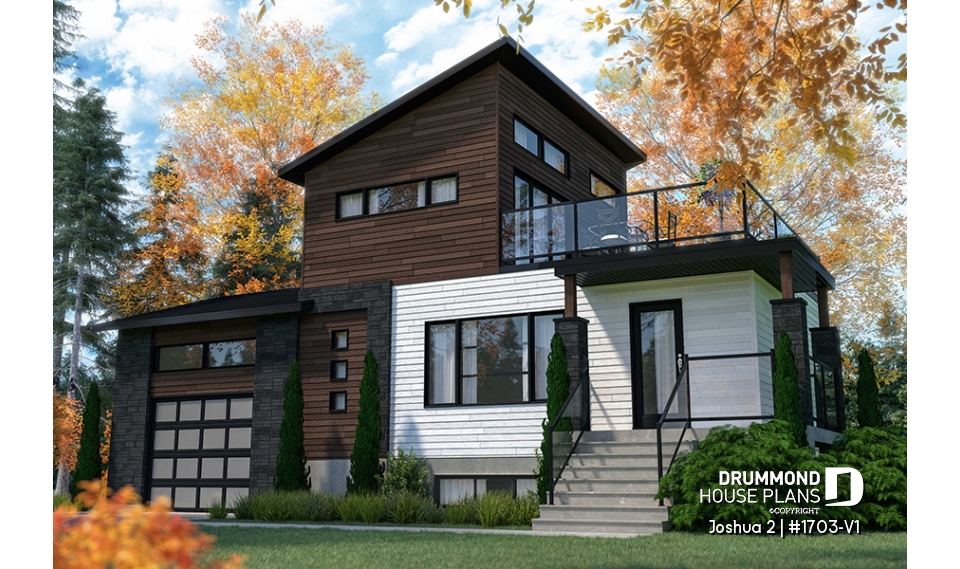

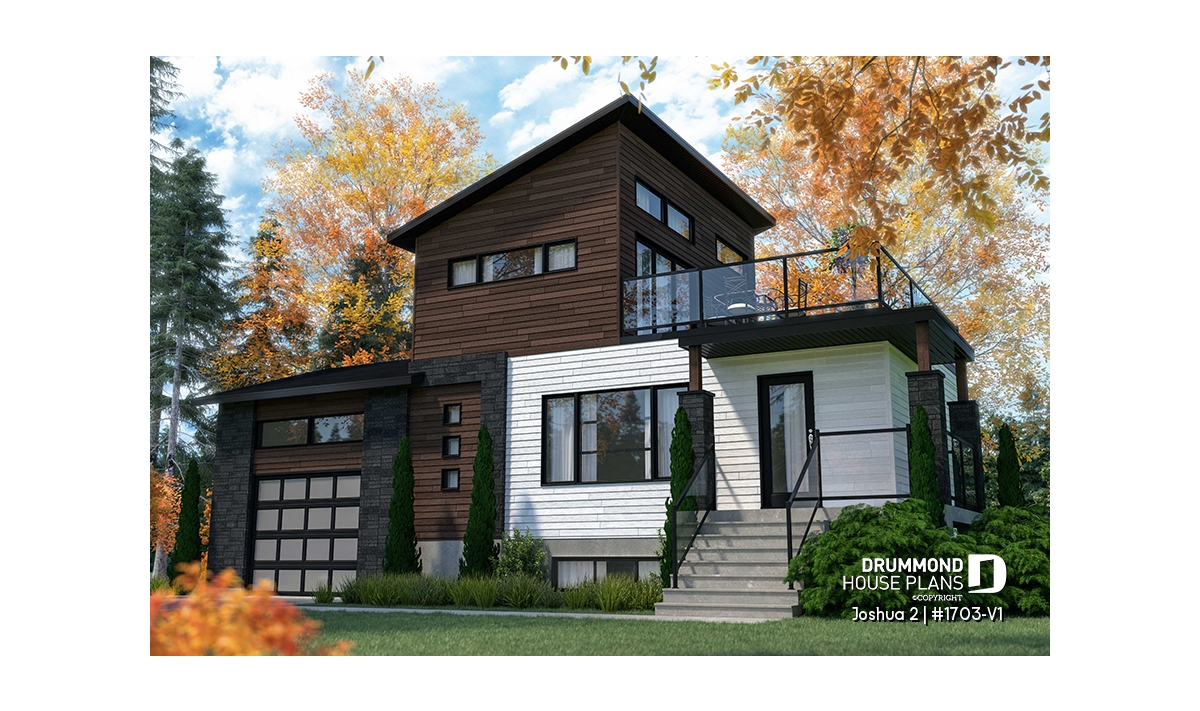

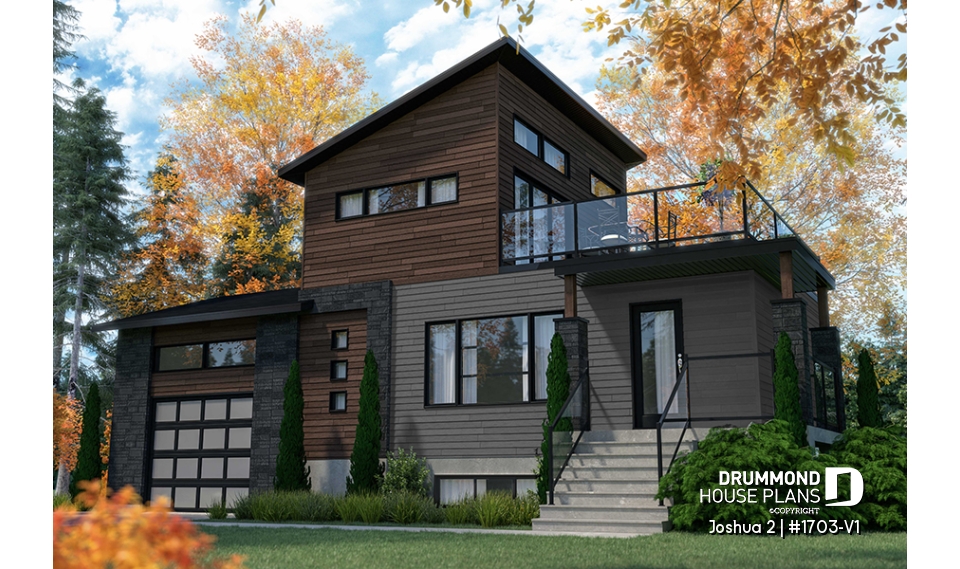

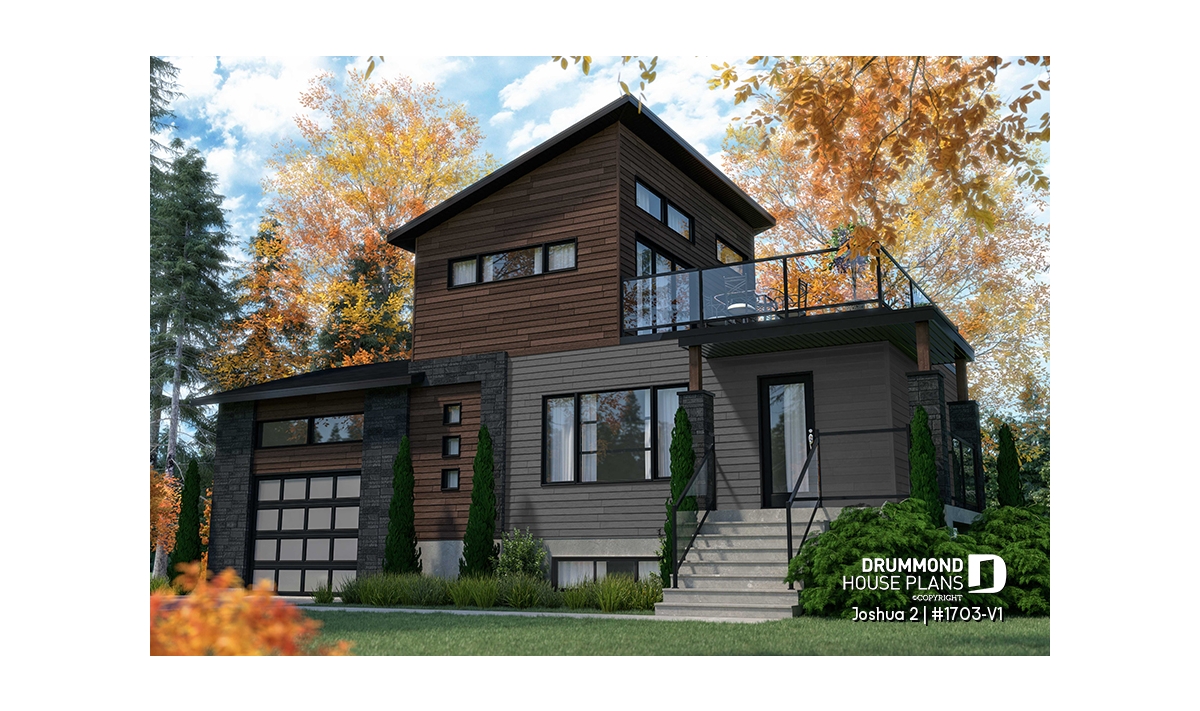

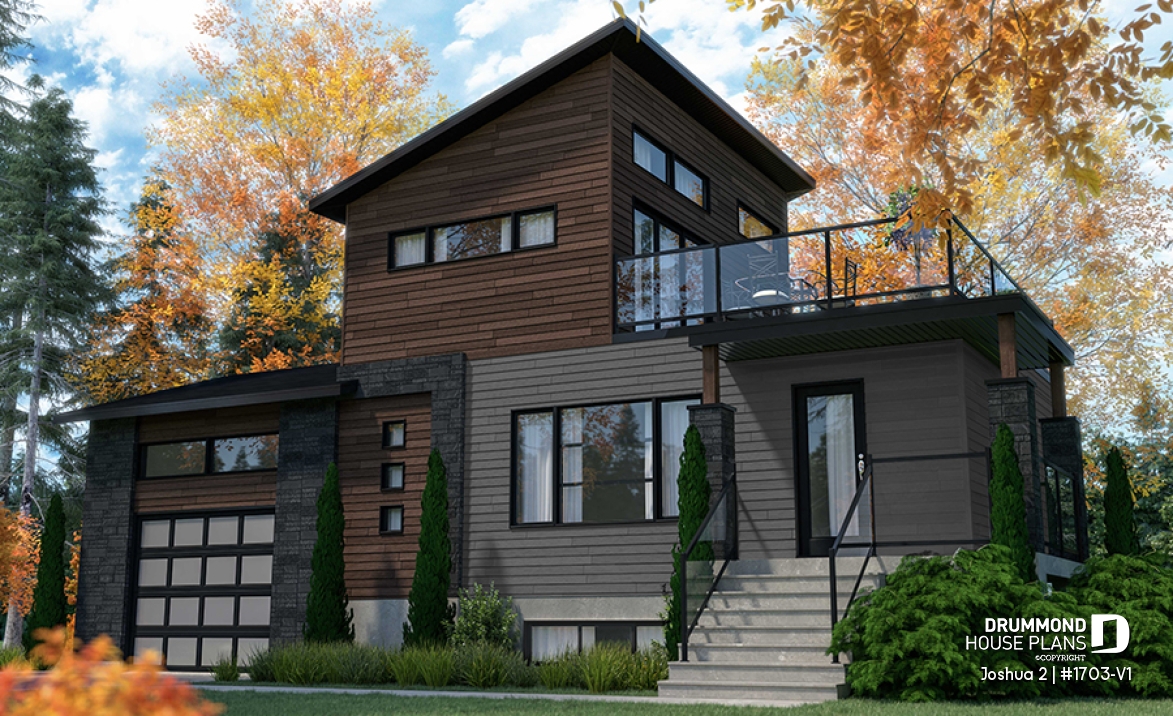

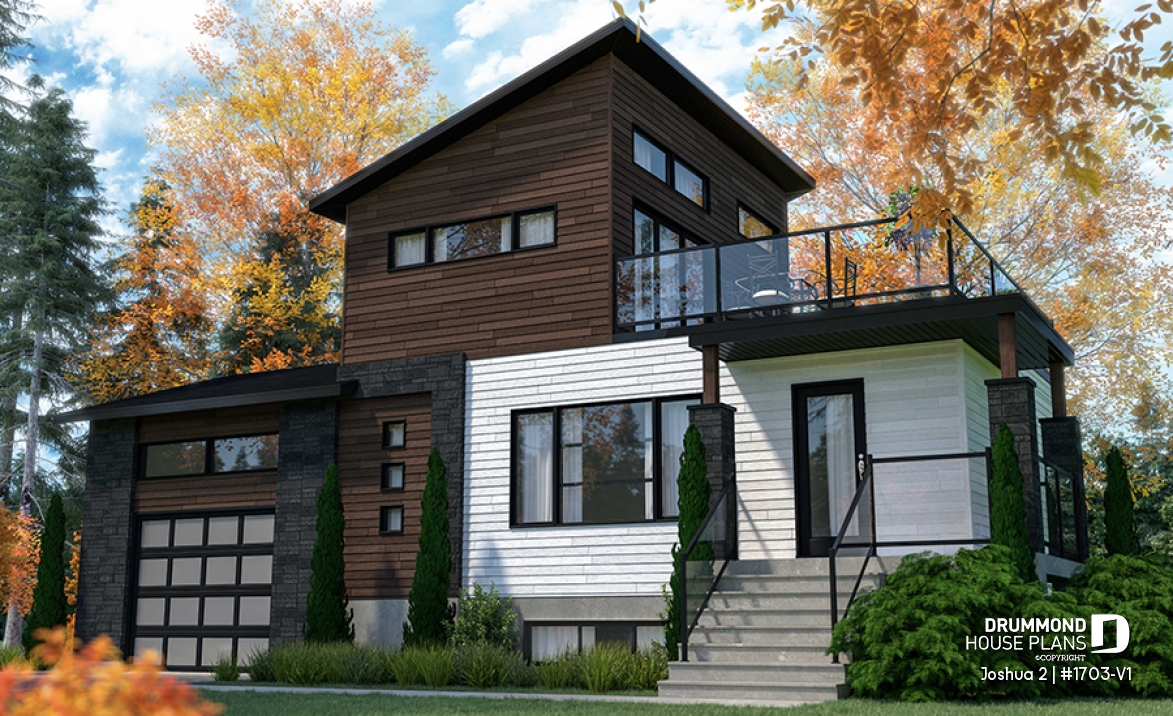

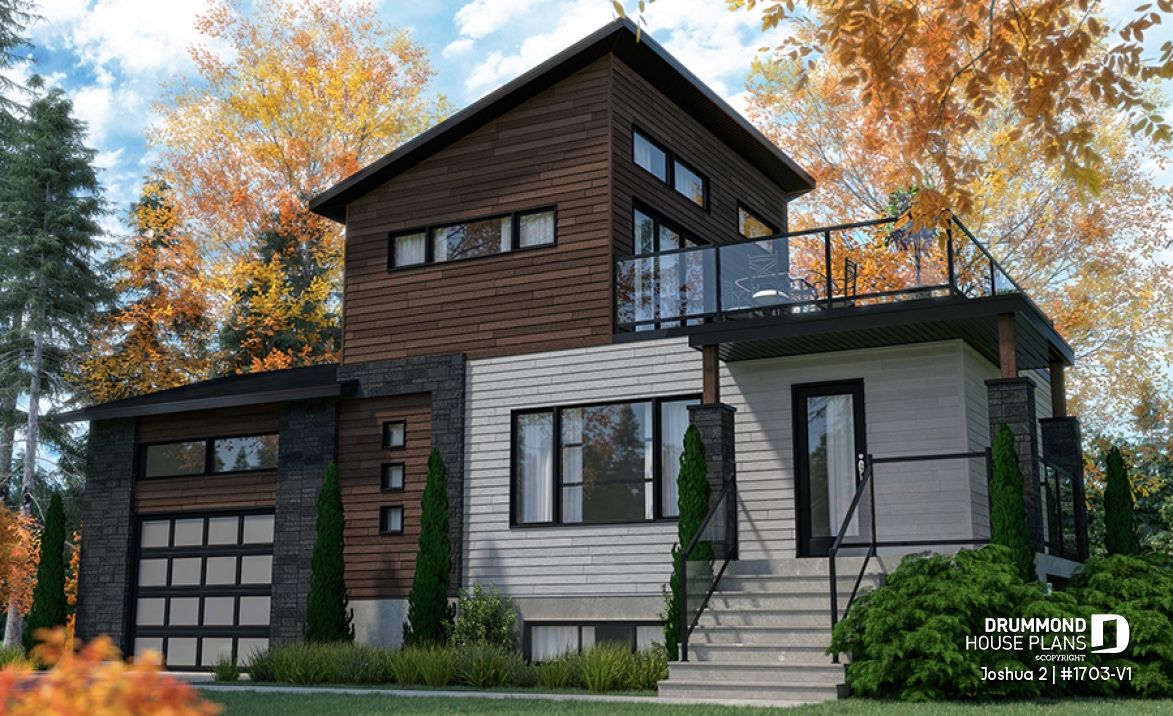

Modern unique 2 storey house plan, master suite on second floor with private large terrace, garage, and more!
View the size of the rooms and height of the ceilings

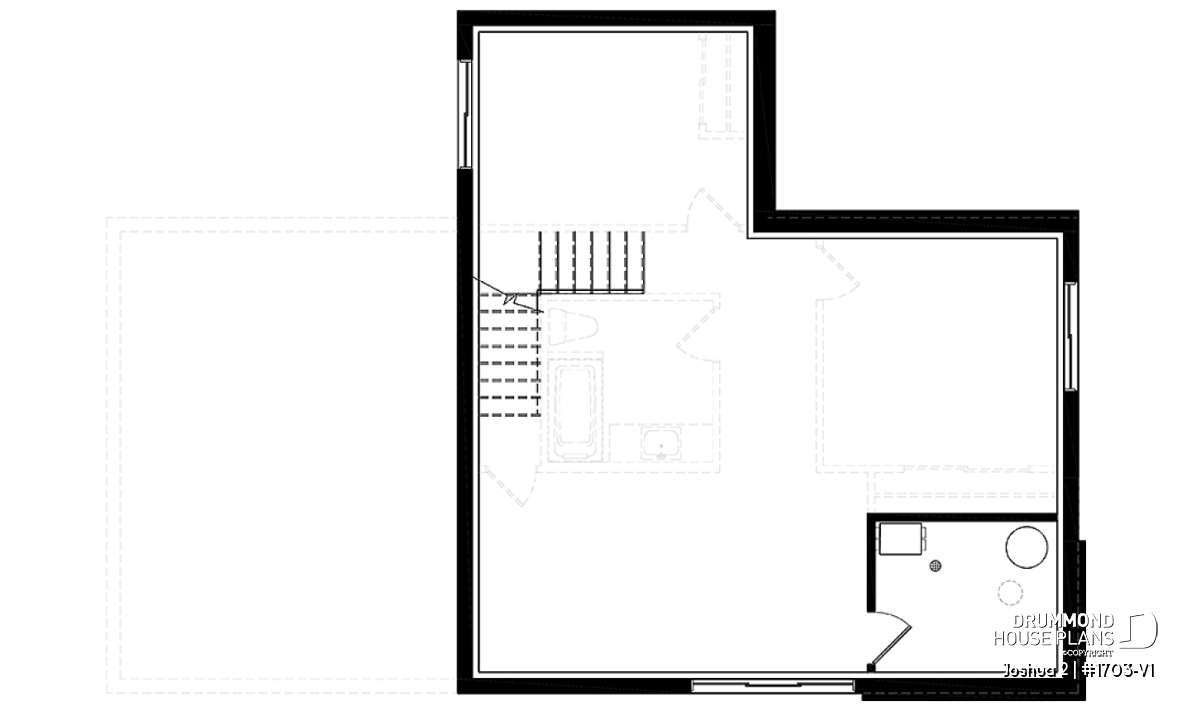

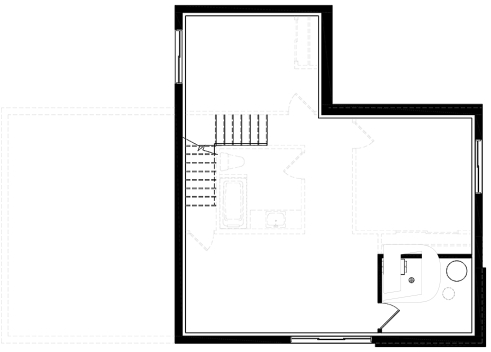

| Basement |
|---|

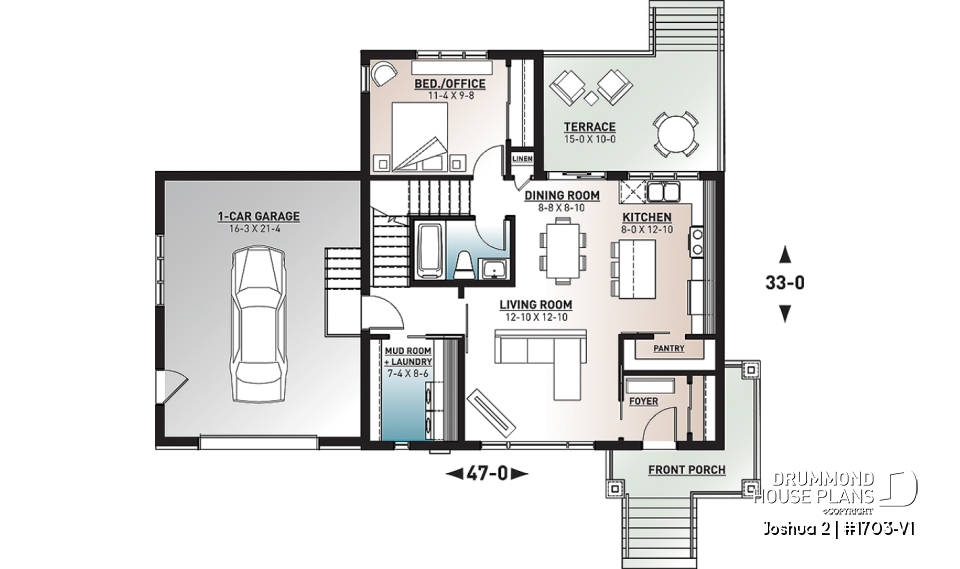

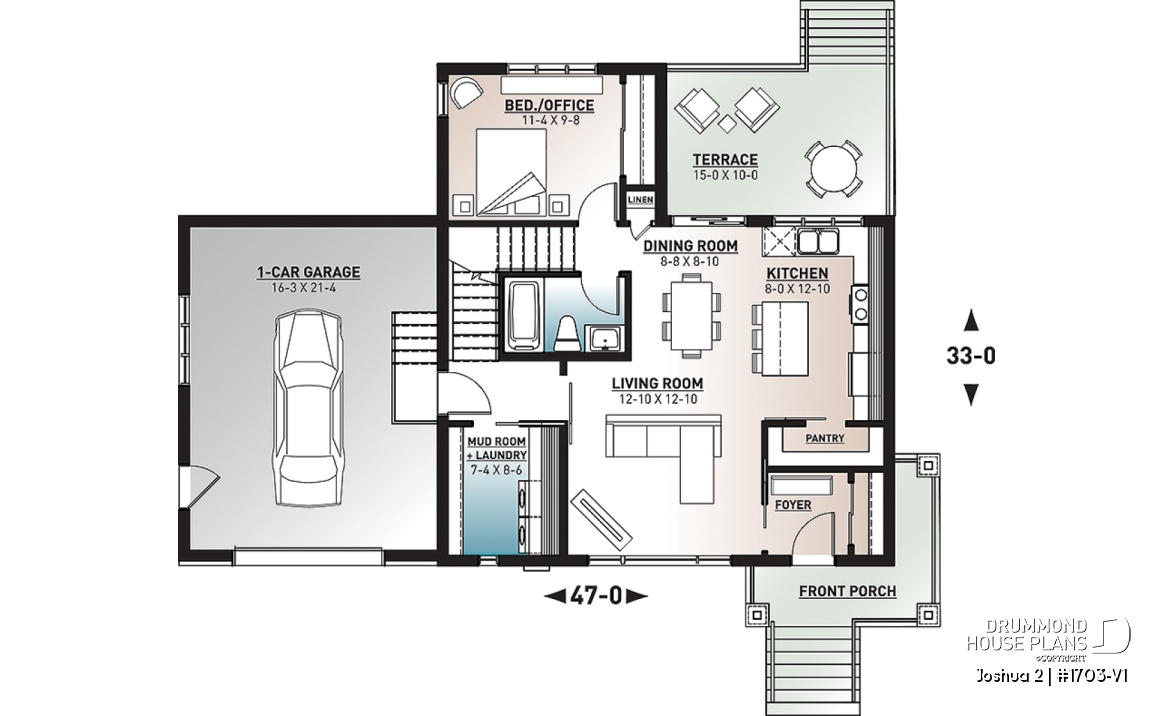

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'4" x 10'0" | ~ 8'0" |
| Closet | 2'0" x 7'4" | ~ 8'0" |
| Kitchen | 8'0" x 12'10" | ~ 8'0" |
| Pantry | 7'8" x 2'8" | ~ 8'0" |
| Foyer | 5'4" x 5'5" | ~ 8'0" |
| Closet | 2'0" x 5'5" | ~ 8'0" |
| Garage | 16'4" x 21'4" | ~ 12'5" |
| Porch | 12'9" x 4'0" | ~ 8'4" |
| Dining room | 8'8" x 8'10" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Deck | 15'0" x 10'4" | N/A |
| Mud room | 7'4" x 8'8" | ~ 8'0" |
| Living room | 12'10" x 12'10" | ~ 8'0" |
| Full bathroom | 8'0" x 5'0" | ~ 8'0" |

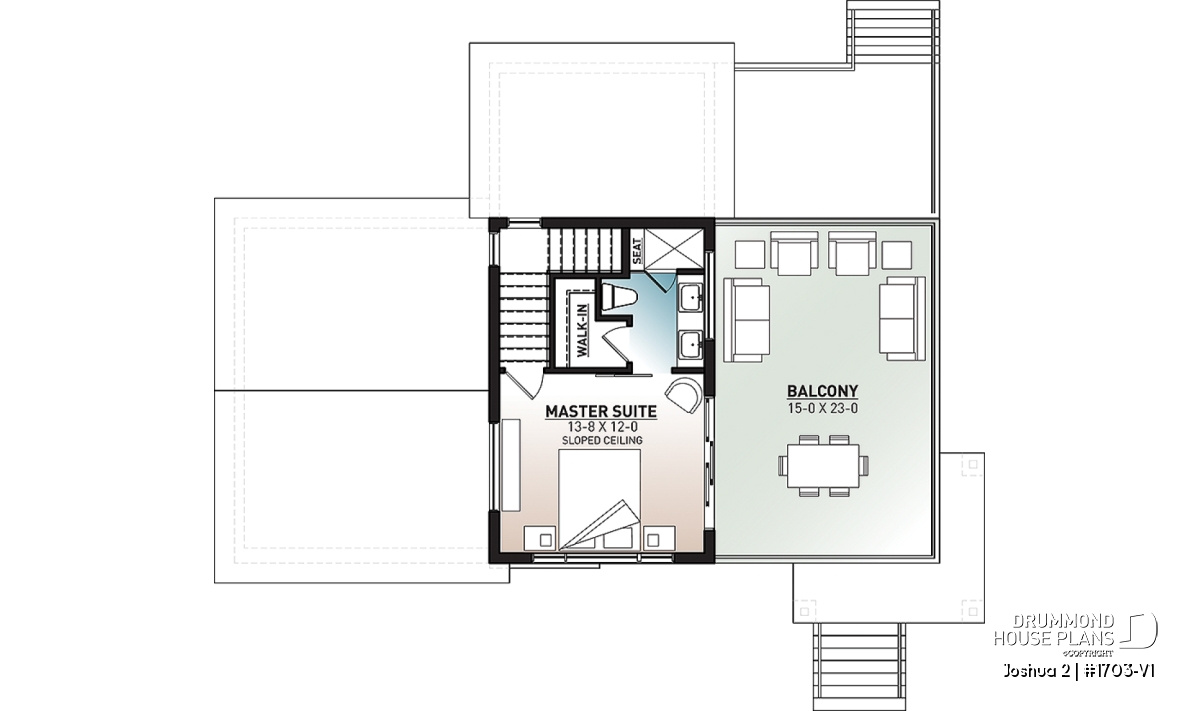

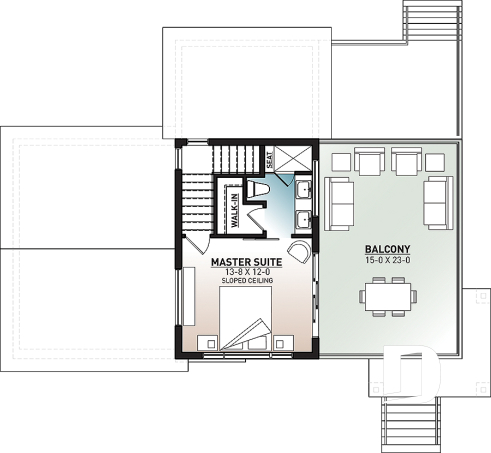

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'8" x 12'0" | ~ 11'10" |
| Shower room or three quarter bath | 4'10" x 9'8" | ~ 11'10" |
| Walk-in closet | 5'0" x 8'0" | N/A |
| Deck | 15'0" x 23'0" | N/A |
General specifications
| Total living area | 1188 sq.ft. |
| Basement | 843 sq.ft. |
| 1st level | 843 sq.ft. |
| 2nd level | 345 sq.ft. |
| Width | 47'0" |
| Depth | 33'8" |
| Ridge height from top of foundation | 29'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Stunning modern small house plan with great master suite with private terrace (on second floor)!
The Joshua 2 house plan (1703-V1) offers 1188sqft of living space. The height of the ground floor ceilings are a standard height of 8ft. Entering this modern house, a vestibule separates us from the living room, kitchen and dining room which are open plan.

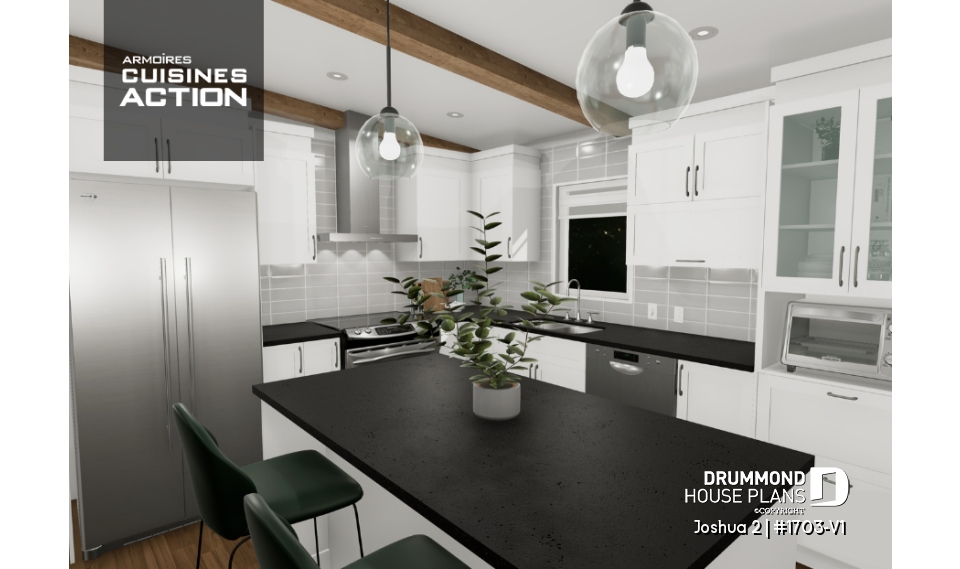

The kitchen has a large island and a walk-in style pantry. It overlooks the open-air dining room and the latter is illuminated by the patio door which opens onto the first terrace, an interesting size to receive several guests and enjoy the outdoors.
In terms of convenience, a mudroom including space for a washer and dryer is located on the ground floor, near the access to the garage. The latter, of a simple size, remains of an interesting size to install a workshop and additional storage.
The ground floor bedroom is at the back of the house. The dimensions allow several uses, such as a standard bedroom or an office for teleworking.
Upstairs is the parents' suite. With 10ft ceilings. Including a full bathroom, a bedroom of 13-8 x 12, opening onto the second (and not the least!) Terrace of a spectacular size of 15 x 23
Distinctive elements
Well designed Modern 2 storey-house plan.
Great master suite on second floor with ensuite, walk-in and private x-large terrace.
Open kitchen, dining and living room concept on main floor.
Flex room can be a second bedroom or home office, or playroom.
Great smaller terrace off the kitchen.
Large laundry room and mud room on main floor.
One-car garage.
Plan feature(s)
Open floor layout, Mud room, Gound floor laundry room, Pantry, Island, Balcony 2nd floor, Master suite upstairs, Sloped ceiling, Walk-in master bed., Entrance hall, Double sinks
Plan architectural style(s)
. Modern / Design, . Contemporary, . Modern rustic, . Cottage, chalet, cabin, . Ski chalets, . Mid-century
Similar plans
Previously Viewed Plans
Questions and comments
December 25
Lesley Smith
Hello,
Can I change the plan so it is reversed and the upstairs patio is on the other side?
Thanks,
Lesley
January 06
Customer Service
Hello Lesley,
We can adjust the house plan to reflect your requests, no problem.
Please fill up this form to get your free plan modification quote: drummondhouseplans.com/plan-modification-request-form/1003312
And contact if you need more information:
Phone: 1-800-567-5267 ext. 109
Email: [email protected]
Thanks!
