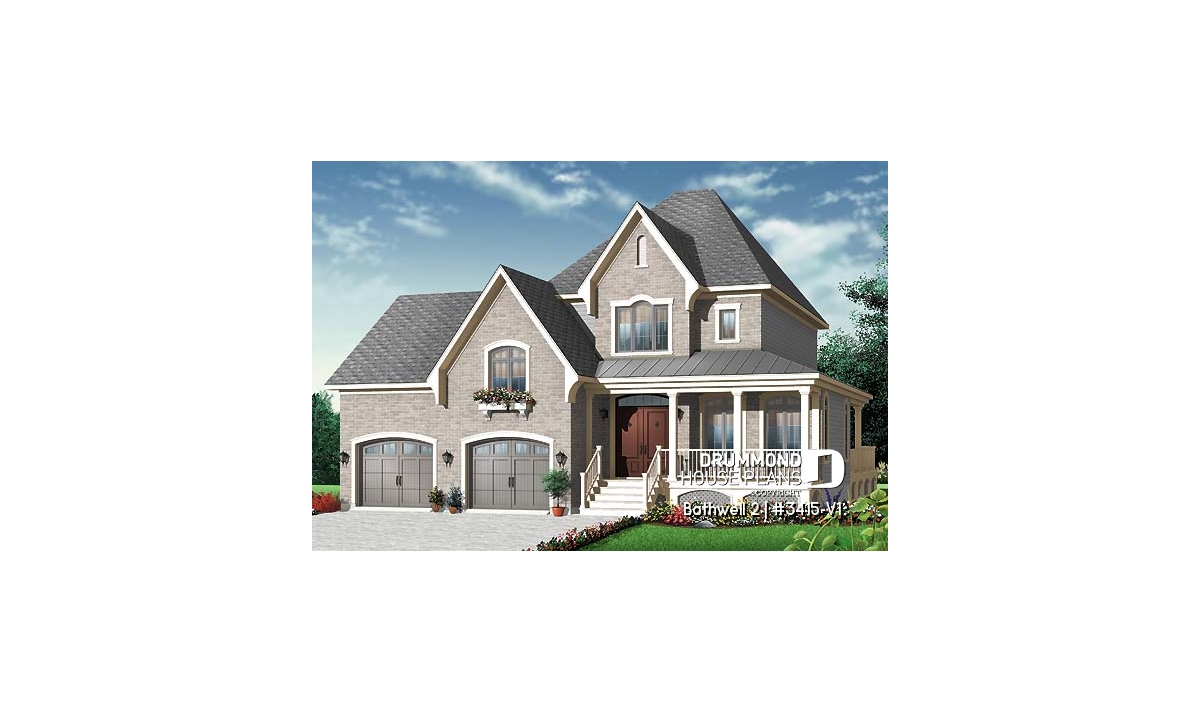

House plan Bothwell 2 (3415-V1)

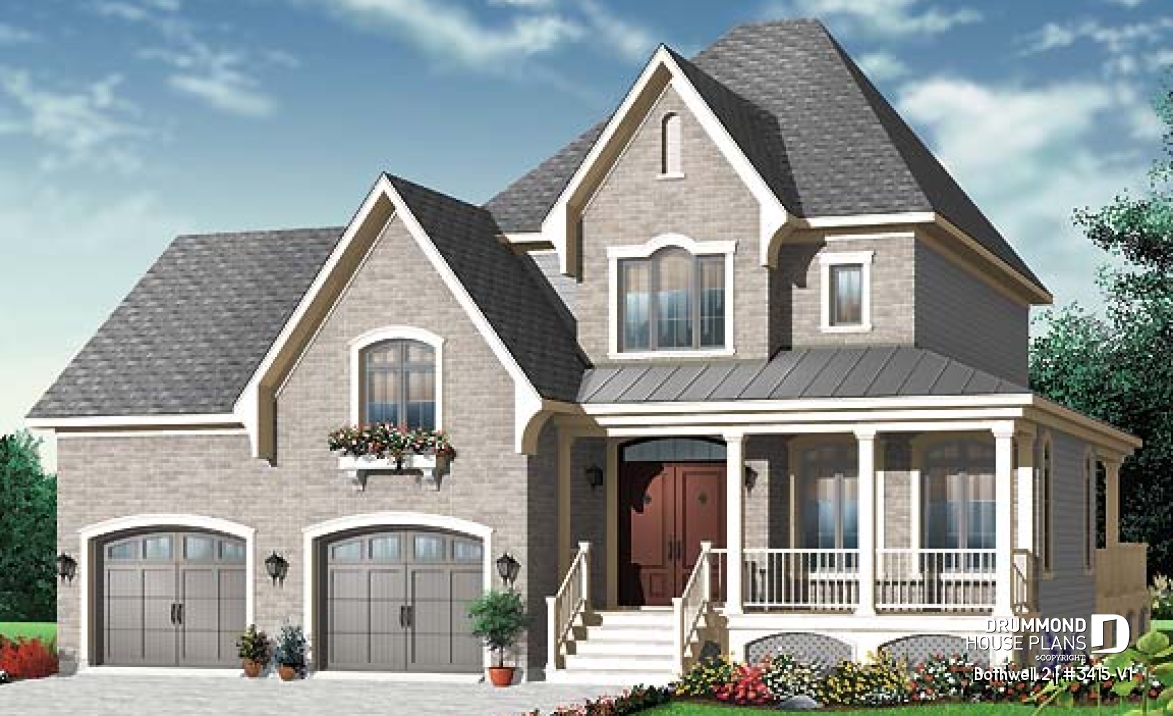

Country style home, 3 bedrooms, large family room, a home office and a double garage
View the size of the rooms and height of the ceilings

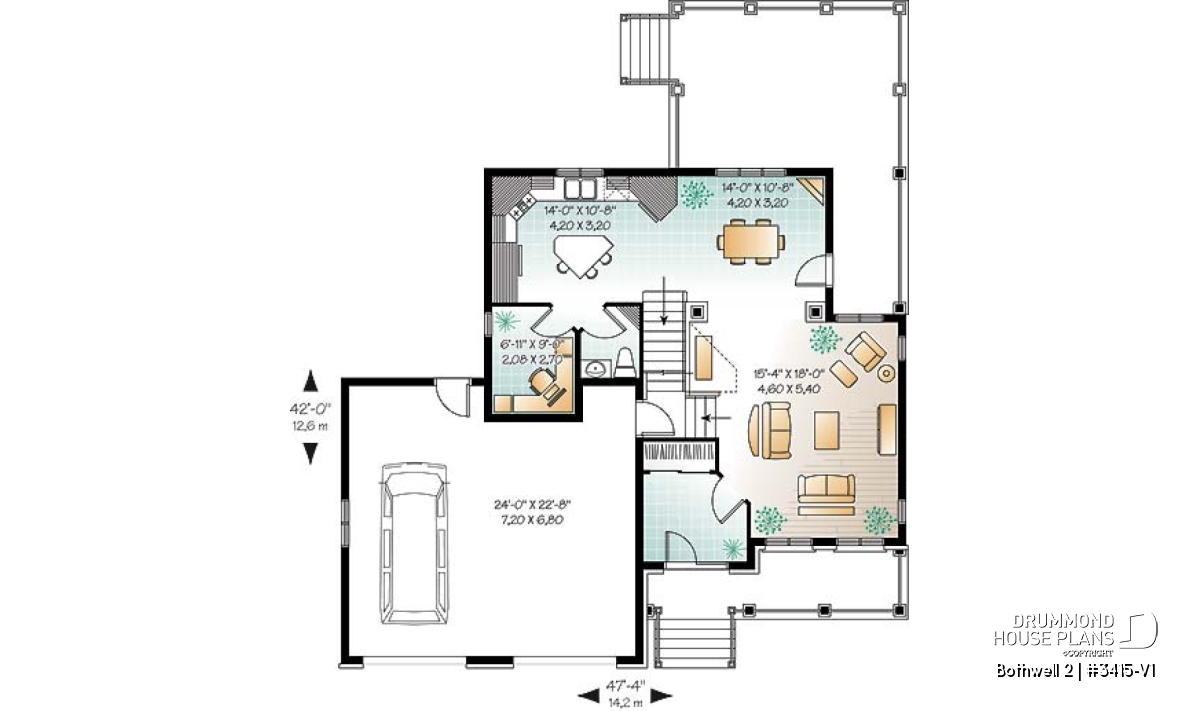

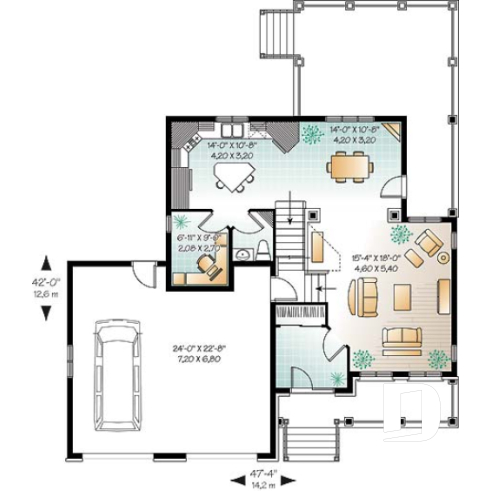

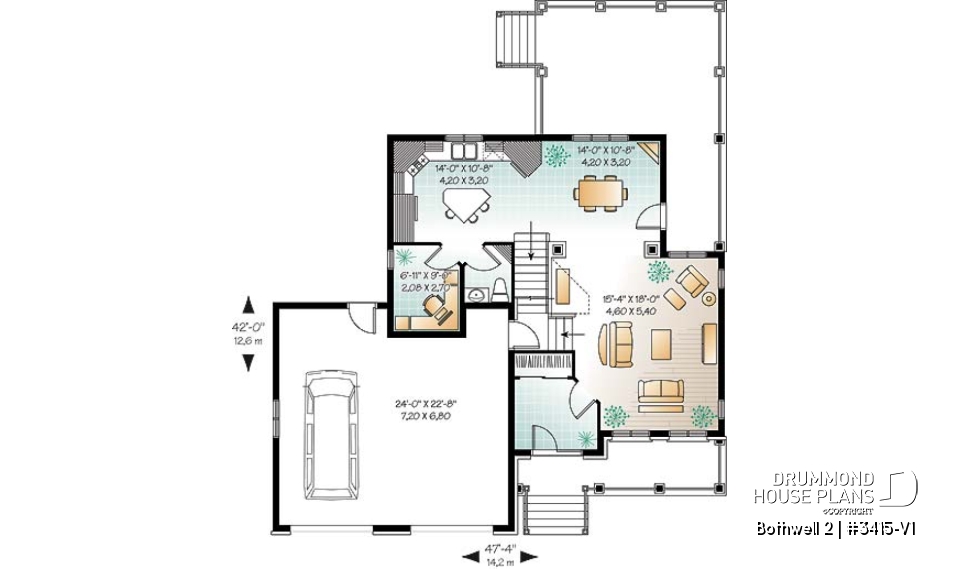

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 14'0" x 10'8" | ~ 9'0" |
| Dining room | 14'0" x 10'8" | ~ 9'0" |
| Living room | 15'4" x 18'0" | ~ 9'0" |
| Foyer | 8'4" x 7'4" | ~ 9'0" |
| Half bath or powder room | 4'11" x 6'0" | ~ 9'0" |
| Garage | 24'0" x 22'8" | ~ 8'10" |
| Porch | 21'8" x 5'10" | N/A |
| Porch | 20'0" x 14'0" | N/A |
| Office | 6'11" x 9'0" | ~ 9'0" |

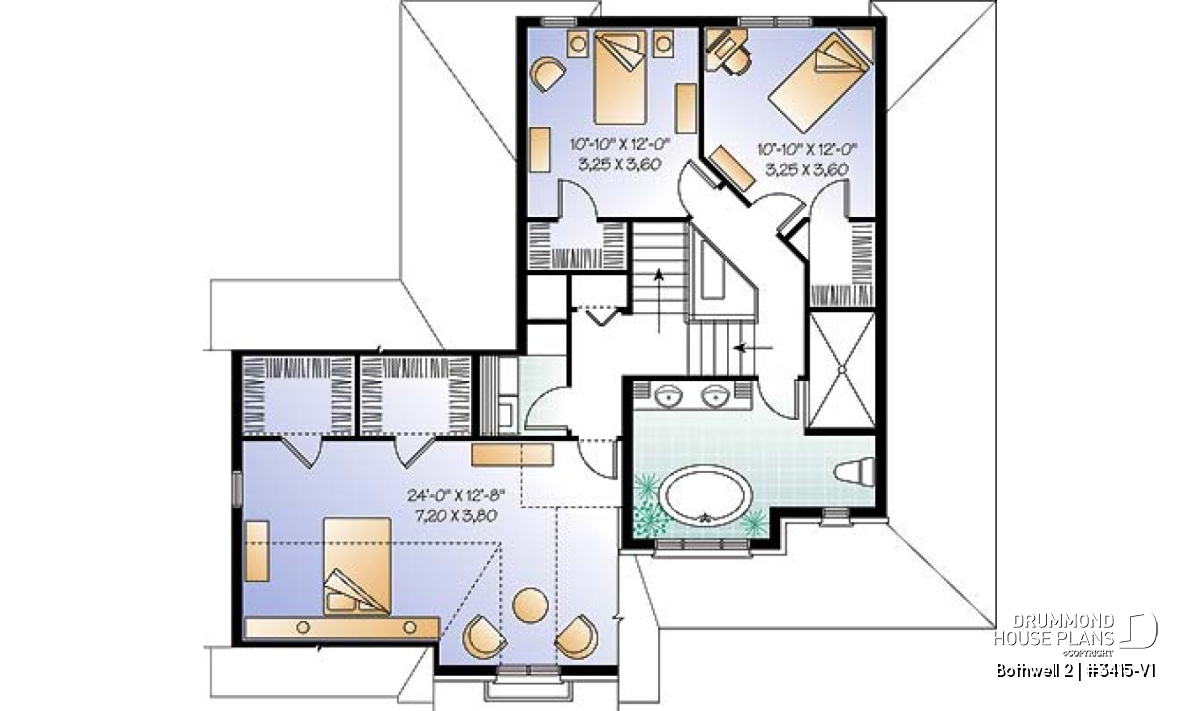

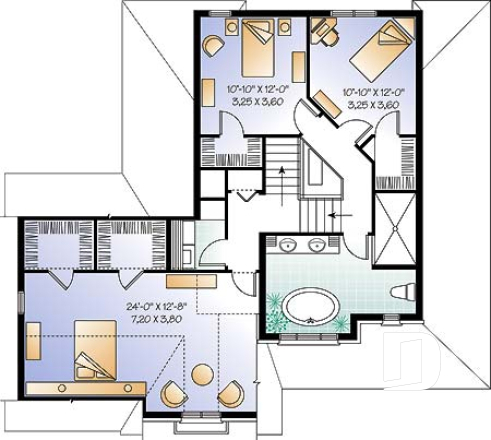

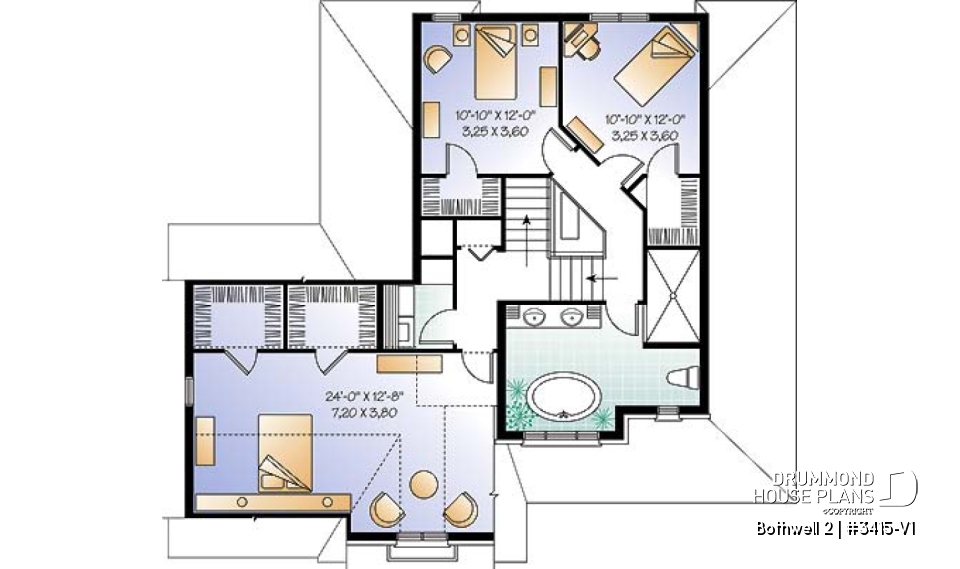

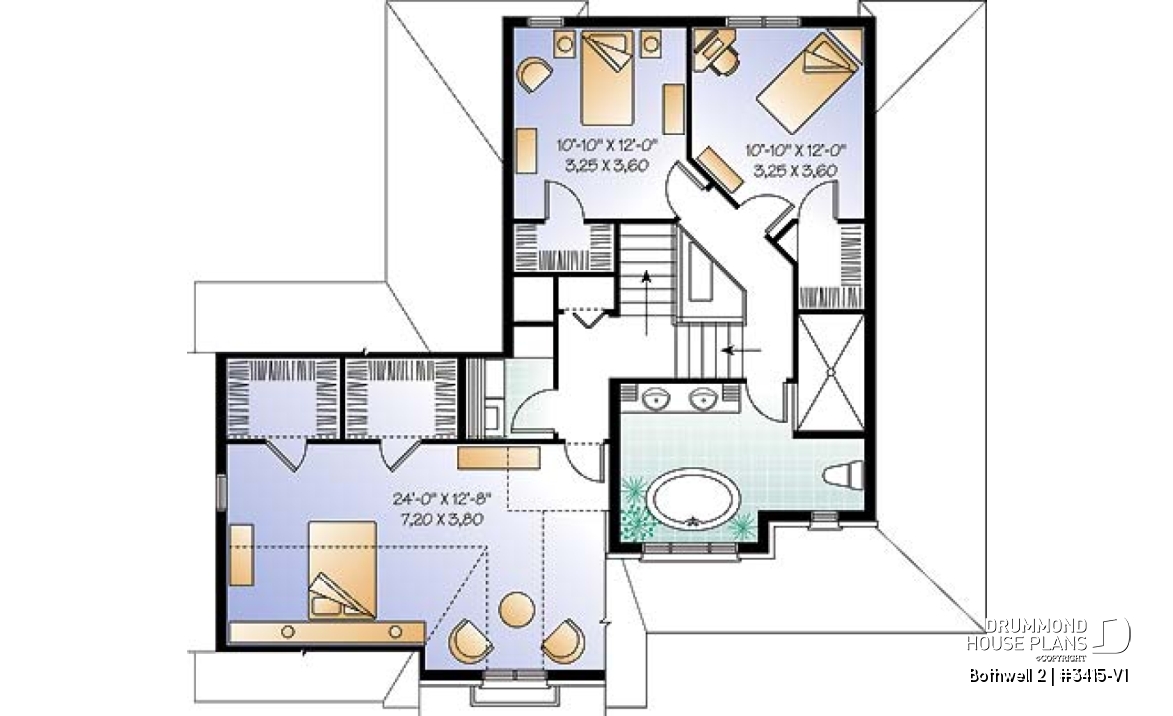

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 24'0" x 13'0" | ~ 9'0" |
| Bedroom | 10'10" x 12'0" | ~ 8'0" |
| Bedroom | 10'10" x 12'0" | ~ 8'0" |
| Laundry room | 2'8" x 5'6" | ~ 8'0" |
| Linen | 6'4" x 2'0" | ~ 8'0" |
| Full bathroom | 15'4" x 9'10" | ~ 8'0" |
General specifications
| Total living area | 2208 sq.ft. |
| 1st level | 928 sq.ft. |
| 2nd level | 1280 sq.ft. |
| Width | 47'4" |
| Depth | 42'0" |
| Ridge height from top of foundation | 36'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
Country house offering a large master suite on the ground floor!
.
Distinctive elements
9' ceiling on 1st floor. Large hallway to front entrance. Original kitchen with central lunch island and nearby home office. Large master bedroom over the garage with large walk-in closet. Confortable bathroom with made to mesure of 4' wide by more than 7' long.
Plan feature(s)
Office / Study / Den, Island, Ceiling over 8', His/Hers walk-in, Second floor laundry room, Separate bath and shower, Double sinks, Entrance hall
Plan architectural style(s)
. American, . Country, . Traditional, Classic
