Bainbridge 3 (3816-V1)
Two master suites Craftsman house plan, 4 bedrooms, 4 bathrooms, home office, solarium, fireplace
View the size of the rooms and height of the ceilings

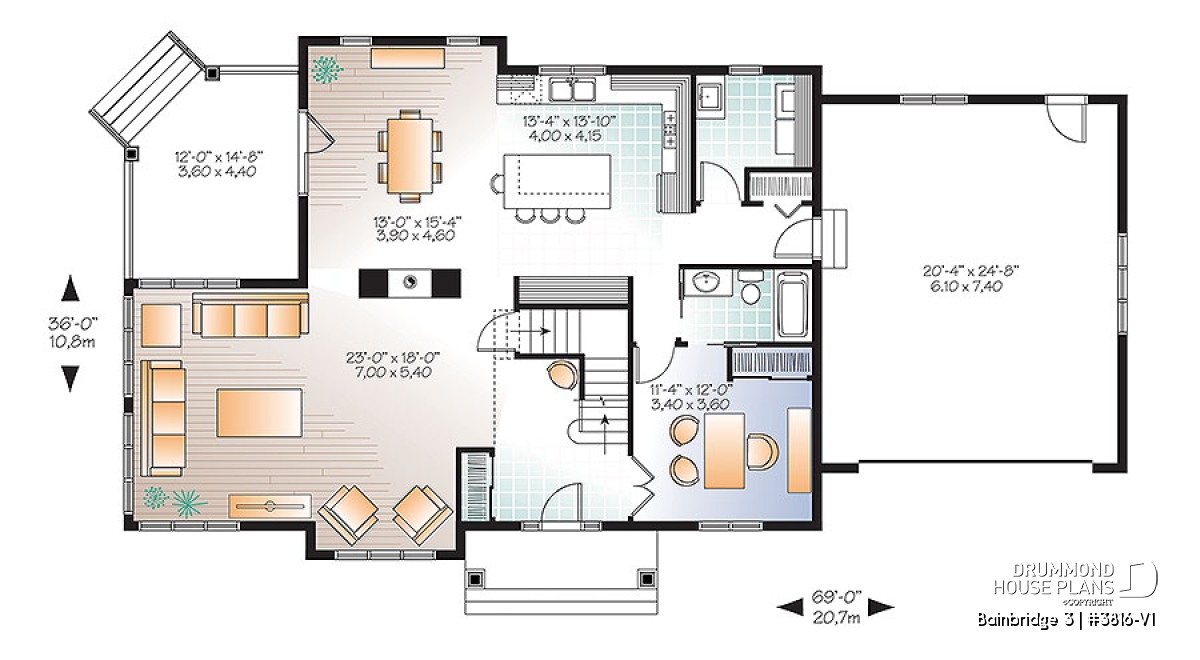

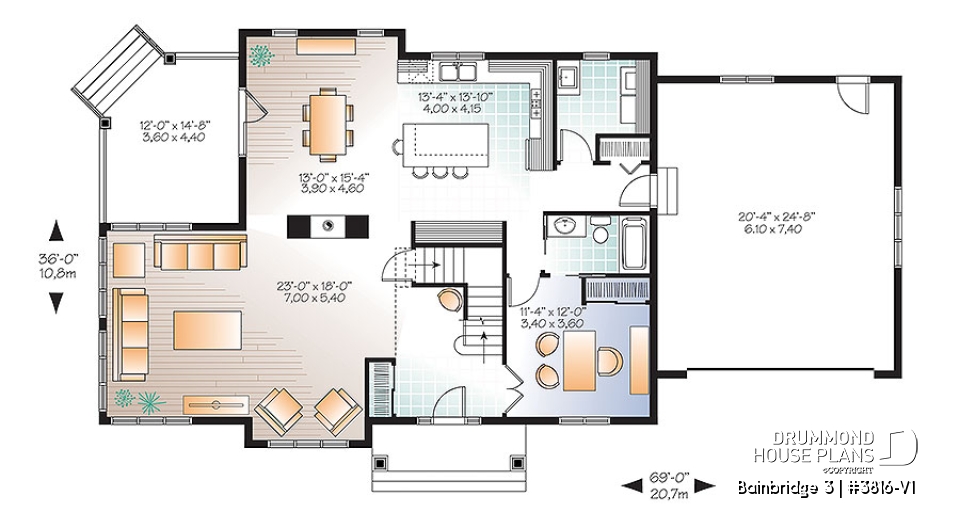

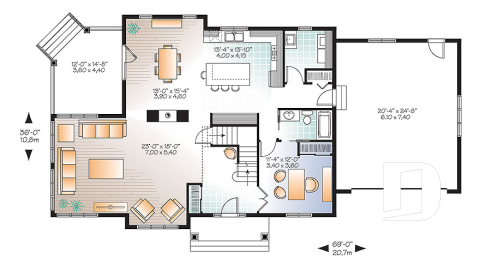

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Terrace | 12'0" x 14'8" | N/A |
| Great room or Family room | 23'0" x 18'0" | ~ 9'0" |
| Living room/dining room | 13'0" x 15'4" | ~ 9'0" |
| Kitchen | 13'4" x 13'10" | ~ 9'0" |
| Laundry room | 8'0" x 6'4" | ~ 9'0" |
| Bathroom | 8'10" x 5'0" | ~ 9'0" |
| Home office | 11'4" x 12'0" | ~ 9'0" |
| Closet | 5'6" x 2'0" | ~ 9'0" |
| Foyer | 9'0" x 11'0" | ~ 18'6" |
| Shower | 5'0" x 2'0" | ~ 9'0" |
| Closet | 5'0" x 2'0" | ~ 9'0" |
| Closet | 4'4" x 2'0" | ~ 9'0" |
| Covered porch | 12'2" x 4'0" | N/A |

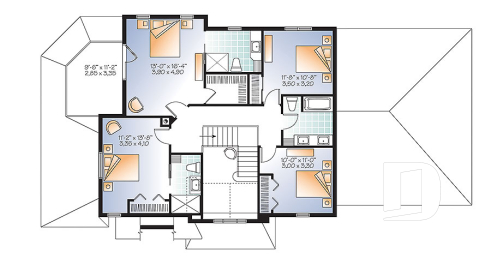

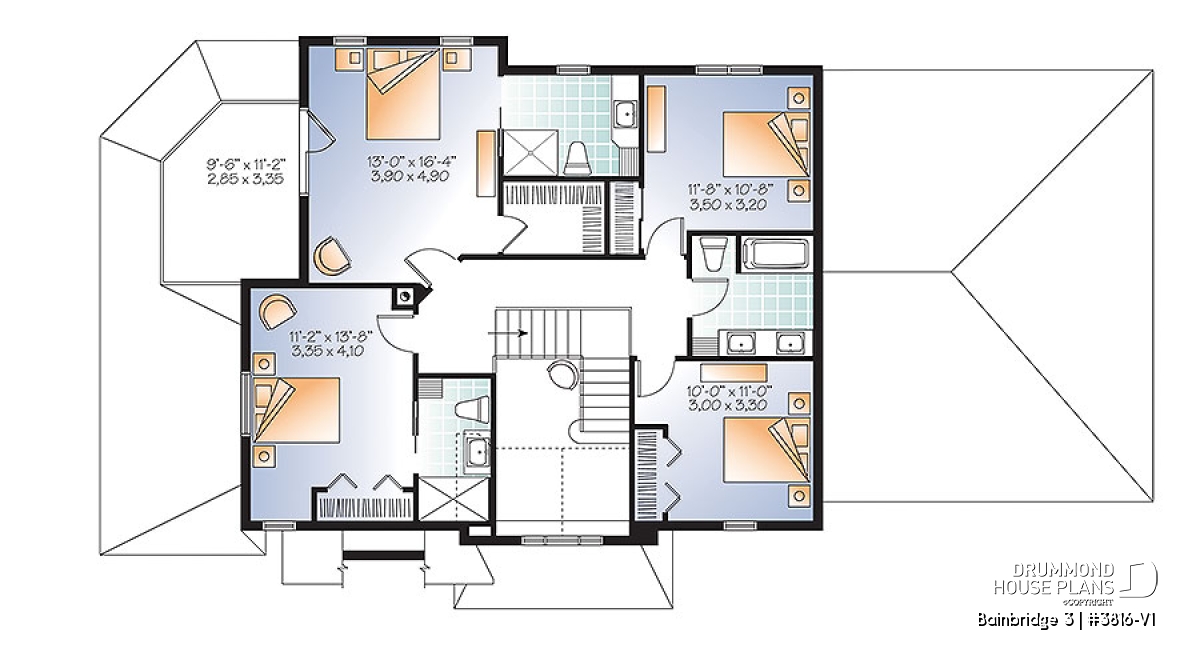

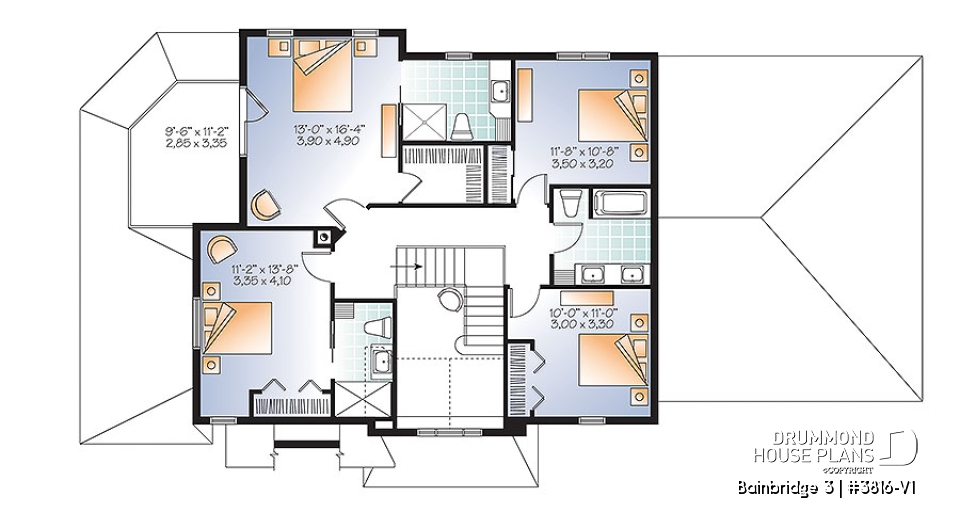

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 13'0" x 16'4" | ~ 8'0" |
| Walk-in closet | 7'0" x 5'0" | ~ 8'0" |
| Shower room or three quarter bath | 9'4" x 7'0" | ~ 8'0" |
| Bedroom | 11'8" x 10'8" | ~ 8'0" |
| Closet | 5'0" x 2'0" | ~ 8'0" |
| Full bathroom | 8'4" x 8'4" | ~ 8'0" |
| Bedroom | 10'0" x 11'0" | ~ 8'0" |
| Closet | 6'4" x 2'0" | ~ 8'0" |
| Bedroom | 11'2" x 13'8" | ~ 8'0" |
| Closet | 6'78" x 2'0" | ~ 8'0" |
| Shower room or three quarter bath | 5'0" x 9'10" | ~ 8'0" |
| Balcony | 9'6" x 12'2" | N/A |
General specifications
| Total living area | 2521 sq.ft. |
| 1st level | 1410 sq.ft. |
| 2nd level | 1111 sq.ft. |
| Width | 69'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 34'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | G |
Rooms specifications

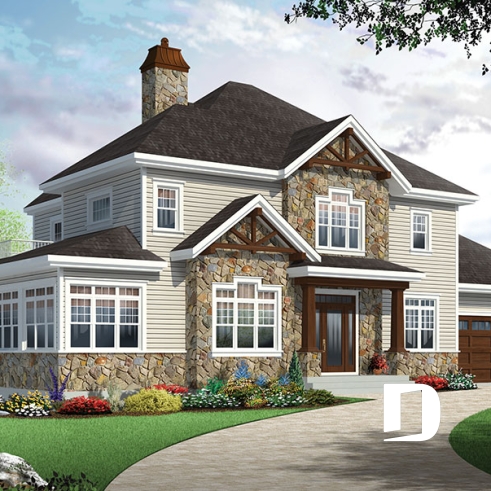

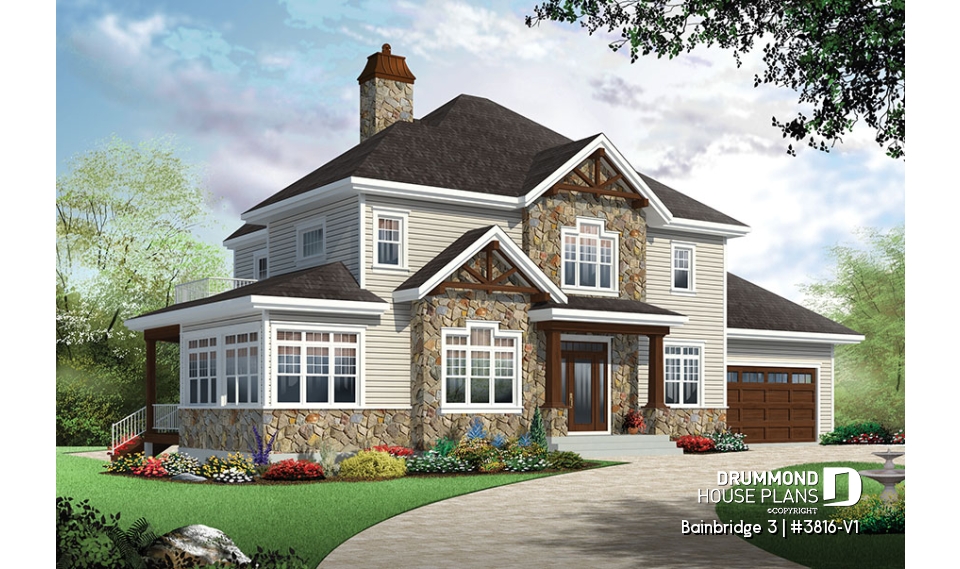

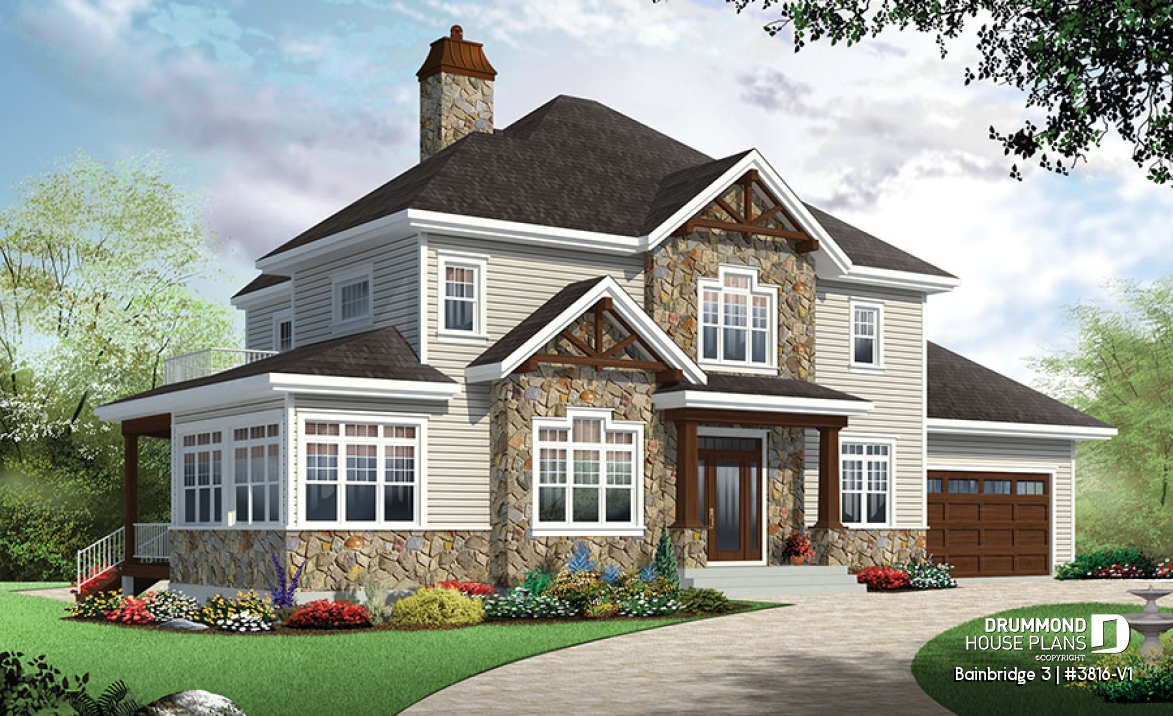

front
This color version might have decorative elements that are not available on base plan.

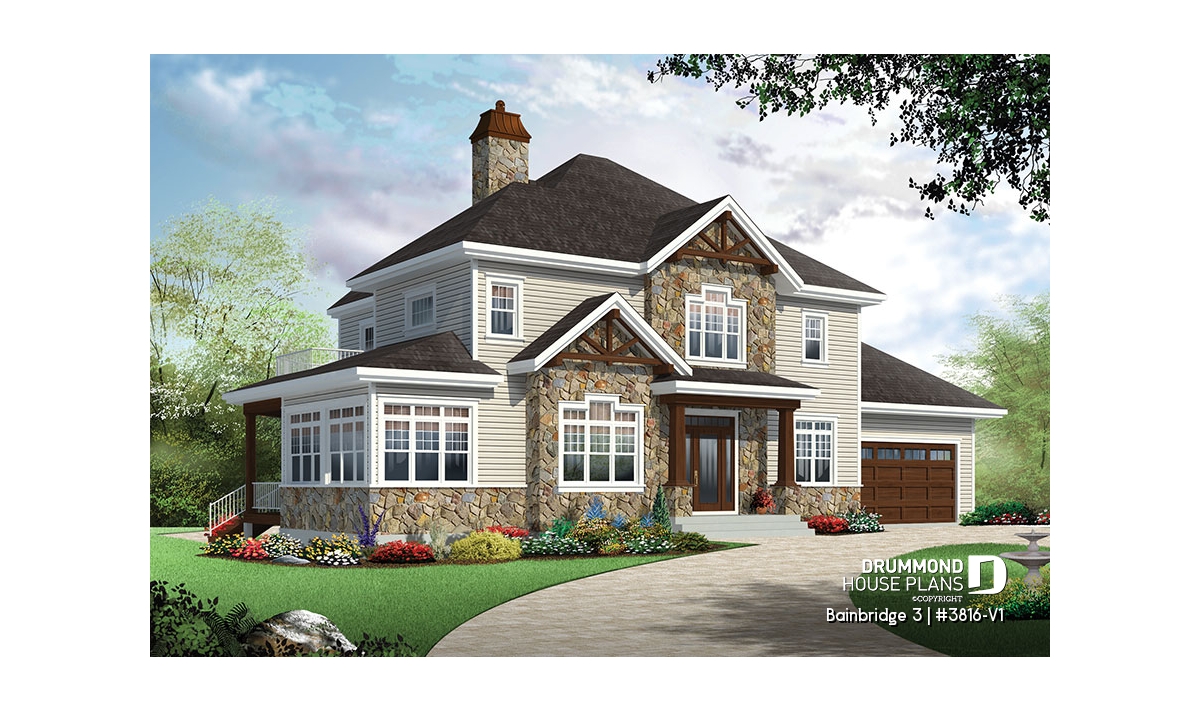

front
This color version might have decorative elements that are not available on base plan.
Other useful information on this plan
Bright, Comfortable Elegance for this 4+ bedroom Traditional Rustic house plan
With its uncommonly elegant exterior, this house possesses many features worthy of mention. Whether it be the two-car garage which is in perfect harmony with the rest of the house, or that beautiful living room on the opposite façade which many will take pleasure in decorating in exotic fashion, without forgetting two rear terraces, one of which is accessible to the master bedroom, this model proposes many excellent interior features as well.
As soon as we enter the foyer, we are pleasantly surprised by the vastness of this entrance which is open over two storeys. We appreciate a living room with adjoining solarium of very interesting dimensions, and we are enthralled by a comfortable dining room which shares a see-thru fireplace with the Family room and by a spacious well organized kitchen offering plenty of cabinet space. Not to be neglected, a good sized office space (or bedroom #5) with full bath, and a very useful laundry room really complete this level.
The second level offers two master suites and 2 secondary bedrooms. The two secondary bedrooms share a full bathroom (total of 3 bathrooms upstairs). We are more than happy with the amplitude of the main master suite with an access to a private terrace, a large walk-in and private bathroom.
Distinctive elements
9' ceiling on main floor. Home office or bedroom #5 on the first level. Family room with double sided fireplace that opens onto the dining room and the solarium. Rear covered lateral terrace under a balcony overlooking the master suite with a private bathroom and a walk-in closet
Plan feature(s)
Gound floor laundry room, Pantry, Sunroom, Island, Office / Study / Den, Deck, Walk-in master bed., Master suite upstairs, 2-Story foyer, Panoramic view, Fireplace, Guest suite, Balcony 2nd floor, Ceiling over 8', Double sink vanity, Mezzanine, Cathedral ceiling
Plan architectural style(s)
. Mountain, . Country, . Modern rustic, . American, . European, . Traditional, . Transitional, . English, . Craftsman / Northwest, Modern Craftsman
