Pacifica (2851)

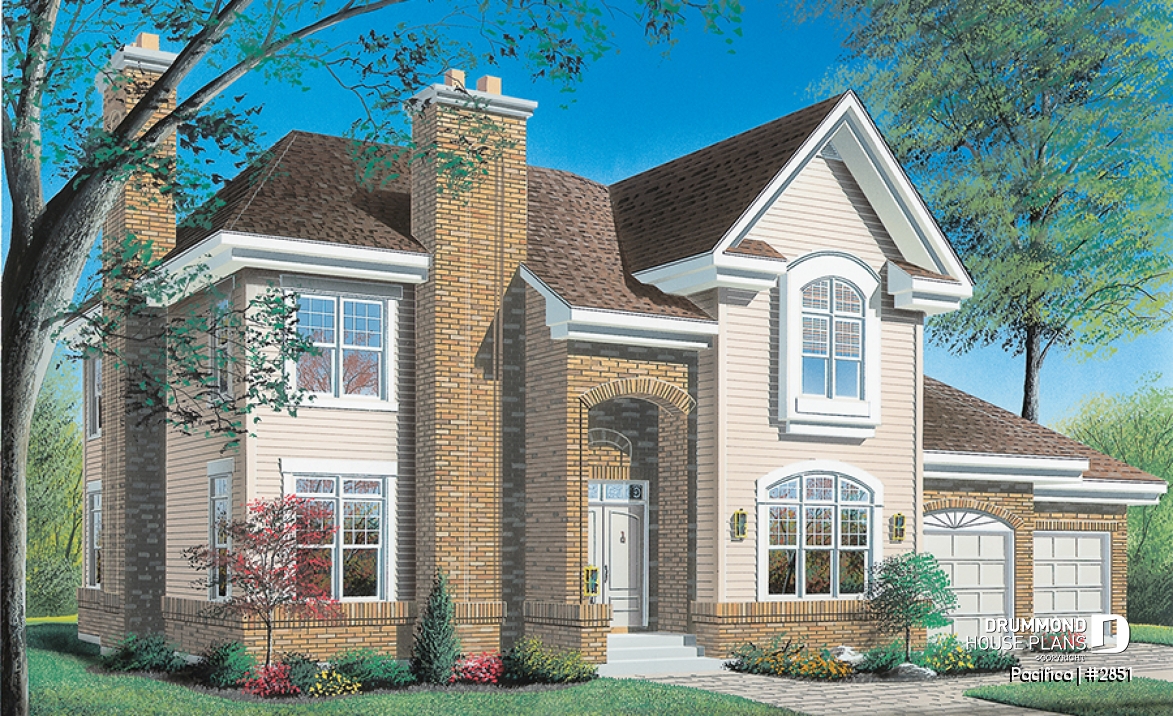

Large 4 bedroom house plans with indoor pool, 2-car garage with bonus space above, fireplaces, pantry
View the size of the rooms and height of the ceilings

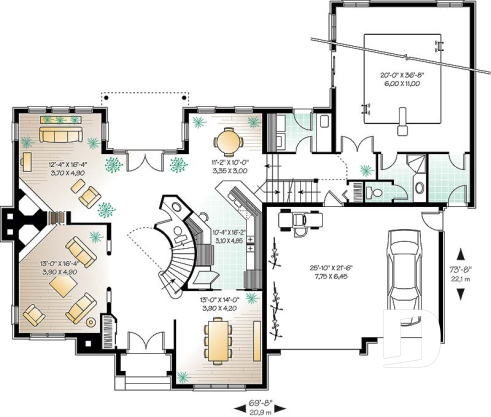

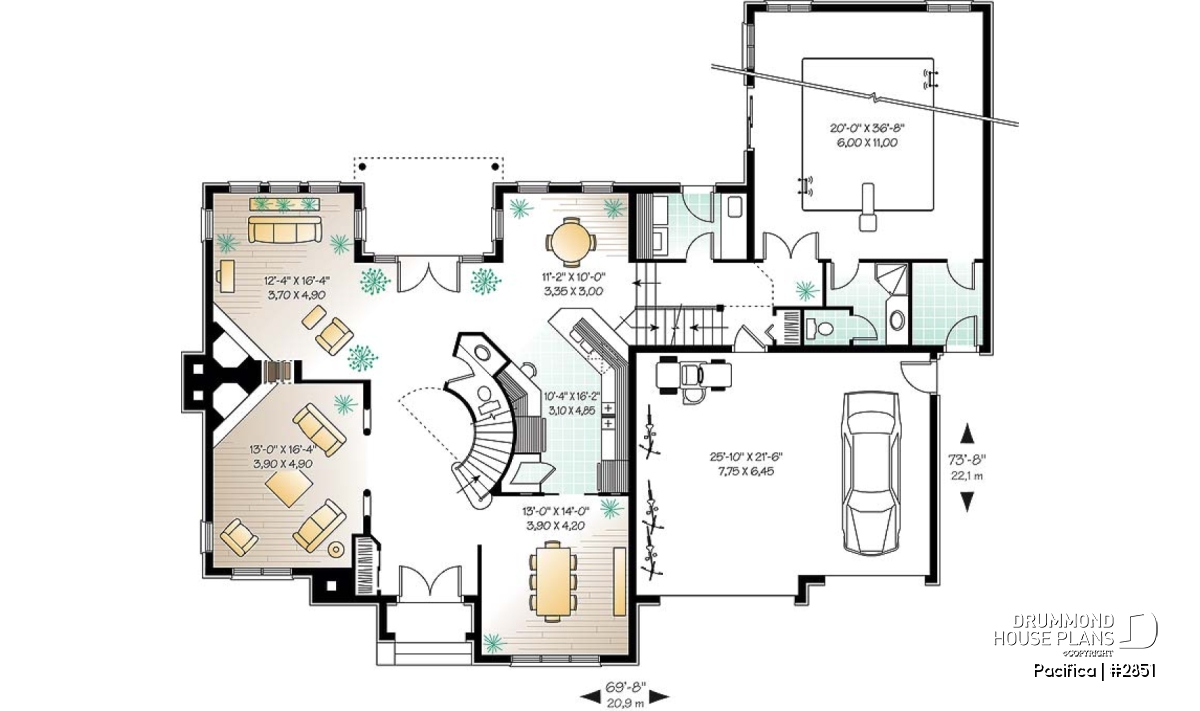

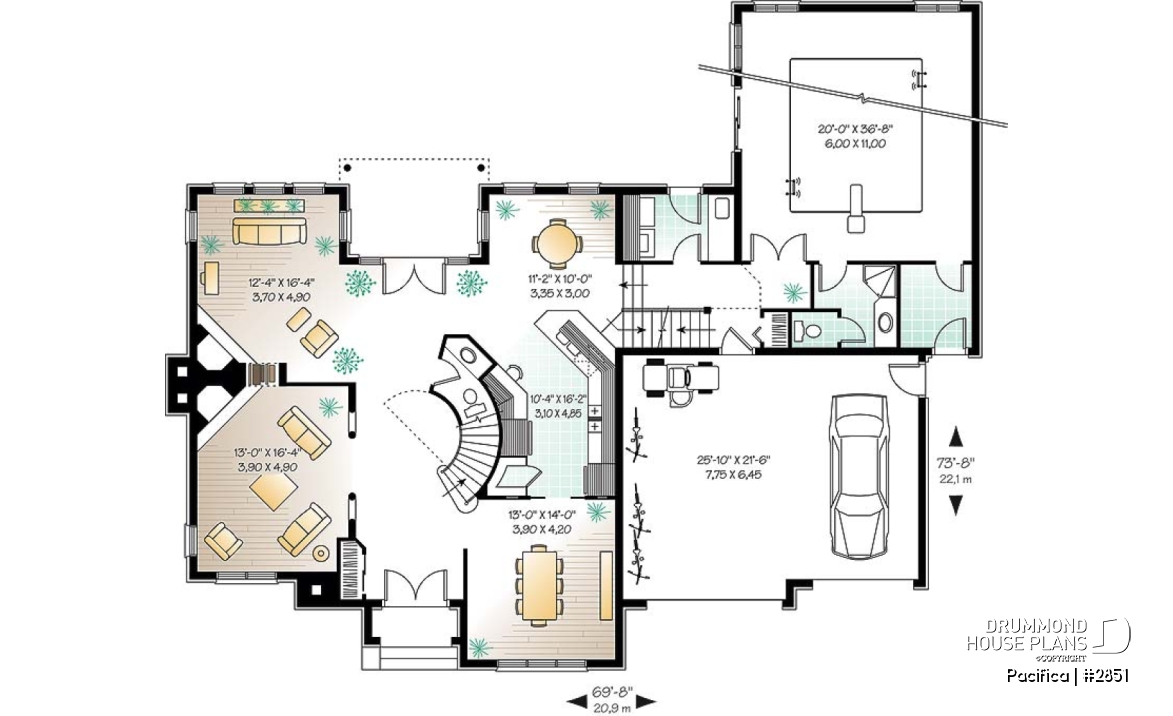

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'4" x 16'2" | ~ 9'0" |
| Pantry | 2'3" x 3'4" | N/A |
| Dining room | 13'0" x 14'0" | ~ 9'0" |
| Living room | 12'4" x 16'4" | ~ 9'0" |
| Great room or Family room | 13'0" x 16'4" | ~ 9'0" |
| Laundry room | 9'10" x 5'8" | ~ 10'4" |
| Garage | 25'10" x 21'6" | ~ 9'0" |
| Porch | 7'8" x 3'2" | N/A |
| Covered deck | 11'0" x 8'0" | N/A |
| Interior pool | 20'0" x 36'8" | ~ 10'4" |
| Half bath or powder room | 6'2" x 5'6" | ~ 9'0" |
| Breakfast nook | 11'2" x 10'0" | N/A |
| Foyer | 8'4" x 7'4" | ~ 9'0" |
| Closet | 2'0" x 5'0" | ~ 9'0" |

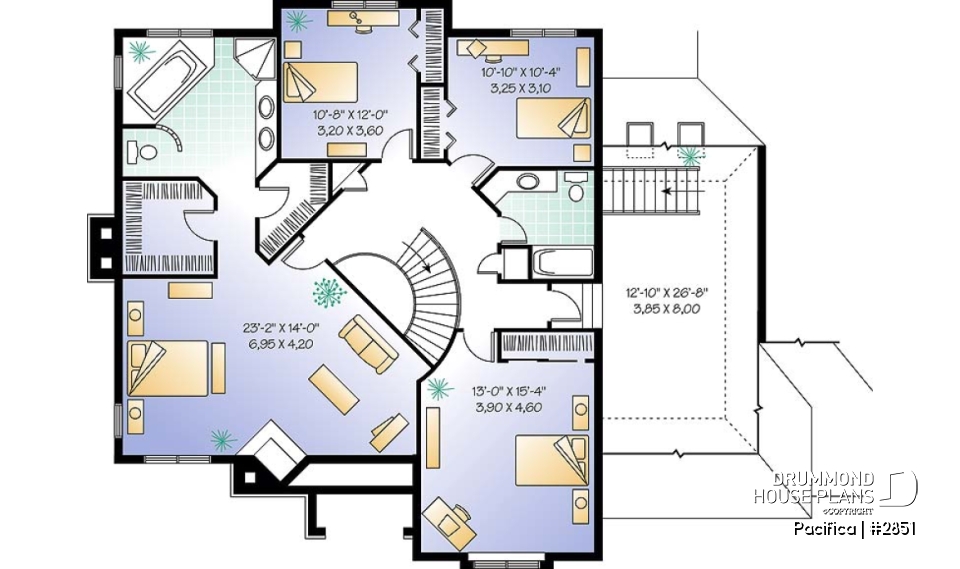

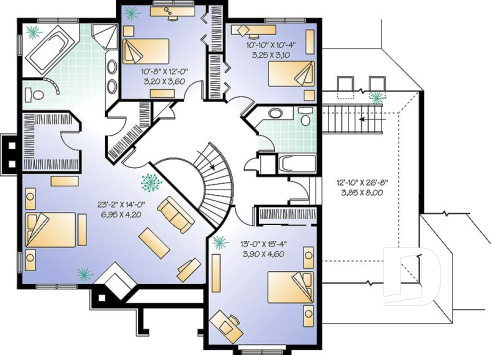

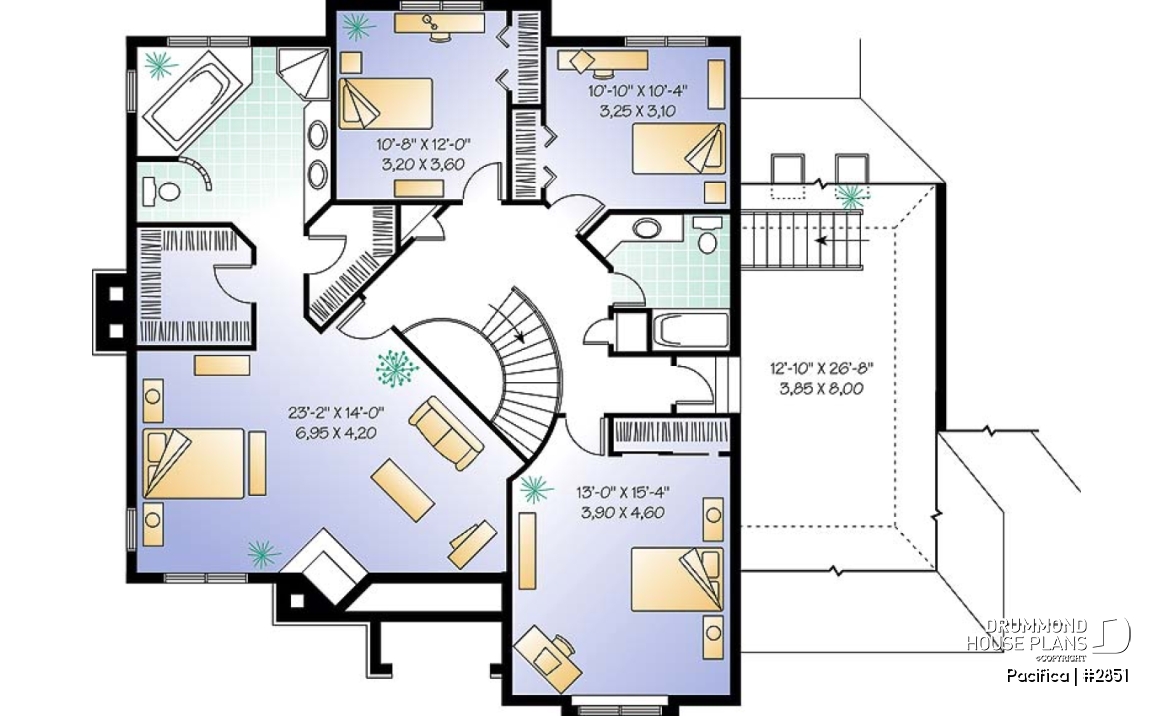

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'4" x 8'2" | ~ 8'0" |
| Master suite | 23'2" x 14'0" | ~ 12'1" |
| Full bathroom | 11'10" x 10'10" | ~ 8'0" |
| Walk-in closet | 7'0" x 7'4" | ~ 8'0" |
| Walk-in closet | 5'6" x 8'0" | ~ 8'0" |
| Bedroom | 10'8" x 12'0" | ~ 12'1" |
| Closet | 2'0" x 5'10" | ~ 8'0" |
| Bedroom | 10'10" x 10'4" | ~ 8'0" |
| Closet | 2'0" x 5'10" | ~ 8'0" |
| Bedroom | 13'0" x 15'4" | ~ 8'0" |
| Closet | 7'4" x 2'0" | ~ 8'0" |
| Linen | 2'0" x 2'2" | ~ 8'0" |
| Living bonus room | 12'10" x 26'8" | ~ 8'0" |
General specifications
| Total living area | 4075 sq.ft. |
| 1st level | 2579 sq.ft. |
| 2nd level | 1496 sq.ft. |
| Width | 69'8" |
| Depth | 73'8" |
| Ridge height from top of foundation | 31'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | K |
Rooms specifications
Other useful information on this plan
Beautiful 4 bedroom house plan with indoor pool and 2-car garage, 3 fireplaces
.
Distinctive elements
Two-sided fireplace shared between living room and family room, interior pool with access to shower room, changing room, bonus space, 9'' ceiling on first level, cathedral ceiling, double sinks in master bathroom, built-ins.
Plan feature(s)
Fireplace, Living bonus space, Pantry, Mezzanine, Ceiling over 8', Cathedral ceiling, Master suite upstairs, Gound floor laundry room, Deck, Breakfast nook, Formal dining room, His/Hers walk-in, Separate bath and shower
Plan architectural style(s)
. Traditional, . American, . European
Previously Viewed Plans
Questions and comments
March 16 2015
Callie
I would like to see photos of the side elevations and any interior if this plan has actually been built somewhere.
March 16 2015
Customer service
Good day and thank you for your interest in this plan
Since we do no actual construction, the only photos that we have are those which our clients have generously shared and there are unfortunately none on file at the present time for this model but we will post them to this Web page as soon as any become available.

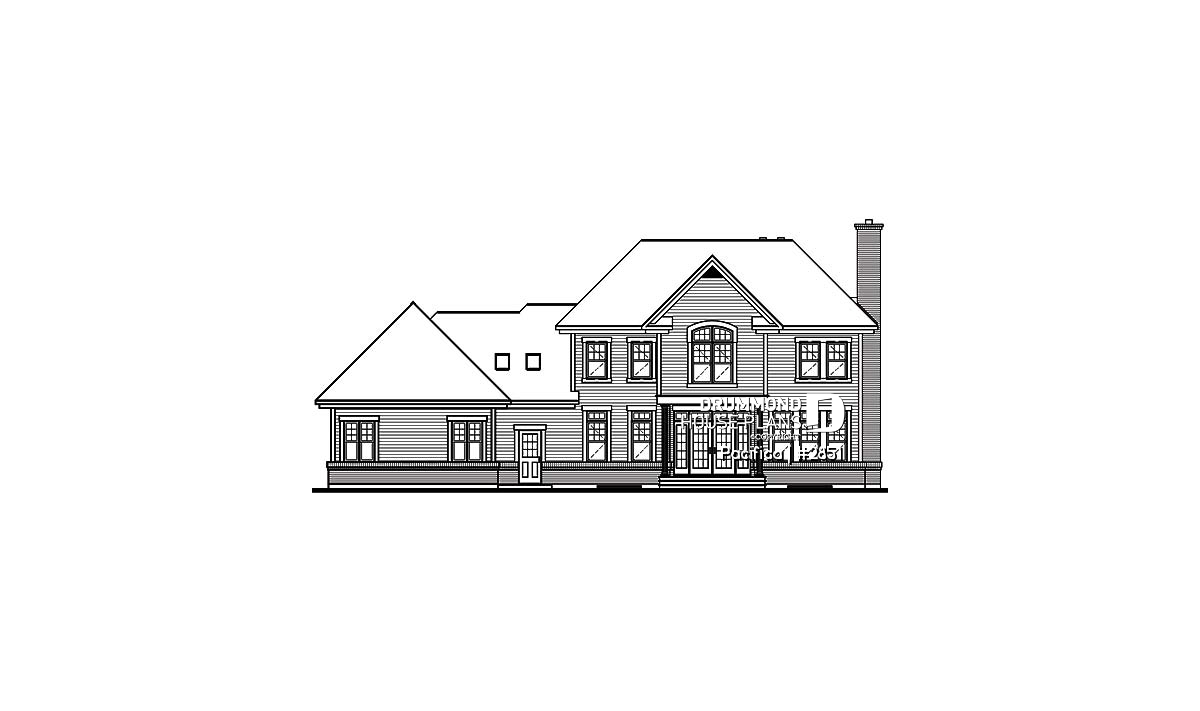

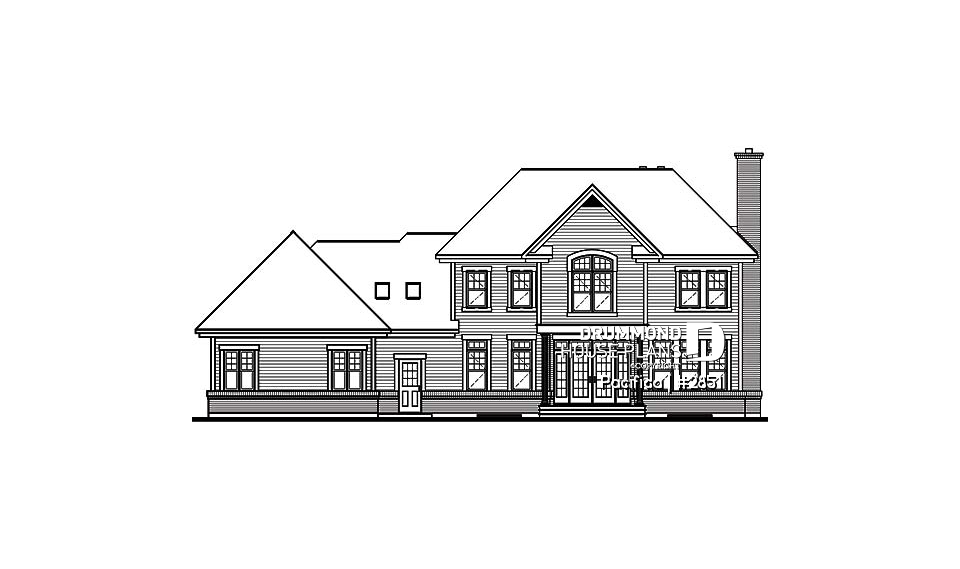

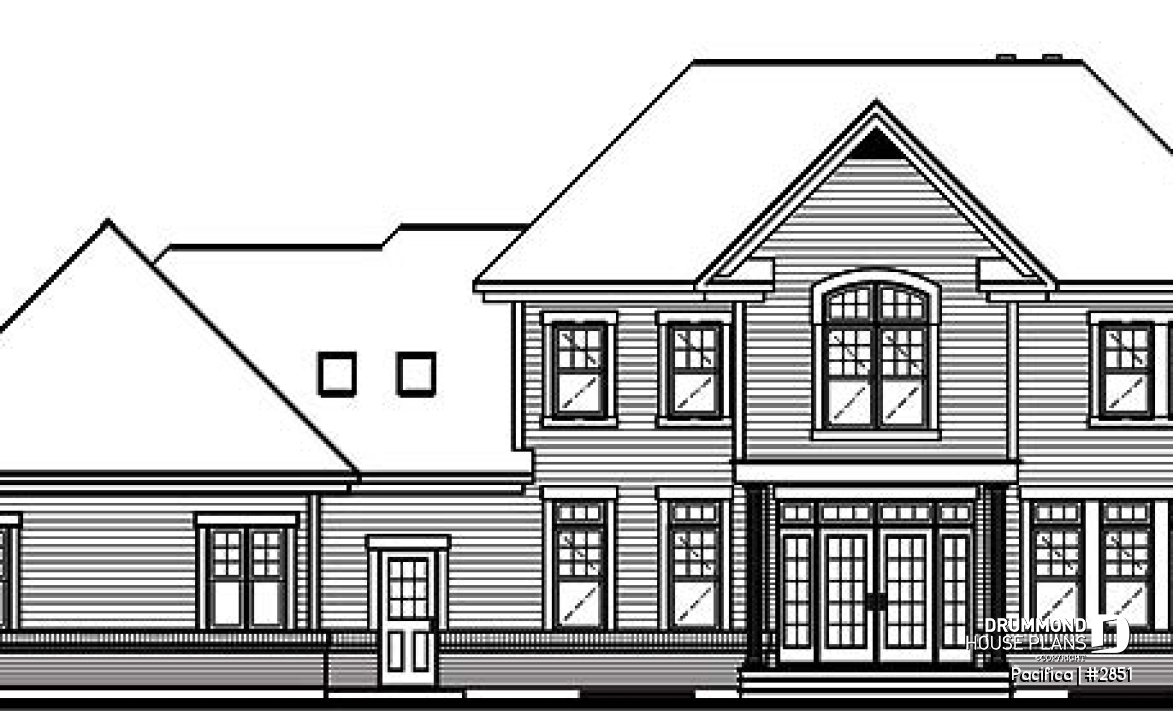

The side elevations are part of the plan and the only elevation that is available is the rear, as seen on this page but I would be happy to answer any specific questions that you might have either in writing or during business hours at 1 (800) 567-5267
Please let me know if I can further assist you
Regards
Deb
