Large foyer, formal dining, 4 bedrooms, family room with fireplace, 2-car garage
View the size of the rooms and height of the ceilings

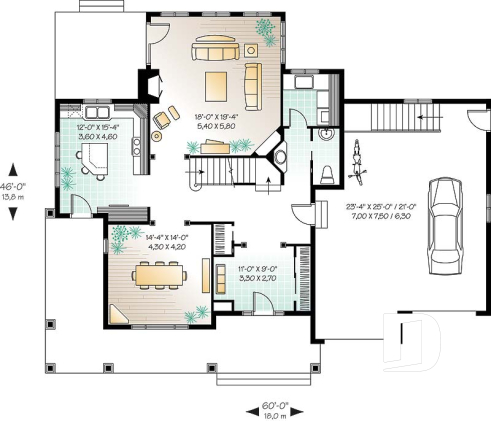

|Half bath or powder room||3'8" x 7'6"||~ 8'8"|
|Kitchen||12'0" x 15'4"||~ 8'8"|
|Dining room||14'4" x 14'0"||~ 8'8"|
|Living room||18'0" x 19'2"||~ 8'8"|
|Foyer||11'0" x 9'0"||~ 8'8"|
|Utility room||7'8" x 7'2"||~ 8'8"|
|Garage||21'0" x 25'0"||~ 10'0"|
|Closet||2'4" x 4'8"||~ 8'8"|
|Porch||36'8" x 8'0"||N/A|
|Deck||12'4" x 12'0"||N/A|
|Porch||8'0" x 15'5"||N/A|

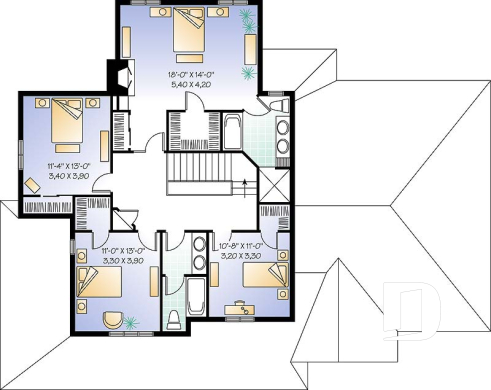

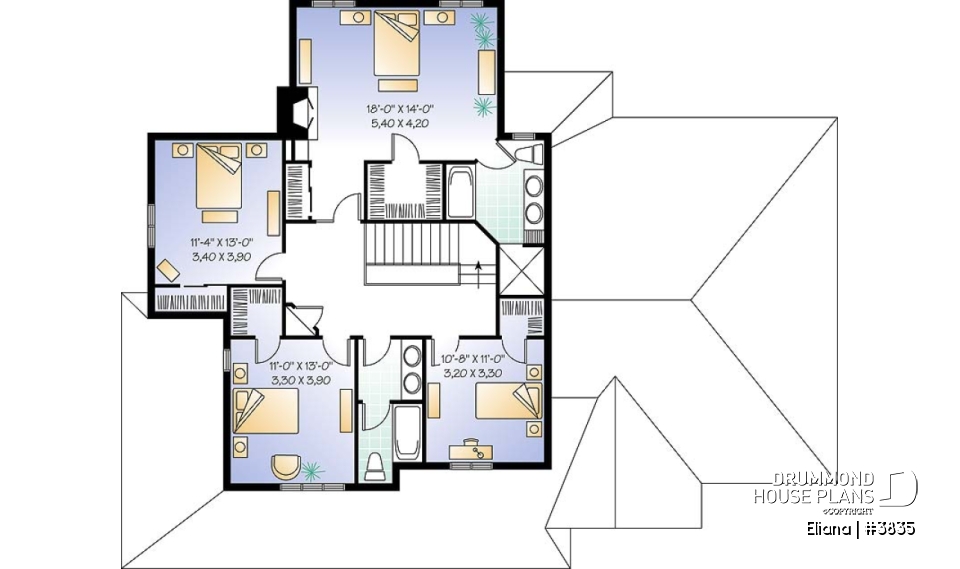

|Full bathroom||5'6" x 13'0"||~ 8'0"|
|Master suite||18'0" x 14'0"||~ 8'0"|
|Bedroom||11'4" x 13'0"||~ 8'0"|
|Bedroom||11'0" x 13'0"||~ 8'0"|
|Bedroom||10'8" x 11'0"||~ 8'0"|
|Linen||2'8" x 2'6"||~ 8'0"|
|Total living area||2577 sq.ft.|

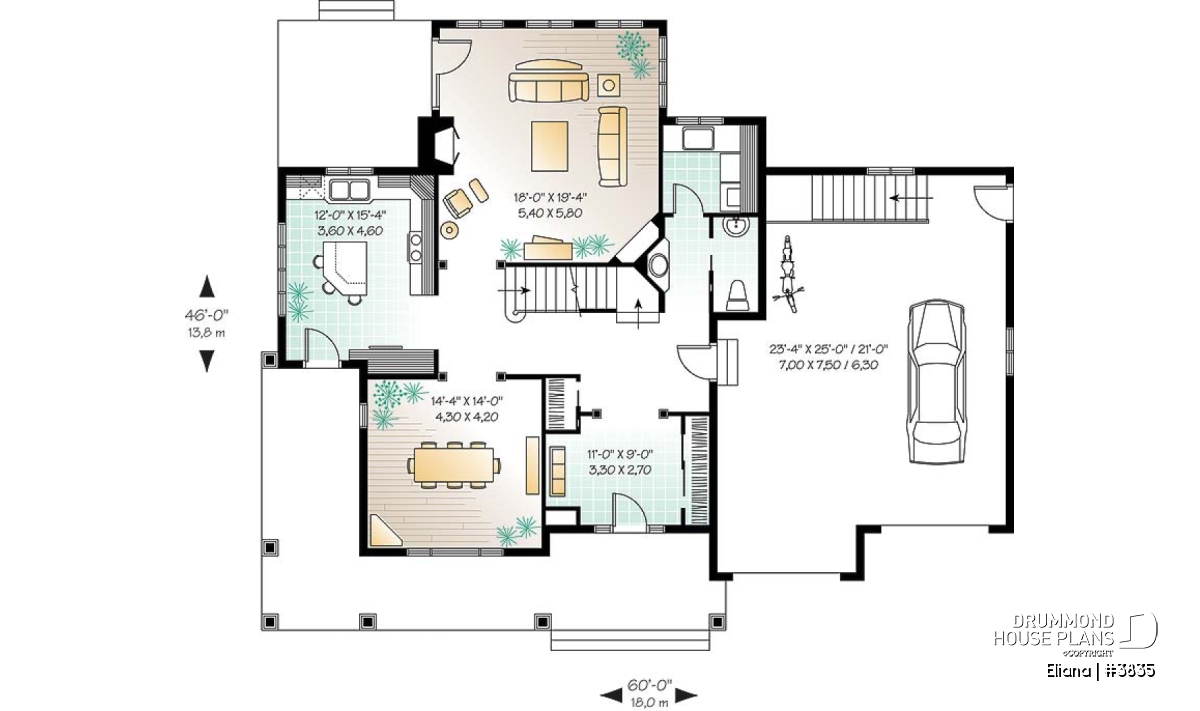

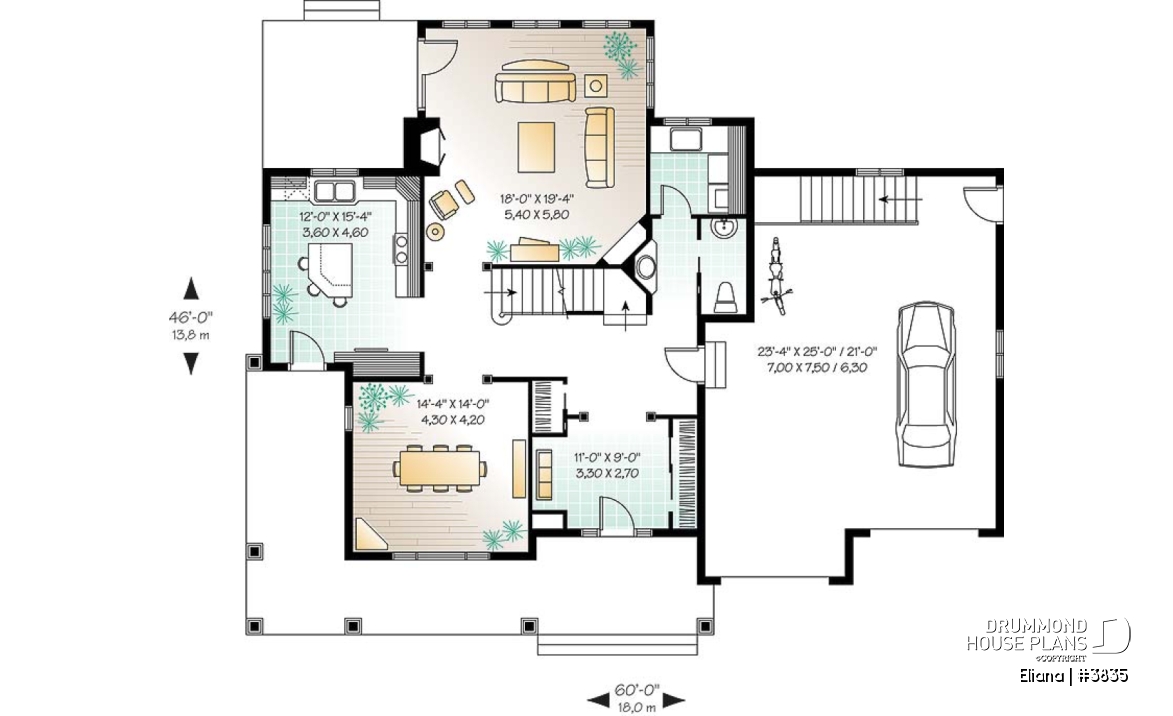

|1st level||1337 sq.ft.|

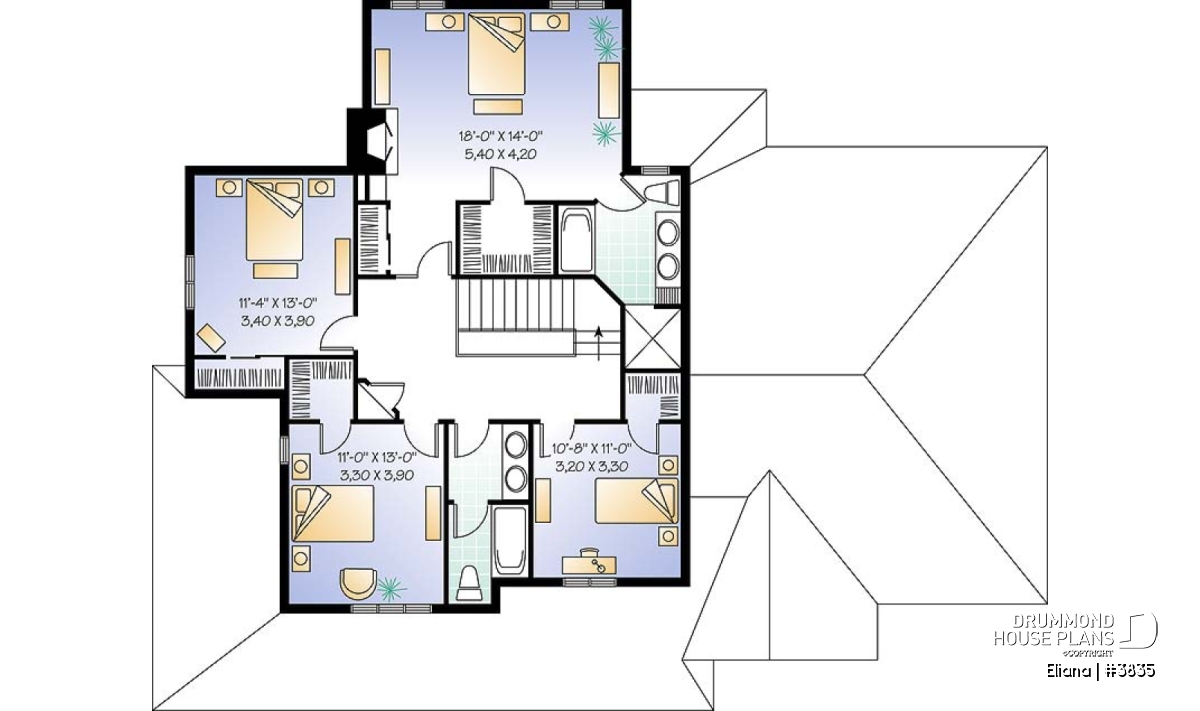

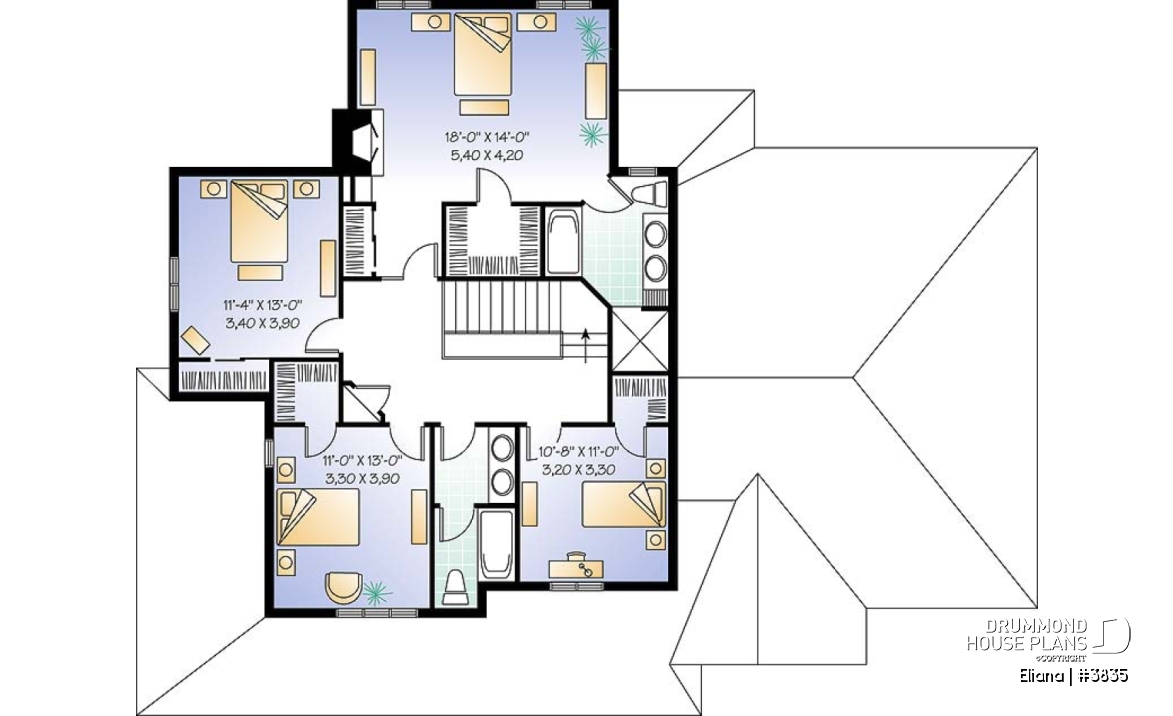

|2nd level||1240 sq.ft.|
|Ridge height from top of foundation||30'6"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Full Basement|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space, Monolithic Slab|
|Builder price code||G|
|Garage type||Two-car garage (721 sq.ft.)|
|Living bonus space||-|
Other useful information on this plan
Previously Viewed Plans
You have forgotten your password? Click here.
Create your account
Here is a brief description of our different plan packages. Please select the plan package that suits your needs. You can change the package at the next step, if necessary.
PDF VERSION OF PLAN:
Complete digital version of plan (pdf format) sent by email (original plan format 18" x 24'' or 24" x 36'')
5 copies of plan + PDF:
Includes: 5 copies of plan, plan in PDF format (reduced size version), materials list.
Additional foundation types are available, a fee may apply. Please indicate your choice on the online order form, or to our customer service representative, when placing your house plan order.
If your desired foundation type is not available, please contact our customer service to receive your free plan modification quote.
Explanation of bonus space types
UNFINISHED BONUS ROOM
The bonus rooms are often planned above the garage and are accessible from the house. They are designed to be converted as an office, a laundry area, a bathroom, a library corner or even an additional bedroom for which homeowners must make sure to have a window that complies with current codes & standards.
Often located above the garage, our storage areas are used only as storage and are usually accessible from the garage via a retractable staircase.
Do you like this plan but want it to be modified to suit your needs?
To add a garage, another bedroom, finish the basement or any other modification, click here and let us know about your desired changes and to get your free quote for the modification of your plan.
