House plan Kansas (2605)
Bungalow Ranch with home office, 3 bedrooms, master bedroom and laundry room on main floor
View the size of the rooms and height of the ceilings

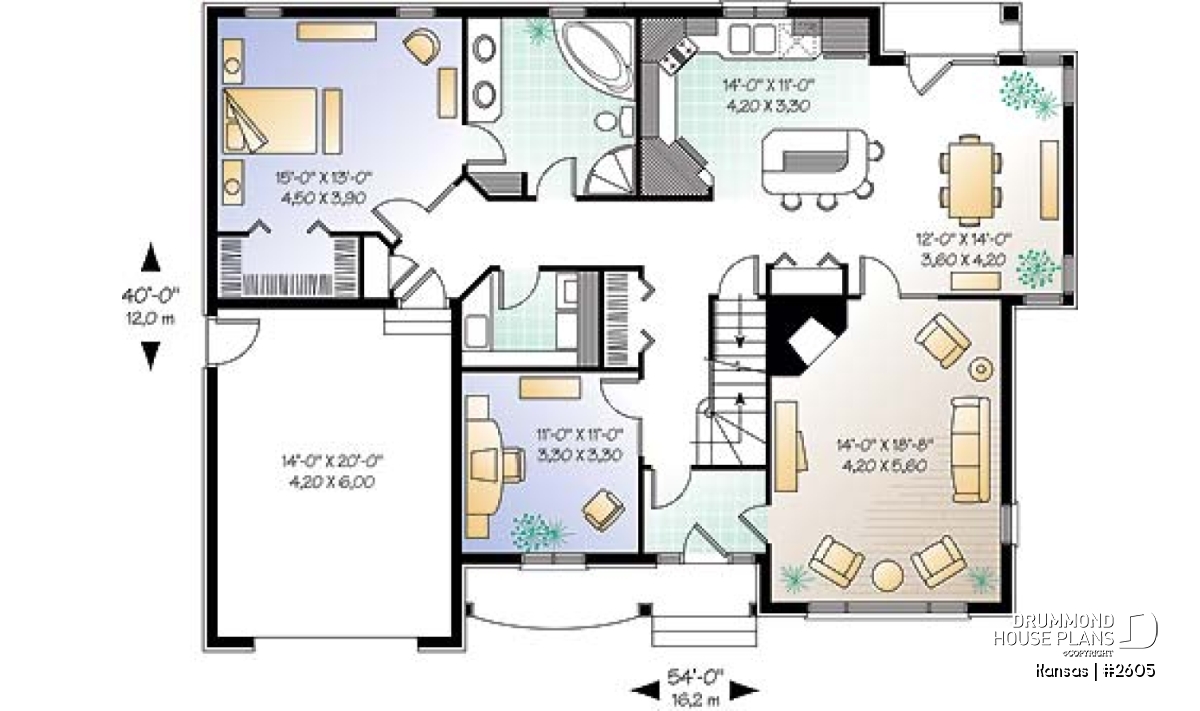

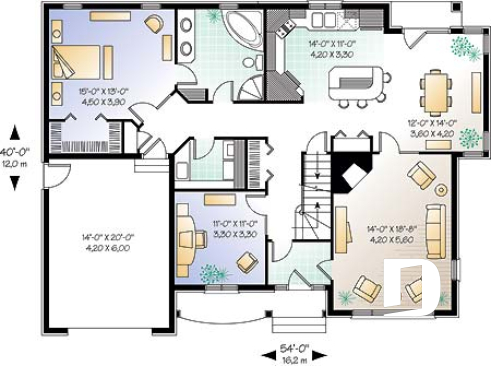

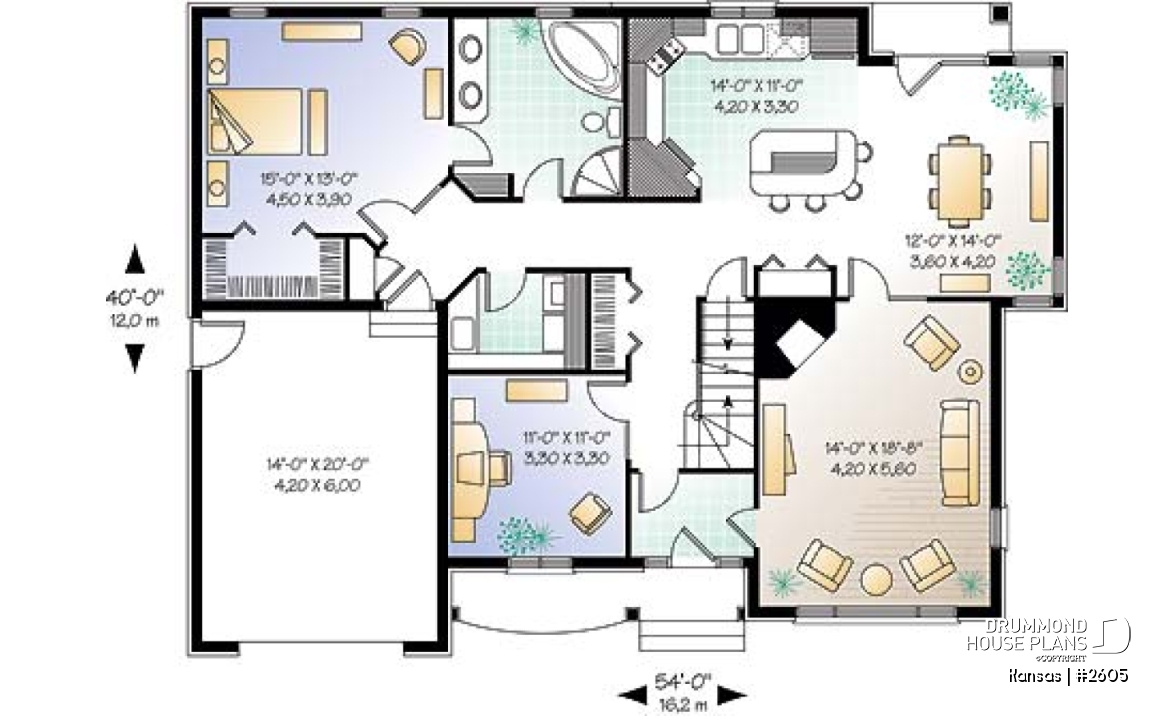

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'4" x 10'8" | ~ 8'0" |
| Kitchen | 14'0" x 11'0" | ~ 8'0" |
| Pantry | 4'4" x 1'8" | ~ 8'0" |
| Dining room | 12'0" x 14'0" | ~ 8'0" |
| Living room | 14'0" x 18'8" | ~ 8'0" |
| Home office | 11'0" x 11'0" | ~ 8'0" |
| Bedroom | 15'0" x 13'0" | ~ 8'0" |
| Linen | 2'0" x 4'0" | ~ 8'0" |
| Foyer | 7'8" x 5'0" | ~ 8'0" |
| Laundry room | 8'8" x 6'2" | ~ 8'0" |
| Garage | 14'0" x 20'0" | ~ 9'6" |
| Closet | 2'0" x 6'4" | ~ 8'0" |
| Covered porch | 18'0" x 3'0" | N/A |
| Covered deck | 8'0" x 3'0" | N/A |

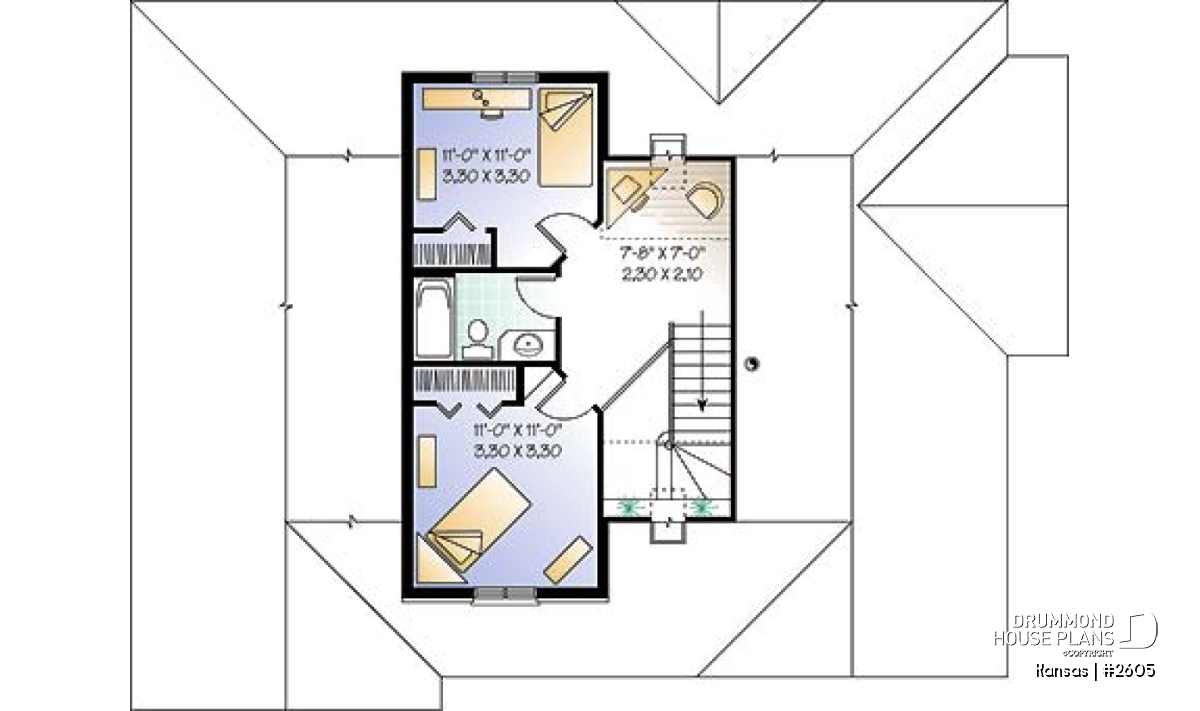

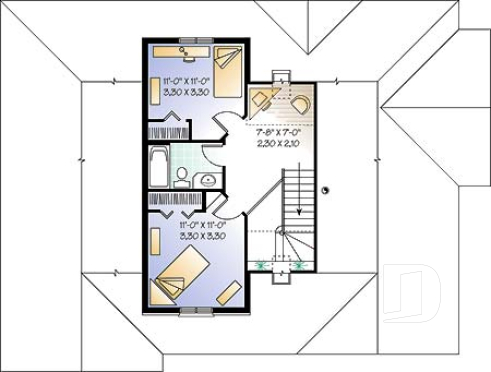

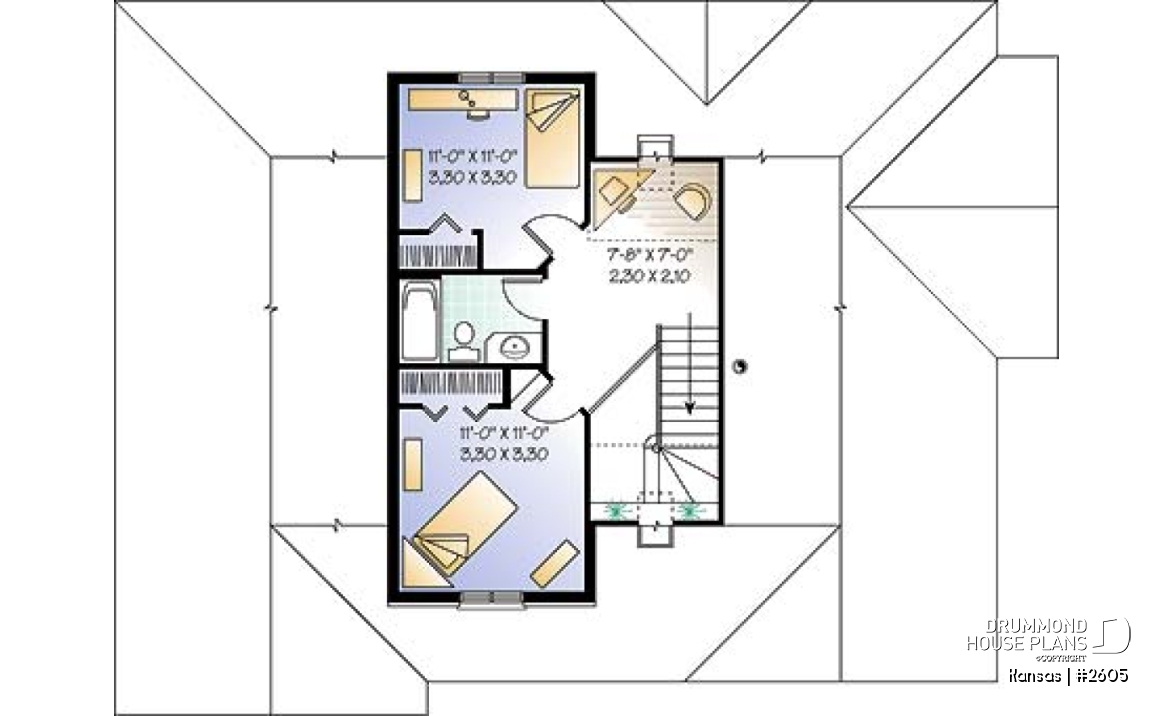

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'6" x 5'4" | ~ 8'0" |
| Den | 7'8" x 7'8" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
General specifications
| Total living area | 2101 sq.ft. |
| 1st level | 1576 sq.ft. |
| 2nd level | 525 sq.ft. |
| Width | 54'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 25'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

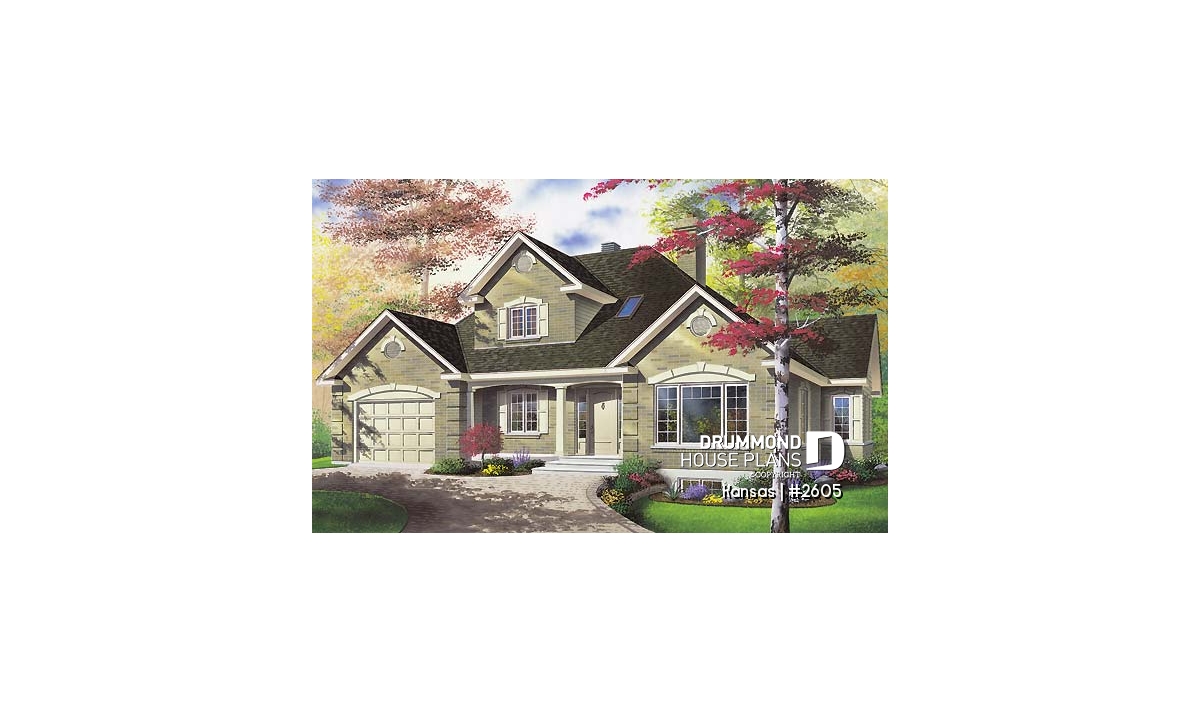

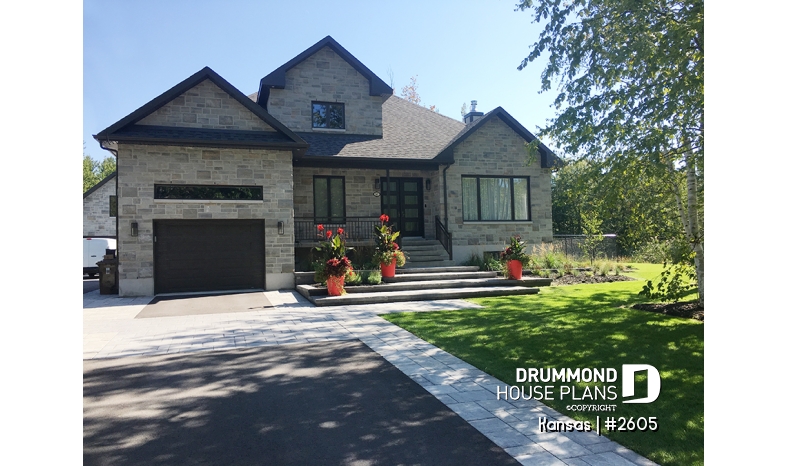

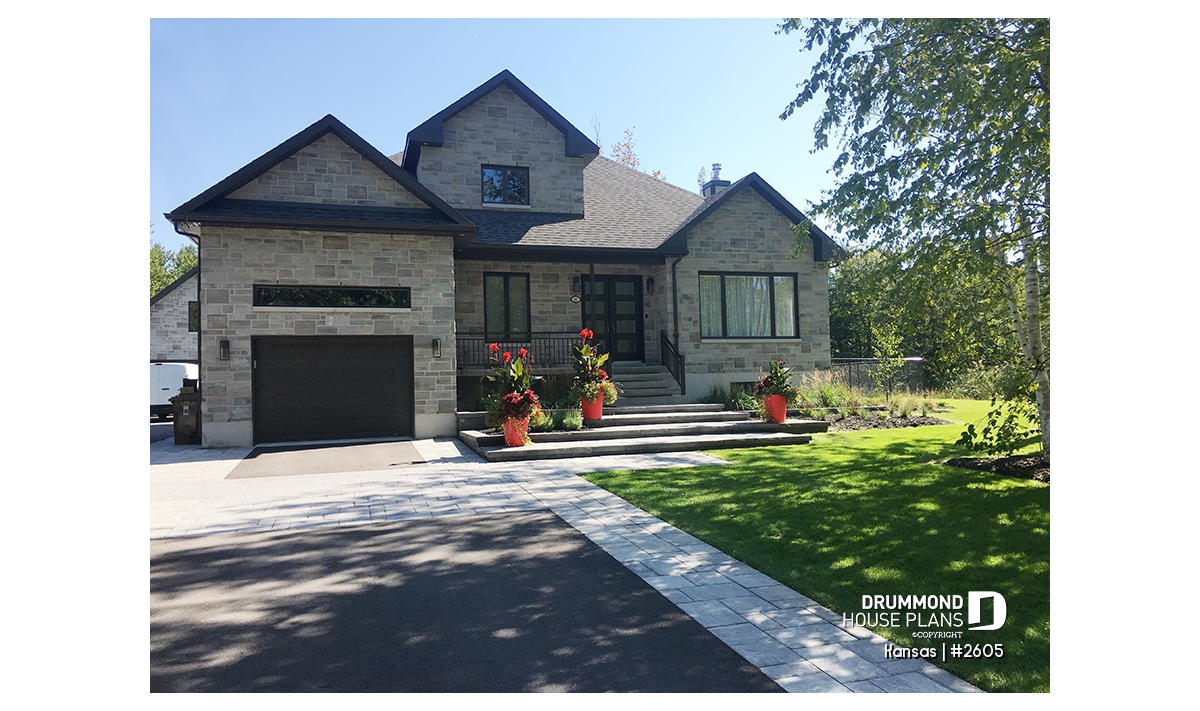

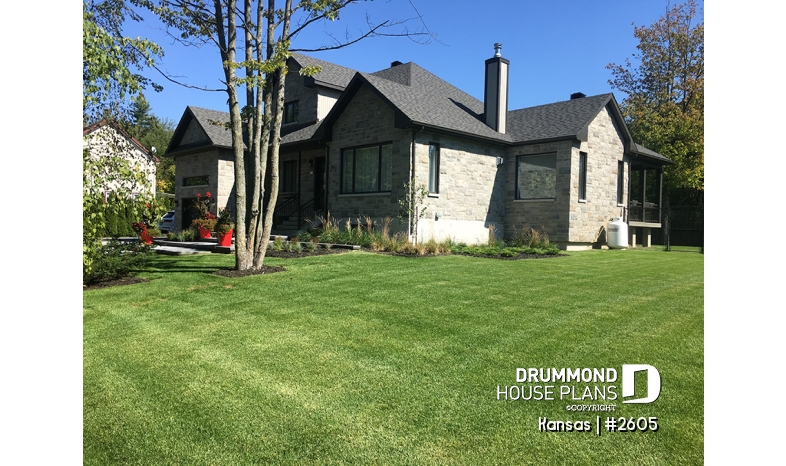

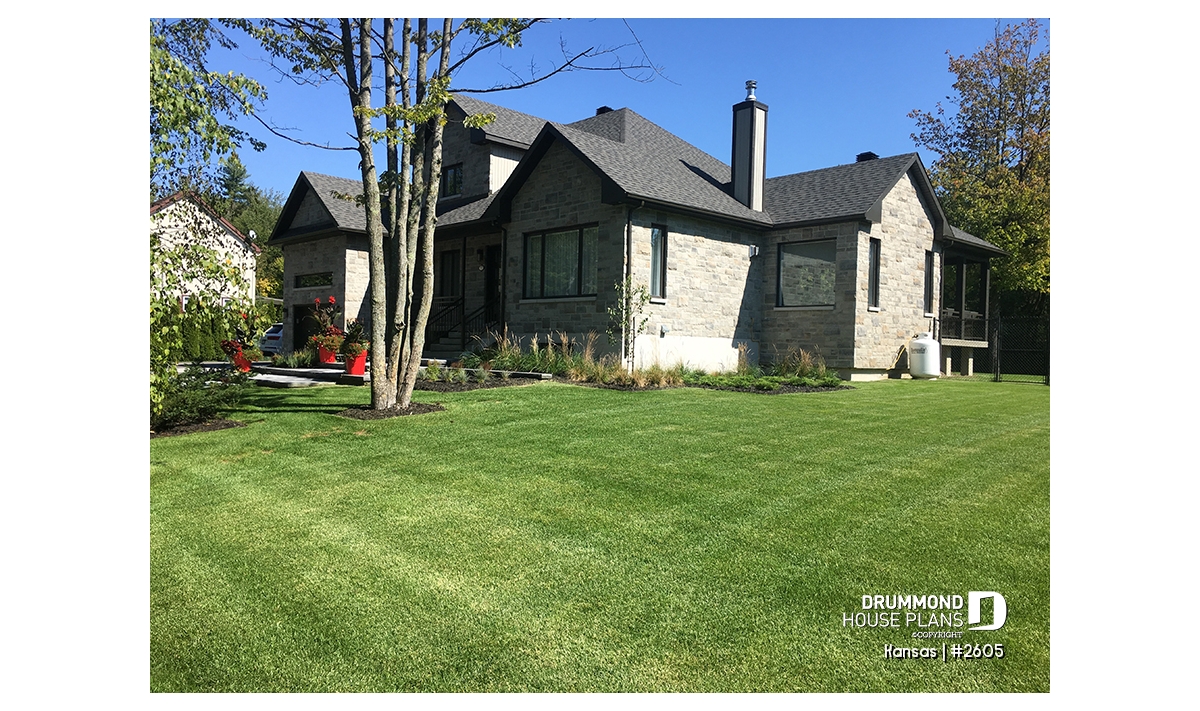

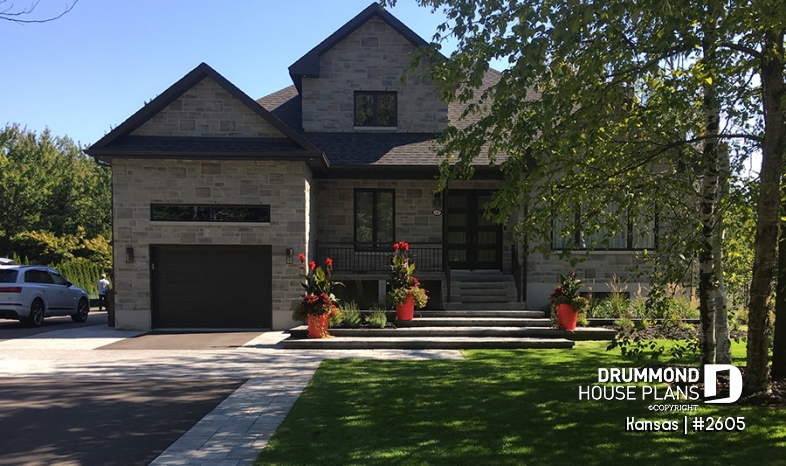

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

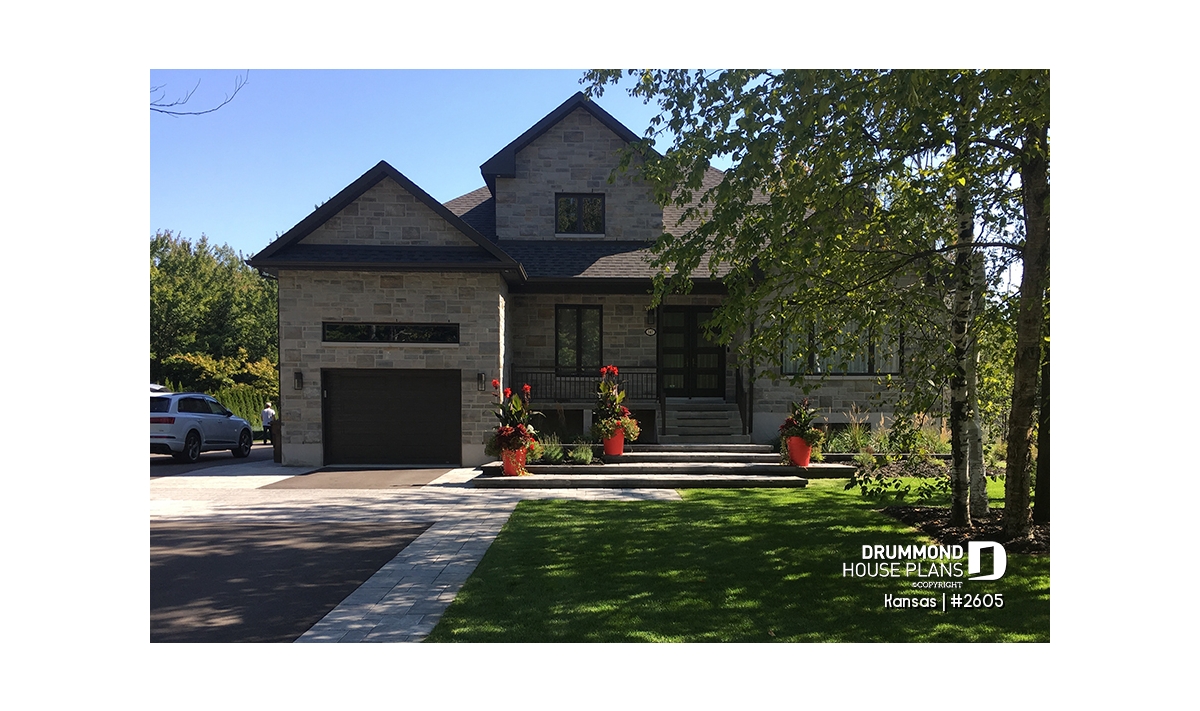

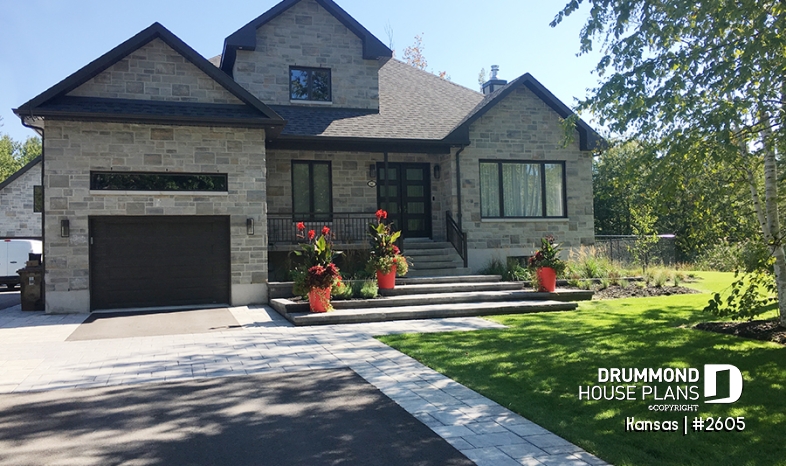

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

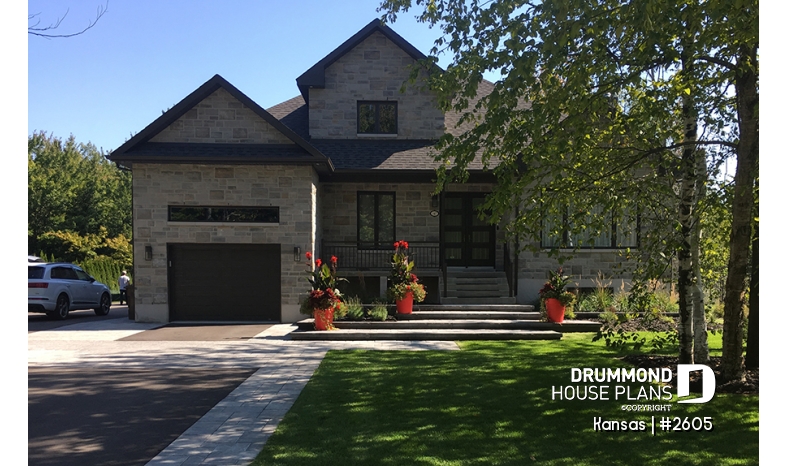

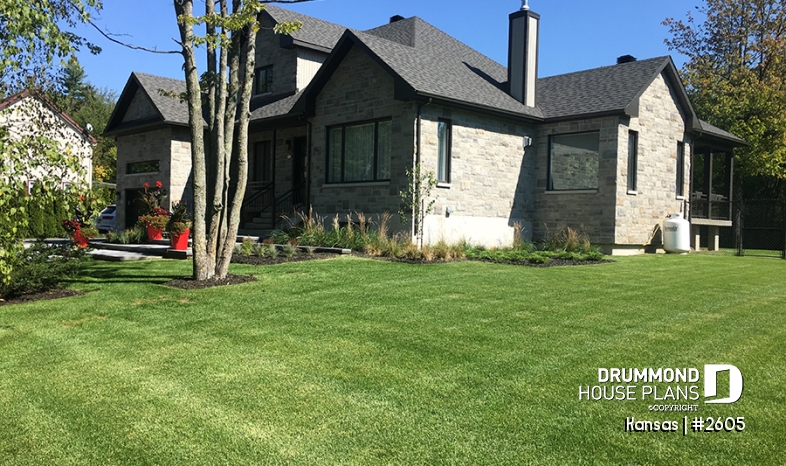

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

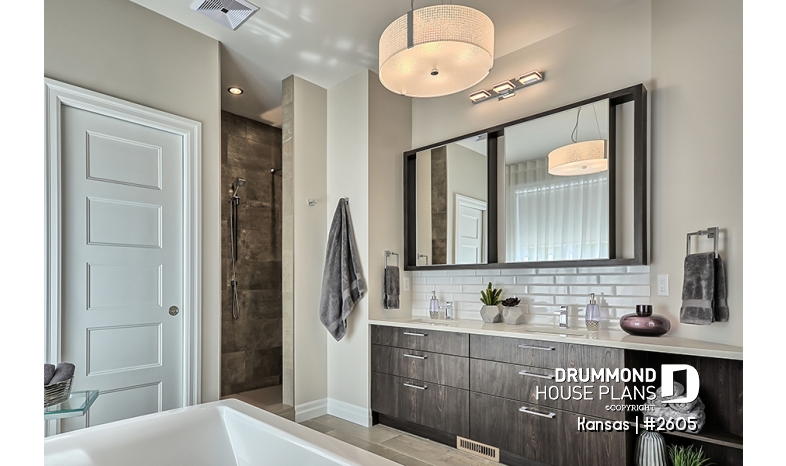

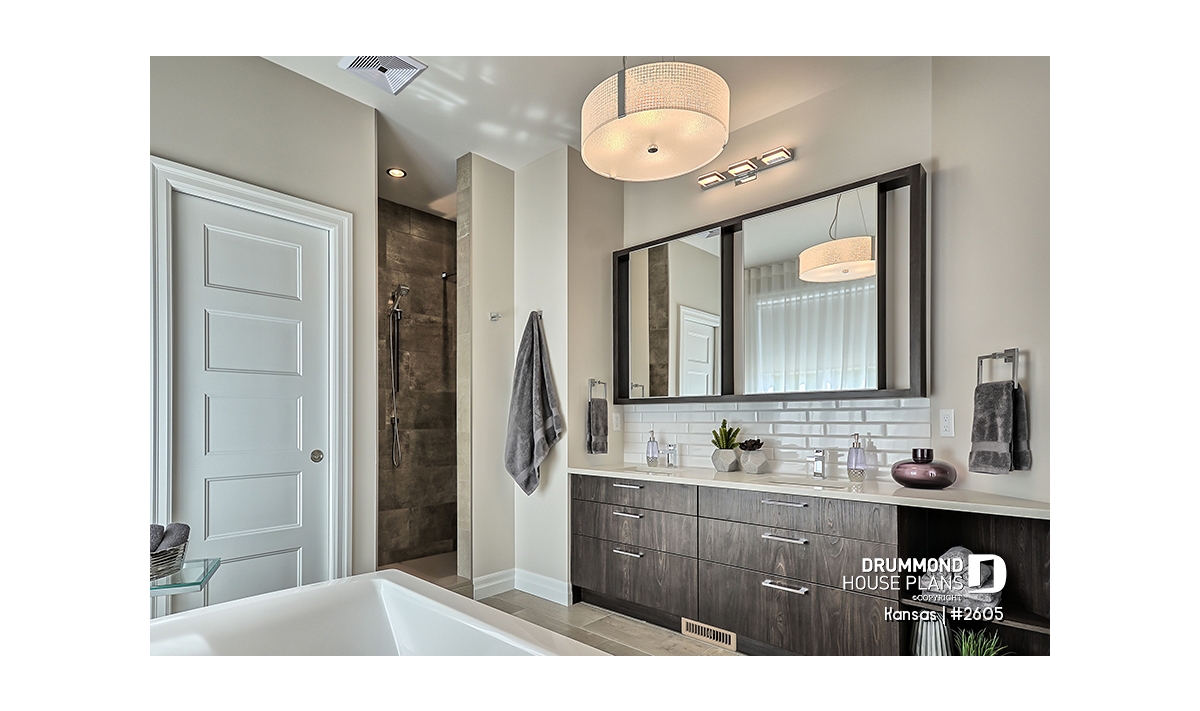

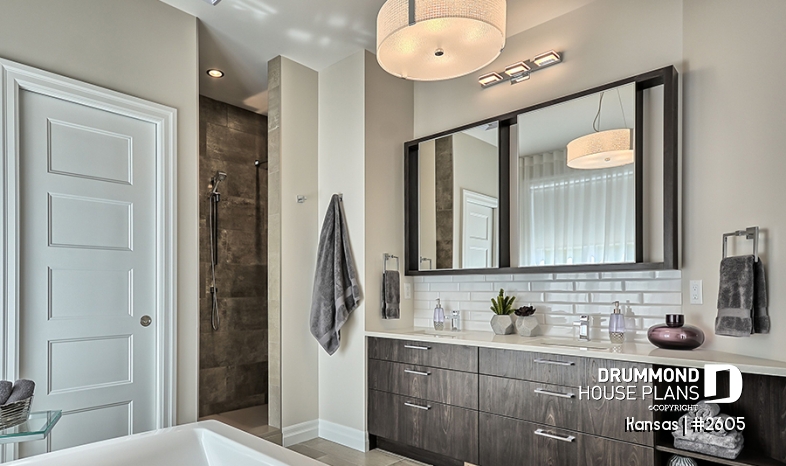

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

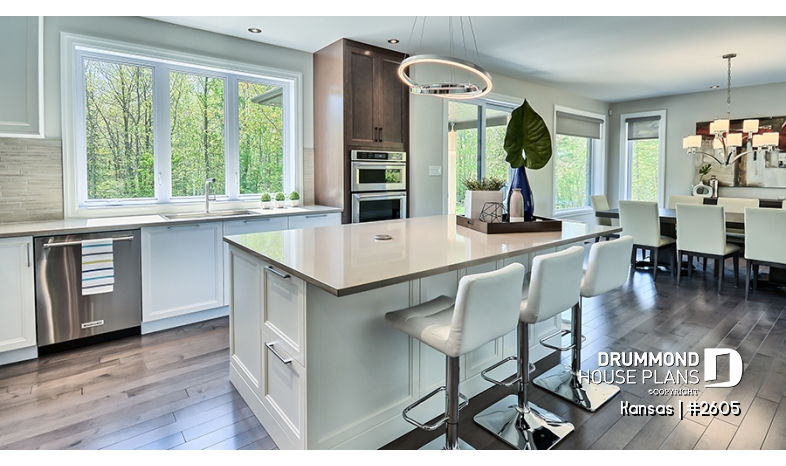

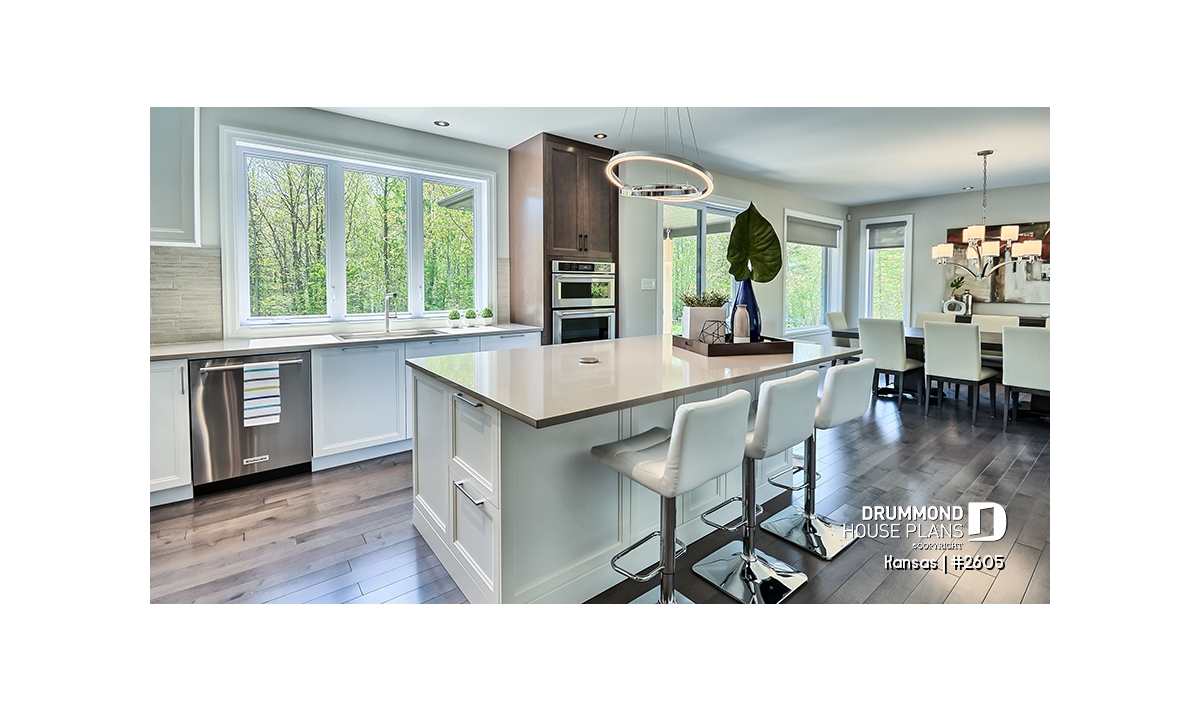

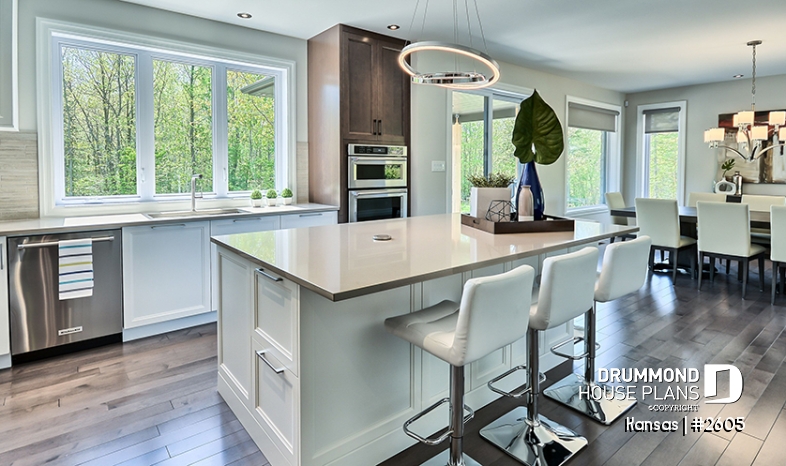

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

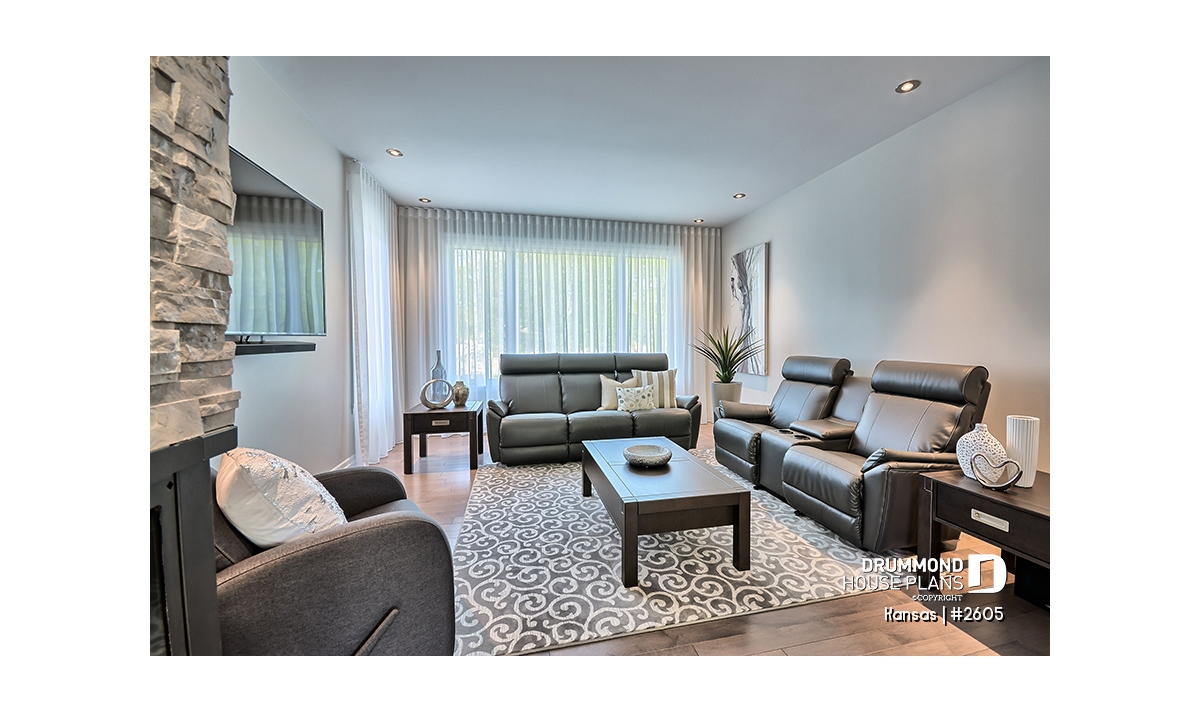

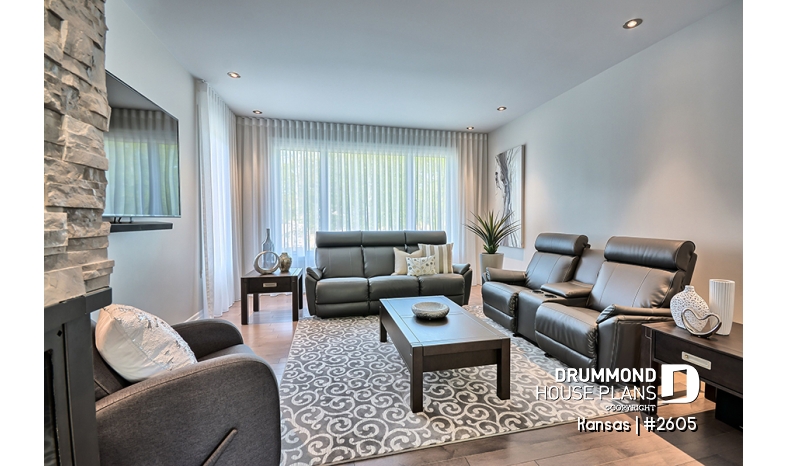

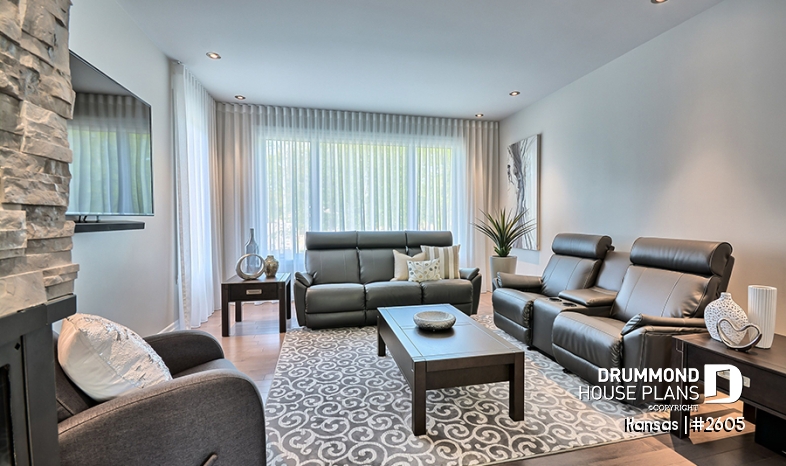

Great / Family room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

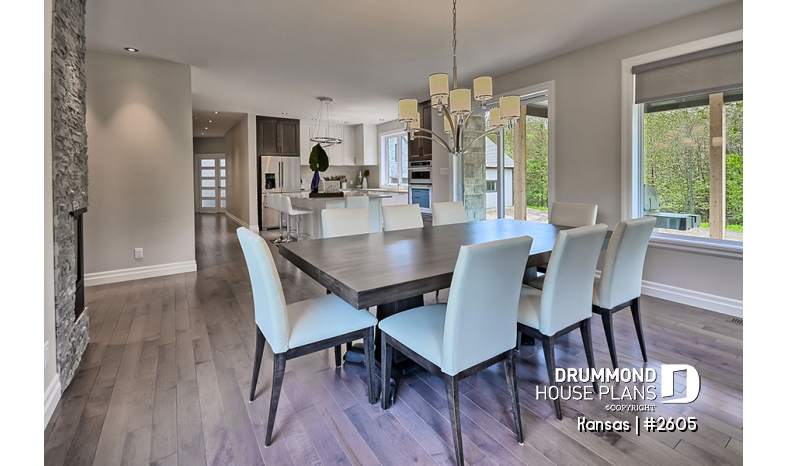

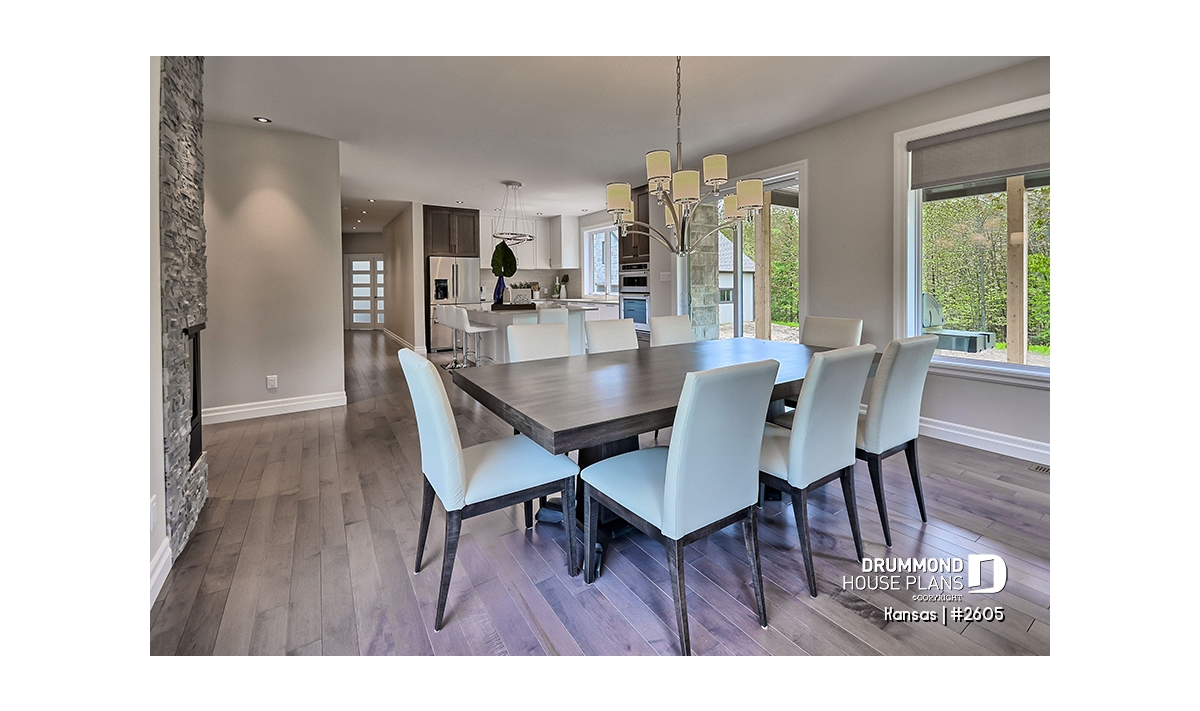

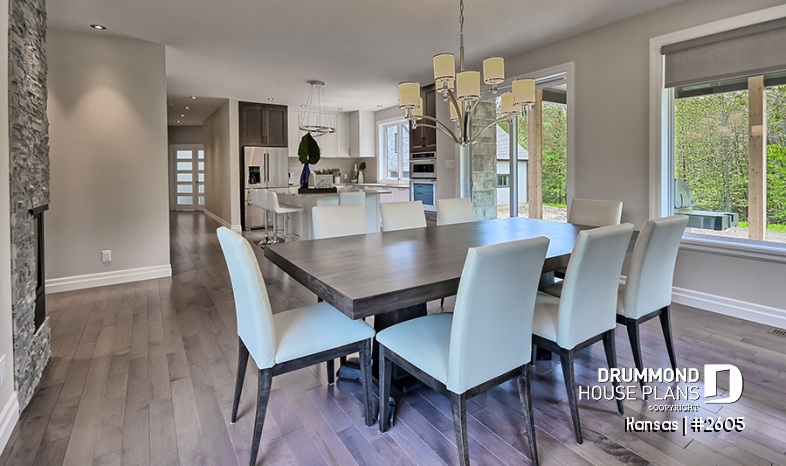

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Beautiful Modern Ranch Bungalow with 3 to 4 bedrooms & home office
.
Distinctive elements
Master bedroom on main floor.
Home office can become bedroom #4.
Large family room with corner fireplace.
Large kitchen island.
Laundry room on main room.
Two good size secondary bedrooms, full bathroom and mezzanine on second floor.
Plan feature(s)
Fireplace, Mezzanine, Office / Study / Den, Island, Sitting area, Master suite on main, Pantry, 2-Story foyer, Separate bath and shower, Double sinks, Gound floor laundry room, Sloped ceiling, Entrance hall, Deck
Plan architectural style(s)
. Country, . Traditional, . Ranch, . American
Similar plans
Previously Viewed Plans
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
You may also like
Similar plans
Awards and
Recognition
Here is a brief description of our different plan packages. Please select the plan package that suits your needs. You can change the package at the next step, if necessary.
PDF VERSION OF PLAN:
Complete digital version of plan (pdf format) sent by email (original plan format 18" x 24'' or 24" x 36'')
5 copies of plan + PDF:
Includes: 5 copies of plan, plan in PDF format (reduced size version), materials list.
Foundation type
Additional foundation types are available, a fee may apply. Please indicate your choice on the online order form, or to our customer service representative, when placing your house plan order.
If your desired foundation type is not available, please contact our customer service to receive your free plan modification quote.
Explanation of bonus space types
UNFINISHED BONUS ROOM
The bonus rooms are often planned above the garage and are accessible from the house. They are designed to be converted as an office, a laundry area, a bathroom, a library corner or even an additional bedroom for which homeowners must make sure to have a window that complies with current codes & standards.
STORAGE AREA
Often located above the garage, our storage areas are used only as storage and are usually accessible from the garage via a retractable staircase.
Do you like this plan but want it to be modified to suit your needs?
To add a garage, another bedroom, finish the basement or any other modification, click here and let us know about your desired changes and to get your free quote for the modification of your plan.
