House plan Glenhaven (2645)
Large 3 to 4 bedroom house plan, large bonus space, 2-car garage, 9' ceiling on main floor
View the size of the rooms and height of the ceilings

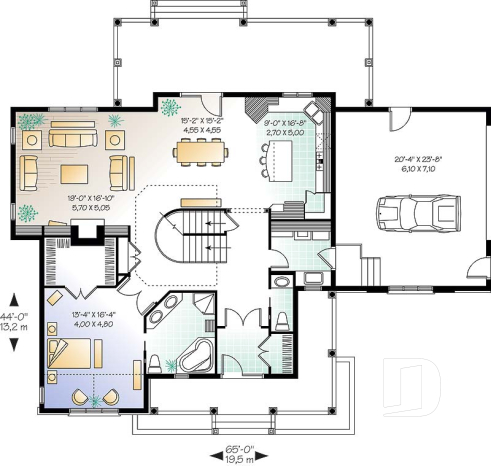

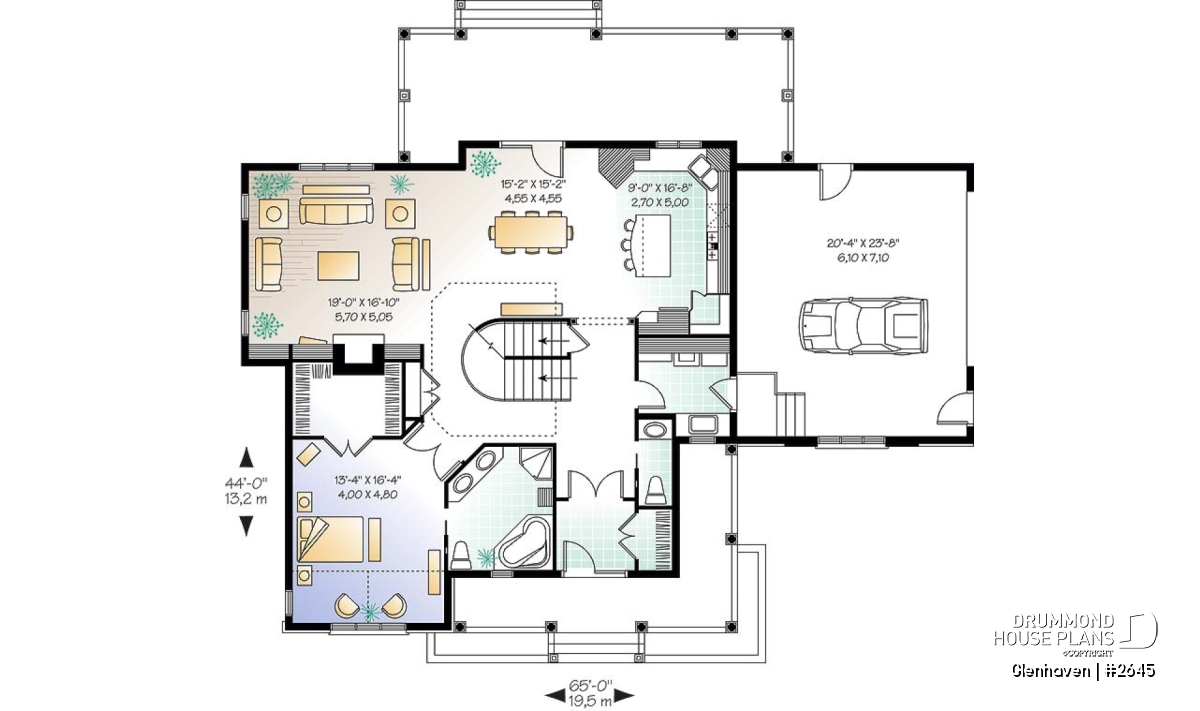

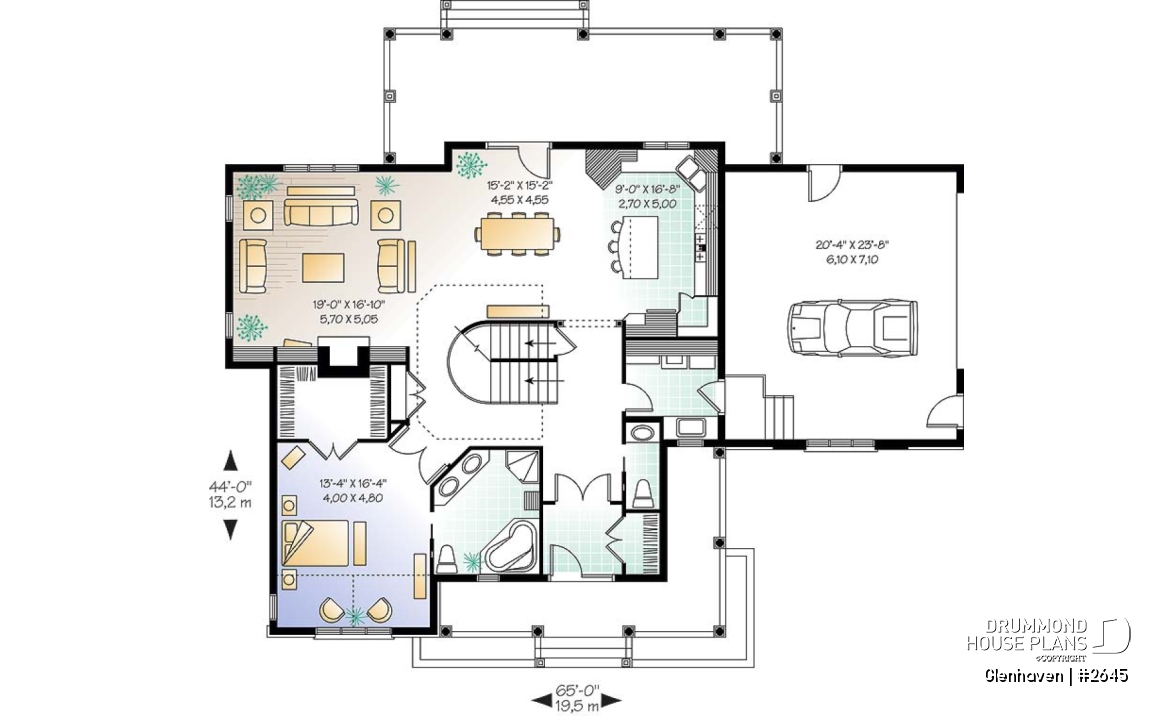

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 9'0" x 16'8" | ~ 9'0" |
| Pantry | 3'7" x 3'7" | N/A |
| Dining room | 15'2" x 15'2" | ~ 9'0" |
| Living room | 19'0" x 16'10" | ~ 9'0" |
| Linen | 4'10" x 1'4" | ~ 9'0" |
| Foyer | 7'0" x 6'2" | ~ 9'0" |
| Utility room | 8'0" x 8'8" | ~ 9'0" |
| Garage | 20'4" x 23'8" | ~ 10'3" |
| Covered porch | 25'0" x 5'0" | N/A |
| Covered deck | 35'0" x 10'0" | N/A |
| Covered porch | 5'0" x 12'0" | N/A |
| Half bath or powder room | 3'0" x 7'6" | ~ 9'0" |
| Master suite | 13'4" x 16'4" | ~ 9'0" |

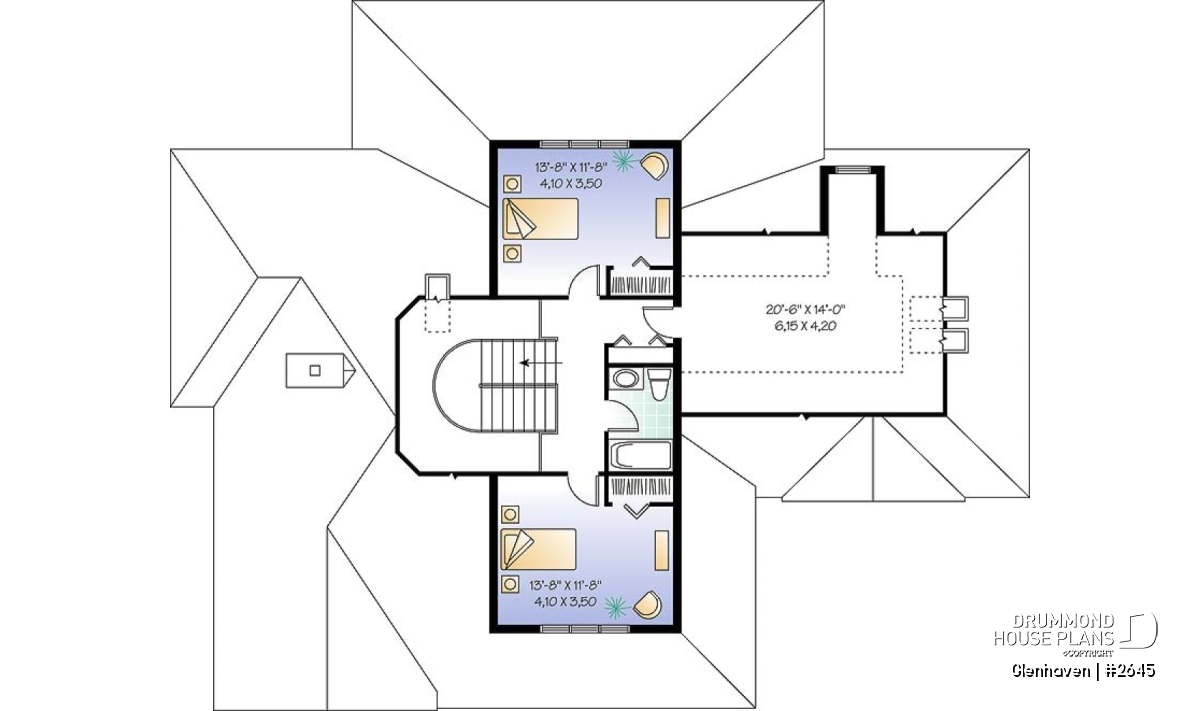

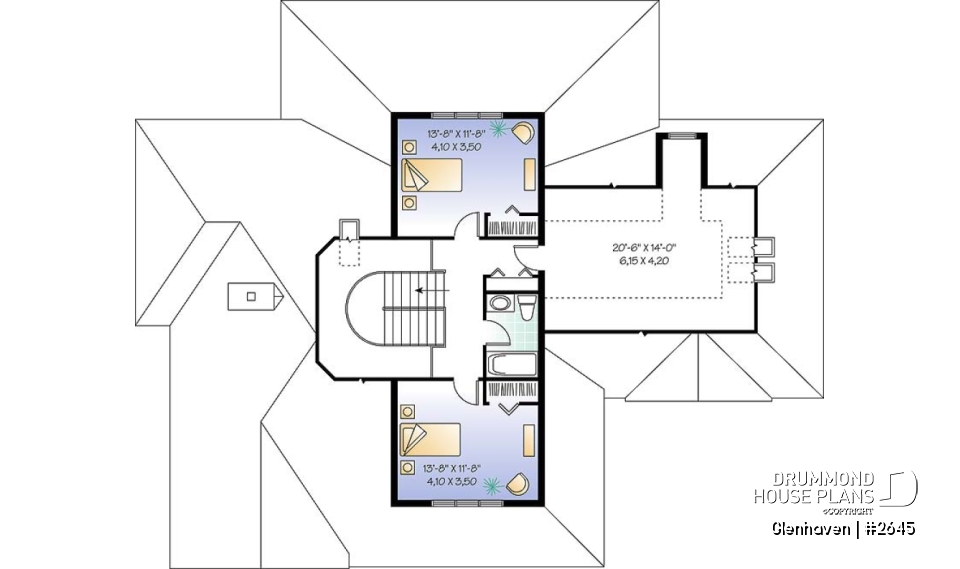

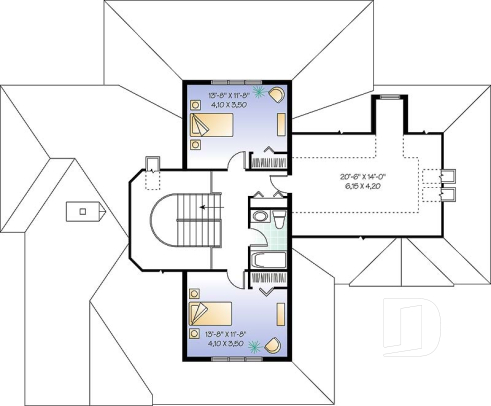

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'0" x 8'4" | ~ 8'0" |
| Bedroom | 13'8" x 11'8" | ~ 8'0" |
| Bedroom | 13'8" x 11'8" | ~ 8'0" |
| Living bonus room | 20'6" x 14'0" | ~ 9'8" |
| Linen | 5'0" x 1'2" | ~ 8'0" |
General specifications
| Total living area | 2204 sq.ft. |
| 1st level | 1618 sq.ft. |
| 2nd level | 586 sq.ft. |
| Width | 65'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 29'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
Large 3 to 4 bedroom house plan with 2-car garage and large bonus space above garage.

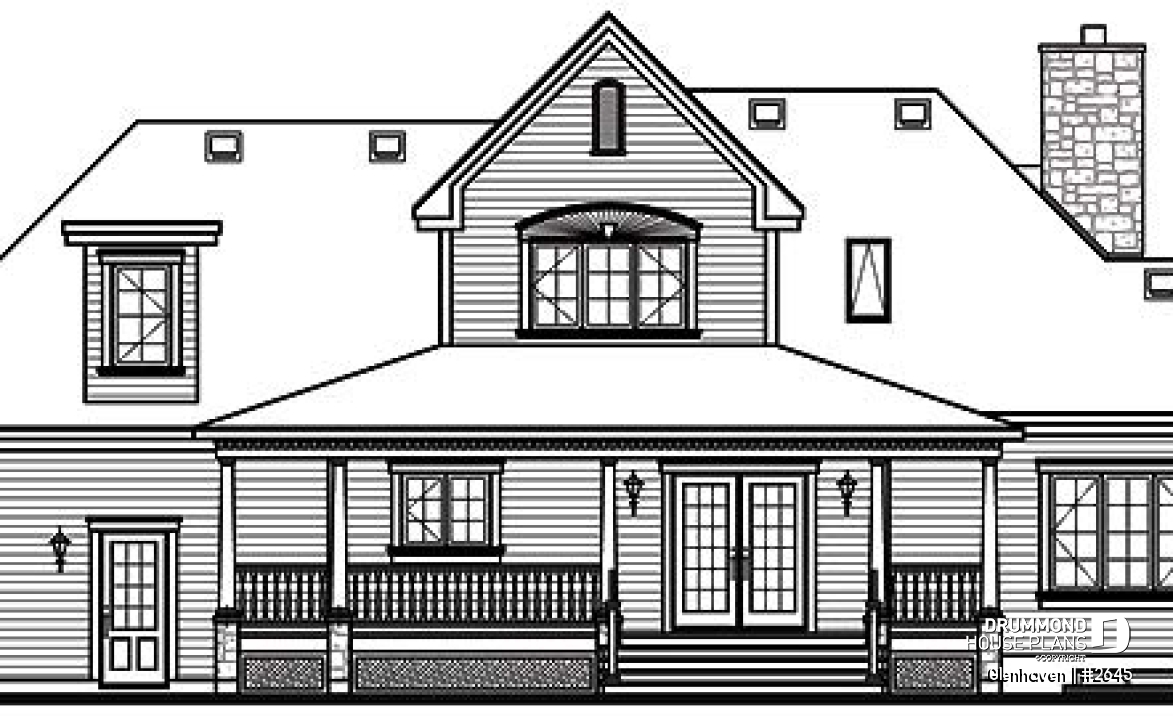

A covered porch with pillars graces the front of this classically quaint home while a grand porch around back enjoys the outdoors. The 2204 sq.ft. interior draws appeal from a dramatic central staircase, spacious contemporary kitchen, family room with fireplace, and main-floor master suite.
Upstairs gives complete privacy to two bedrooms, full bathroom, and bonus area above garage.
Distinctive elements
9' ceiling on 1st level. Activity area open, towards the back. Remarkable master suite on 1st floor. Large covered porch in the back. Centered staircase. Bonus space above the garage.
Plan feature(s)
Fireplace, Ceiling over 8', Mezzanine, Living bonus space, Deck, Side entry garage, Pantry, Island, Gound floor laundry room, Open floor layout, Master suite on main, Warparound, Built-ins, Double sinks, Separate bath and shower, Living bonus space, Cathedral ceiling
Plan architectural style(s)
. Craftsman / Northwest, . Farmhouse, . Rustic, . Victorian, . American, . Country, . Ranch, . Mountain, . Traditional, . European
Similar plans
Previously Viewed Plans
Questions and comments
April 17
Mindy McCall
I am wondering if you have any photos of the interior of this house plan, The Glenhaven, W2645, specifically the staircase. Thank you.
April 17
Customer service
Good day Ms. McCall and thank you for your interest in our plans.
Unfortunately, because we do no actual building we have only the photos that our clients have so generously shared with us.
Any photos that are available are posted to our site in order to give a better idea of what the home actually looks like.
I will be unable to provide photos for this home as we have not received any but you may get ideas from similar styles which can be found in our photo gallery for which I have attached the link below
http://www.drummondhouseplans.com/photo-gallery.html
Please let me know if you have any other questions or comments.
Regards
Deborah
November 02
Kelley Buffitt
Is this plan availabe without a garage? I love the plan the way it is but I don't need the garage.
November 03
Customer service
Good day Ms. Buffitt,
Thank you for your inquiry.
There is a similar plan which might interest you, 2759 ( either -V1 or -V2), which does not have a garage. If not, a modification to plan 2645 to remove the garage would be possible. Click here if you wish to get a free estimate on some changes
I am providing you with the link on our site for modifications, all you have to do is click here
https://wwwapps.ups.com/ctc/request
Please don't hesitate to contact us if you have any further questions or comments.
Deborah
