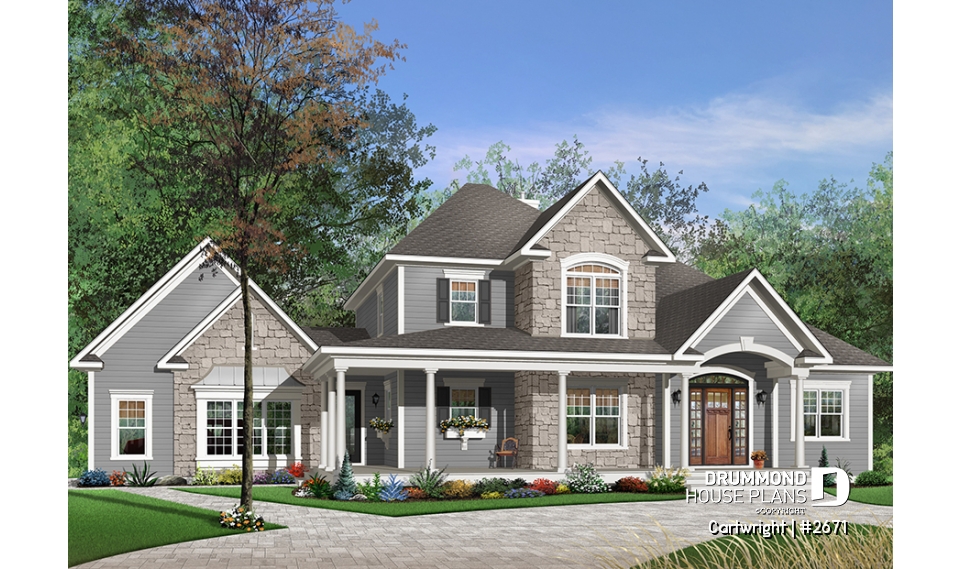

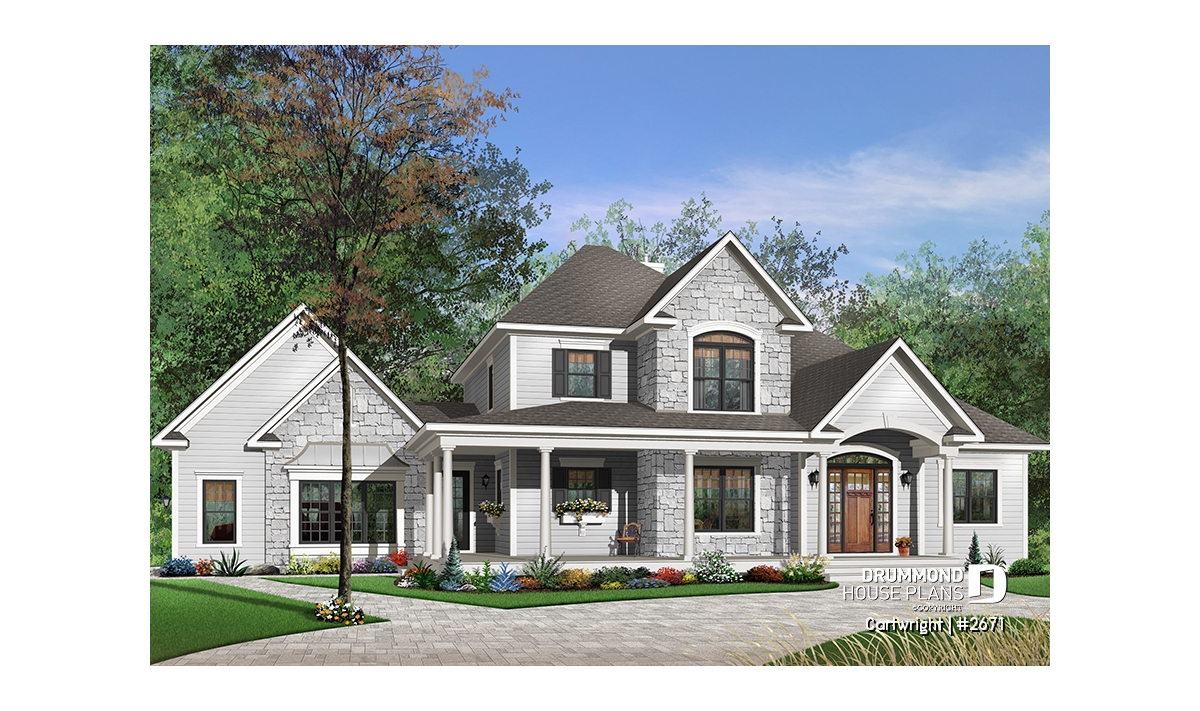

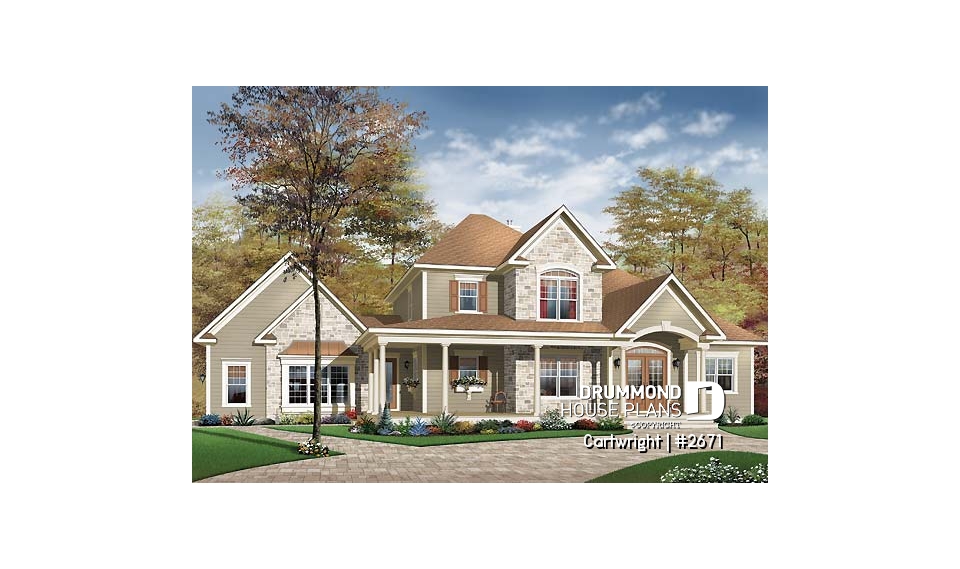

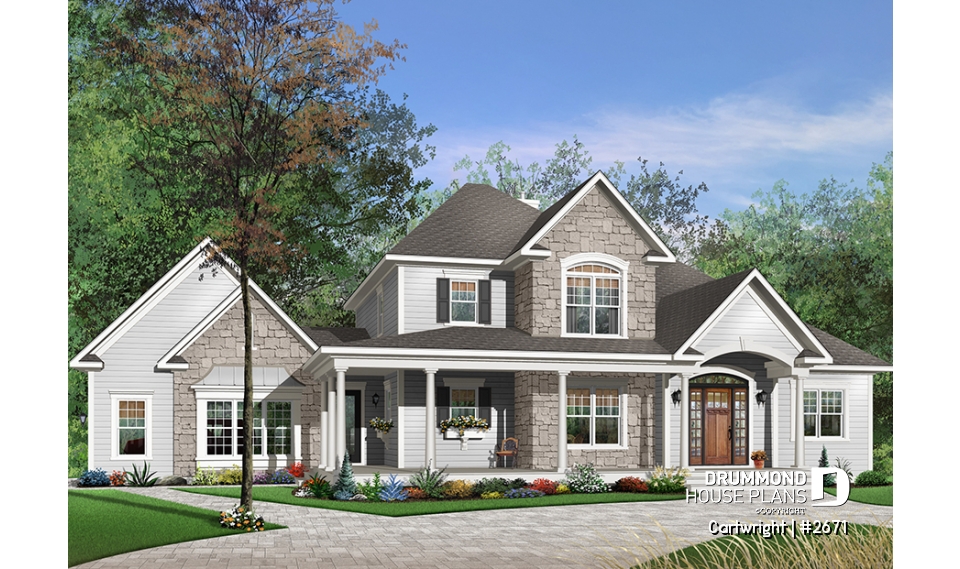

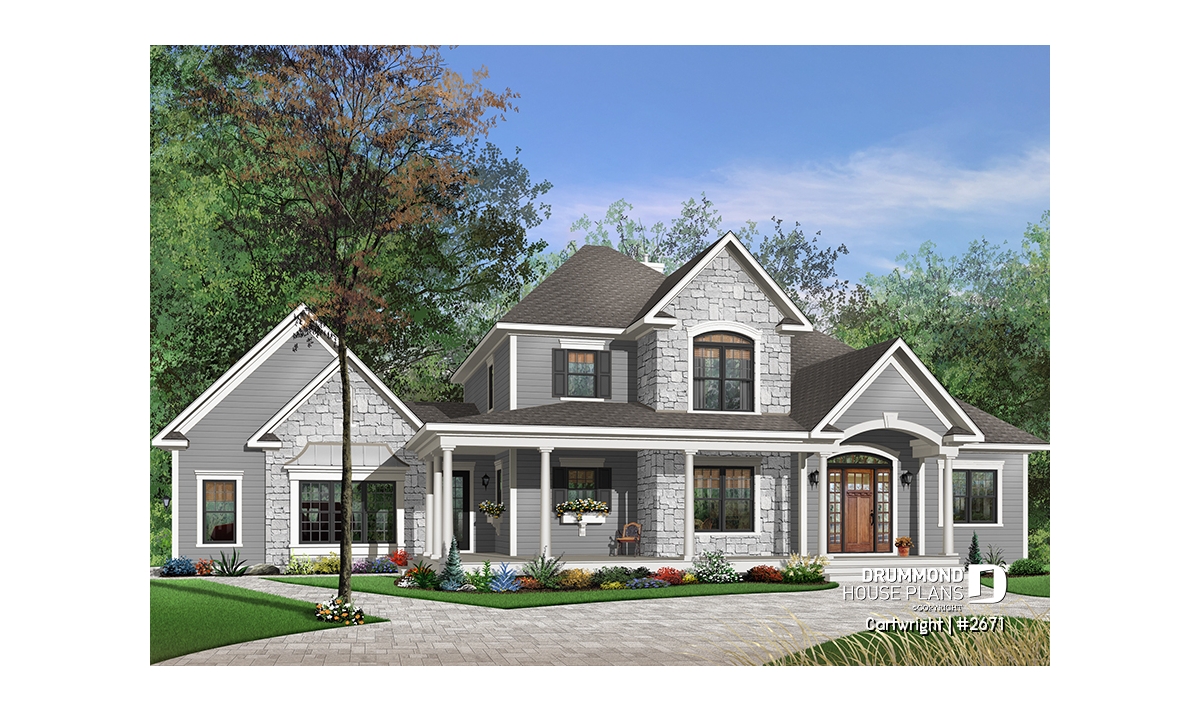

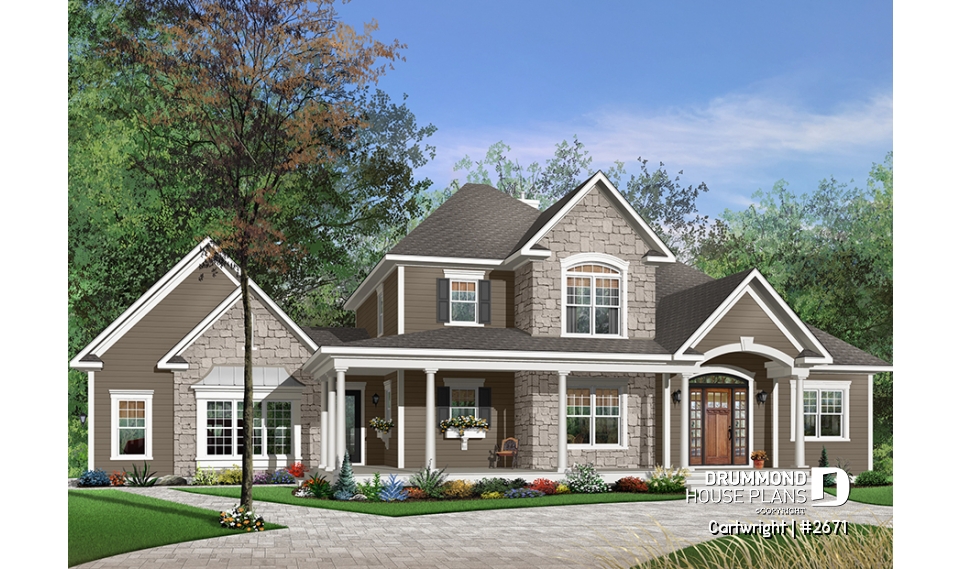

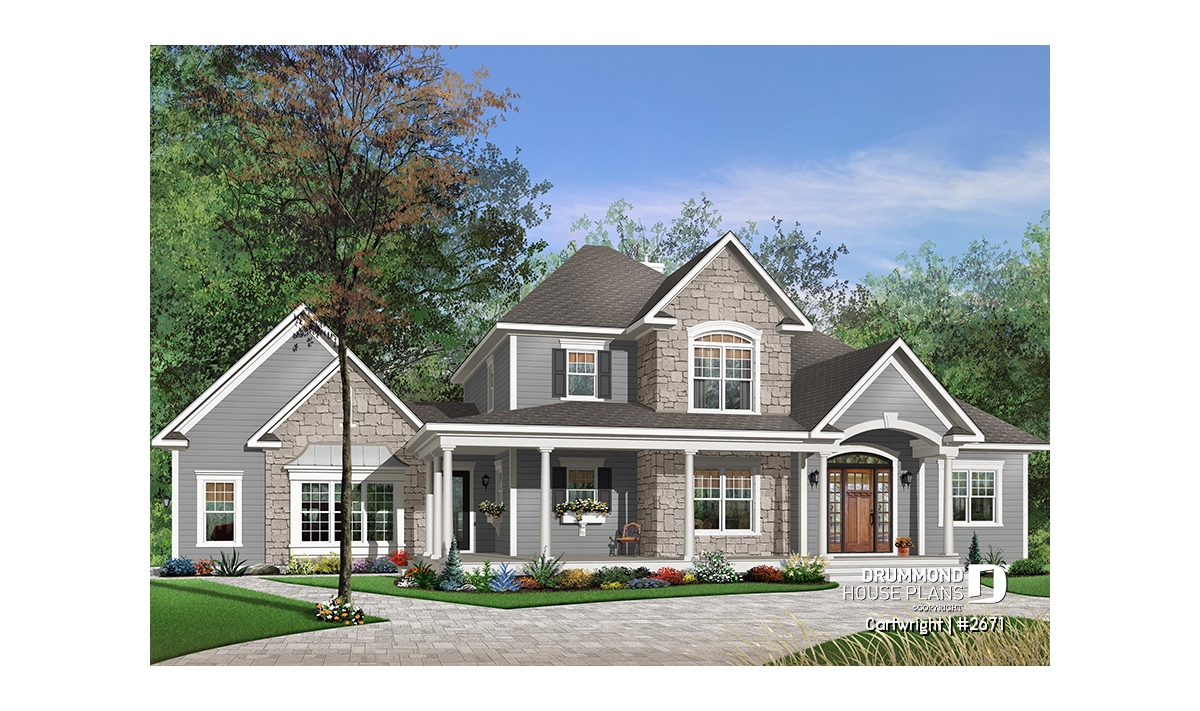

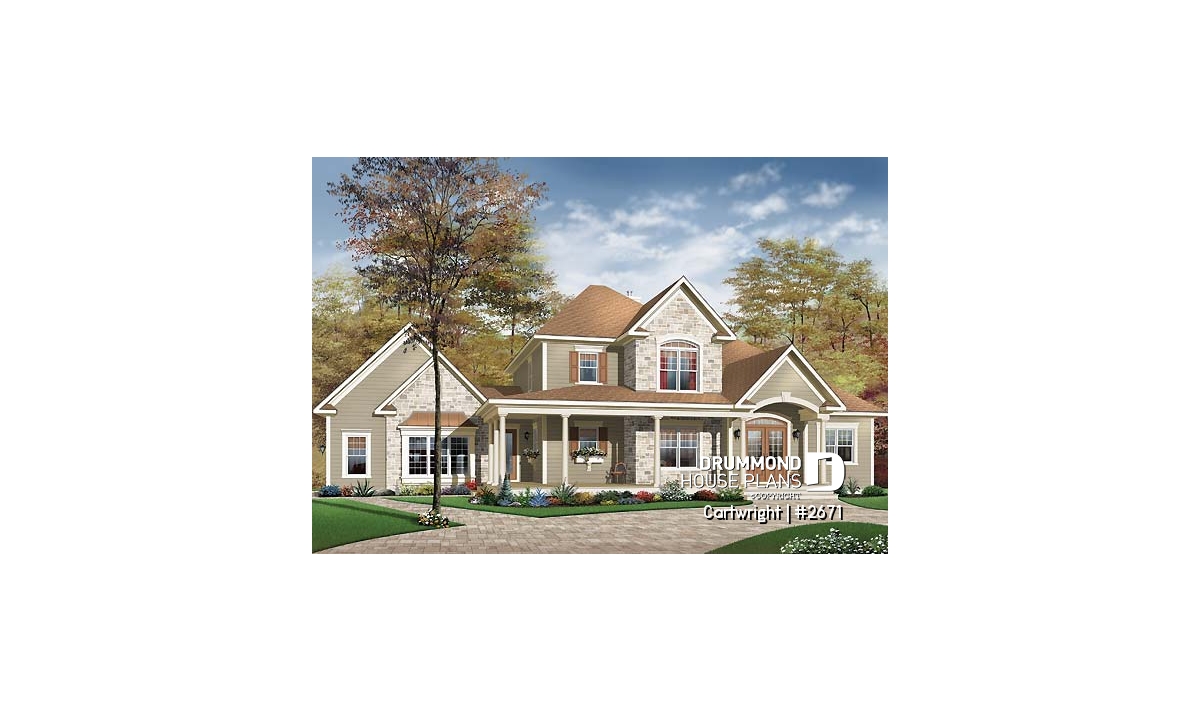

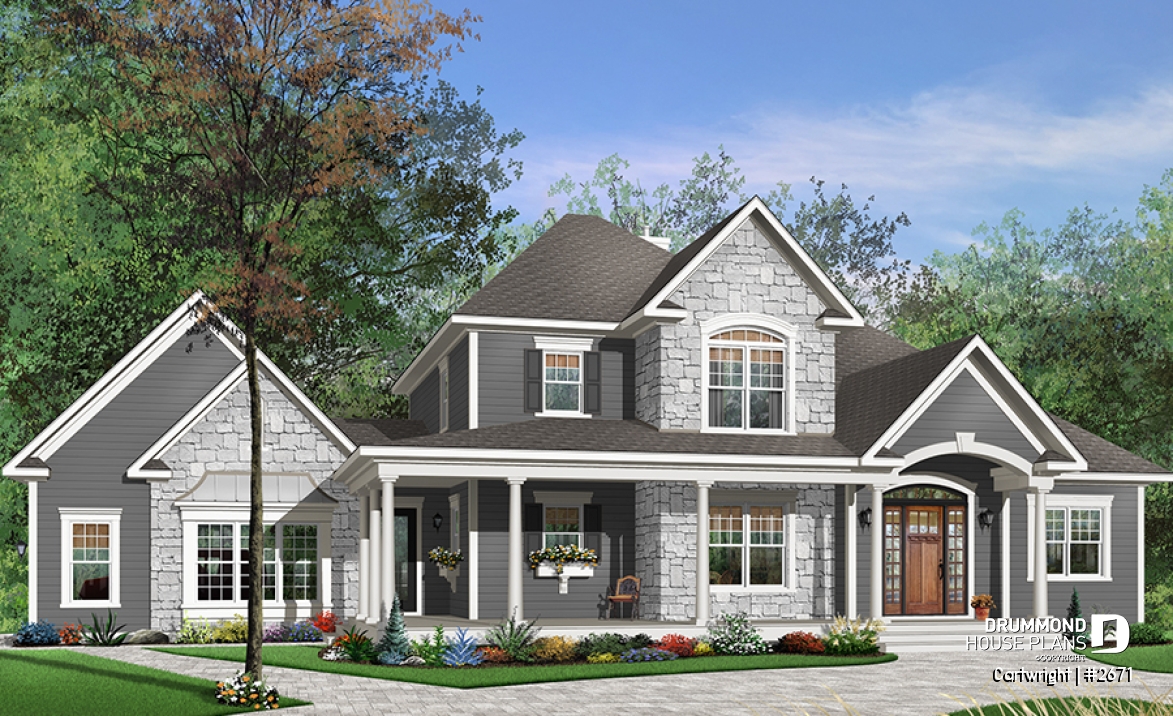

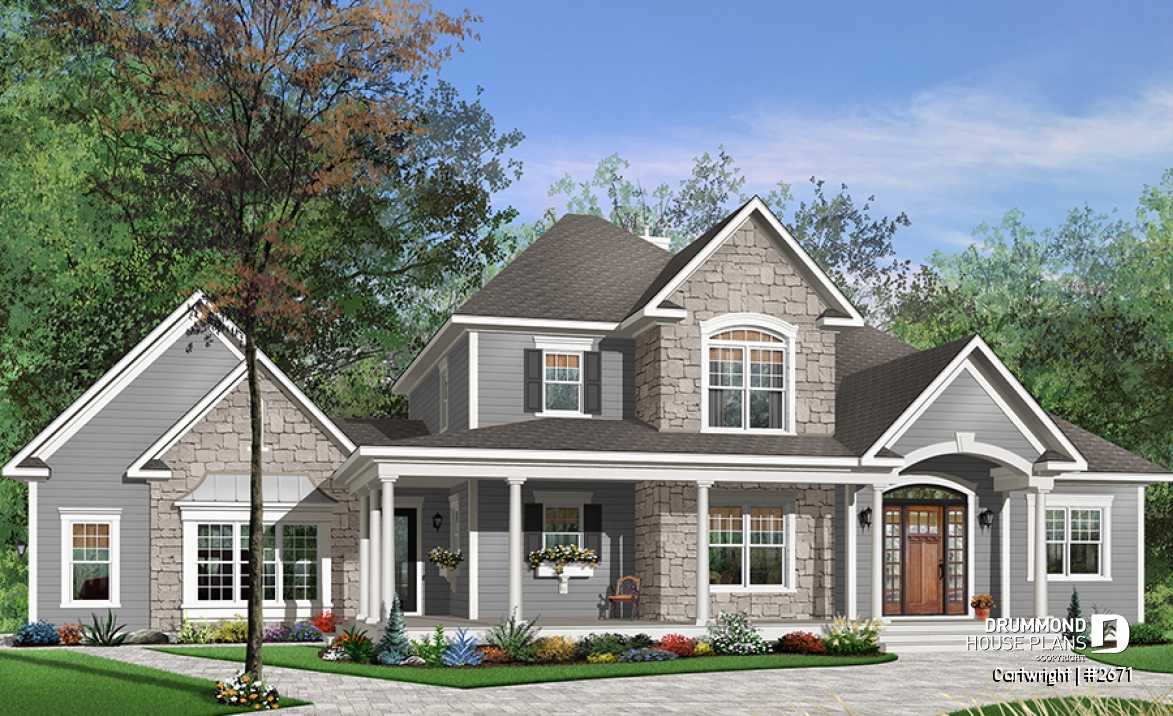

House plan Cartwright (2671)
3 to 4 bedroom Ranch style home with open floor plan and 3-car garage, great kitchen
View the size of the rooms and height of the ceilings

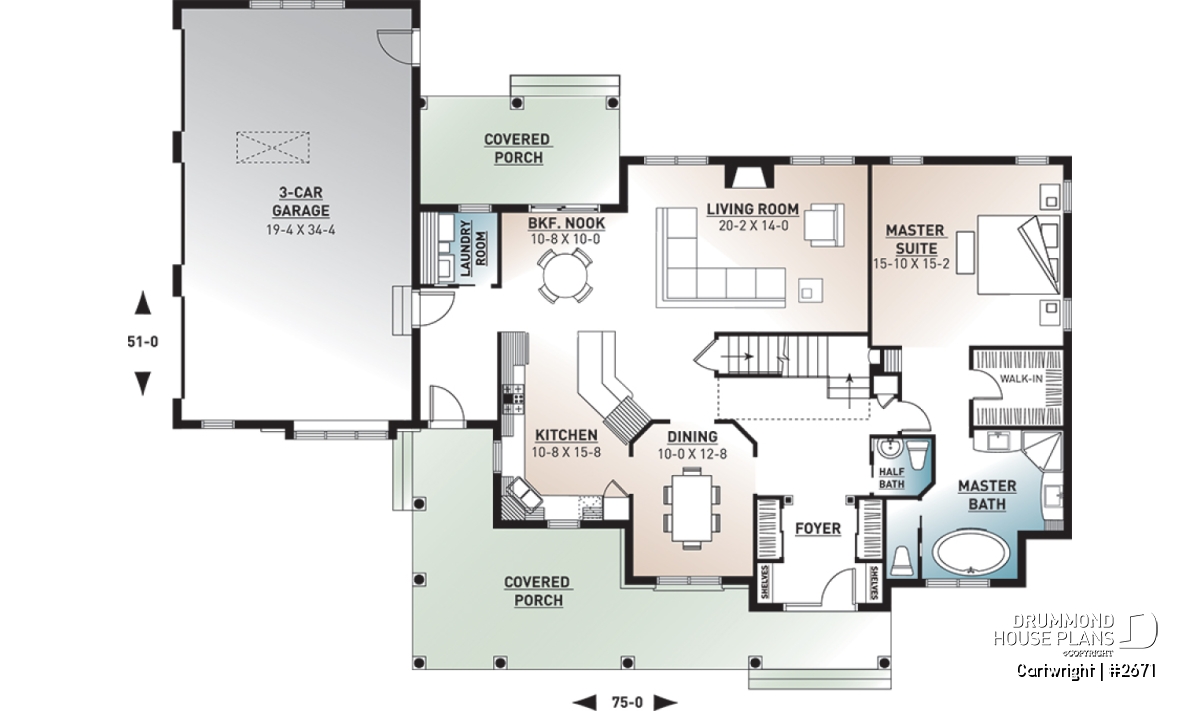

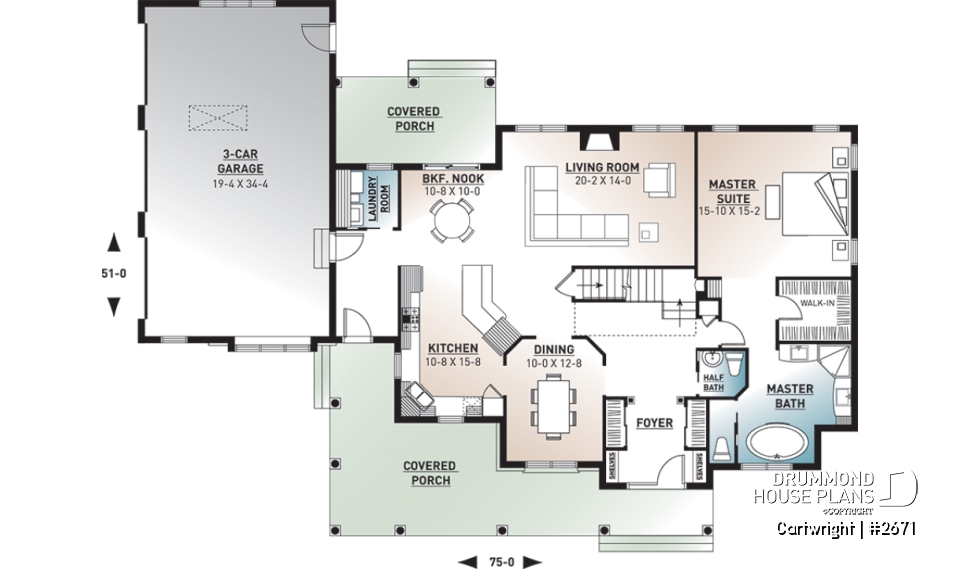

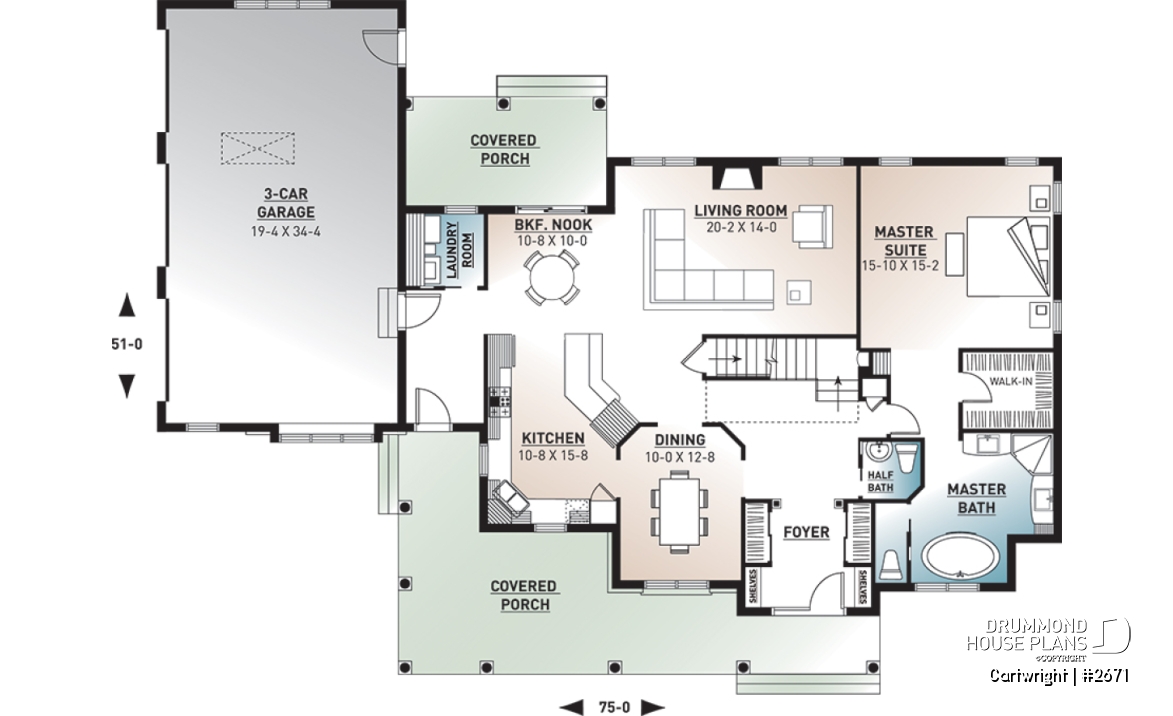

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 4'10" x 4'10" | ~ 8'8" |
| Kitchen | 10'8" x 15'8" | ~ 8'8" |
| Pantry | 2'2" x 2'0" | N/A |
| Breakfast nook | 10'8" x 10'0" | ~ 8'8" |
| Dining room | 10'0" x 12'8" | ~ 8'8" |
| Living room | 20'2" x 14'0" | ~ 8'8" |
| Master suite | 15'10" x 15'2" | ~ 8'8" |
| Linen | 2'0" x 1'6" | ~ 8'8" |
| Foyer | 5'10" x 8'5" | ~ 8'8" |
| Utility room | 6'0" x 6'4" | ~ 8'8" |
| Garage | 19'4" x 34'4" | ~ 10'2" |
| Foyer | 6'4" x 11'0" | ~ 8'8" |
| Porch | 32'2" x 6'10" | N/A |
| Porch | 20'2" x 6'8" | N/A |
| Deck | 16'8" x 9'0" | N/A |

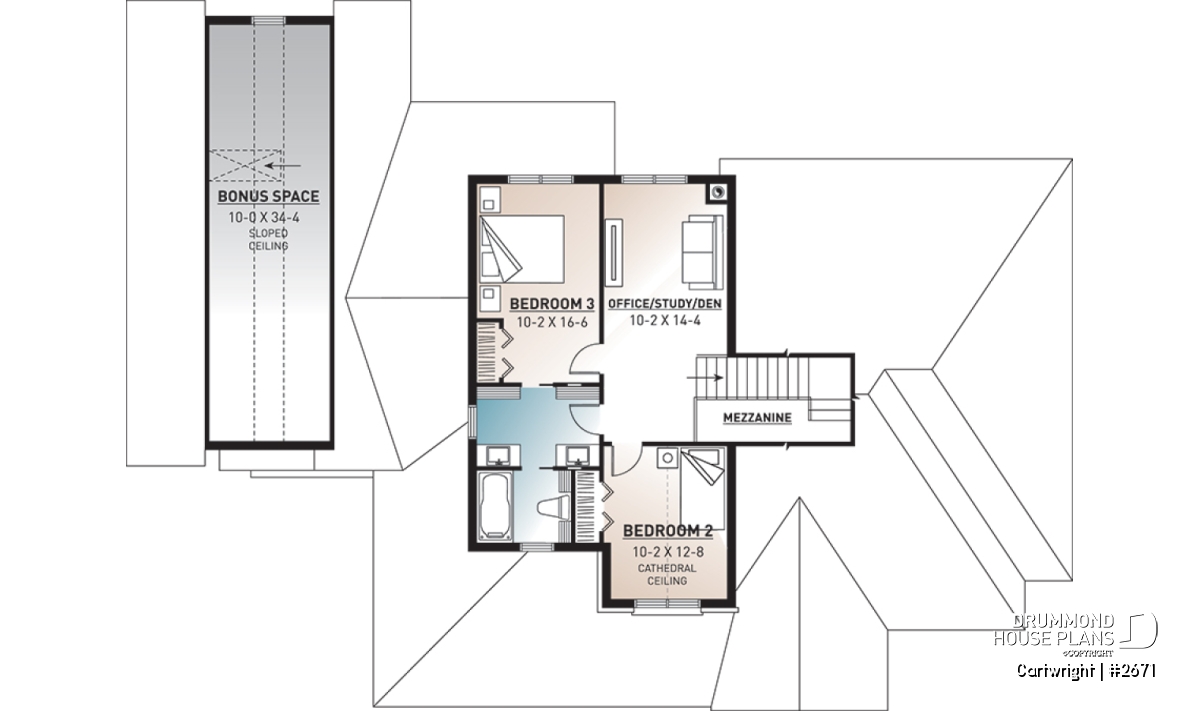

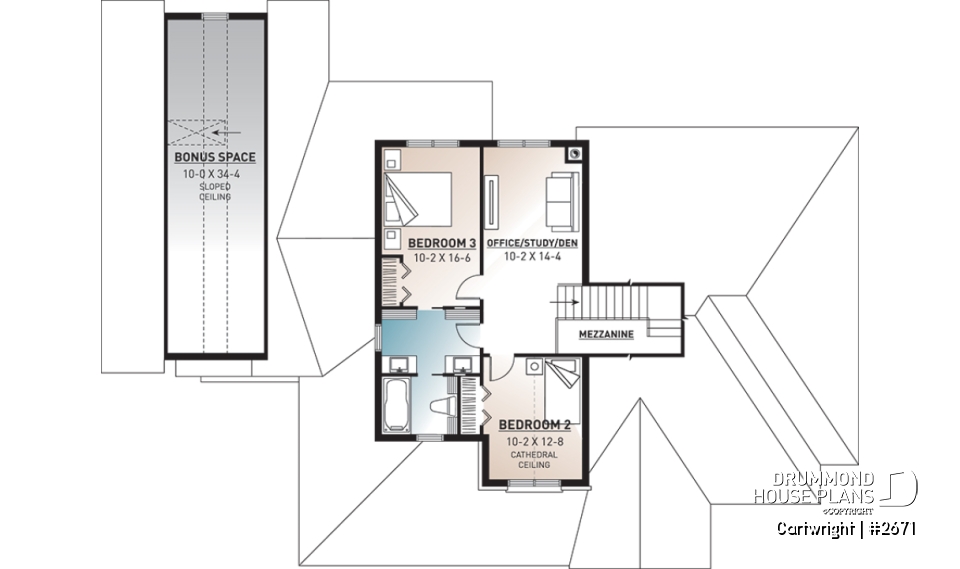

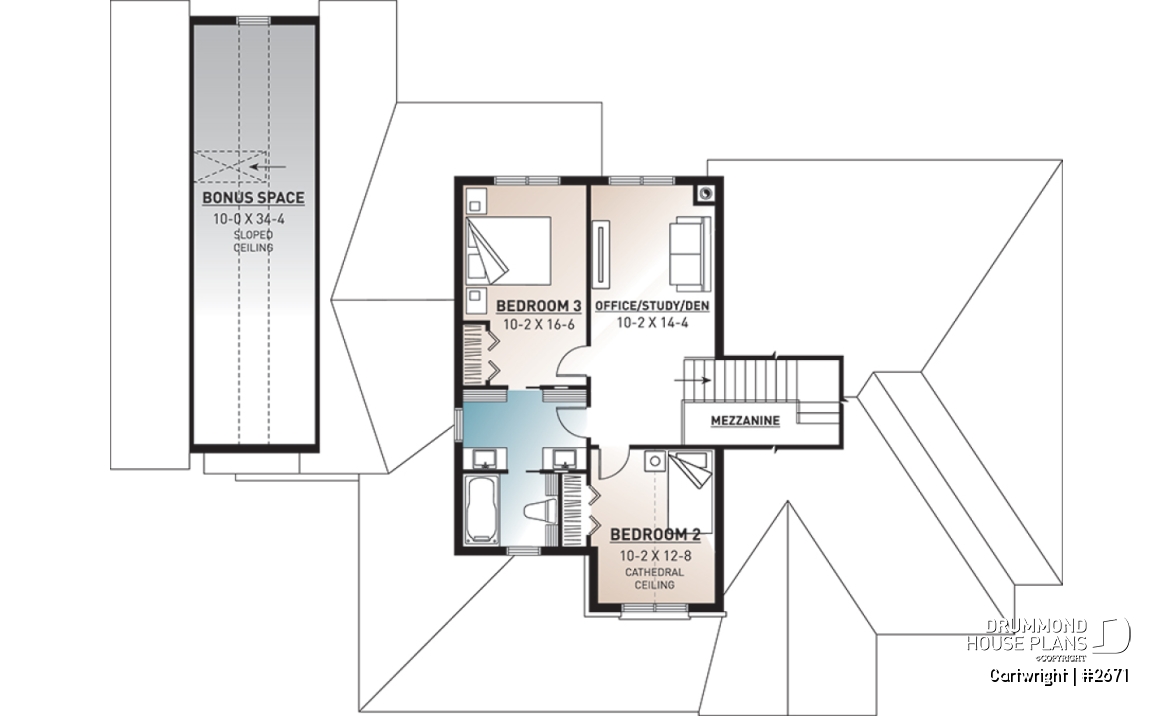

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 12'10" x 10'2" | ~ 8'0" |
| Den | 10'2" x 14'4" | ~ 8'0" |
| Bedroom | 10'2" x 16'6" | ~ 8'0" |
| Bedroom | 10'2" x 12'8" | ~ 10'8" |
| Bonus storage | 10'0" x 34'4" | ~ 7'4" |
General specifications
| Total living area | 2549 sq.ft. |
| 1st level | 1777 sq.ft. |
| 2nd level | 772 sq.ft. |
| Width | 75'0" |
| Depth | 51'0" |
| Ridge height from top of foundation | 30'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | G |
Rooms specifications
Other useful information on this plan
Perfect floor plan with master suite on main floor and large family room (total 3 to 4 beds)
Make room for your growing family with this versatile 2549 sq. ft. three-bedroom with 2.5 baths. The bright bonus space above the three-car garage easily converts to a fourth bedroom. There’s even a second-level family room and nearby full bath. For added ease, look on the main floor for the master suite with private bath.
Distinctive elements
8'-8" Ceiling on main level. Three-car garage with attractive bonus space above. Main level master bedroom suite. Large family room with fireplace and view of rear. Original kitchen with enviable dinette area. Well organized second level for the children.
Plan feature(s)
Fireplace, Gound floor laundry room, Side entry garage, Island, Deck, Ceiling over 8', Breakfast nook, Master suite on main, Walk-in master bed., Panoramic view, Sitting area, Separate bath and shower, Double sinks, Cathedral ceiling
Plan architectural style(s)
. Farmhouse, . Ranch, . American, . European, . Country, . Craftsman / Northwest, . Traditional, . Mountain, . Transitional
Similar plans
Previously Viewed Plans
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
You may also like
Similar plans
Awards and
Recognition
Here is a brief description of our different plan packages. Please select the plan package that suits your needs. You can change the package at the next step, if necessary.
PDF VERSION OF PLAN:
Complete digital version of plan (pdf format) sent by email (original plan format 18" x 24'' or 24" x 36'')
5 copies of plan + PDF:
Includes: 5 copies of plan, plan in PDF format (reduced size version), materials list.
Foundation type
Additional foundation types are available, a fee may apply. Please indicate your choice on the online order form, or to our customer service representative, when placing your house plan order.
If your desired foundation type is not available, please contact our customer service to receive your free plan modification quote.
Explanation of bonus space types
UNFINISHED BONUS ROOM
The bonus rooms are often planned above the garage and are accessible from the house. They are designed to be converted as an office, a laundry area, a bathroom, a library corner or even an additional bedroom for which homeowners must make sure to have a window that complies with current codes & standards.
STORAGE AREA
Often located above the garage, our storage areas are used only as storage and are usually accessible from the garage via a retractable staircase.
Do you like this plan but want it to be modified to suit your needs?
To add a garage, another bedroom, finish the basement or any other modification, click here and let us know about your desired changes and to get your free quote for the modification of your plan.
