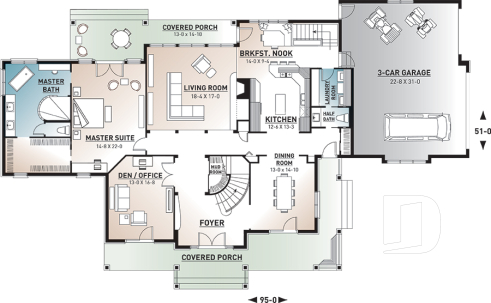

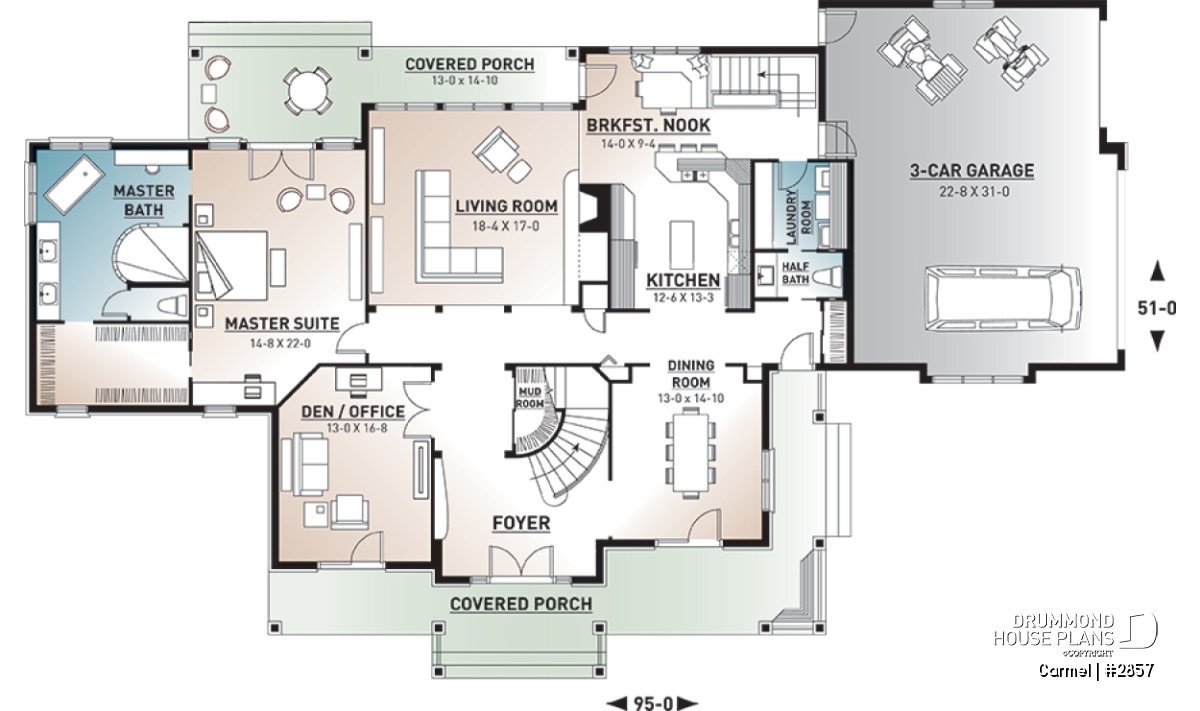

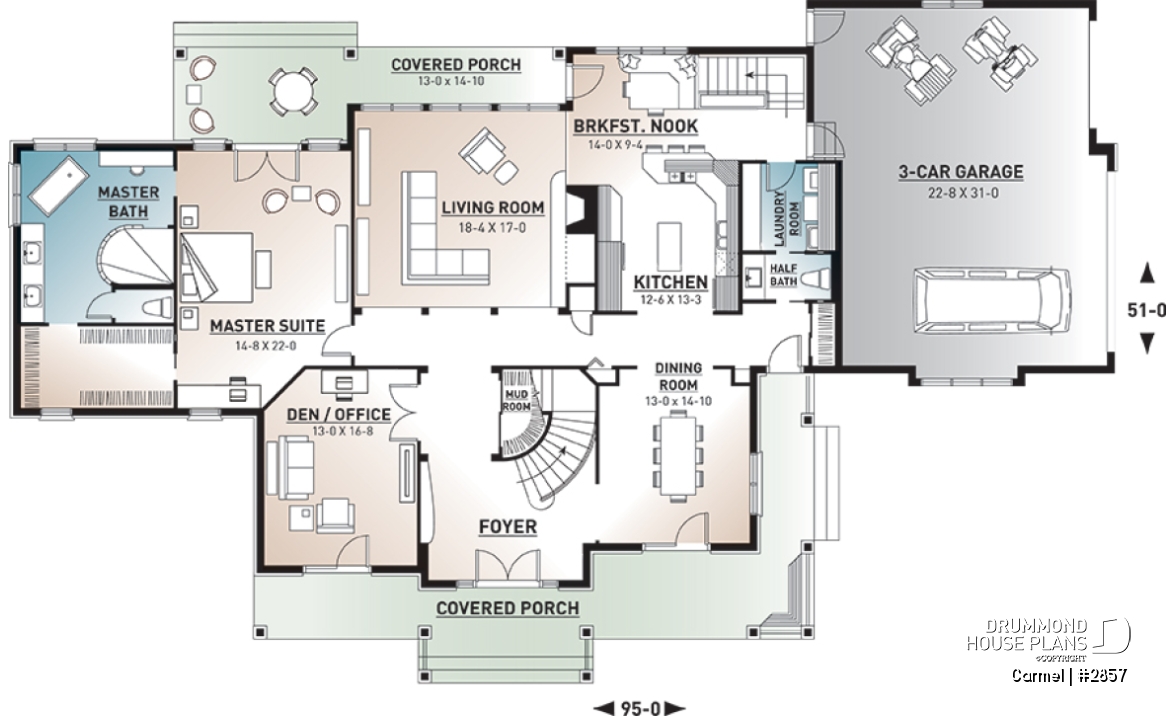

1st level - 5 bed, 3.5 bath, 3-car garage house plan, formal dining & living room, large master (main floor) with ensuite - Carmel

1st level

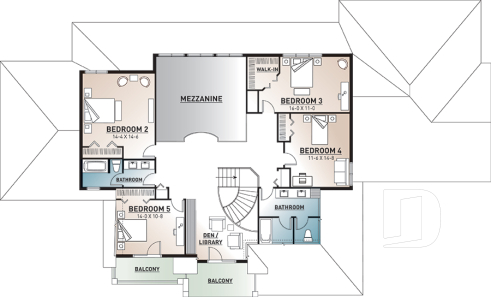

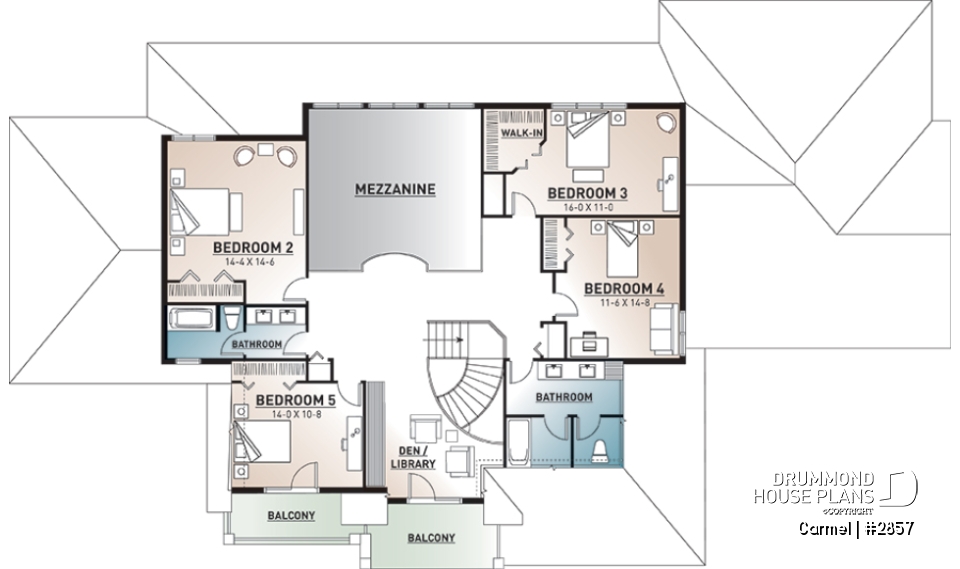

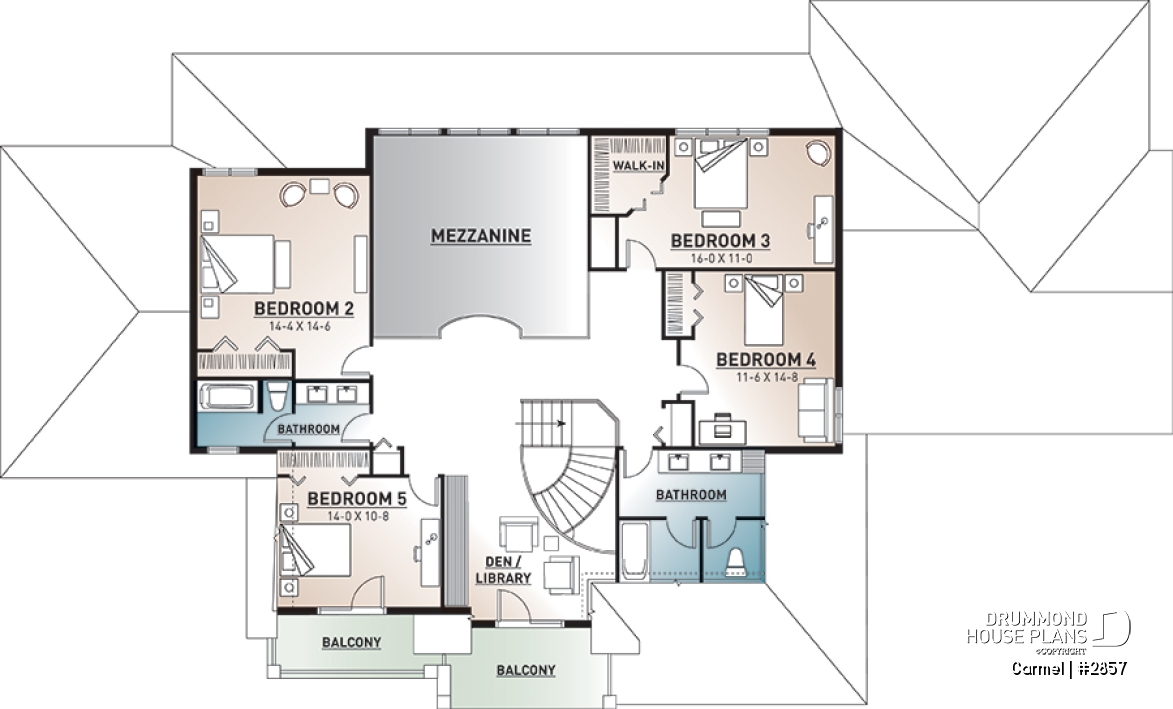

2nd level - 5 bed, 3.5 bath, 3-car garage house plan, formal dining & living room, large master (main floor) with ensuite - Carmel

2nd level

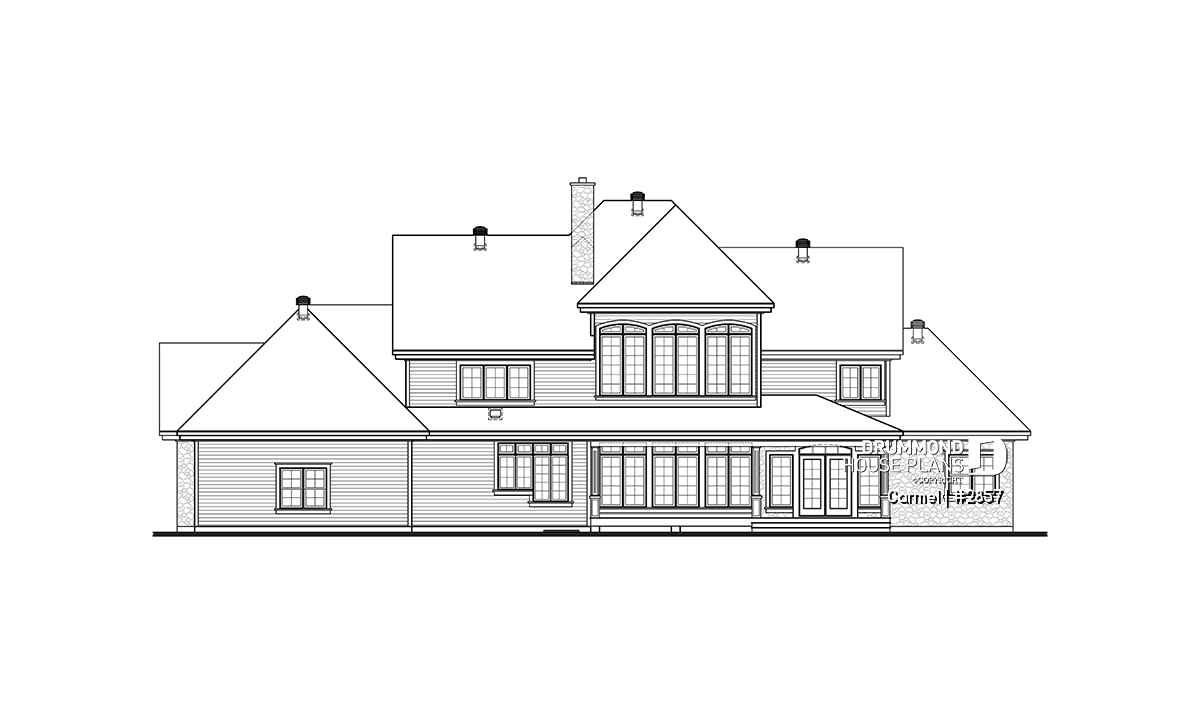

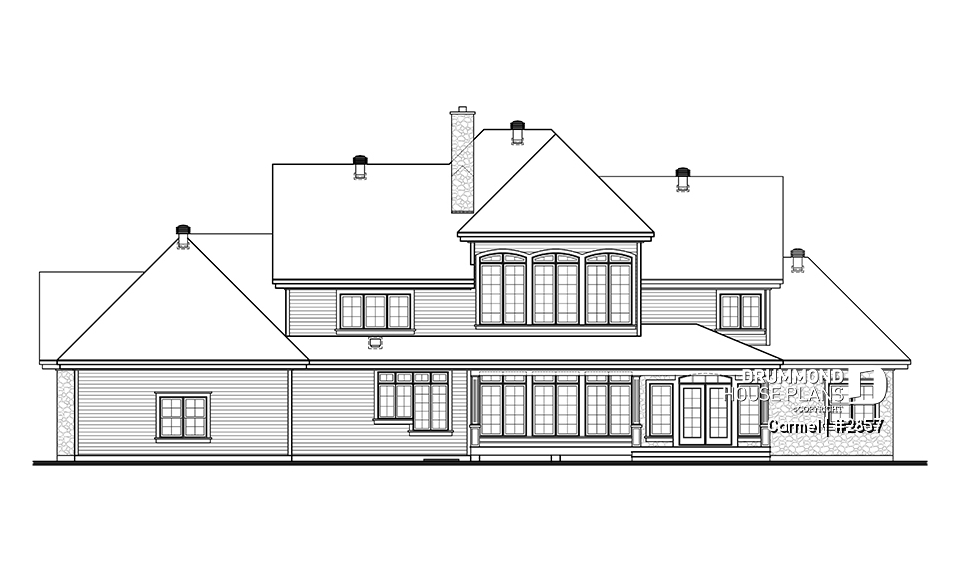

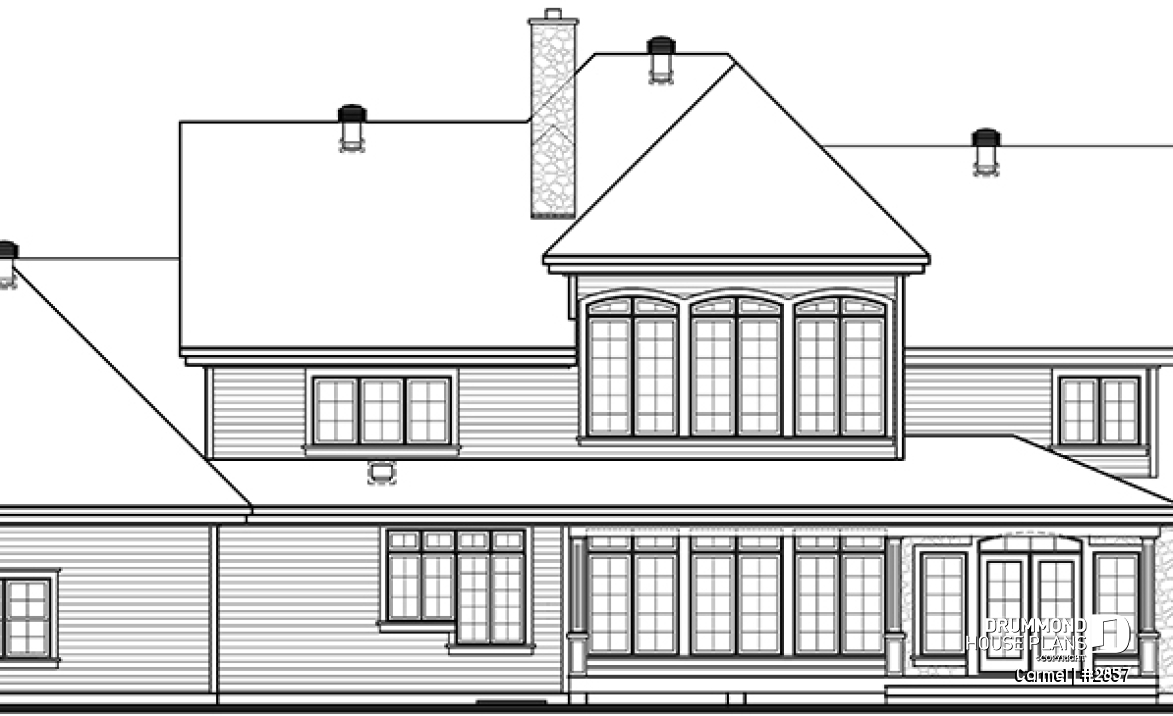

rear elevation - Carmel

rear elevation

Carmel House plan 2857

5 bed, 3.5 bath, 3-car garage house plan, formal dining & living room, large master (main floor) with ensuite

Starting from

2560$

Technical details summary Plan #2857
Total living area 4147 sq.ft. Bedroom 5
Full baths 3 Half baths 1
Foundation included Unfinished Basement Garage Three-car garage
Width 95'0" Depth 51'0"

Need help ?

Our experts are here to guide you to make your dream project come to life.

Contact us

Come see us

Visit one of our 30 regional offices.

Our offices

Personalized support

From plan modifications to fully custom designs, we guide you every step of the way.

Discover our services

Additional details

General specifications

Total living area
4147 sq.ft.
1st level
2502 sq.ft.
2nd level
1645 sq.ft.
Width
95'0"
Depth
51'0"
Ridge height from top of foundation
37'0"
Exterior wall
2 X 6
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
K

Rooms specifications

Bedroom(s)
5
Full baths
3
Half baths
1
Garage type
Three-car garage (789 sq.ft.)
Covered porch area
481 sq.ft.

1st level

Rooms
Sizes
Ceiling
Kitchen
12'6" x 13'0"
~ 9'0"
Dinette
14'0" x 9'4"
~ 9'0"
Dining room
13'0" x 14'10"
~ 9'0"
Great room or Family room
18'4" x 17'0"
~ 24'1"
Den
13'0" x 16'8"
~ 9'0"
Foyer
14'0" x 10'0"
~ 9'0"
Utility room
7'8" x 7'4"
~ 9'0"
Garage
22'8" x 31'0"
~ 10'8"
Closet
2'3" x 5'4"
~ 9'0"
Porch
48'8" x 6'6"
N/D
Porch
14'8" x 8'4"
N/D
Porch
4'8" x 15'4"
N/D
Half bath or powder room
7'4" x 4'0"
~ 9'0"
Master suite
14'8" x 22'0"
~ 9'0"
Storage
1'10" x 2'4"
~ 9'0"
Storage
2'5" x 1'6"
~ 9'0"
Linen
1'4" x 1'6"
~ 9'0"

2nd level

Rooms
Sizes
Ceiling
Full bathroom
14'4" x 5'6"
~ 8'0"
Full bathroom
11'4" x 11'0"
~ 8'0"
Bedroom
14'4" x 14'6"
~ 8'0"
Bedroom
16'0" x 11'0"
~ 8'0"
Bedroom
11'6" x 14'8"
~ 8'0"
Bedroom
14'0" x 10'4"
~ 8'0"
Linen
2'0" x 3'8"
~ 8'0"
Linen
2'6" x 2'0"
~ 8'0"

Large 5 bedroom house plan with 3-car garage, side-load

Impressive as they come with 4147 sq. ft. dedicated to stellar features like a sunken living with fireplace, gracious dining room, and great kitchen that can handle hungry crowds. Main floor master suite is bright with windows, 9’ ceiling and a balcony. Upstairs hosts four secondary bedrooms, two baths, study with built-ins and special ceilings. Convenient 3-car garage, too.

Distinctive elements

Master suite located on main level, abundant fenestration, 9 foot ceiling on main level, access to balcony located on 2nd level by one of the secondary bedrooms and the study area, built-ins, special ceiling treatments, cathedral ceiling in living room, dual sinks in 3 bathrooms..

Plan feature(s)

Fireplace, Cathedral ceiling, Mezzanine, Gound floor laundry room, Side entry garage, Island, Built-ins, Master suite on main, Library, Breakfast nook, Sitting area, Covered patios, Walk-in master bed., Lunch counter, Office / Study / Den, Separate bath and shower, Double sinks, Oversized garage, Ceiling over 8', Formal dining room

Plan architectural style(s)

European, American, Florida, Mediterranean, Classic
