House plan Robertsdale (3600)

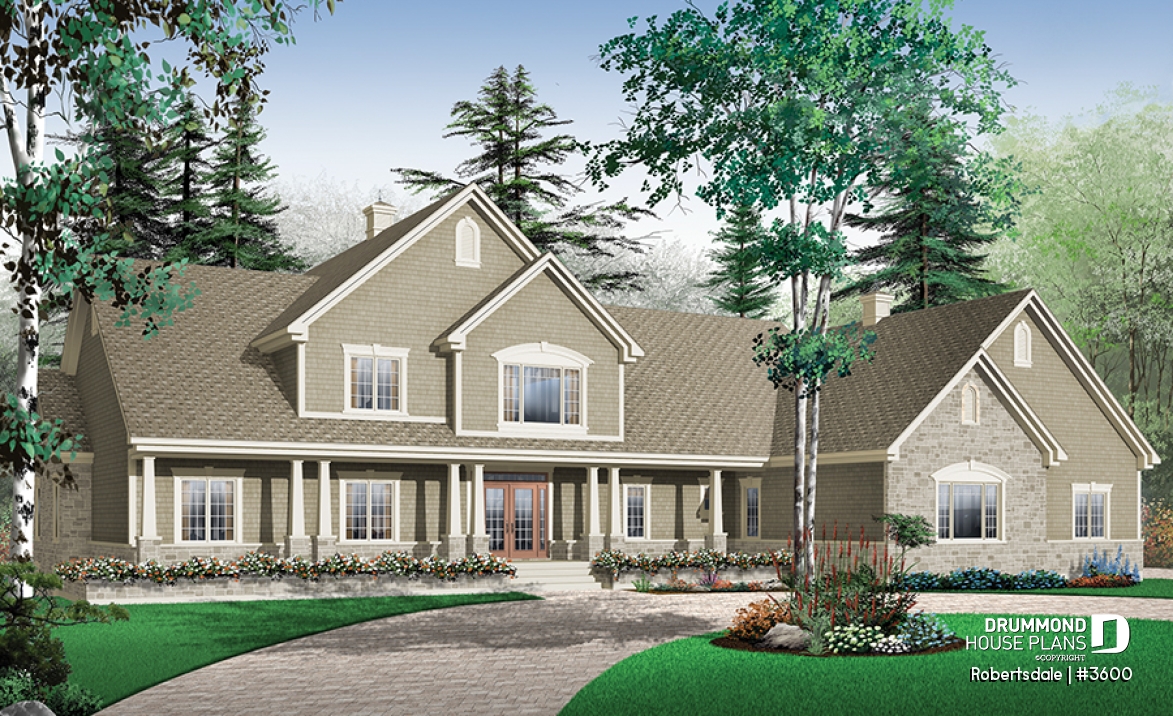

5 to 6 bedrooms Traditional Bungalow house plan, with 3-car garage and two separate family rooms
View the size of the rooms and height of the ceilings

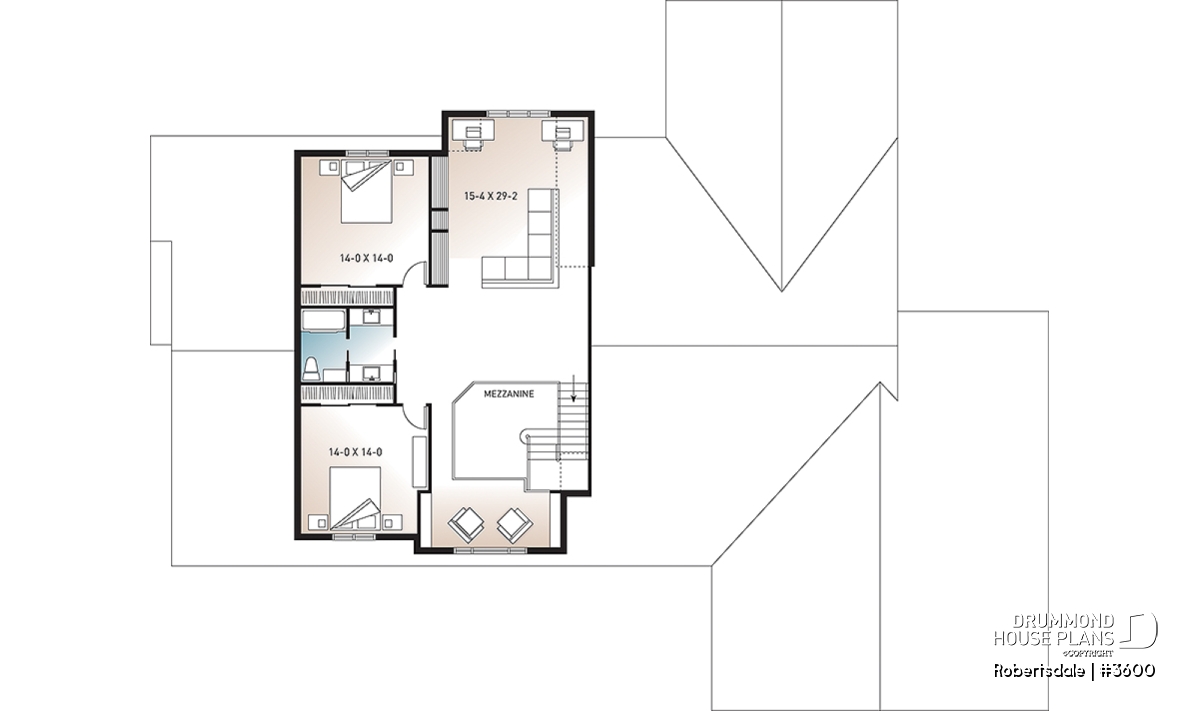

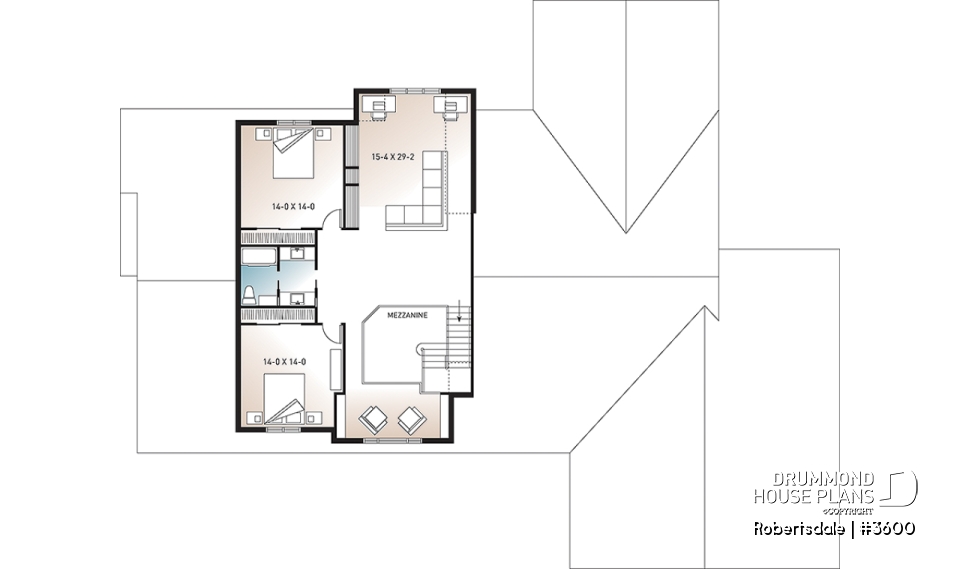

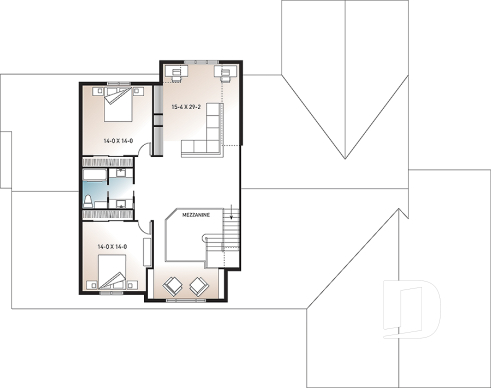

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 14'0" x 14'0" | ~ 8'0" |
| Great room or Family room | 15'4" x 29'2" | ~ 8'0" |
| Full bathroom | 10'2" x 8'0" | ~ 8'0" |
| Bedroom | 14'0" x 14'0" | ~ 8'0" |

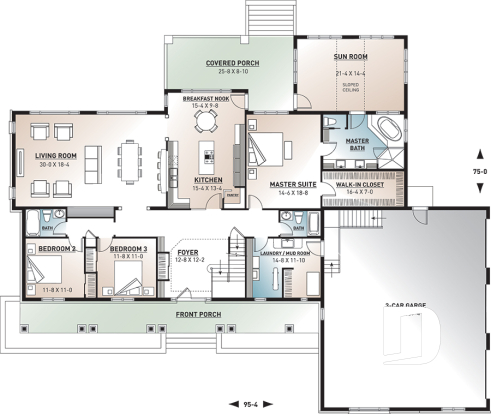

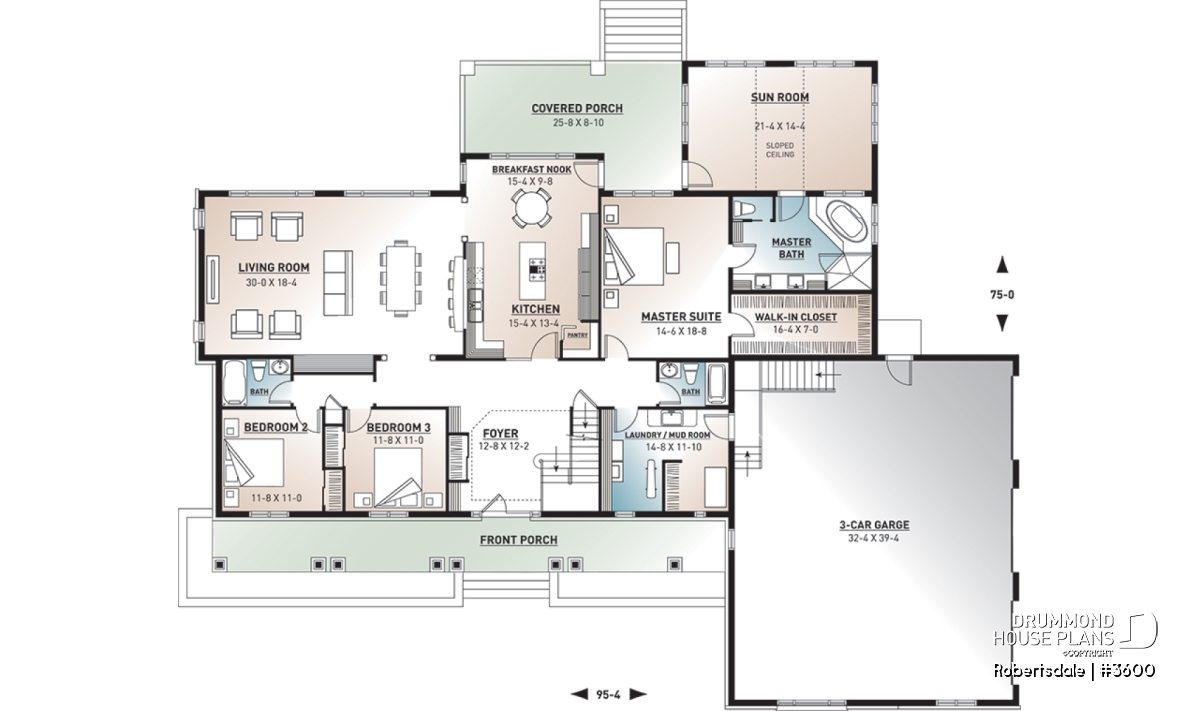

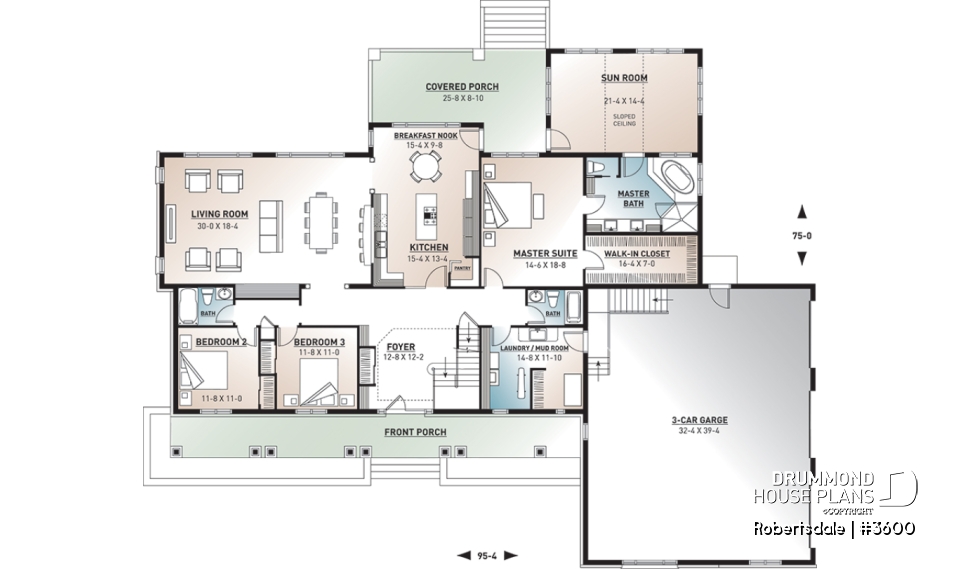

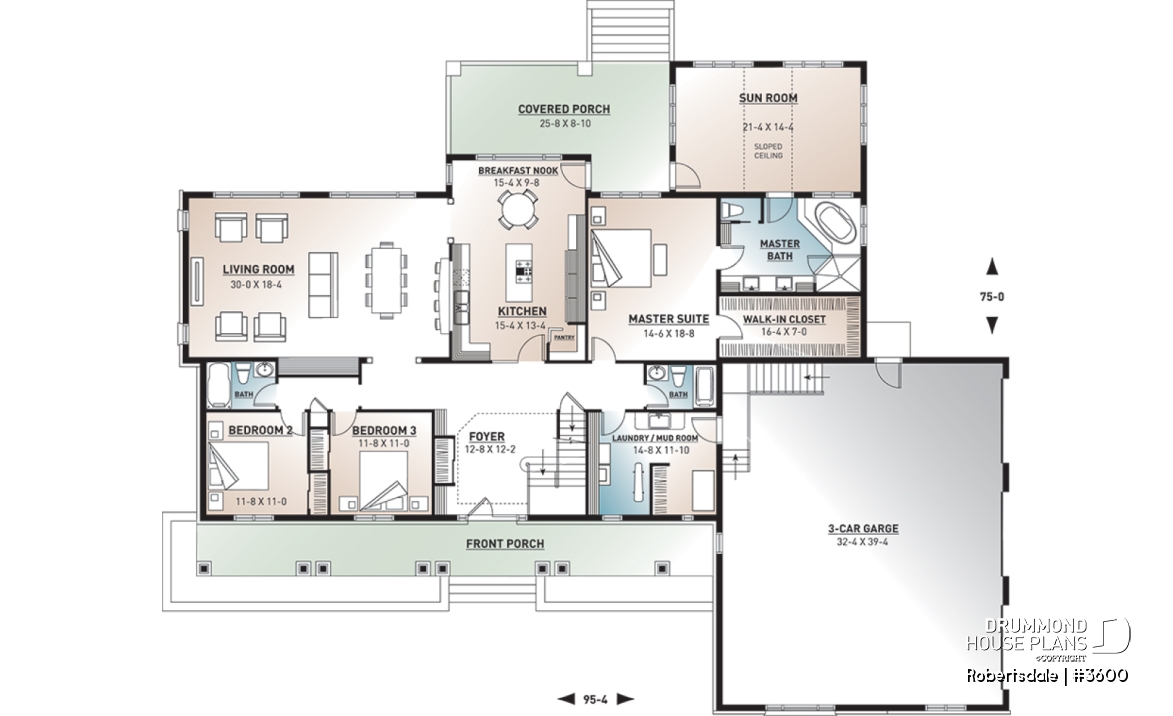

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 15'4" x 13'4" | ~ 9'0" |
| Living room | 30'0" x 18'4" | ~ 9'0" |
| Foyer | 12'8" x 12'2" | ~ 9'0" |
| Full bathroom | 8'0" x 5'2" | ~ 9'0" |
| Master suite | 14'8" x 18'8" | ~ 9'0" |
| Bedroom | 11'8" x 11'10" | ~ 9'0" |
| Bedroom | 11'8" x 10'10" | ~ 9'0" |
| Garage | 32'4" x 39'4" | ~ 11'4" |
| Linen | 2'0" x 1'8" | ~ 9'0" |
| Porch | 59'4" x 6'0" | N/A |
| Deck | 25'8" x 10'8" | N/A |
| Breakfast nook | 15'4" x 9'8" | ~ 9'0" |
| Mud room | 14'8" x 11'10" | ~ 9'0" |
| Sunroom | 21'4" x 14'4" | ~ 9'0" |
| Full bathroom | 8'0" x 5'6" | ~ 9'0" |
General specifications
| Total living area | 4459 sq.ft. |
| 2nd level | 1376 sq.ft. |
| 1st level | 3083 sq.ft. |
| Width | 95'4" |
| Depth | 75'0" |
| Ridge height from top of foundation | 33'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | L |
Rooms specifications
Other useful information on this plan
Large ranch style bungalow house plan with up to 6 bedrooms + 3-car garage plan
.
Distinctive elements
Covered front porch. 9' ceiling on main level. Large kitchen with central island and separate lunch counter. Superb master suite with full bathroom, large walk-in and access to solarium at rear, with cathedral ceiling, in which a spa is located. Large laundry room and service entrance with room for a freezer. Superb bedrooms on second level with vast family room.
Plan feature(s)
Cathedral ceiling, Mezzanine, Side entry garage, Gound floor laundry room, Office / Study / Den, Pantry, Island, Ceiling over 8', Guest suite, Deck, Sunroom, Breakfast nook, Basement access from garage, Library, Separate bath and shower, Master suite on main, Split bedrooms
Plan architectural style(s)
. Ranch, . Traditional, . Country, . Farmhouse, . American
