2663 (East lake)

Modern rustic cottage, 4 to 5 bedrooms, breakfast nook, master on main

Bedrooms

5, 4

Bath(s)

3

Half B.

1

Living area

3955 sq.ft.

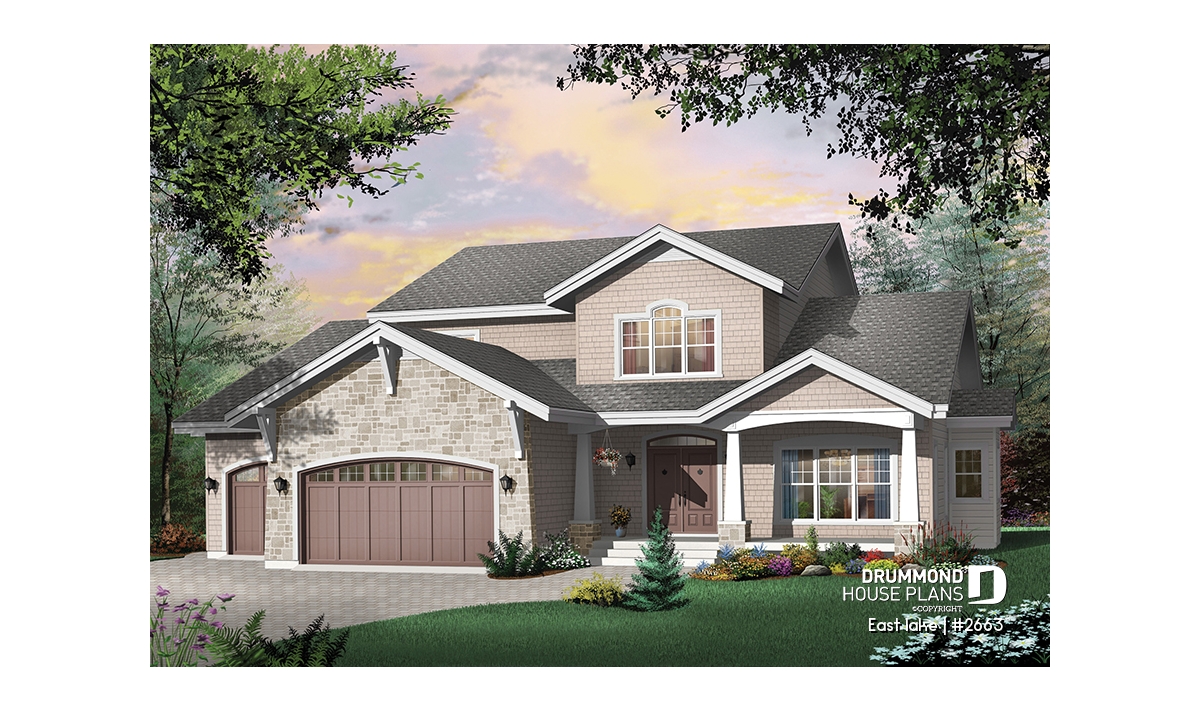

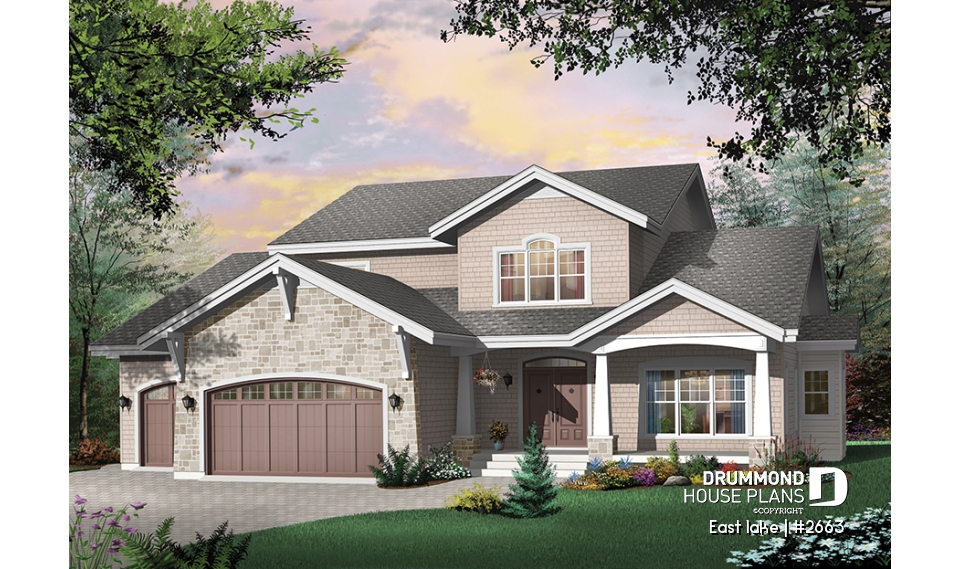

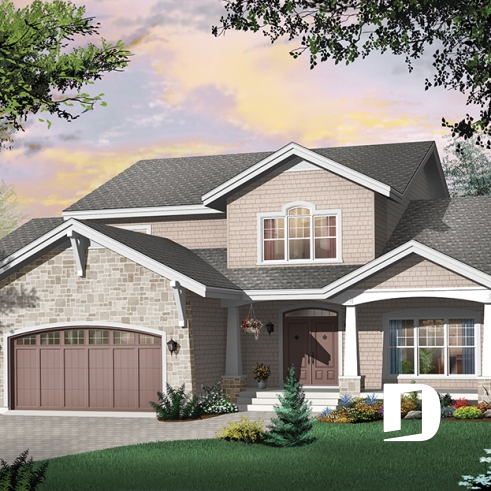

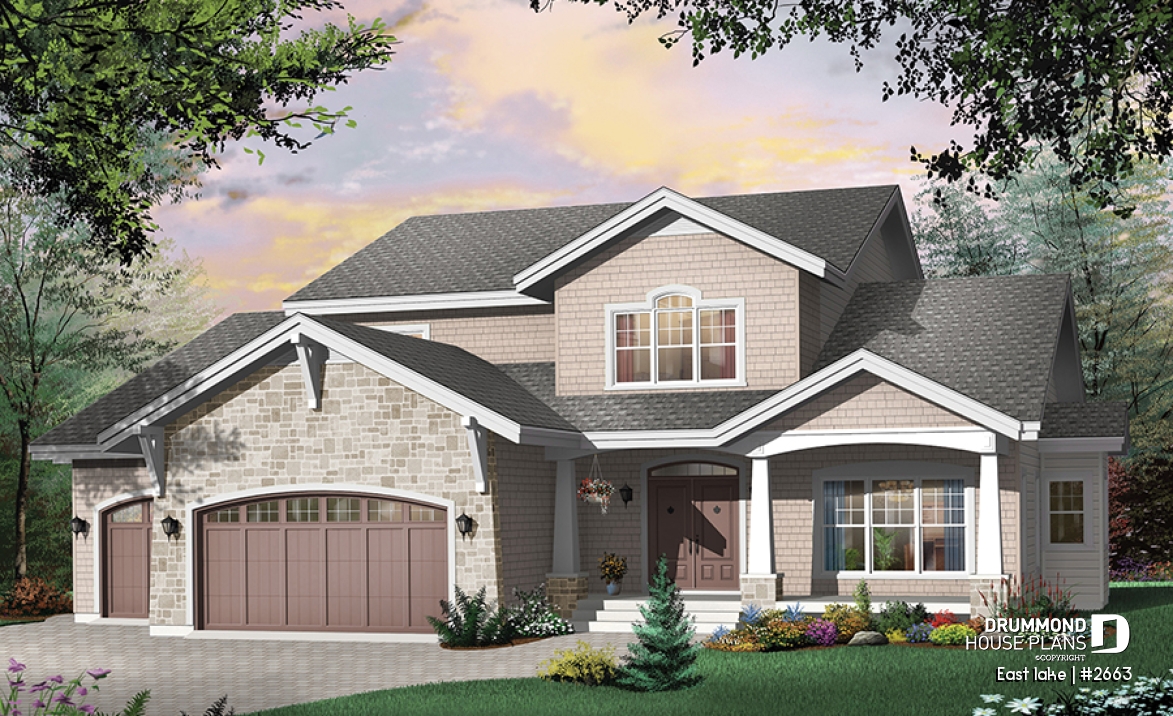

  • front - BASE MODEL - Modern rustic cottage, 4 to 5 bedrooms, breakfast nook, master on main - East lake

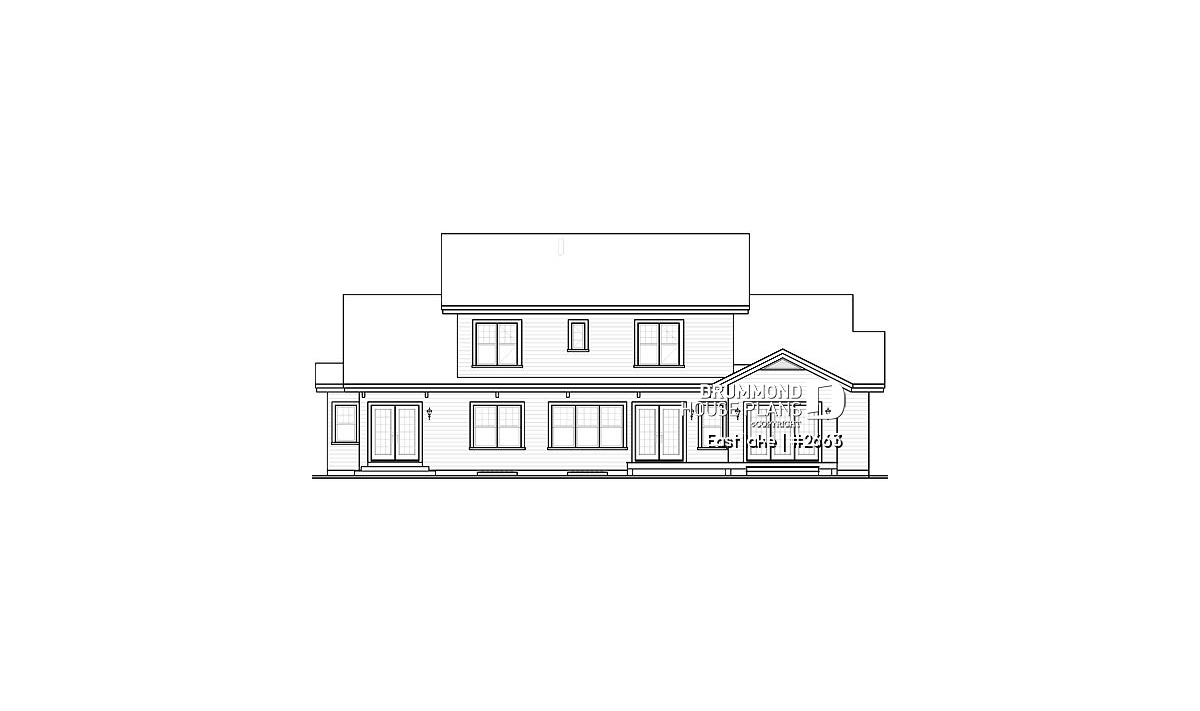

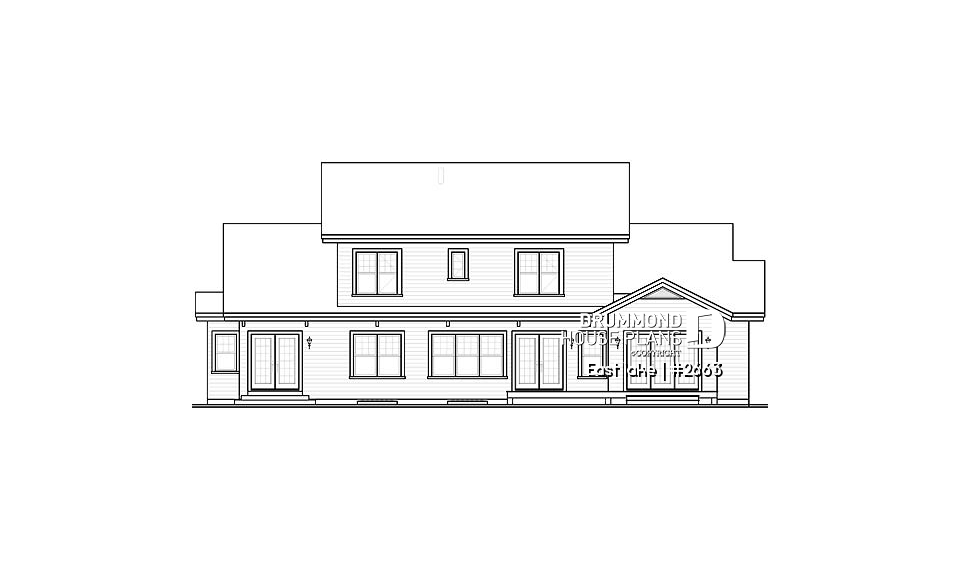

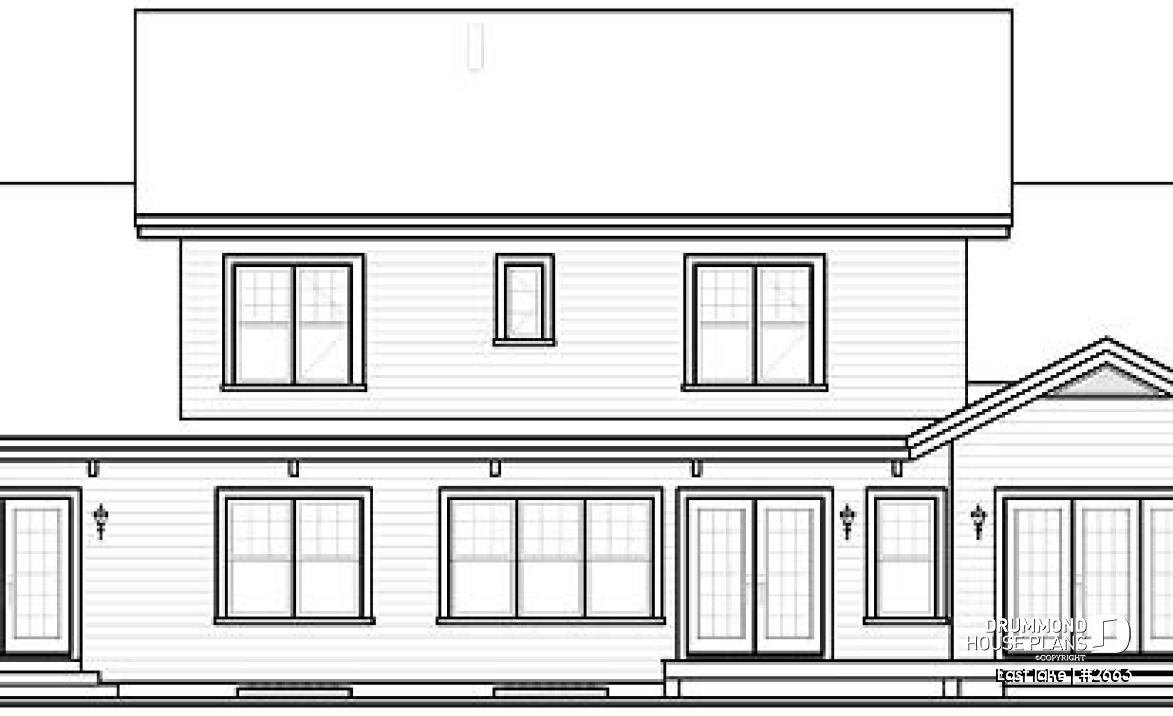

  • rear elevation - East lake

front - BASE MODEL

rear elevation

Vignette front - BASE MODEL - 2663
Vignette rear elevation - 2663

View by floor

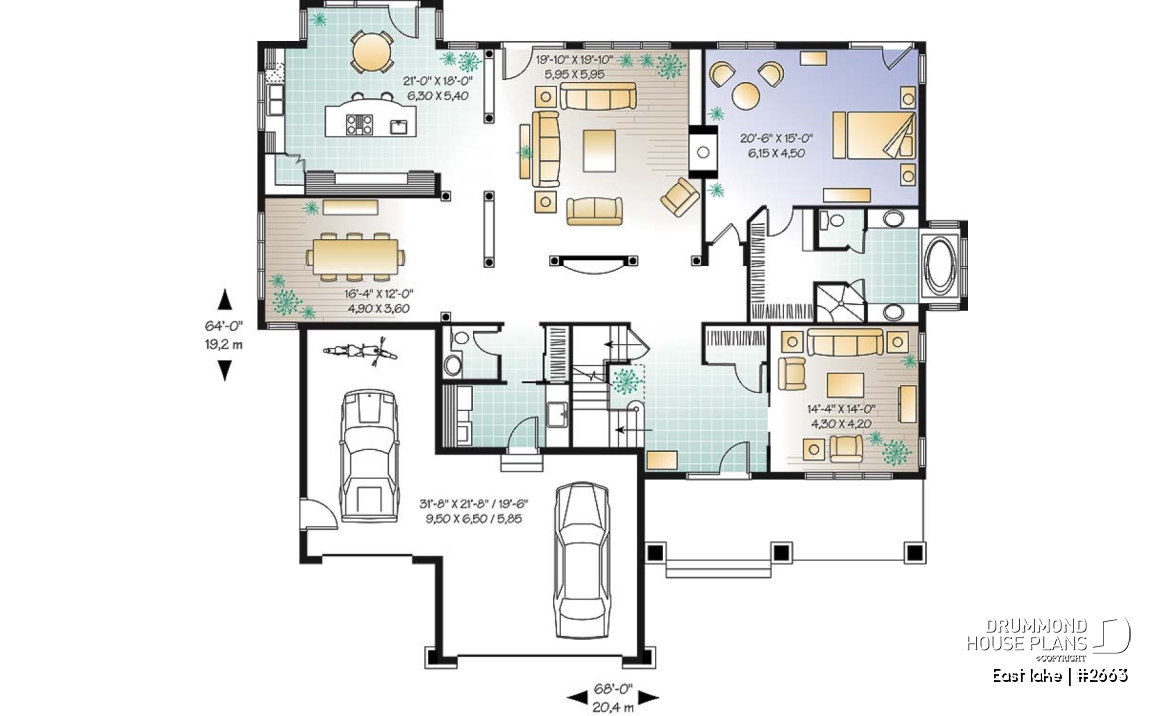

  • 1st level

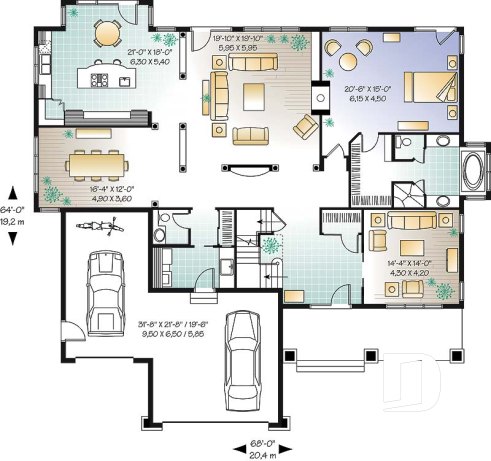

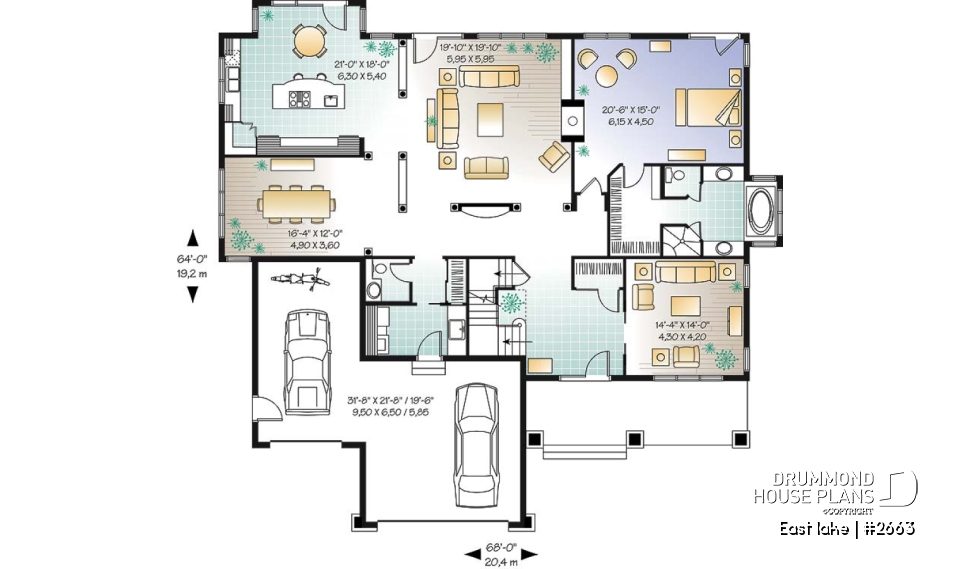

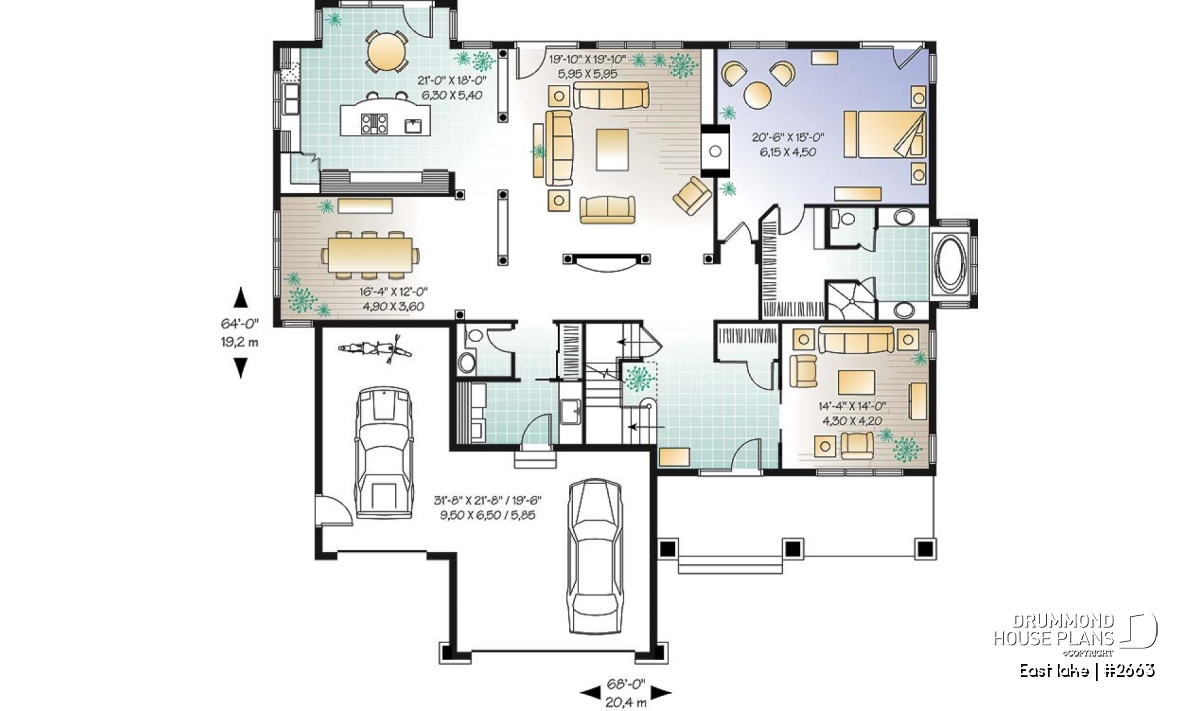

    1st level - Modern rustic cottage, 4 to 5 bedrooms, breakfast nook, master on main - East lake

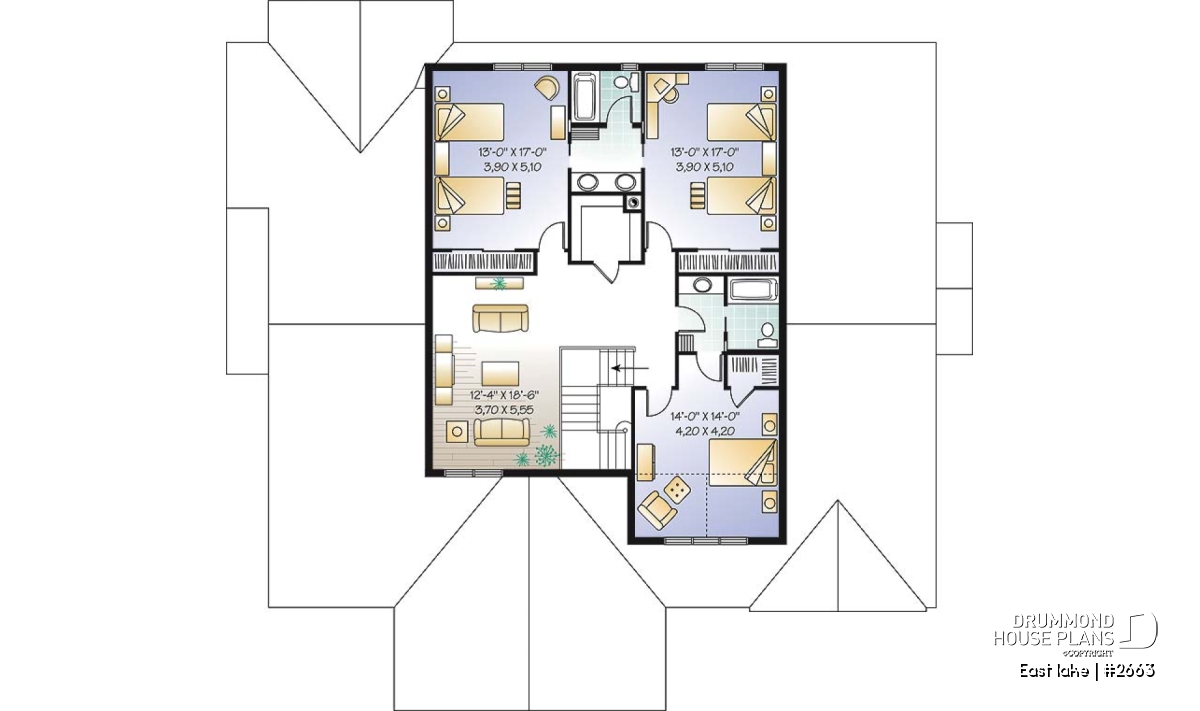

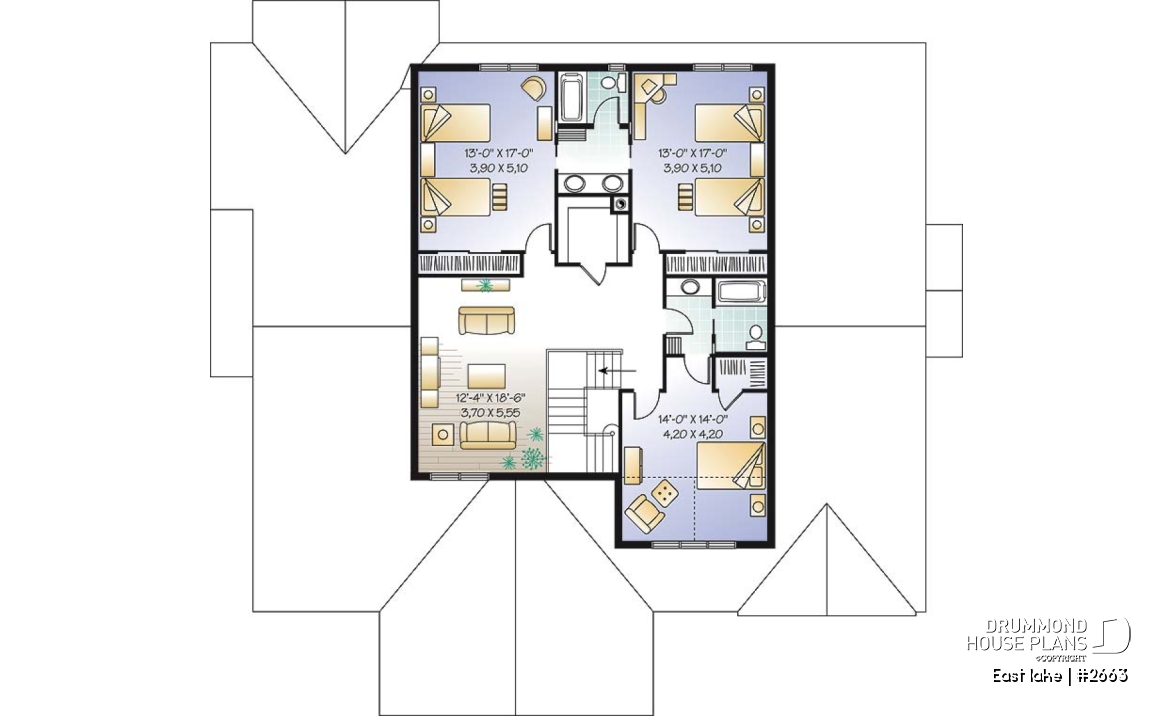

  • 2nd level

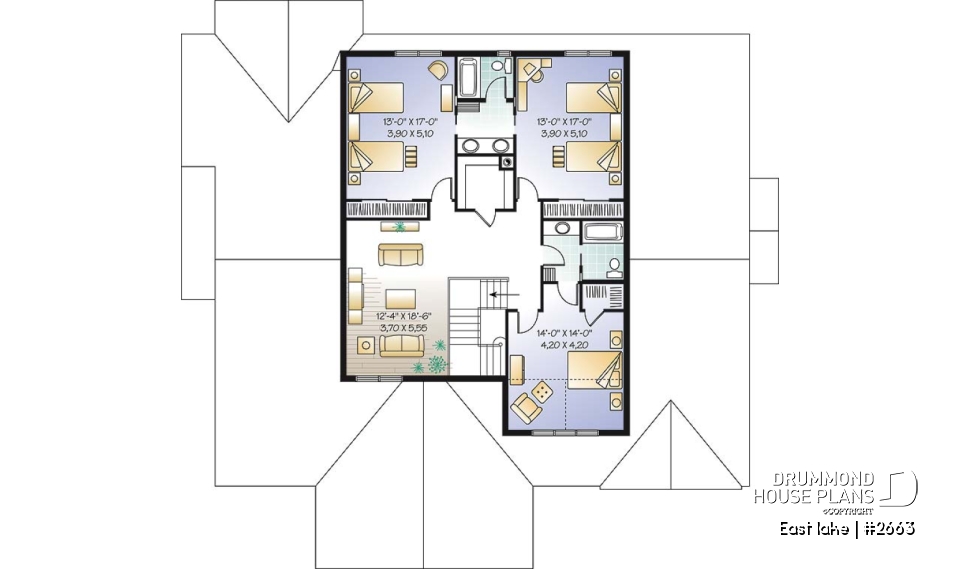

    2nd level - Modern rustic cottage, 4 to 5 bedrooms, breakfast nook, master on main - East lake
Vignette 1st level - 2663
Vignette 2nd level - 2663

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Half bath or powder room 5'2" x 5'3" ~ 0'0"
Kitchen 21'0" x 18'0" ~ 9'0"
Dining room 16'4" x 12'0" ~ 9'0"
Living room 19'10" x 19'10" ~ 9'0"
Study 14'4" x 14'0" ~ 9'0"
Foyer 11'8" x 10'4" ~ 9'0"
Utility room 6'0" x 11'8" ~ 9'0"
Garage 31'8" x 19'6" ~ 10'10"
Closet 5'10" x 3'4" ~ 9'0"
Porch 27'0" x 8'0" ~ 0'0"
Master suite 20'6" x 15'0" ~ 9'0"
Great room or Family room 19'10" x 19'10" ~ 9'0"
Living room 14'4" x 14'0" ~ 9'0"
2nd level
Rooms Sizes Ceiling
Full bathroom 6'8" x 11'8" ~ 8'0"
Full bathroom 7'2" x 9'8" ~ 8'0"
Great room or Family room 12'4" x 18'8" ~ 8'0"
Bedroom 13'0" x 17'0" ~ 8'0"
Bedroom 13'0" x 17'0" ~ 8'0"
Bedroom 14'0" x 14'0" ~ 8'0"
Storage 6'8" x 6'2" ~ 8'0"
Playroom 12'4" x 18'8" ~ 8'0"

General specifications

Total living area 3955 sq.ft.
1st level 2486 sq.ft.
2nd level 1469 sq.ft.
Width 68'0"
Depth 64'0"
Ridge height from top of foundation 30'0"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code K

Rooms specifications

Bedroom(s) 5, 4
Full baths 3
Half baths 1
Garage type Three-car garage (703 sq.ft.)
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 3955 sq.ft.
1st level 2486 sq.ft.
2nd level 1469 sq.ft.
Width 68'0"
Depth 64'0"
Ridge height from top of foundation 30'0"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement i
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code K

Rooms specifications

Bedroom(s) 5, 4
Full baths 3
Half baths 1
Garage type Three-car garage (703 sq.ft.)
Living bonus space - i
Bonus storage - i

Buy this plan

From : 1430$

Modify this plan

Get a quote

Description

1st level: 9' ceiling. Open entry, sitting room or large home office, master bedroom suite, family room, kitchen with breakfast area, dining area, half-bath, laundry facilities. 2nd Level: Other sitting room, three lovely bedrooms and two bathrooms.

Other useful information on this plan

Graceful Gables

A trio of forward facing gables and pillared porch grace the front of this beautiful craftsman home.

A three car garage sets interior expectations high and this home delivers. You’ll love 3943 sq. ft., 9- ft. main-floor ceilings, a home office, family room with fireplace that glows into the main-floor master suite, kitchen with family-sized breakfast area, and formal dining.

Upstairs, discover three enormous secondary bedrooms, sitting room, two bathrooms and spacious hall closet.

This home delivers every luxury you’re dreaming of in a comfortable and well-executed floor plan.

Distinctive elements

9 foot ceiling on main level, superb family room and fireplace shared with bedroom 1, media room or home office, superb breakfast area, large bedrooms on 2nd level and sitting room.

Plan feature(s)

Fireplace, Master suite on main, Media Room, Gound floor laundry room, Walk-in pantry, Built-ins, Island, front porch, Guest suite, Breakfast nook, Jack & Jill bath

Plan architectural style(s)

Craftsman / Northwest, Country, Cape Cod, Traditional, Rustic, Mountain

Other useful information on this plan

Full description

Graceful Gables

A trio of forward facing gables and pillared porch grace the front of this beautiful craftsman home.

A three car garage sets interior expectations high and this home delivers. You’ll love 3943 sq. ft., 9- ft. main-floor ceilings, a home office, family room with fireplace that glows into the main-floor master suite, kitchen with family-sized breakfast area, and formal dining.

Upstairs, discover three enormous secondary bedrooms, sitting room, two bathrooms and spacious hall closet.

This home delivers every luxury you’re dreaming of in a comfortable and well-executed floor plan.

Distinctive elements

9 foot ceiling on main level, superb family room and fireplace shared with bedroom 1, media room or home office, superb breakfast area, large bedrooms on 2nd level and sitting room.

Plan feature(s)

Fireplace, Master suite on main, Media Room, Gound floor laundry room, Walk-in pantry, Built-ins, Island, front porch, Guest suite, Breakfast nook, Jack & Jill bath

Plan architectural style(s)

Questions and comments on this plan

February 28 2018

Jan Martensen

Good day over there in America! We like a lot of your blueprints and we ask ourselves the question if you could also ship these blueprints to Germany. We would like to build this house but with a full concrete foundation. Where would the electrical connections and furnanceroom make sense?

Greetings from Germany.

January 28 2014

Hollie

Could you advise what the roof pitch is and could it be increased. Also if the home is on a crawl space and no basement, where would the furnace and hot water be located? I suspect the living area calculations are including the garage? Is the tub area in the master suite on the foundation or is it cantilevered? Also we live in Langley, are these plans shipped to Canada

January 28 2014

Customer service

Good day and thank you for your interest in this plan.

The primary roof pitch is 5/12 and the secondary, dormer and the garage are all 6/12. You can change the roof pitch either by having the plan modified or by specifying the required pitch when ordering your trusses.

If you order this plan with a crawlspace the hot water tank will go in place of the basement stairs and the furnace room could either be in the area occupied by the laundry room sink and counter or in the entrance foyer closet, the choice is yours.

The tub area is on the foundation and, yes, shipping to BC is no problem.

Please let me know if I can further assist you
Regards
Deborah

January 24 2014

Jessica Diamond

What is the price for this home without the garages

January 24 2014

Customer service

Good day Ms. Diamond and thank you for taking the time to write.

The information that you require is unfortunately not available because we do no actual construction.

Please let me know if you have any other questions or comments.
Regards
Deborah

Questions and comments

February 28 2018

Jan Martensen

Good day over there in America! We like a lot of your blueprints and we ask ourselves the question if you could also ship these blueprints to Germany. We would like to build this house but with a full concrete foundation. Where would the electrical connections and furnanceroom make sense?

Greetings from Germany.

January 28 2014

Hollie

Could you advise what the roof pitch is and could it be increased. Also if the home is on a crawl space and no basement, where would the furnace and hot water be located? I suspect the living area calculations are including the garage? Is the tub area in the master suite on the foundation or is it cantilevered? Also we live in Langley, are these plans shipped to Canada

January 28 2014

Customer service

Good day and thank you for your interest in this plan.

The primary roof pitch is 5/12 and the secondary, dormer and the garage are all 6/12. You can change the roof pitch either by having the plan modified or by specifying the required pitch when ordering your trusses.

If you order this plan with a crawlspace the hot water tank will go in place of the basement stairs and the furnace room could either be in the area occupied by the laundry room sink and counter or in the entrance foyer closet, the choice is yours.

The tub area is on the foundation and, yes, shipping to BC is no problem.

Please let me know if I can further assist you
Regards
Deborah

January 24 2014

Jessica Diamond

What is the price for this home without the garages

January 24 2014

Customer service

Good day Ms. Diamond and thank you for taking the time to write.

The information that you require is unfortunately not available because we do no actual construction.

Please let me know if you have any other questions or comments.
Regards
Deborah
