House plan Tristan (4871)

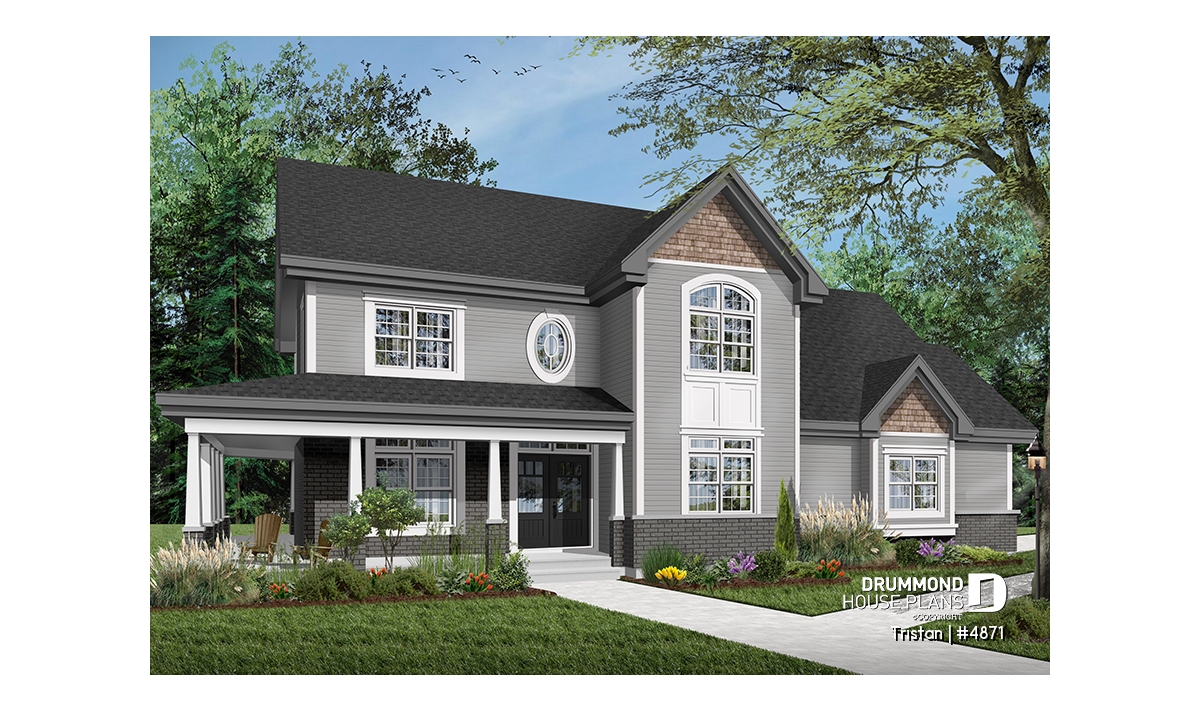

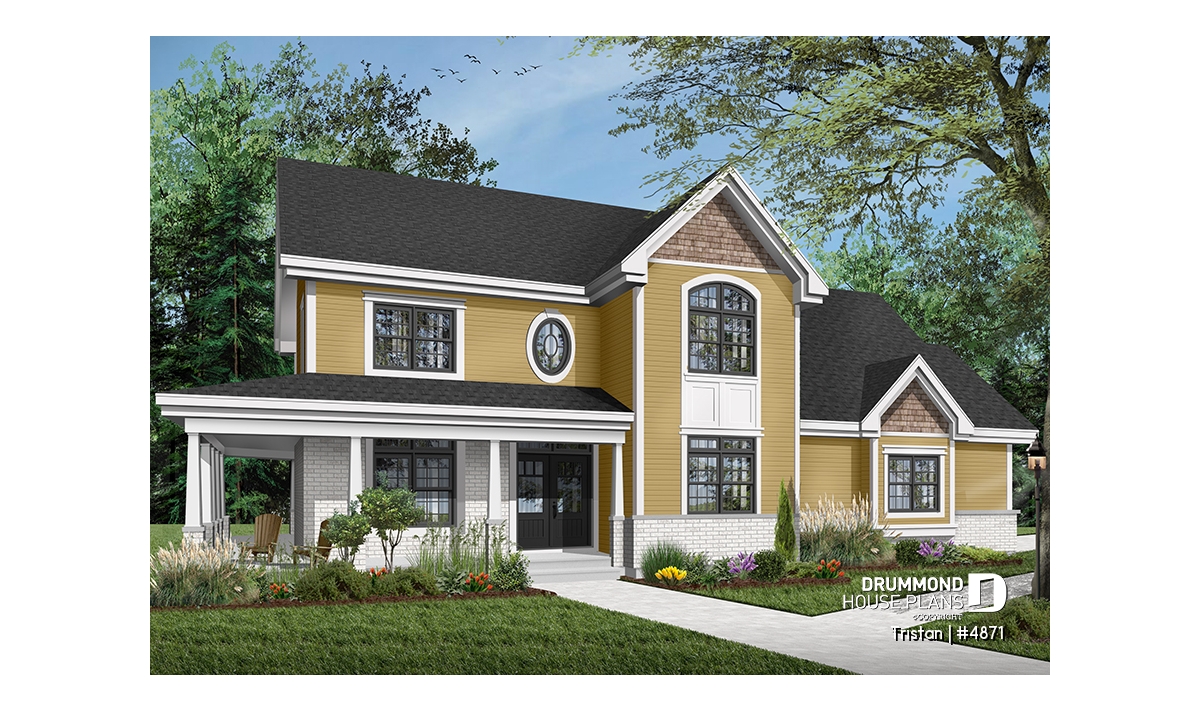

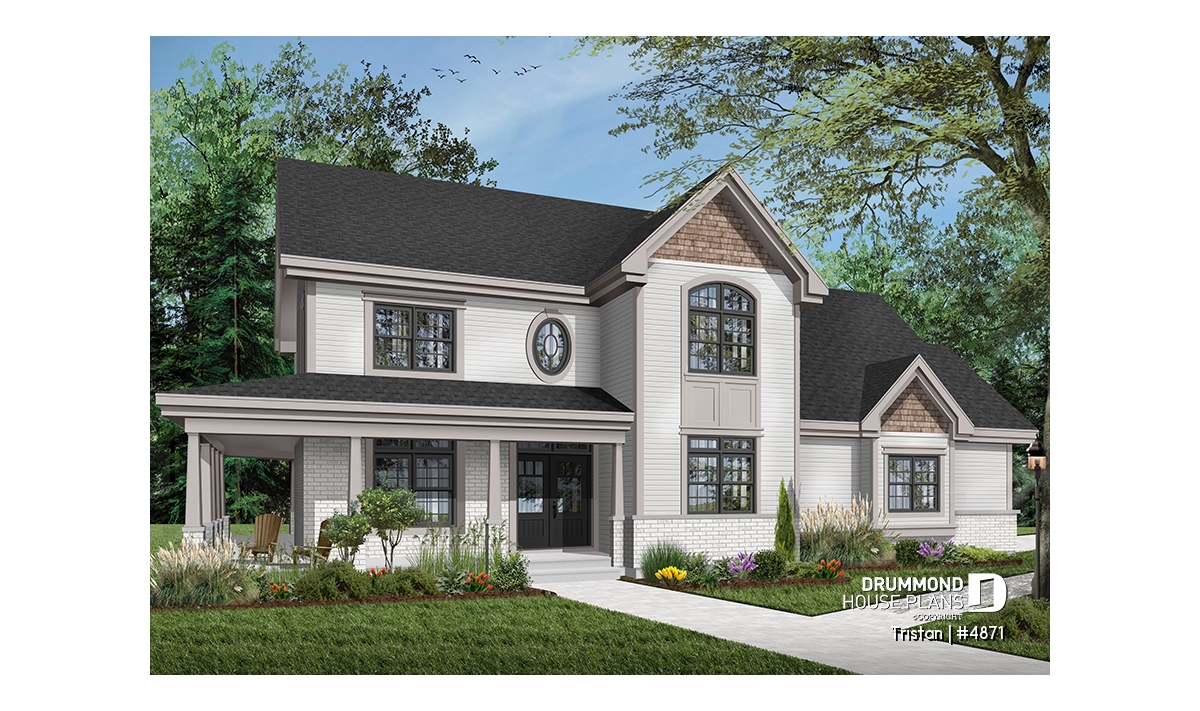

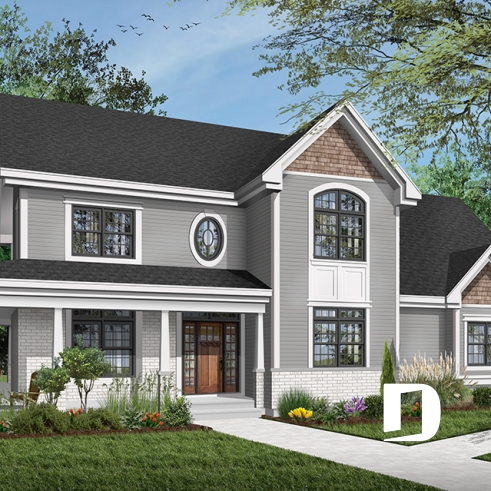

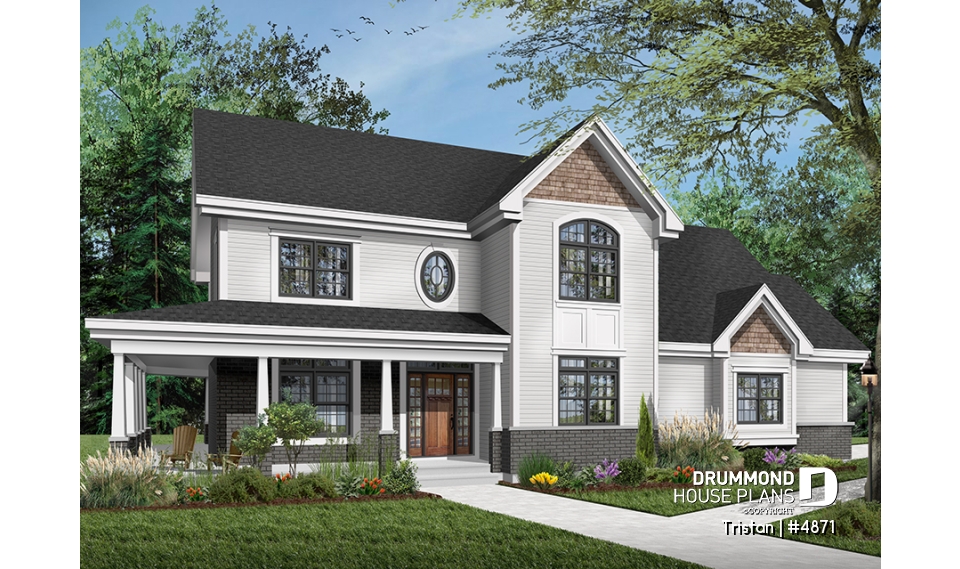

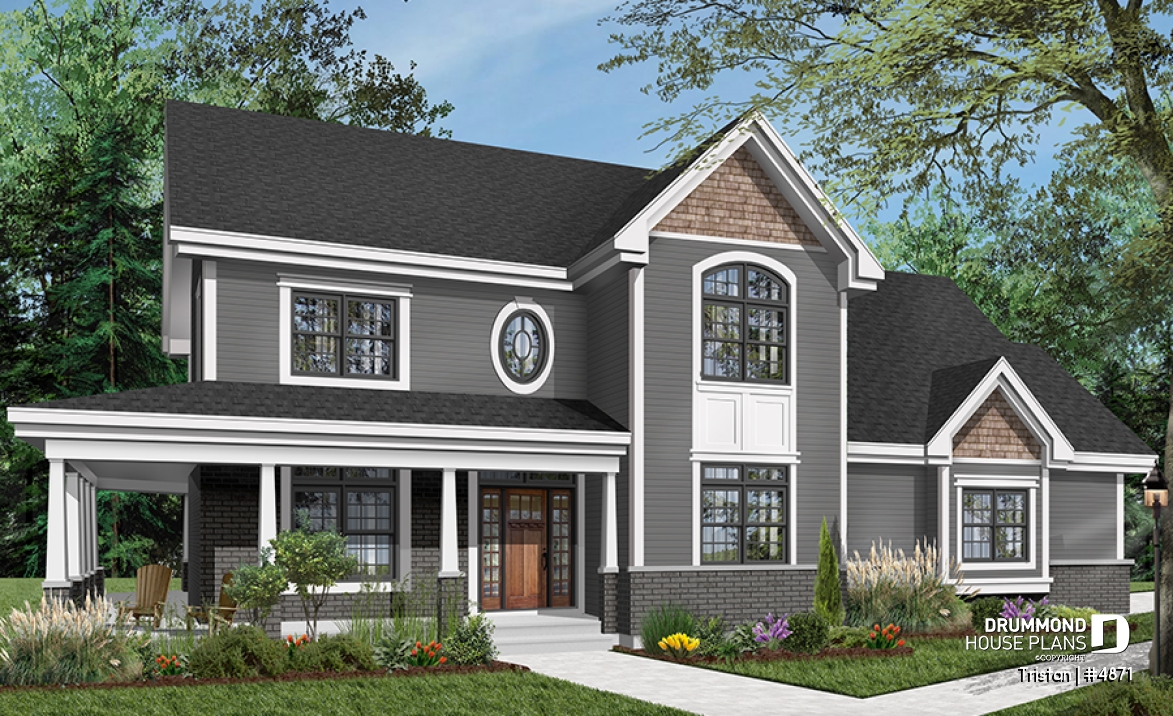

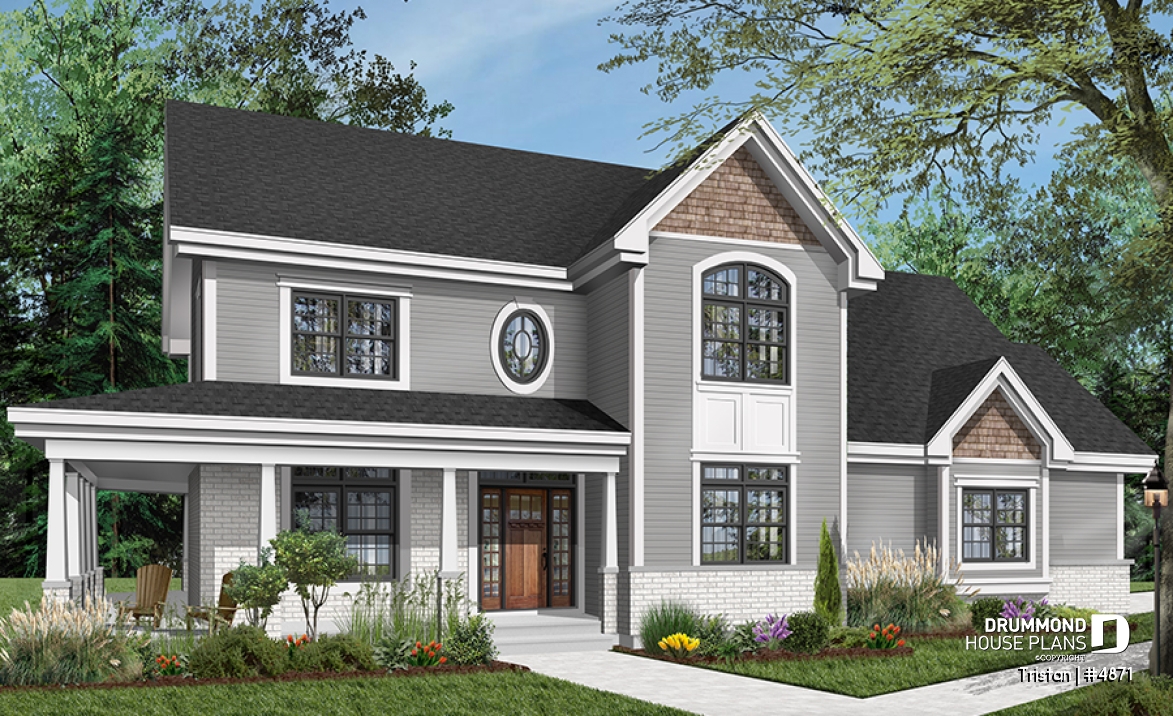

Beautiful traditional house plan with wraparound porch, 2 car-garage (side load), 2 master suites, 4 beds
View the size of the rooms and height of the ceilings

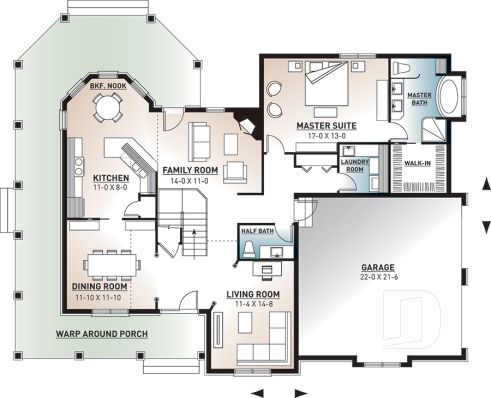

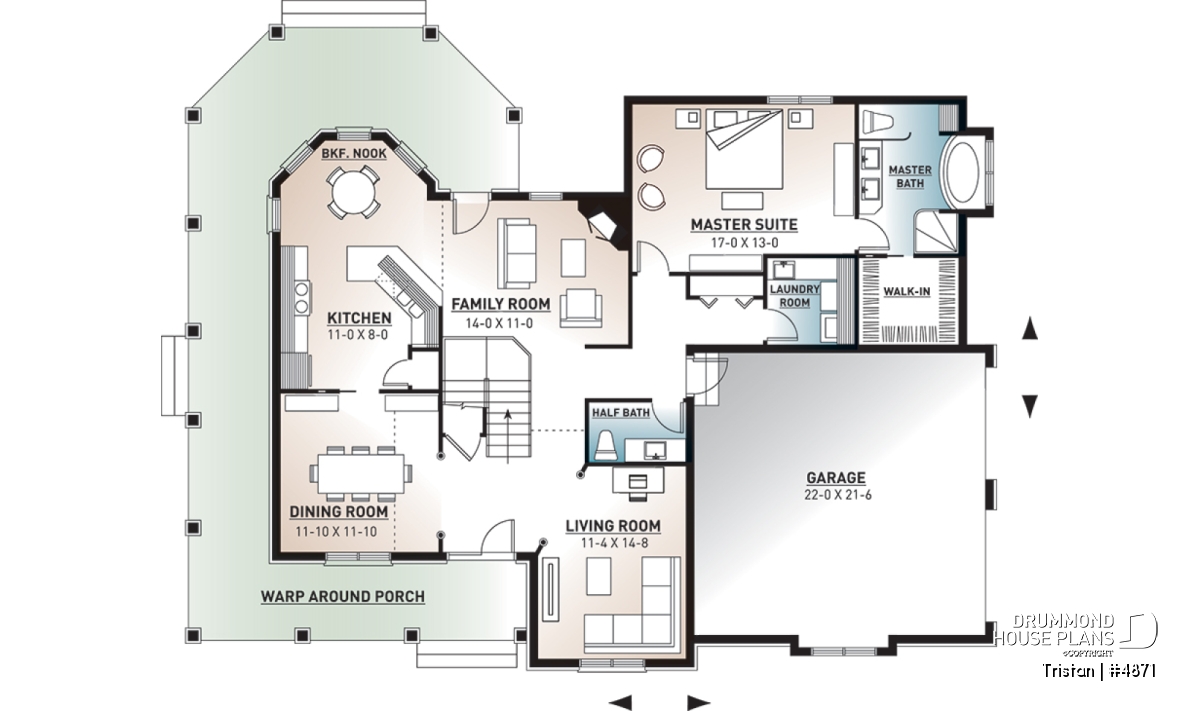

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 7'6" x 4'4" | ~ 9'0" |
| Kitchen | 12'0" x 11'0" | ~ 9'0" |
| Dinette | 11'0" x 8'0" | ~ 9'0" |
| Dining room | 11'10" x 11'10" | ~ 9'0" |
| Great room or Family room | 14'0" x 11'0" | ~ 18'4" |
| Master suite | 17'0" x 13'0" | ~ 9'0" |
| Foyer | 7'6" x 7'3" | ~ 9'0" |
| Utility room | 6'4" x 6'9" | ~ 9'0" |
| Garage | 22'0" x 21'6" | ~ 10'8" |
| Storage | 5'4" x 1'4" | ~ 9'0" |
| Porch | 25'10" x 6'2" | N/A |
| Porch | 6'2" x 29'6" | N/A |
| Porch | 25'0" x 12'0" | N/A |
| Living room | 11'4" x 14'8" | ~ 9'0" |

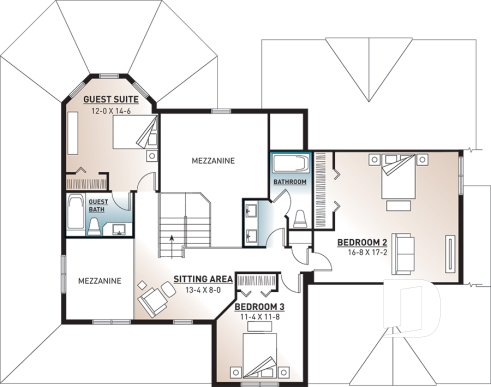

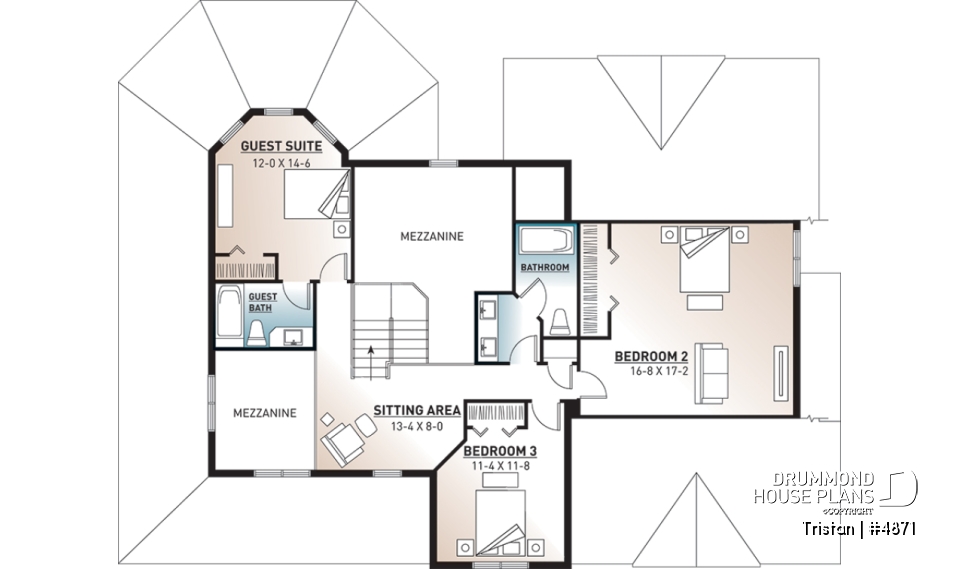

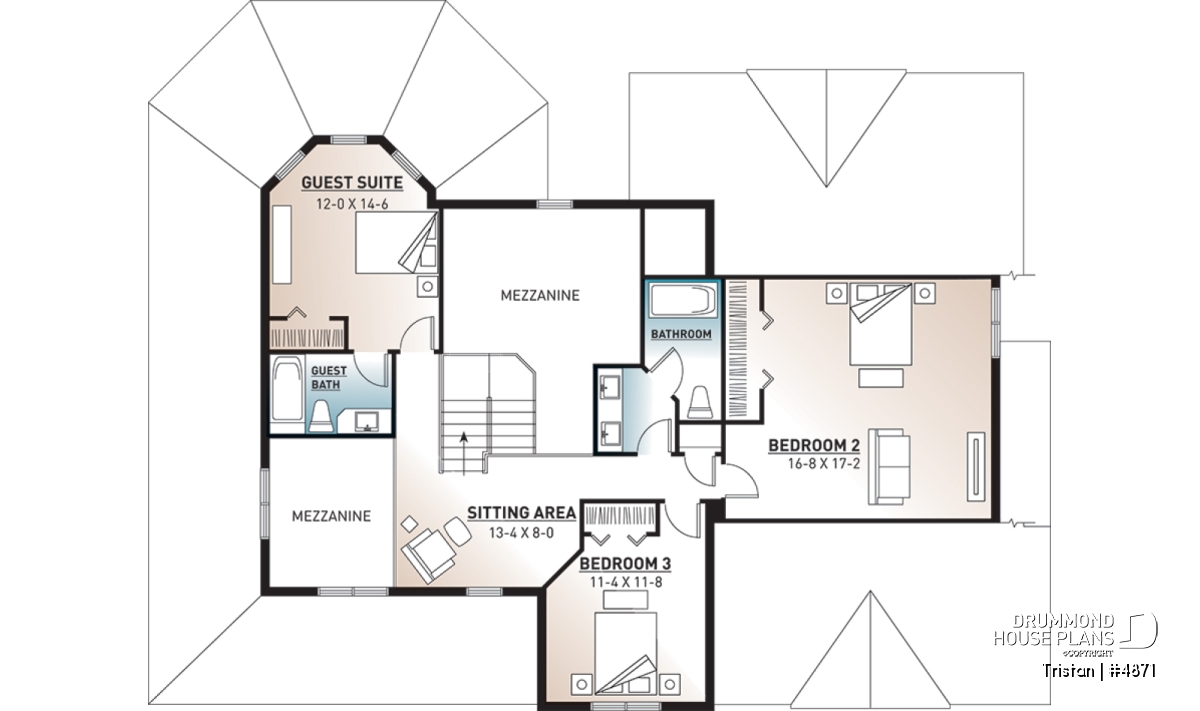

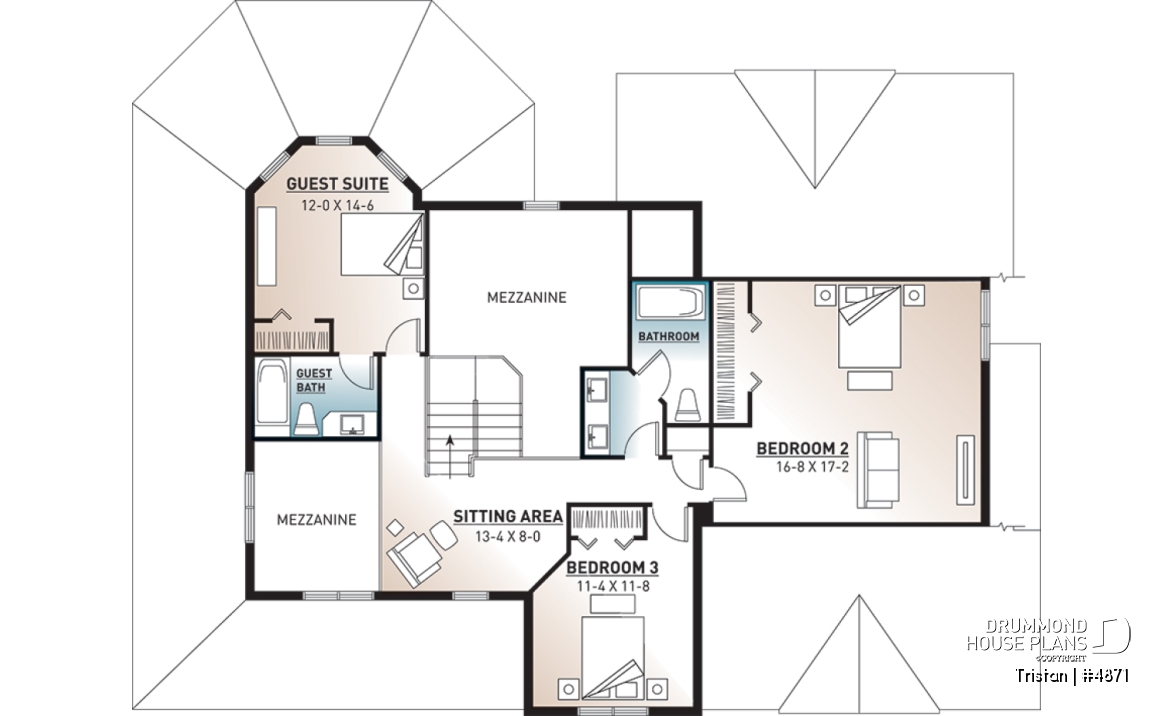

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 12'0" x 8'9" | ~ 8'0" |
| Den | 13'4" x 8'0" | ~ 8'0" |
| Bedroom | 16'8" x 17'2" | ~ 8'0" |
| Bedroom | 11'4" x 11'8" | ~ 11'0" |
| Bedroom | 12'0" x 14'6" | ~ 8'0" |
| Linen | 3'0" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 2764 sq.ft. |
| 1st level | 1558 sq.ft. |
| 2nd level | 1206 sq.ft. |
| Width | 55'8" |
| Depth | 44'4" |
| Ridge height from top of foundation | 31'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
Superb traditional house plan with master suite on main floor, side-load 2-car garage, formal master and dining rooms, media room, 2 master suites total, 4 bedrooms 3.5 bathrooms.
.
Distinctive elements
Wraparound balcony, dual sinks in 2 of the bathrooms, 9 foot ceiling on main level, sideload garage, special ceiling treatments, mezzanine over dining room and living room, abundant and special fenestration.
Plan feature(s)
Fireplace, Mezzanine, Pantry, Side entry garage, Deck, Guest suite, Gound floor laundry room, Island, Warparound, Breakfast nook, Lunch counter, Master suite on main, Sitting area, Ceiling over 8', Separate bath and shower, Office / Study / Den, Double sinks, Formal dining room, Panoramic view, Walk-in master bed.
Plan architectural style(s)
. Country, . Farmhouse, . American, . Cape Cod, . Traditional
