House plan The Collector 3 (2898)
4 to 5 bedrooms, 3.5 bathrooms Victorian cottage with large bonus space, master suite on main floor
View the size of the rooms and height of the ceilings

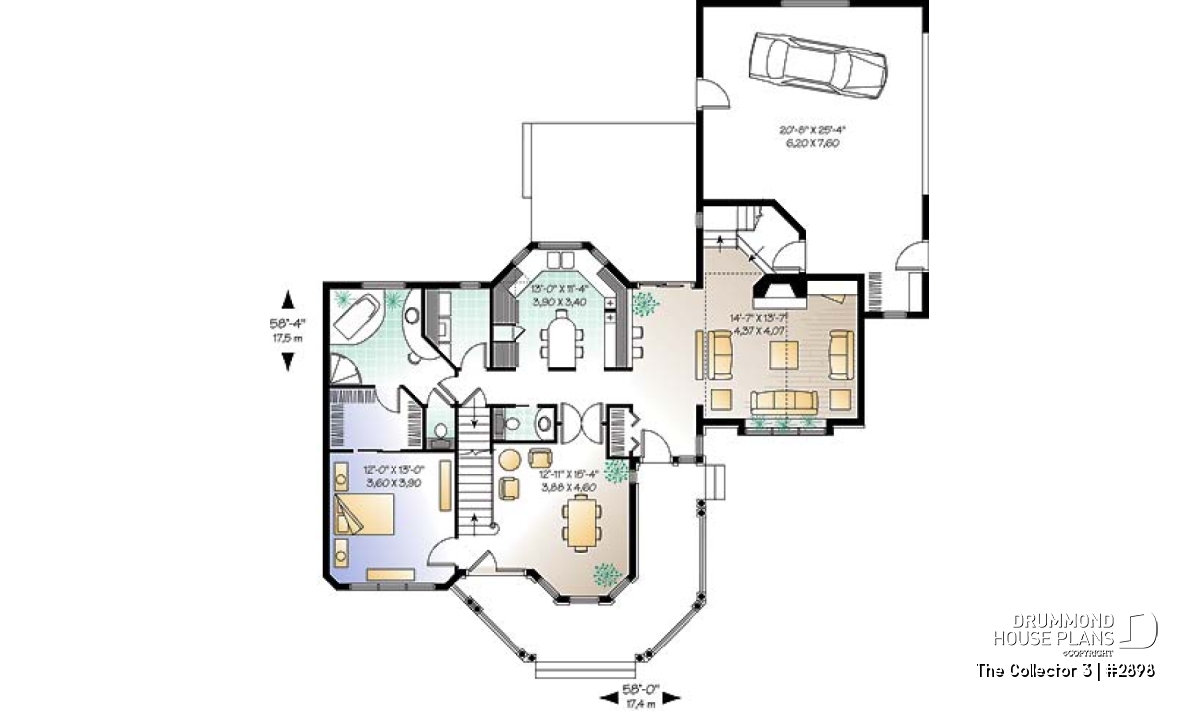

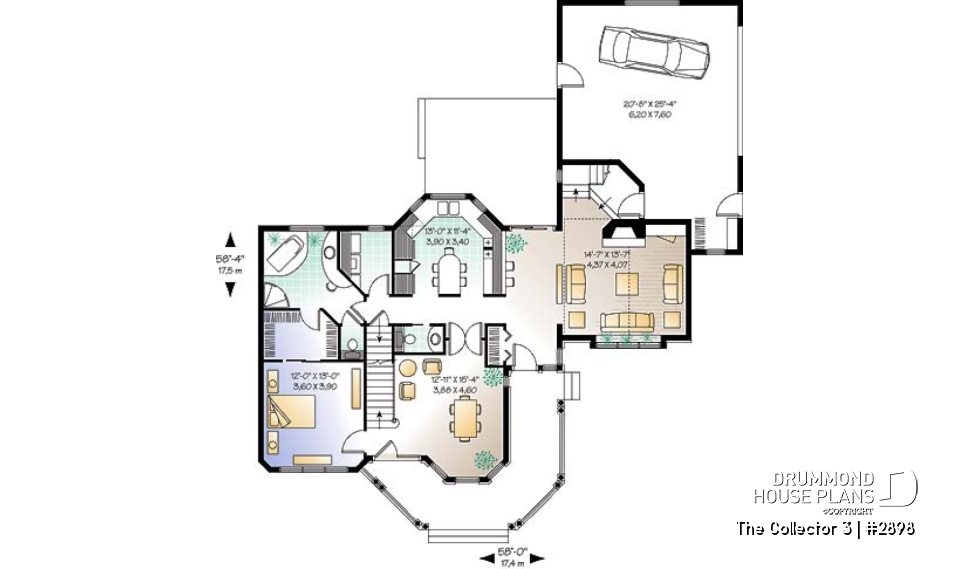

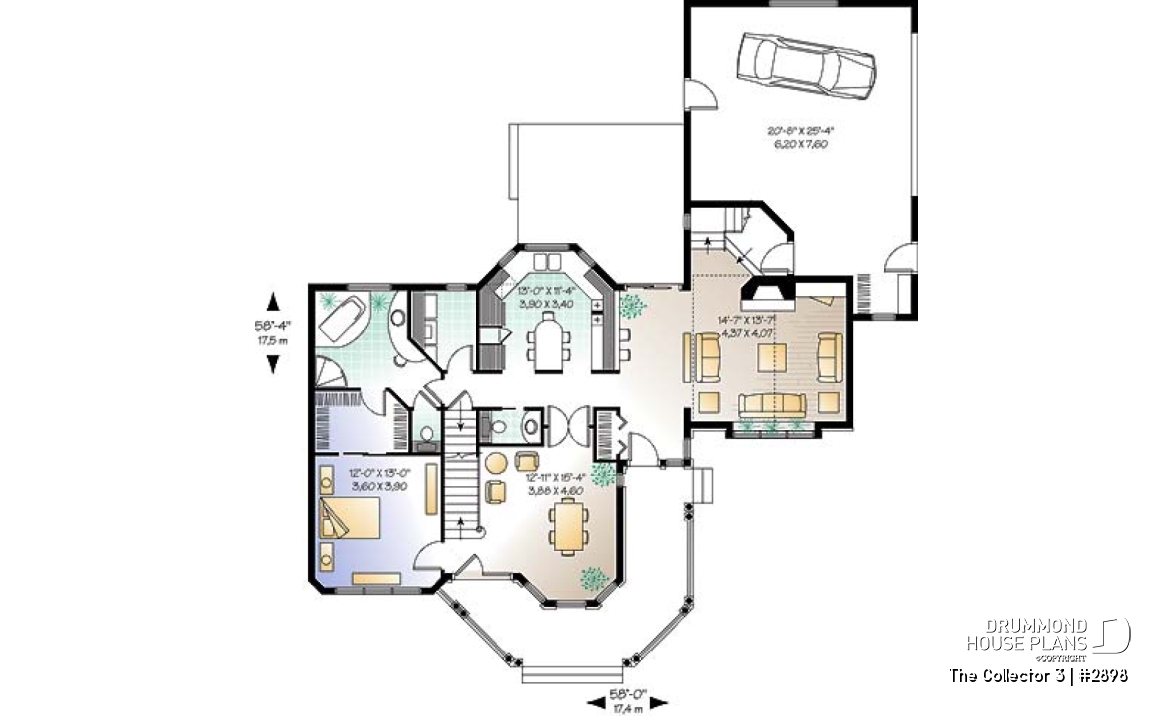

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'3" x 9'0" | ~ 9'0" |
| Kitchen | 13'0" x 11'6" | ~ 9'0" |
| Pantry | 1'5" x 2'0" | N/A |
| Dining room | 11'0" x 14'0" | ~ 9'0" |
| Living room | 15'0" x 13'0" | ~ 9'0" |
| Garage | 20'8" x 20'0" | ~ 9'6" |
| Closet | 5'4" x 3'3" | ~ 9'6" |
| Storage | 5'4" x 3'3" | ~ 9'6" |
| Porch | 23'10" x 6'4" | N/A |
| Deck | 16'0" x 15'0" | N/A |
| Laundry room | 5'9" x 7'5" | ~ 9'0" |
| Master suite | 12'0" x 13'0" | ~ 9'0" |
| Walk-in closet | 9'0" x 6'0" | ~ 9'0" |
| Half bath or powder room | 5'10" x 3'0" | ~ 9'0" |
| Foyer | 6'4" x 5'7" | N/A |
| Closet | 2'0" x 5'3" | ~ 9'0" |

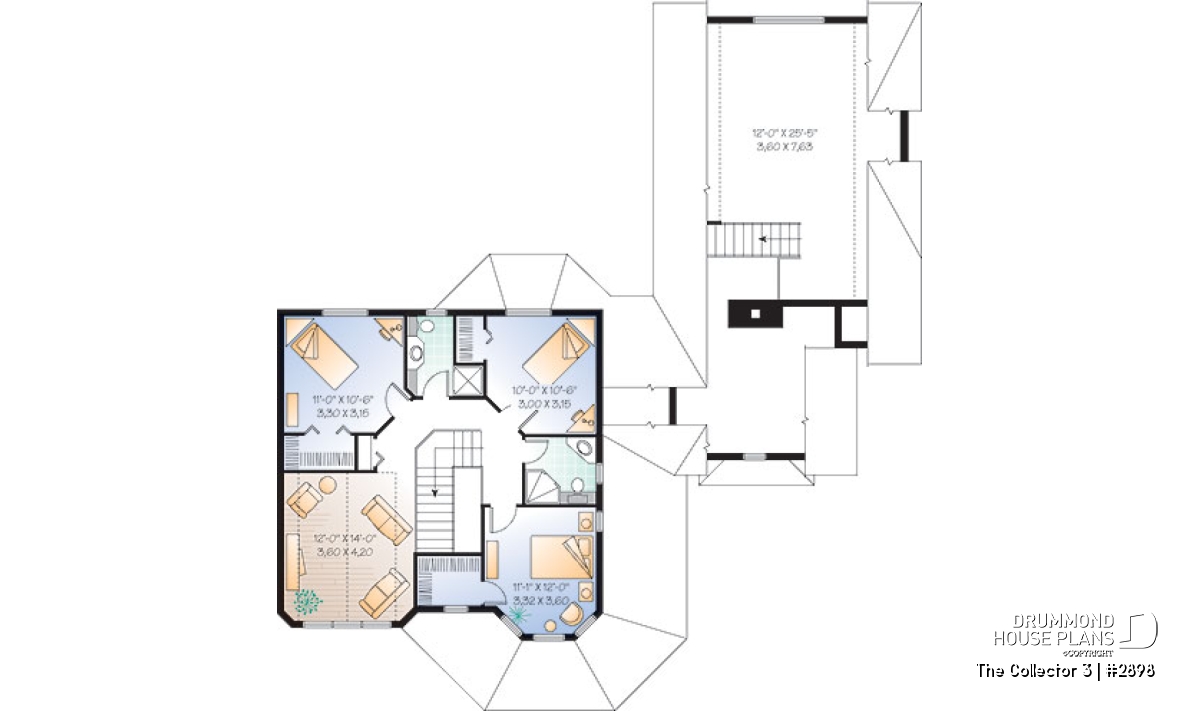

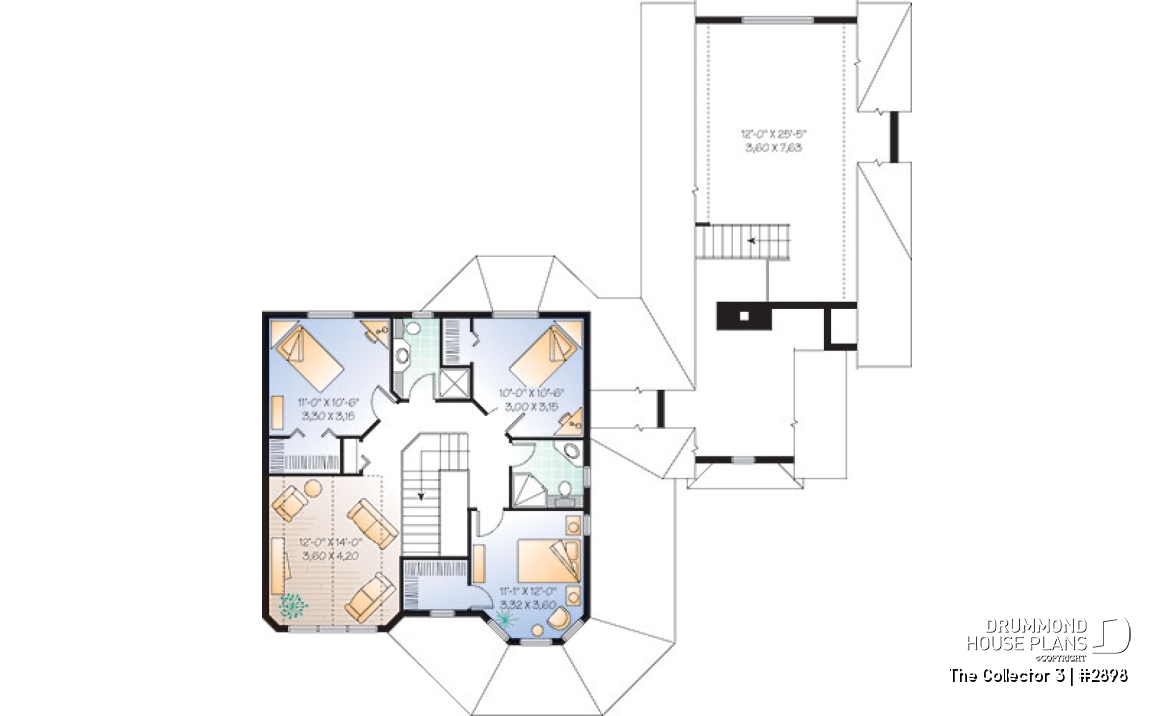

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'10" x 8'0" | ~ 8'0" |
| Full bathroom | 6'8" x 6'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'6" | ~ 8'0" |
| Walk-in closet | 7'0" x 3'6" | ~ 8'0" |
| Bedroom | 10'0" x 10'6" | ~ 8'0" |
| Closet | 4'5" x 2'6" | ~ 8'0" |
| Living bonus room | 12'0" x 25'5" | ~ 8'0" |
| Linen | 1'4" x 3'0" | ~ 8'0" |
| Bedroom | 11'1" x 12'0" | ~ 8'0" |
| Walk-in closet | 4'10" x 4'11" | ~ 8'0" |
| Great room or Family room | 12'0" x 14'0" | ~ 8'0" |
General specifications
| Total living area | 2265 sq.ft. |
| 1st level | 1371 sq.ft. |
| 2nd level | 894 sq.ft. |
| Width | 58'0" |
| Depth | 58'4" |
| Ridge height from top of foundation | 29'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications
Other useful information on this plan

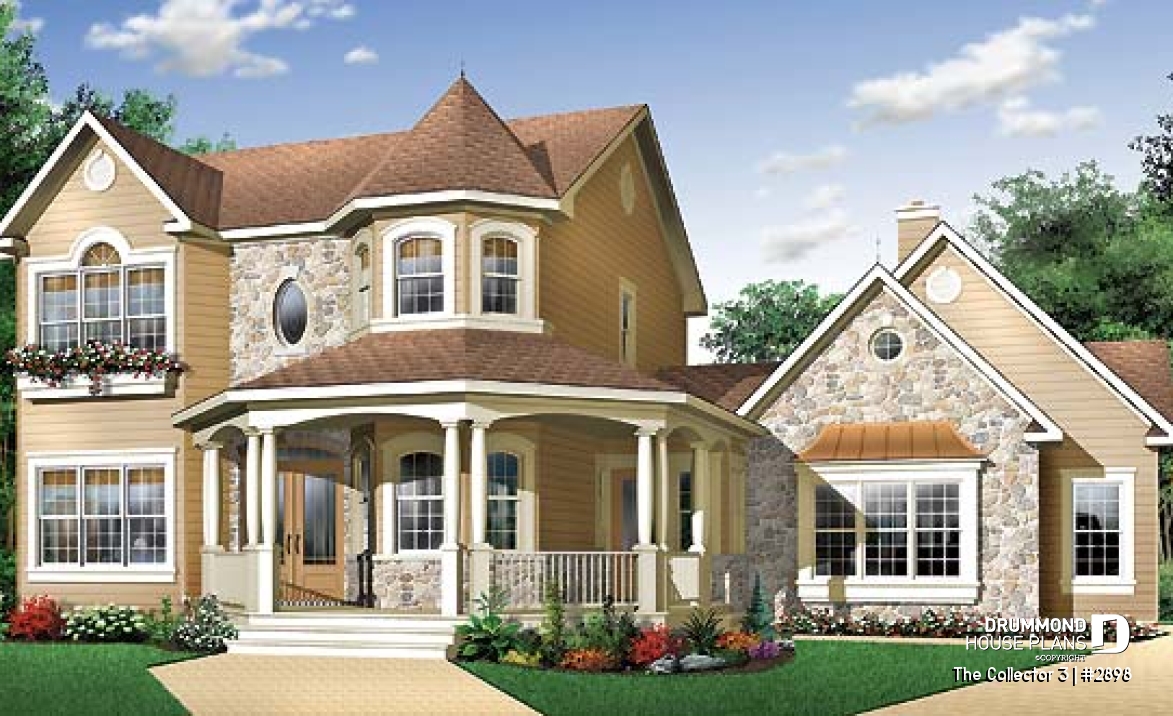

Beautiful 4 to 5 bathroom Victorian Cottage house plan with a 2-car garage + large bonus room above!
Cathedral ceilings and fireplace in the family room, a wonderful main-level master suite with bath, plus elegant after-dinner alcove in the dining room are a few winning attributes of this 2265 sq.ft. design. A tremendous kitchen feeds a hungry crowd. Three upstairs bedrooms bask in luxury with separate bath and shower rooms, and there’s a bonus space above the garage.
Distinctive elements
Abundant and special fenestration, 9 foot ceiling on main level, cathedral ceiling in family room, built-ins, formal dining room, special ceiling treatments, sideload garage, covered front balcony, 2 front entries.
Plan feature(s)
Fireplace, Cathedral ceiling, Living bonus space, Mezzanine, Ceiling over 8', Side entry garage, Lunch counter, Island, Warparound, Master suite on main, Gound floor laundry room, Sloped ceiling, Formal dining room, Separate bath and shower
Plan architectural style(s)
. Victorian, . Traditional, . American, . Farmhouse, . Country
