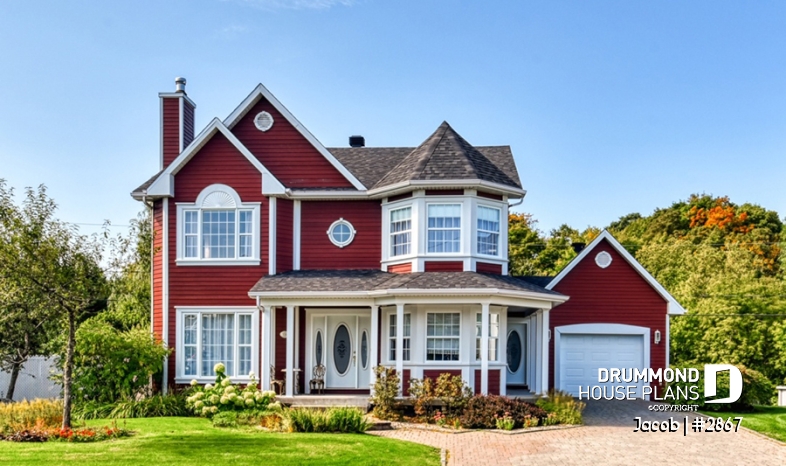

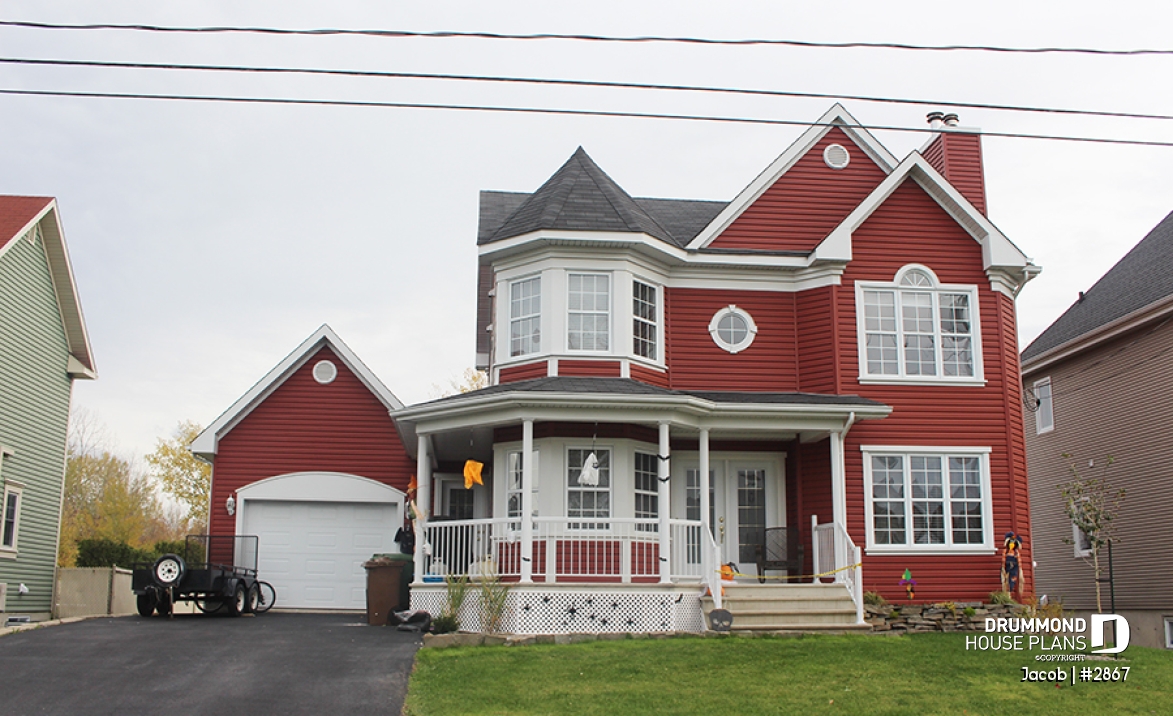

House plan Jacob (2867)
Victorian house plan with 3 to 4 bedrooms, 2 home offices, garage, unfinished basement
View the size of the rooms and height of the ceilings

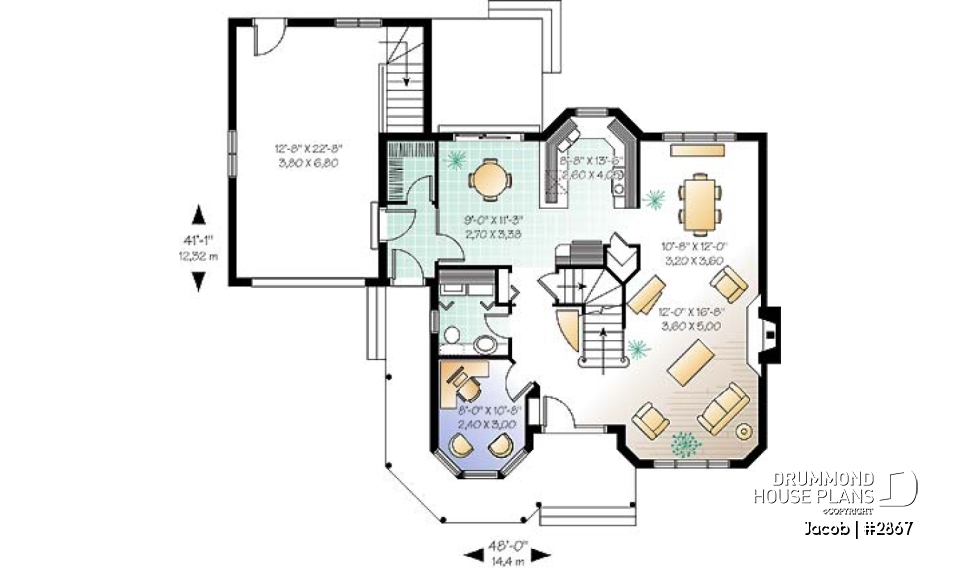

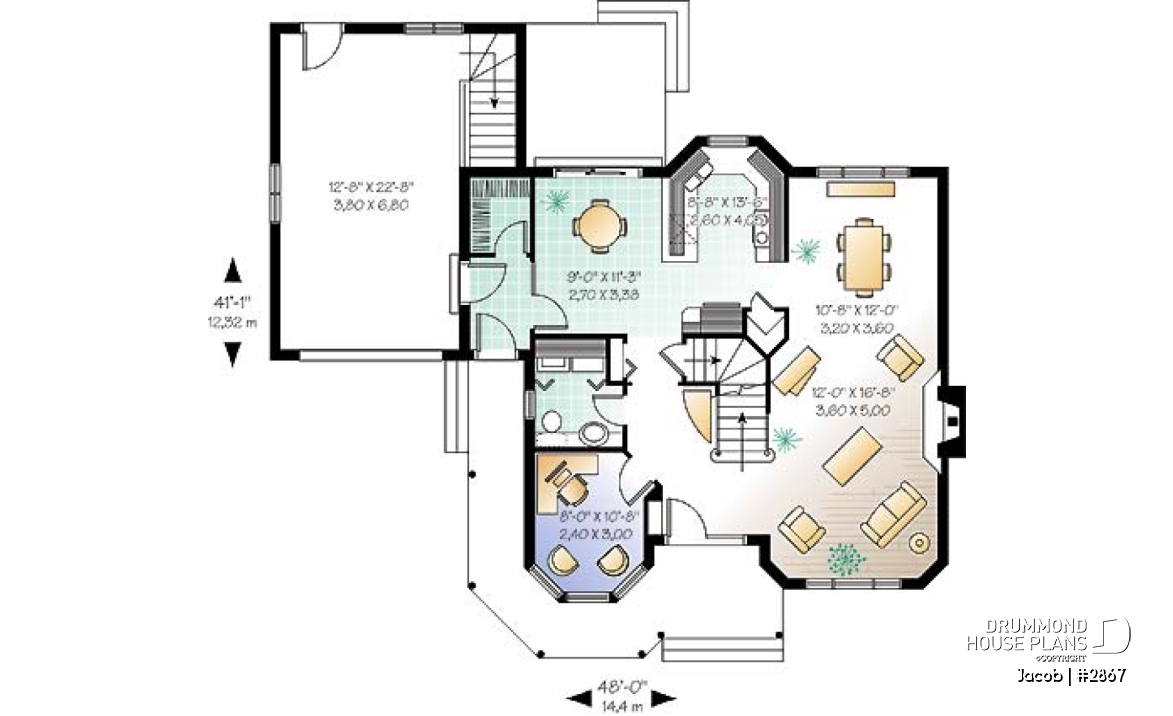

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 8'8" x 11'4" | ~ 8'0" |
| Breakfast nook | 9'0" x 11'4" | ~ 8'0" |
| Dining room | 10'8" x 12'0" | ~ 8'0" |
| Living room | 12'0" x 16'8" | ~ 8'0" |
| Home office | 8'0" x 10'1" | ~ 8'0" |
| Linen | 4'4" x 1'8" | ~ 8'0" |
| Foyer | 4'4" x 7'0" | ~ 8'0" |
| Garage | 12'8" x 22'8" | ~ 8'0" |
| Porch | 22'4" x 4'0" | N/A |
| Porch | 4'0" x 14'4" | N/A |
| Terrace | 9'8" x 10'0" | N/A |
| Half bath or powder room | 6'4" x 7'6" | ~ 8'0" |

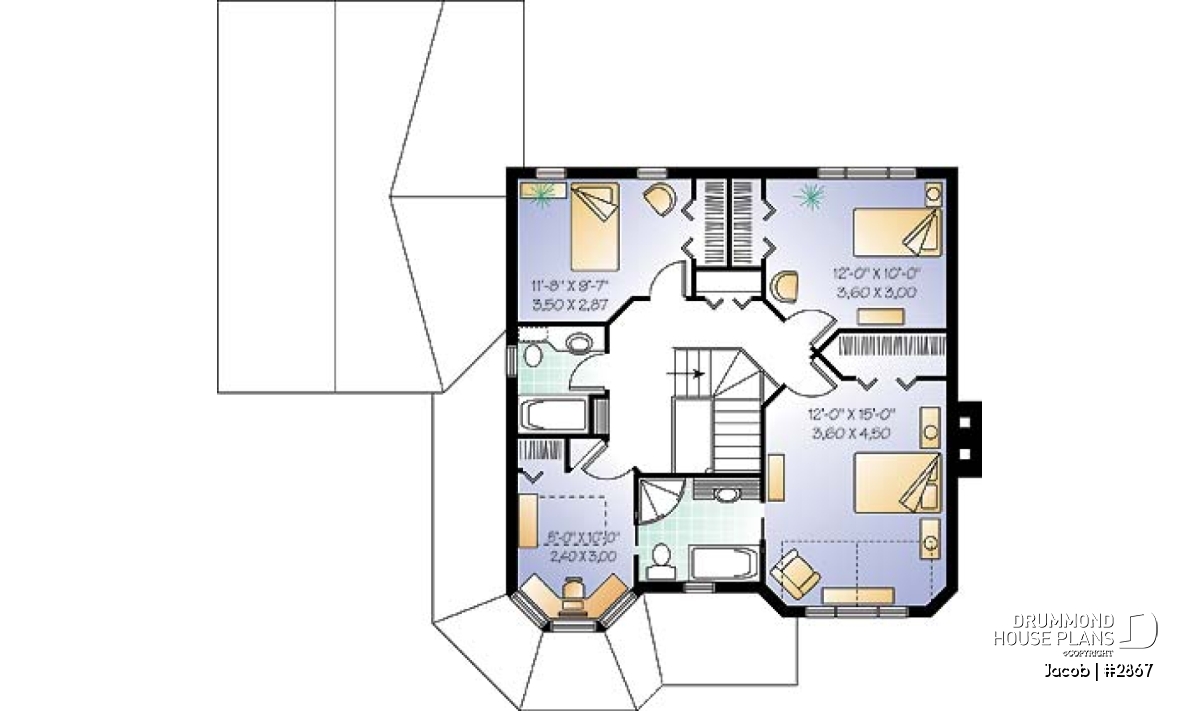

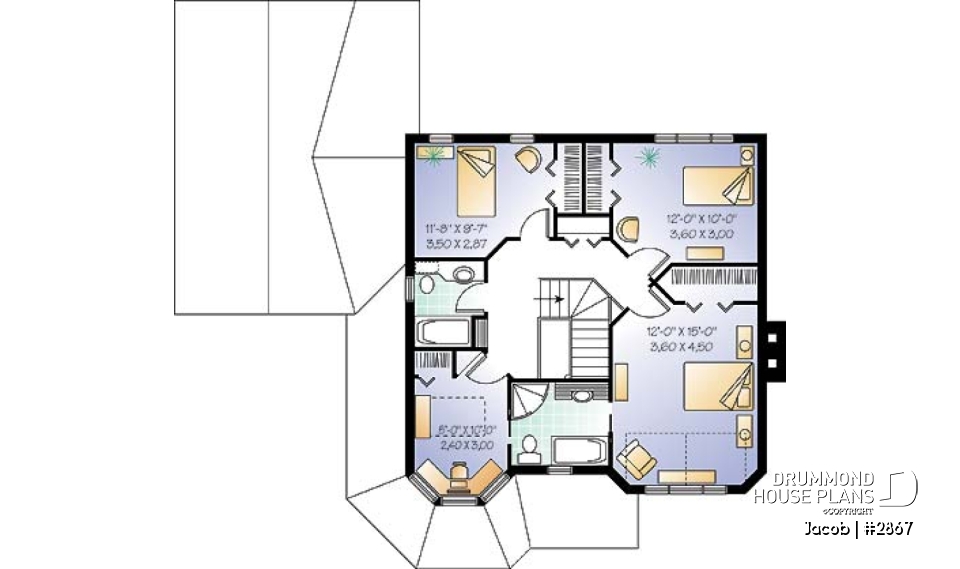

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'0" x 7'2" | ~ 8'0" |
| Bedroom | 12'0" x 10'0" | ~ 8'0" |
| Bedroom | 11'8" x 9'8" | ~ 8'0" |
| Bedroom | 8'0" x 10'0" | ~ 8'0" |
| Master suite | 12'0" x 15'0" | ~ 8'0" |
| Storage | 1'0" x 3'0" | ~ 8'0" |
| Linen | 1'0" x 2'3" | ~ 8'0" |
| Reading/computer area | 8'0" x 10'0" | ~ 8'0" |
General specifications
| Total living area | 1846 sq.ft. |
| 1st level | 958 sq.ft. |
| 2nd level | 888 sq.ft. |
| Width | 48'0" |
| Depth | 41'1" |
| Ridge height from top of foundation | 28'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
3 to 4 bedroom Victorian style house plan with garage and 2 home offices!
.
Distinctive elements
Home office (or bedroom #4), access to basement from garage as well as walk-in closet at entrance from garage to house, wraparound balcony, abundant fenestration, built-ins.
Plan feature(s)
Fireplace, Breakfast nook, Gound floor laundry room, Pantry, Mud room, Warparound, Basement access from garage, Jack & Jill bath, Office / Study / Den, Formal dining room, Separate bath and shower
